ROTEK
Based in Bremerhaven, North Germany, ROTEK is a family owned company that has been producing high quality AC synchronous motors and geared motors since the 1960’s. ROTEK products are compact, high quality and have a long service life.
Features and benefits:
- Typically 30% smaller than a conventional induction motor
- Up to 95% efficiency from a 100W 3 phase motor
- No speed deviation up to maximum torque
- Speed range from 0-1500r/min at 50Hz
- Available as motor only or with planetary, worm or spur gear
- Single or three phase (inverter drive)
- BLDC motors and geared motors
Typical applications for ROTEK products:
- Labelling machinery
- Public access control
- Valve control and positioning
- Vending
- Conveyors
Product Ranges
ROTEK
Rotek - Rosync AC motor
- 1→3 phase, 24V→400Vac, 50/60Hz, 20→85W, 12→54Ncm, 1500→1800rpm
- 65mm Ø
- Constant speed
- Short start-up and stopping times
- Extremely compact and efficient (up to 90%)
ROTEK
Rotek - Robase AC motor
- 1→3 phase, 24V→400Vac, 50/60Hz, 8→31W, 5→28Ncm, 1000→1800rpm
- 65mm Ø
- Constant speed under varying load
- Short start-up and stopping times
- Excellent self-holding torque
ROTEK

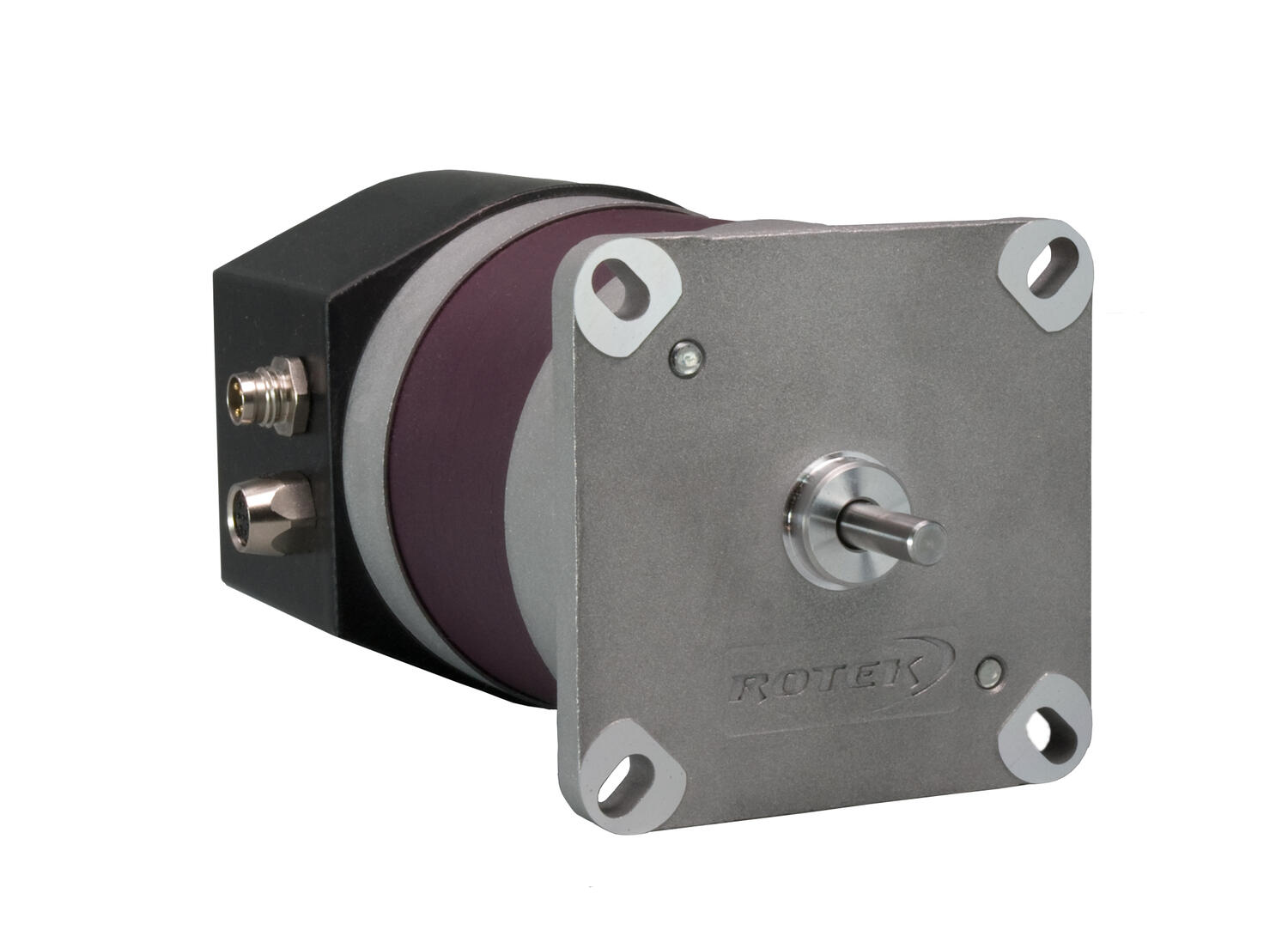

Rotek - Romotion motor
- 24-48Vdc with integrated drive
- 65mm Ø
- 80→200W output power
- 400→4000rpm
- 0-10v inputs for control
ROTEK
Rotek - Roslyde AC motor
- 1→3 phase, 24V→400Vac, 50/60Hz, 11→40W, 6→26Ncm, 1500→1800rpm
- 65mm Ø
- Constant speed
- Short start-up and stopping times
- Low-vibration, low-noise & low running temperature
ROTEK
Rotek - Robase AC motor + Spur gearbox
- 1→3 phase, 24V→400Vac, 4→6 pole, 8→31W, 8Nm Max, 0.75→300rpm@50Hz
- Spur gearbox - Excellent cost to performance ratio
- Constant speed under varying load
- Short start-up and stopping times
- Excellent self-holding torque
