HYPERSPECTRAL CAMERAS
What are Hyperspectral cameras?
Unlike regular RGB cameras, a hyperspectral camera records a complete spectrum for each pixel, making it possible to identify and distinguish materials based on their chemical composition. The cameras are available as Line Scan for high-speed applications on conveyor belts and are easily integrated via GigE Vision or CameraLink. Use the filter below to find the right camera for your application.

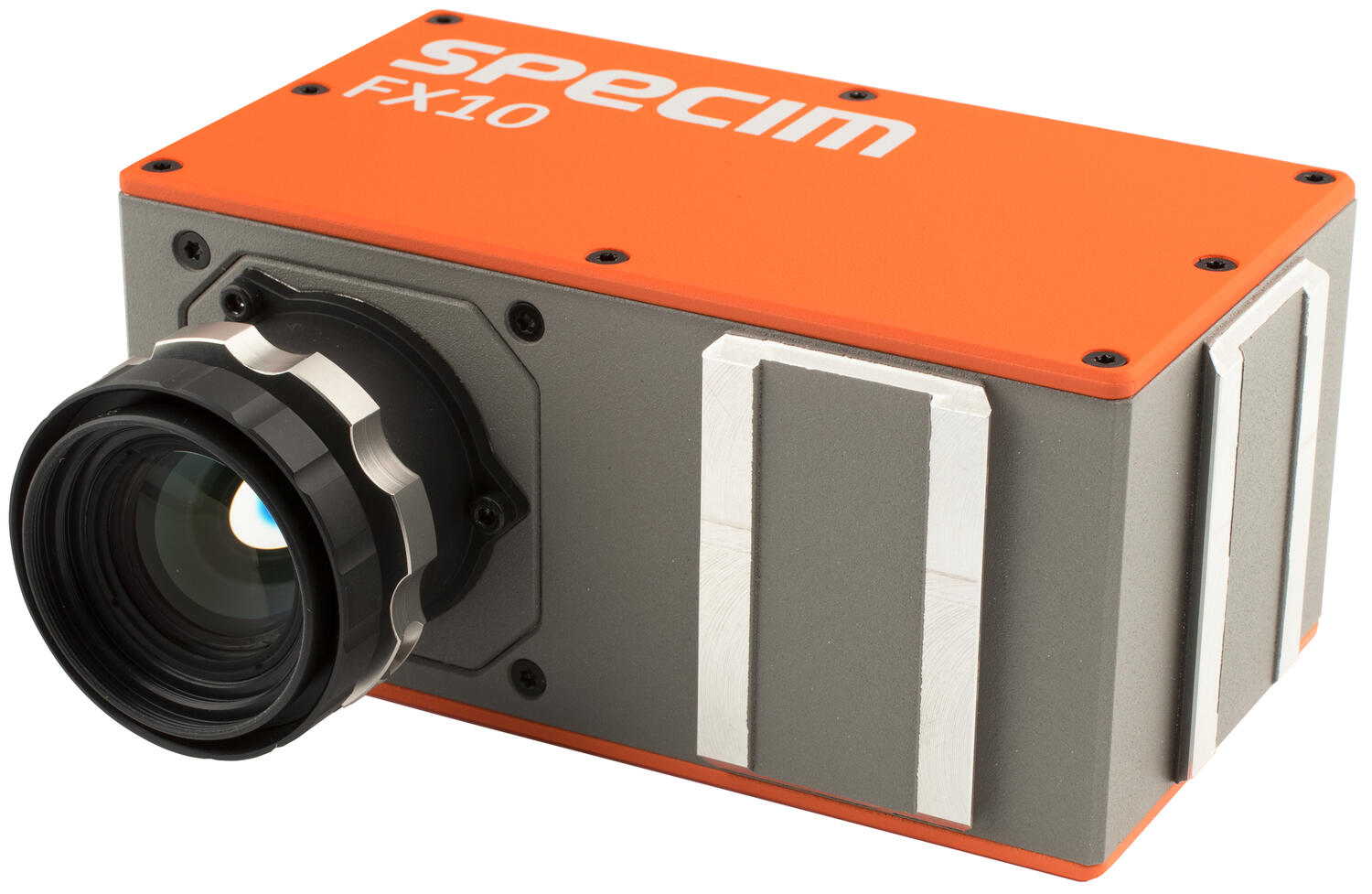

FX10
FX10 Series
- VNIR 400-1000 nm with up to 224 freely selectable spectral bands
- Up to 327 FPS, 1024 spatial pixels, 12-bit dynamics, SNR 420:1
- Built-in AIE with uniform spectral calibration, smile/keystone correction
- GigE Vision and CameraLink, GenICam compatible, 12V DC
- CE, RoHS, IP52, passive cooling, operating temperature +5 to +40°C
FX10+
- VNIR 400-1000 nm with up to 200 freely selectable spectral bands
- Up to 705 FPS, 1024 spatial pixels, 12-bit dynamics, SNR 420:1
- Built-in AIE with uniform spectral calibration, smile/keystone correction
- GigE Vision with GenICam support, 12 V DC, IP52
- CE, RoHS, passive cooling, operating temperature +5 to +40°C

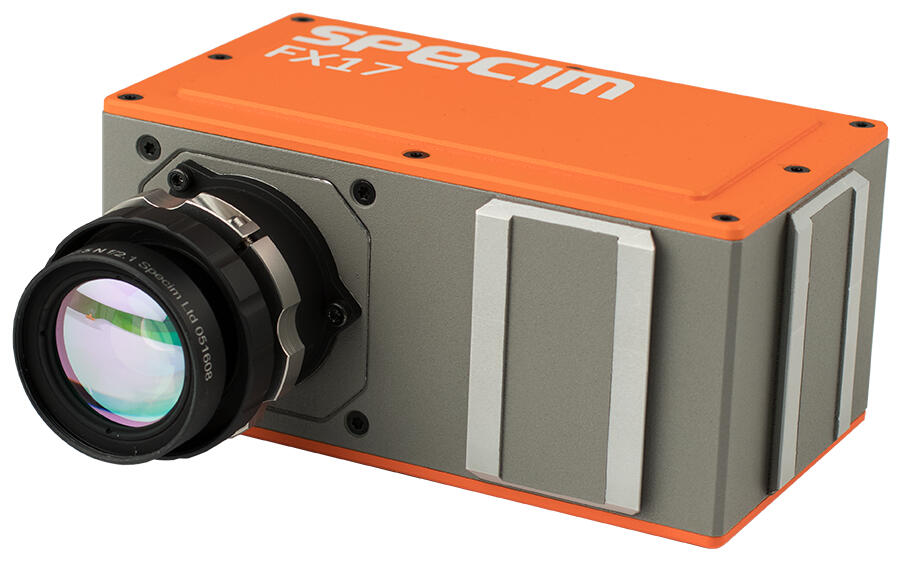

FX17
FX17 Series
- NIR 900–1700 nm with 224 freely selectable spectral bands
- Up to 670 FPS, 640 spatial pixels, 12-bit dynamics, SNR 1000:1
- Built-in AIE with uniform spectral calibration, smile/keystone correction
- CameraLink or GigE Vision, GenICam compatible, 12 V DC
- CE, RoHS, IP52, TEC cooled InGaAs sensor, operating temperature +5 to +40°C

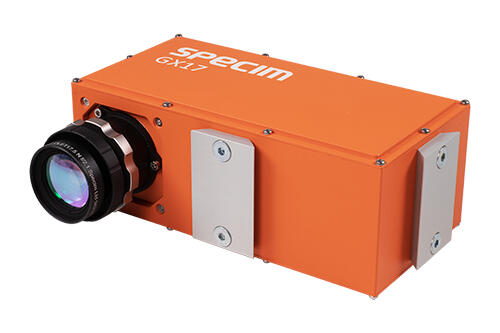

GX17
GX17 Series
- NIR 980–1730 nm with 168 spectral bands
- Up to 800 FPS, 480 spatial pixels, 16-bit output, SNR 700
- F/1.7 optics for maximum signal strength and speed
- GenCP compliant CameraLink, SpecimONE support, 10-32 VDC
- CE, RoHS, IP52, compact 1.9kg, operating temperature +5 to +40°C

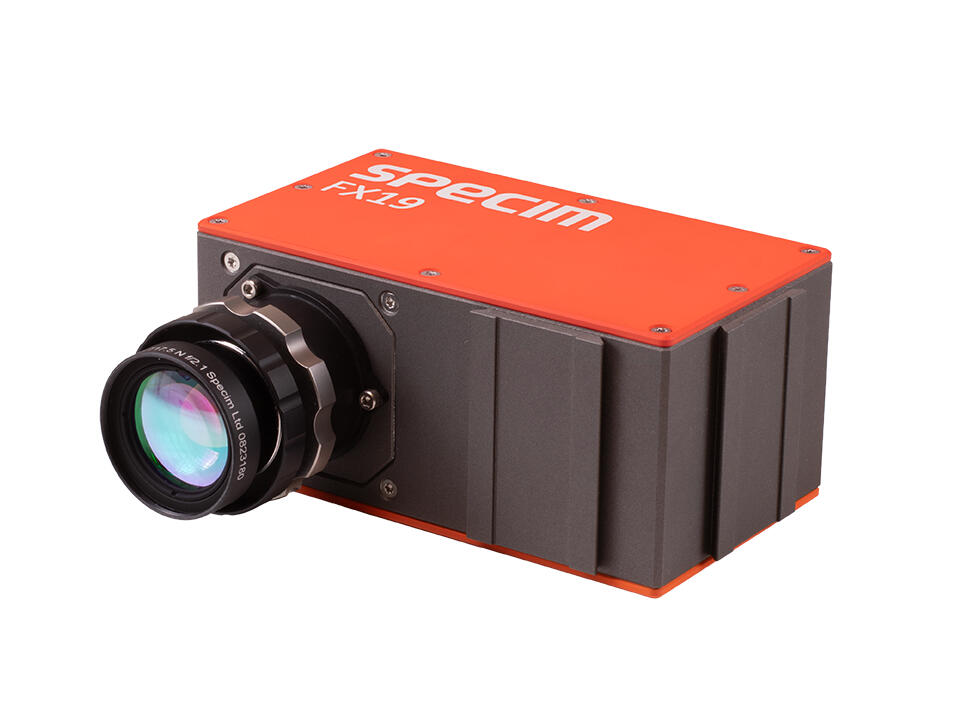

FX19
FX19 Series
- NIR/SWIR 1130–1920 nm with 224 freely selectable spectral bands
- Up to 527 FPS, 640 spatial pixels, 12-bit dynamics, SNR 1170:1
- Built-in AIE with uniform spectral calibration, smile/keystone correction
- GigE Vision with GenICam support, 12-24 V DC, four mounting surfaces
- CE, RoHS, IP52, TEC cooled InGaAs sensor, operating temperature +5 to +40°C

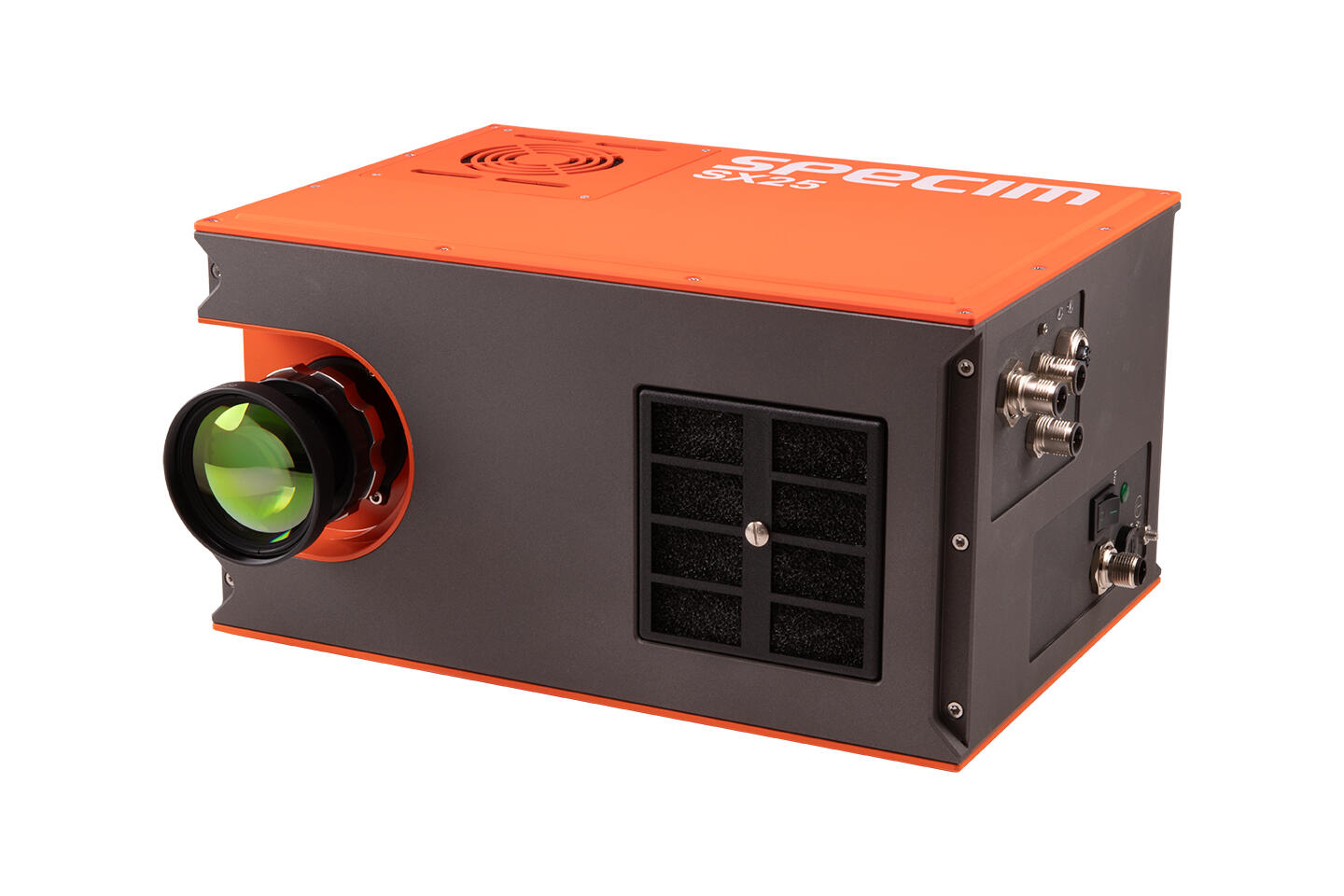

SX25
SX25 Series
- SWIR 960–2500 nm with 392 spectral bands
- Up to 162 FPS, 640 spatial pixels, 16-bit dynamics, SNR 1500:1
- Built-in AIE, NUC, BPR and dark level stabilization, dynamic range 4500:1
- GigE Vision with GenICam and JSON-RPC, 24 V DC via AC adapter
- CE, MCT sensor with integrated Stirling cooling, IP40

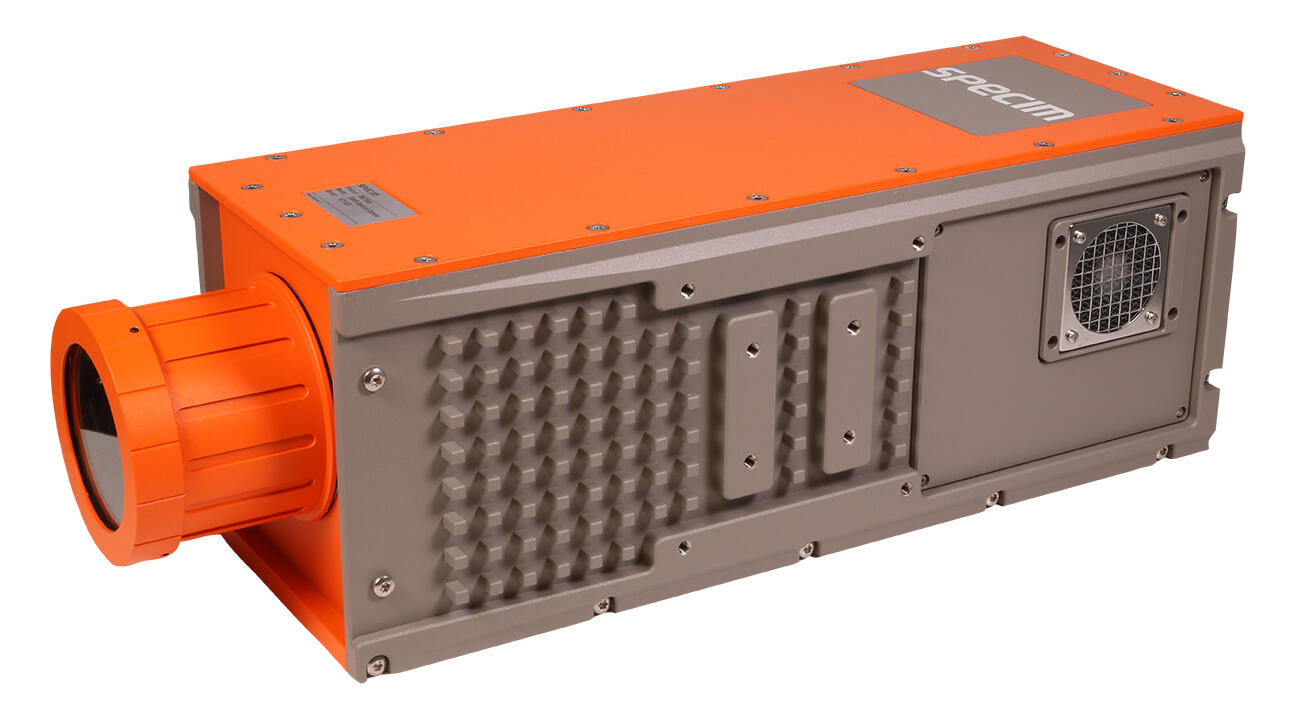

SWIR
SWIR Series
- SWIR 1000–2500 nm with 270–288 spectral bands
- Up to 450 FPS, 384 spatial pixels, 16-bit dynamics, SNR 1050:1
- Cryogenic cooled MCT detector with Stirling cooling and temperature-stabilized optics
- Six interchangeable fore lenses from macro to 54° FOV, C-mount, fiber optics for multi-point metering
- 16-bit CameraLink with NI-1433 / Epix E4 frame grabber, USB/RS232 control, 18-36 V DC

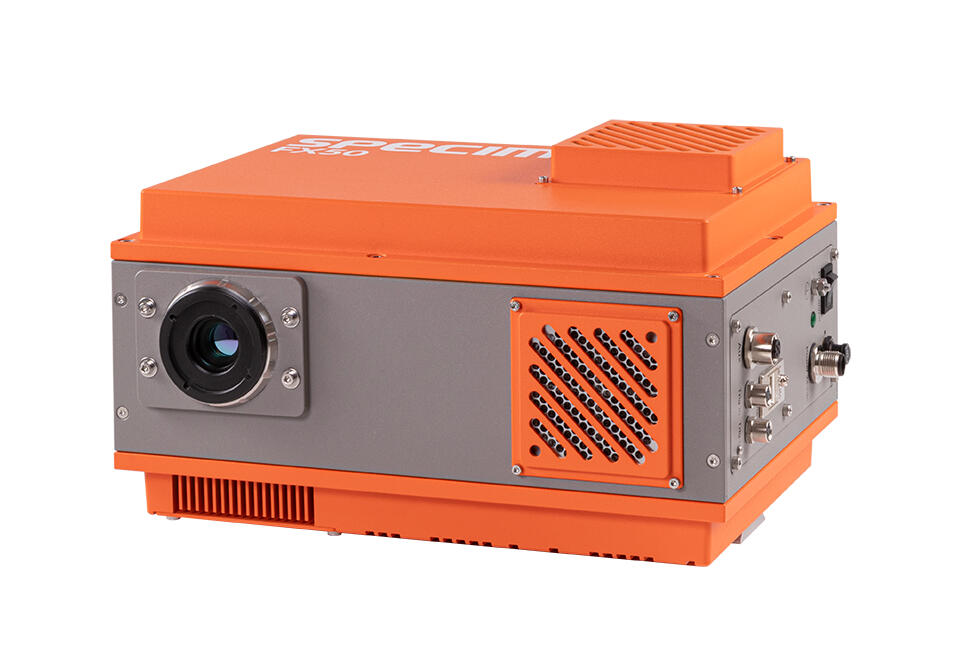

FX50
FX50 Series
- MWIR 2.7–5.3 μm with 154 spectral bands
- Up to 377 FPS, 640 spatial pixels, 16-bit dynamics, SNR up to 1300:1
- Built-in AIE, NUC, and BPR, dynamic range up to 5000:1, temperature-stabilized optics
- GigE Vision with GenICam and JSON-RPC, 24 V DC, IP40
- CE, RoHS, MCT sensor with integrated Stirling cooling

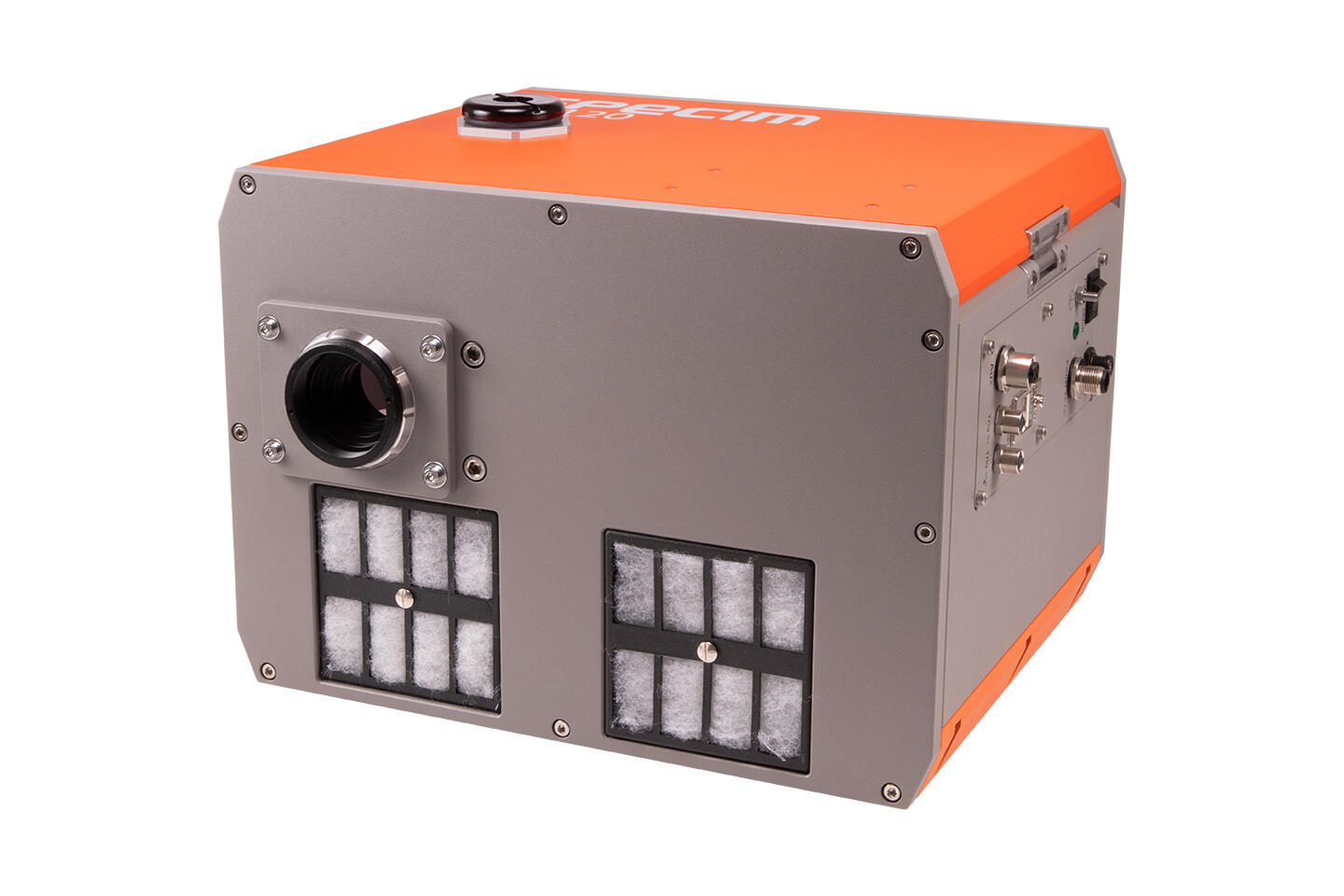

FX120
FX120 Series
- LWIR 7.7–12.3 μm with 160 spectral bands
- Up to 240 FPS, 616 spatial pixels, 16-bit dynamics, SNR up to 2500:1
- Built-in AIE, NUC, and BPR, dynamic range up to 6000:1, TEC-stabilized optics
- GigE Vision with GenICam and JSON-RPC, 24 V DC, IP40
- RoHS, REACH, MCT sensor with integrated Stirling cooling
