Power Distribution Blocks
Conta-Clip stud terminals can be used to terminate cables up to 300mm². A range of cross connecting bars and gull-wing covers are available for added protection.
Compact Modular distribution terminals - SVBKA
SVBKA
- IP20 protection
- Wire connection cross sections 1.5 - 240 mm²
- Suitable for copper and aluminium cables
- Foot can be snapped on DIN 35 or direct mounted
- Housing made of polyamide 6.6 UL 94 V-0

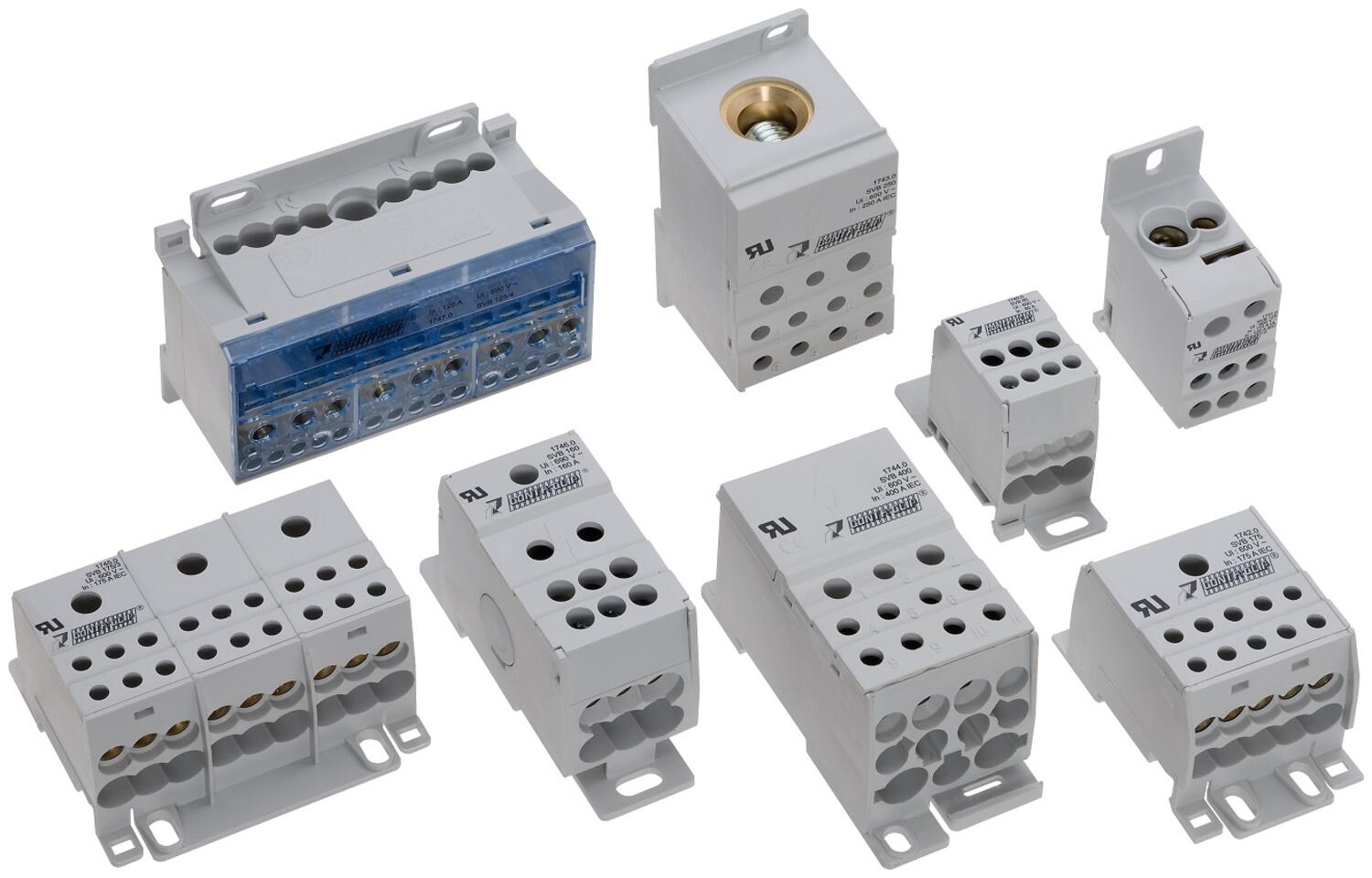

Distribution blocks CU SVB
SVB
- High short-circuit resistance rating
- IP20-class protection
- 1000VAC / 1500VDC rated
- TS 35 din rail or direct mounting
- Housing made from polyamide 6.6 UL 94-V0
Distribution blocks Au/Cu - SVBA
SVBA
- IP20 protection (SVBA 1100A: IP10)
- Foot base can be snapped on TS 35 DIN rail or suitable for direct mounting
- Built-in adjustable phase marking (not for SVBA 1100A)
- Interchangeable markings for N, PE, DC + etc. (not for SVBA 1100A)
- Suitable for copper and aluminum conductors

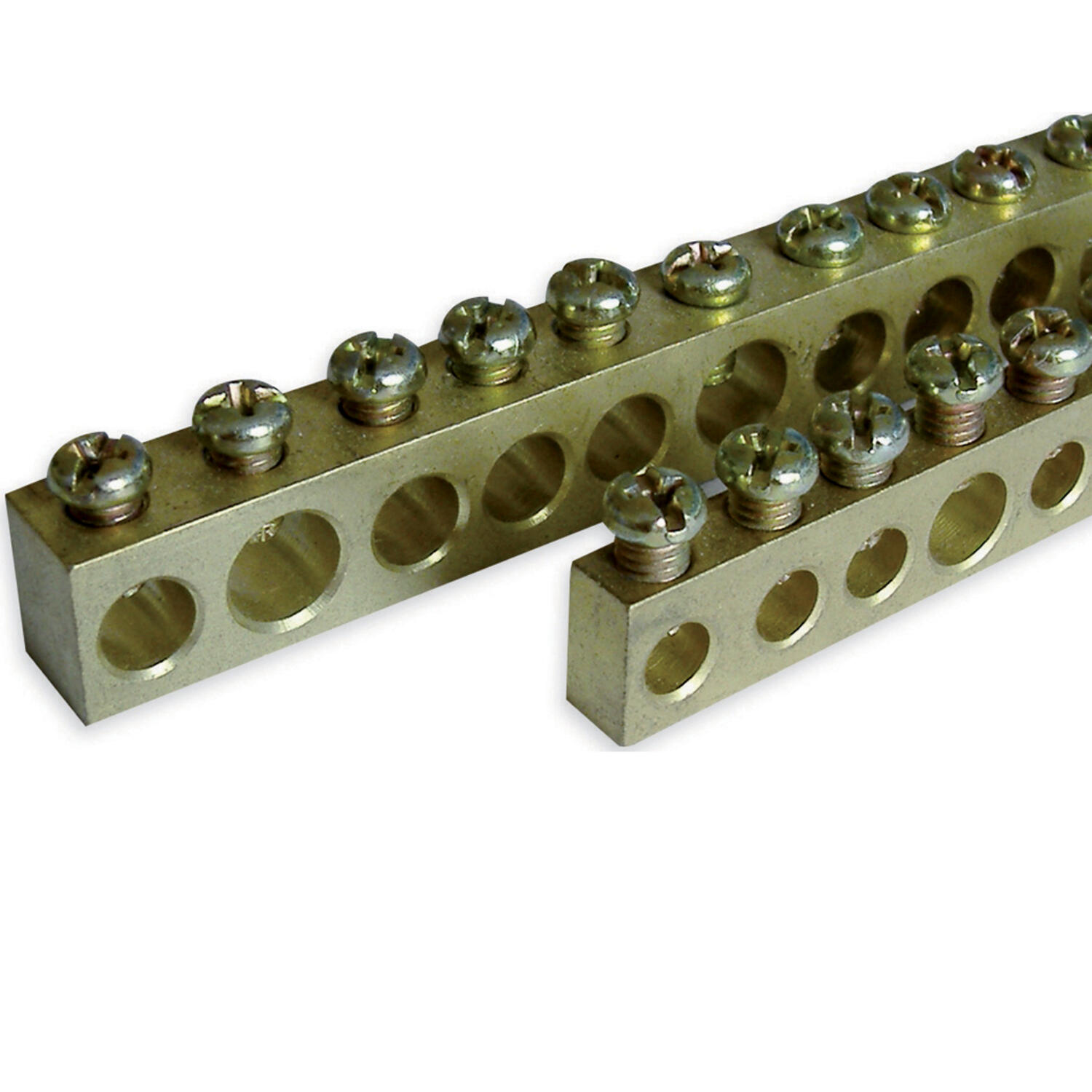

Brass Earth distribution terminals
MRS
- Screws in galvanized steel.
- High conductivity brass
- Complete with fixings
- Earthing Bars

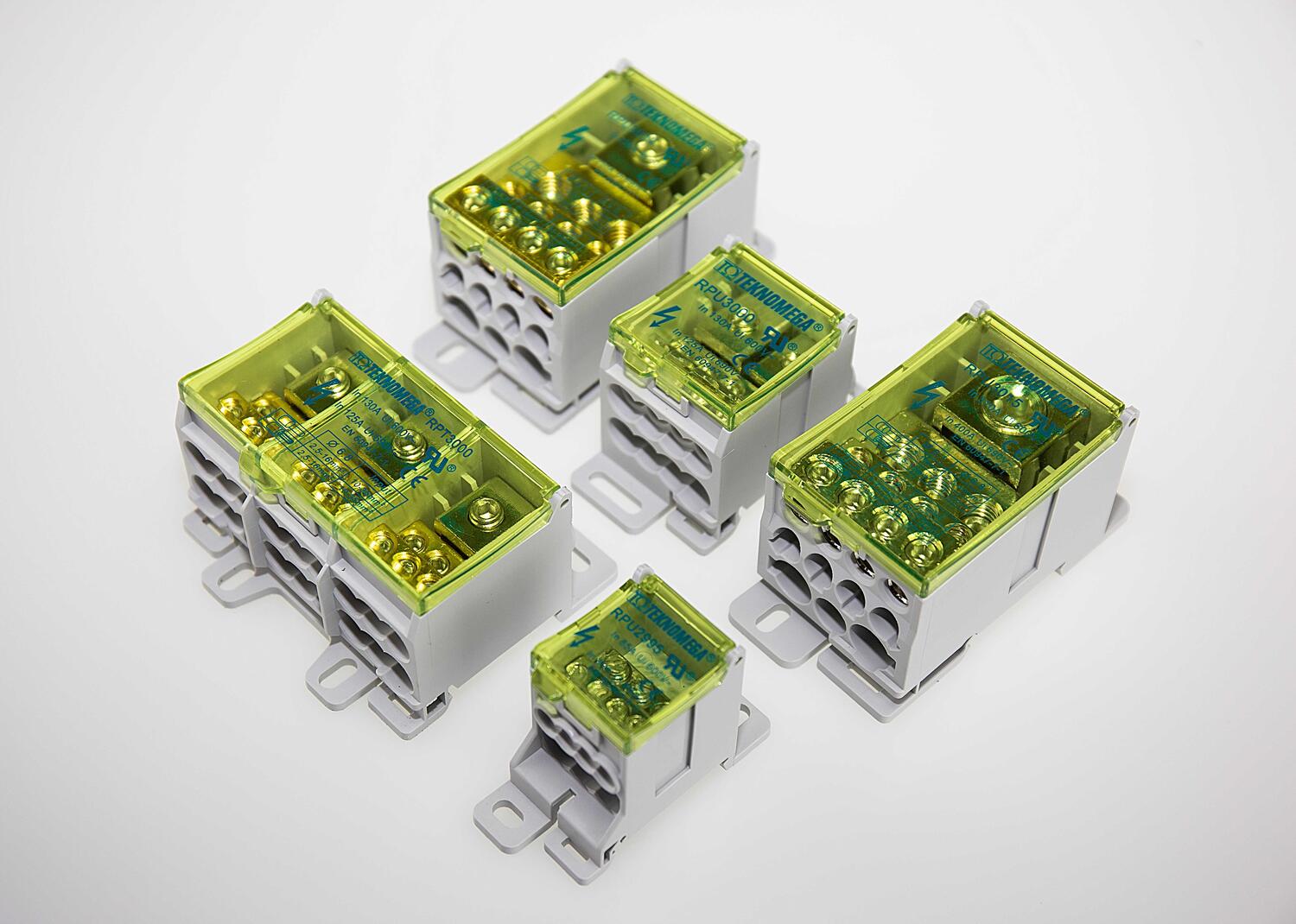

Compact Distribution blocks
RPU, RPT
- Separate inputs
- Easy wiring
- Galvanised steel screws included
- Quick hook up on DIN rails
- UL Listed 302208
2-4 POLE DISTRIBUTION BLOCKS
RPB & RPQ
- 40 A to 160 A.
- Self-extinguishing insulating structure UL 94-V0
- Insulation between phases
- Brass conductors

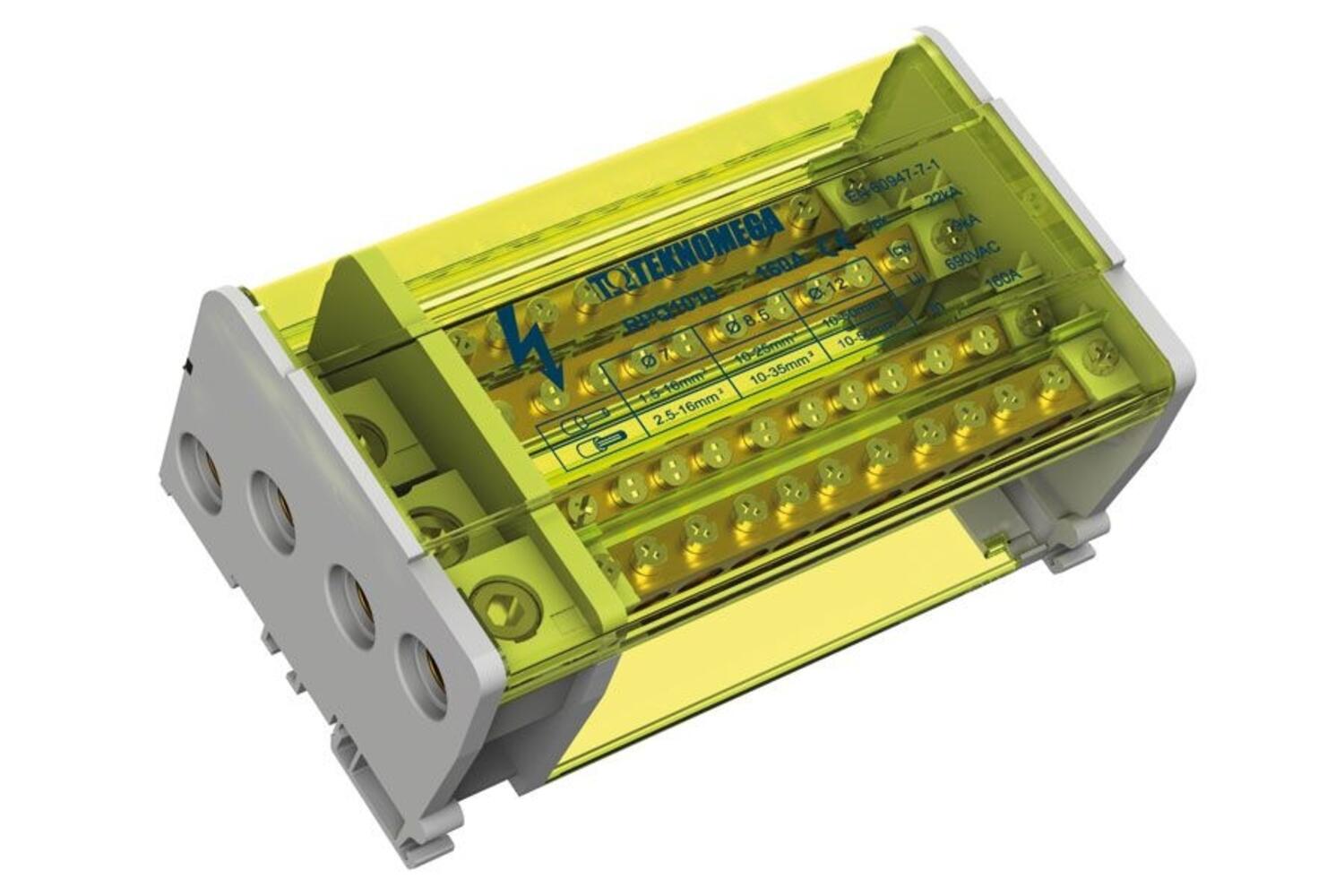

4 POLE DISTRIBUTION BLOCKS
RPQ
- 40 A to 160 A
- Brass conductors
- Self-extinguishing insulating structure UL 94-V0
- Insulation between phases

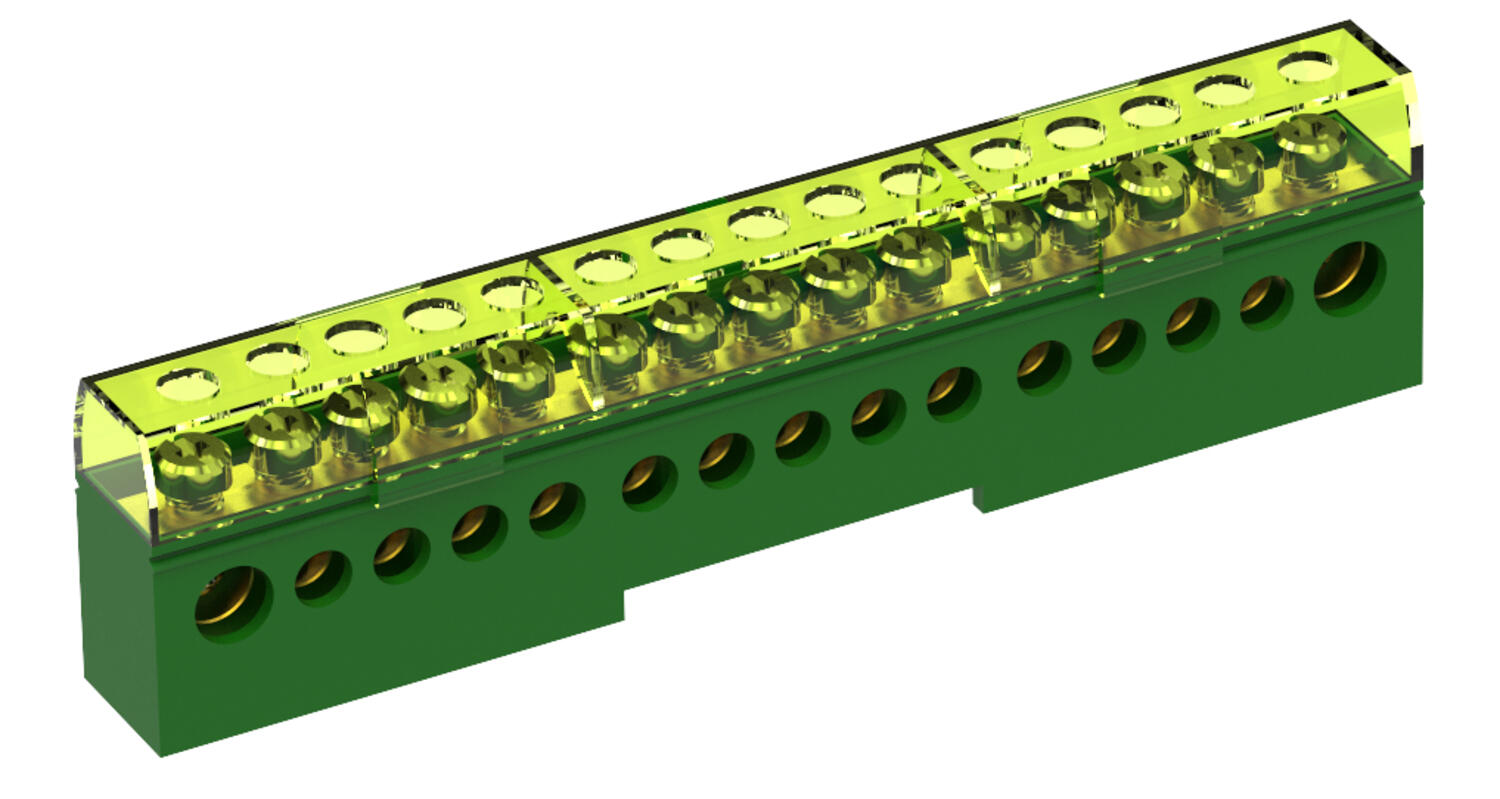

Unipolar terminal blocks
ITB
- Insulating body: PA 66 UL 94-V0
- Grey RAL 7035 - Blue RAL 5012 - Green RAL 6024
- Cover: PC UL 94-V0, transparent yellow
- Conduction block: Brass

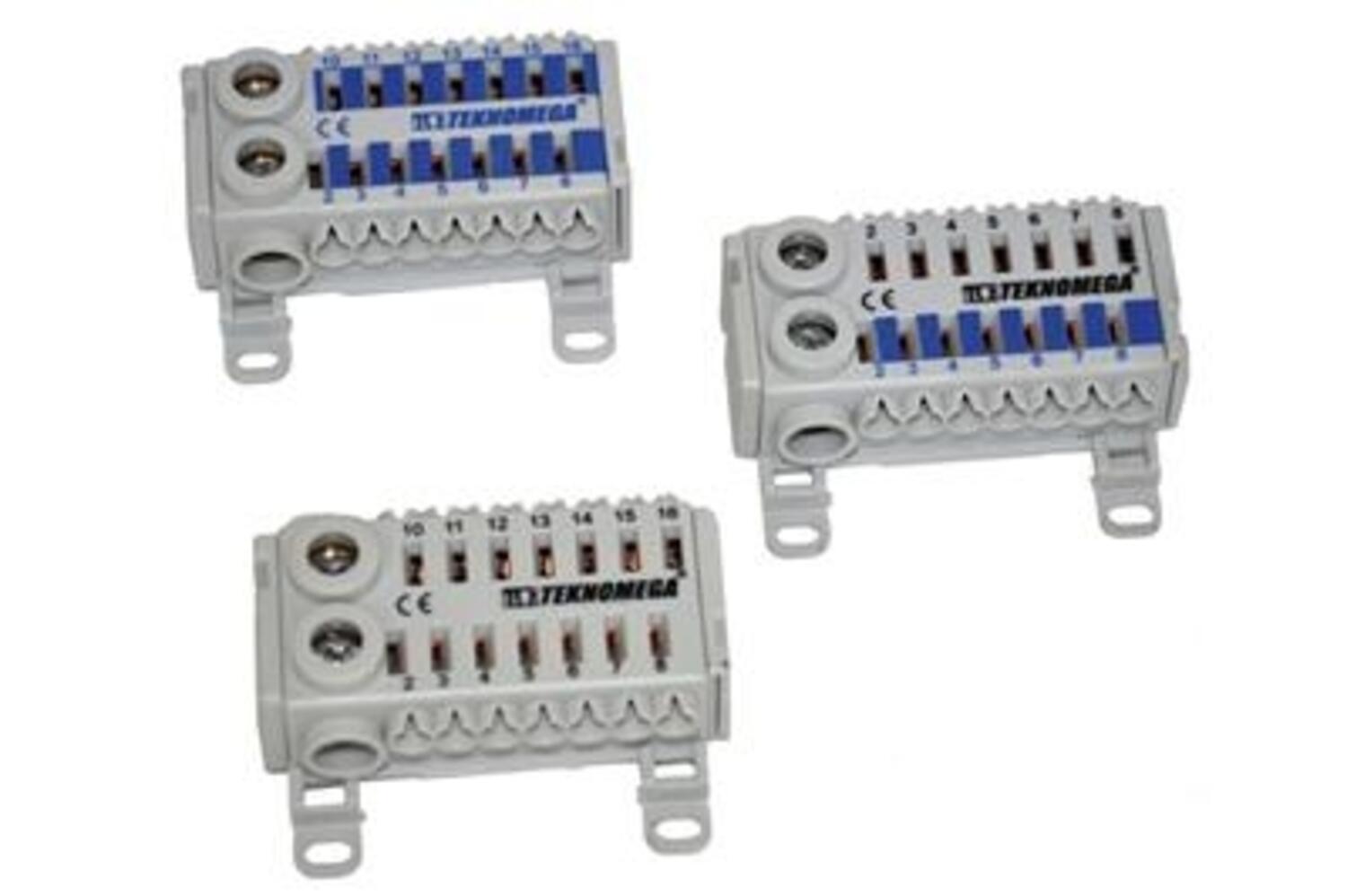

QUICK DISTRIBUTION BLOCKS
RPU
- Extremely easy wiring
- Output with spring tightening
- Self-extinguishing as per UL 94-V0

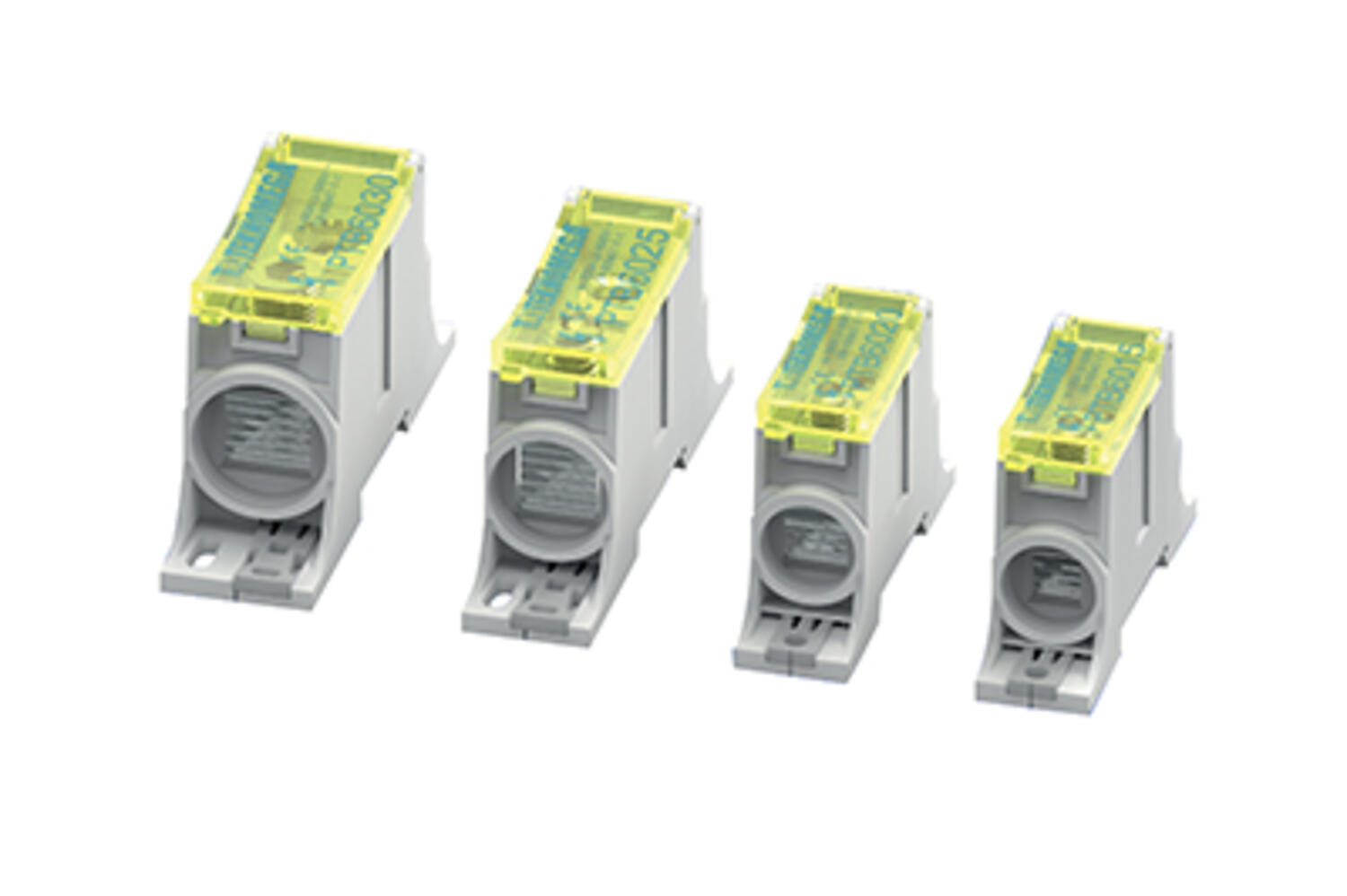

Power Terminal Blocks
- Power terminals 125-160-250-400 A
- Self-extinguishing insulating body: PA 6 UL 94-V0
- Openable and removable frontal protection cover
- Compliant with standard EN 60947-7-1
- Direct connections with COFLEX, COFLEX PLUS
