Power Supplies

We offer a complete range of power supplies, redundant systems, DC-UPS and a number of specially adapted units for e.g. Explosive environment (ATEX) or NEC class 2 circuits from our manufacturer PULS. Power supply for 110 V DC input voltage with current capacity from 0.6 A up to 20 A (24 V DC).
Puls QT20.241 AC-DC power supply

AC-DC Power Supplies

CD5.241 Puls DC-DC power supply

DC-DC Power Supplies

Puls 24 V DC UPS

DC-UPS and Buffer Modules

Our DC-UPS systems provide great flexibility and reliability and are very easy to install. A complete DC-UPS system consists of a control unit as well as a battery and power supply with suitable power for the application. In the event of a power failure, the battery is automatically switched on and supplies connected loads.

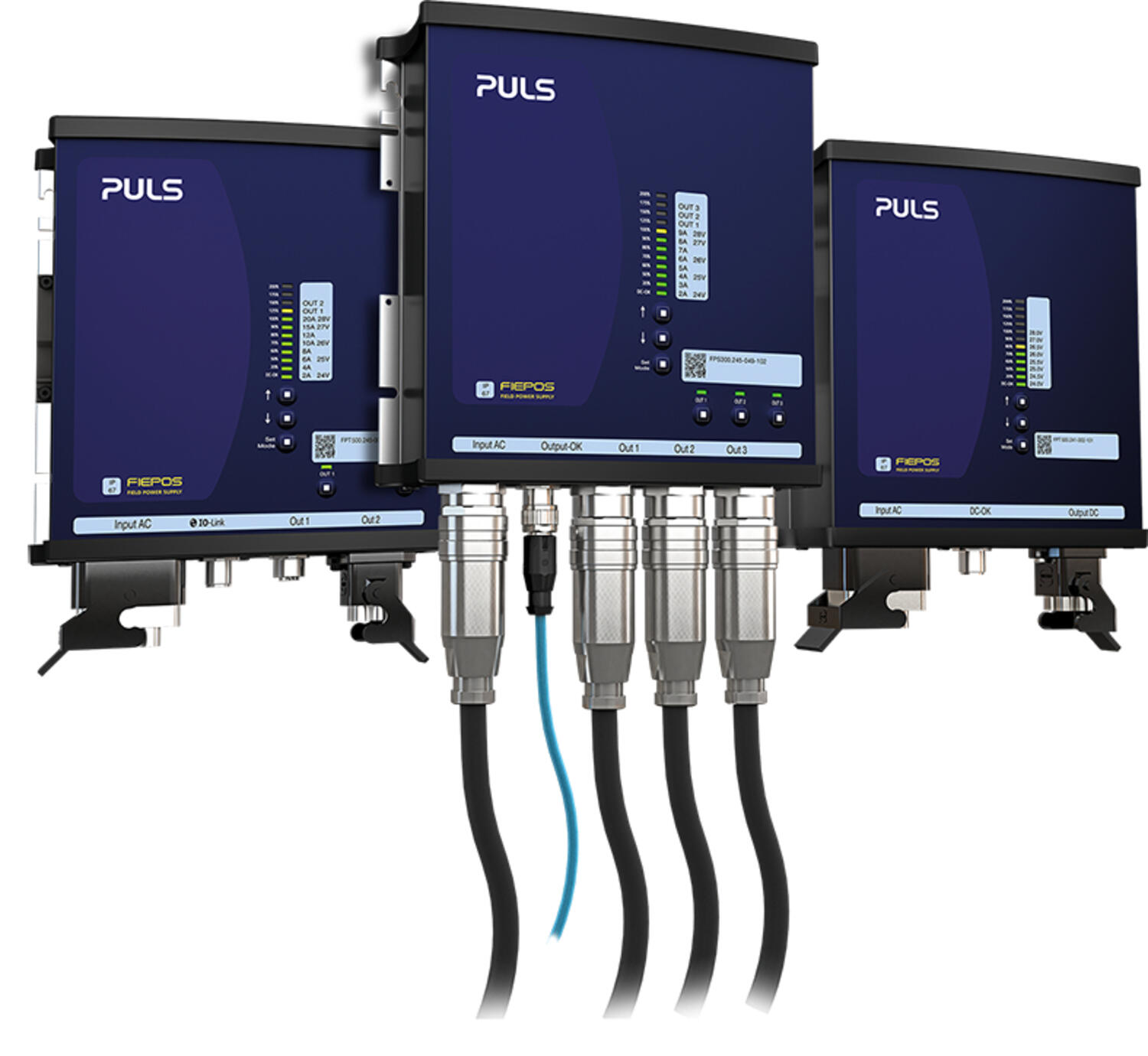

<div class="row"><div class="col-xs-12 col-sm-6"><div class="row"><div class="col-xs-12>With FIEPOS, PULS presents a completely new and unique type of power supply that has been developed precisely to move the power supply out of the electrical cabinet. The FIEPOS units are available with protection classes IP54, IP65 or IP67 and are easy to install and flexible to meet the different unique requirements in each application. It also simplifies the planning and maintenance of complete or expandable systems. In addition, the electrical cabinet can be replaced with smaller versions or completely removed. In short, PULSE FIEPOS is the alternative to a power supply from a central control cabinet, a decentralized control box or a customer-specific solution. FIEPOS is available in two different series, Basic and Efused.</div></div></div><div class="col-xs-12 col-sm-6"><iframe width="100%" height="315" src="https://www.youtube.com/embed/ccEwWyESyrg?rel=0" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" data-lf-yt-playback-inspected-laxoeakq1v7oygd0="true"></iframe></div></div>

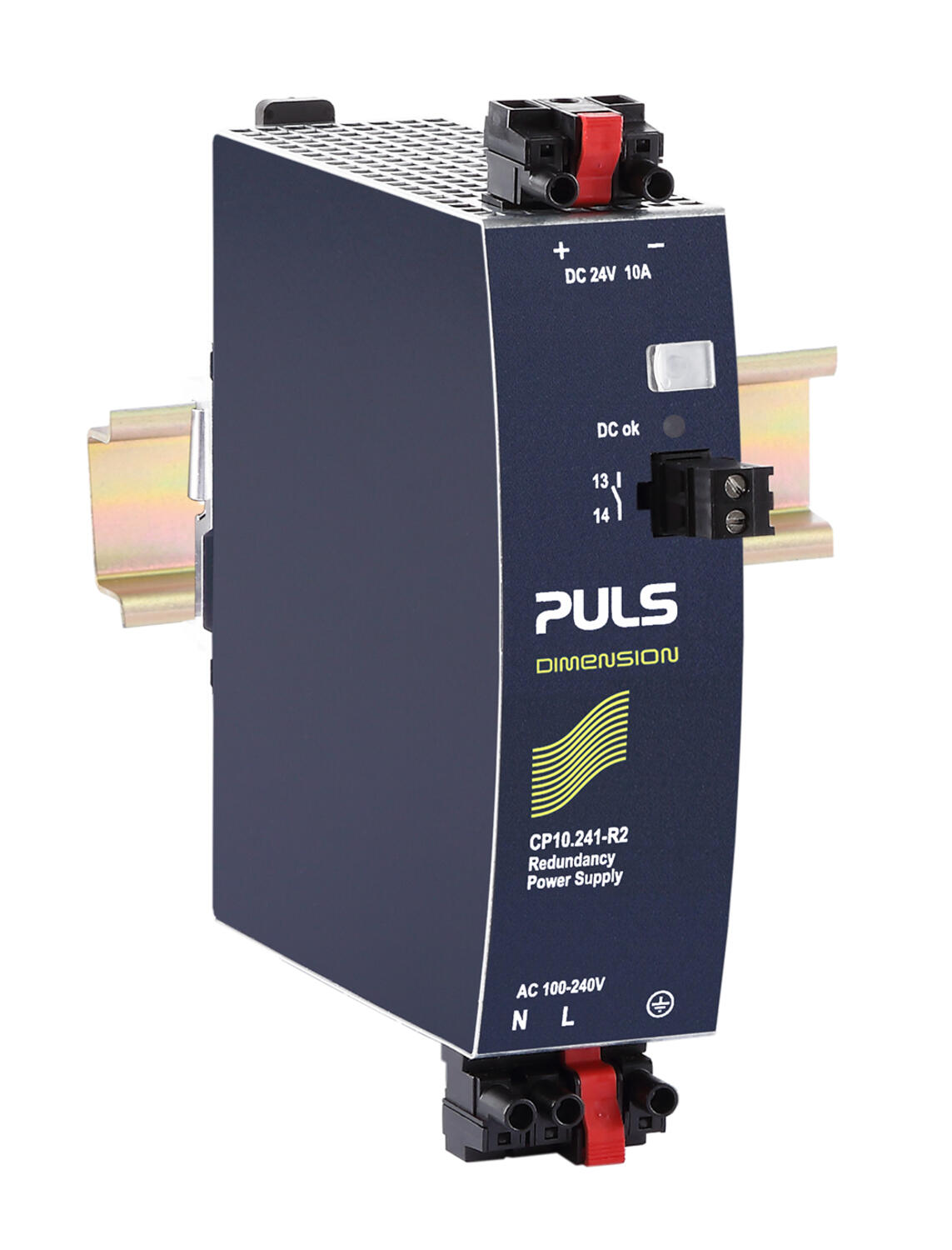

CP10.241 Puls redundant power supply mounted on DIN rail

Redundant Power Supplies

Power supplies with built-in redundancy can replace redundancy modules and do not rely as much on width. You get a secure system that is extra important in applications where downtime is costly. The power supplies have quick-connect contacts on both the input and output for quick and easy replacement in the event of a fault. This way, you never have to shut down the application to install a new power supply.

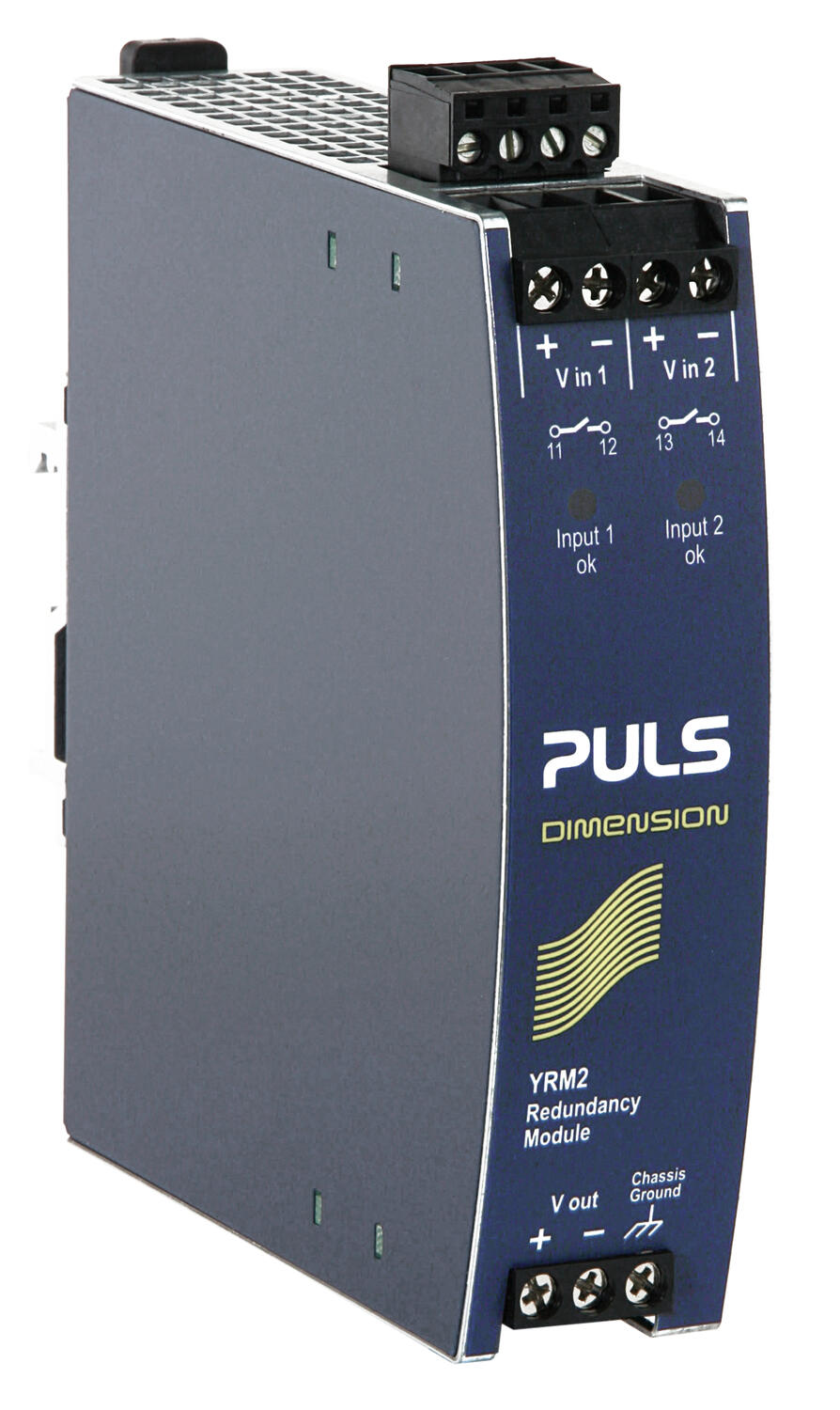

Puls YRM2.DIODE redundancy module

Redundancy Modules

With a redundant module from Puls, you get a secure system against internal faults on power supplies, which is particularly suitable in processes where downtime is costly. The redundant module can also be used in systems where you want to ensure the operation of sensitive loads. Input 1 is connected to the main unit which normally supplies loads and eg PLC. Redundancy modules with MOSFET technology PULS developed a decoupling solution with MOSFETs to fulfil the need for minimal no-load losses. For instance, when using a MOSFET module, a load current of 40A will only produce power losses amounting up to 3W. With MOSFETs as a decoupling element, even voltage drops can be minimised. The voltage drop at 40A output current is lower than 50mV between the input and output. After implementing MOSFETs, even the parallel-use mode achieves better thermal balance, thus leading to an extended lifetime of the power supplies. In this process, the load current is divided equally between the individual power supplies. Do you want to learn more about the benefits of MOSFET technology for redundant power supply systems? <a href="https://www.oem.co.uk/ui/product-resources/oem/-_-160157.pdf?att=False&hash=CF5355213B4AB11B0DEC86B9F0BCC935"> Download free white paper</a>
Puls NEC class 2 module

NEC Class 2

Puls Silverline series AS interface unit

AS Interface Units

The interface units supply AS-interface systems with voltage via the yellow AS-interface cable. The communication between the different slaves is modulated and is embedded in the output voltage of the power supply. Therefore, special power supplies are required that do not filter out the data information.
Mounting bracket for power supplies from Puls

Accessories for Power Supplies

Modular Power Supplies
