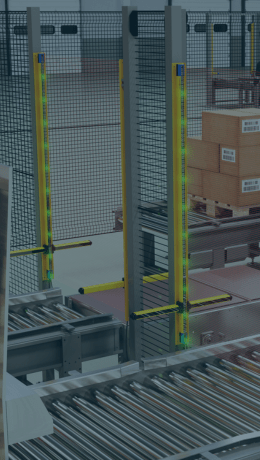

Safety light curtains are a type of sensor used in industrial and automated environments to protect workers and machinery. They are designed to detect the presence of objects (like a human body or hand) in a hazardous area and stop or prevent machine operation if necessary, helping to avoid accidents or injuries.
Here’s how they work and why they’re important:
Functionality: Infrared Light Beams: Safety light curtains consist of two components: an emitter and a receiver. The emitter sends a series of infrared light beams across a designated area, and the receiver detects whether these beams are interrupted. When an object (such as a person or body part) crosses the beams, it triggers a signal that activates a safety response.
Safety Response: The machine or equipment connected to the safety light curtain is typically programmed to stop, slow down, or enter a safe state when an interruption is detected. This prevents accidents by ensuring workers don't enter dangerous areas while the machine is in operation.
No Physical Contact: Unlike traditional safety devices like guards or fences, safety light curtains don’t require physical barriers. This allows for greater flexibility in machine design and easier access to areas without compromising safety.
Types: Type 2 Light Curtains: Provide basic safety for non-hazardous areas. Type 4 Light Curtains: Offer the highest level of safety and are often used in more hazardous environments or for more dangerous machines.
Applications: Manufacturing: Protect workers from moving machinery, such as robotic arms or conveyor systems. Packaging Lines: Prevent accidental entry into hazardous areas of packaging machines. Automated Systems: Common in automated production lines, ensuring the safety of workers around automated machines and robots.
Key Benefits: Prevent Injuries: Protects workers from being caught or harmed by moving parts of machines. Flexibility: Safety light curtains can be adapted to different types of machinery and layouts without the need for bulky physical barriers. Non-intrusive: They do not obstruct the workflow, allowing machines to continue operation smoothly, while still providing safety.
