Cable Entry Systems

Cable entry systems are becoming more advanced as requirements are changing within the automation and machine market.

The need for bringing pre-assembled cables is more common, so traditional glands cannot be used.

Conta-Clip have developed a large range of cable entry systems that can accommodate single cables or multiple cables in a small footprint. They consist of only 3 parts and are quick and easy to assemble.

The KDS range use common split inserts allowing round or flat cables, tubes & pipes to be fed into an enclosure without the need to remove the connectors.

For cables without connectors, the KES range enables a large amount of cables of various size to be fed into an enclosure in a compact, low profile single piece assembly. Using the KES system takes up far less enclosure space than using normal glands.

The KDS and KES range are IP66 as standard & Ecolab approved, so ideal for washdown environments.

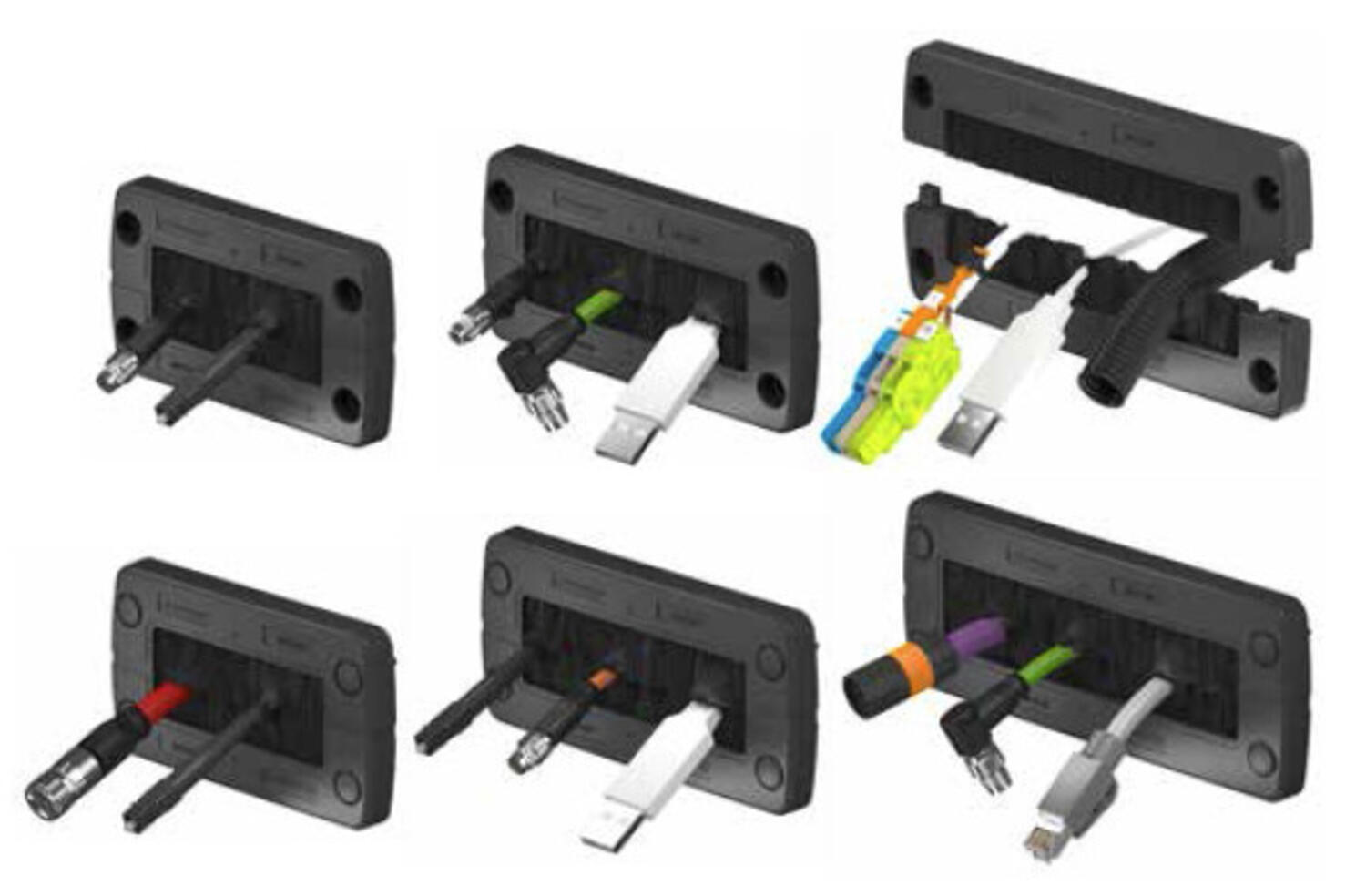

Conta-Clip KDS-Click products, cable entry system solutions

Modular for preformed cables

Conta-Clip KDS-SR and KDSI cable entry systems, the ultimate solutions for reliable and efficient cable routing in your industrial applications. Both systems feature a modular design, allowing for easy customization and adaptation to your specific requirements. The KDS-SR system delivers secure and tight cable routing where cables can be routed from the inside of the enclosure, while the KDSI system offers added flexibility with cables fed in from the outside of the enclosure, when it is not possible to assemble from the inside. Both systems use standard industrial connector cut-outs and fixings. Both the KDS-SR and KDSI cable entry systems are built to last, with high-quality materials and robust construction that ensure long-lasting performance. Their IP66 and NEMA 4X ratings provide added protection against environmental factors, making them suitable for even the most demanding industrial environments. Upgrade your cable management game with the Conta-Clip KDS-SR and KDSI cable entry systems today and experience the difference in reliable and efficient cable routing.

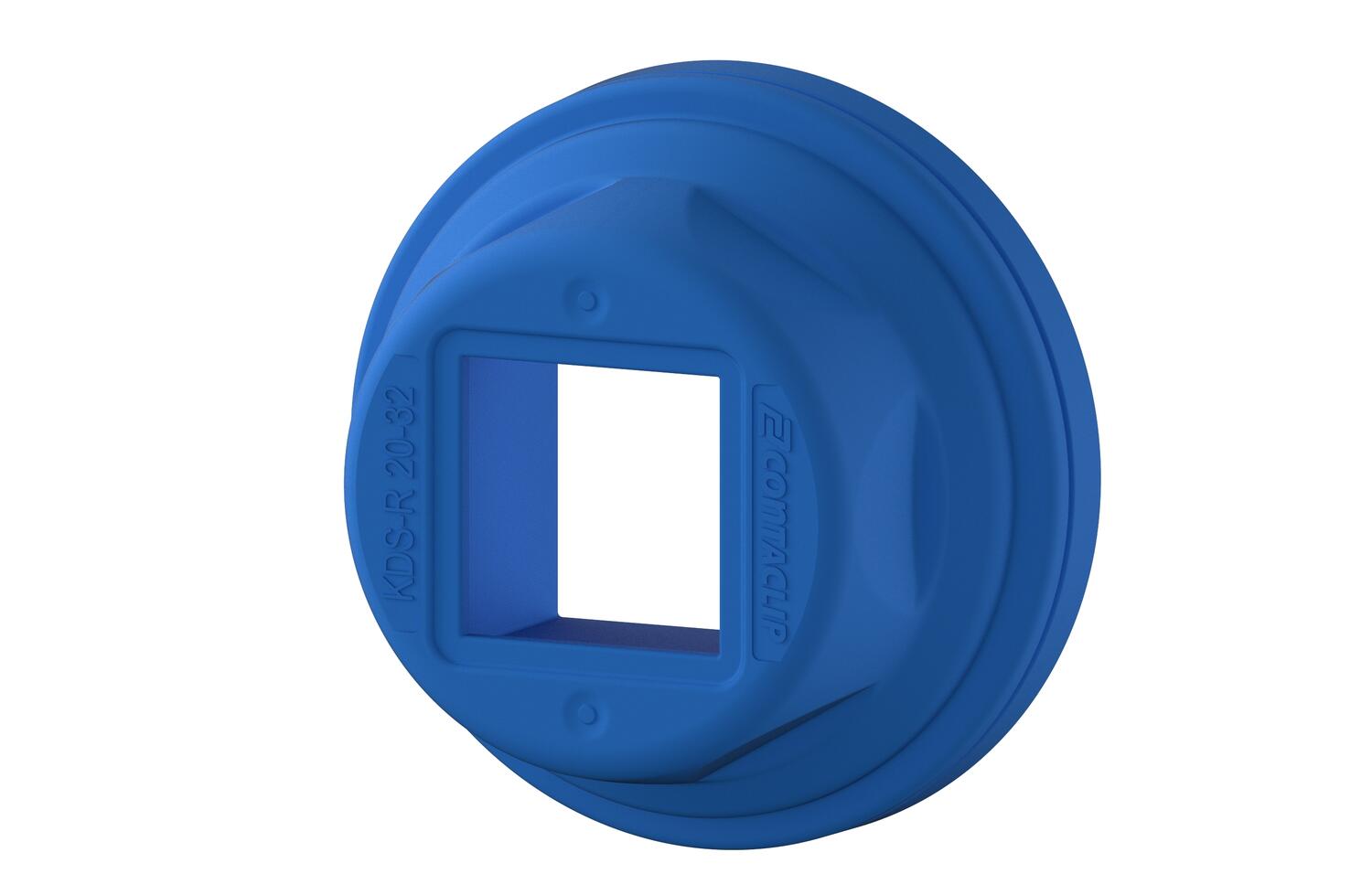

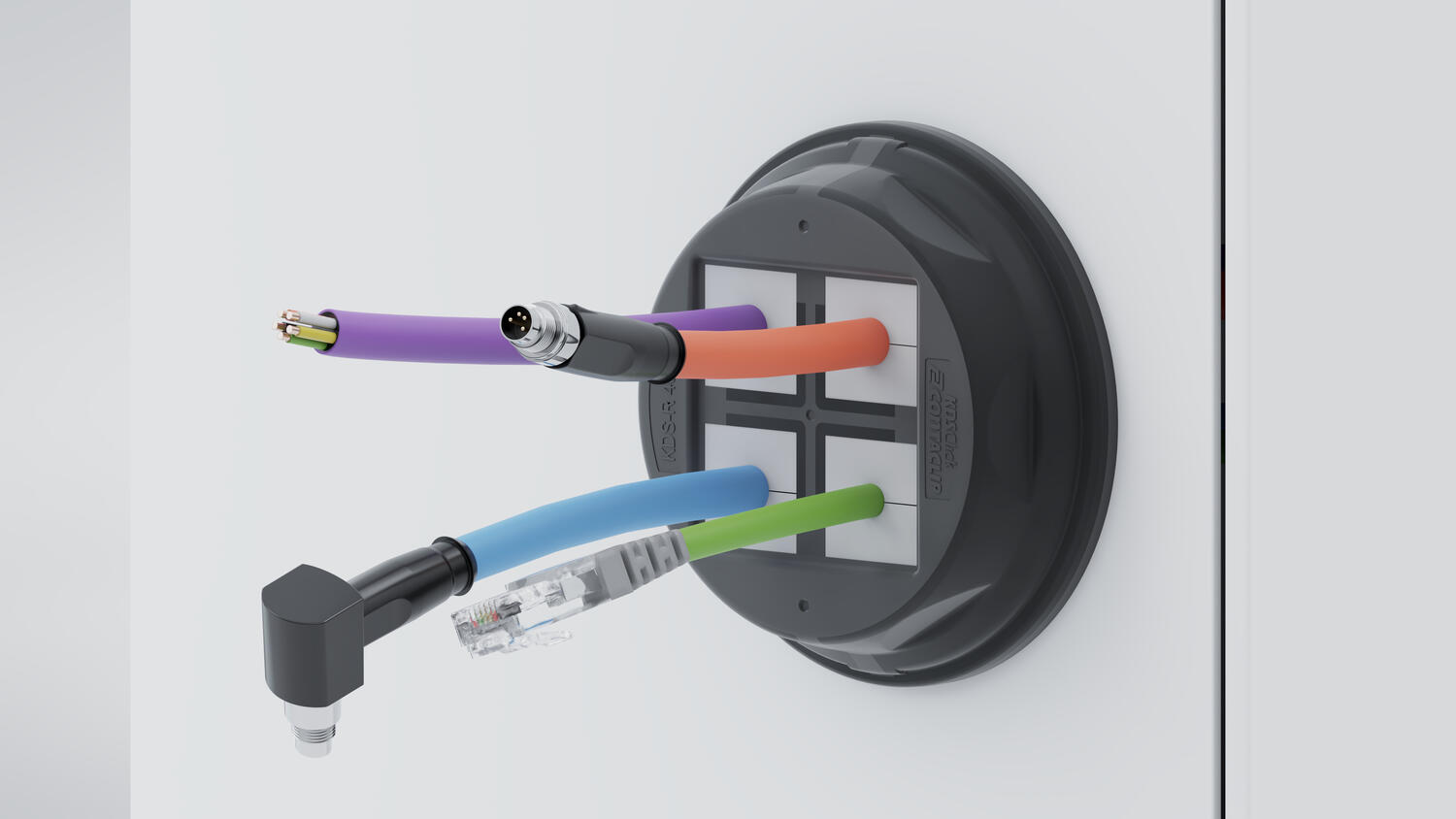

KDS-R round modular cable entry gland

Round Modular for preformed cables

Conta-Clip offer a wide range of round cable entry/glands that are ideal for pre-formed cables and hoses. These can be easliy used to replace conventional glands and can offer mulile entries for the same size cut out.

High density

Conta-Clip KES cable entry system are the ideal solution when feeding a lagre number non-terminated cables, pneumatic tubes and pipes into a small space
KDS-FB flat cable entry frames with seals and cables protruding from the frame and seals

Flat Cable

The KDS-FB cable entry system is designed to be used with flat cables commonly used in the forklift, crane and elevator industry.

Flange Plate

The KDS-FP flange plate provides a versatile cable entry system which is ideal for machine and panel builders that want the option to add more cable entries in the future without re-drilling the enclosures. This can remove the need to stock enclosures with different cut-outs.

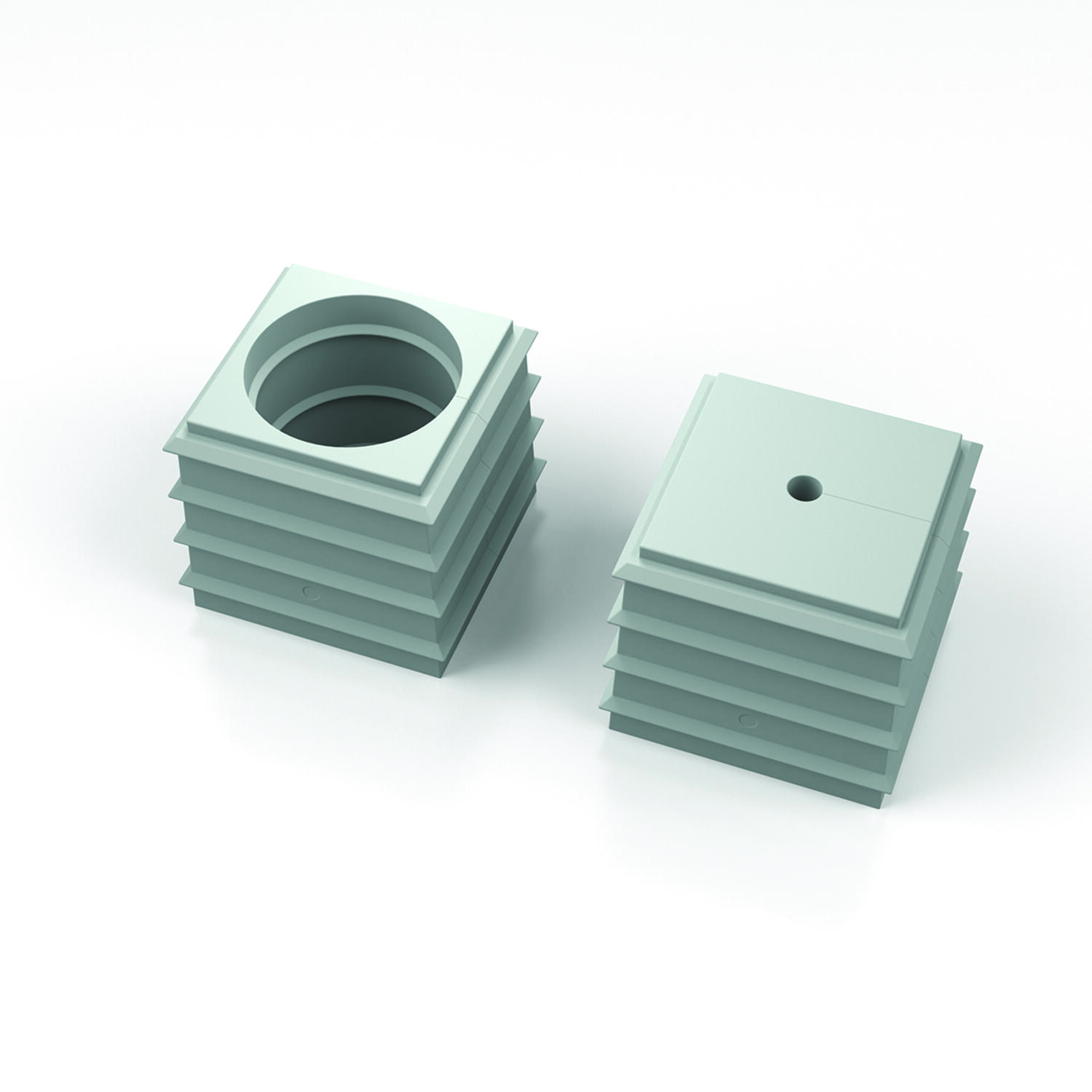

2 Conta-Clip KDS-DE seal with different size holes for cables

KDS Seal Inserts and Accessories

Large range of split sealing elements to use with pre-wired cables and the KDS Modular Cable Entry Ssytem.

Milled aluminium, one-piece system

Well-proven cable gland technology per EN 62444 in a cable entry unit for multiple cables.
