Lidar
Sony LiDAR
- Extremely small and light – only 29 × 29 × 31 mm and ≤50 g for easy integration into drones and compact robots
- Reliable 3D detection – dToF + SPAD measures length/width/depth and also handles low contrast/low reflectivity
- Long measuring range – up to 40 m indoors and 20 m outdoors
- Industrially built – robust aluminium housing that combines low weight with strength
- Integration-ready I/O – 2× USB-C, external power, UART and trigger simplifies system integration

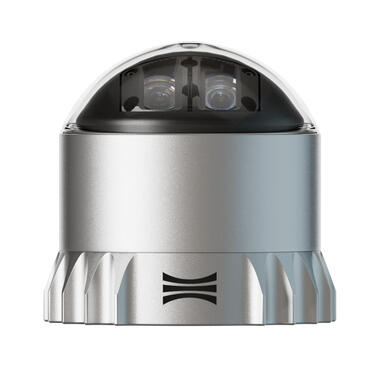

OSDome REV 8
OSDome REV 8 Series
- Hemispheric coverage: 180° vertical, 360° horizontal, 40 Hz max rotation, full hemispherical view from one sensor
- Range: 20 m @ 10%, 45 m @ 80% reflectivity in 100 klx sunlight, max representable distance 250 m
- Native RGB colour: 48-bit, 116dB dynamic range, 1-2,000,000 lux, no calibration between colour and 3D
- Functional safety: ASIL-B, SIL-2, PLd, ISO 21434 cybersecurity, 3D Zone Monitor on the sensor
- Rugged: IP68/IP69K, -40 to +85°C, 100G shock, 10G-rms vibration, Class 1 eye-safe laser

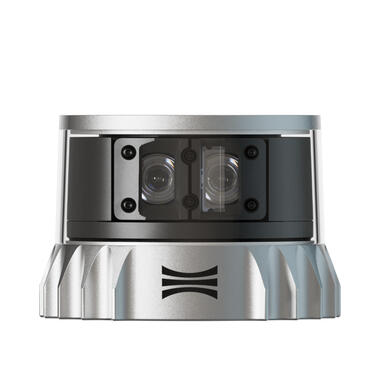

OS0 REV 8
- View: 90° vertical, 360° horizontal, up to 40 Hz rotation and 4096 horizontal resolution
- Range: 35 m @ 10%, 75 m @ 80% reflectivity in 100 klx sunlight, max representable distance 250 m
- Native RGB colour: 48-bit, 116dB dynamic range, 1-2,000,000 lux, no calibration between colour and 3D
- Functional safety: ASIL-B, SIL-2, PLd, ISO 21434 cybersecurity, 3D Zone Monitor on the sensor
- Rugged: IP68/IP69K, -40 to +85°C, 100G shock, 10G-rms vibration, Class 1 eye-safe laser
OS1 REV 8
OS1 REV 8 Series
- View: 44° vertical, 360° horizontal, up to 40 Hz rotation and 4096 horizontal resolution (0.088°)
- Range: 90 m @ 10%, 170 m @ 80% reflectivity in 100 klx sunlight, max representable distance 250 m
- Native RGB colour: 48-bit, 116dB dynamic range, 1-2,000,000 lux, no calibration between colour and 3D
- Functional safety: ASIL-B, SIL-2, PLd, ISO 21434 cybersecurity, 3D Zone Monitor on the sensor
- Rugged: IP68/IP69K, -40 to +85°C, 100G shock, 10G-rms vibration, Class 1 eye-safe laser

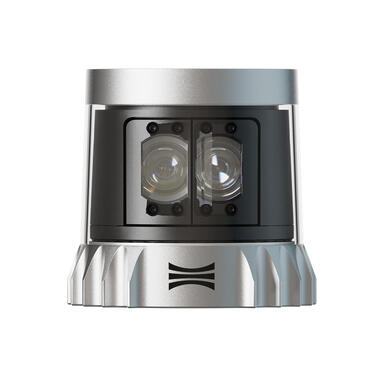

OS1 MAX REV 8
OS1 MAX REV 8 Series
- Range: 200 m @ 10%, 350 m @ 80% reflectivity, max recognizable distance 500 m
- Resolution: 64/128/256 channels vertical, 4096 horizontal, down to 0.17° × 0.088° angular resolution
- Native RGB colour: 48-bit, 116dB dynamic range, 1-2,000,000 lux, no calibration between colour and 3D
- Functional safety: ASIL-B, SIL-2, PLd, ISO 21434 cybersecurity, 3D Zone Monitor on the sensor
- Rugged: IP68/IP69K, -40 to +85°C, 100G shock, 10G-rms vibration, Class 1 eye-safe laser
