Terminal Blocks For Push In Connection Systems
Make electrical connections faster, safer, and more reliable.
Our new range of Contaclip PRK terminal blocks are available for modern industrial applications! Whether you're wiring control panels or managing complex installations, the PRK series simplifies your job with smart features and a very wide selection.
Our innovative push-in connection system enables huge time savings!
Product newsWhat Makes the PRK Range Special?

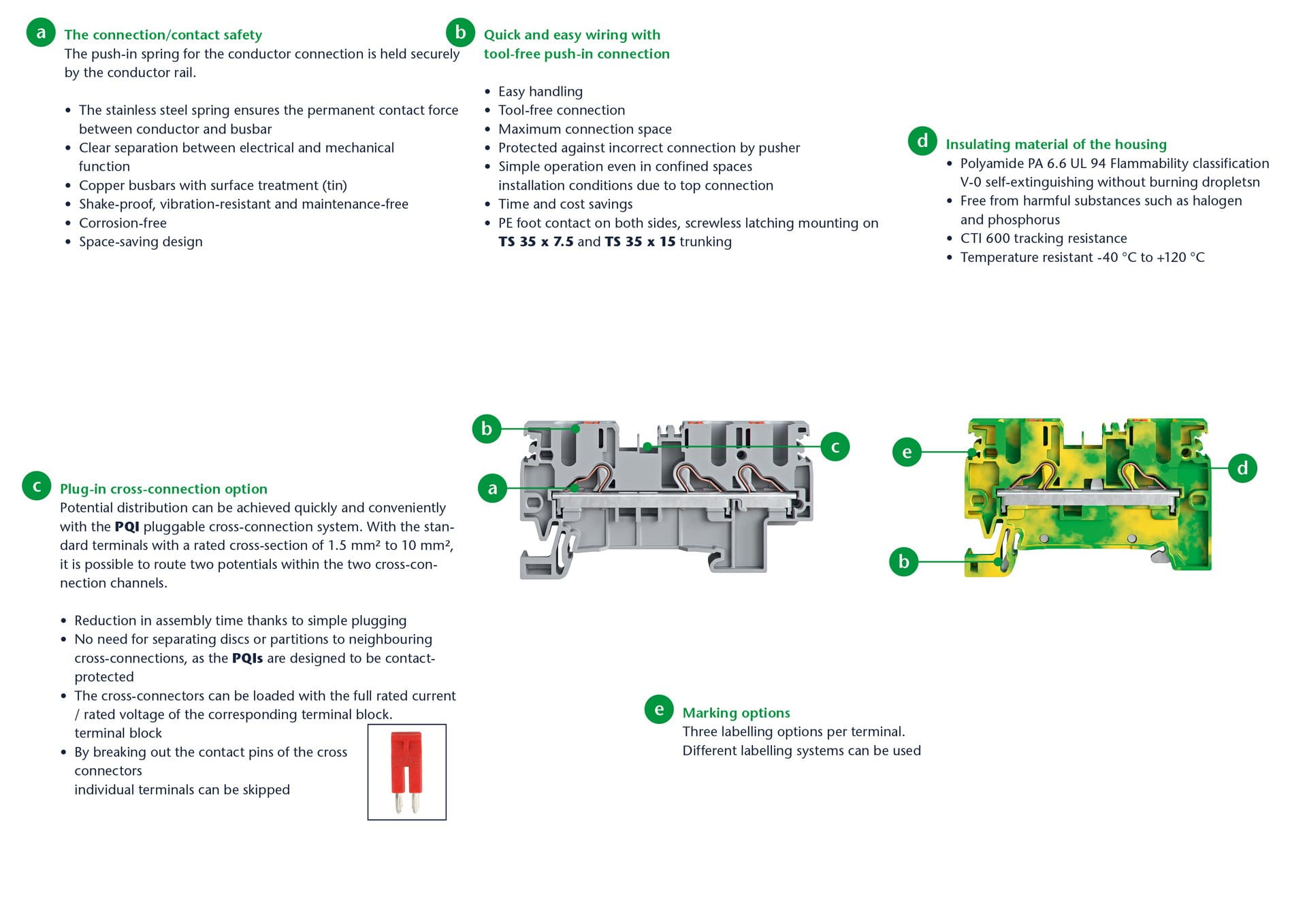

Here’s a breakdown of the key benefits:
Tool-Free Wiring: Thanks to the push-in connection system, you don’t need any tools to connect wires. Just push the wire in—done!

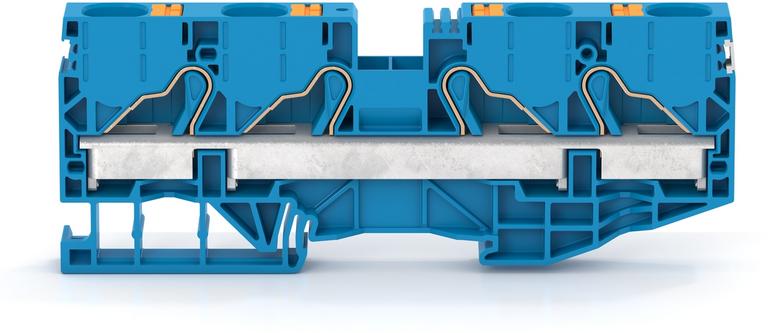

Secure Connections: The internal spring mechanism holds wires tightly and safely, reducing the risk of loose connections.
Quick Potential Distribution: The PQI cross-connection system lets you easily bridge terminals to distribute voltage across multiple points.
Durable and Safe Materials: Made from high-quality polyamide (PA 6.6-V 0), the housing is resistant to heat (up to 120°C), chemicals, and electrical creep.
Flexible Labelling: Each terminal offers three marking options, making it easy to keep your wiring organised.
What’s in the PRK Range?
The PRK series includes:

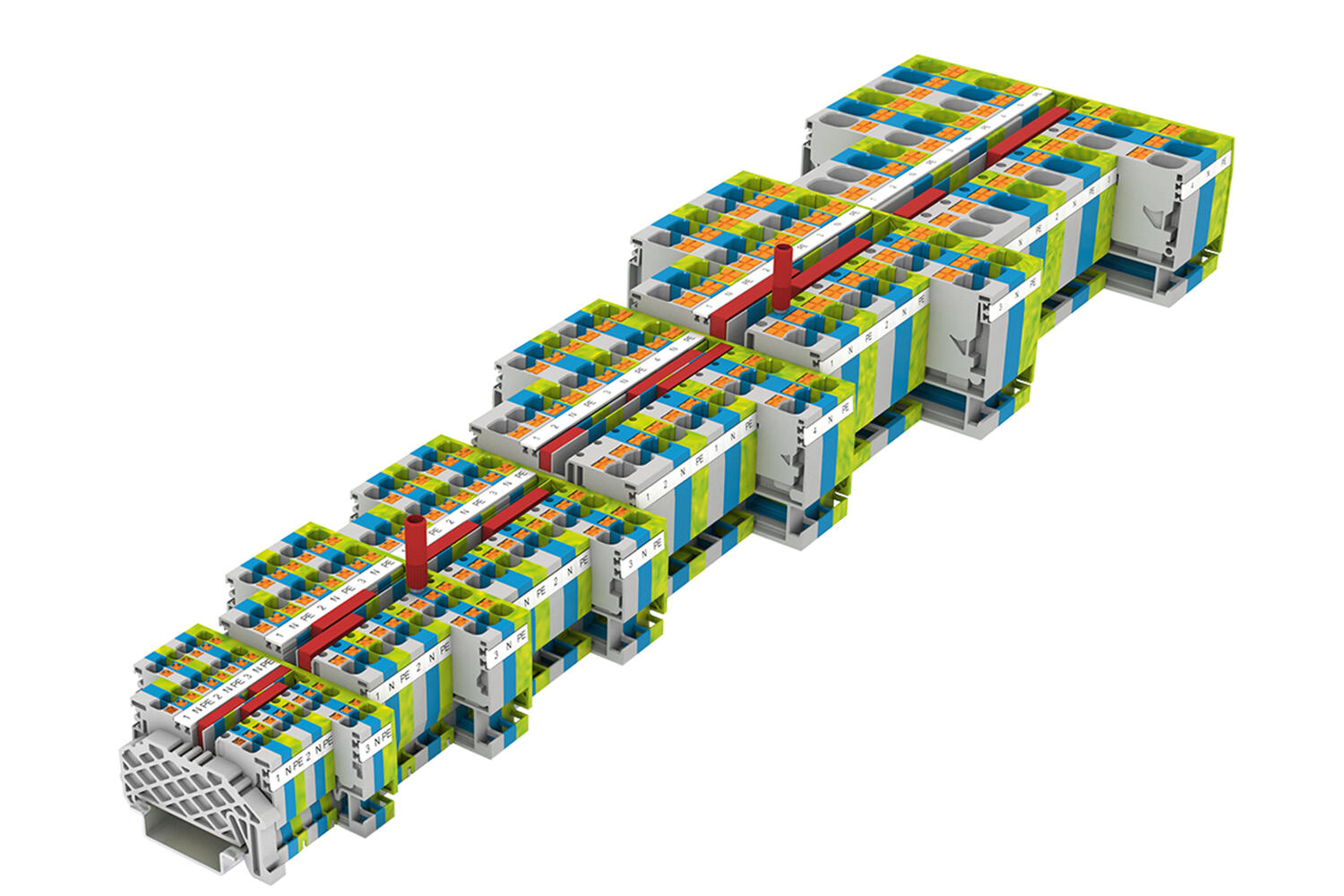

- Feed-through and PE terminals: Available in 6 wire sizes (1.5 mm² to 16 mm²) with 2, 3, or 4 connection points.
- Double-level terminals: Save space with stacked terminals for 1.5 mm² to 4 mm² wires.
- Three-level initiator terminals: Ideal for sensor and actuator wiring.
- Motor connection terminals: Designed for 2.5 mm² motor wiring.
- Transformer terminals: With fuse options for 4 mm² wires.
- Accessories: DIN rails, end stops, marking systems, and more.
How Does PRK Compare to Other Contaclip Terminal Blocks?
Here’s a simple comparison:
| Feature | PRK Series | PRKD Series (Double-Level) | PIKD Series (Three-Level) |
| Levels | Single | Double | Triple |
| Connection Type | Push-in | Push-in | Push-in |
| Wire Sizes | 1.5–16 mm² | 1.5–4 mm² | 2.5 mm² |
| Best For | General wiring | Space-saving wiring | Sensor/actuator wiring |
| Tool-Free? | Yes | Yes | Yes |
Colour Coding for Easy Identification
PRK terminals: Grey, blue, orange and other colours available on request.
PE terminals (PSL): Green/yellow
Why Choose PRK?
If you're looking for a terminal block that’s easy to use, reliable, and versatile, the PRK range is a smart choice. It’s built for speed and safety, with features that make installation and maintenance a breeze.
The low insertion resistance of the PRK push-in technology makes it easy to insert rigid and flexible conductors with ferrules. The rated cross-section refers to flexible conductors with ferrules, meaning that solid conductors with the next highest cross-section can also be contacted.
Watch the tutorial video:
Browse these terminal blocks below, and request a quote now!
