Actuonix
Actuonix Motion Devices are a leading manufacturer and innovator in the micro motion marketplace. Established in 2004, and based in Victoria, Canada, they build micro linear actuators and linear servos to meet the needs of the growing needs of the robotics, aerospace, automotive, medical and radio control sectors.
FEATURES AND BENEFITS:
- Ultra compact industrial grade micro actuators
- Extensive range with over 200 models available
- Limit switch and servo options for positional control
- Dedicated controller options available
TYPICAL APPLICATIONS FOR ACTUONIX PRODUCTS:
- Robotics
- Automotive
- Aerospace
- Factory automation - locking and positioning systems
- Care aid - mobility products
- Smart home automation

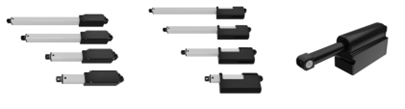

Examples of products
Actuonix Company Video:
Actuonix company video - If you're seeing this message the video cannot be shown. To see the video accept cookies. Your cookie settings can be changed on https://www.oem.co.uk/contact-us/contact
Product Ranges
Miniature Linear Actuator and Drive Boards
Micro linear actuators are designed to provide motion in a small package. Over 200 models from 10mm to 300mm stroke and options of limit switch, potentiometer or R/C control, there is a wide range to cover most applications. Brushed DC or stepper motor powered.

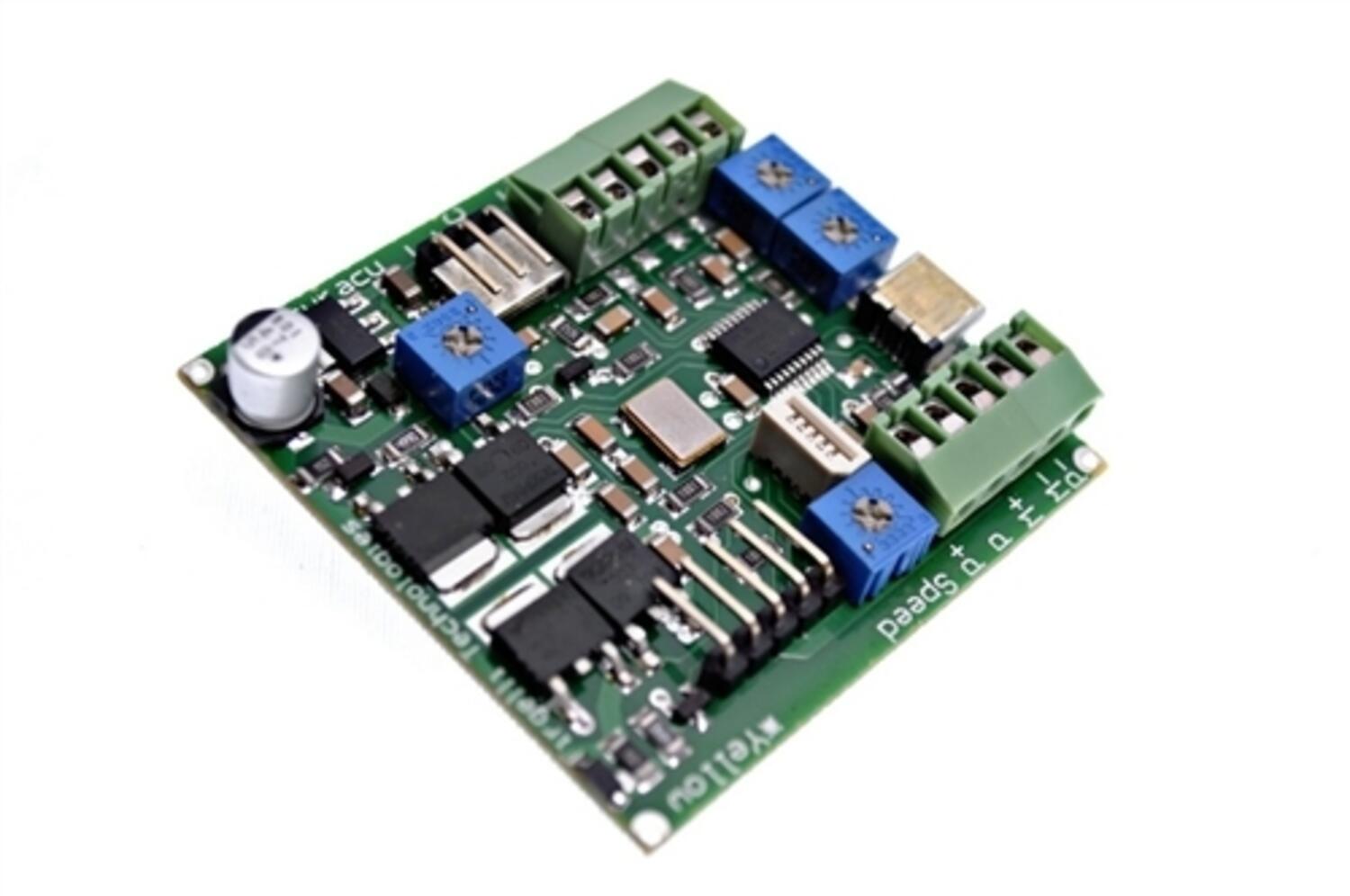

The Linear Actuator Control Board is a stand-alone, closed-loop control board specifically designed for Actuonix P-series micro linear actuators.
Actuonix - LAC drive board
- Designed for Actuonix 'P' actuators
- PC software via USB connection
- RC servo compatible
- 6 to 24V dc actuators

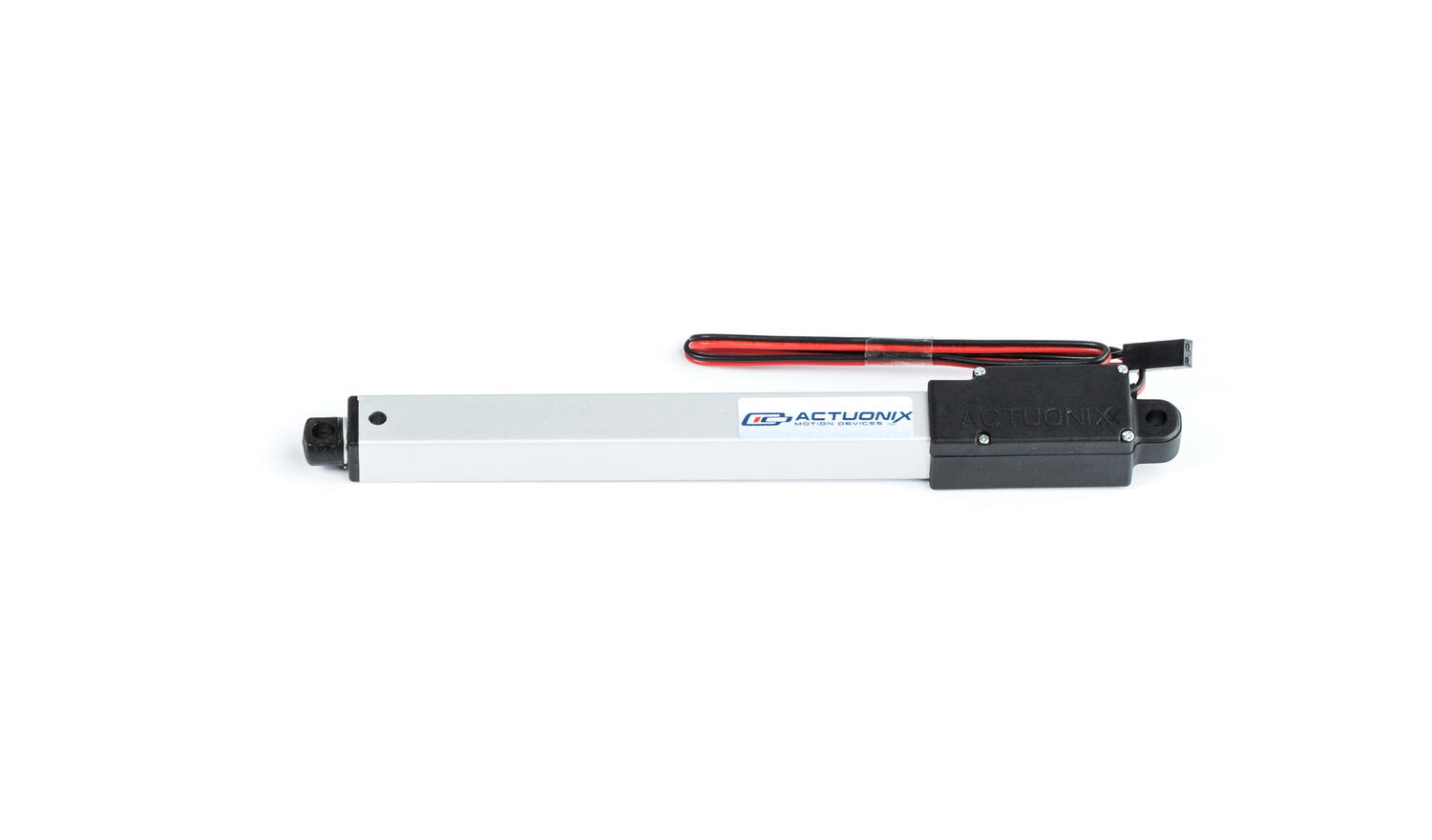

Actuonix - Miniature linear actuator L12
- Up to 80N force
- Up to 25mm/s speed
- From 10mm to 100mm stroke
- 12v dc with potentiometer or limit switches
- 6V RC controller options
Actuonix - Miniature linear actuator L16
- Up to 200N force
- Up to 32mm/s speed
- From 50mm to 140mm stroke
- 12v dc with potentiometer or limit switches
- 6V RC controller options

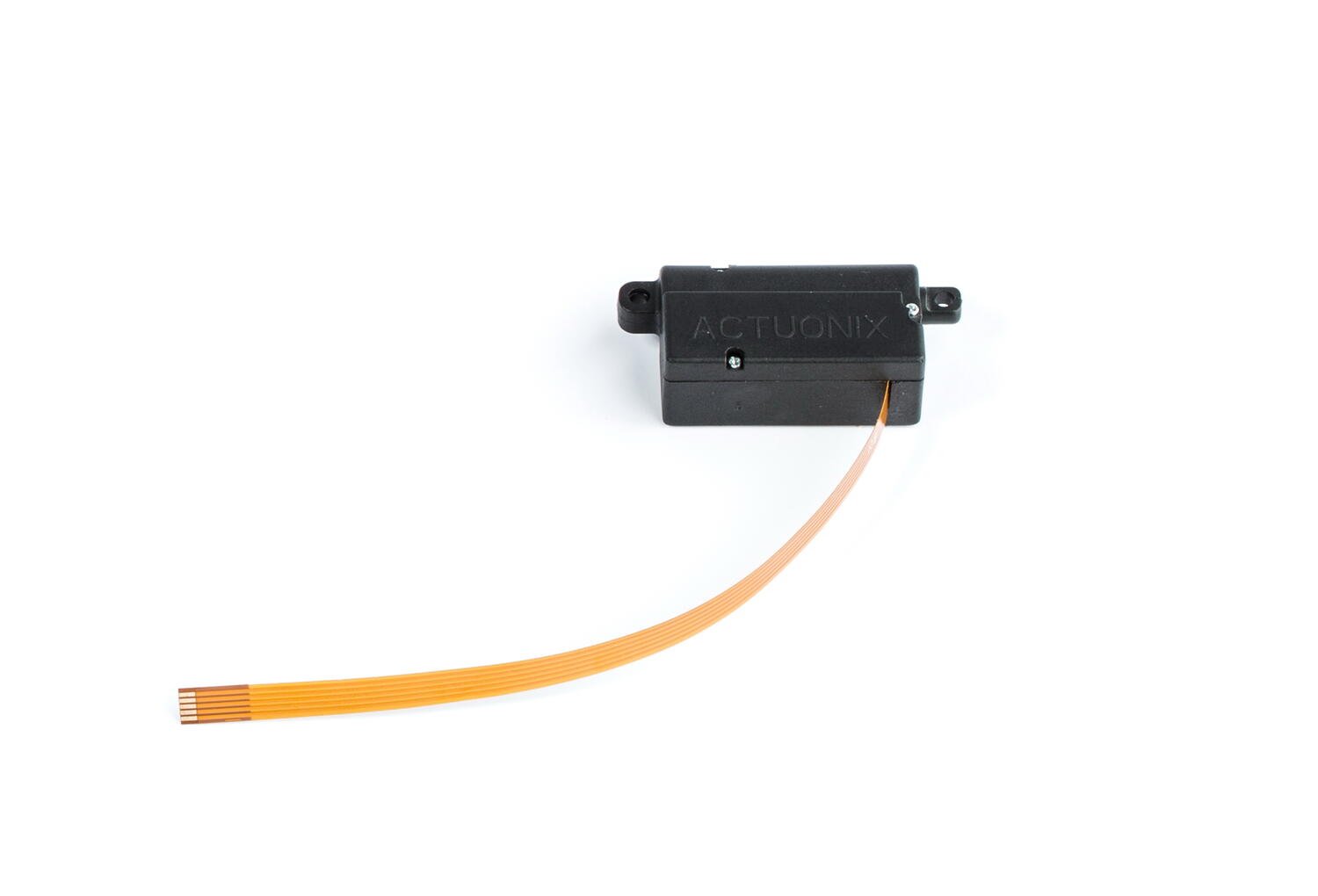

Actuonix - Miniature linear actuator PQ12
- Up to 50N force
- Up to 28mm/s speed
- 20mm stroke
- 6v or 12v dc with potentiometer or limit switches
- 6V RC controller options

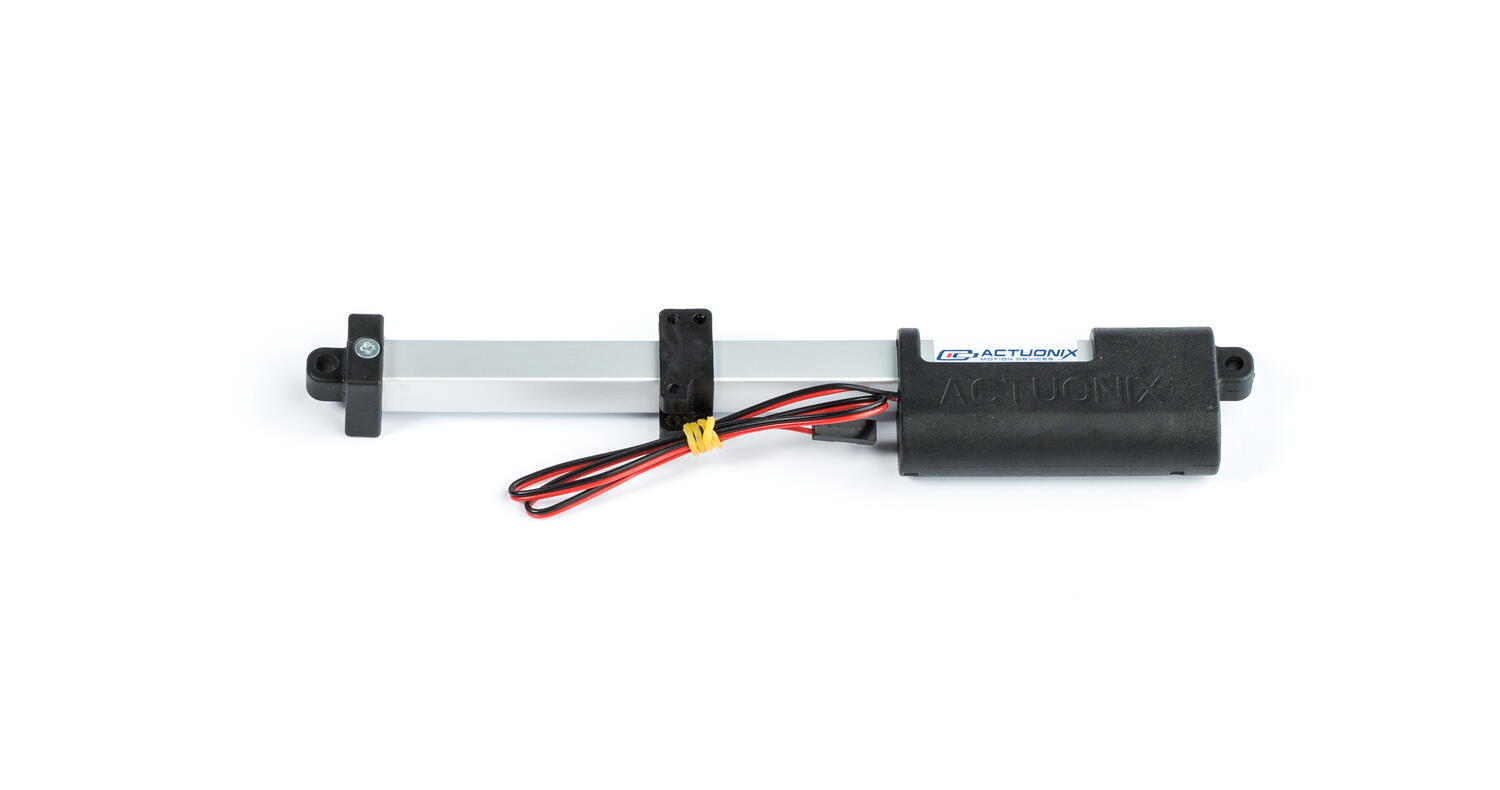

Actuonix - Miniature linear actuator T16
- Up to 300N force
- Up to 46mm/s speed
- From 100mm to 300mm stroke
- 12v dc with potentiometer or limit switches
- Sliding mount track actuator

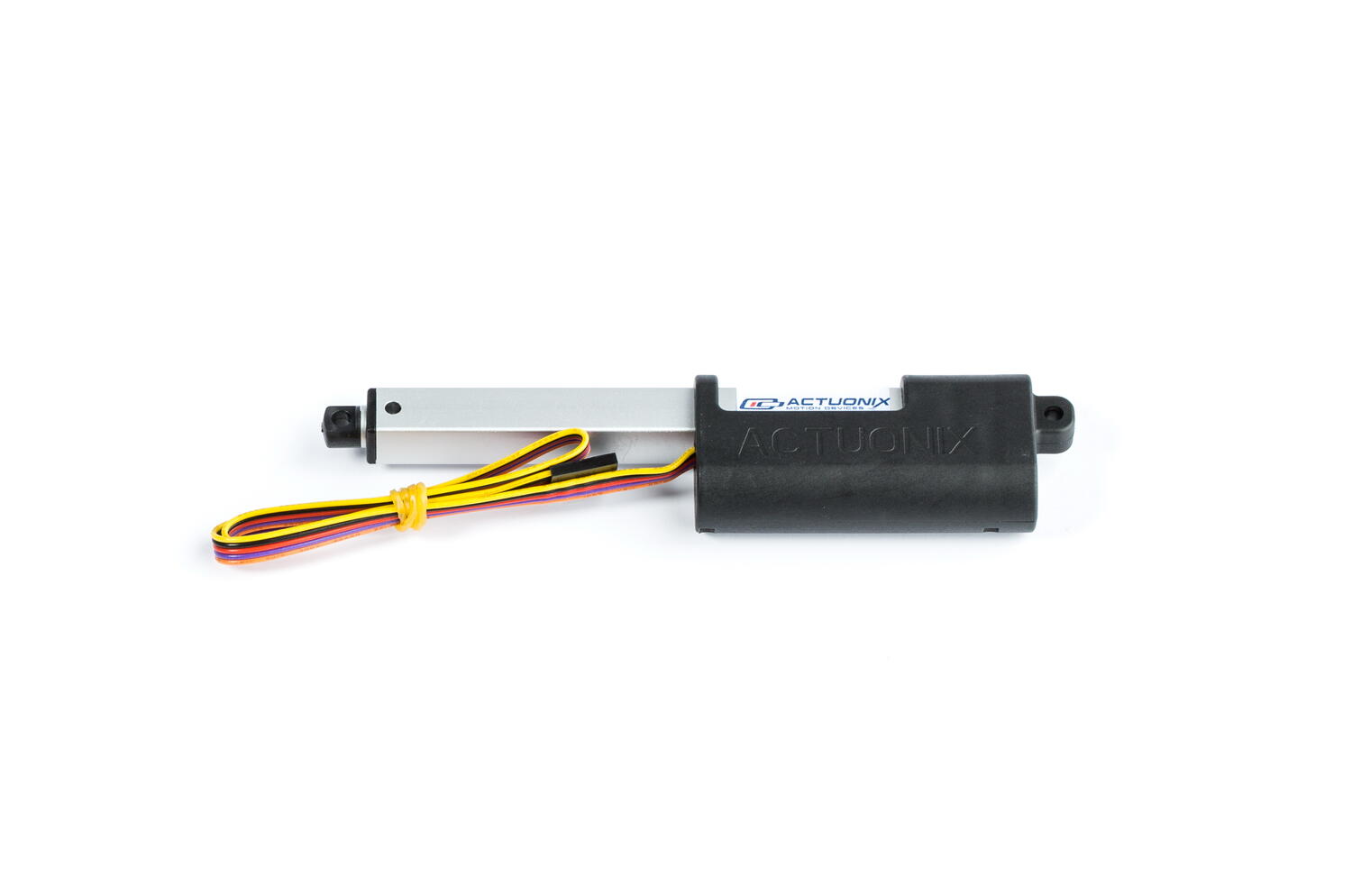

Actuonix - Miniature linear actuator P16
- Up to 300N force
- Up to 46mm/s speed
- From 50mm to 200mm stroke
- 12v dc with potentiometer or limit switches
Actuonix - Miniature stepper actuator S20
- Up to 15N force
- Up to 125mm/s speed
- From 15mm to 100mm stroke
- Stepper motor drive with 100% duty cycle
- Acurate position control

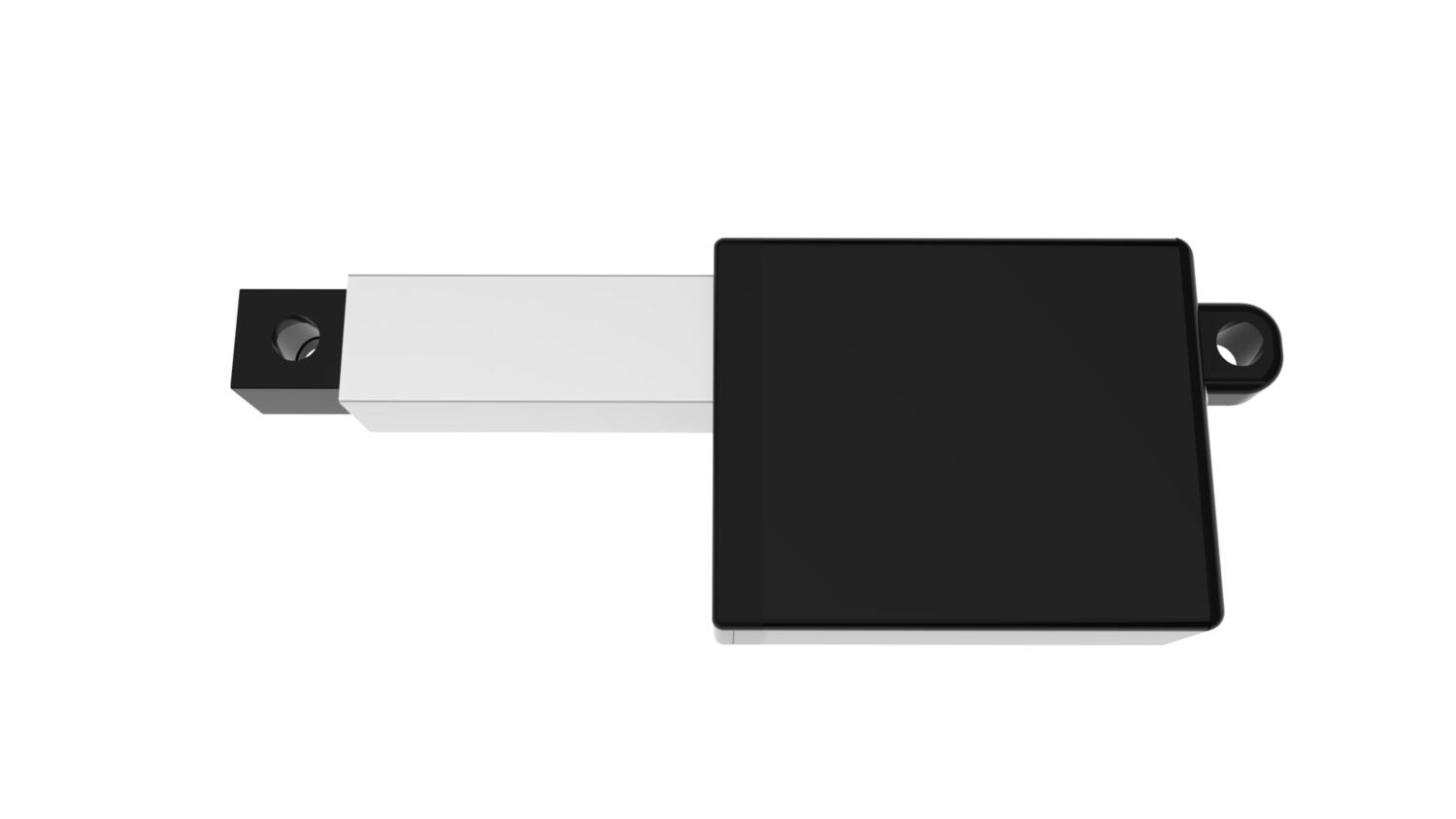

Actuonix P8 miniature stepper linear actuator
- Up to 50N force
- Up to 70mm/s speed
- From 10mm to 100mm stroke
- Up to 100% duty cycle
- Used for accurate position control
