Technosoft
Intelligent Drives:
Compact, high power-density motion control programmable drives packed on a tiny area. Flexible, modular solutions: vertically or horizontally pluggable cards, open-frame PCBs that can be integrated onto the user’s motherboard, or protected by metal casings and provided with push on connectors.
Intelligent Motors:
The iMOT line of intelligent motors – brushless / steppers – embed all basic motion control functions inside the motor itself, together with basic local digital and analog I/O signals. Cost effective, compact solutions with integrated intelligence for distributed motion control applications.
TECHNOSOFT Motion Technology:
- Compact and cost-effective motion solutions
- Drives with embedded motion controller
- Single or multi-axis operation (distributed intelligence)
- Powerful trajectory generator with profiles, jogging, contouring
- Extremely flexible and versatile motion control with high level motion language
- Easy integration with C and LabVIEW libraries
- Quick system set-up and diagnostic
Examples of products
Motor Drives for Intelligent DSP Motion ControlTechnosoft Product Catalogue:
Technosoft Company Video:
Technosoft company video - If you're seeing this message the video cannot be shown. To see the video accept cookies. Your cookie settings can be changed on https://www.oem.co.uk/contact-us/contact
Product Ranges
Motion control and intelligent drives
Technosoft's motion control and intelligent drives, offer advanced solutions for precise motor control across various industrial applications. These products are designed to optimise efficiency, providing high-performance features like programmable drive configurations, advanced torque control, and smooth motion profiles. Technosoft’s intelligent drives integrate seamlessly with brushless DC motors, allowing for easy integration with industrial systems requiring precise speed and position control. These drives offer robust performance in applications such as robotics, automation, and complex machinery, all while providing customizable options for a broad range of operational needs.
Technosoft IPOS2401
Motion controller drive - 1A
- Power up to 24W, continuous and peak current 0.9A, power supply voltage 12-24VDC
- Built-in motion controller
- For brushed DC, BLDC and stepper motors
- Communication RS-232 (TMLCAN) and CANopen (default) or EtherCAT (optional)
- Open PCB design
Technosoft IPOS3602
Motion controller drive - 2A
- Power up to 75W, continuous/peak current 2/3.2A, supply voltage 12-36VDC
- Built-in motion controller
- For brushed DC, BLDC and stepper motors
- Communication RS-232 (TMLCAN) and CANopen (default) or EtherCAT (optional)
- Open PCB or enclosed design
Technosoft iPOS3604
Motion controller drive - 4A
- Up to 144W, 4A continuos 10A peak, 9-36VDC
- Built-in motion controller
- For brushed DC, BLDC and stepper motors
- Communication via RS232 with TML-CAN, CANopen or EtherCAT
- Open PCB or enclosed design
Technosoft IPOS4803
Motion controller drive - 3A
- Power up to 150W, continuous/peak current 3A/14A
- Built-in motion controller
- For brushed DC, BLDC and stepper motors
- Communication via RS232 or EtherCAT
- Microsize form factor
Technosoft IPOS4808
Motion controller drive - 8A
- Power up to 400W, continuous/peak current 8/20A, power supply 12-50VDC
- Built-in motion controller
- For brushed DC, BLDC and stepper motors
- Communication via RS-232 (TMLCAN) and CANopen (default) or EtherCAT (optional)
- Open PCB or enclosed design

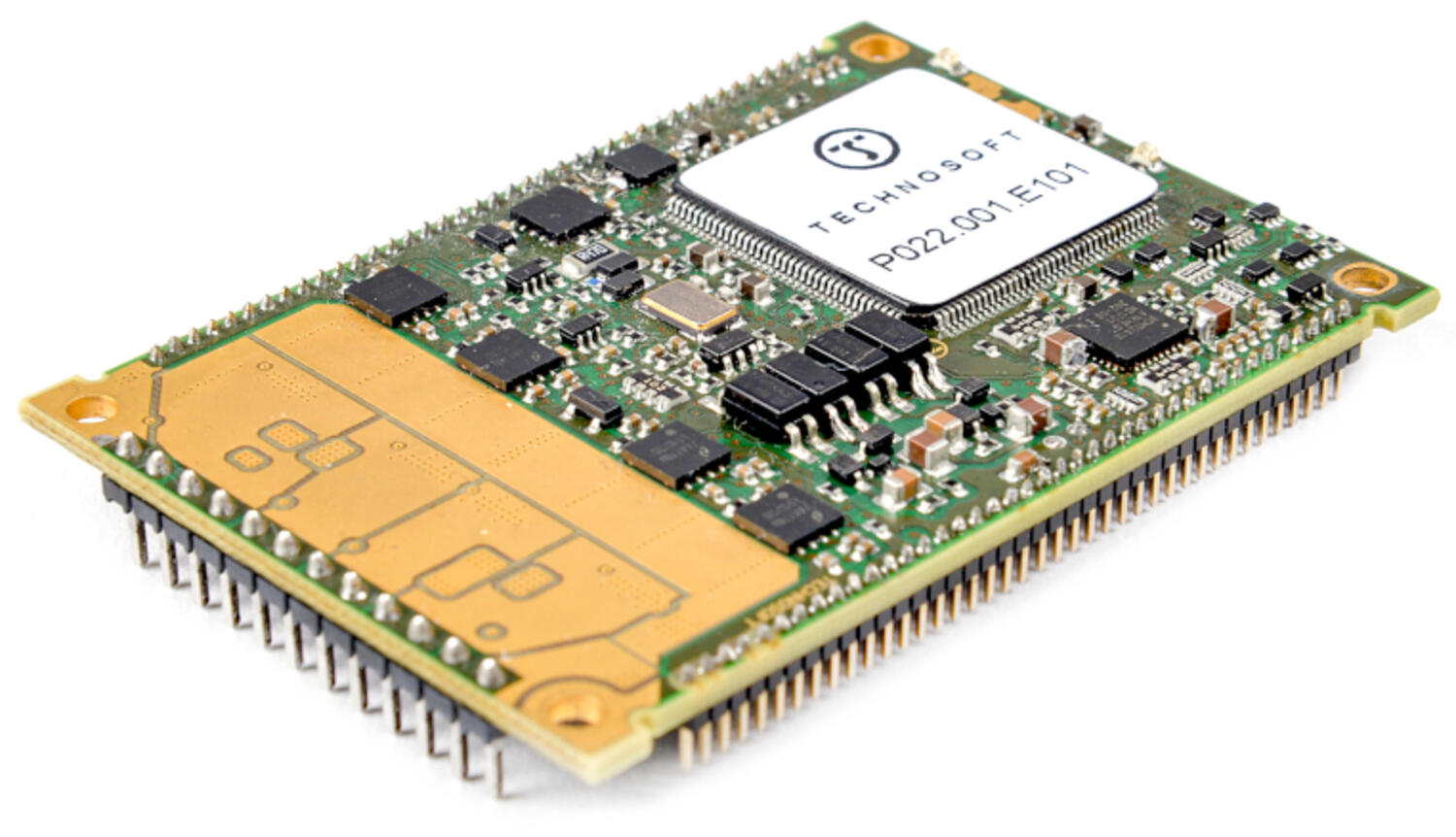

Technosoft iPOS4810
Motion controller drive - 10A
- Power up to 700W, continuous/peak current 10/40A
- Built-in motion controller
- Communication via RS232, EtherCAT, TMLCAN and CANopen
- For brushed DC, BLDC and stepper motors
- STO inputs

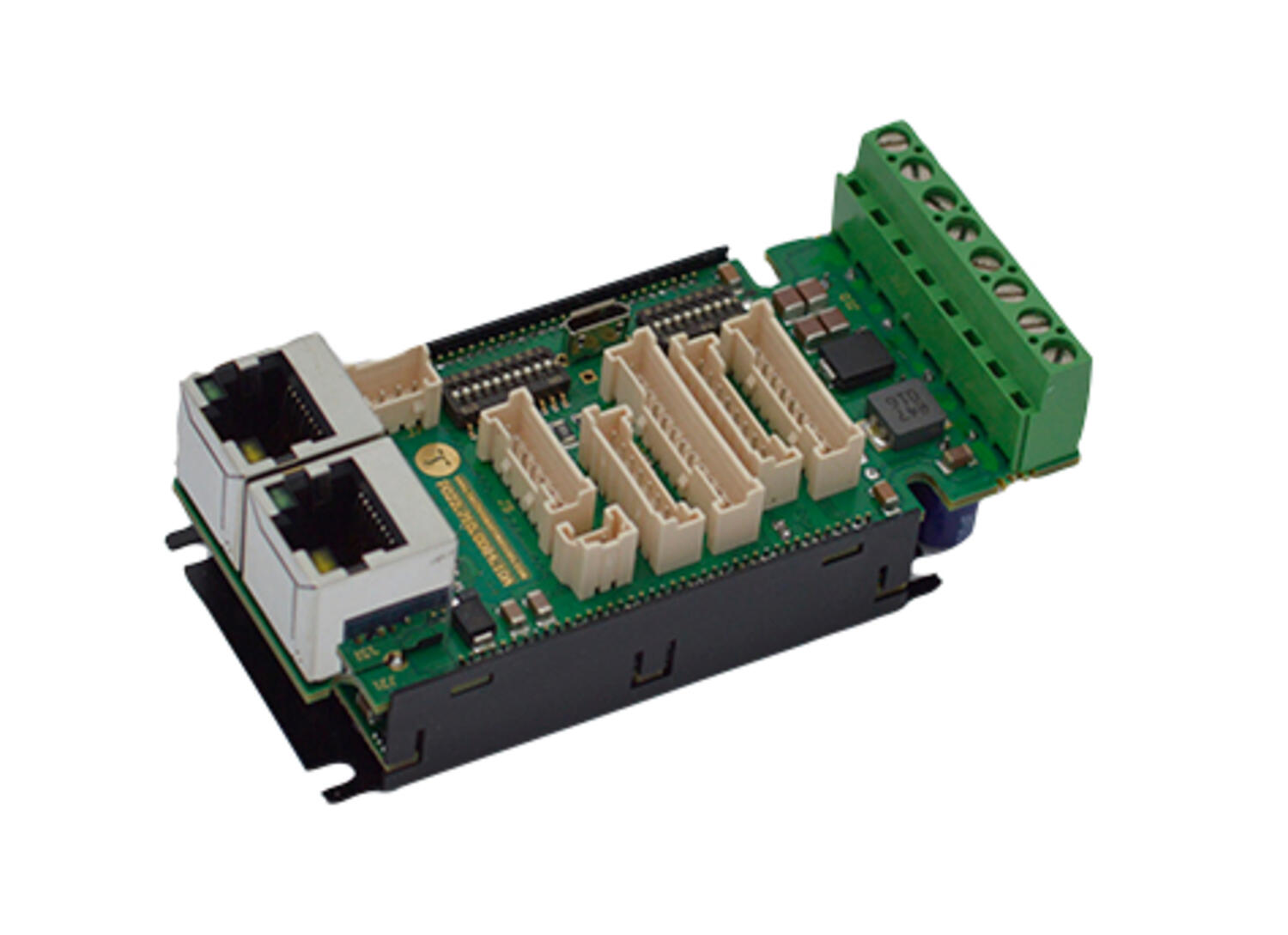

Technosoft iPOS4815
Motion Controller - 15A
- Power up to 1000W, continuous/peak current 15/28A
- Built-in motion controller
- For brushed DC, BLDC and stepper motors
- Communication via RS232, EtherCAT, TMLCAN and CANopen
- STO inputs

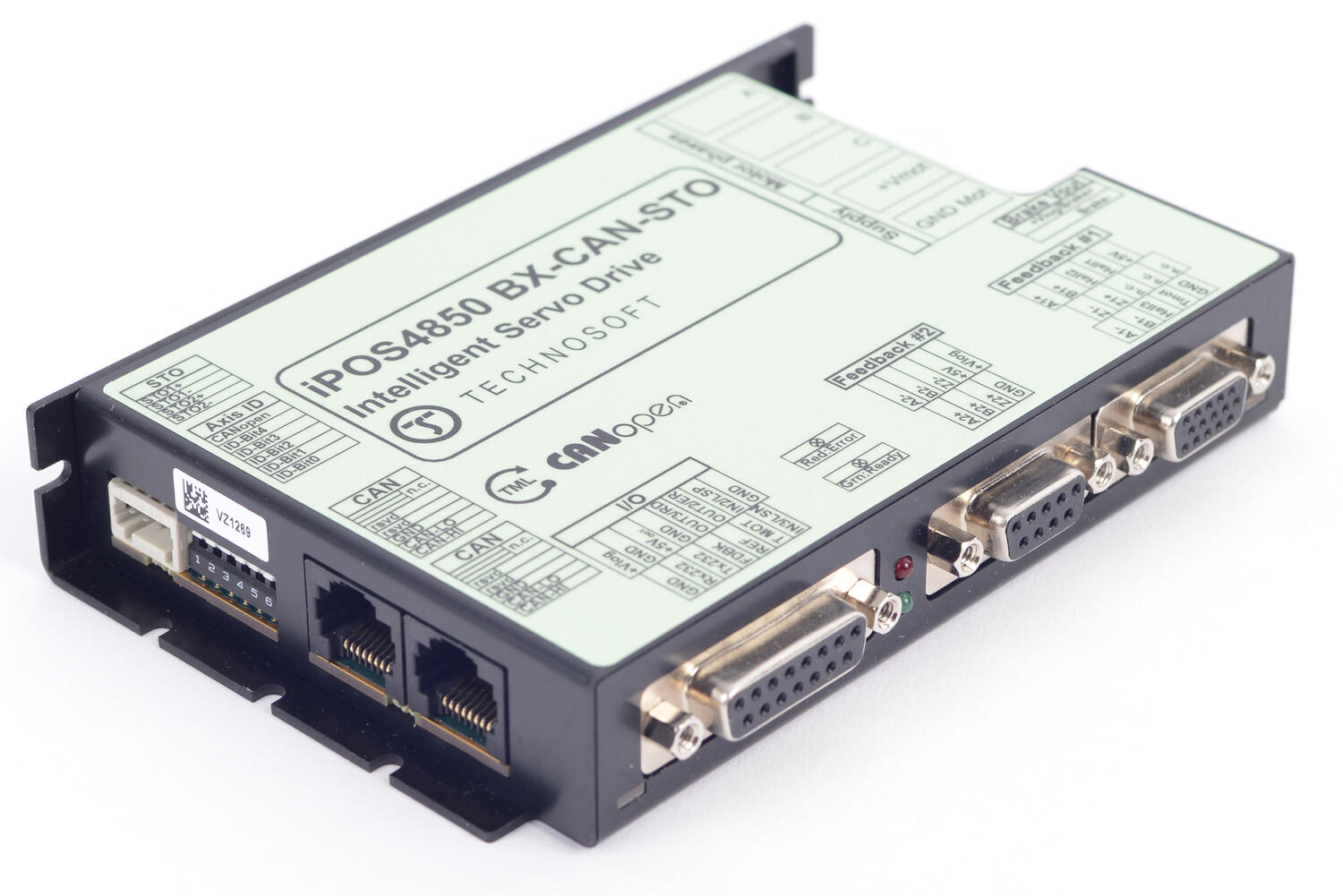

Technosoft - iPOS4850
Motion controller drive - 50A
- Power up to 2500W, continuous/peak current 50/90A, supply voltage 12-60VDC
- Built-in motion controller, 2 STO inputs compatible with SIL3/Cat3/PLe
- For brushed DC, BLDC and stepper motors
- Communication after RS-232 (TMLCAN) and CANopen (default) or EtherCAT (optional)
- Enclosed design
Technosoft iPOS8010
Motion controller drive - 10A
- Power up to 800W, continuous/peak current 10/20A, supply voltage 12-80VDC
- Built-in motion controller, 2 STO inputs compatible with SIL3/Cat3/PLe
- For brushed DC, BLDC and stepper motors
- Communication via RS-232 (TMLCAN) and CANopen (default) or EtherCAT (optional)
- Open PCB or enclosed design
Technosoft iPOS8020
Motion controller drive - 20A
- Power up to 1600W, continuous/peak current 20/40A, supply voltage 12-80VDC
- Built-in motion controller, 2 STO inputs compatible with SIL3/Cat3/PLe
- For brushed DC, BLDC and stepper motors
- Communication via RS-232 (TMLCAN) and CANopen (default) or EtherCAT (optional)
- Open PCB or enclosed design

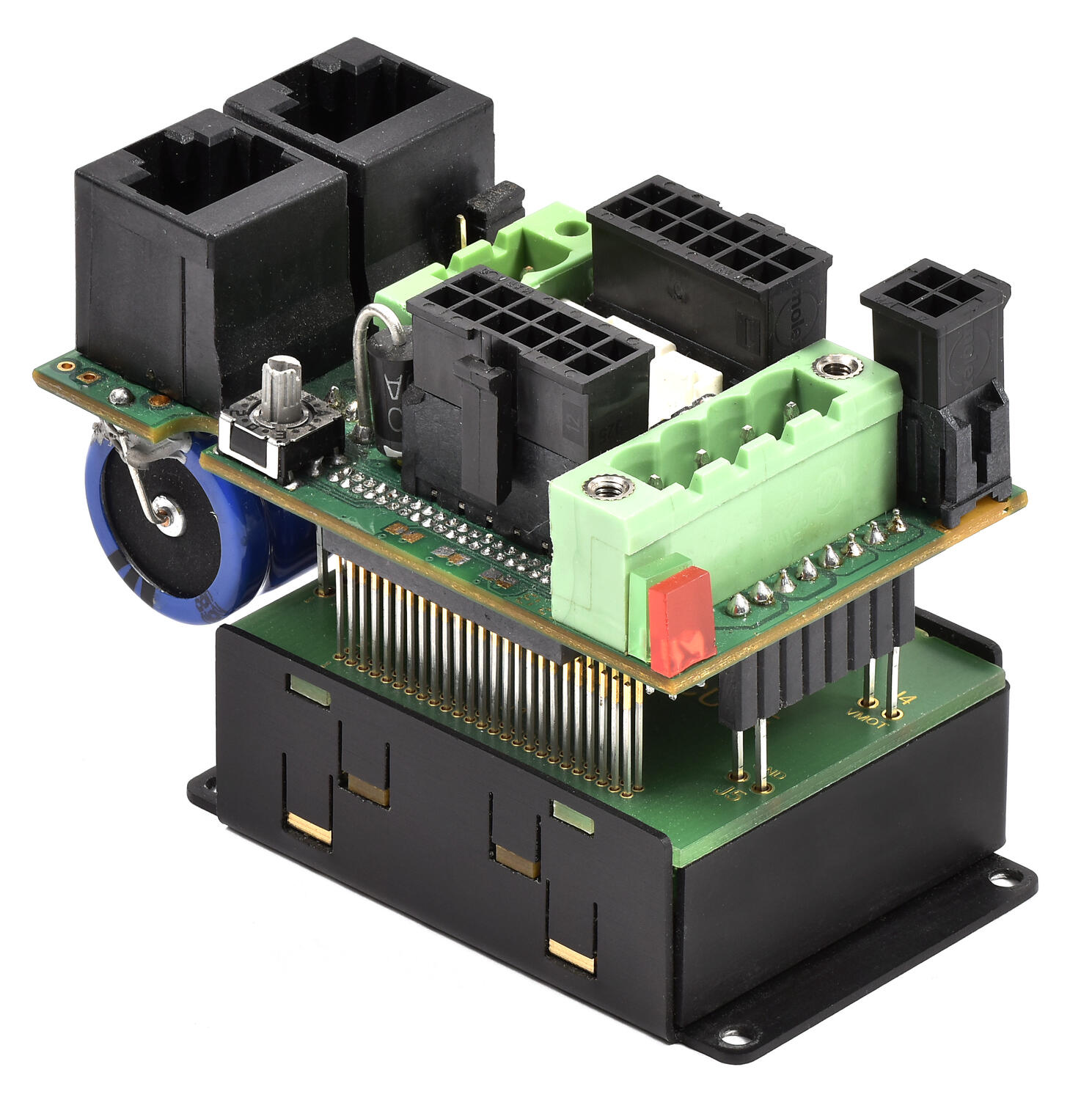

Technosoft- iMOTIONCUBE
Motion controller drive – 1600 W
- Power up to 2500W, continuous/peak current 20/40A, supply voltage 12-60VDC
- Built-in motion controller, 2 STO inputs compatible with SIL3/Cat3/PLe
- For brushed DC, BLDC and stepper motors
- Communication via RS-232 (TMLCAN) and CANopen (default) or Ethernet (optional)
- Compact, plug-in design

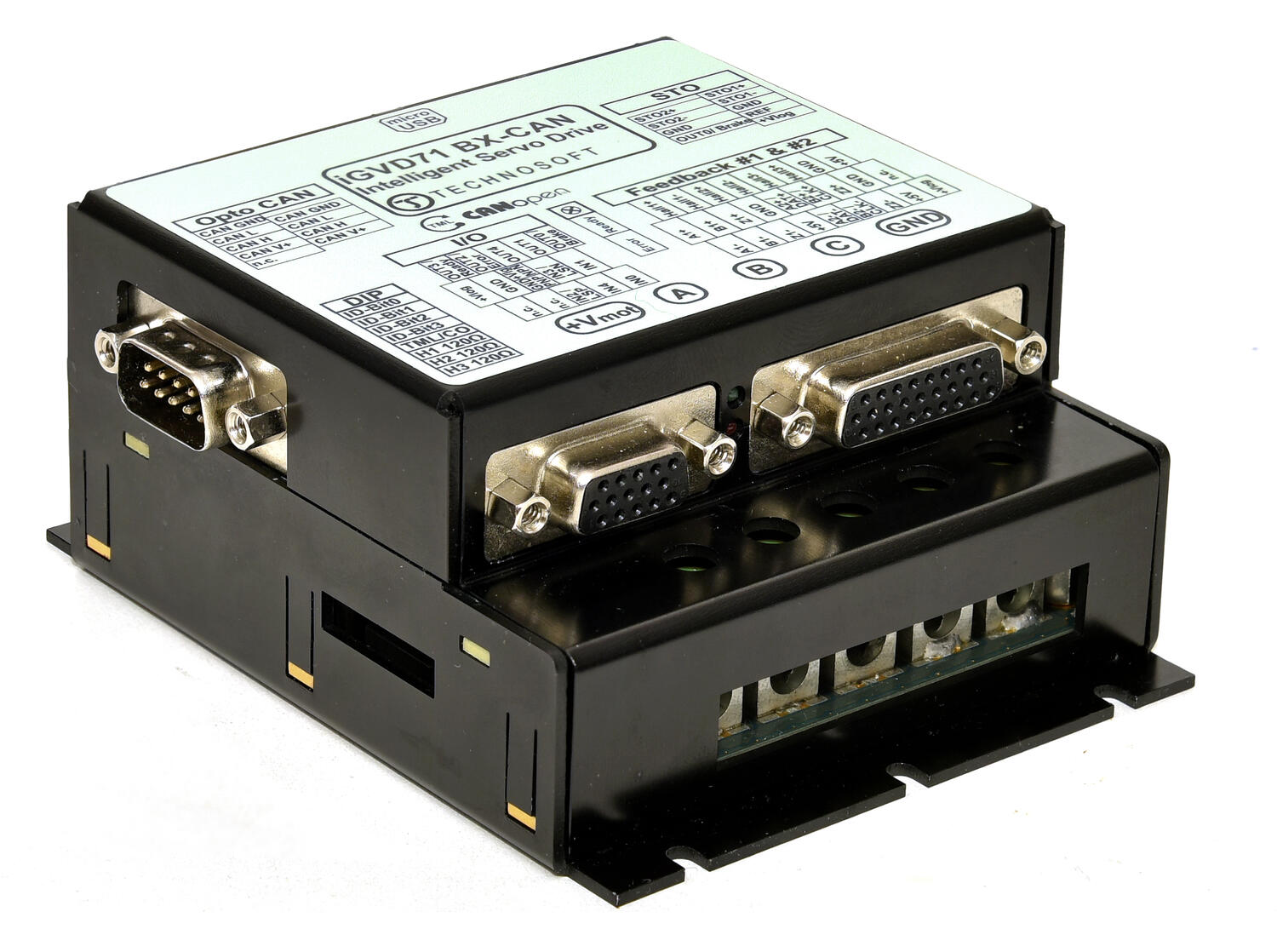

Technosoft - IGVD71
Motion controller drive – 8000 W
- Power up to 8000W, continuous/peak current 100/140A, supply voltage 11-80VDC
- Built-in motion controller, 2 STO inputs compatible with SIL3/Cat3/PLe
- For brushed DC, BLDC and stepper motors
- Communication via RS-232 (TMLCAN) and CANopen (default) or Ethernet (optional)
- Enclosed design

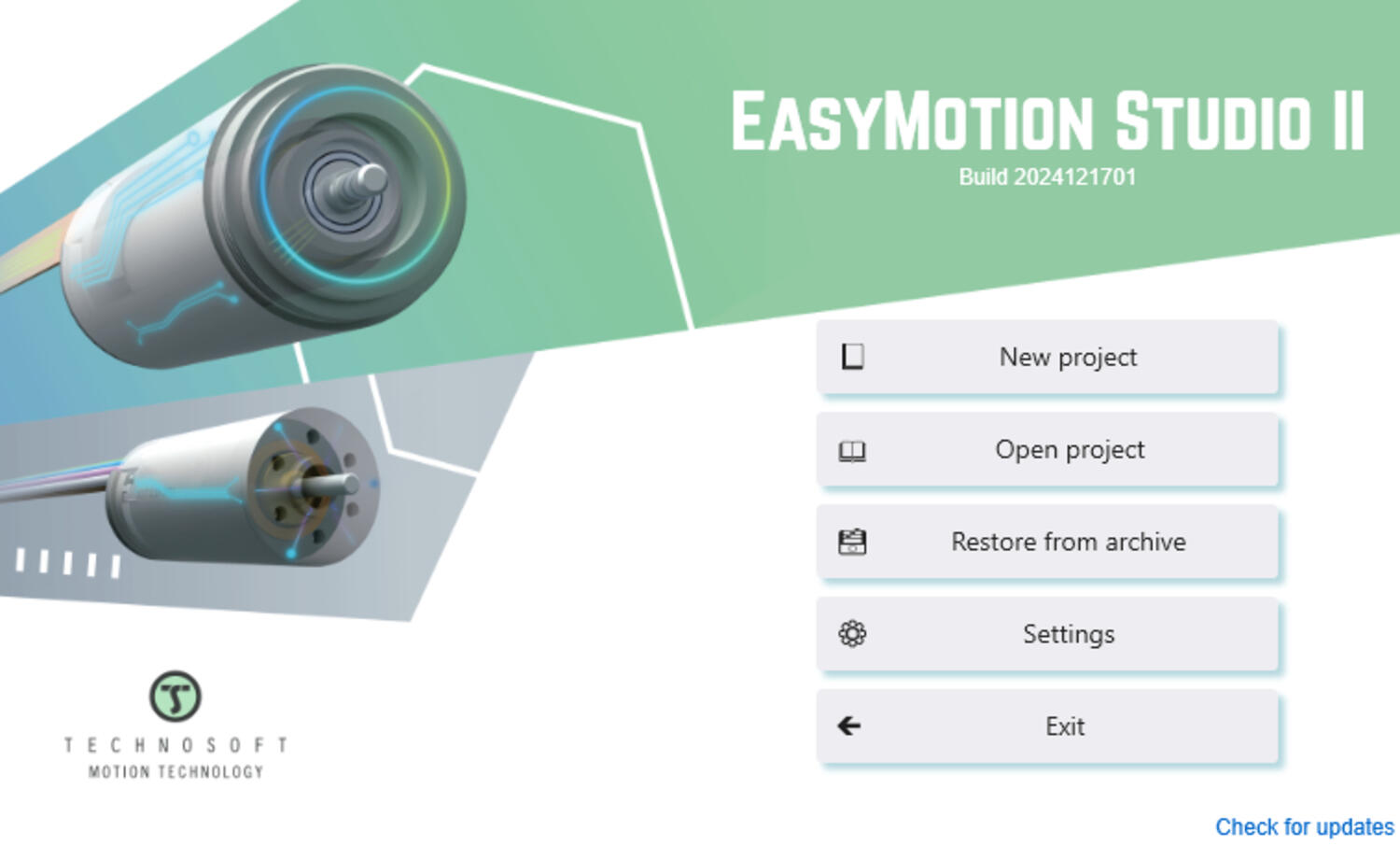

EasyMotionStudio Software
Programming softare for all iPOS controllers
- EasySetUp - for quick setup and tuning
- Motion Wizard - for easy programming of motion patterns
- Suitable for all Technosoft controllers
