Aventics
What makes Aventis stand out?
The Aventics range is extremely sound on product quality and innovation, always good indicators of the nature of a brand.
Their portfolio of quality products is extensive. They have very good expertise in solutions and experience in most industries. Their pneumatics support is well established and long-term.
Aventics are always innovating to optimise the function and features of their products and solutions. They do this by using new technologies and materials, as well as integrating electronic elements.
Aventics help us at OEM Automatic incorporating Zoedale to help you. Discussing your requirements with us and using their unique online engineering tools means you get results quickly and easily. These tools include a pneumatics product configurator, a cylinder finder, CAD search, scheme editor and a cross reference tool.
Using the tools, you can configure your complete application, from compressed air preparation to valve control and handling solution with single cylinders and drives, to complex multi-axis handling systems.
OEM Automatic incorporating Zoedale is a Platinum UK distributor for Aventics. You get the best expert technical advice and access to the full product range, with stock available by express next day delivery.
The Aventics range has five main areas:
Pneumatic cylinders and accessories
Includes standard, mini, round, and short stroke cylinders, rodless cylinders, cylinder accessories and sensors.
Aventics PRA series Profile Cylinder
- Ø32 – 125mm
- Connection: G1/8", G1/4", G3/8" or G1/2"
- Double acting with magnetic piston
- ISO 15552
Aventics KPZ Series Compact Cylinder
- Ø 16mm-100mm
- Connection: M5, G1/8"
- Piston rod internal thread
- ATEX optional
Aventics MNI series Mini Cylinder
- Ø 10mm - 25mm
- Connection: M5, G1/8"
- Corrosion protected
- ATEX optional
Valves and valve systems
Includes valve systems and directional control valves.
CD07, CD12 series directional valve
3/2" 5/3" 5/2"
- Compressed air connection G1/4"-G1/2"
- Flow capacity 900 to 4100 l/min
- Temperature range -15/25°C to +50°C
- ATEX available on request
TC08, TC15 series directional spool valve
5/3 5/2
- Connection 1/8 ", 1/4"
- Flow capacity 800 l/min
- Temperature range -10°C to +50°C
- IP65
740 series diaphragm seat valve
- Connection Plug, EN 175301-803, form A
- Flow capacity 1100l / min
- Temperature range -25 to +50 °C
- ATEX available on request
- Selectable with ATEX coil
Air supply management
You’ll find filters, regulators and lubricators, pressure and flow sensors, flow and check valves.
Aventics AS1-RGS Pressure Regulator
- With or without pressure gauge
- G1/4"
- Manual Activation
- Can be assembled into blocks
Aventics AS2-RGS pressure regulator
- With or without pressure gauge
- G1/4" or G3/8"
- Mechanical activation
- Suitable for ATEX
Aventics AS3-RGS Pressure Regulator
- With or without pressure gauge
- G1/2" or G3/8"
- Mechanical activation
- Suitable for ATEX

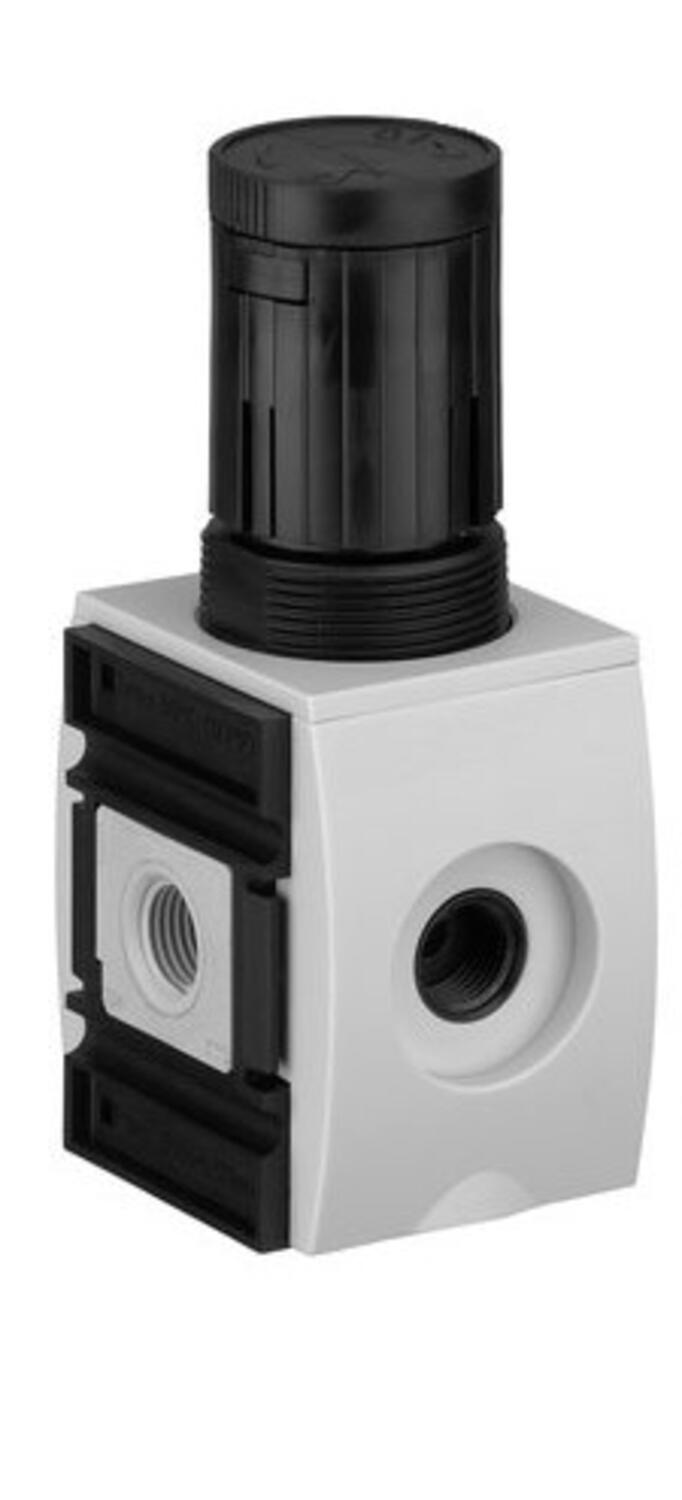

Aventics AS5-RGS Pressure Regulator
- Lockable with E11 locking
- Mechanical activation
- G1
- Qn= 14500 l/min

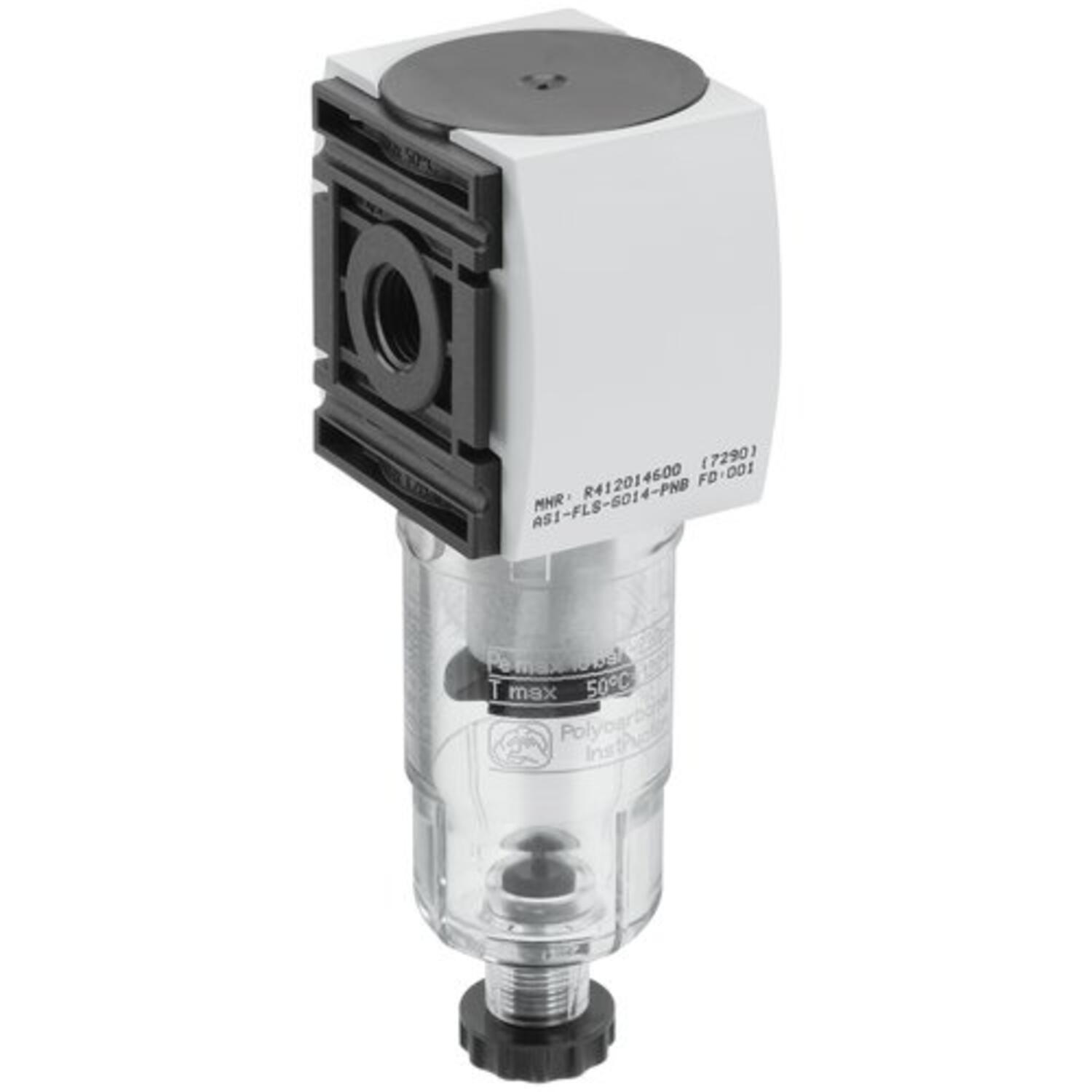

Aventics AS1-FLS filter
- Connection G1/4
- Width 43 mm
- 5 µm filter porosity
- Flow up to 1000 l/min

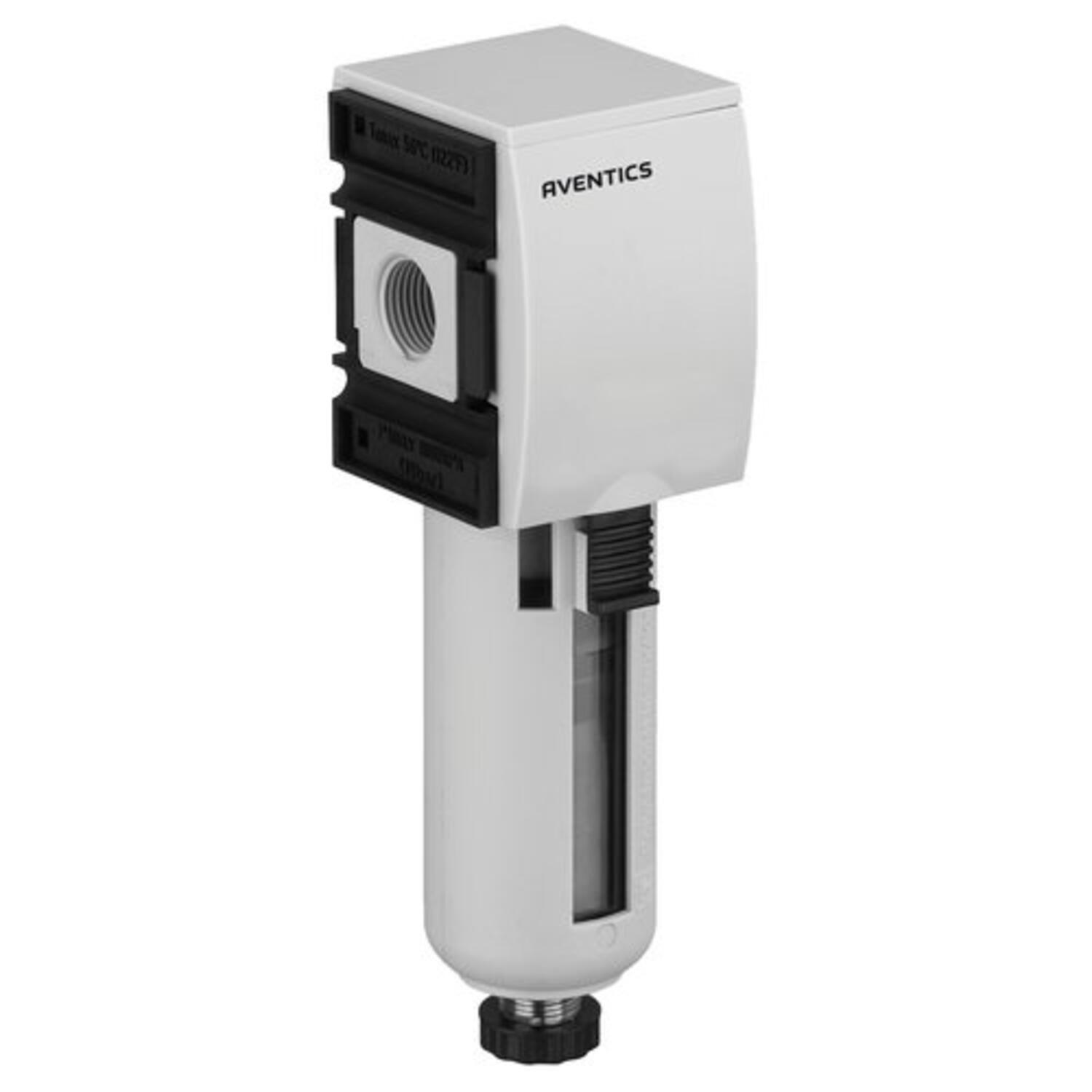

Aventics AS2-FLS Filter
- G1/4" or G3/8"
- Filter Porosity 5 µm
- Suitable for ATEX
- Fully and semi-automatic
Aventics AS3-FLS Filter
- G3/8" or G1/2"
- Filter porosity 5µm
- Suitable for ATEX
- Fully and semi-automatic

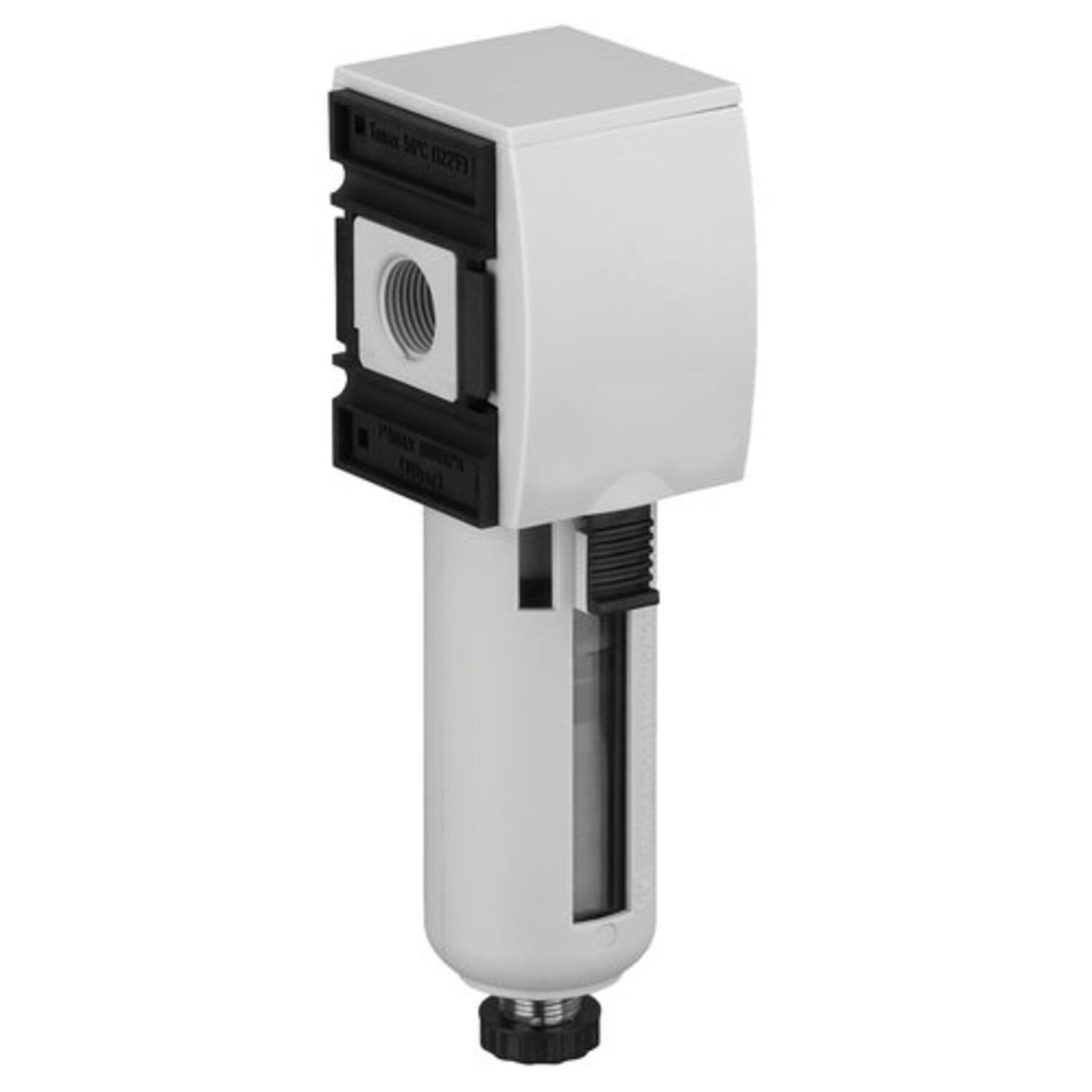

Aventics AS5-FLS Filter
- G3/4" or G1"
- Filter porosity 5 µm
- Suitable for ATEX
- Fully and semi-automatic
Vacuum technology
Encompasses vacuum generators, vacuum cups and system accessories.
Customer-specific solutions
Finally, there are customer-specific solutions which use on-board intelligence to integrate smart components into a digital environment. And Aventics make sure they comply with the relevant communication standards.
