Plastic Connectors
FLEXAquick type Connector System
The FLEXAquick type connector system has been designed to deliver fast and secure connections for the ROHRflex polyamide conduit system. This innovative solution features a one-piece, fully integrated connector that eliminates the need for tools or additional components during assembly.
With its push-in lock technology, the FLEXAquick connector allows for rapid assembly and disassembly, enhancing productivity. All gaskets and locking mechanisms are built into the connector, which simplifies the assembly process and guarantees a secure connection,.
Constructed from durable polyamide, FLEXAquick connectors are well-suited for use in environments that may be corrosive, subject to high wear, or outdoors.
The FLEXAquick type connector system has been designed to deliver fast and secure connections for the ROHRflex polyamide conduit system. This innovative solution features a one-piece, fully integrated connector that eliminates the need for tools or additional components during assembly.
With its push-in lock technology, the FLEXAquick connector allows for rapid assembly and disassembly, enhancing productivity. All gaskets and locking mechanisms are built into the connector, which simplifies the assembly process and guarantees a secure connection,.
Constructed from durable polyamide, FLEXAquick connectors are well-suited for use in environments that may be corrosive, subject to high wear, or outdoors.
23 products with 312 variants
FLEXA
RQM tubing clamp
- Polyamide
- Temperature range from -40 °C to +120 °C
- EN 45545-2 [HL2]
Product has 5 parts.
FLEXA

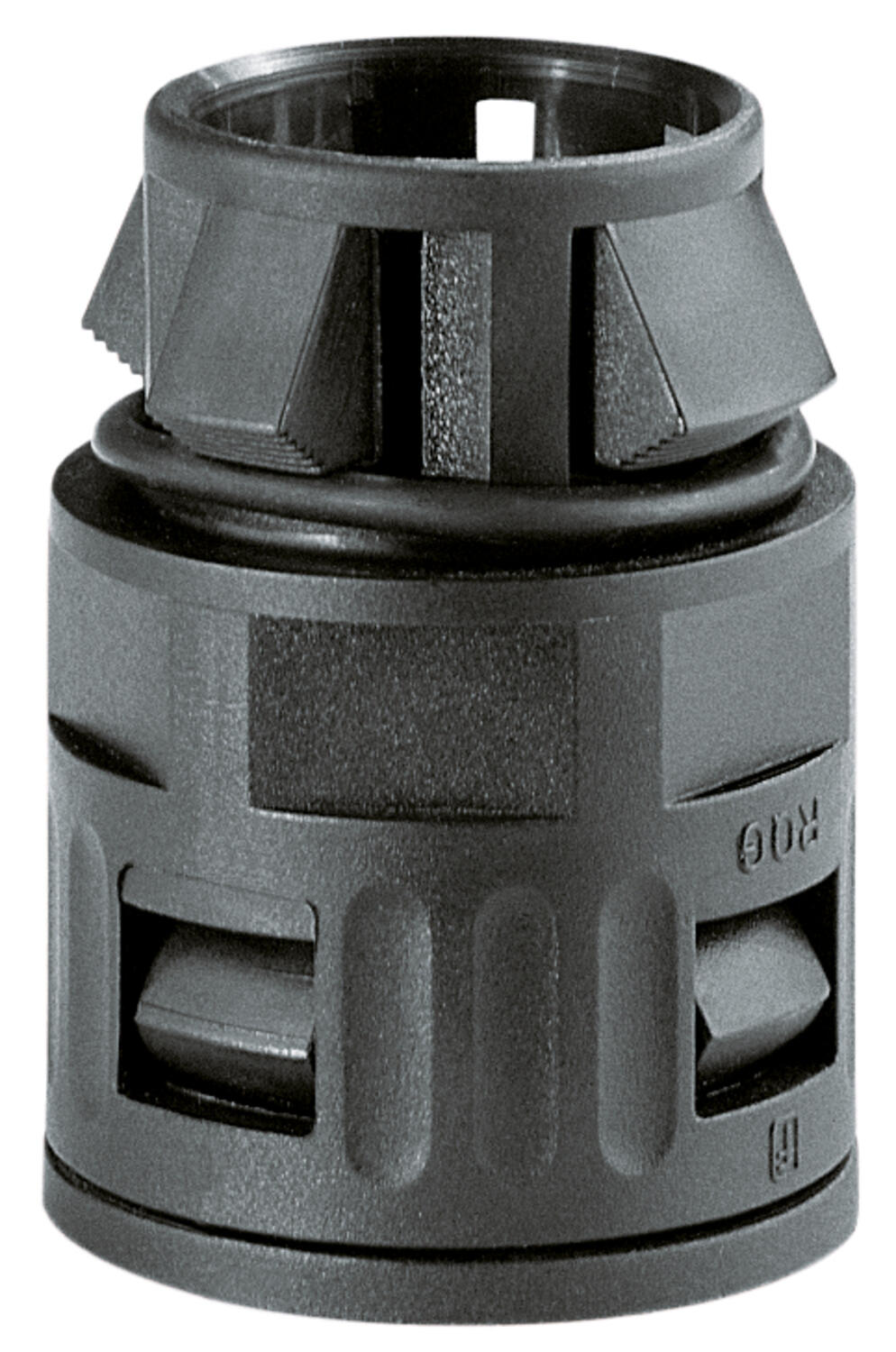

RQG straight, quick-type, metric
- Metric or PG thread
- Straight
- RQG IP 68/ IP 69K
- RQG1 IP 66
Product has 40 parts.
FLEXA
RQGK straight, quick-type
- Polyamide connector
- Nickel-plated brass outer thread
- IP68/IP69K
Product has 22 parts.
FLEXA
RQG1-S straight, quick-type
- Quick-type connector
- Installation without counter nut
- IP66
Product has 7 parts.
FLEXA
RQGZ1 connector with strain relief
- Metric or PG thread
- Integrated snap-in sleeve
- IP 66
- Strain relief
Product has 28 parts.
FLEXA
RQGR reducer
- IP68
- Quick-type reducer
- Polyamide
- Temperature range from -40 °C to +120 °C
Product has 9 parts.
FLEXA
RQB sealed, 90°/45°
- Metric or PG thread
- No loose parts
- No tools needed
Product has 42 parts.
FLEXA
RQW-F flange 90º angle
- IP68
- Quick-type connector for Rohrflex conduits
- Polyamide connector
- Temperature range -40 °C...+120 °C
Product has 4 parts.
FLEXA
RQW 90º elbow, quick-type
- Metric
- Connector with 90º elbow
Product has 34 parts.
FLEXA
RQE end cap
- TPE
- Temperature range from -40 °C to +120 °C
Product has 8 parts.
FLEXA
Flexa
Product has 5 parts.
FLEXA
Flexa
Product has 2 parts.
FLEXA
RQT-PA T distributor
- IP68/IP69K
- Temperature range -40 °C...+120 °C
Product has 6 parts.
FLEXA

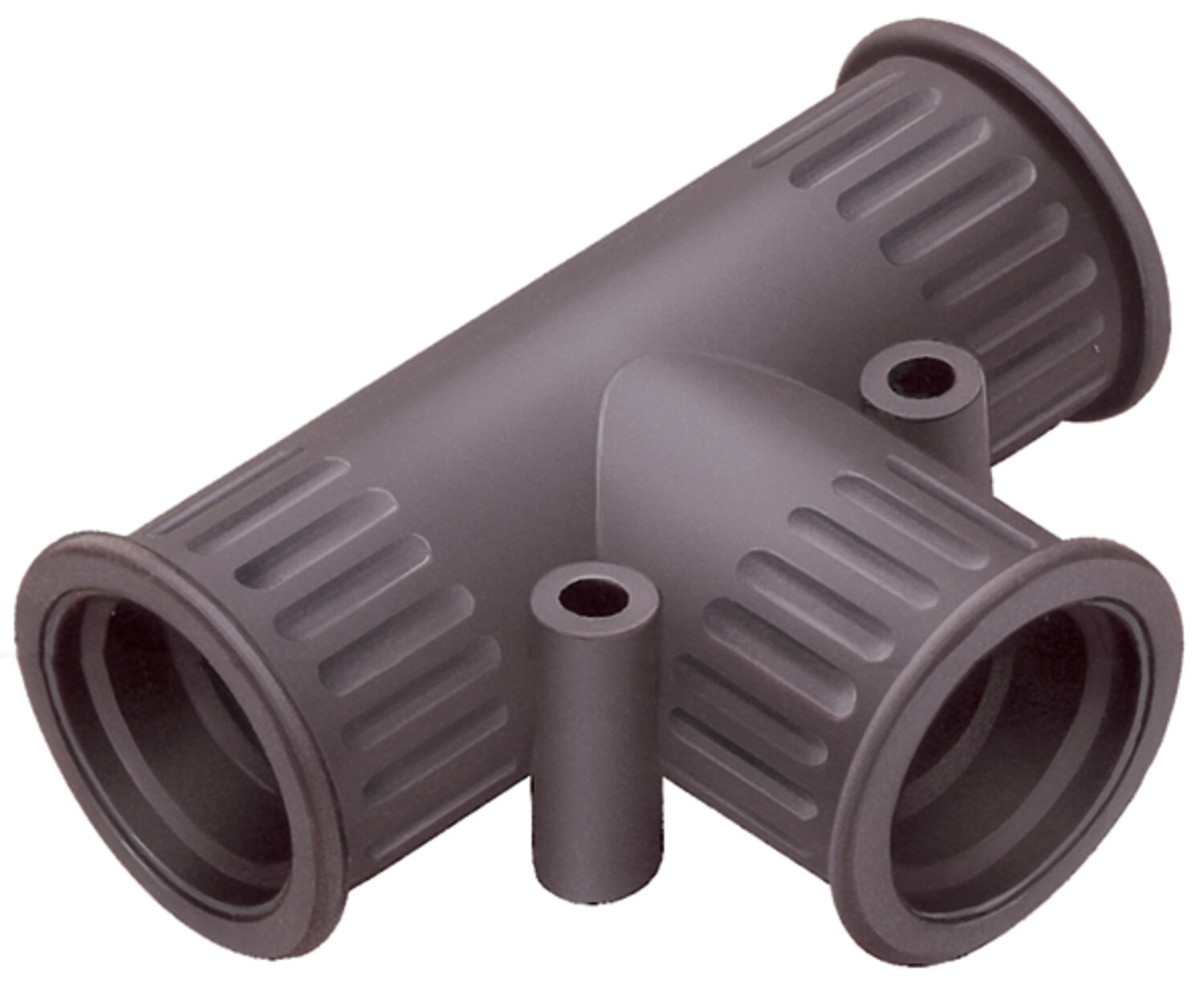

RQT T distributor, TPE
- IP66
- Temperature range from -40 °C to +120 °C
Product has 6 parts.
FLEXA
RQY-PA Y distributor
- IP68/IP69K
- Temperature range -40 °C...+120 °C
Product has 9 parts.
FLEXA

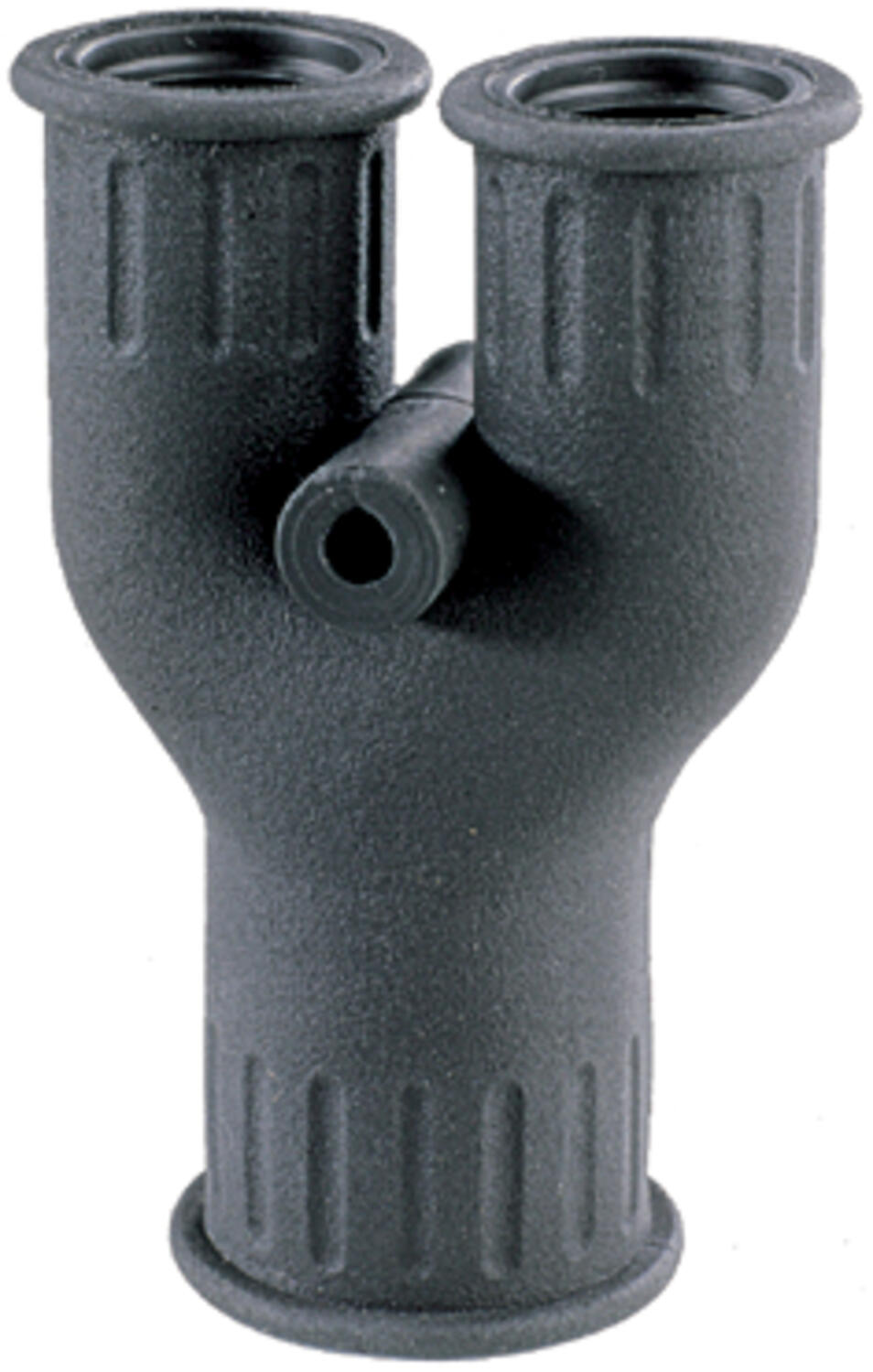

RQY Y distributor, TPE
- IP66
- Temperature range from -40 °C to +120 °C
Product has 5 parts.
FLEXA
RQK-PA coupler
- IP68
- Polyamide connector
- Temperature range -40 °C...+120 °C
Product has 5 parts.
FLEXA
RQK coupler, TPE
- Straight coupler
- IP66
- Temperature range from -40 °C to +120 °C
Product has 7 parts.
FLEXA
RQH tubing clamp
- Polyamide
- For light applications
Product has 9 parts.
FLEXA

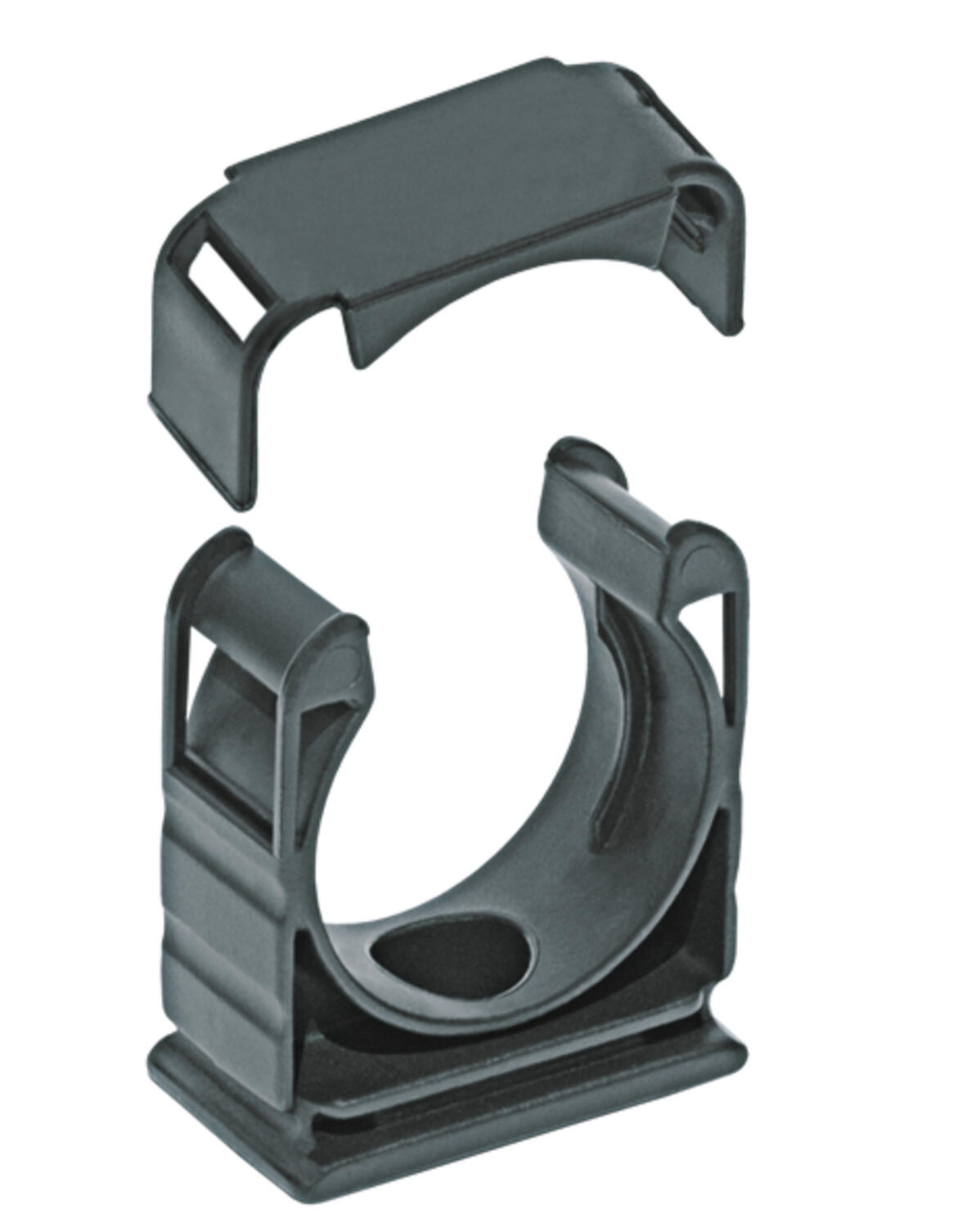

RQHG tubing clamp
- Polyamide
- Tubing clamp with cover
Product has 18 parts.
FLEXA
RQHD cover and RQHV clamp
- Cover RQHD for tubing clamp RQH
Product has 20 parts.
FLEXA
RQS tubing clamp
- For light, medium and heavy duty applications
- Polyamide
- Temperature range from -40 °C to +120 °C
Product has 9 parts.
FLEXA
Flexa
Product has 12 parts.
