FLEXA

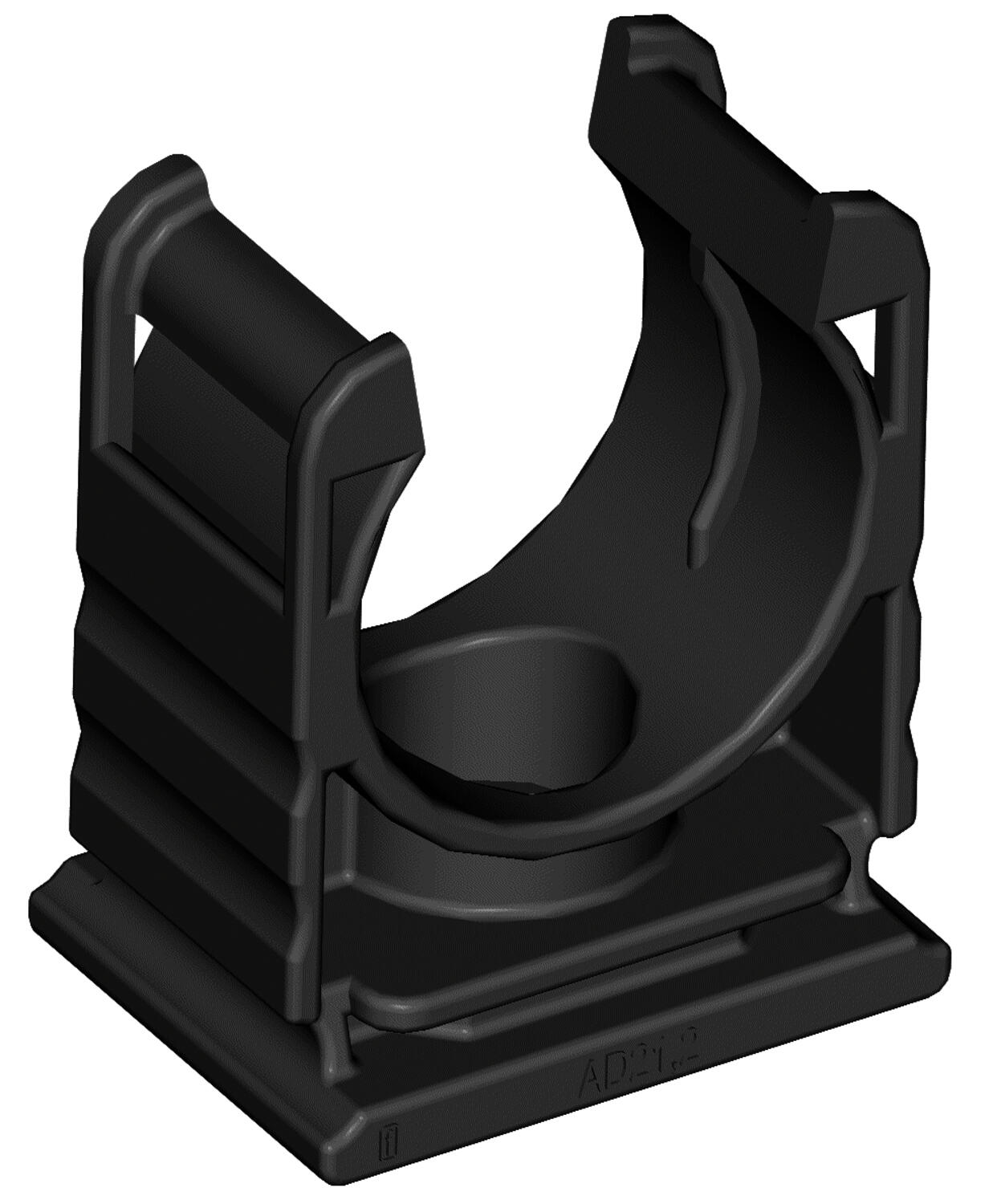

RQH tubing clamp
 RQH tubing clamp for light applications, made of polyamide. Also available with a cover and in grey color.
- Polyamide
- For light applications
Selected variant

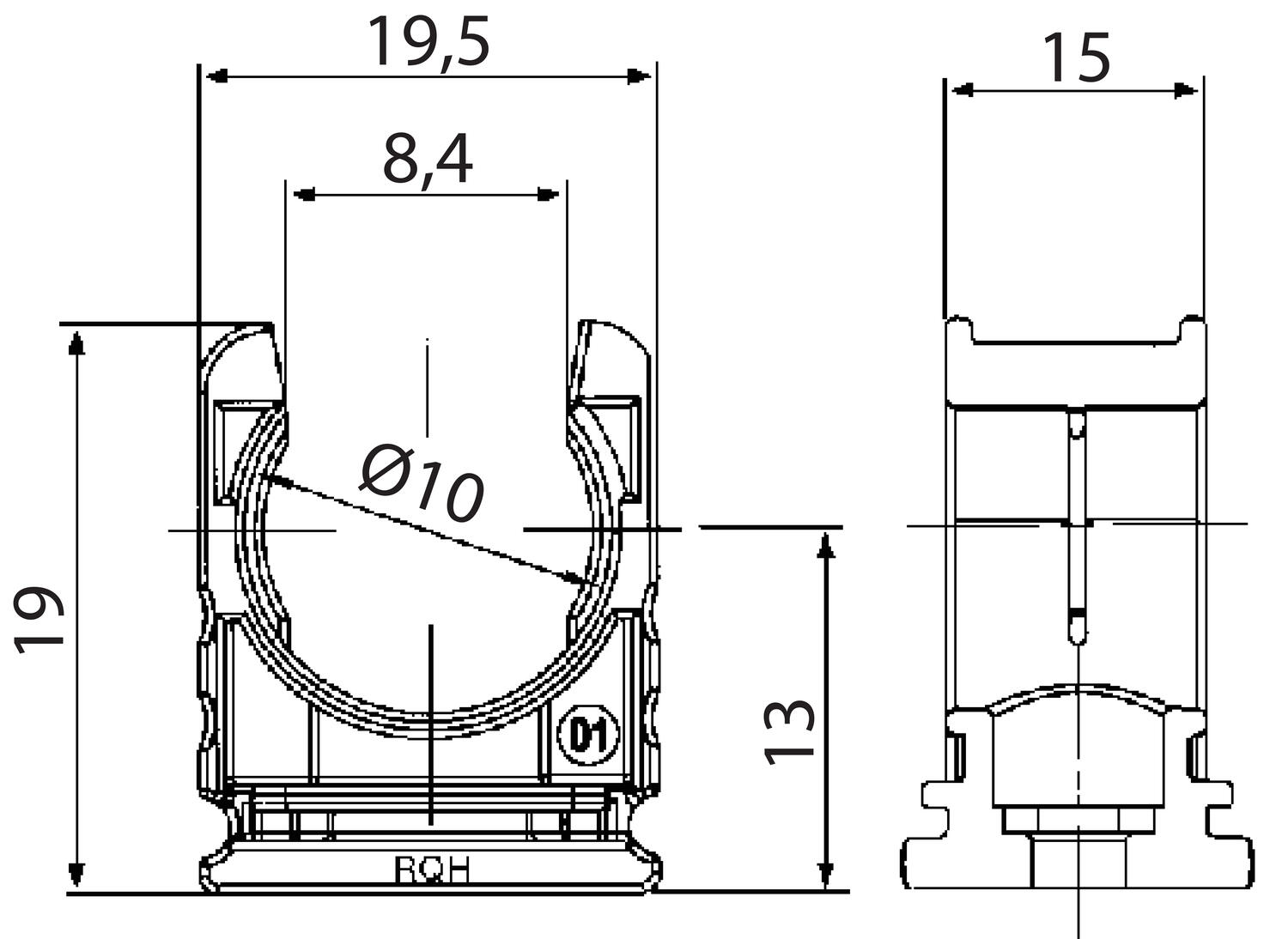

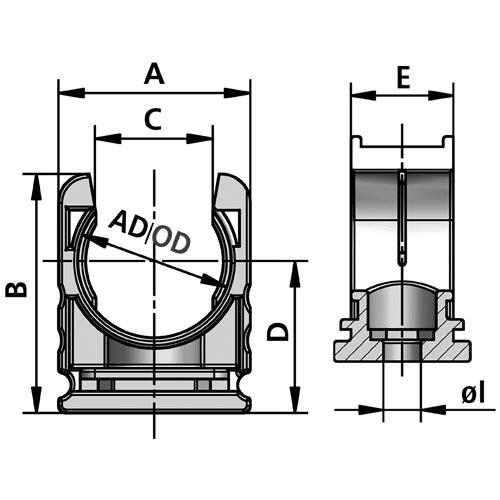

Technical data
| Approvals | Lloyd´s, VDE |
|---|---|
| Colour | Black |
| Hose dimension AD | 10 |
| Material | Polyamide |
| Pack size | 50 Â |
| Temperature operational max | 120 °C |
| Temperature operational min | -40 °C |
| Weight kg / 100 ± 10% | 0.34 |
Downloads
Product description
 RQH tubing clamp for light applications, made of polyamide. Also available with a cover and in grey color.
