FLEXA

RQK-PA coupler

  • IP68
  • Polyamide connector
  • Temperature range -40 °C...+120 °C

Selected variant

Available in several variants
FLEXA.tif

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

Approvals CSA 22.2, cRUus, DB
Colour Black
Hose dimension AD 21.2
IP class IP68
Material Polyamide
Pack size 10
Temperature operational max 120 °C
Temperature operational min -40 °C
Weight kg / 100 ± 10% 2.6

Downloads

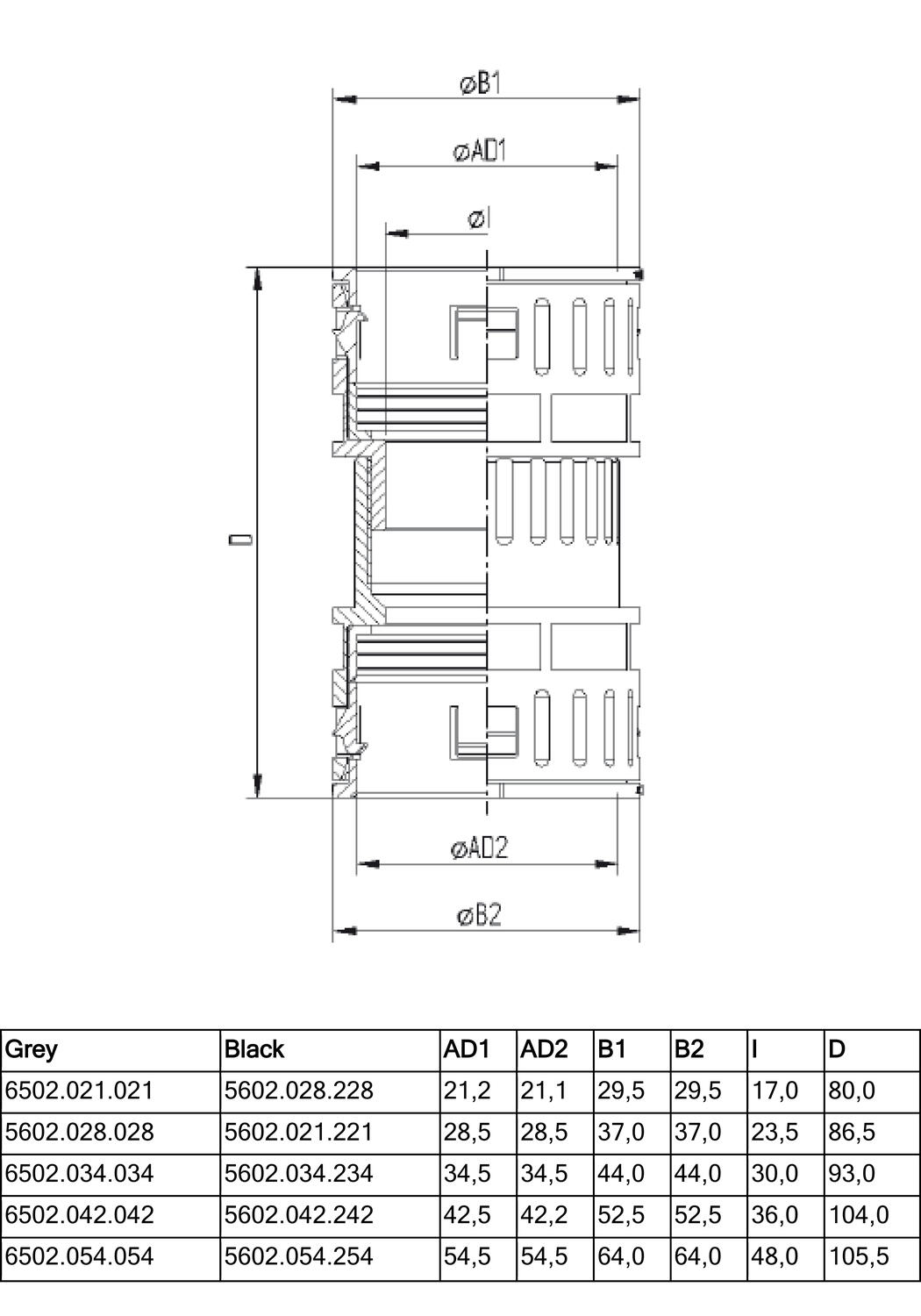

Measurements and connections

Accessories

Related products

Parts Hose dimension AD Weight kg / 100 ± 10% Price

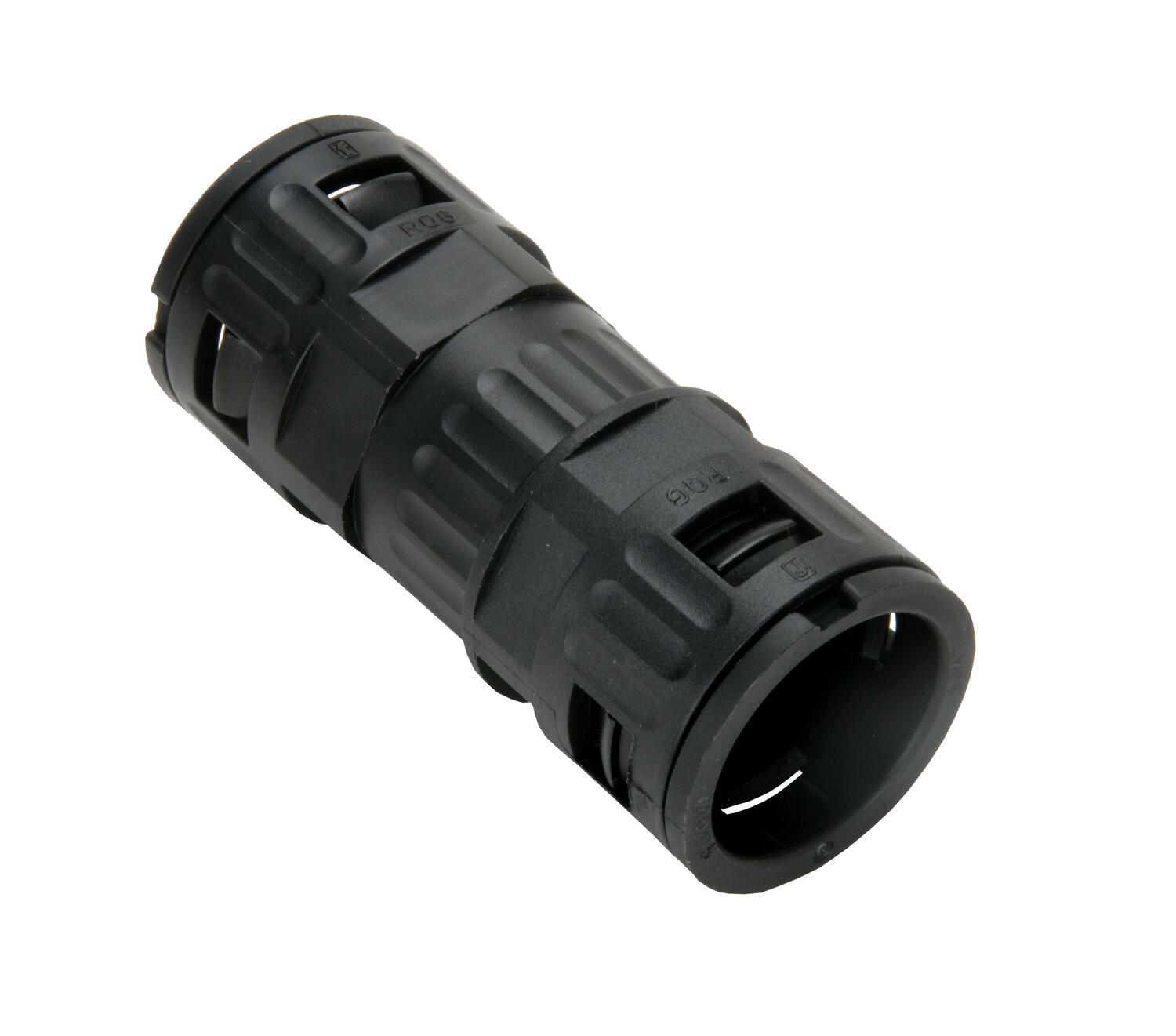

Photo, RQK
Connector.RQK-PA 21,2 Black
Art:
5602.021.221 Copied
21.2
2.6
Photo, RQK
Connector.RQK-PA 28,5 Black
Art:
5602.028.228 Copied
28.5
3.5
Photo, RQK
Connector.RQK-PA 34,5 Black
Art:
5602.034.234 Copied
34.5
4.7
Photo, RQK
Connector.RQK-PA 42,5 Black
Art:
5602.042.242 Copied
42.5
11.2
Photo, RQK
Connector.RQK-PA 54,5 Black
Art:
5602.054.254 Copied
54.5
19.9
