FLEXA

RQB sealed, 90°/45°

RQB90 ja RQB45 liittimet ovat valmistettu polyamidista. Ne kestävät hyvin öljyä, happoja ja liuottimia.

Liittimet ovat myös halogeenivapaita.



Saatavana myös harmaan värisenä.



RQB90 and RQB45 are bent connectors with either 45° or 90° angle, metric thread. Made of polyamide, well resistant against oil, acids and solvents. Halogen-free.



Available also in grey color.

Read more
  • Metric or PG thread
  • No loose parts
  • No tools needed

Selected variant

Available in several variants
FLEXA.tif

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Approvals CPT, cRUus, DB, Lloyd´s, REACH, RoHS, VDE
Colour Black
Hose dimension AD 10
IP class IP68, IP69K
Material Polyamide
Pack size 50
Temperature operational max 120 °C
Temperature operational min -40 °C
Thread M12

Downloads

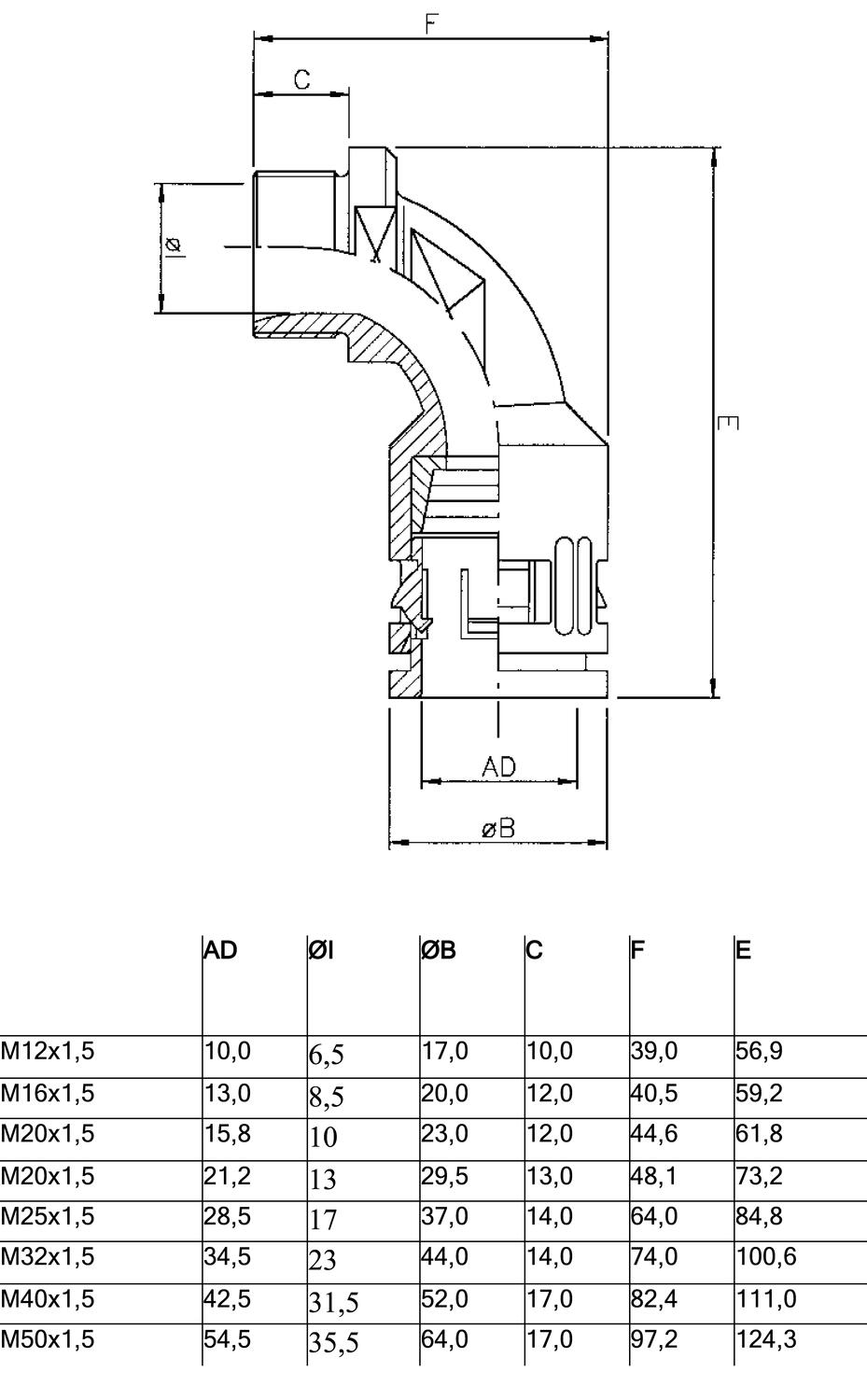

Measurements and connections

Product description

RQB90 ja RQB45 liittimet ovat valmistettu polyamidista. Ne kestävät hyvin öljyä, happoja ja liuottimia.

Liittimet ovat myös halogeenivapaita.



Saatavana myös harmaan värisenä.



RQB90 and RQB45 are bent connectors with either 45° or 90° angle, metric thread. Made of polyamide, well resistant against oil, acids and solvents. Halogen-free.



Available also in grey color.

Accessories

Related products

Related

Kubler slip rings encoders
Blog Product news

Optimise your production line with sensors

Optimise your production line with encoders, inclinometers, displays and slip rings

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

Parts Hose dimension AD Pack size Thread Price

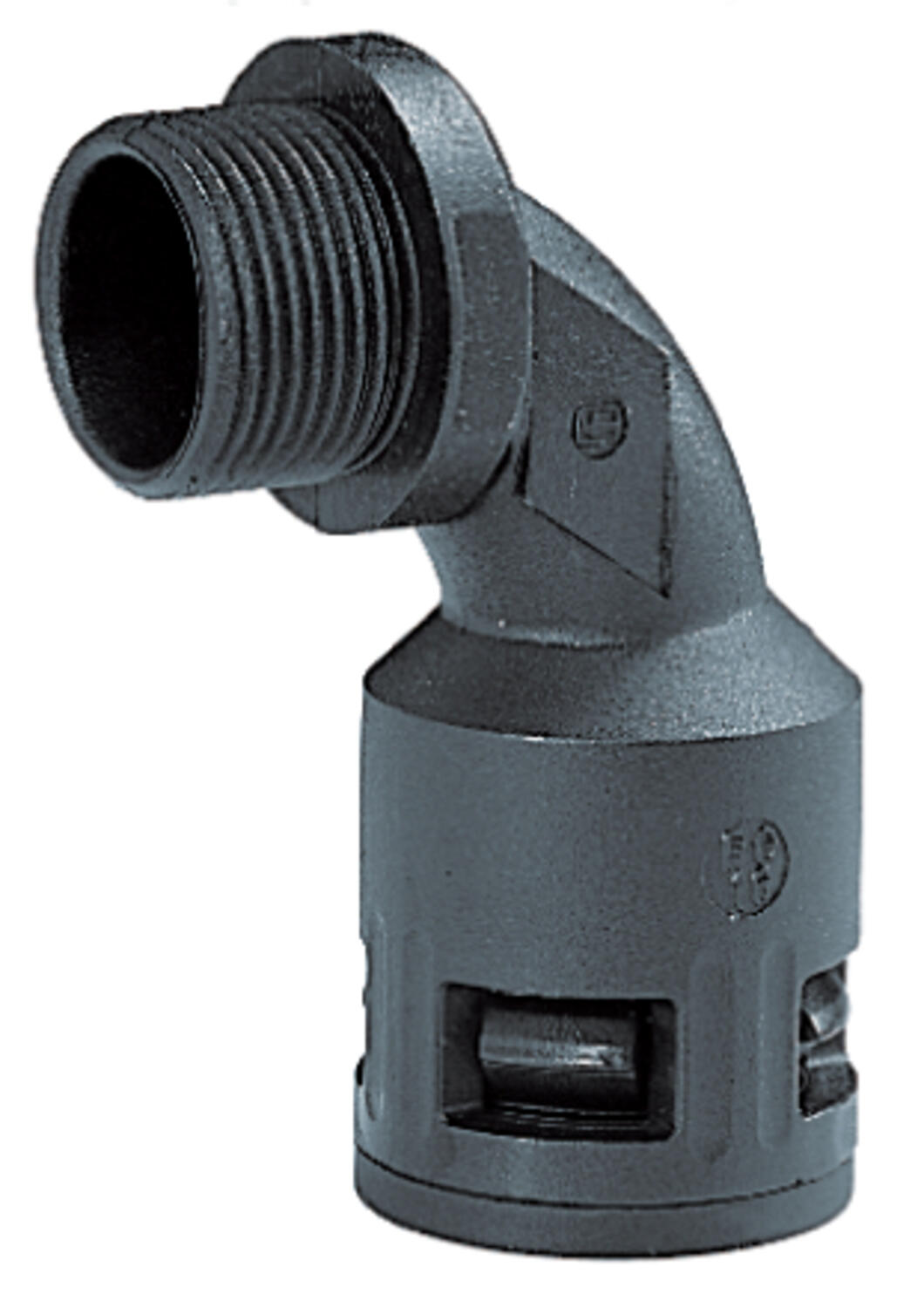

Photo at bent clutch 90°/45°.
RQB90-M AD10 M12x1,5 bend 90° black
Art:
5103.010.212 Copied
10
50
M12
Photo at bent clutch 90°/45°.
RQB90-M AD13 M16x1,5 bend 90° black
Art:
5103.013.216 Copied
13
50
M16
Photo at bent clutch 90°/45°.
RQB90-M AD15,8 M20x1,5 bend 90° black
Art:
5103.015.220 Copied
15,8
50
M20
Photo at bent clutch 90°/45°.
RQB90-M AD21,2 M20x1,5 bend 90° black
Art:
5103.021.220 Copied
21,2
50
M20
Photo at bent clutch 90°/45°.
RQB90-M AD28,5 M25x1,5 bend 90° black
Art:
5103.028.225 Copied
28,5
25
M25
Photo at bent clutch 90°/45°.
RQB90-M AD34,5 M32x1,5 bend 90° black
Art:
5103.034.232 Copied
34,5
10
M32
Photo at bent clutch 90°/45°.
RQB90-M AD54,5 M50x1,5 bend 90° black
Art:
5103.054.250 Copied
54,5
5
M50
Photo at bent clutch 90°/45°.
RQB90-M AD42,5 M40x1,5 bend 90° black
Art:
5103.042.240 Copied
42,5
10
M40
Photo at bent clutch 90°/45°.
RQB90-P AD10 PG7 bend 90° black
Art:
5020.090.207 Copied
10
50
PG7
Photo at bent clutch 90°/45°.
RQB90-P AD13 PG9 bend 90° black
Art:
5020.090.209 Copied
13
50
PG9
Photo at bent clutch 90°/45°.
RQB90-P AD15,8 PG11 bend 90° black
Art:
5020.090.211 Copied
15,8
50
PG11
Photo at bent clutch 90°/45°.
RQB90-P AD18,5 PG13,5 bend 90° black
Art:
5020.090.213 Copied
18,5
50
PG13,5
Photo at bent clutch 90°/45°.
RQB90-P AD21,2 PG16 bend 90° black
Art:
5020.090.216 Copied
21,2
50
PG16
Photo at bent clutch 90°/45°.
RQB90-P AD28,5 PG21 bend 90° black
Art:
5020.090.221 Copied
28,5
25
PG21
Photo at bent clutch 90°/45°.
RQB90-P AD34,5 PG29 bend 90° black
Art:
5020.090.229 Copied
34,5
10
PG29
Photo at bent clutch 90°/45°.
RQB90-P AD42,5 PG36 bend 90° black
Art:
5020.090.236 Copied
42,5
10
PG36
Photo at bent clutch 90°/45°.
RQB90-P AD54,5 PG48 bend 90° black
Art:
5020.090.248 Copied
54,5
5
PG48
Photo at bent clutch 90°/45°.
RQB45-M AD10 M12x1,5 bend 45° black
Art:
5100.010.212 Copied
10
50
M12
Photo at bent clutch 90°/45°.
RQB45-M AD13 M16x1,5 bend 45° black
Art:
5100.013.216 Copied
13
50
M16
Photo at bent clutch 90°/45°.
RQB45-M AD15,8 M20x1,5 bend 45° black
Art:
5100.015.220 Copied
15,8
50
M20
Photo at bent clutch 90°/45°.
RQB45-M AD21,2 M20x1,5 bend 45° black
Art:
5100.021.220 Copied
21,2
50
M20
Photo at bent clutch 90°/45°.
RQB45-M AD28,5 M25x1,5 bend 45° black
Art:
5100.028.225 Copied
28,5
25
M25
Photo at bent clutch 90°/45°.
RQB45-M AD34,5 M32x1,5 bend 45° black
Art:
5100.034.232 Copied
34,5
10
M32
Photo at bent clutch 90°/45°.
RQB45-M AD42,5 M40x1,5 bend 45° black
Art:
5100.042.240 Copied
42,5
10
M40
Photo at bent clutch 90°/45°.
RQB45-M AD54,5 M50x1,5 bend 45° black
Art:
5100.054.250 Copied
54,5
10
M50
Photo at bent clutch 90°/45°.
RQB45-P AD13 PG9 bend 45° black
Art:
5020.089.209 Copied
13
50
PG9
Photo at bent clutch 90°/45°.
RQB45-P AD15,8 PG11 bend 45° black
Art:
5020.089.211 Copied
15,8
50
PG11
Photo at bent clutch 90°/45°.
RQB45-P AD21,2 PG16 bend 45° black
Art:
5020.089.216 Copied
21,2
50
PG16
Photo at bent clutch 90°/45°.
RQB45-P AD28,5 PG21 bend 45° black
Art:
5020.089.221 Copied
28,5
25
PG21
Photo at bent clutch 90°/45°.
RQB45-P AD34,5 PG29 bend 45° black
Art:
5020.089.229 Copied
34,5
10
PG29
Photo at bent clutch 90°/45°.
RQB45-P AD42,5 PG36 bend 45° black
Art:
5020.089.236 Copied
42,5
10
PG36
Photo at bent clutch 90°/45°.
RQB45-P AD54,5 PG48 bend 45° black
Art:
5020.089.248 Copied
54,5
5
PG48
Photo at bent clutch 90°/45°.
Angled Connector.RQB90-M M25x1,5 Black
Art:
5103.021.225 Copied
21,2
50
M25
Photo at bent clutch 90°/45°.
Art:
5103.028.232 Copied
28,5
25
M40
Photo at bent clutch 90°/45°.
Art:
5103.034.240 Copied
34,5
10
M40
Photo at bent clutch 90°/45°.
Art:
5103.042.250 Copied
42,5
10
M50
Photo at bent clutch 90°/45°.
Art:
5103.054.263 Copied
54,5
5
M63
Photo at bent clutch 90°/45°.
RQB45 M63 AD54,5 Angel 45°
Art:
5100.054.263 Copied
54,5
5
M63
Photo at bent clutch 90°/45°.
Art:
5100.042.250 Copied
42,5
10
M50
Photo at bent clutch 90°/45°.
Art:
5100.034.240 Copied
34,5
10
M40
Photo at bent clutch 90°/45°.
Art:
5100.028.232 Copied
28,5
25
M32
Photo at bent clutch 90°/45°.
Art:
5100.021.225 Copied
21,2
50
M25
