FLEXA

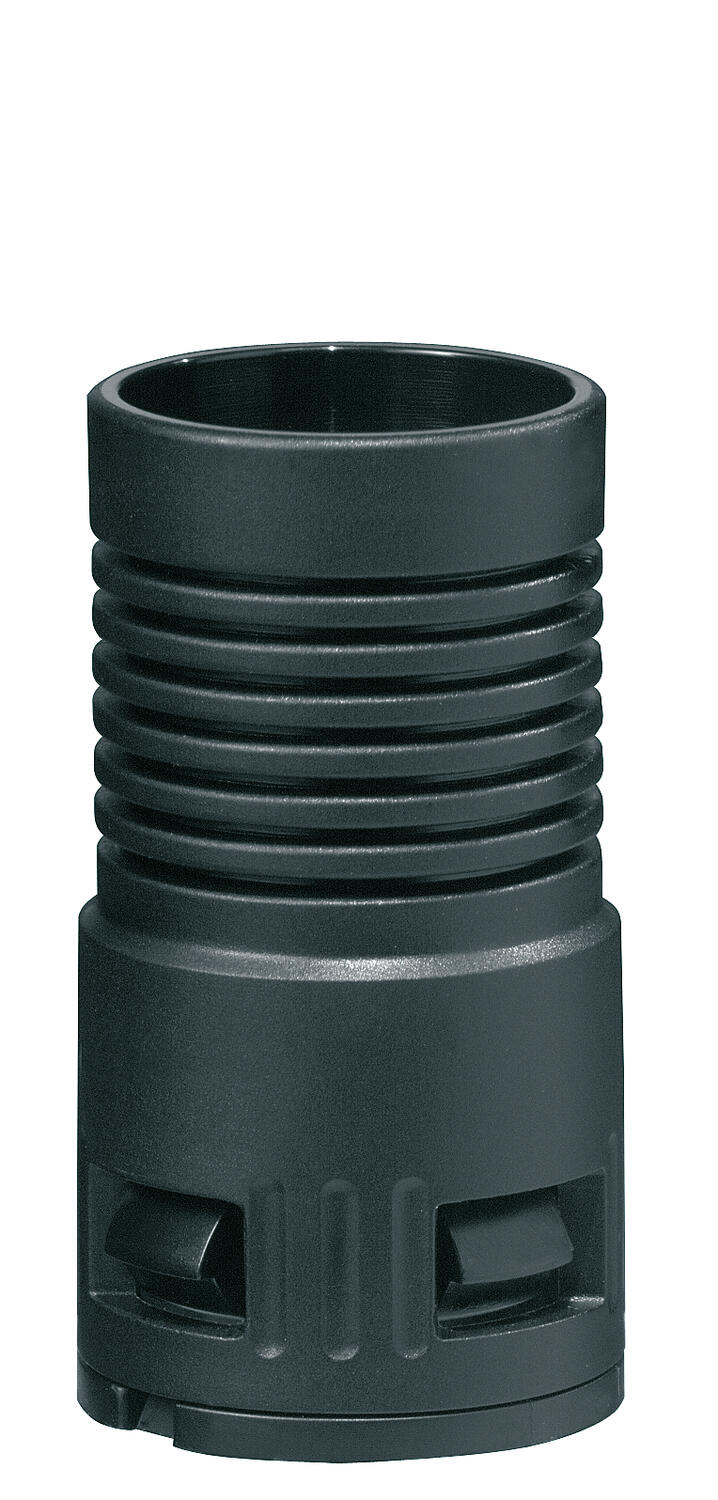

RQGR reducer made of polyamide. Halogen-free, good chemical resistance.
| Approvals | CSA 22.2, DB, RU |
|---|---|
| Colour | Black |
| Hose dimension AD | 15,8 |
| Hose dimension AD2 | 21,2 |
| IP class | IP68 |
| Material | Polyamide |
| Pack size | 10 Â |
|---|---|
| Temperature operational max | 120 °C |
| Temperature operational min | -40 °C |
| Weight kg / 100 ± 10% | 1,2 |
RQGR reducer made of polyamide. Halogen-free, good chemical resistance.
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Hose dimension AD | Hose dimension AD2 | Weight kg / 100 ± 10% | Price | ||
|---|---|---|---|---|---|---|

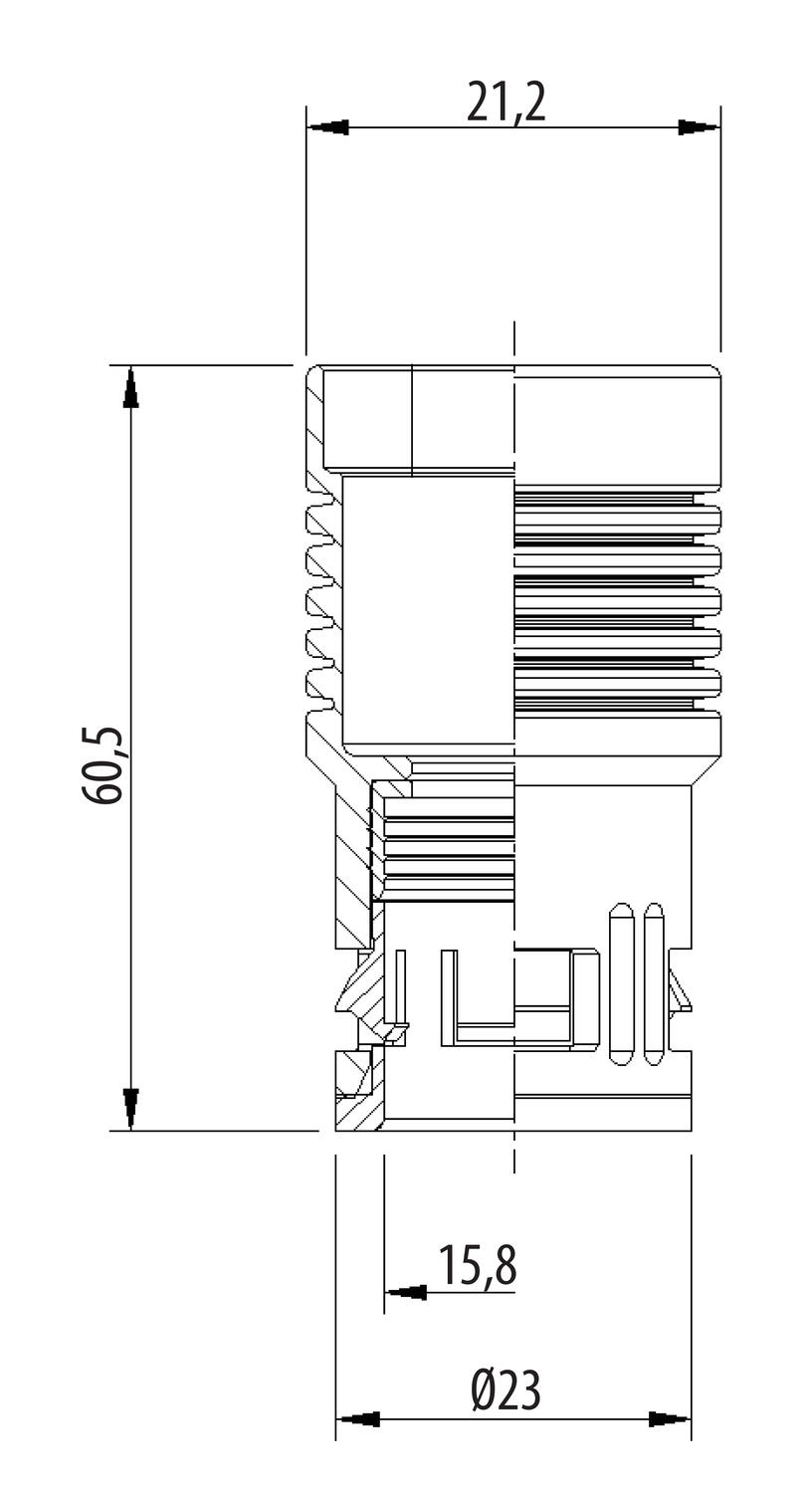

Reducer RQGR AD15,8/21,2 black
Art:
5601.015.221
Copied
|
15,8
|
21,2
|
1,2
|
| ||
|
Reducer RQGR AD15,8/28,5 black
Art:
5601.015.228
Copied
|
15,8
|
28,5
|
1,6
|
| ||
|
Reducer RQGR AD15,8/34,5 black
Art:
5601.015.234
Copied
|
15,8
|
34,5
|
1,7
|
| ||
|
Reducer RQGR AD21,2/28,5 black
Art:
5601.021.228
Copied
|
21,2
|
28,5
|
2,14
|
| ||
|
Reducer RQGR AD21,2/34,5 black
Art:
5601.021.234
Copied
|
21,2
|
34,5
|
2
|
| ||
|
Reducer RQGR AD28,5/34,5 black
Art:
5601.028.234
Copied
|
28,5
|
34,5
|
3,2
|
| ||
|
Reducer RQGR AD34,5/42,5 black
Art:
5601.034.242
Copied
|
34,5
|
42,5
|
3,8
|
| ||
|
Reducer RQGR AD42,5/54,5 black
Art:
5601.042.254
Copied
|
42,5
|
54,5
|
4,5
|
| ||
|
Reducer RQGR AD21,2/54,5 black
Art:
5601.021.254
Copied
|
21,2
|
54,5
|
4
|
|
Select a variant in the list
