ASCO
ASCO - 2/2 Seat valve air controlled 1/2\"-2\"
- Normally closed, normally open
- Working pressure 0 to 40 bar
- For temperatures up to +250 °C
- For viscosity up to 5,000 cSt
Selected variant
Technical data
General Data |
|
|---|---|
| Connection | 1/2 BSP |
Material Data |
|
| Material body | Stainless steel 316L |
| Material of seals | Graphite |
Temperature Data |
|
| Temperature of media from | -10 °C |
| Temperature of media to | 250 °C |
Additional Data |
|
|---|---|
| Viscosity max | 5000 cSt |
| Weight | 1.82 kg |
| Throughput | 15 mm |
| Type of valve | Seat valve |
| Material packing | Stainless steel |

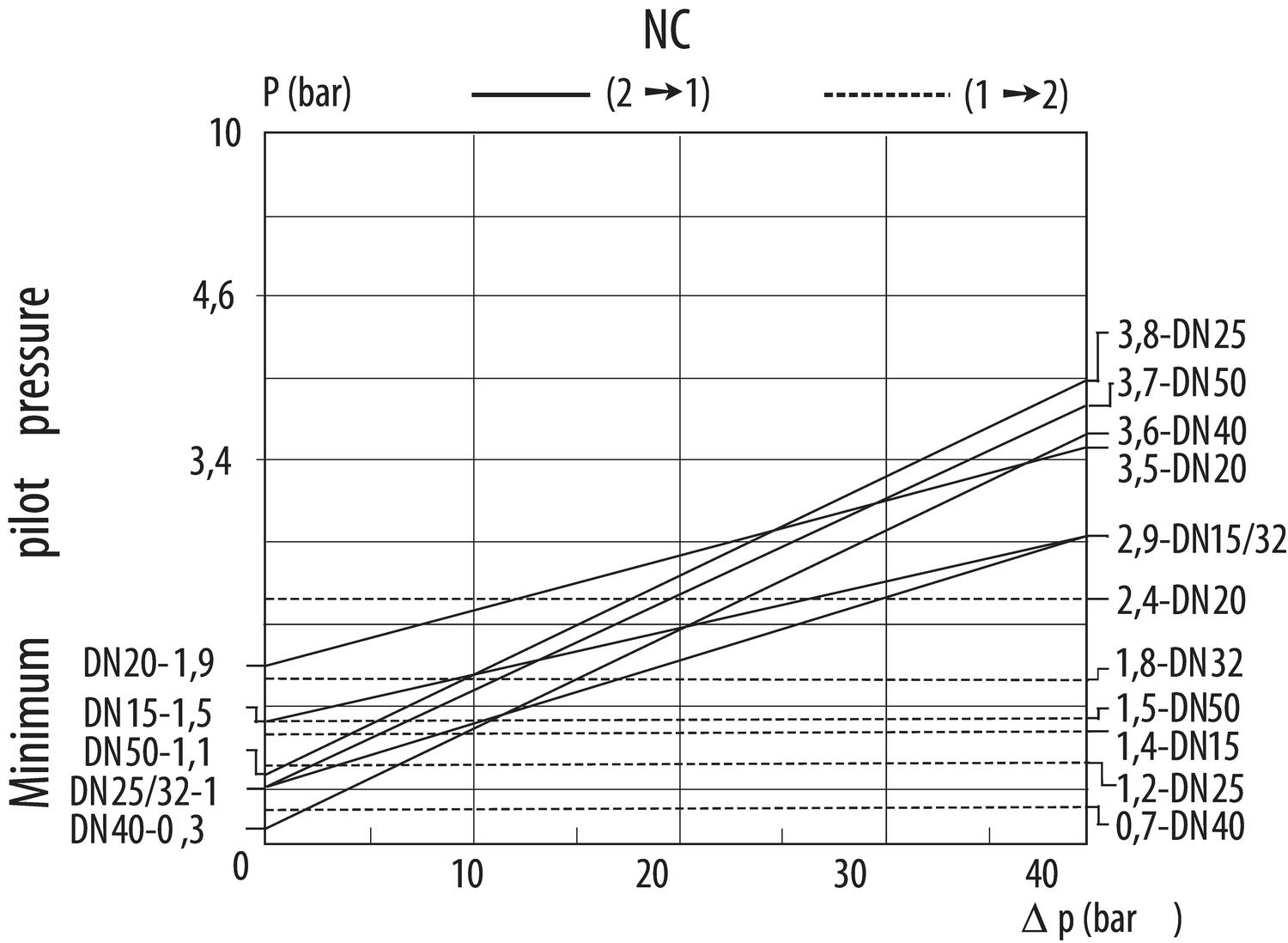

| Pilot pressure max | 10 bar |
| Temperature operational min | -25 °C |
| Temperature operational max | 180 °C |
| Connection air | 1/8 BSP |
| Differential air pressure max | 40 bar |
| Differential pressure max | 40 bar |
| Differential pressure min | 0 bar |
| Differential oil pressure max | 40 bar |
| Differential water pressure max | 40 bar |
| Differential steam pressure max | 40 bar |
| Function 1 | 2/2 |

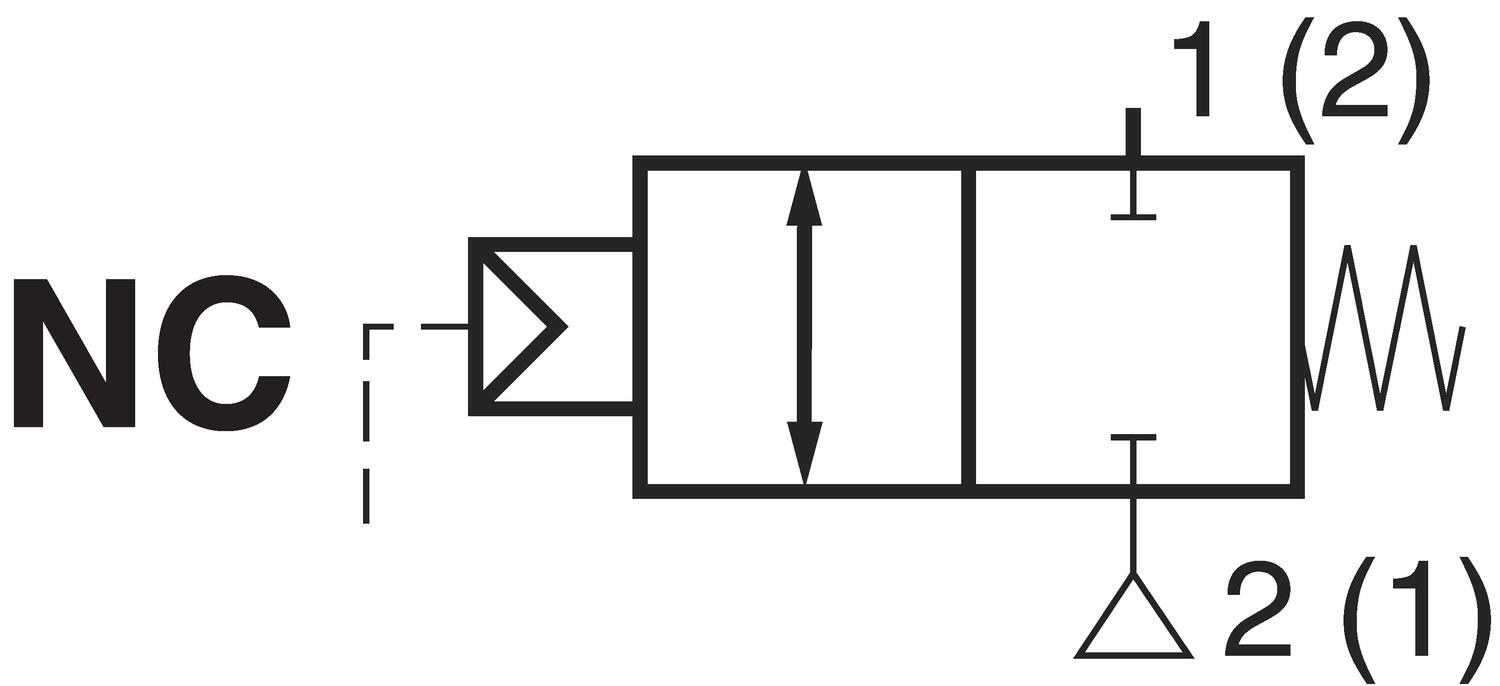

| Function 2 | Normally Closed |
| Material controls | Nickel plated aluminum |
| Material piston rod | Stainless steel |
| Material box stuffing | PTFE flask filled |
| Material piston seal | Bronze, PTFE |
