Pilot Valves
Emerson Asco Solenoid Valve Series L182
Diaphragm Pilot Operated Valve
- 2/2 Normally Closed G3/8, G1/2, G3/4, G1
- Full Orifice
- Suitable To Shut Off Liquid & Gaseous Fluids
- Operating Pressure Differential: Up To 16 Bar
- IP65, IP67

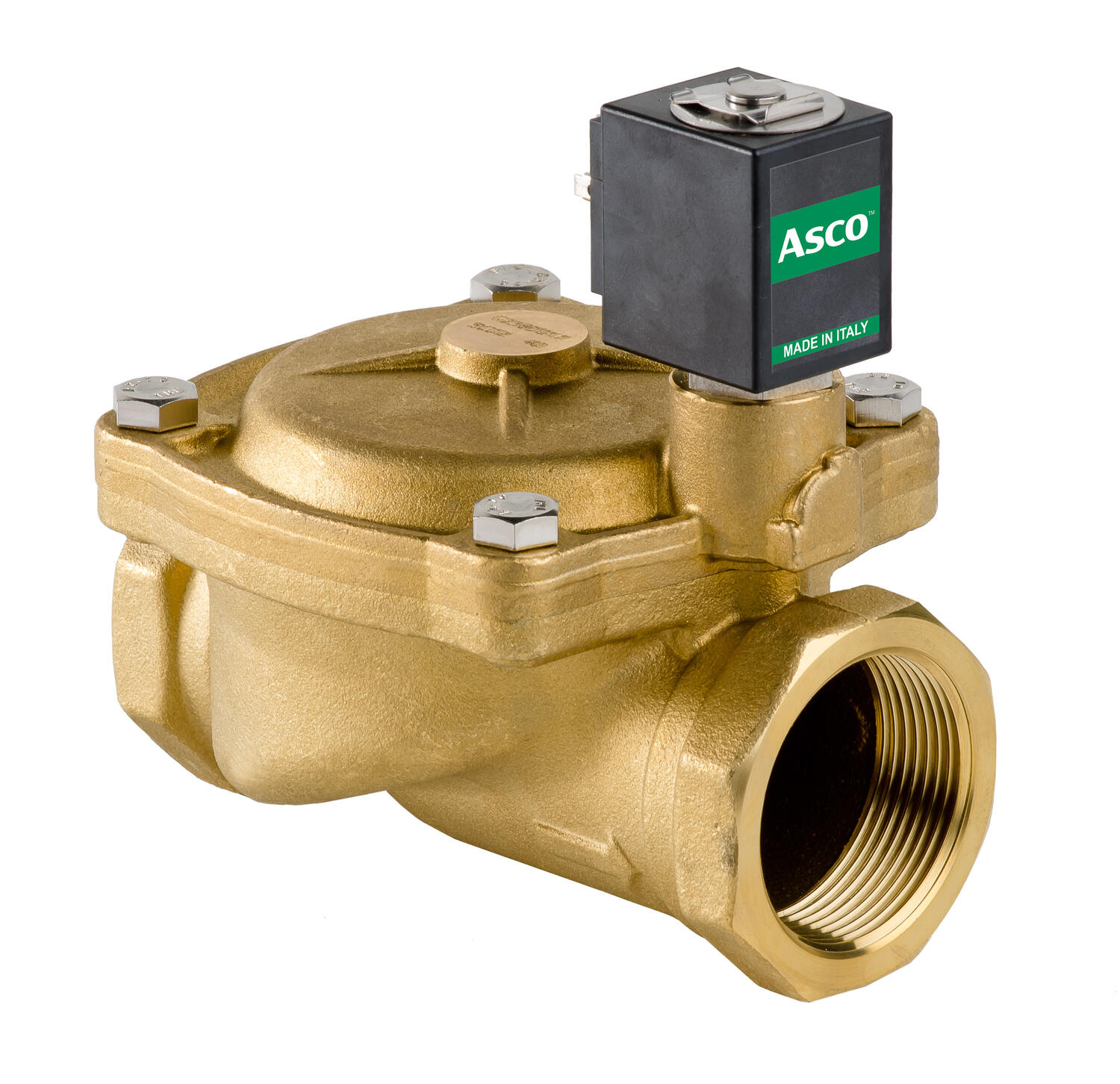

Emerson ASCO Solenoid Valve Series L182-BIG
Diaphragm Pilot Operated Valve
- 2/2 Normally Closed G 1 1/4", G 1 1/2", G 2"
- Full orifice
- Suitable to shut off liquid and gaseous fluids
- Operating Pressure Differential: Up to 10 bar
- IP67
Emerson ASCO Solenoid Valve Series L182D-Big
Diaphragm Pilot Operated Valve
- 2/2 Normally Closed G 1 1/4", G 1 1/2", G 2"
- Full orifice
- Suitable to shut off liquid and gaseous fluids
- Operating Pressure Differential: Up to 10 bar
- IP67
Emerson ASCO Solenoid Valve Series L182D-BIG-NPT
Diaphragm Pilot Operated Valve
- 2/2 Normally Closed 1 1/4", 1 1/2", G 2" NPT
- Full orifice
- Suitable to shut off liquid and gaseous fluids
- Operating Pressure Differential: Up to 10 bar
- IP67

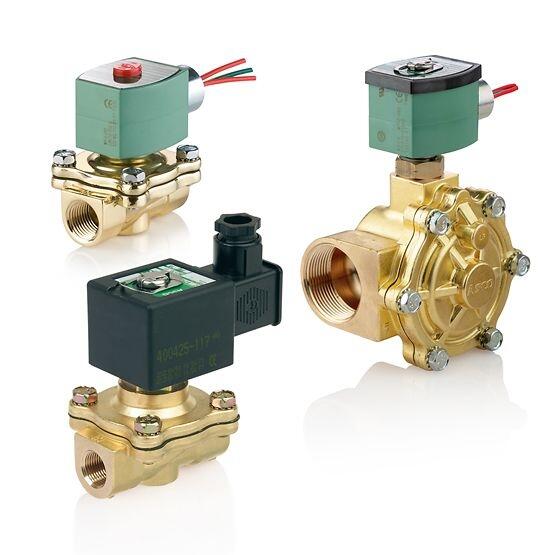

Emerson ASCO Solenoid Valve Series 210
Pilot Operated, Floating Diaphragm/Piston
- 2/2 Normally Closed / Open Rp 3/8", Rp 1/2", Rp 3/4", Rp 1", Rp 1 1/4", Rp 1 1/2", Rp 2"
- FPM, EPDM, NBR, CR
- Suitable To Control Air, Inert Gas, Water, Oil and other Gases/Liquids
- Operating Pressure Differential: Up to 20 Bar
- IP65

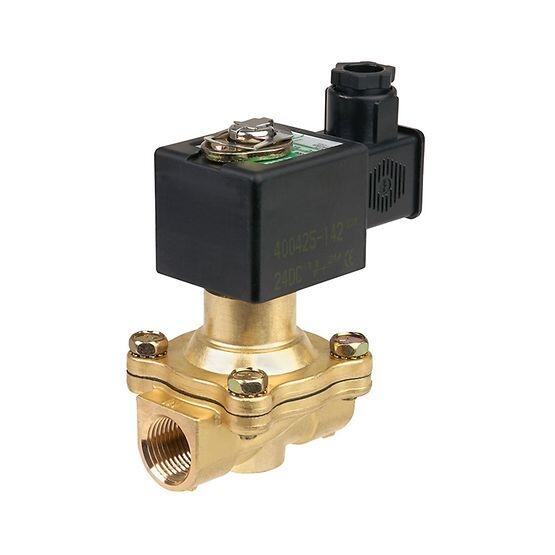

Emerson ASCO Solenoid Valve Series 210 Vacuum
Pilot Operated, Hung Diaphragm for Vacuum Service
- 2/2 Normally Closed or Open Rp 3/8", Rp 1/2", Rp 3/4"
- NBR or FPM
- Suitable for Medium and High Vacuum Service
- Air and Inert Gases compatible with the seal materials used
- IP65
Emerson Asco Solenoid Valve Series 210 Hung Diaphragm Brass
Pilot Operated, Hung Diaphragm
- 2/2 Normally Closed or Open, Rp 3/8" to Rp 1 1/2"
- NBR, FPM, EPDM
- Suitable for Air, Inert Gas , Water, Oil and Other Gases
- Operating Pressure Differential: Up to 16 Bar
- IP65

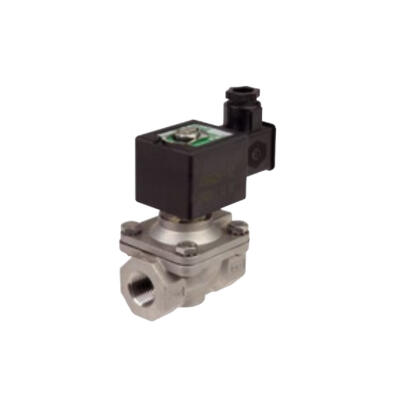

Emerson Asco Solenoid Valve Series 210 Hung Diaphragm Stainless Steel
Pilot Operated, Hung Diaphragm
- 2/2 Normally Closed or Open Rp 1/2", Rp 3/4", Rp 1"
- NBR, FPM, EPDM
- Suitable for Air, Inert Gas , Water, Oil and Other Gases
- Operating Pressure Differential: Up to 16 Bar
- IP65

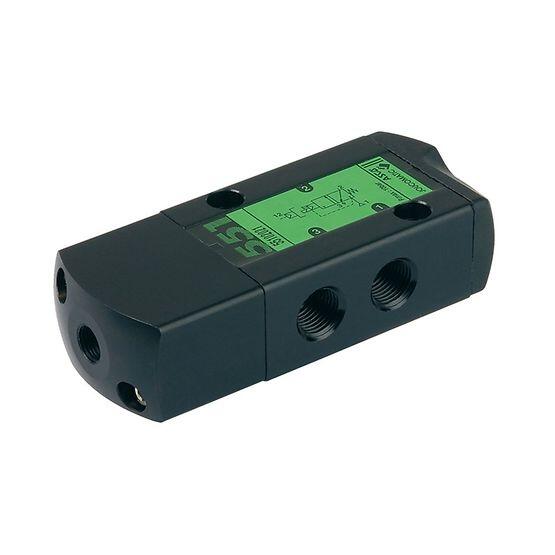

Emerson Asco Solenoid Valve Series 551-553 Air Operated
Air Operated Spool Valve
- 5/2, Air Pilot & Return or Air Pilot & Spring Return
- G 1/4", G 1/2"
- Non breathing, full protection against ingress of liquids and dust
- Air or neutral gas, filtered, lubricated or not
- Operating Pressure Differential: 10 Bar
ASCO - 238 Series Pilot Operated
2/2
- Normally closed
- 3/8" up to 2" pipe size
- Air, inert gas & water
- Housing in brass or stainless steel
- Flow rates from 2.1 up to 34 m3/h
ASCO - 2/2 Pulse valve 3/4"-1 1/2"
- Currentless closed
- Thread or quick coupling
- Electric/Air controlled
- Housing in aluminium
ASCO - 2/2 Pulse valve 3/4"-3"
- Currentless closed
- Thread or quick coupling
- Electric/air controlled
- Housing in aluminium
ASCO - 2/2 Seat valve air controlled 1/2"-2"
- Normally closed, normally open
- Working pressure 0 to 40 bar
- For temperatures up to +250 °C
- For viscosity up to 5,000 cSt
Solenoid valve series L127
- Maximum pressure 16 bar (PS)
- Maximum voltage 24V DC
- Ambient temperature -10°C to +50°C
- IP67
Solenoid valve series L131
- Completely closed
- For aggressive media
- Operating pressure 0.2 to 6 bar
- Plastic housing
Solenoid valve series L133
- Maximum pressure 16 bar (PS)
- Maximum voltage 24V DC
- Ambient temperature range -10°C to +80°C
- IP65, IP67
Solenoid valve series L133-NPT
- Maximum pressure 16 bar (PS)
- Maximum voltage 24V DC
- Ambient temperature range -10°C to +80°C
- IP65, IP67
Solenoid valve series L140
- Maximum pressure 16 bar (PS)
- Suitable to shut off liquid and gaseous fluids
- Ambient temperature -10°C to +60°C
- IP65
Solenoid valve series L142
- Maximum pressure 232psi (PS)
- Maximum voltage 12V DC
- Ambient temperature -10°C to +60°C
- IP65
Solenoid valve series L145
- Maximum pressure 16 bar (PS)
- Suitable to shut off liquid and gaseous fluids
- Ambient temperature -10°C to +80°C
- IP65
Solenoid valve series L145-NPT
- Maximum pressure 1/2 NPT 16 bar, 1 NPT 9 bar
- Suitable to shut off liquid and gaseous fluids
- Ambient temperature -10°C to +80°C
- IP65
Solenoid valve series L153
- Maximum pressure 16 bar (PS)
- Suitable to shut off liquid and gaseous fluids
- Ambient temperature -10°C to +80°C
- IP65
Solenoid valve series L153-NPT
- Maximum pressure 16 bar (PS)
- Suitable to shut off liquid and gaseous fluids
- Ambient temperature -10°C to +80°C
- IP65
Solenoid stainless steel valve series L182
- Maximum pressure 20 bar (PS)
- Maximum voltage 24V DC
- Ambient temperature range -10°C to +75°C
- IP67
Solenoid stainless steel valve series L182-NPT
- Maximum pressure 20 bar (PS)
- Maximum voltage 24V DC
- Ambient temperature range -10°C to +75°C
- IP67
Solenoid valve series L182 latching model
- Maximum pressure 16 bar (PS)
- Maximum voltage 12V DC
- Ambient temperature -10°C to +60°C
- IP65
Solenoid valve series L182-B13
- Maximum pressure 20 bar (PS)
- Maximum voltage 24V DC
- Ambient temperature range -10°C to +75°C
- IP65, IP67
Solenoid valve series L182-B74
- Maximum pressure 16 bar (PS)
- Maximum voltage 12V DC
- Ambient temperature -10°C to +60°C
- IP66
Solenoid valve series L182-BIG-NPT
- Maximum pressure 15 bar (PS)
- Maximum voltage 24V DC
- Ambient temperature -10°C to +50°C
- IP67
Solenoid valve series L182-D05
- Maximum pressure 20 bar (PS)
- Maximum voltage 24V DC
- Ambient temperature range -10°C to +60°C
- IP65, IP67
