Double Deck Screw Terminals - SRKD, SSLD

The SRKD terminal blocks are available to suit wire sizes 2.5 mm², 4 mm² and 10 mm². The standard SRKD models have two potentials with 2 x 2 connections, further options include linked versions with four connections on one potential and as a protective earth terminal with a snap-on PE foot contact.



The SRKD range is compatible with the ‘Plug in’ cross connectors used in the existing SRK range. Just like the established SRK series, the new SKRD units feature a compact housing and provide excellent stability, vibration resistance, and optimal attachment of the wires to the contact point.



The terminals are equipped with a large wire entry bay that makes the insertion of wires easy and effortless. The connection of multiple wires is also possible. The terminal’s robust housing safely anchors all the metal parts on the inside. The foot construction of the snap-on units ensures a reliable, firm hold on the mounting rail.









Read more
  • Pluggable cross connectors, compatible with SRK series
  • Snap on Earth
  • Linked versions
  • 1000V rated
  • Material polyamide 6.6 UL 94-V0
Strang_SRKD2,5-10.tif

SRKD_comp_flat2.tif

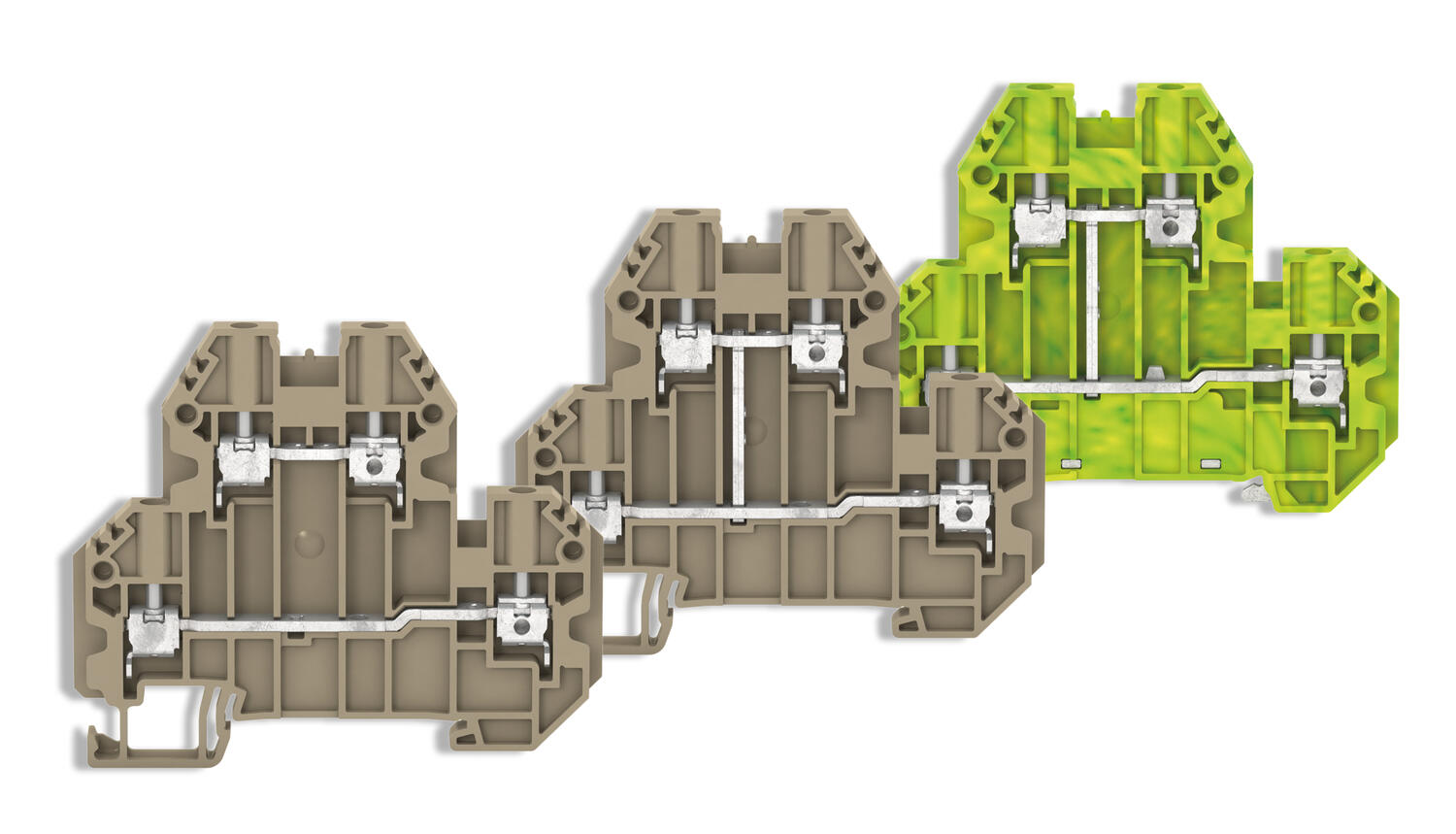

SRKD range

Terminal block from CONTA-CLIP, beige with metal brackets for electrical connections.

Connection terminal in orange plastic with metal components, designed for electrical connections

Blue terminal block with metal contacts for electrical connections

Terminal block from CONTA-CLIP with grey plastic and metal components, designed for electrical connections.

Terminal block from CONTA-CLIP with metal contacts and beige plastic construction

Blue terminal block with metal connections for electrical installations

Colourful connection terminal with metal fittings and transparent design, ideal for electrical installations.

Connection terminal from CONTA-CLIP with beige plastic and metal components, designed for electrical connections.

Blue terminal block with metal connections for electrical connections

Connection terminal from CONTA-CLIP with beige plastic and metal components, designed for electrical connections.

Blue terminal block with metal contacts for electrical connections

Connection terminal in green and yellow plastic with metal fittings, ideal for electrical installations.

Terminal block from CONTA-CLIP with two connections and a robust design for electrical installations

Terminal block in beige plastic with metal contacts and wires, ideal for electrical installations.

Terminal block in beige plastic with internal connections and components for electrical installation

Terminal block from CONTA-CLIP with two connections and beige plastic construction

Terminal block with built-in components for electrical connections, model ChangeThis.

Terminal block from CONTA-CLIP, beige with metal brackets for electrical connections.

Blue terminal block from CONTA-CLIP with metal connections and robust design for electrical installations

Terminal block from CONTA-CLIP with two connections and robust design for industrial use

Blue terminal block with metal connections and springs for electrical installations

Green and yellow connection terminal with metal components for electrical installations

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

General data
Rated wire cross section 2.5 mm²
Colour Beige
Rated voltage IEC 1000 V
Rated current IEC 24 A
Load current max 32 A
Mounting TS 35
Rated impulse voltage 8 kV
Overvoltage category III
Contamination degree 3
Approvals UL, cUL, KEMA KUR, EAC

Dimensions
Length 76 mm
Width 5.1 mm
Height TS 35/7.5 65 mm

Connection data
Connections 2 x 2
Number of levels 2
Plug gauge acc. EN 60 947-1 A3
Cross connect channels 3
Number of test pick off options 1
Cross section single wire from 0.2 mm²
Cross section single wire to 4 mm²
Cross section stranded wire from 0.2 mm²
Cross section stranded wire to 4 mm²
Cross section stranded with ferrule from 0.2 mm²
Cross section stranded with ferrule to 2.5 mm²
Rated wire cross section from (AWG) 30

*Invisible Heading*
Rated wire cross section to (AWG) 12
Stripping length 10 mm
Screw size M 2,5
Screw type Slotted
Torque min 0.4
Torque max 0.8

Materials
Insulation material Polyamide 6.6
Flammability class UL94-V0
Operating temperature from -40 °C
Operating temperature to 120 °C

Approvals
Rated voltage UL 600 V
Rated current UL 20 A
UL test standard UL 1059
Rated voltage cUL 600 V
Rated current cUL 20 A
cUL test standard C22.2 No 158
EAC test standard TR ZU 004/2011
KEMA KEUR test standard EN 60947-7-1:2009

Additional data
Tariff code 85369010
Country of origin CZ
Weight 15.85 g
Pack size 100
Type of terminal Screw Terminals, DIN Rail terminals

Downloads

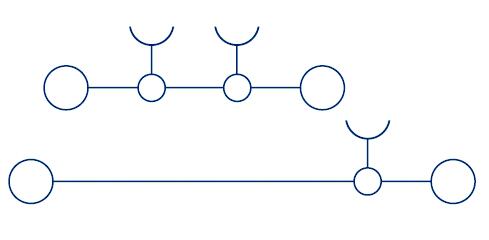

Measurements and connections

Product description

The SRKD terminal blocks are available to suit wire sizes 2.5 mm², 4 mm² and 10 mm². The standard SRKD models have two potentials with 2 x 2 connections, further options include linked versions with four connections on one potential and as a protective earth terminal with a snap-on PE foot contact.



The SRKD range is compatible with the ‘Plug in’ cross connectors used in the existing SRK range. Just like the established SRK series, the new SKRD units feature a compact housing and provide excellent stability, vibration resistance, and optimal attachment of the wires to the contact point.



The terminals are equipped with a large wire entry bay that makes the insertion of wires easy and effortless. The connection of multiple wires is also possible. The terminal’s robust housing safely anchors all the metal parts on the inside. The foot construction of the snap-on units ensures a reliable, firm hold on the mounting rail.









Accessories

Related products

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

Robotics - An OEM Automatic Solution
Blog

Robotics solutions

Robotics has revolutionised industry, enabling efficiency, higher production capacity and increased safety. For a robot solution to function optimally, the right components are required.

Why Colour Brilliance Matters in Industrial Signalling - Auer smart dot 50 beacons illuminated red, yellow and green
Blog

Why Colour Brilliance Matters in Industrial Signalling

Discover why colour brilliance matters in industrial signalling. Improve safety, reduce misinterpretation and ensure clear machine status in any environment.

Advantages of Cable Coils - OEM Automatic & RCT
Learning hub

Advantages of Cable Coils

Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.

cable port
Product news

We now offer cable

What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.

Contaclip PRK terminal blocks
Product news

Terminal Blocks For Push In Connection Systems

This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations
Learning hub

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations

Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.

Parts Rated wire cross section Colour Rated voltage IEC Rated current IEC Load current max Diode type Mounting Rated impulse voltage Overvoltage category Approvals Additional information Width Height TS 35/7.5 Connections Plug gauge acc. EN 60 947-1 Cross connect channels Cross section single wire to Cross section stranded wire to Cross section stranded with ferrule to Rated wire cross section from (AWG) Rated wire cross section to (AWG) Screw size Torque min Torque max Rated voltage UL Rated current UL Rated voltage cUL Rated current cUL KEMA KEUR test standard Country of origin Weight Pack size Number of terminals per level Price
Terminal block from CONTA-CLIP, beige with metal brackets for electrical connections.

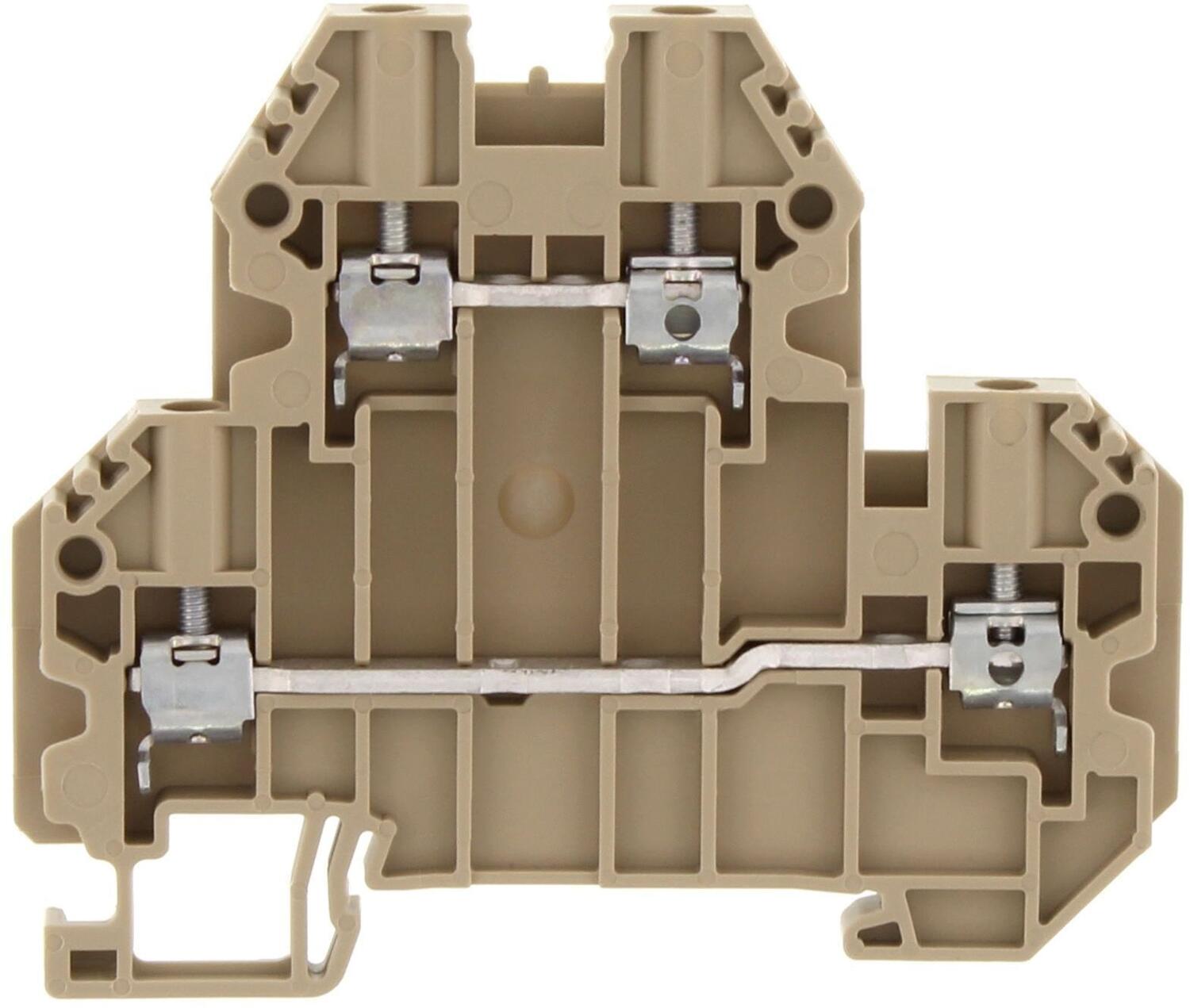

SRKD 2.5 Beige, 2.5mm² double deck terminal
Art:
17180.2 Copied
2.5 mm²
Beige
1000 V
24 A
32 A
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
5.1 mm
65 mm
2 x 2
A3
3
4 mm²
4 mm²
2.5 mm²
30
12
M 2,5
0.4
0.8
600 V
20 A
600 V
20 A
EN 60947-7-1:2009
CZ
15.85 g
100
Connection terminal in orange plastic with metal components, designed for electrical connections
SRKD 2.5 Orange, 2.5mm double deck terminal
Art:
17180.3 Copied
2.5 mm²
Orange
1000 V
24 A
32 A
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
5.1 mm
65 mm
2 x 2
A3
3
4 mm²
4 mm²
2.5 mm²
30
12
M 2,5
0.4
0.8
600 V
20 A
600 V
20 A
EN 60947-7-1:2009
CZ
15.85 g
100
Blue terminal block with metal contacts for electrical connections
SRKD 2.5 Blue, 2.5mm² double deck terminal
Art:
17180.5 Copied
2.5 mm²
Blue
1000 V
24 A
32 A
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
5.1 mm
65 mm
2 x 2
A3
3
4 mm²
4 mm²
2.5 mm²
30
12
M 2,5
0.4
0.8
600 V
20 A
600 V
20 A
EN 60947-7-1:2009
CZ
15.85 g
100

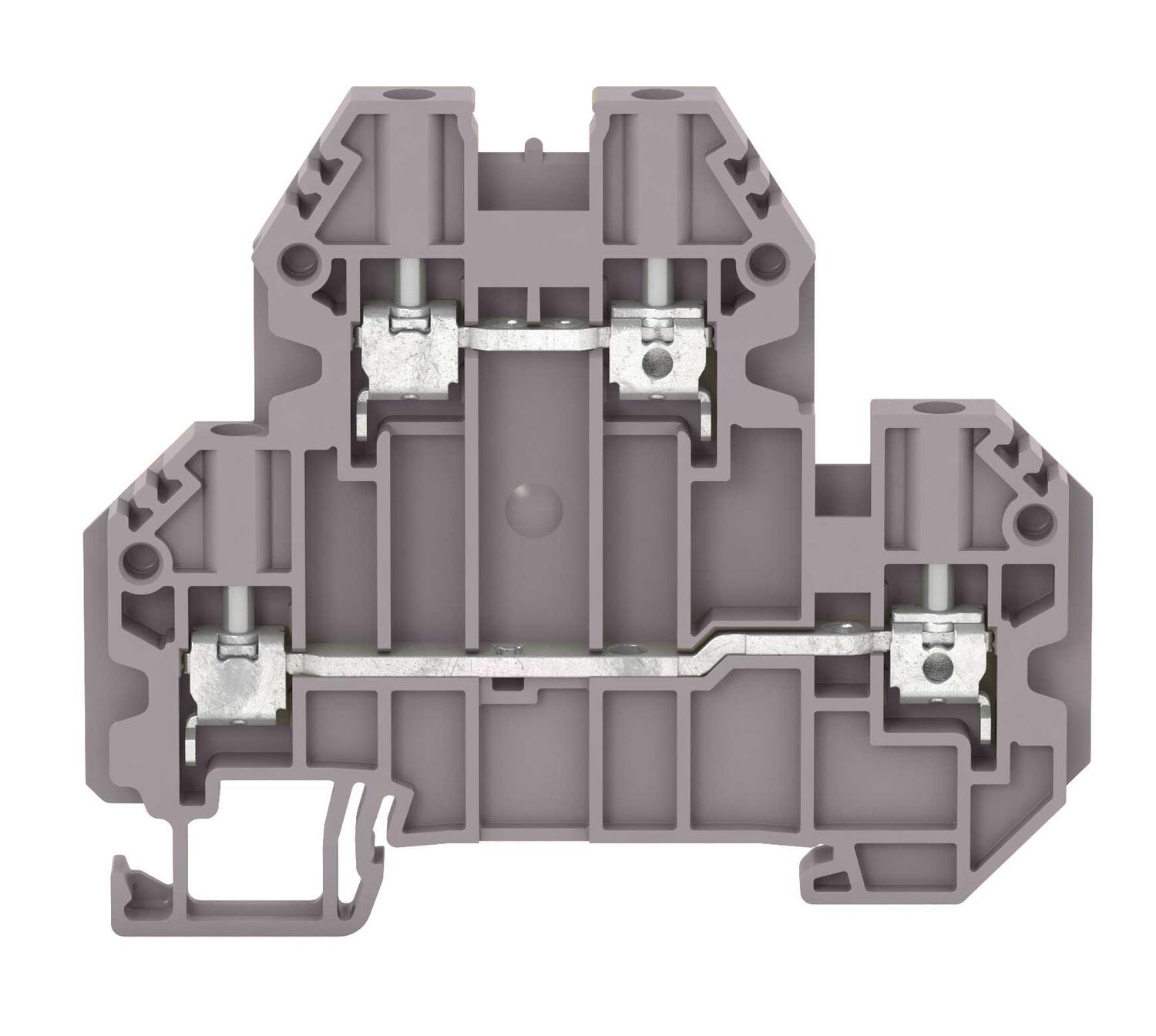

Terminal block from CONTA-CLIP with grey plastic and metal components, designed for electrical connections.
SRKD 2.5 Grey, 2.5mm double deck terminal
Art:
17180.6 Copied
2.5 mm²
Grey
1000 V
24 A
32 A
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
5.1 mm
65 mm
2 x 2
A3
3
4 mm²
4 mm²
2.5 mm²
30
12
M 2,5
0.4
0.8
600 V
20 A
600 V
20 A
EN 60947-7-1:2009
CZ
15.85 g
100
Terminal block from CONTA-CLIP with metal contacts and beige plastic construction

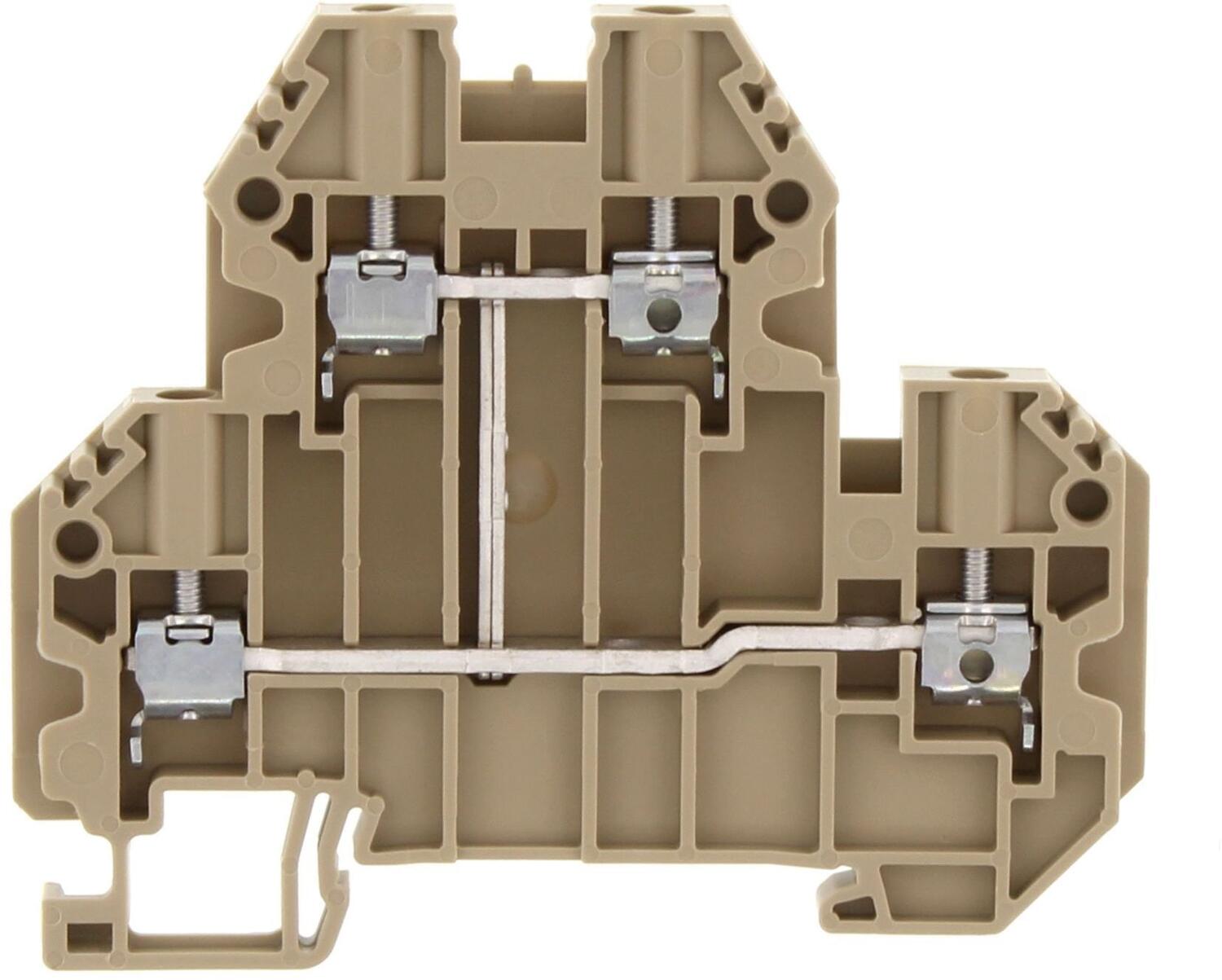

SRKD 2.5/SV Beige, 2.5mm² linked double deck terminal
Art:
17181.2 Copied
2.5 mm²
Beige
1000 V
24 A
32 A
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
connected vertically
5.1 mm
65 mm
4
A3
2
4 mm²
4 mm²
2.5 mm²
30
12
M 2,5
0.4
0.8
600 V
20 A
600 V
20 A
EN 60947-7-1:2009
CZ
16.95 g
100

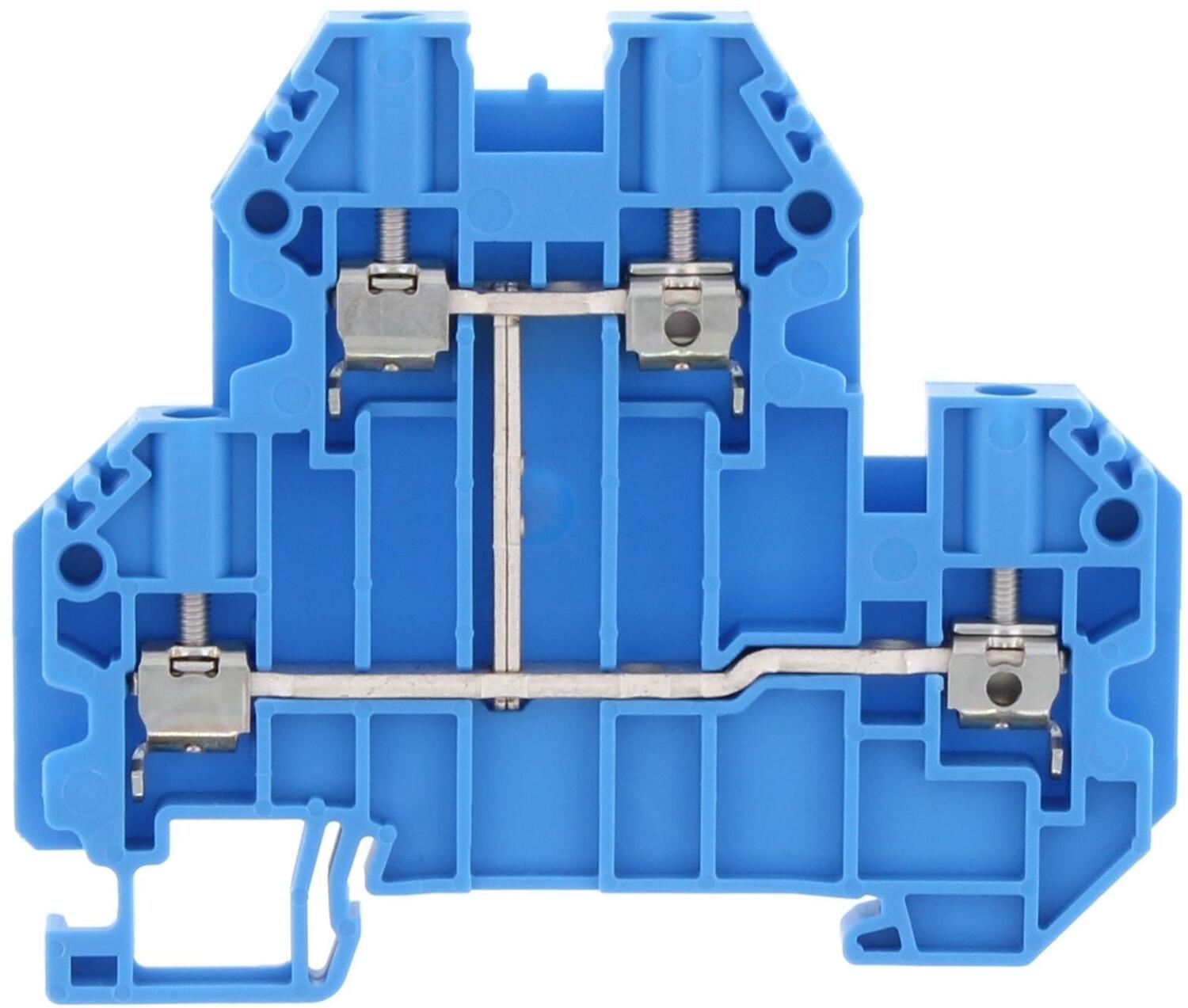

Blue terminal block with metal connections for electrical installations
SRKD 2.5/SV Blue, 2.5mm² linked double deck terminal
Art:
17181.5 Copied
2.5 mm²
Blue
1000 V
24 A
32 A
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
connected vertically
5.1 mm
65 mm
4
A3
2
4 mm²
4 mm²
2.5 mm²
30
12
M 2,5
0.4
0.8
600 V
20 A
600 V
20 A
EN 60947-7-1:2009
CZ
16.95 g
100
Colourful connection terminal with metal fittings and transparent design, ideal for electrical installations.
SSLD 2.5, Snap on 2.5mm² linked double deck earth terminal
Art:
17182.2 Copied
2.5 mm²
Green/yellow
TS 35
III
UL, cUL, KEMA KUR, EAC
5.1 mm
65 mm
4
A3
2
4 mm²
4 mm²
2.5 mm²
30
12
M 2,5
0.4
0.8
EN 60947-7-2:2009
CZ
20.76 g
100
Connection terminal from CONTA-CLIP with beige plastic and metal components, designed for electrical connections.
SRKD 4 Beige, 4mm² double deck terminal
Art:
17185.2 Copied
4 mm²
Beige
1000 V
32 A
41 A
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
6.1 mm
65 mm
2 x 2
A4
3
6 mm²
6 mm²
4 mm²
26
10
M 3
0.5
1
600 V
30 A
600 V
30 A
EN 60947-7-1:2009
CZ
20.85 g
100

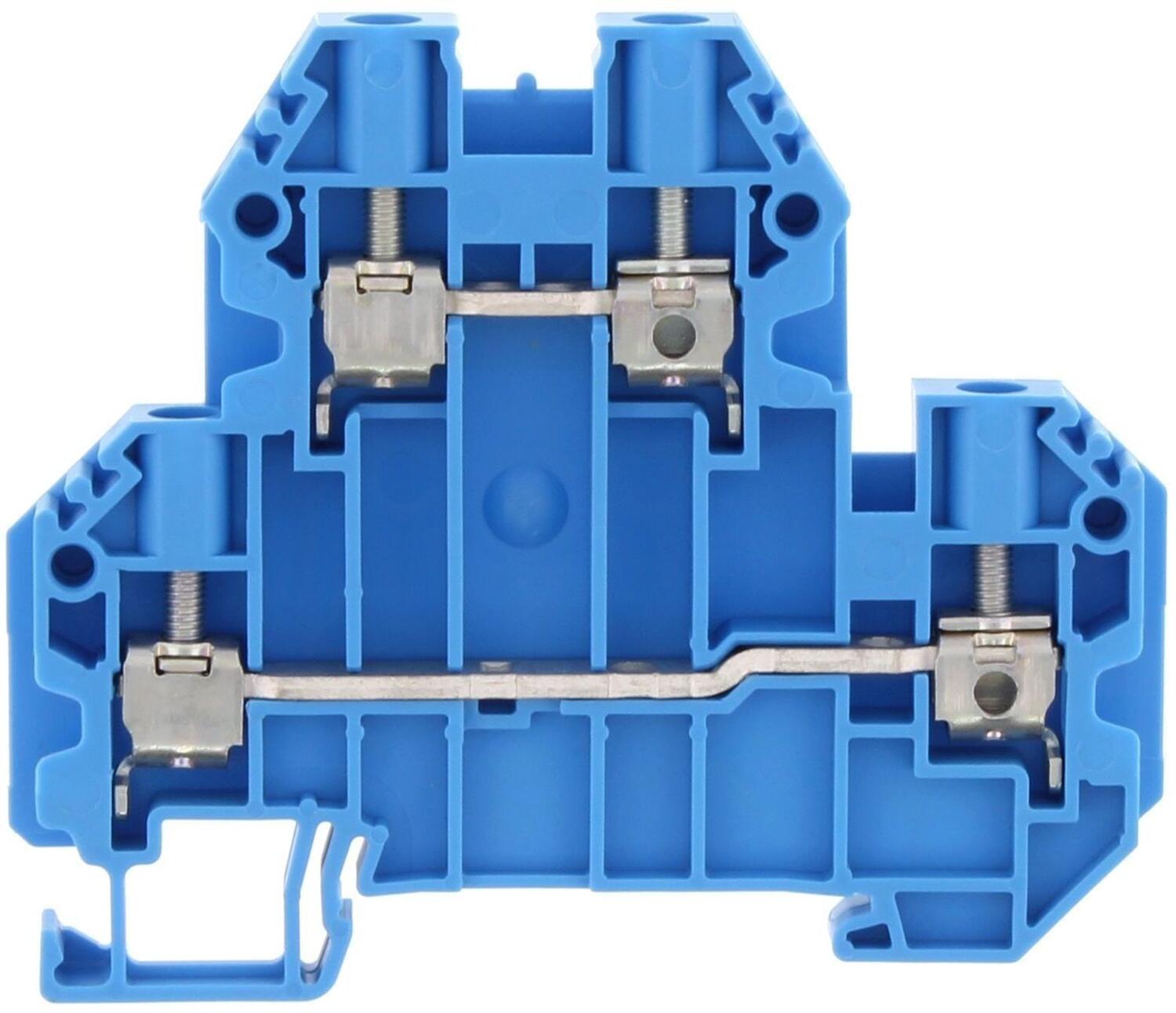

Blue terminal block with metal connections for electrical connections
SRKD 4 Blue, 4mm² double deck terminal
Art:
17185.5 Copied
4 mm²
Blue
1000 V
32 A
41 A
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
6.1 mm
65 mm
2 x 2
A4
3
6 mm²
6 mm²
4 mm²
26
10
M 3
0.5
1
600 V
30 A
600 V
30 A
EN 60947-7-1:2009
CZ
20.85 g
100
Connection terminal from CONTA-CLIP with beige plastic and metal components, designed for electrical connections.

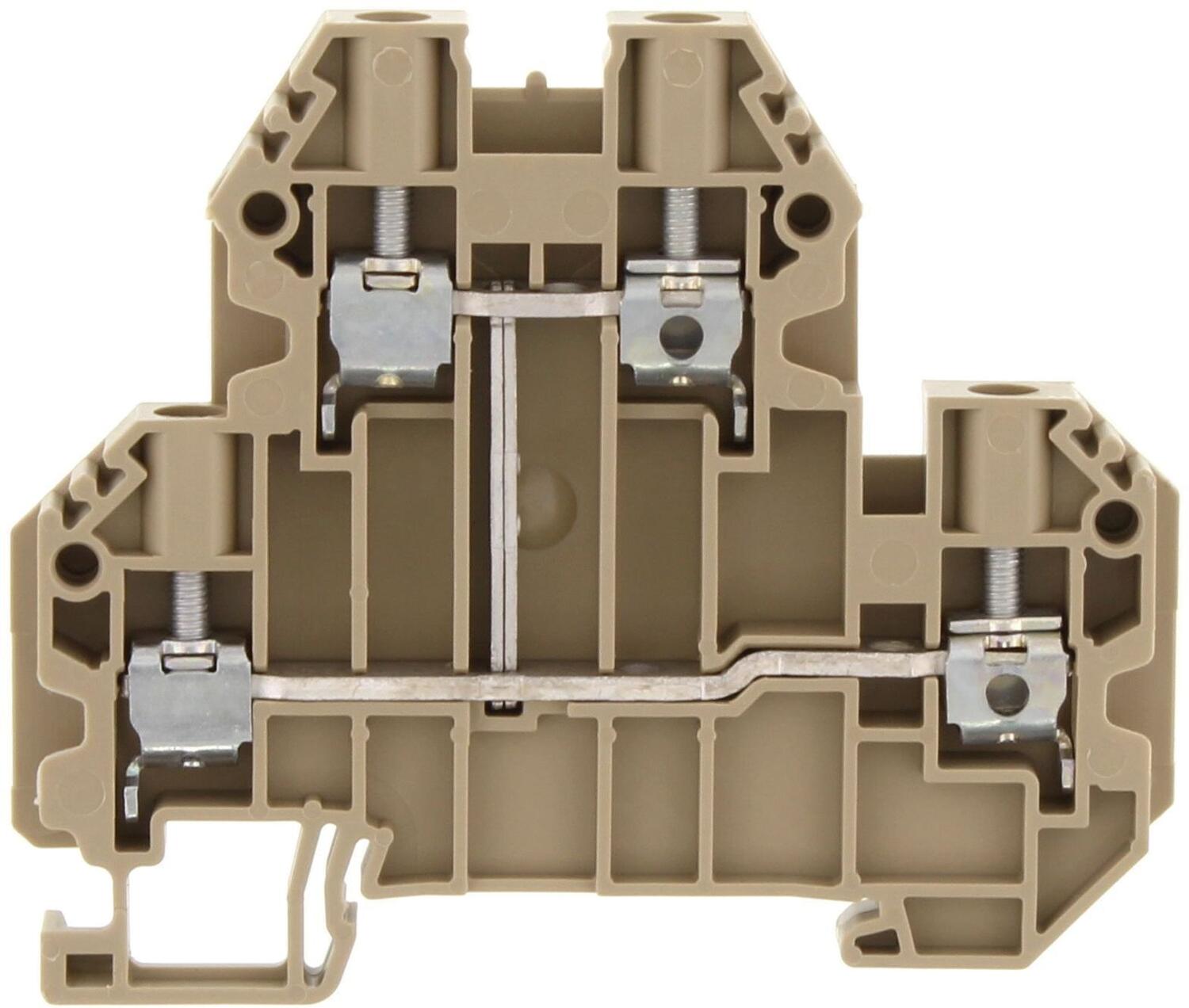

SRKD 4/SV Beige, 4mm² linked double deck terminal
Art:
17186.2 Copied
4 mm²
Beige
1000 V
32 A
41 A
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
connected vertically
6.1 mm
65 mm
4
A4
2
6 mm²
6 mm²
4 mm²
26
10
M 3
0.5
1
600 V
30 A
600 V
30 A
EN 60947-7-1:2009
CZ
21.81 g
100
Blue terminal block with metal contacts for electrical connections
SRKD 4/SV Blue, 4mm² linked double deck terminal
Art:
17186.5 Copied
4 mm²
Blue
1000 V
32 A
41 A
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
connected vertically
6.1 mm
65 mm
4
A4
2
6 mm²
6 mm²
4 mm²
26
10
M 3
0.5
1
600 V
30 A
600 V
30 A
EN 60947-7-1:2009
CZ
21.81 g
100

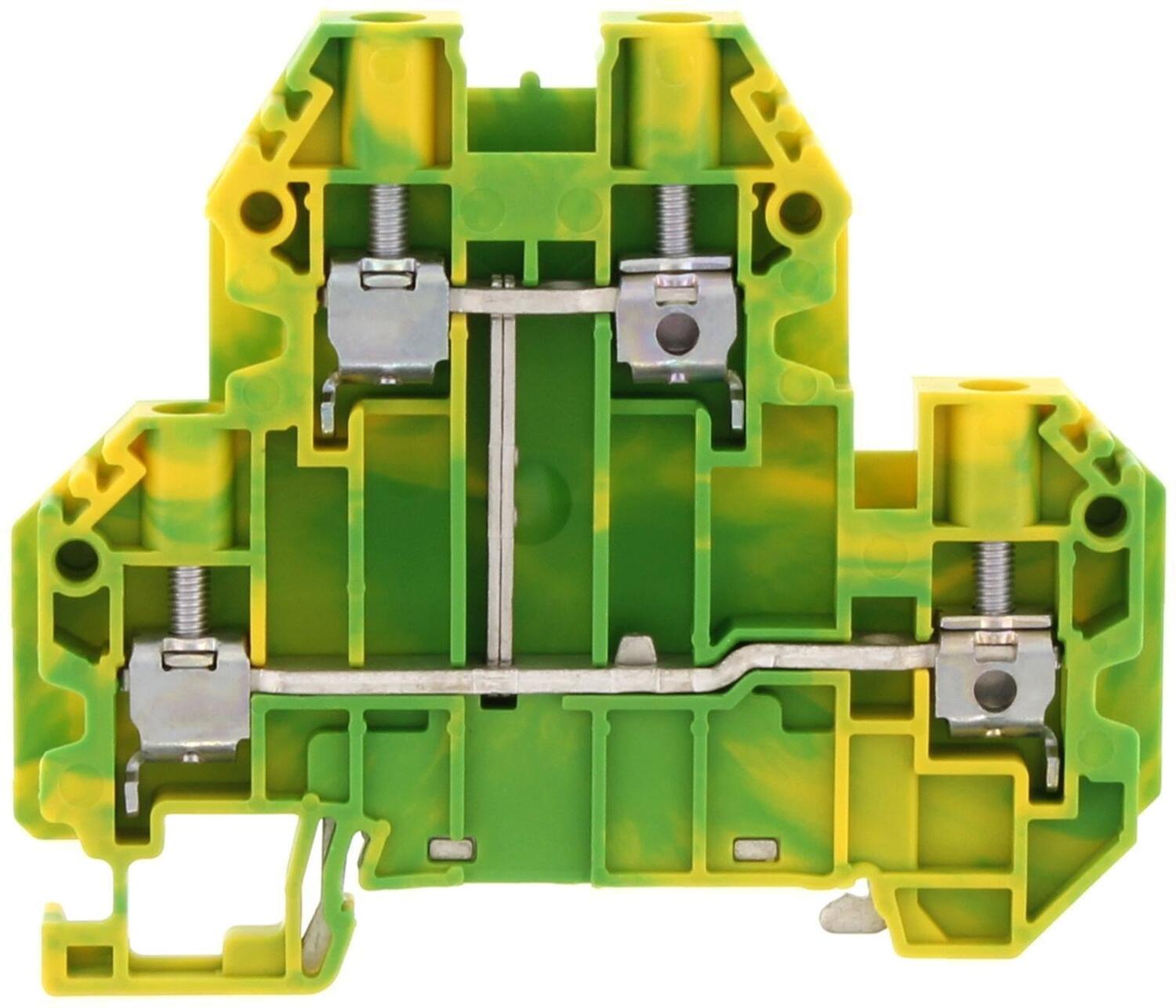

Connection terminal in green and yellow plastic with metal fittings, ideal for electrical installations.
SSLD 4, Snap on 4mm² linked double deck earth terminal
Art:
17187.2 Copied
4 mm²
Green/yellow
TS 35
III
UL, cUL, KEMA KUR, EAC
6.1 mm
65 mm
4
A4
2
6 mm²
6 mm²
4 mm²
26
10
M 3
0.5
1
EN 60947-7-2:2009
CZ
25.69 g
100
Terminal block from CONTA-CLIP with two connections and a robust design for electrical installations

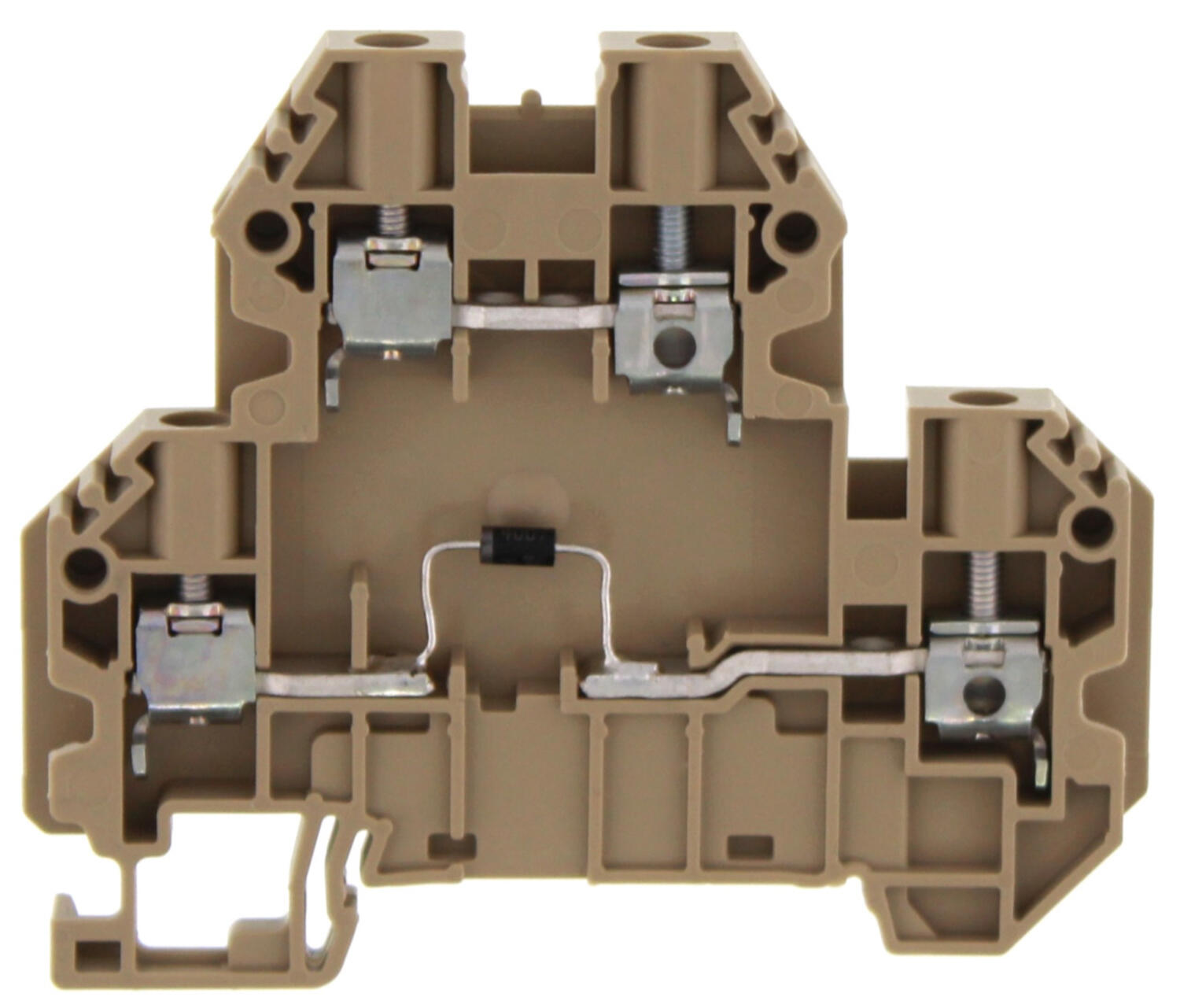

SRKD 4/D0 Beige, 4mm² double deck terminal with diode on lower level
Art:
17561.2 Copied
4 mm²
Beige
1000 V
1N4007 / 1000V / 1A
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
6.1 mm
65 mm
2 x 2
A4
3
6 mm²
6 mm²
4 mm²
26
10
M 3
0.5
1
600 V
600 V
EN 60947-7-1:2009
BG
19.41 g
100

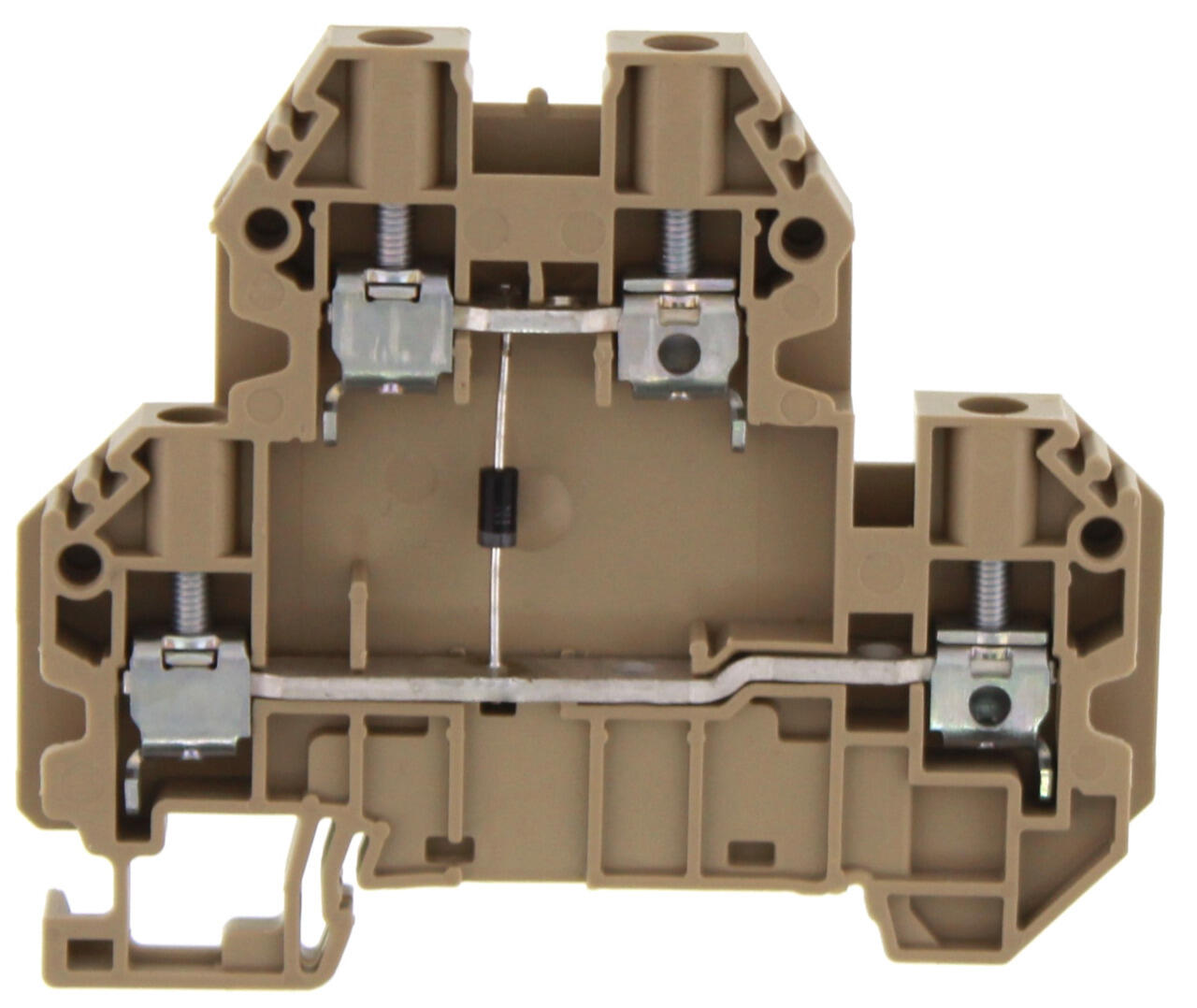

Terminal block in beige plastic with metal contacts and wires, ideal for electrical installations.
SRKD 4/D1 Beige, 4mm² double deck terminal with diode - linked
Art:
17562.2 Copied
4 mm²
Beige
1000 V
1N4007 / 1000V / 1A
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
6.1 mm
65 mm
2 x 2
A4
3
6 mm²
6 mm²
4 mm²
26
10
M 3
0.5
1
600 V
600 V
EN 60947-7-1:2009
BG
20.11 g
100
Terminal block in beige plastic with metal contacts and wires, ideal for electrical installations.
SRKD 4/D2 Beige, 4mm² double deck terminal with diode - linked
Art:
17563.2 Copied
4 mm²
Beige
1000 V
1N4007 / 1000V / 1A
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
6.1 mm
65 mm
2 x 2
A4
3
6 mm²
6 mm²
4 mm²
26
10
M 3
0.5
1
600 V
600 V
EN 60947-7-1:2009
BG
20.11 g
100
Terminal block in beige plastic with internal connections and components for electrical installation

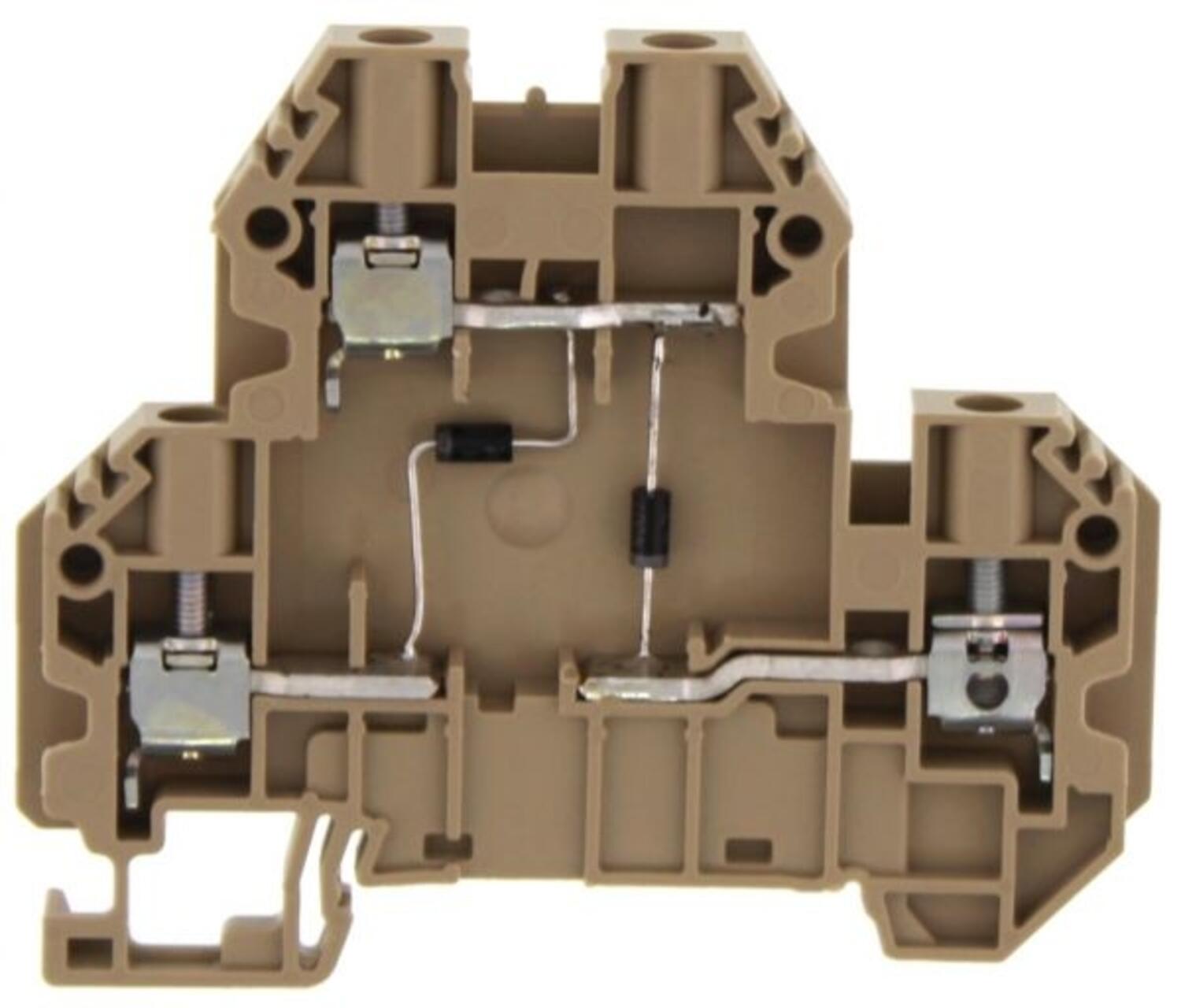

SRKD 4/D3 Beige, 4mm² double deck terminal with diodes - linked
Art:
17564.2 Copied
4 mm²
Beige
1000 V
1N4007 / 1000V / 1A x 2
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
6.1 mm
65 mm
2 x 2
A4
3
6 mm²
6 mm²
4 mm²
26
10
M 3
0.5
1
600 V
600 V
EN 60947-7-1:2009
BG
18.17 g
100
Terminal block in beige plastic with internal connections and components for electrical installation
SRKD 4/D4 Beige, 4mm² double deck terminal with diodes - linked
Art:
17565.2 Copied
4 mm²
Beige
1000 V
1N4007 / 1000V / 1A x 2
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
6.1 mm
65 mm
2 x 2
A4
3
6 mm²
6 mm²
4 mm²
26
10
M 3
0.5
1
600 V
600 V
EN 60947-7-1:2009
BG
18.17 g
100
Terminal block from CONTA-CLIP with two connections and beige plastic construction

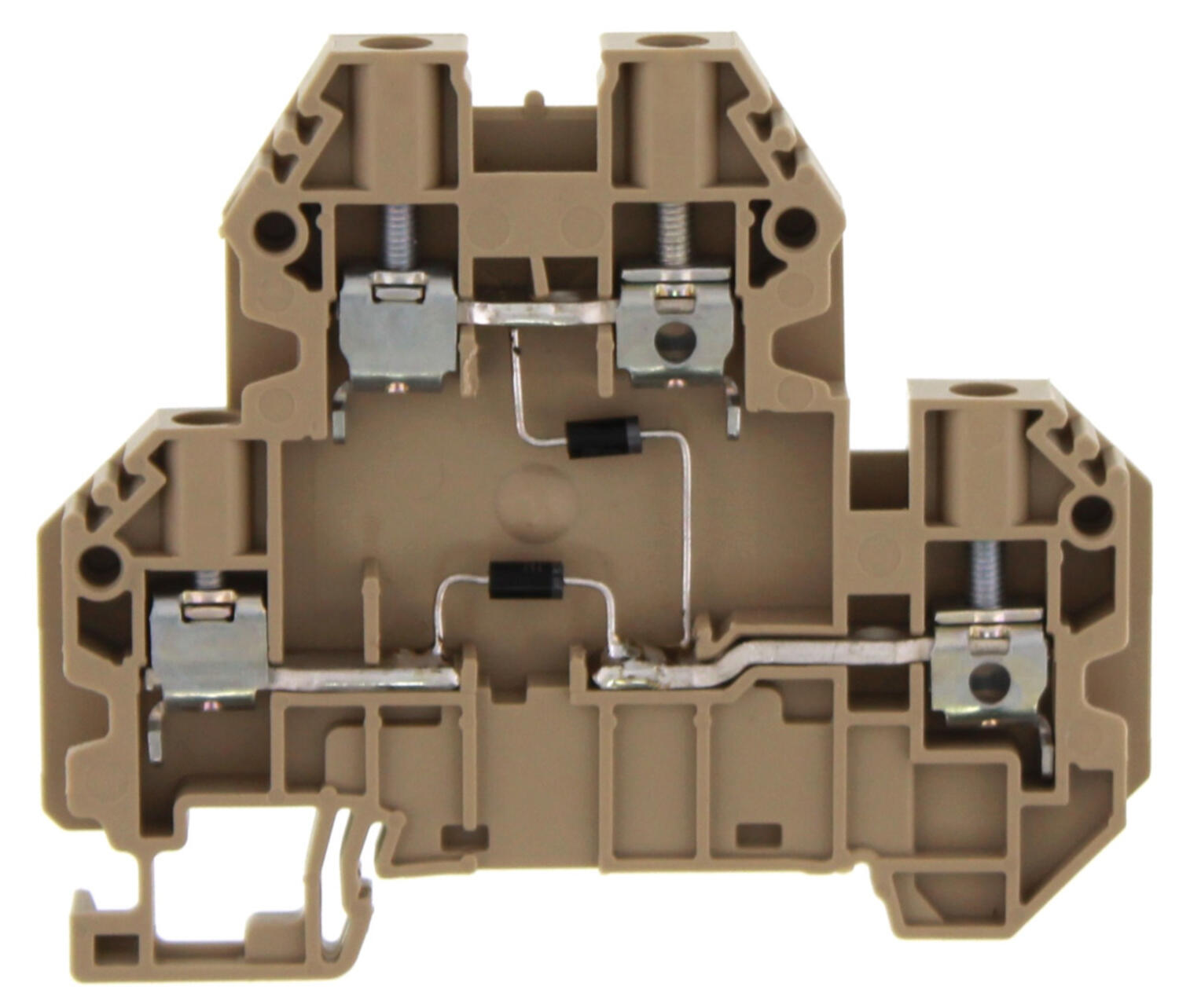

SRKD 4/D5 Beige, 4mm² double deck terminal with diodes linked
Art:
17566.2 Copied
4 mm²
Beige
1000 V
1N4007 / 1000V / 1A x 2
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
6.1 mm
65 mm
2 x 2
A4
3
6 mm²
6 mm²
4 mm²
26
10
M 3
0.5
1
600 V
600 V
EN 60947-7-1:2009
BG
19.79 g
100
Terminal block from CONTA-CLIP with two connections and beige plastic construction
SRKD 4/D6 Beige, 4mm² double deck terminal with diodes linked
Art:
17567.2 Copied
4 mm²
Beige
1000 V
1N4007 / 1000V / 1A x 2
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
6.1 mm
65 mm
2 x 2
A4
3
6 mm²
6 mm²
4 mm²
26
10
M 3
0.5
1
600 V
600 V
EN 60947-7-1:2009
BG
18.17 g
100
Terminal block with built-in components for electrical connections, model ChangeThis.

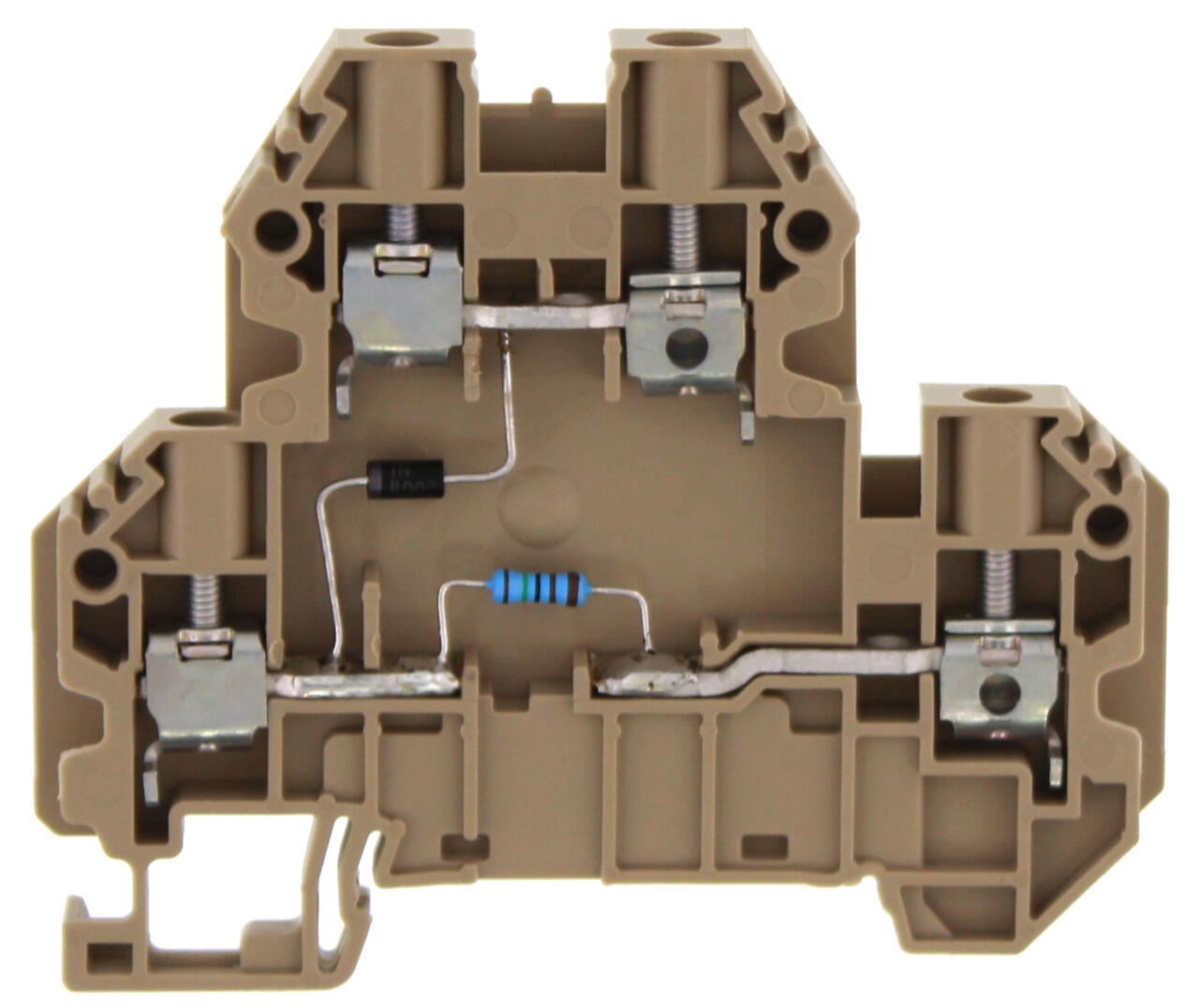

SRKD 4/RD1, 4mm² double deck with diode and resistor
Art:
17568.2 Copied
4 mm²
Beige
1000 V
1N4007 / 1000V / 1A
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
with diode and 1.5K resistor
6.1 mm
65 mm
2 x 2
A4
3
6 mm²
6 mm²
4 mm²
26
10
M 3
0.5
1
600 V
600 V
EN 60947-7-1:2009
BG
19.45 g
100
Terminal block from CONTA-CLIP, beige with metal brackets for electrical connections.
SRKD 10 Beige, 10mm² double deck terminal
Art:
17190.2 Copied
10 mm²
Beige
1000 V
57 A
76 A
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
10.1 mm
68 mm
2 x 2
B7
3
16 mm²
16 mm²
10 mm²
18
6
M 4
1.2
2.4
600 V
65 A
600 V
65 A
EN 60947-7-1:2009
CZ
33.09 g
50

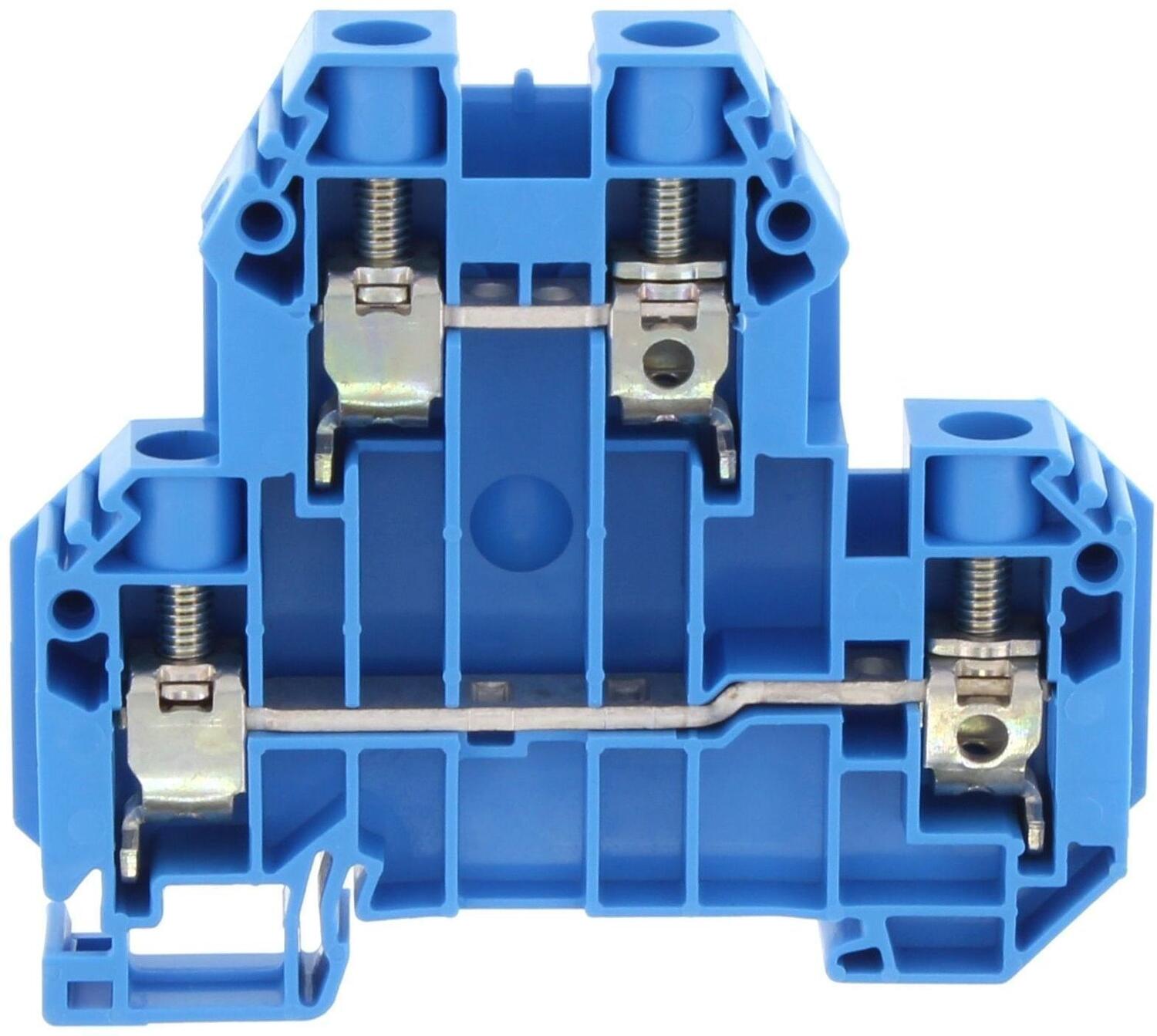

Blue terminal block from CONTA-CLIP with metal connections and robust design for electrical installations
SRKD 10 Blue, 10mm² double deck terminal
Art:
17190.5 Copied
10 mm²
Blue
1000 V
57 A
76 A
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
10.1 mm
68 mm
2 x 2
B7
3
16 mm²
16 mm²
10 mm²
18
6
M 4
1.2
2.4
600 V
65 A
600 V
65 A
EN 60947-7-1:2009
CZ
33.09 g
50
Terminal block from CONTA-CLIP with two connections and robust design for industrial use

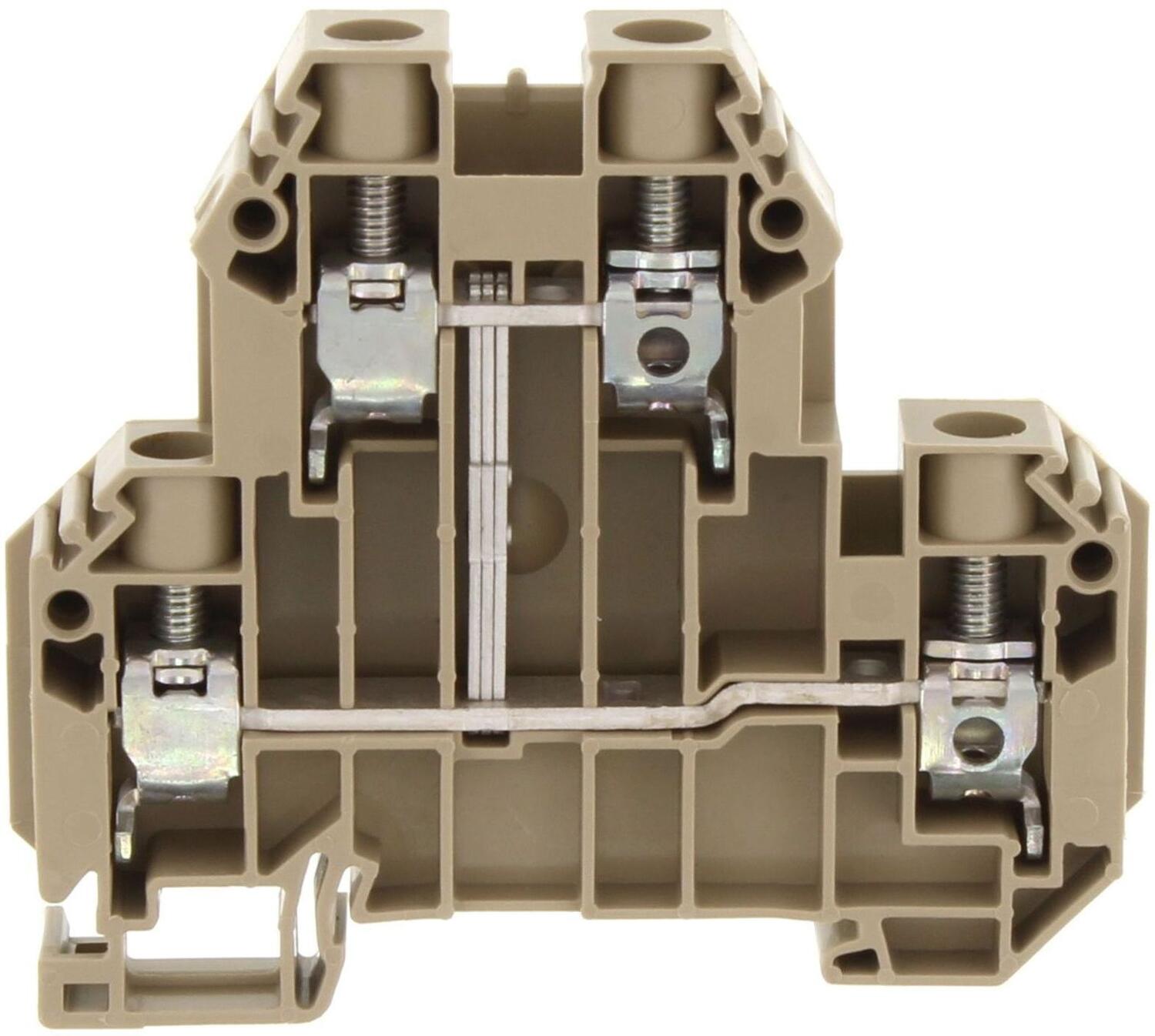

SRKD 10/SV Beige, 10mm² linked double deck terminal
Art:
17191.2 Copied
10 mm²
Beige
1000 V
57 A
76 A
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
connected vertically
10.1 mm
68 mm
4
B7
2
16 mm²
16 mm²
10 mm²
18
6
M 4
1.2
2.4
600 V
65 A
600 V
65 A
EN 60947-7-1:2009
CZ
37.62 g
50

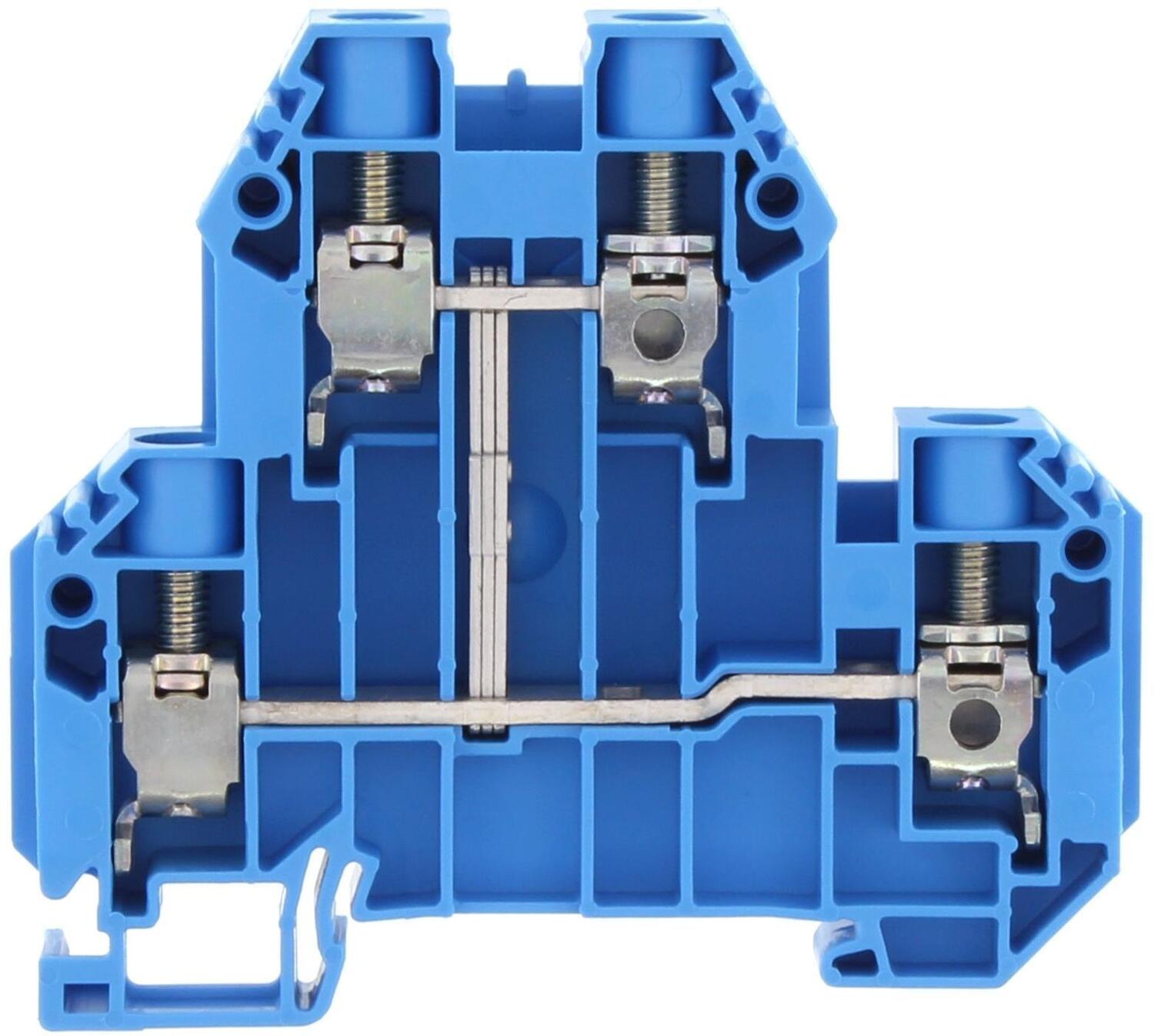

Blue terminal block with metal connections and springs for electrical installations
SRKD 10/SV Blue, 10mm² linked double deck terminal
Art:
17191.5 Copied
10 mm²
Blue
1000 V
57 A
76 A
TS 35
8 kV
III
UL, cUL, KEMA KUR, EAC
connected vertically
10.1 mm
68 mm
4
B7
2
16 mm²
16 mm²
10 mm²
18
6
M 4
1.2
2.4
600 V
65 A
600 V
65 A
EN 60947-7-1:2009
DE
37.62 g
50
Green and yellow connection terminal with metal components for electrical installations

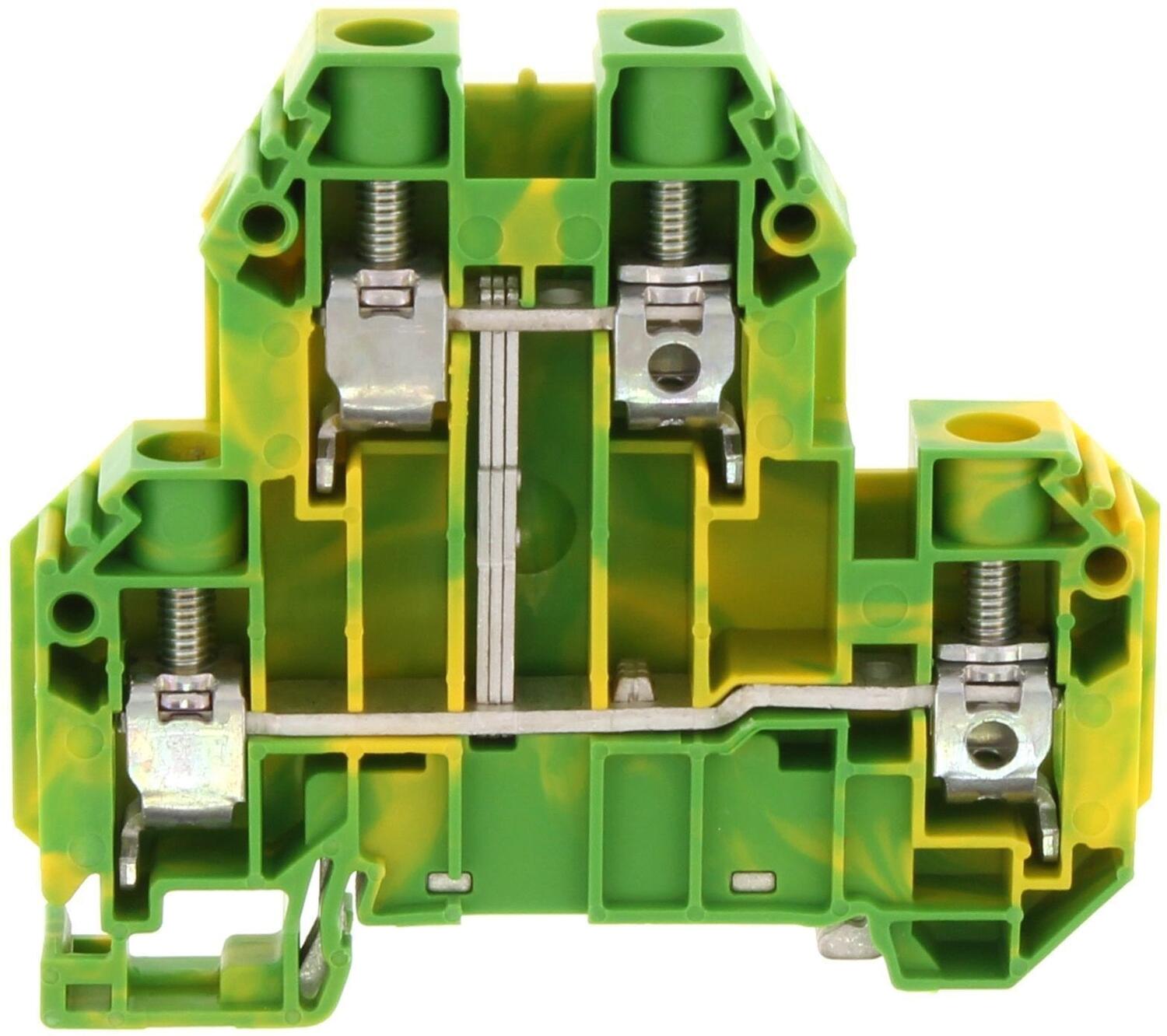

SSLD 10, Snap on 10mm² linked double deck earth terminal
Art:
17192.2 Copied
10 mm²
Green/yellow
TS 35
III
UL, cUL, KEMA KUR, EAC
10.1 mm
68 mm
4
B7
2
16 mm²
16 mm²
10 mm²
18
6
M 4
1.2
2.4
EN 60947-7-2:2009
CZ
48.06 g
50
Strang_SRKD2,5-10.tif
SRKD2.5/SV-BROWN DDECK LINKED 2.5mm
Art:
17181.0 Copied
2.5 mm²
Brown
1000 V
24 A
32 A
8 kV
lll
UL, KEMA KUR, cUL, EAC
connected vertically
5.1 mm
65 mm
4
A3
2
4 mm²
4 mm²
2.5 mm²
30
12
0.4
0.8
600 V
20 A
600 V
20 A
EN 60947-7-1:2009
CZ
16.95 g
100
2

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
