Positional Drives for Brushed DC Motors with Hall Sensors

These Electromen motor drive cards provide positional control of brushed DC motors with pulse and potentiometer feedback, current handling to 15A continuous and a supply voltage range of 12-32Vdc

All drives offer current limiting for safety, motor protection and system control, and the programmable options are highly customisable and easy to set up and tailor to their target application
8 products with 27 variants
ELECTROMEN

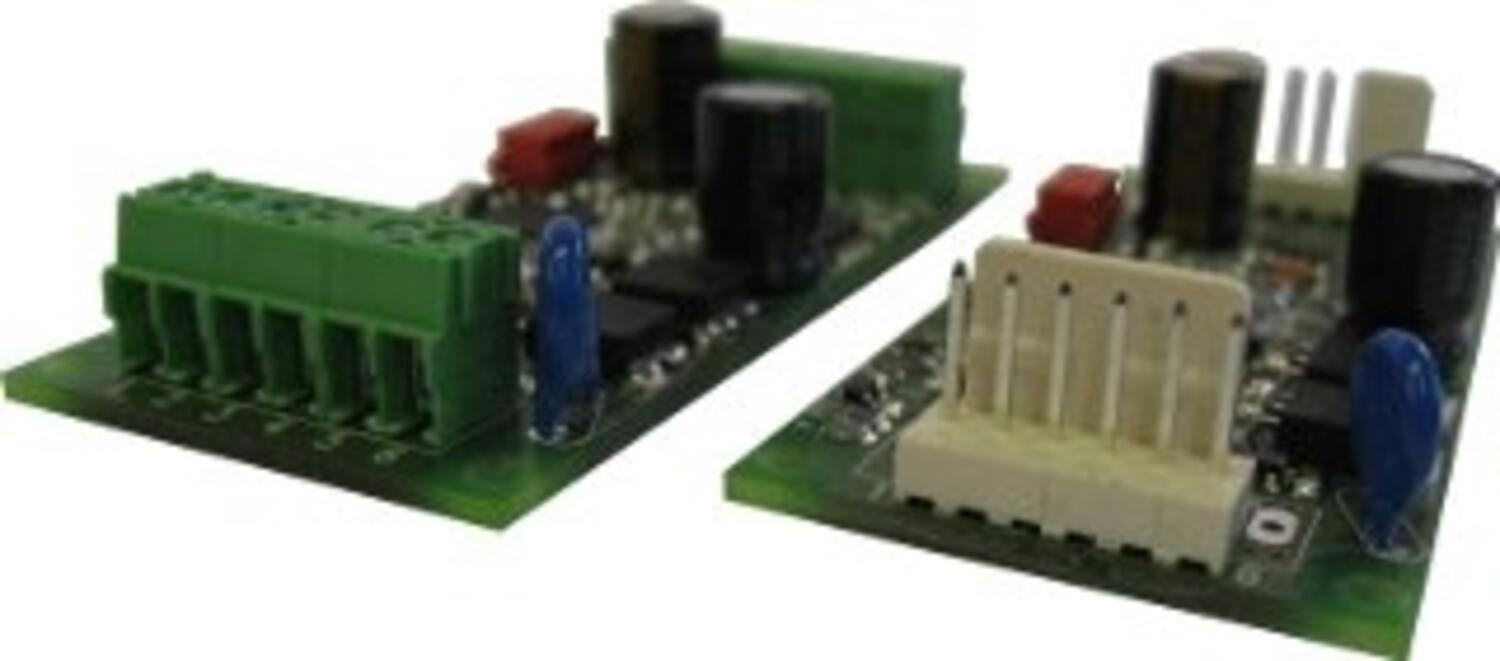

Electromen - EM-324-SAF

DC motor positioning drive 12-24 V dc, 4 A, analogue feeback

  • 12-24Vdc, 4A continuous, 6A peak
  • Set value & feedback input, 0-5V, 0-11V, 0-20mA or potentiometer
  • Positioning accuracy max. 0.2%
  • Speed, direction, current limiting, soft start/stop and range adjustment control
  • Compact, DIN rail mountable
Product has 1 parts.
More information More information
ELECTROMEN

Electromen - EM-324-SPF

DC motor positioning drive 12-24 V dc, 4 A, pulse feedback

  • 12-24Vdc, 4A continuous, 6A peak
  • Set value 0-5V, 0-11V, 0-20mA & feedback input from encoder/hall sensor
  • Positioning accuracy max. 0.2%
  • Speed, direction, current limiting, soft start/stop and range adjustment control
  • Compact, DIN rail mountable
Product has 1 parts.
More information More information
ELECTROMEN

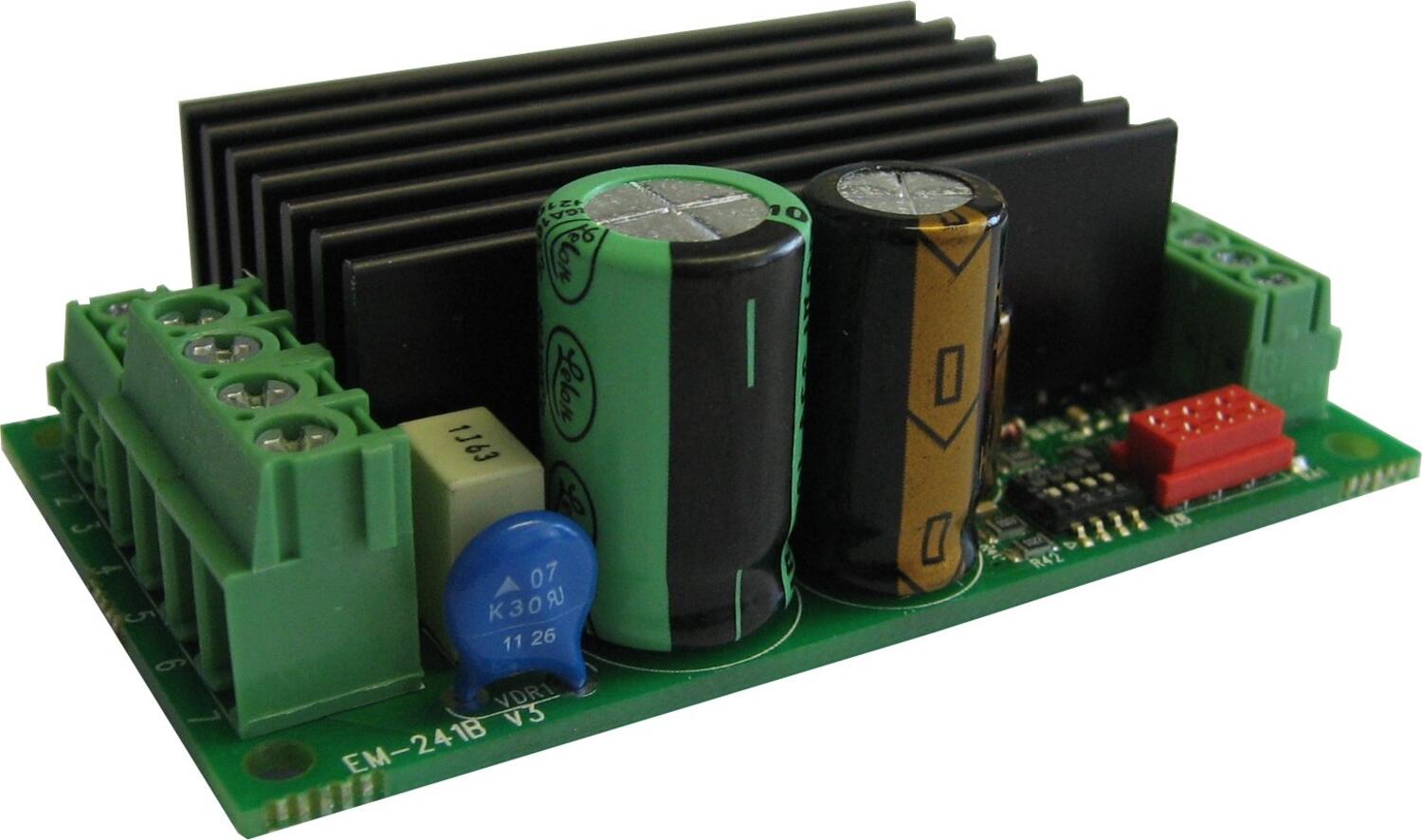

Electromen - EM-241-SAF

DC motor positioning drive 12-24Vdc, 15A, analogue feedback

  • 12-24Vdc, 15A continuous, 30A peak
  • Set value & feedback input, 0-5V, 0-11V, 0-20mA or potentiometer
  • Positioning accuracy max. 0.2%
  • Speed, direction, current limiting, soft start/stop and range adjustment control
  • Compact, DIN rail mountable
Product has 1 parts.
More information More information
ELECTROMEN

Electromen - EM-241-SPF

DC motor positioning drive 12-24Vdc, 15A, pulse feedback

  • 12-24Vdc, 15A continuous, 30A peak
  • Set value 0-5V, 0-11V, 0-20mA & feedback input from encoder/hall sensor
  • Positioning accuracy max. 0.2%
  • Speed, direction, current limiting, soft start/stop and range adjustment control
  • Compact, DIN rail mountable
Product has 1 parts.
More information More information

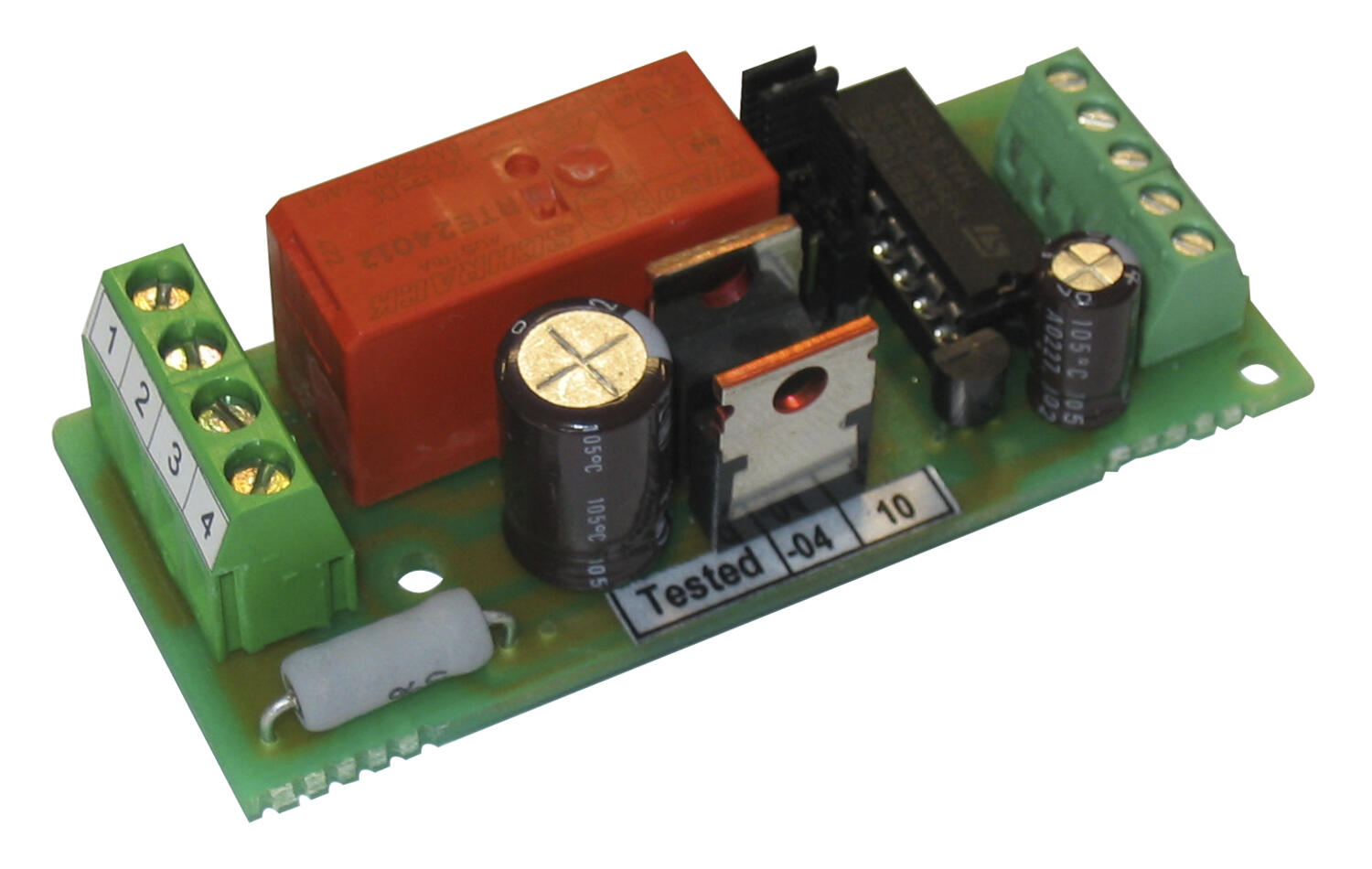

Electromen EM-165 DC motor positioning drive
ELECTROMEN

Electromen - EM-165 DC motor positioning drive 12-32 V dc, 5 A, analogue FB

  • 12-32 V dc, 5 A continuous, 12 A peak
  • Set value & feedback input, 0-5V or potentiometer
  • Positioning accuracy. typ. ±1%
  • Compact, din rail mountable
Product has 1 parts.
More information More information
Electromen EM-165 DC motor positioning drive
ELECTROMEN

Electromen - EM-165pf DC motor positioning drive 12-32 V dc, 5 A, pulse FB

  • 12-32 V dc, 5 A continuous, 12 A peak
  • Set value 0-5V or potentiometer & feedback from pulse input
  • Positioning accuracy. typ. ±1%
  • Compact, din rail mountable
Product has 1 parts.
More information More information
ELECTROMEN

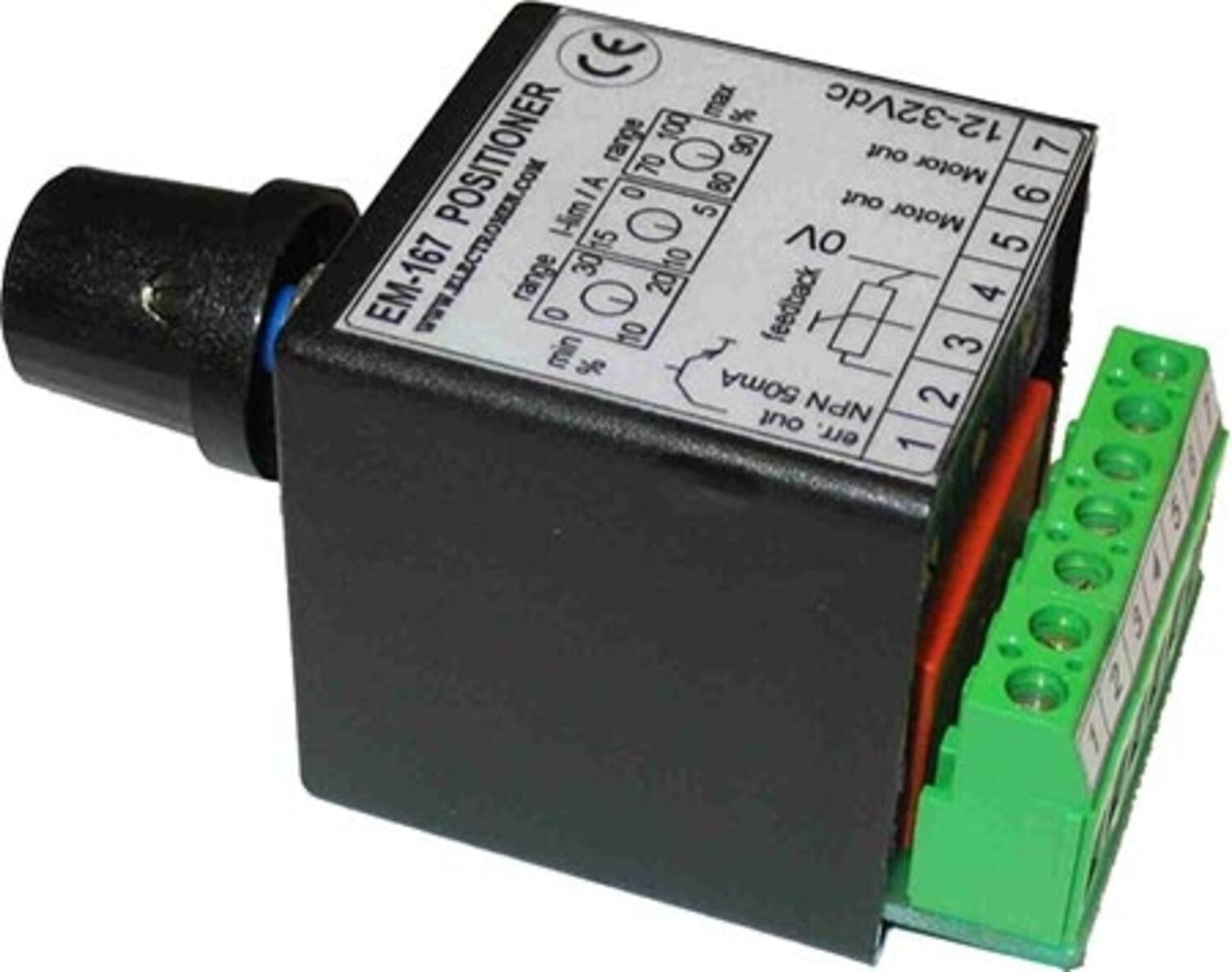

Electromen - EM-167 DC motor positioning drive 12-32 V dc, 4 A, analogue FB

  • 12-32 V dc, 4 A continuous, 15 A peak
  • Set value & feedback input, 0-5V or potentiometer
  • Positioning accuracy. typ. ±1%
  • Current limiting, soft start/stop and range adjustment control
  • Panel mount
Product has 1 parts.
More information More information
ELECTROMEN

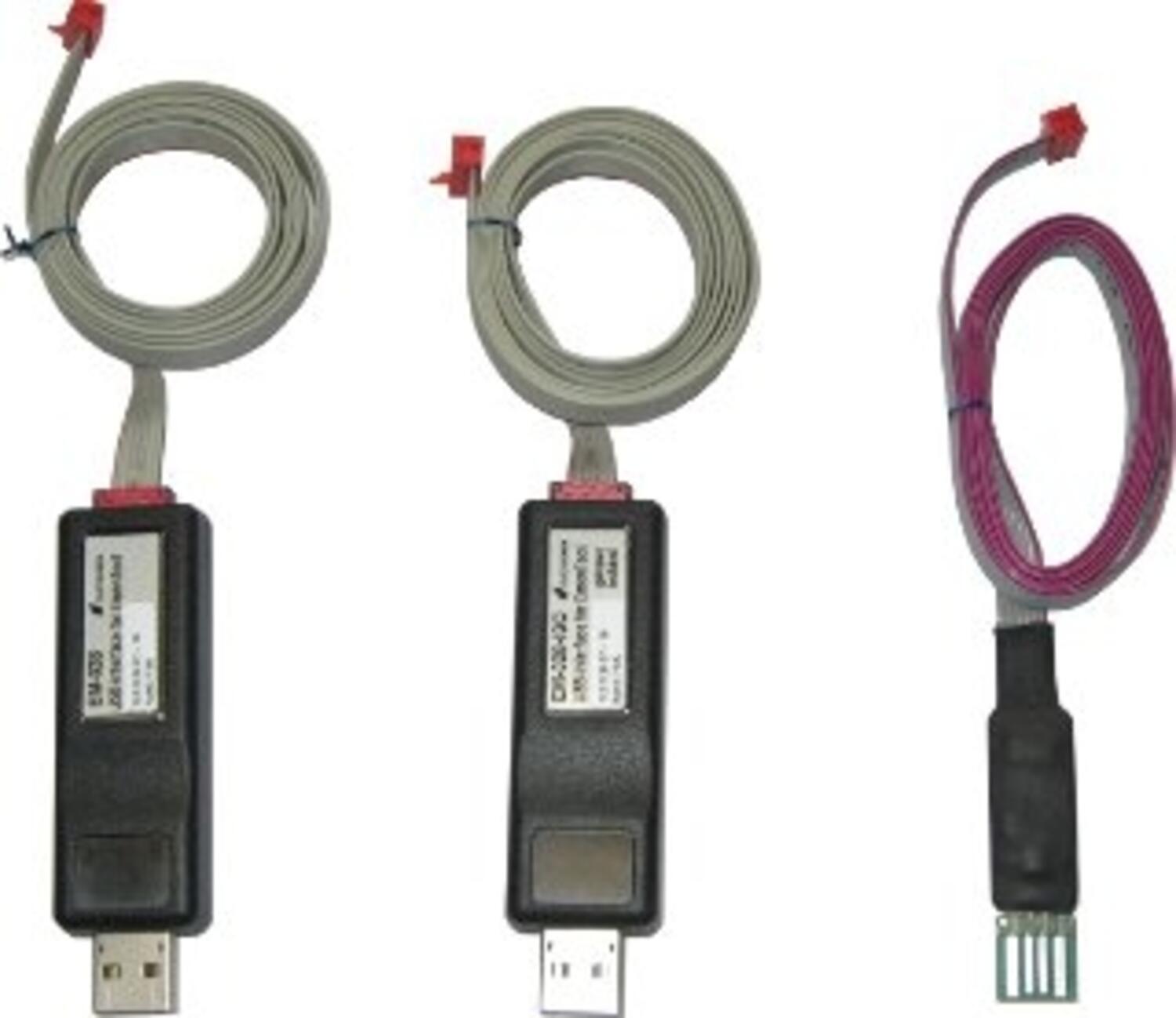

Electromen - Accessories

Products to support Electromen drive range

  • Interface unit for adjusting & copying parameters
  • USB standard Interface for PC EmenTool Lite software
  • DIN rail plastic mounting bases
  • Electronic accessories
Product has 20 parts.
More information More information
