Solenoids and Electromagnets

The humble solenoid coil is in its basic form a simple affair – yet through various design principles and ancillary components they can be adapted to perform many tasks.

Reversible, latching, linear, bistable are all terms for solenoid design and performance characteristics. They can be used to simply operate a switch with an impulse of voltage and return when the voltage is removed, right through to 3 position twin coil solenoids used for positioning with detent (holding) force.

Solenoids are also used in electromagnetic locks and security bolts. These can be power to lock or unlock and feature strong mounting options for security applications.

A natural adoption of the technology is holding electromagnets. These are again designed on the solenoid principles and allow a magnet to hold a mass fastened, closed or indeed open with or without voltage as required.

The many options from NAFSA can be found below, with typical applications being;
  • Door locking and access control - electromagnet to hold door open or closed.
  • Food and medical machinery - solenoids as locking pins once a section is in place.
  • Factory automation - machine part holding electromagnets.
  • Vending machines - solenoids to open or lock access points, move vending flaps and guides.
  • Lifts and elevators - locking bolts as security and safety features.
  • Agricultural machinery - solenoid to open / close dispensing valves on casting machinery.
  • Automotive industry - multiple options for solenoid locks, holding magnets to lock doors.

More information about Solenoids and Electromagnets

24 products with 98 variants
Solenoid of the ER series type from Nafsa, with model number ER45-15/C, designed for industrial use.
NAFSA

NAFSA - ER series

  • Single acting, spring or load return
  • Up to class F winding (155°C)
  • Duty cycle from 0 to 100%
  • Up to 234N force
  • Customer specific version available
Product has 17 parts.
More information More information
Solenoid of type ERC25-04/EC from NAFSA, with metal housing and connection cables
NAFSA

NAFSA - ERC series

  • Pull / push design, with optional spring
  • Class B winding (130ºC)
  • Duty cycle 0 to 100%
  • Up to 191N force
  • Customer specific version available
Product has 7 parts.
More information More information
Solenoid ECH series from Nafsa, compact design with connections for easy installation
NAFSA

NAFSA - ECH series

  • Pull / push design, with optional spring
  • Class B winding (130ºC)
  • Duty cycle 0 to 100%
  • Up to 2800N force
  • Customer specific version available
Product has 7 parts.
More information More information
Solenoid CU20/C from Nafsa, a compact and efficient component for automation and control.
NAFSA

NAFSA - CU series

  • Pull / push design, with optional spring
  • Class E winding (120ºC)
  • For high cycle applications
  • Up to 59N force
  • Customer specific version available
Product has 3 parts.
More information More information
Solenoid from Nafsa, model ELM19/E, for use in the ECM series.
NAFSA

NAFSA - ECM series

  • Pull / push design, with optional spring
  • Class B winding (130ºC)
  • Round profile for panel mounting
  • Up to 32N force
  • Customer specific version available
Product has 8 parts.
More information More information
Solenoid of the NAFSA ERD series with electrical connections and metal housing
NAFSA

NAFSA - ERD series

  • Double coil for 100% duty cycle
  • Class B winding (130ºC)
  • High starting force
  • Up to 440N force
  • Customer specific version available
Product has 1 parts.
More information More information
Solenoid ECR90-25 from Nafsa, cylindrical design with connections for installation
NAFSA

NAFSA - ECR series

  • Double coil for even force along travel
  • Class B winding (130ºC)
  • Push and pull with same force
  • Up to 837N force
  • Customer specific version available
Product has 5 parts.
More information More information
Solenoid of type ERB20-15-6/I from NAFSA, with moving parts and connections for electrical installation.
NAFSA

NAFSA - ERB series

  • Bi-stable for holding open or closed
  • Class Y winding (90ºC)
  • Ideal for locking applications
  • Up to 140N force
  • Customer specific version available
Product has 4 parts.
More information More information
Solenoid from the Nafsa ECI series with connection cables, compact design for industrial use.
NAFSA

NAFSA - ECI series

  • Bistable. External force to retract
  • Class Y winding (90ºC)
  • 100% duty cycle
  • Up to 44N force
  • Customer specific version available
Product has 1 parts.
More information More information
Product image of NAFSA CU20/CPXU, a compact unit with connection pipe and lens element
NAFSA

NAFSA - CU20 CPXU series

  • Security locking bolt
  • Class B winding (130ºC)
  • Positive detection options
  • Up to 0.35N force
  • Customer specific version available
Product has 1 parts.
More information More information
Electric motor NAFSA ER30_CCR with compact dimensions and connections for easy installation
NAFSA

NAFSA - ER30 CCR series

  • Reinforced locking bolt
  • Class B winding (130ºC)
  • Positive detection options
  • Up to 1.6daN return force
  • Customer specific version available
Product has 1 parts.
More information More information
Product image of NAFSA CU30/CP, a compact unit with connections and mounting brackets.
NAFSA

NAFSA - CU30 CP series

  • Reinforced locking bolt
  • Class E winding (120ºC)
  • Ideal for robotic applications
  • Up to 2.8daN return force
  • Customer specific version available
Product has 1 parts.
More information More information
NAFSA CU20CP product with metal housing and connection cable
NAFSA

NAFSA - CU20 CP series

  • Security locking bolt
  • Class E winding (120ºC)
  • Locks without power
  • Up to 1.75N force
  • Customer specific version available
Product has 1 parts.
More information More information
ERC30CP electromagnetic valve from NAFSA, compact design with connection cables
NAFSA

NAFSA - ERC30 CP series

  • Reinforced locking bolt
  • Class B winding (130ºC)
  • Locks without power
  • Up to 6.7N return force
  • Customer specific version available
Product has 1 parts.
More information More information
Electrical component CU20CPB from NAFSA with a cylindrical part and two wires.
NAFSA

NAFSA - CU20 CPB series

  • Bistable security locking bolt
  • Class Y winding (90ºC)
  • Held in either position
  • Up to 2000N radial load
  • Customer specific version available
Product has 1 parts.
More information More information
Electrical component from NAFSA, model ERB35-05/NDBCP with three wires in red, green, and black.
NAFSA

NAFSA - ERB35 NDBCP series

  • Bistable reinforced locking bolt
  • Class Y winding (90ºC)
  • With release spring
  • Proximity switch enclosed
  • Customer specific version available
Product has 1 parts.
More information More information
Product image of a C30 button with a green push button and a locking connector on a metal plate
NAFSA

NAFSA - C30 series

  • Locking bolt with key
  • Class F winding (155ºC)
  • Ideal for elctrical isolation
  • Customer specific version available
Product has 1 parts.
More information More information
Electromagnet VM series from Nafsa, including models VM50/B and VM65, with connections for easy installation.
NAFSA

NAFSA - VM series

  • Magnetic holding under no power
  • Class B winding (130ºC)
  • 100% duty cycle
  • Up to 2000N force
  • Customer specific version available
Product has 9 parts.
More information More information

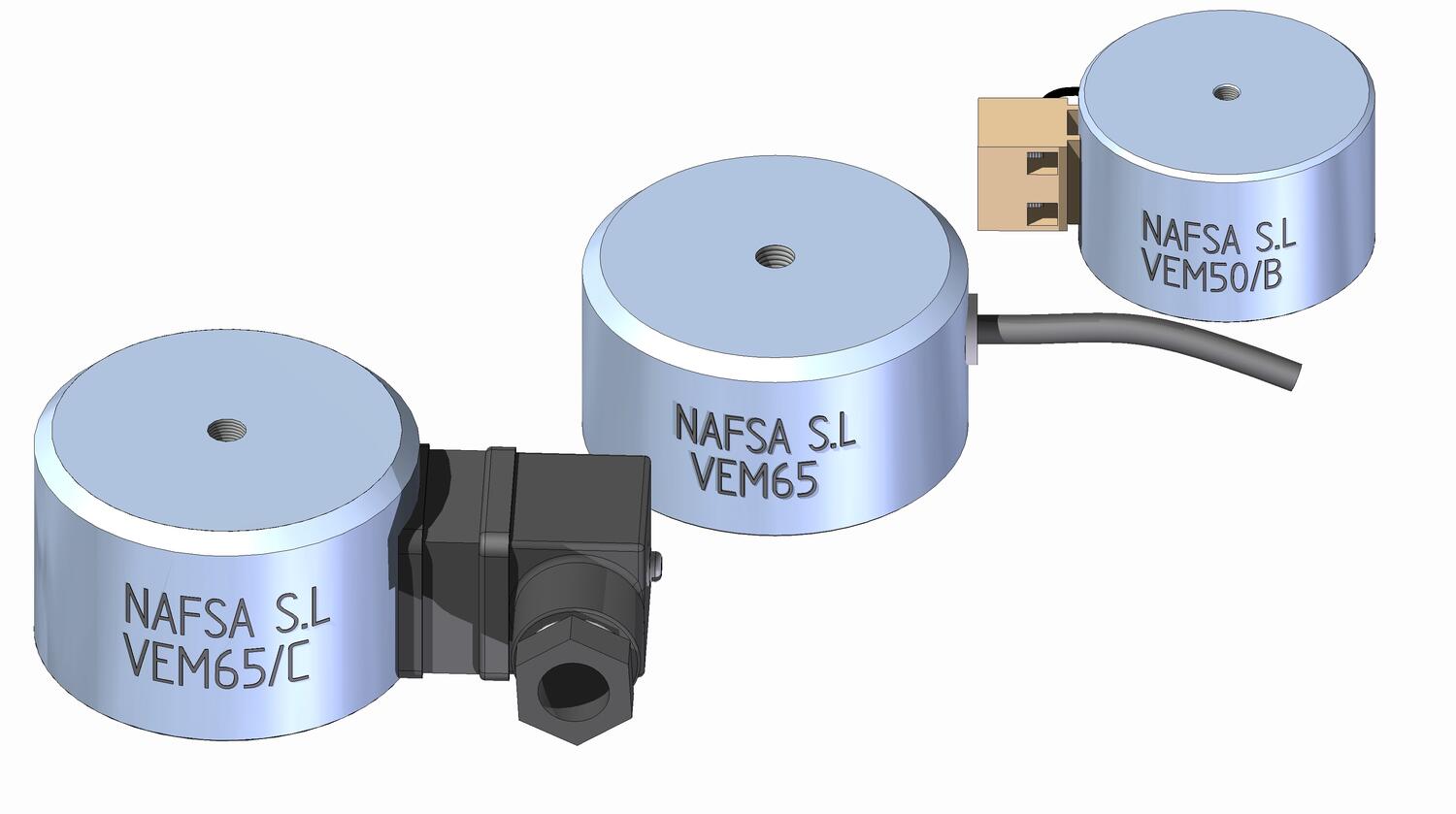

Electromagnet VEM series from Nafsa, including models VEM65 and VEM50/B, with metallic surface and connections.
NAFSA

NAFSA - VEM series

  • Power to create holding force
  • Class B winding (130ºC)
  • 100% duty cycle
  • Up to 7104N force
  • Customer specific version available
Product has 9 parts.
More information More information
Electromagnet VM series from Nafsa, including models VM50/B and VM65, with connections for easy installation.
NAFSA

NAFSA - VM/ND series

  • Magnetic holding under no power
  • Class Y winding (90ºC)
  • Up to 40% duty cycle
  • Up to 2254N force
  • Customer specific version available
Product has 6 parts.
More information More information
Product image of NAFSA SL ERM 150/35, a precision component with a red marking and connection.
NAFSA

NAFSA - ERM series

  • Rectangular holding magnet
  • Class B winding (130ºC)
  • 100% duty cycle
  • Up to 7450N force
  • Customer specific version available
Product has 9 parts.
More information More information
Product image of NAFSA ERMI 200/60, a compact and robust unit with a red background and connection port.
NAFSA

NAFSA - ERMI series

  • Rectangular holding magnet
  • Class Y winding (90ºC)
  • 15% duty cycle
  • Up to 3000N force
  • Customer specific version available
Product has 1 parts.
More information More information
Product image of NAFSA BP1000-100, a long, narrow unit with a red and silver design.
NAFSA

NAFSA - BP1000/100 series

  • Rectangular holding magnet
  • Class B winding (130ºC)
  • 100% duty cycle
  • Uo to 8000N force
  • Customer specific version available
Product has 1 parts.
More information More information

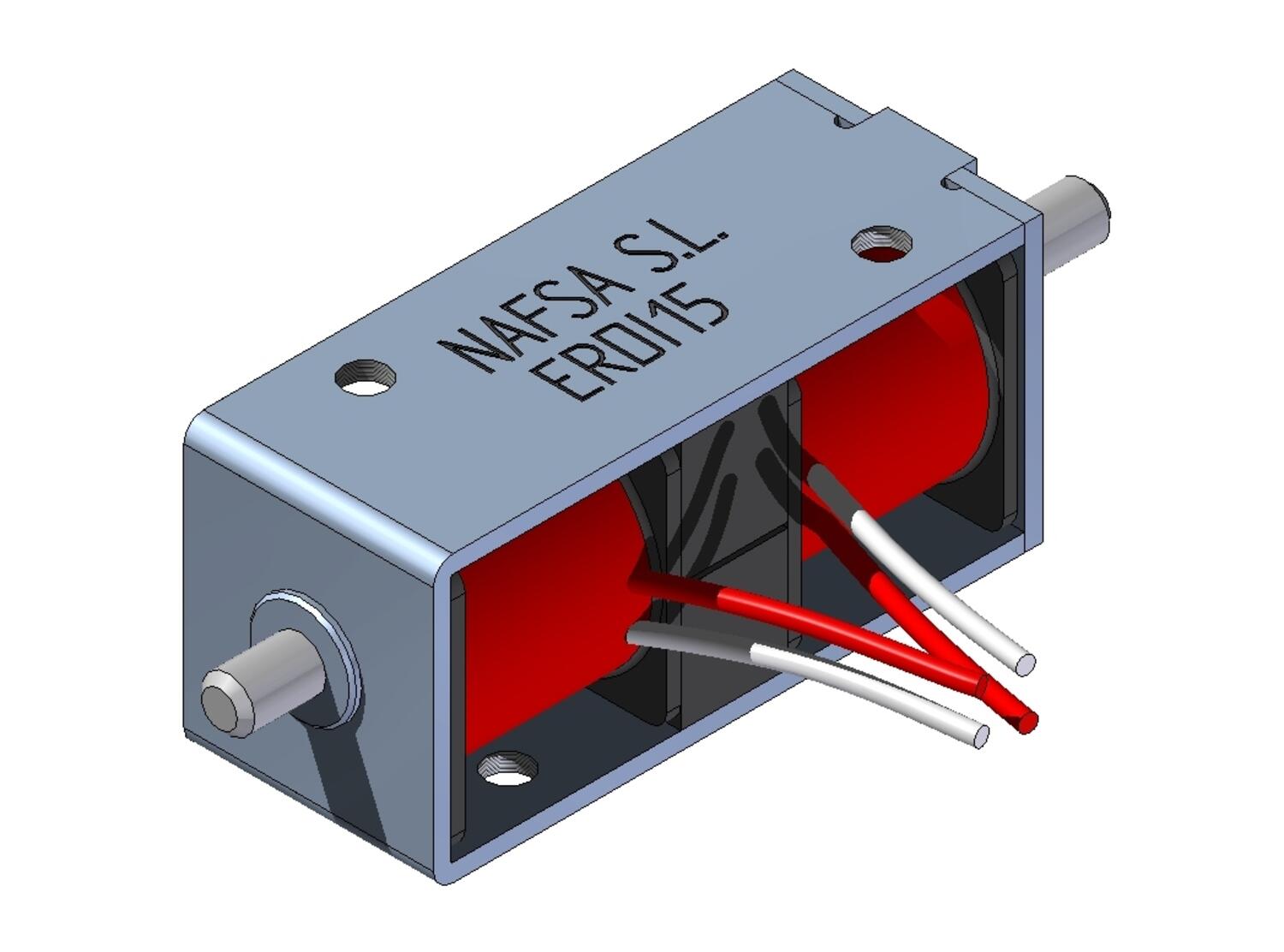

Solenoid from the Nafsa ERDI series with red internal component and connected wires
NAFSA

NAFSA - ERDI series

  • Dual rest positions held with permanent magnet
  • Class E winding (120ºC)
  • High starting force
  • Up to 24N force
  • Customer specific version available
Product has 2 parts.
More information More information
