DATALOGIC
Datalogic - Quick Link 500

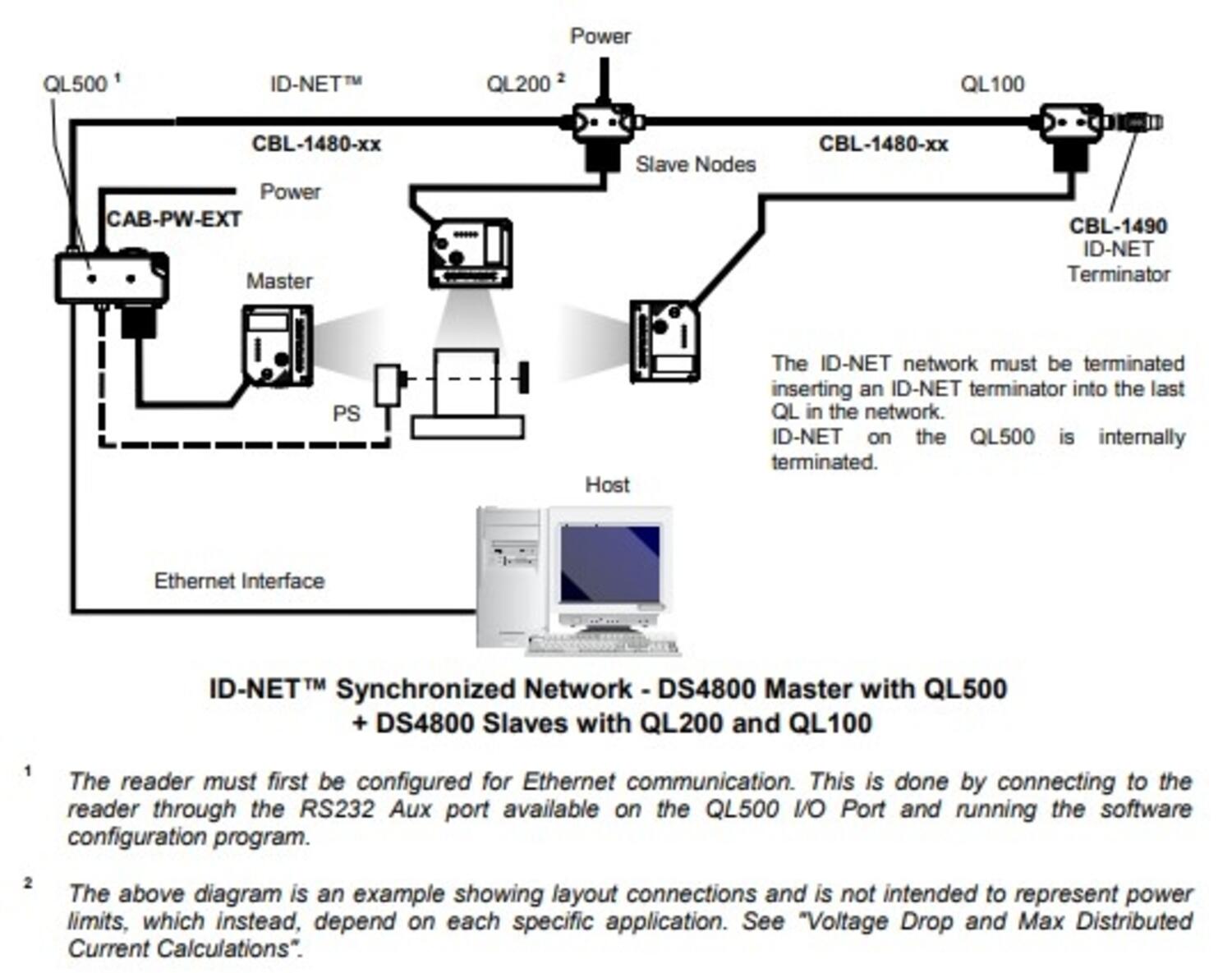

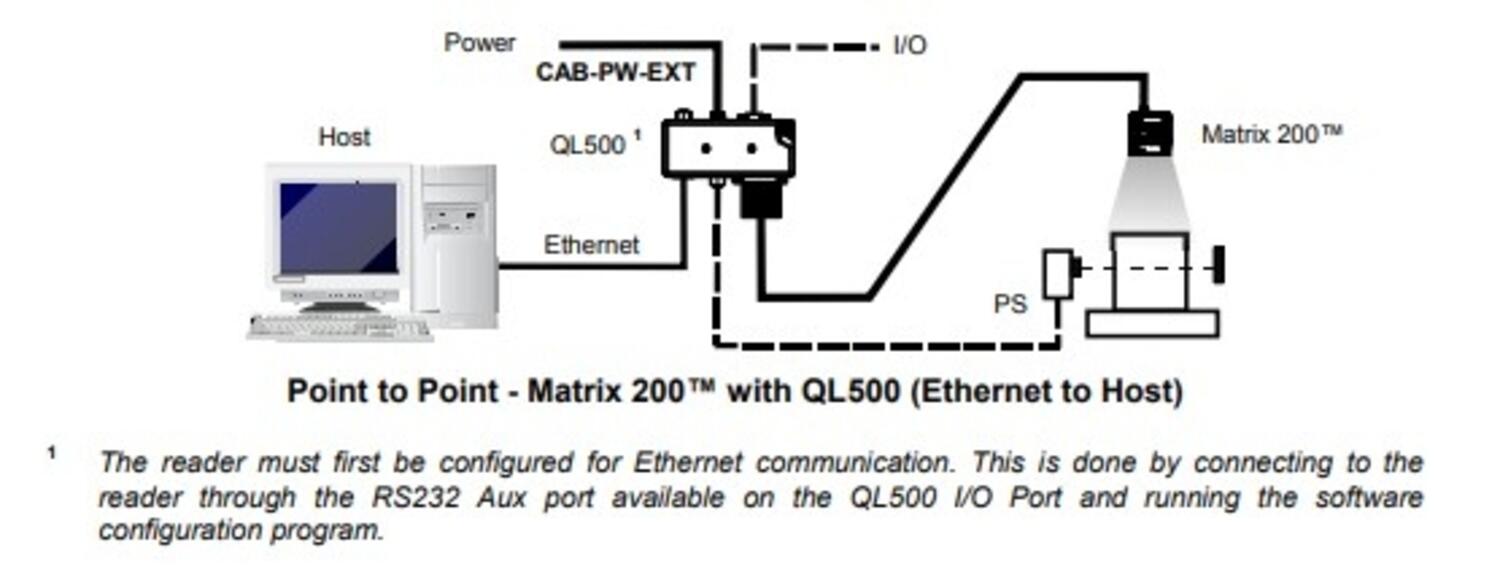

Quick Link is a complete series for fast, easy cabling of an ID-NET™ network by means of standard cables. QL500 is an active master module designed for use with the slave modules QL100/150/200, but it can also be used as an independent unit. QL500 has separate ports for supply voltage, external trigger signal, Digital I/O and communication. It also comes equipped with Ethernet communication which is linked with the reader's internal interface.
- Fast, easy connection for ID-NET™ networks
- Active master module
- Ethernet communication
Selected variant
Technical data
| IP class | IP40 |
|---|---|
| Power consumption max | 4 A |
| Storage temperature max | 70 °C |
| Storage temperature min | -20 °C |
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 10 V DC |
| Temperature operational max | 50 °C |
| Temperature operational min | 0 °C |
| Weight | 309 g |
Product description
Quick Link is a complete series for fast, easy cabling of an ID-NET™ network by means of standard cables. QL500 is an active master module designed for use with the slave modules QL100/150/200, but it can also be used as an independent unit. QL500 has separate ports for supply voltage, external trigger signal, Digital I/O and communication. It also comes equipped with Ethernet communication which is linked with the reader's internal interface.
