AVENTICS

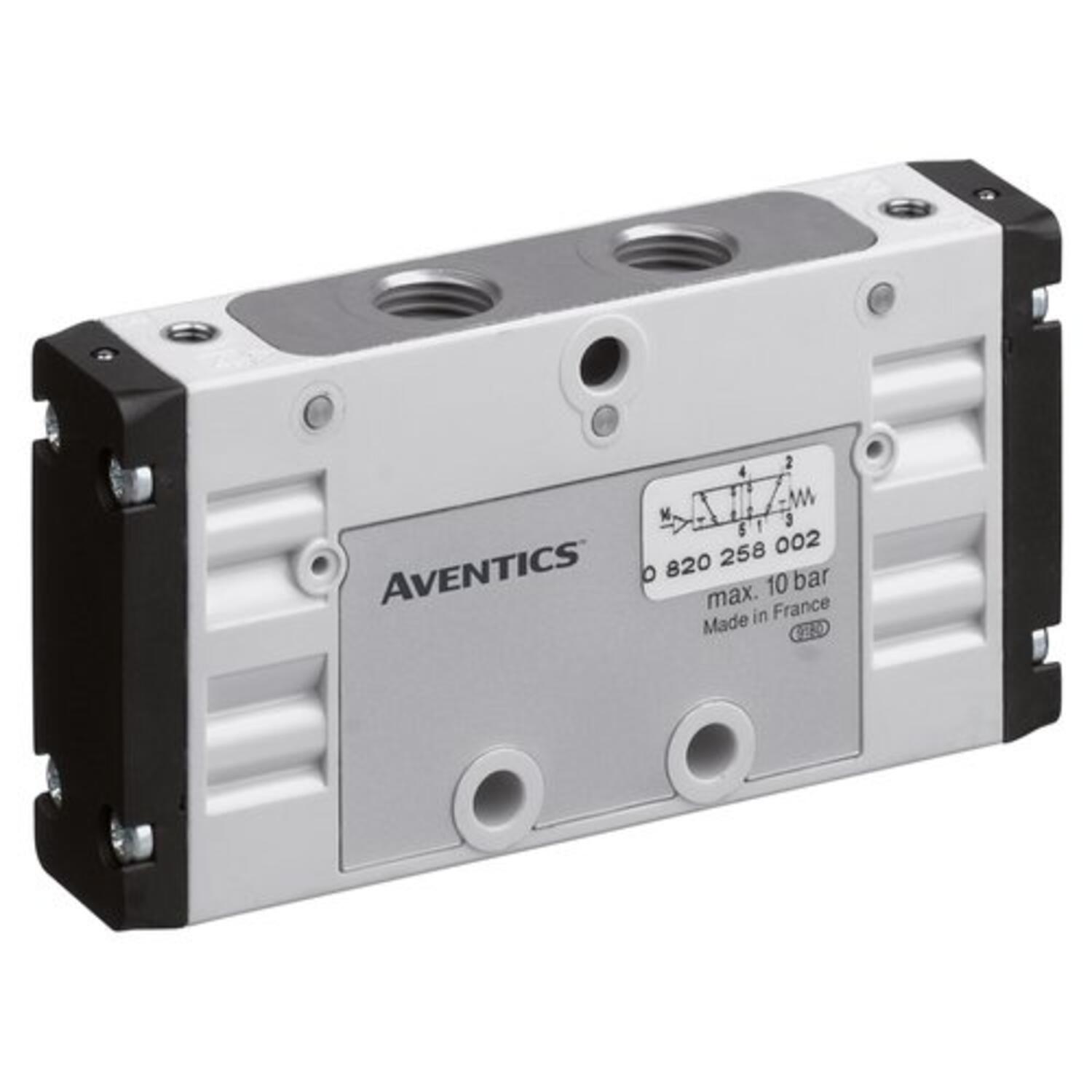

TC08, TC15 series directional spool valve
5/3 5/2
Aventics directional spool valve, TC15 and TC08, is electrically operated and available in solenoid / solenoid and solenoid / solenoid spring. Available as sealed mid position of closed centre, exhausted centre and pressurised centre. With compressed air connections 1/8" - 1/4" and 5/2 and 5/3.
- Connection 1/8 ", 1/4"
- Flow capacity 800 l/min
- Temperature range -10°C to +50°C
- IP65
Selected variant
Technical data
| Close delay | 14 ms |
|---|---|
| Connection air | 1/8 BSP |
| Control | Electrical |
| Electrical connection | DIN C |
| Function | 5/2, Spring return |
| IP class | IP65 |
| Material of seals | Polyurethane-based |
| Material provided | Polyamide |
| Material valve | Polyamide |
| Media | Air pressure |
| Nominal flow | 800 l/min |
| Oil content max | 5 mg/m³ |
| Operating pressure max | 10 bar |
|---|---|
| Operating pressure min | 2 bar |
| Particle size max | 5 µm |
| Power consumption | 2 W |
| Response time off | 18 ms |
| Temperature operational max | 50 °C |
| Temperature operational min | -10 °C |
| Type of valve | Electrically controlled |
| Weight | 0.14 kg |
| Voltage dc | 24 V |
Downloads
Product description
Aventics directional spool valve, TC15 and TC08, is electrically operated and available in solenoid / solenoid and solenoid / solenoid spring. Available as sealed mid position of closed centre, exhausted centre and pressurised centre. With compressed air connections 1/8" - 1/4" and 5/2 and 5/3.
