AVENTICS

740 series diaphragm seat valve

Plastic diaphragm seat valve for pneumatic applications from our manufacturer Aventics.

The body and connections are made of plastic, which means that the 740 series has a low weight and is corrosion-resistant.

High flow capacity, fast response time, and built-in flow adjustment as standard, which makes it a flexible alternative in automation.

Series 740 can be selected with ATEX rated coil.

As standard, it is for independent installation, but can also be built on a specially adapted base plate with quick connections.

Read more
  • Connection Plug, EN 175301-803, form A
  • Flow capacity 1100l / min
  • Temperature range -25 to +50 °C
  • ATEX available on request
  • Selectable with ATEX coil

Selected variant

Available in several variants

Selected variant

Technical data

Connection air Ø 8x1
Function 5/2, Single solenoid
IP class IP65
Material of seals NBR
Nominal flow 700 l/min
Oil content max 5 mg/m³
Operating pressure max 10 bar
Operating pressure min 1.5 bar
Particle size max 50 µm
Power consumption 2.1 W
Response time off 24 ms
Temperature operational max 50 °C
Temperature operational min -25 °C
Weight 0.339 kg
Voltage dc 24 V

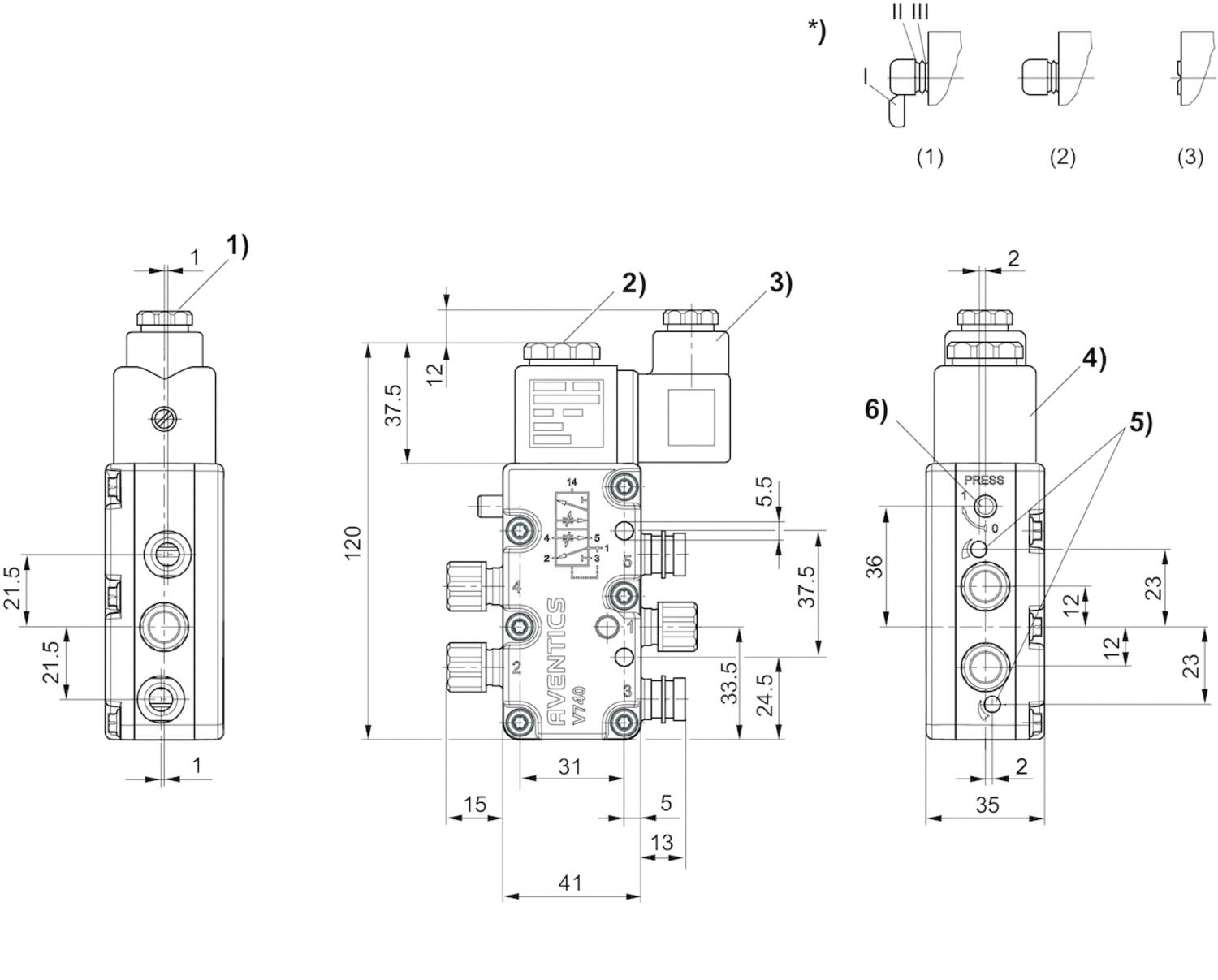

Measurements and connections

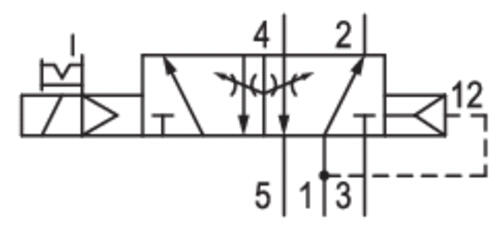

Technical illustrations

Product description

Plastic diaphragm seat valve for pneumatic applications from our manufacturer Aventics.

The body and connections are made of plastic, which means that the 740 series has a low weight and is corrosion-resistant.

High flow capacity, fast response time, and built-in flow adjustment as standard, which makes it a flexible alternative in automation.

Series 740 can be selected with ATEX rated coil.

As standard, it is for independent installation, but can also be built on a specially adapted base plate with quick connections.

Accessories

Related

water treatment plant tank- water and wastewater - OEM Automatic Solutions
Learning hub

Water & Wastewater Solutions

OEM Automatics water and wastewater application specialists have gathered all our solutions in one place. Our products are used in everything from small municipal water works to larger regional plants.

Selection of pumps - understanding velocity and why it matters when choosing a pump
Learning hub

understanding viscosity - And Why It Matters When Choosing A Pump

Whether you’re pumping water, chocolate, oil or peanut butter knowing the product’s viscosity is essential to selecting the right pump. Find out more about viscosity and which pump may be suitable for your application!

Tecnoplastic float switch
Product news

Float switches built to perform and ready to ship

Whether you're looking to upgrade your current solution or secure a more robust float switch for your next project, Taurus delivers performance you can count on.

groups of pressure switches and sensors with reservoir background - pressure sensors or switches
Learning hub

How do I know if I need a pressure switch or a pressure sensor?

When choosing between a pressure switch and a pressure sensor, the key lies in understanding your application. Our Pressure Monitoring experts breaks down the two devices for you.

SAMOA pumps
Product news

We offer air diaphragm pumps by SAMOA

Pumps are now officially part of our product offering! As we build our pump portfolio, we’re proud to announce that we are an official distributor of SAMOA Industrial, a well-established name in the fluid handling industry.

Barcode scanner technology: choosing the right technology for your application
Learning hub

Barcode Scanner Technology: Choosing The Right Technology For Your Application

OEM Automatic's barcode scanner experts have broken down barcode technology to help you choose the right scanner for your application!

Parts Connection air Function Nominal flow Response time off Temperature operational min Weight Voltage dc Price
Ø 8x1
5/2, Single solenoid
700 l/min
24 ms
-25 °C
0.339 kg
24 V
Ø 8x1
5/2, Single solenoid
700 l/min
24 ms
-25 °C
0.317 kg
24 V
Ø 10x1
5/2, Single solenoid
950 l/min
24 ms
-25 °C
0.341 kg
24 V
Ø 10x1
5/2, Single solenoid
950 l/min
24 ms
-25 °C
0.318 kg
24 V
Ø 8x1
5/2, Single solenoid
700 l/min
24 ms
-25 °C
0.335 kg
230 V
Ø 8x1
5/2, Single solenoid
700 l/min
24 ms
-25 °C
0.311 kg
230 V
Ø 10x1
5/2, Single solenoid
950 l/min
24 ms
-25 °C
0.336 kg
230 V
Ø 10x1
5/2, Single solenoid
950 l/min
24 ms
-25 °C
0.311 kg
230 V
Ø 8x1
5/2, Double solenoid
700 l/min
-15 °C
0.555 kg
24 V
Ø 8x1
5/2, Double solenoid
700 l/min
-15 °C
0.505 kg
24 V
Ø 10x1
5/2, Double solenoid
950 l/min
-15 °C
0.555 kg
24 V
Ø 10x1
5/2, Double solenoid
950 l/min
-15 °C
0.505 kg
24 V
Ø 8x1
5/2, Double solenoid
700 l/min
-15 °C
0.544 kg
230 V
Ø 8x1
5/2, Double solenoid
700 l/min
-15 °C
0.53 kg
230 V
Ø 10x1
5/2, Double solenoid
950 l/min
-15 °C
0.539 kg
230 V
Ø 10x1
5/2, Double solenoid
950 l/min
-15 °C
0.496 kg
230 V
Ø 8x1
5/2, Single solenoid
700 l/min
24 ms
-25 °C
0.221 kg
Ø 10x1
5/2, Single solenoid
950 l/min
24 ms
-25 °C
0.22 kg
Ø 8x1
5/2, Double solenoid
700 l/min
-15 °C
0.319 kg
Ø 10x1
5/2, Double solenoid
950 l/min
-15 °C
0.316 kg
Ø 8x1
5/2, Single solenoid
700 l/min
24 ms
-25 °C
0.335 kg
24 V
Ø 8x1
5/2, Double solenoid
700 l/min
-15 °C
24 V
