ASCO

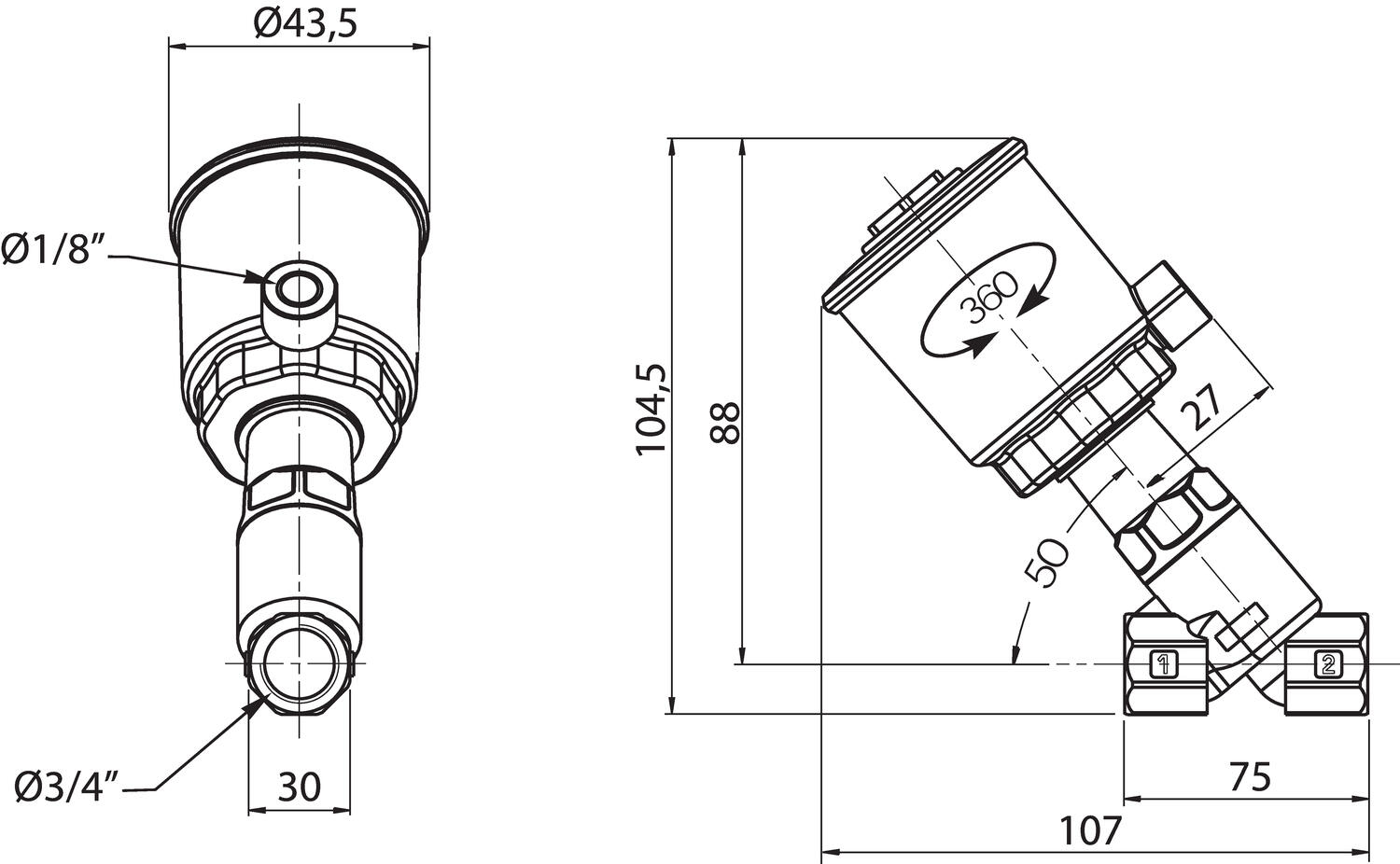

ASCO - 2/2 Angle-seat valve air controlled 3/8\"-3/4\" E290A793VI
- Normally closed, normally open
- Extremely compact version
- Working pressure 0 bar to 16 bar
- Housing in stainless
Selected variant
Technical data
General Data |
|
|---|---|
| Connection | 3/4 BSP |
| Flow factor / flow coefficient | 6,5 |
Material Data |
|
| Material body | Stainless steel 316L |
| Material of seals | PTFE |
Temperature Data |
|
| Temperature of media from | -10 °C |
| Temperature of media to | 184 °C |
Additional Data |
|
|---|---|
| Pressure max | 16 bar |
| Viscosity max | 600 cSt |
| Weight | 0.45 kg |
| Throughput | 20 mm |
| Material packing | Stainless steel |
| Pilot pressure max | 10 bar |
| Temperature operational min | -10 °C |
| Temperature operational max | 60 °C |
| Connection air | 1/8 BSP |
| Differential air pressure max | 6 bar |
| Differential pressure max | 6 bar |
| Differential pressure min | 0 bar |
| Differential oil pressure max | 6 bar |
| Differential water pressure max | 6 bar |
| Differential steam pressure max | 6 bar |
| Flow max | 108 l/min |
| Function 1 | 2/2 |
| Function 2 | Normally Closed |
| Material controls | Fiberglass reinforced polyamide |
| Material piston rod | Stainless steel |
| Material scraping seal | FPM |
| Material box stuffing | PTFE |
| Material piston rod seal | Stainless steel 303 |
| Material piston seal | PTFE |
| Pilot pressure min | 4 bar |
