ASCO

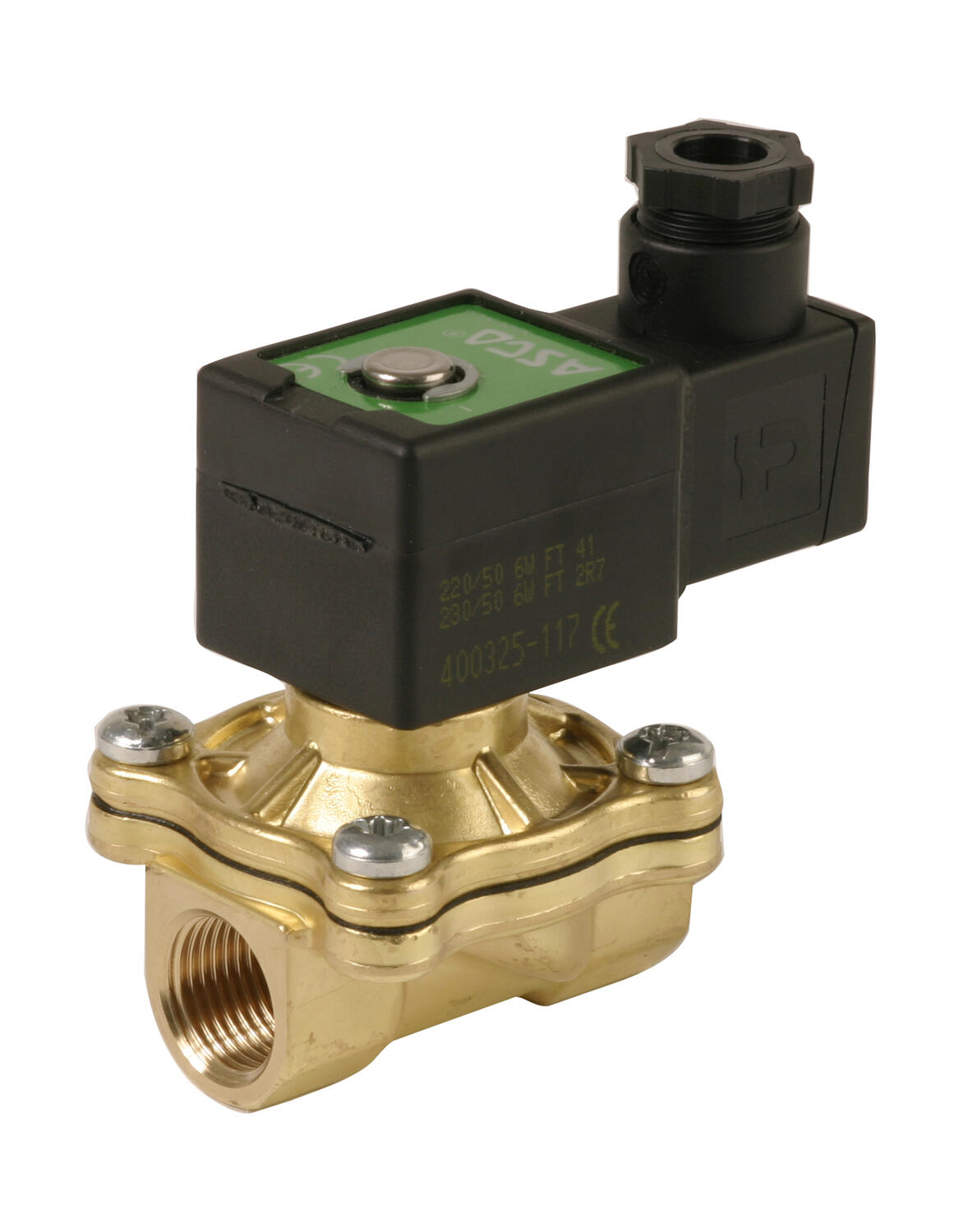

ASCO - 238 Series Pilot Operated
2/2
- Normally closed
- 3/8" up to 2" pipe size
- Air, inert gas & water
- Housing in brass or stainless steel
- Flow rates from 2.1 up to 34 m3/h
Selected variant
Technical data
General Data |
|
|---|---|
| Connection | G3/8 |
| Flow factor / flow coefficient | 2,1 |
| IP class | IP65 |
Material Data |
|
| Material body | Brass |
| Material of seals | NBR |
| Material seat | Brass |
| Material internal parts | Stainless steel |
Temperature Data |
|
| Temperature of media from | -20 °C |
| Temperature of media to | 85 °C |
Additional Data |
|
|---|---|
| Pressure max | 16 bar |
| Viscosity max | 40 cSt |
| Weight | 0.55 kg |
| Power consumption | 6 W |
| Throughput | 12.5 mm |
| RSK number | 4528043 |
| Voltage AC | 230 V |
| Temperature operational min | -20 °C |
| Temperature operational max | 75 °C |
| Material coil | Epoxy |
| Differential air pressure max | 10 bar |
| Differential pressure max | 10 bar |
| Differential pressure min | 0 bar |
| Differential water pressure max | 10 bar |
| Flow max | 35 l/min |
| Function 1 | 2/2 |
| Function 2 | Normally Closed |
| Material plunger | Stainless steel |
| Material short-circuit ring | Copper |
| Material membrane | NBR |
