General Data |
|
|---|---|
| Connection | 3/4 BSP |
| Flow factor / flow coefficient | 14 |
| IP class | IP65 |
Material Data |
|
| Material body | Aluminium |
| Material of seals | NBR |
Temperature Data |
|
| Temperature of media from | -20 °C |
| Temperature of media to | 85 °C |
Additional Data |
|
|---|---|
| Pressure max | 10 bar |
| Weight | 0.52 kg |
| Power consumption | 6.3 W |
| Throughput | 20 mm |
| Voltage AC | 230 V |
| Temperature operational min | -20 °C |
| Temperature operational max | 85 °C |
| Material coil | Epoxy |
| Differential air pressure max | 8.5 bar |
| Differential pressure max | 8.5 bar |
| Differential pressure min | 0.3 bar |
| Flow max | 233 l/min |
| Function 1 | 2/2 |
| Function 2 | Normally Closed |
| Material flask | POM |
| Material plunger | Stainless steel |
| Material short-circuit ring | Copper |
| Material spring | Stainless steel |
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Connection | Flow factor / flow coefficient | Weight | Throughput | Flow max | Price | ||
|---|---|---|---|---|---|---|---|---|

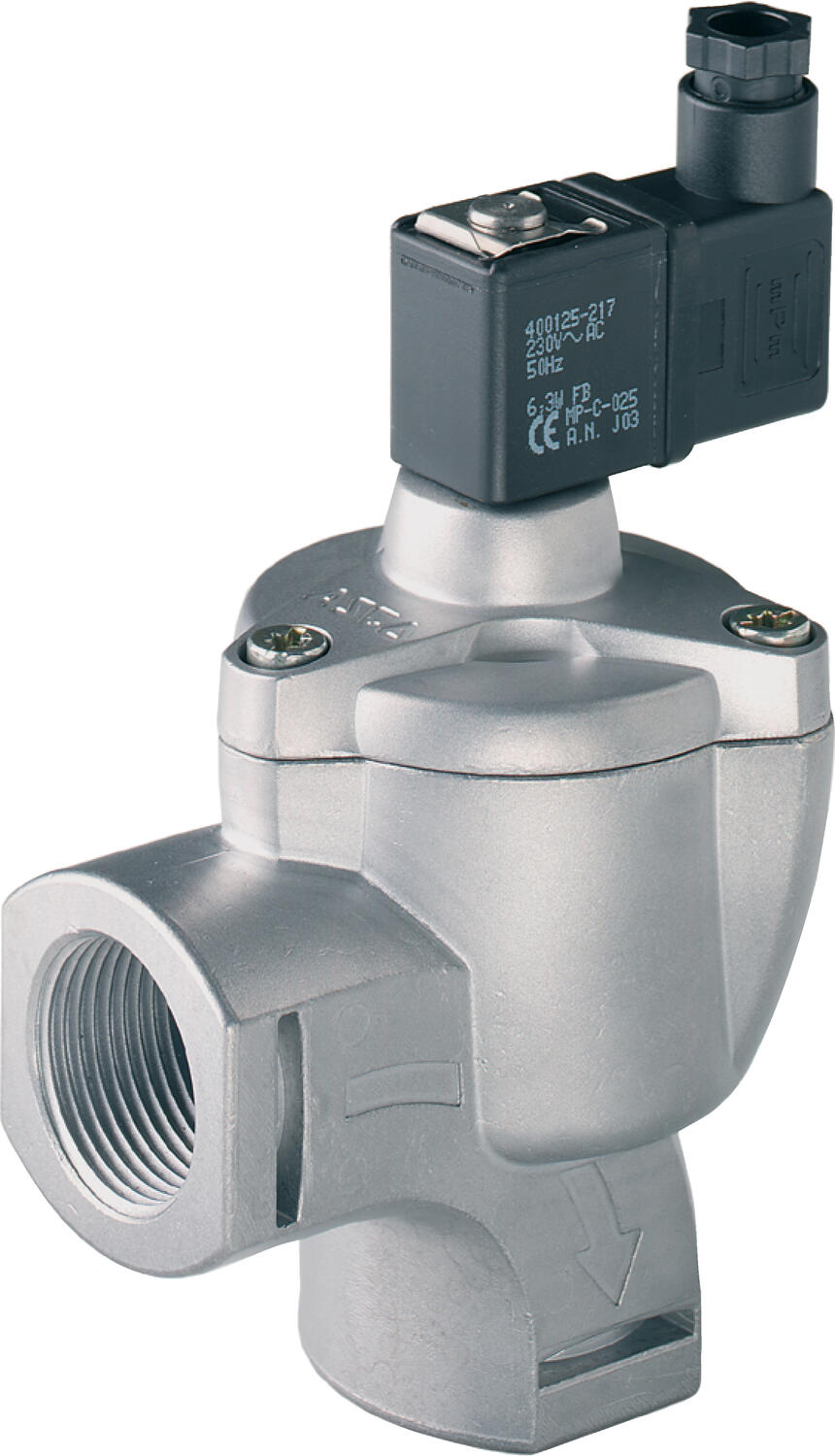

Solenoid pulse valve 2/2 NC 3/4" 230/50
Art:

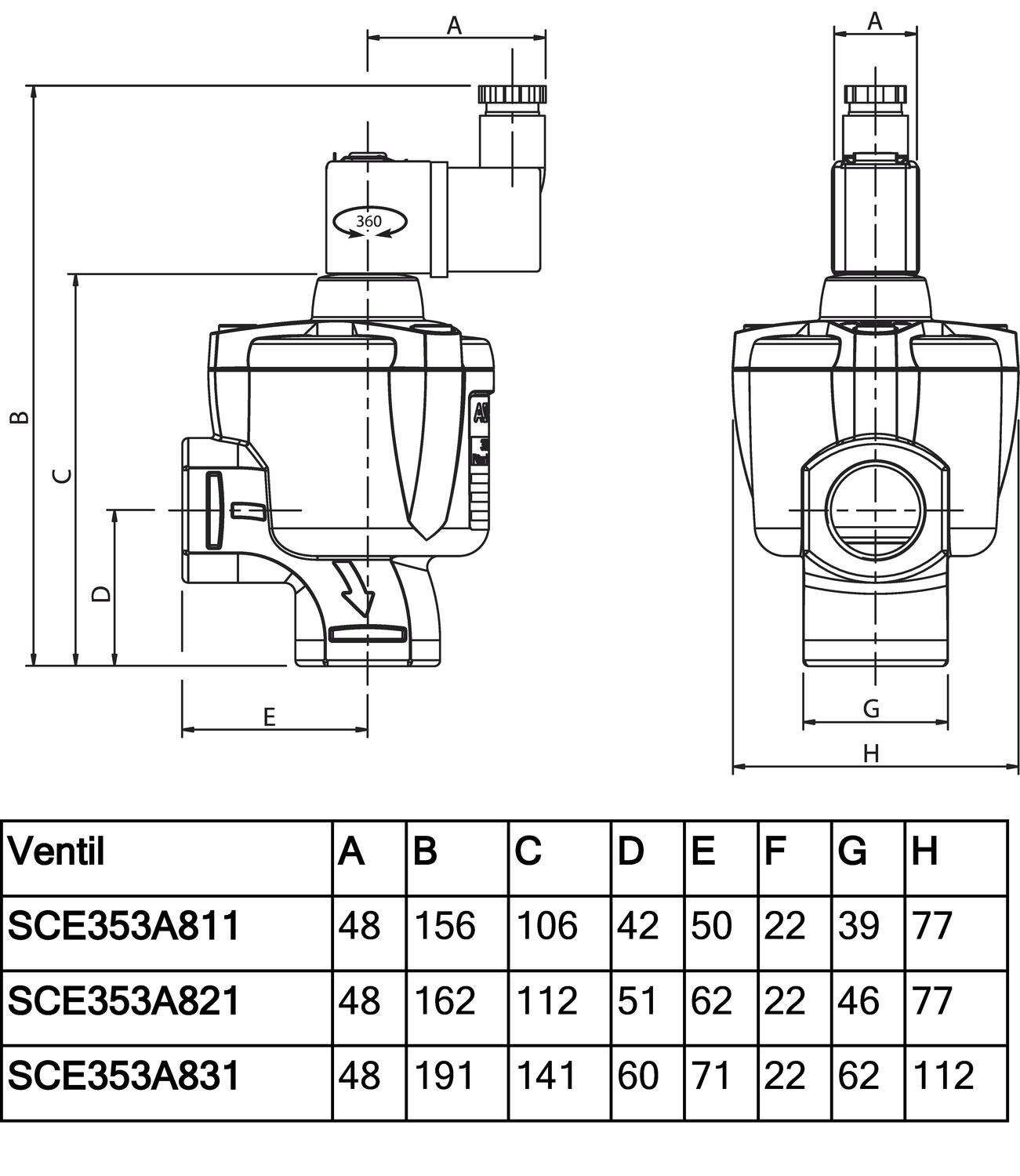

SCE353A811
Copied
|
3/4 BSP
|
14
|
0.52 kg
|
20 mm
|
233 l/min
|
|
||
|
Solenoid pulse valve 2/2 NC 1" 230/50
Art:
SCE353A821
Copied
|
G1
|
23
|
0.63 kg
|
25 mm
|
383 l/min
|
|
||
Solenoid valve 2/2 NC 3/4" 230/50
Art:
SCS353A811
Copied
|
3/4 BSP
|
14
|
0.52 kg
|
20 mm
|
233 l/min
|
|
||
|
Solenoid valve 2/2 NC 1 230/50
Art:
SCS353A821
Copied
|
G1
|
23
|
0.63 kg
|
25 mm
|
383 l/min
|
|
Select a variant in the list
