ASCO

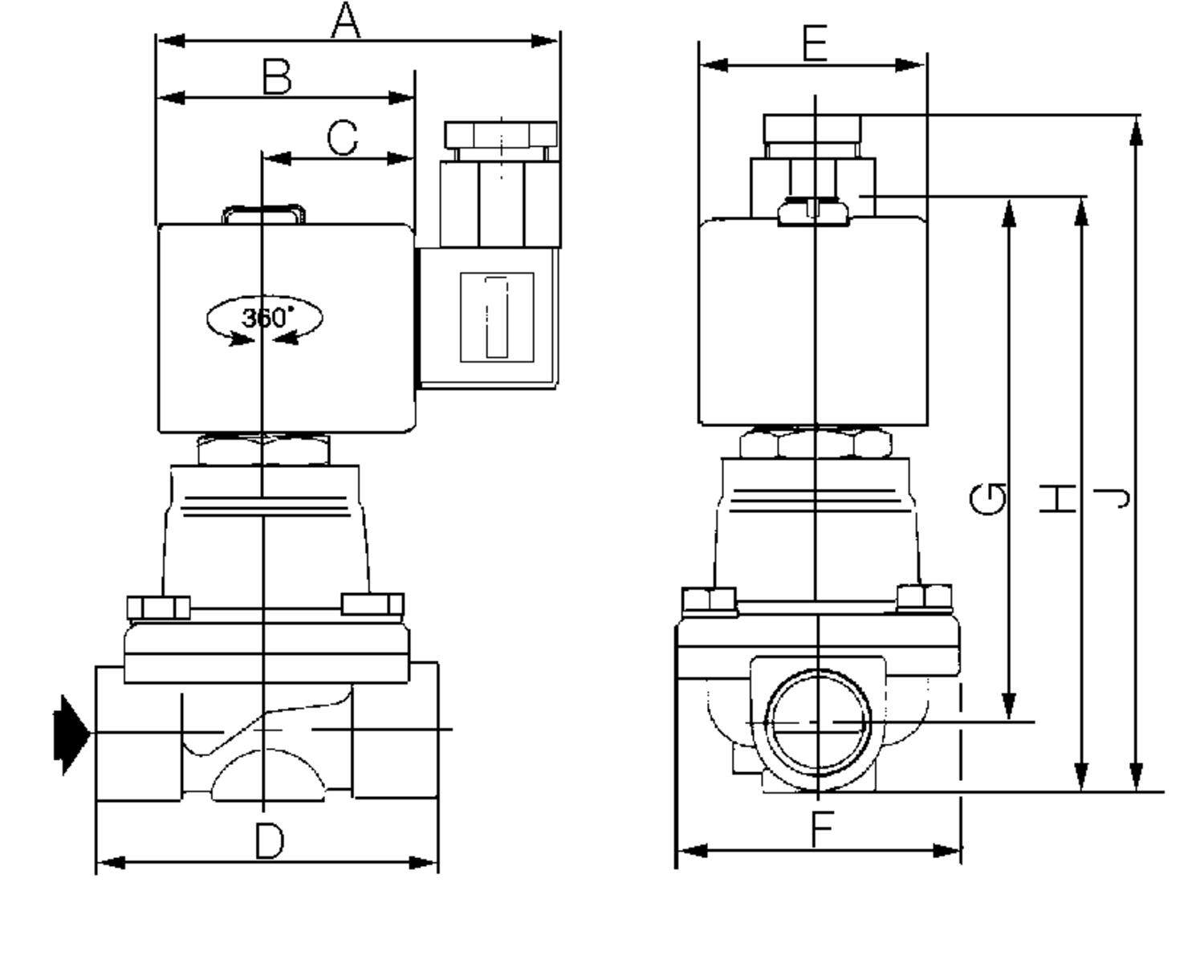

ASCO - 2/2 Cryogenic valve 1/4\"- 3/4\"
- Normally Closed
- Media temperature -196 °C to +90 °C
- Working pressure 0 to 9 bar
- Housing in brass
Selected variant
Technical data
General Data |
|
|---|---|
| Connection | 1/2 BSP |
| Flow factor / flow coefficient | 3,3 |
| IP class | IP65 |
Material Data |
|
| Material body | Brass |
| Material of seals | PTFE |
| Material seat | Brass |
Temperature Data |
|
| Temperature of media from | -196 °C |
| Temperature of media to | 90 °C |
Additional Data |
|
|---|---|
| Close delay | 75 ms |
| Weight | 1.1 kg |
| Power consumption | 16.7 W |
| Throughput | 16 mm |
| Type of valve | Solenoid valve |
| Response time off | 100 ms |
| Voltage AC | 230 V |
| Temperature operational min | -20 °C |
| Temperature operational max | 50 °C |
| Differential air pressure max | 9 bar |
| Differential pressure max | 9 bar |
| Differential pressure min | 0 bar |
| Flow max | 55 l/min |
| Function 1 | 2/2 |
| Function 2 | Normally Closed |
| Material flask | Brass |
| Material piston ring | PTFE flask filled |
| Material plunger | Stainless steel |
| Material short-circuit ring | Copper |
| Material piston rod seal | PTFE |
| Material spring | Stainless steel |
| Mounting | Upright, Vertical |
