Pneumatic Diaphragm Pumps
Looking for reliable and efficient air-operated diaphragm pumps? Samoa diaphragm pumps are designed to deliver robust performance across a wide range of industrial and commercial applications. Engineered with precision, these pumps excel in handling diverse fluids, including oils, chemicals, water-based products, and even abrasive or viscous materials.
Featuring an innovative air-operated double diaphragm design, Samoa pumps ensure smooth operation, exceptional chemical resistance, and minimal maintenance—making them a cost-effective and long-lasting solution for your fluid handling needs.
Available in both metallic and non-metallic materials, these pumps offer superior durability and compatibility for various applications. Whether you're managing chemicals, industrial oils, or water-based solutions, Samoa pumps provide the versatility and performance required for demanding environments.
Key Benefits of Samoa Air-Operated Diaphragm Pumps:
- High chemical resistance for handling aggressive fluids.
- Smooth, reliable flow for efficient operation.
- Durable materials available in metallic and non-metallic options.
- Designed for minimal maintenance and long-term use.
Choose Samoa diaphragm pumps for your industrial and commercial needs. Backed by OEM Automatic, we deliver trusted, high-quality fluid transfer solutions that you can rely on.

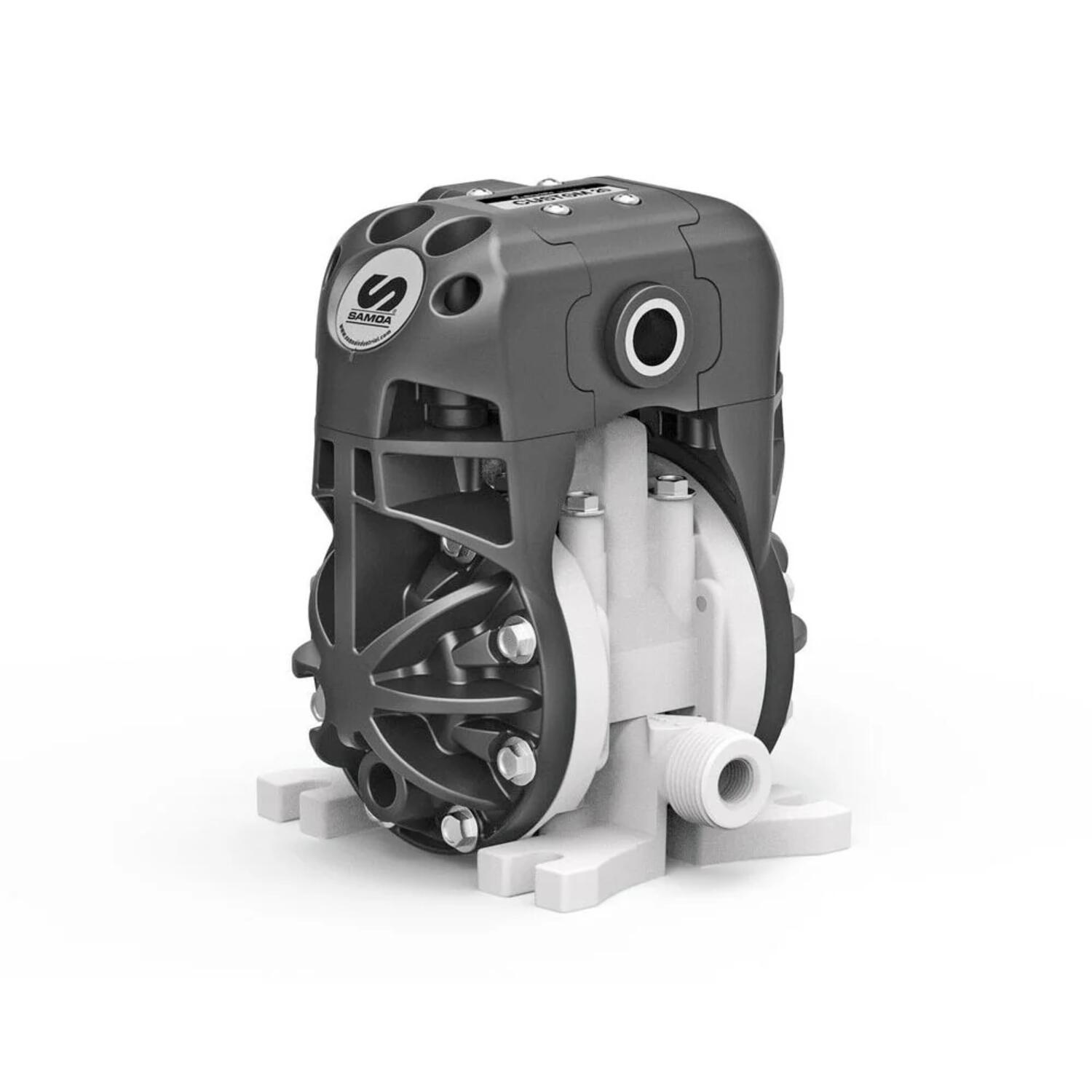

Samoa 1/4\" Pneumatic Diaphragm Pump
Non-Metallic
- Pump Size 1/4"
- Connection Types - BSP, Center Ports
- Max. Flow Rate 20 LPM
- Operating Pressure 1.5 - 7 bar

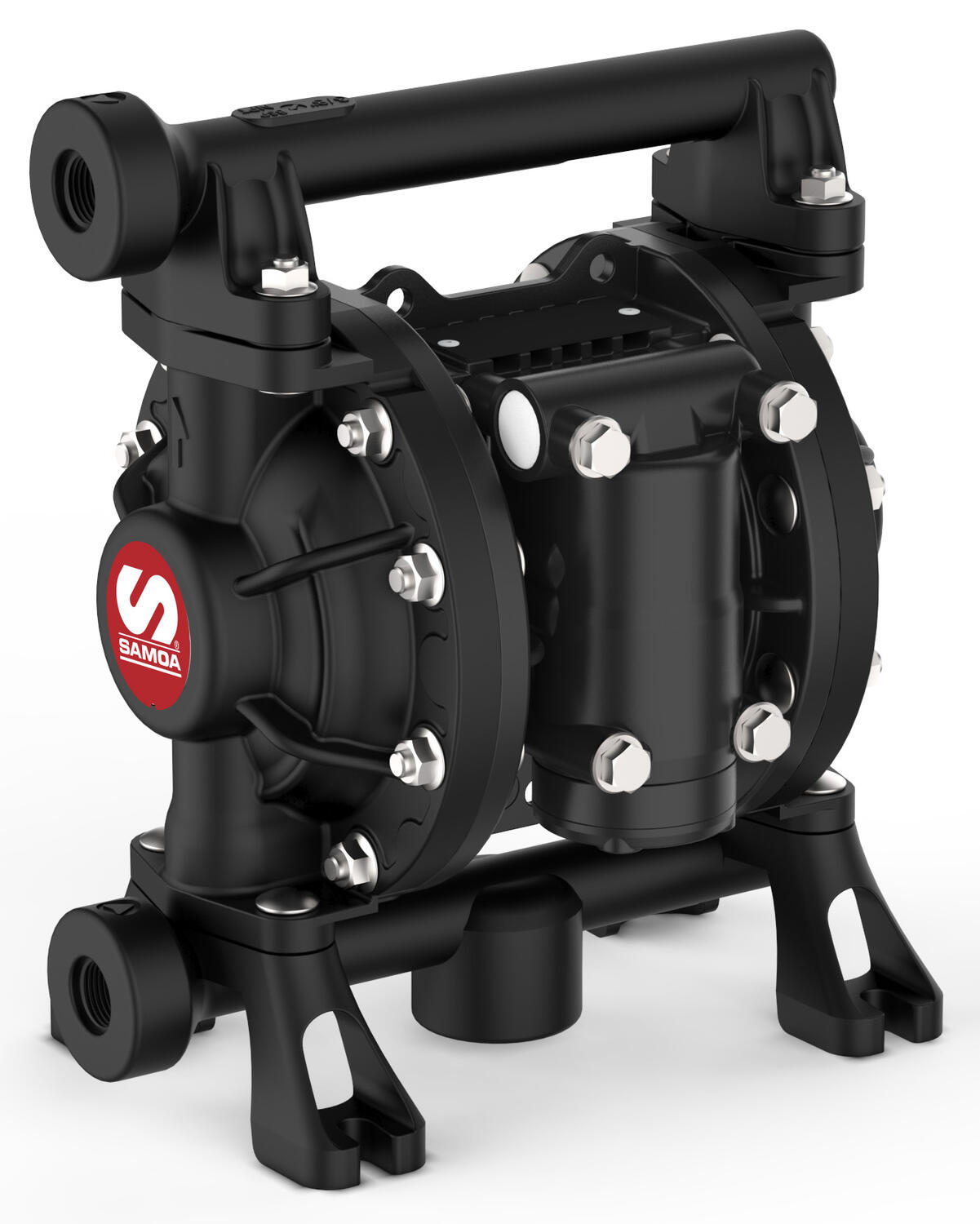

Samoa 3/8\" Pneumatic Diaphragm Pump
Non-Metallic
- Pump Size 3/8"
- Connection Types - BSP/NPT, Side Ports
- Max. Flow Rate 31 LPM
- Operating Pressure 1.5 - 7 bar
Samoa 1/2\" Pneumatic Diaphragm Pump
Metallic / Non-Metallic
- Pump Size 1/2"
- Connection Types - BSP/NPT, Side/Center/Multiple/Dual Ports
- Max. Flow Rate 51-54 LPM
- Operating Pressure 1.5 - 7 / 1.5 - 8 bar

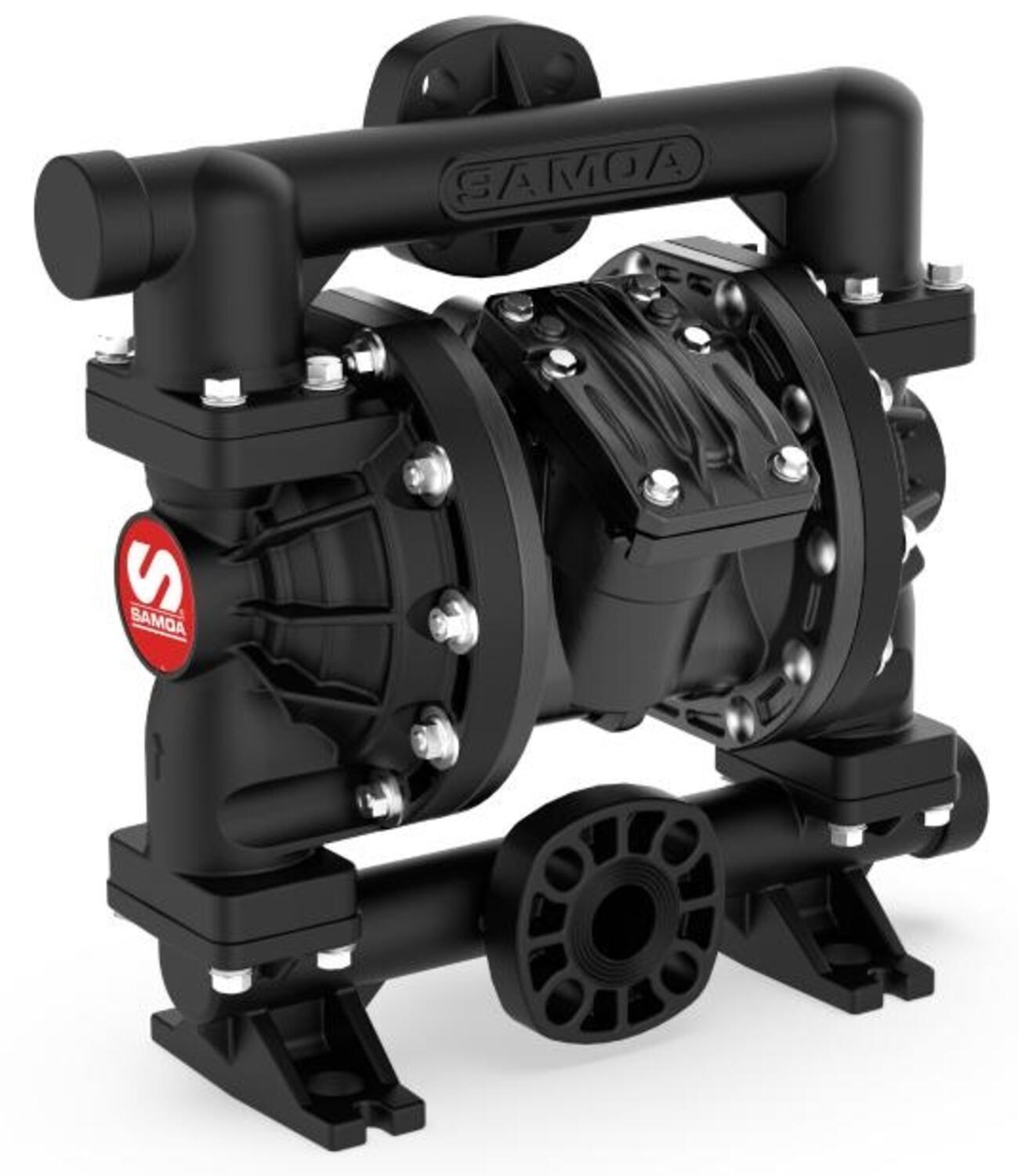

Samoa 1\" Pneumatic Diaphragm Pump
Metallic / Non-Metallic
- Pump Size 1"
- Connection Types - BSP/NPT, Side/Center/Multiple Ports, ANSI/DIN Center/Side Flange
- Max. Flow Rate 130-200 LPM
- Operating Pressure 1.5 - 7 / 1.5 - 8 bar

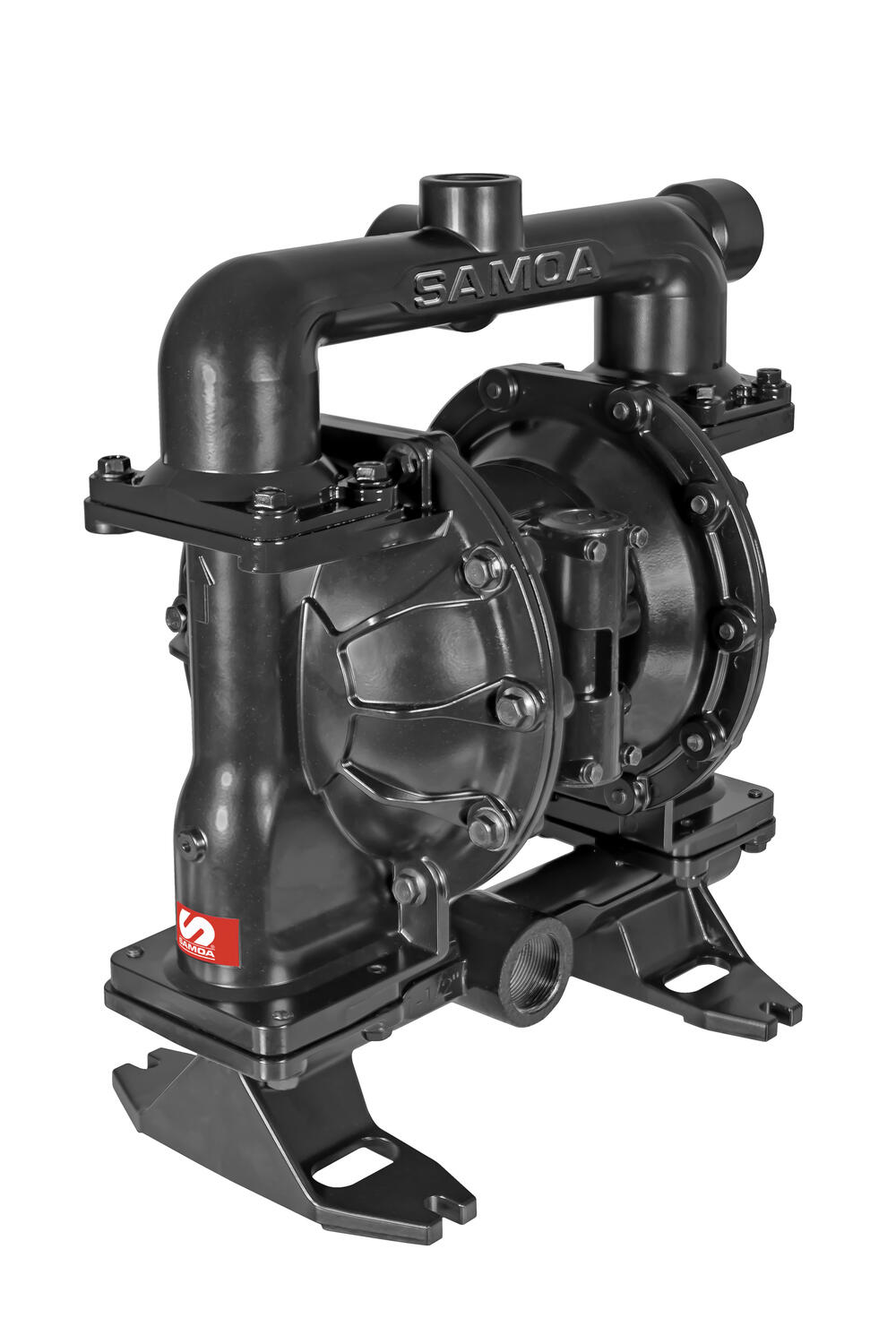

Samoa 1.5\" Pneumatic Diaphragm Pump
Metallic
- Pump Size 1.5"
- Connection Types - BSP/NPT, Multiple Ports
- Max. Flow Rate 470 LPM
- Operating Pressure 1.5 - 8 bar
Samoa 2\" Pneumatic Diaphragm Pump
Metallic / Non-Metallic
- Pump Size 2"
- Connection Types - BSP/NPT Center Ports, ANSI/DIN Center/Side Flange
- Max. Flow Rate 650 LPM
- Operating Pressure 1.5 - 7 / 1.5 - 8 bar

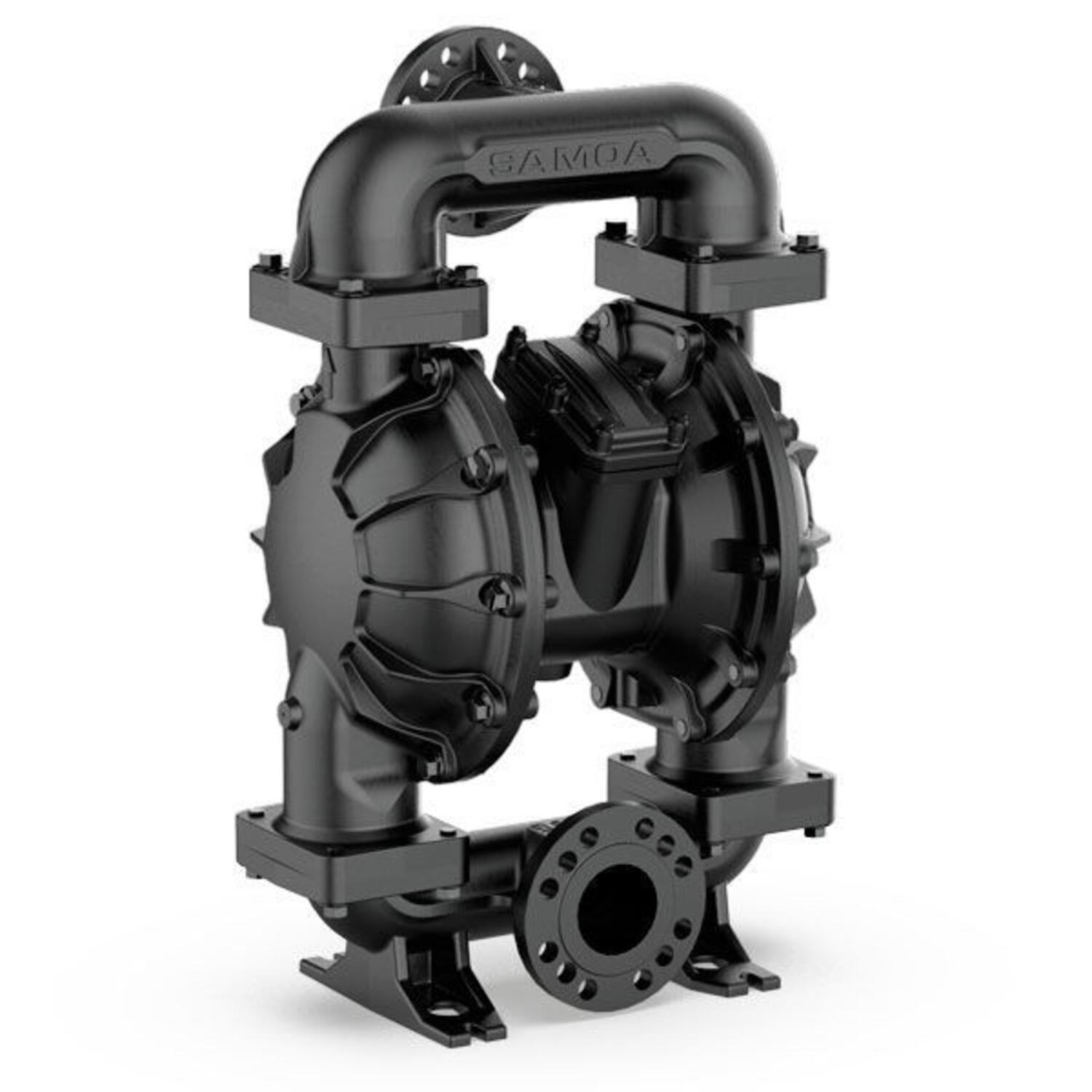

Samoa 3\" Pneumatic Diaphragm Pump
Metallic
- Pump Size 3"
- Connection Types - BSP/NPT Center Ports, ANSI/DIN Center Flange
- Max. Flow Rate 1000 LPM
- Operating Pressure 1.5 - 8 bar
