Valco - Stainless Steel Side Mount Level Switch - SML Series 00.0002.9101
This level switch, with its reduced overall dimensions and simplicity of installation, offers a reliable solution for the control of liquids in all applications where it is necessary to mount a lateral type. The standard version is for installation from inside the tank, on request, execution with possibility of mounting from outside the tank are available
- Standard item side mounting position

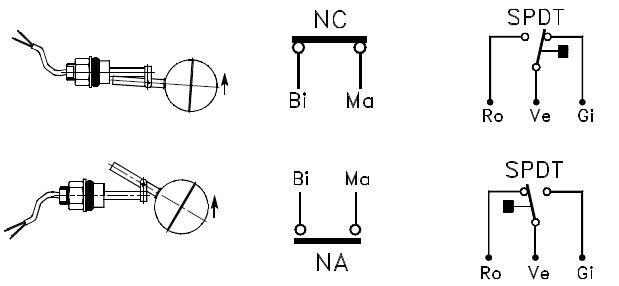

- N.1 reed switch contact NA/NC/SPDT
- Maximum working pressure 30 Bar
- Maximum working temperature 110°C
- IP65 protection
Selected variant
Technical data
| Current | 0.5AC/0.7DC |
|---|---|
| Electrical connection | Pre-cabled 1.5m |
| Function | N/O & N/C |
| Hysteresis max | 8 mm |
| IP class | IP65 |
| Manufacturer part no. | L1.S52.SML.3.16.KS.C1L |
| Material of float | Stainless steel 316 |
| Material of seals | FKM |
|---|---|
| Material of wetted parts | Stainless steel 316 |

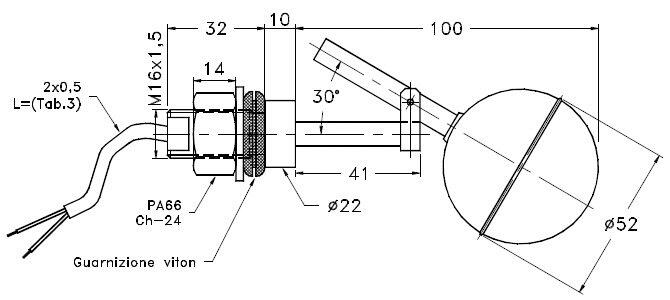

| Process connection | M16x1.5 |
| Specific gravity | 0.67 |
| Temperature operational max | 110 °C |
| Voltage | 300AC/350DC |
Product description
This level switch, with its reduced overall dimensions and simplicity of installation, offers a reliable solution for the control of liquids in all applications where it is necessary to mount a lateral type. The standard version is for installation from inside the tank, on request, execution with possibility of mounting from outside the tank are available
