Valco - Level Control Switch - M2 Series 00.0002.2876
Level controls with 2 electrical contacts, reliable, compact and easy to install. Designed to offer a range of level switches to meet the request for a cheap monitoring of the level in small tanks.
Â
The principle of operation of these instruments is based on the drive of 2 reed contacts, located inside of the measuring rod, by a magnetic float. Â The only moving elements are the floats that move, for hydrostatic thrust, along the measuring rod; this guarantees extreme ruggedness and a limited need of maintenance.
- Float switch, N.1 contact self mounting kit
- 500 mm. to 1500 mm. tube length
- Reed switch SPST or SPDT
- Integrated temperature switch (on request)
- Brass stem and connection, Spansil float
Selected variant
Technical data
| Current | 0.5A/0.7A |
|---|---|
| Electrical connection | DIN A 43650 |
| Function | N/O & N/C |
| IP class | IP65 |

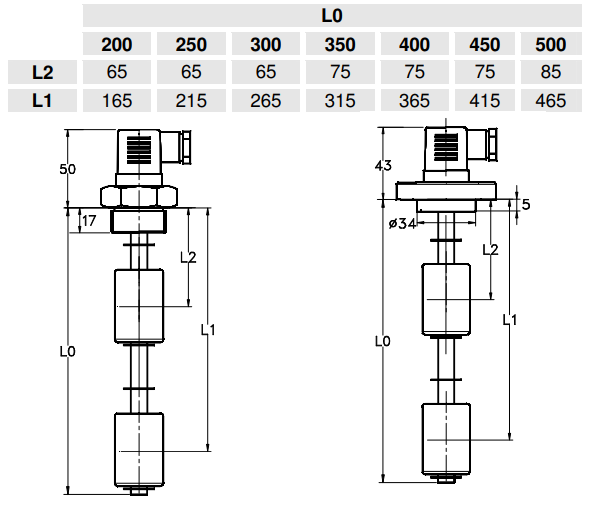

| Length | 200 mm |
| Manufacturer part no. | M2.B45.3.0200.O.25GO.S1.L.1.C22 |
| Material of connection | Brass |
| Material of float | SPANSIL |
| Material of seals | NBR |
|---|---|
| Mounting | Vertical |
| Pressure max | 20 bar |
| Process connection | G1 |
| Specific gravity | 0.35 |
| Temperature operational max | 105 °C |
| Voltage | 300Vac/350Vdc |
Product description
Level controls with 2 electrical contacts, reliable, compact and easy to install. Designed to offer a range of level switches to meet the request for a cheap monitoring of the level in small tanks.
Â
The principle of operation of these instruments is based on the drive of 2 reed contacts, located inside of the measuring rod, by a magnetic float. Â The only moving elements are the floats that move, for hydrostatic thrust, along the measuring rod; this guarantees extreme ruggedness and a limited need of maintenance.
