Anderson Negele - Potentiometric continuous level sensor NSL-M-00
NSL-M-00, -01
- Compact and robust sensor with minimal size ratio
- 2-wire sensor with 4...20 mA output signal
- No adjustment after media change due to potentiometric measurement principle
- Individual parameter adjustment or programming via PC interface
- Head adjustment for M12-plug possible with twistable sensor head
- Mounting in vessels is possible from bottom and from top

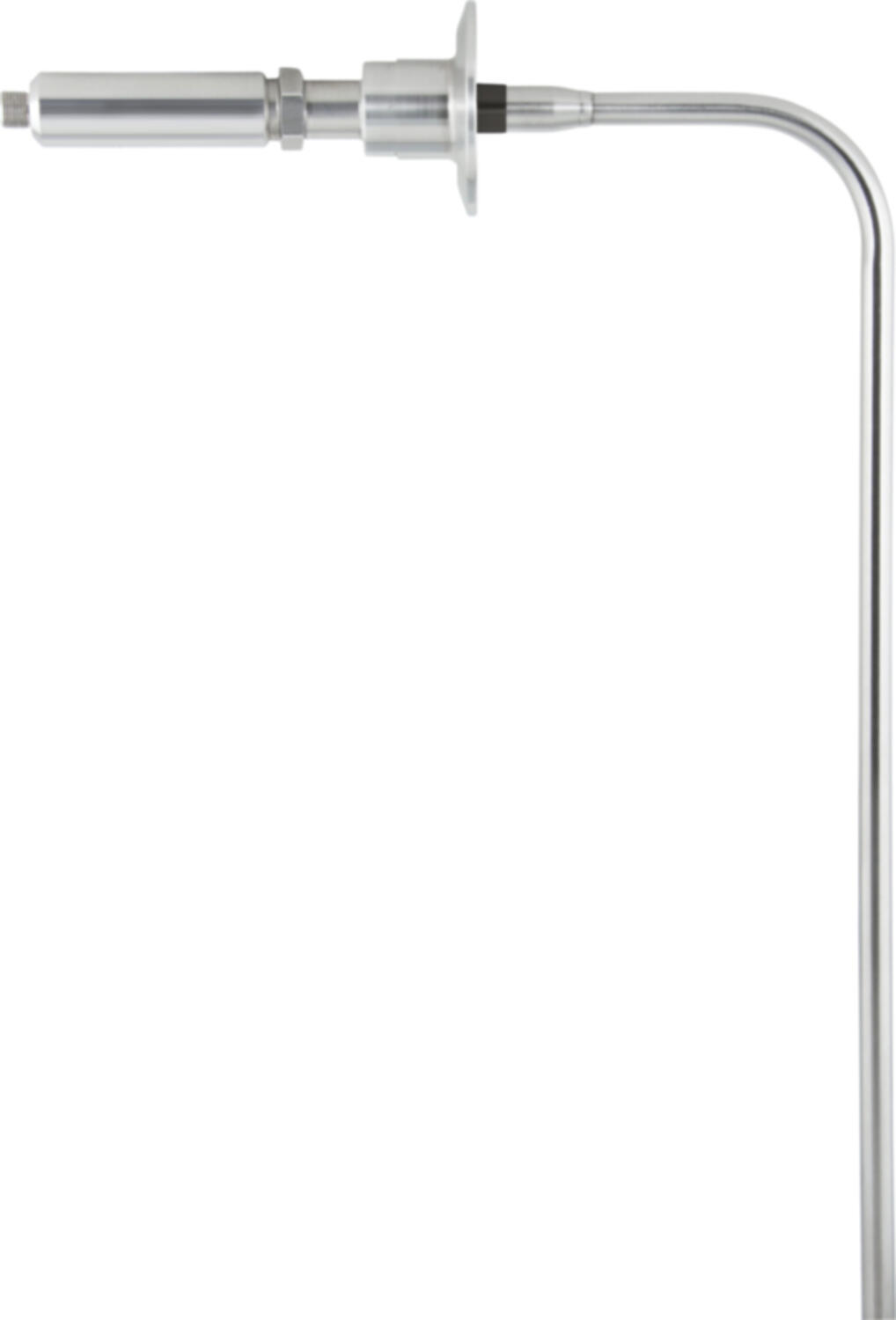

- Mounting on the side is possible with angeled sensor
- Current signal for measurement range, dry signal and error signal adjustable
- Continuous level measurement in metallic vessels up to 3 metres
- Ideal for adhesive or pasty media
- Level measurement of foaming media
- Minimum product conductivity typically 50 μS/cm
Selected variant
Technical data
| Approvals | 3-A, FDA |
|---|---|
| Area | Food |
| Area of apllication | Food |
| IP class | IP69K |
| Length | 50 .... 3000 mm |
| Material | Stainless steel |
| Material of sensor housing | Stainless steel 1.4308 |
| Material of wetted parts | PEEK, Stainless steel 316L |
| Measurement technology | Conductive |
| Mounting | Topmounted, Side-mounted |
| Pressure resistance max | 16 bar |
| Response time | 100 ms |
| Signal type | IO-link, 4-20 mA |
|---|---|
| Storage temperature max | 85 °C |
| Storage temperature min | -45 °C |
| Supply voltage dc max | 36 V DC |
| Supply voltage dc min | 18 V DC |
| Surface finish | 0.8 µm Ra |
| Temperature ambient from | 0 °C |
| Temperature ambient to | 70 °C |
| Temperature of media from | -10 °C |
| Temperature of media to | 140 °C |
Downloads
Product description
- Compact and robust sensor with minimal size ratio
- 2-wire sensor with 4...20 mA output signal
- No adjustment after media change due to potentiometric measurement principle
- Individual parameter adjustment or programming via PC interface
- Head adjustment for M12-plug possible with twistable sensor head
- Mounting in vessels is possible from bottom and from top
- Mounting on the side is possible with angeled sensor
- Current signal for measurement range, dry signal and error signal adjustable

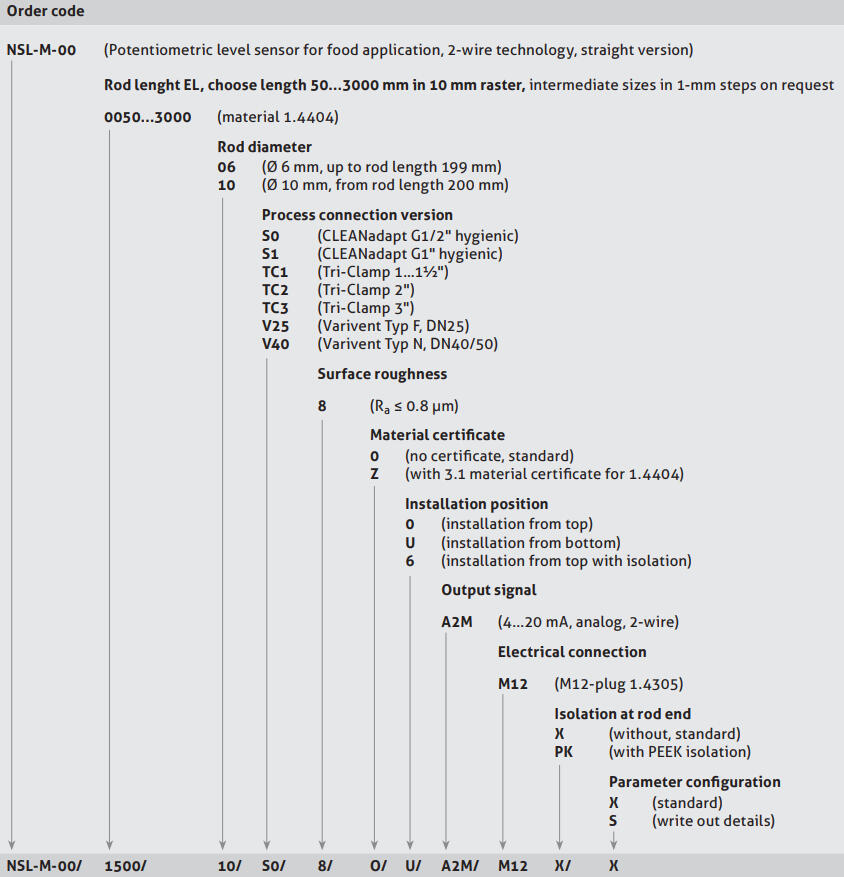

Ordering information
Please refer to the image below for ordering information.
Â
Â
