Honsberg - UR1 Series Flow Switch UR1-010GM
Paddle

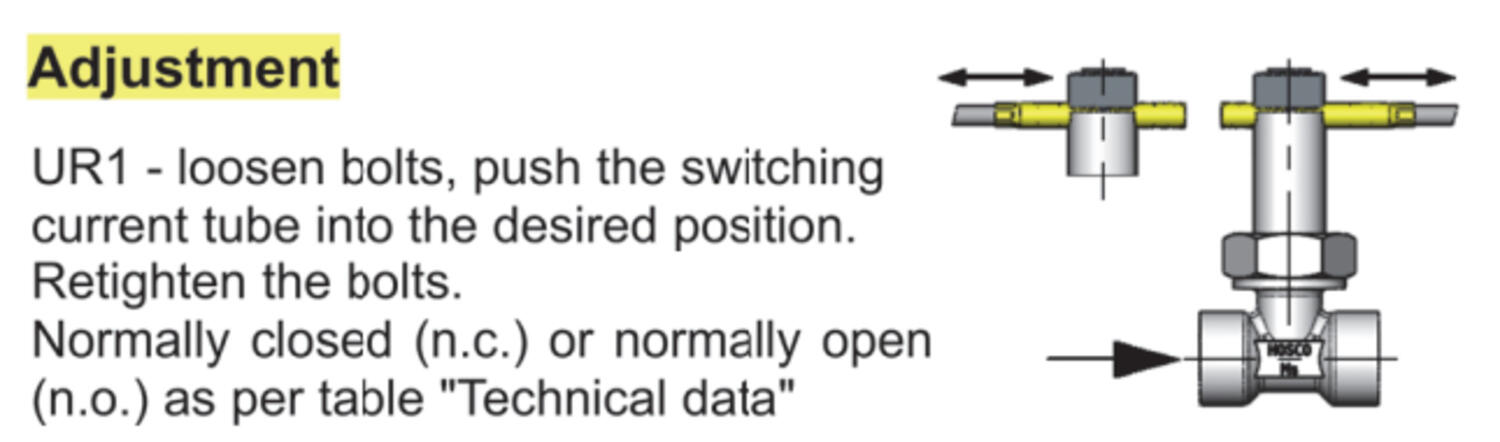

The Honsberg UR1 is a simple flow switch which can easily be adjusted and also changed from normally open to normally closed. The flow switch works via a spring-supported paddle which moves according to the flow and when the specific flow is reach a magnetic reed switch is activated.
Special versions
• Plastic materials
• Weld/solder connection
• High volume OEM version
• Ex
• Switching ranges for oil or gas
• Special values
• High volume OEM version
• PVC (solder fitting)
- Switching range 1,3..35 l/min
- Water (oils, gases and aggressive media available on request)
- G⅜" up to G2"
- Brass or stainless steel wetted parts
- Max pressure 25 bar
Selected variant
Technical data
| Accuracy | ±15% fs |
|---|---|
| Adjustable switching point l/min water | 2,5..3,5 l/min |
| Connection type | G3/8" female |
| Contact rating max | 50 A |
| Electrical connection | 1.5m cable |
| Flow max | 10 l/min |
| Function | Normally open or normally closed (SPST) |
| IP class | IP65 |
| Material breaker body | Hard ferrite |
| Material of body | Nickel-plated brass, Stainless steel 303 |
| Material of connection | Nickel-plated brass |
| Material of seals | NBR |
| Material of wetted parts | Nickel-plated brass, Stainless steel, Hard ferrite, NBR |
|---|---|
| Material paddle | Stainless steel 301 |
| Media | Water (oil, air and aggressive media on request) |
| Pressure drop | Approx. 0.01 bar at max. flow |
| Pressure range max | 25 bar |
| Temperature of media from | 20 °C |
| Temperature of media to | 110 °C |
| Type of flow component | Flow Switches |
| Viscosity | 1 cSt |
| Voltage ac max | 230 V |

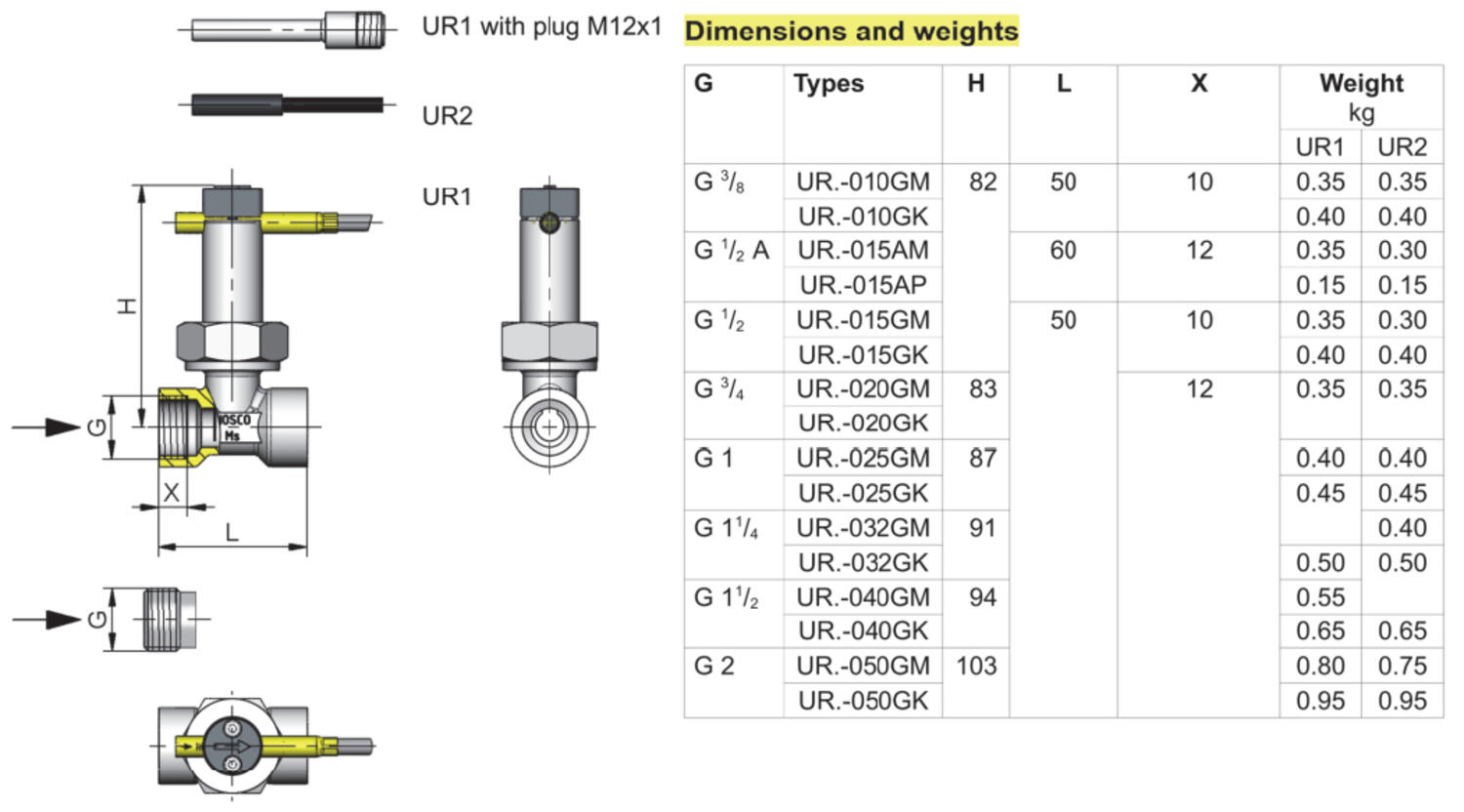

| Weight | 0.35 kg |
Product description
The Honsberg UR1 is a simple flow switch which can easily be adjusted and also changed from normally open to normally closed. The flow switch works via a spring-supported paddle which moves according to the flow and when the specific flow is reach a magnetic reed switch is activated.
Special versions
• Plastic materials
• Weld/solder connection
• High volume OEM version
• Ex
• Switching ranges for oil or gas
• Special values
• High volume OEM version
• PVC (solder fitting)
Ordering information
Ordering information
● Specify direction of flow, medium, and switching range, UR1 or switching value UR2.
● For UR2 specify normally closed (n.c.) or normally open (n.o.).
● For oils, state viscosity, temperature and designation (e.g. ISO VG 68) (enquire about range).
● For gases, state pressure (relative or absolute), temperature and medium (e.g. air) (enquire about range).
Installation
- Include straight calming section of 5 x DN in inlet and outlet.
- Include a filter if the media is dirty (use magnetic filter for ferritic components).
- It must be ensured that the values given for voltage, current and power are not exceeded.
- When switched on, a load must be connected in series.
- The electrical details apply to ohmic loads. Capacitive, inductive and lamp loads must be operated using a protective circuit.
- Standard: horizontal inwards flow; switching head not recommended underneath; other installation positions are possible; the installation position affects the switching point and range.
