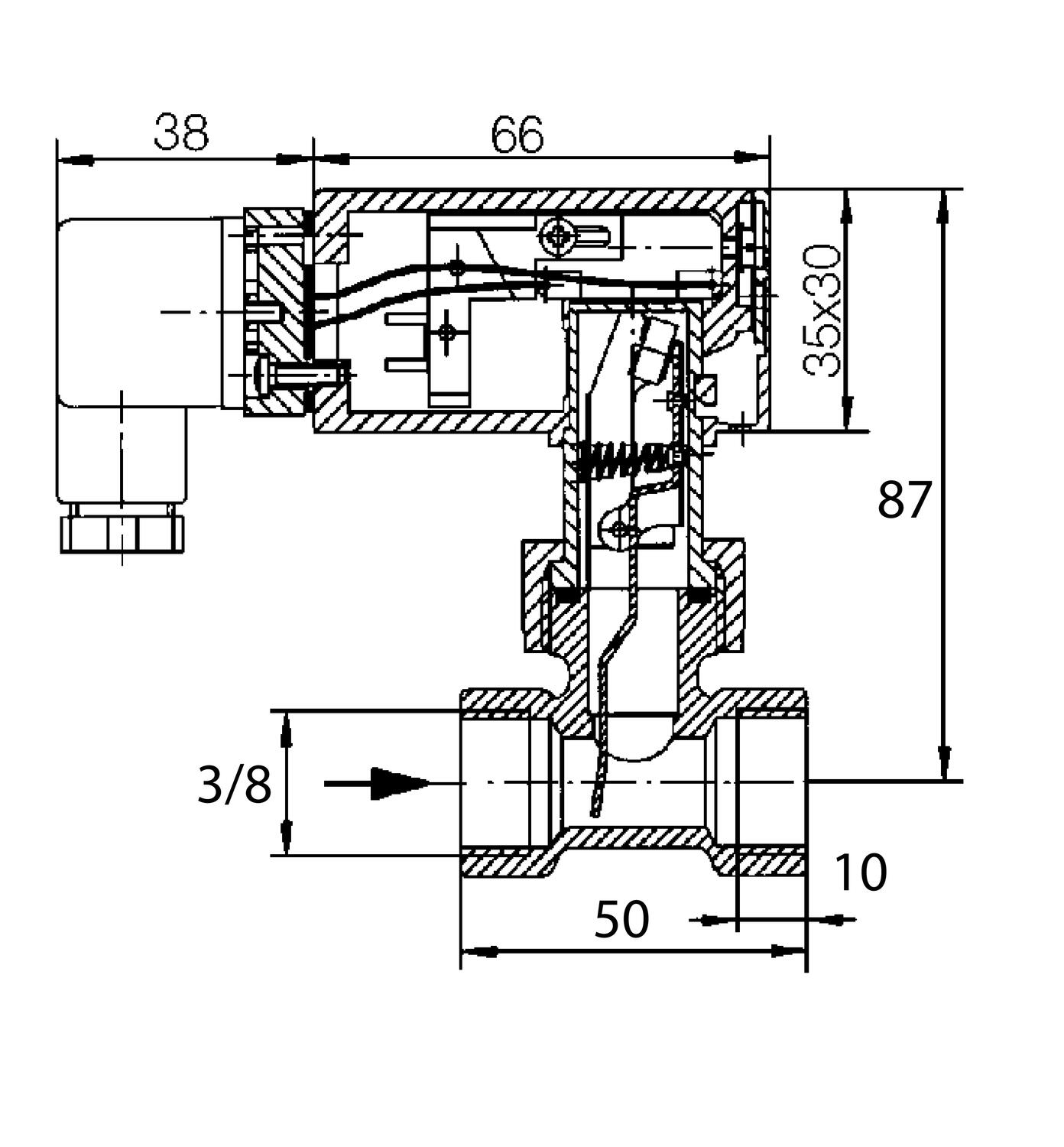

Model UM3K is a mechanical flow switch with very low pressure drop. This type of switch is used in applications including industrial cooling systems. Available in nickel-plated brass and stainless steel.
Accuracy | ± 15% of full setpoint |
---|---|
Connection type | Internal thread G 3/8 " |
Contact rating max | 5 A |
Electrical connection | Plug connector DIN 43650-A |
Flow max | 10 l/min |
Flow range max | 5.5 l/min |
Flow range min | 4 l/min |
Function | Paddle, micro switch, alternating |
Hysteresis | about 15% of the breaking value |
IP class | IP65 |
Material of body | Nickel-plated brass |
Material of connection | Nickel-plated brass |
Material of magnet | Hard ferrite |
---|---|
Material of seals | NBR |
Material paddle | Stainless steel AISI 304, Stainless steel 316Ti |
Material spring | Stainless steel 301 |
Pressure drop | max. 0.01 bar at maximum flow |
Pressure range max | 25 bar |
Temperature of media to | 110 °C |
Type of flow component | Flow Switches |
Weight | 0.35 kg |
Viscosity max | 1 cSt |
Voltage ac max | 250 V |
Model UM3K is a mechanical flow switch with very low pressure drop. This type of switch is used in applications including industrial cooling systems. Available in nickel-plated brass and stainless steel.
Pumps are now officially part of our product offering! As we build our pump portfolio, we’re proud to announce that we are an official distributor of SAMOA Industrial, a well-established name in the fluid handling industry.
This blog post demonstrates 7 strong reasons production plants choose the HYGHSPIN twin screw pump by Jung Process Systems
When selecting a SUCO mechanical pressure switch, it's essential to consider several key factors...
When it comes to solenoid valves, reliability and ease of maintenance are essential. That’s why our new Emerson, high flow solenoid valve is designed with unique features that streamline testing, commissioning, and ongoing operation.Â
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
Did you know that OEM Automatic has been successfully providing valve actuation solutions?
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Connection type | Flow max | Flow range max | Flow range min | Material of body | Material of connection | Material of seals | Type of flow component | Weight | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Flow SW.4-5.5l/min,G3/8
Art:
UM3K-010GM055
Copied
|
Internal thread G 3/8 "
|
10 l/min
|
5.5 l/min
|
4 l/min
|
Nickel-plated brass
|
Nickel-plated brass
|
NBR
|
Flow Switches
|
0.35 kg
|
| ||
![]()
Flow SW.5.5-7l/min,G1/2
Art:
UM3K-015GM070
Copied
|
Internal thread G ½ "
|
20 l/min
|
7 l/min
|
5.5 l/min
|
Nickel-plated brass
|
Nickel-plated brass
|
NBR
|
Flow Switches
|
0.35 kg
|
| ||
![]()
Flow SW.7.5-10l/min,G3/4
Art:
UM3K-020GM100
Copied
|
Internal thread G ¾ "
|
40 l/min
|
10 l/min
|
7.5 l/min
|
Nickel-plated brass
|
Nickel-plated brass
|
NBR
|
Flow Switches
|
0.35 kg
|
| ||
![]()
Flow SW.14-18l/min,G1"
Art:
UM3K-025GM180
Copied
|
Internal thread G 1 "
|
60 l/min
|
18 l/min
|
14 l/min
|
Nickel-plated brass
|
Nickel-plated brass
|
NBR
|
Flow Switches
|
0.4 kg
|
| ||
![]()
Flow SW. 22-30l/Min. G11/4"
Art:
UM3K-032GM300
Copied
|
Internal thread G 1¼ "
|
80 l/min
|
30 l/min
|
22 l/min
|
Nickel-plated brass
|
Nickel-plated brass
|
NBR
|
Flow Switches
|
0.55 kg
|
| ||
![]()
Flow SW.37-50 l/min, G1.1/2"
Art:
UM3K-040GM500
Copied
|
Internal thread G 1½ "
|
100 l/min
|
50 l/min
|
37 l/min
|
Nickel-plated brass
|
Nickel-plated brass
|
NBR
|
Flow Switches
|
0.7 kg
|
| ||
![]()
Flow SW. 67-93l/Min. G2"
Art:
UM3K-050GM930
Copied
|
Internal thread G 2 "
|
150 l/min
|
93 l/min
|
67 l/min
|
Nickel-plated brass
|
Nickel-plated brass
|
NBR
|
Flow Switches
|
1 kg
|
| ||
![]()
Flow SW.7.5-10l/min,G3/4,St/St
Art:
UM3K-020GK100
Copied
|
Internal thread G ¾ "
|
40 l/min
|
10 l/min
|
7.5 l/min
|
Stainless steel 303
|
Stainless steel 303
|
Viton
|
|
0.35 kg
|
|
Select a variant in the list
