Honsberg - CRG Series Flow Switch
Paddle

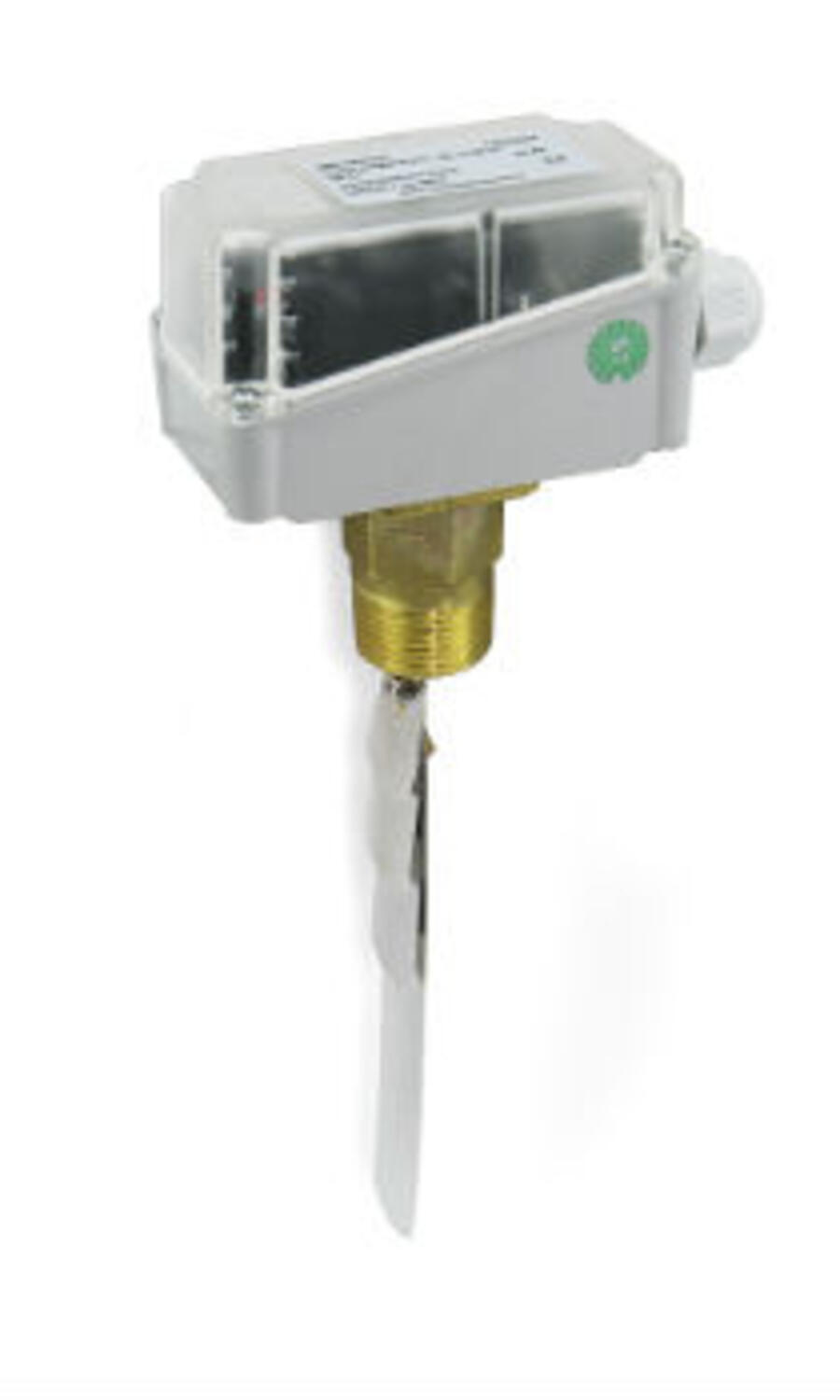

Model CRG is a universal flow switch in brass or stainless steel. The same switch can be used for a large number of different pipe dimensions by using one or more paddle lengths. Four different paddle lengths are included.
Â
- Switching Range 0,2...165,7 m3/h
- Water (oils and aggressive media available on request)
- Male Thread R1"
- Brass or Stainless Steel Wetted Parts
- Max Pressure 11 bar
Selected variant
Technical data
| Connection type | External thread 1 " |
|---|---|
| Contact rating max | 15 A |
| Deviation max | ±15 % |
| Electrical connection | PG11 |
| Flow range max | 165.7 m³/h |
| Flow range min | 0.6 m³/h |
| Function | Paddle, micro switch switching |
| Hysteresis | Depending on the breaking value, however, at least 0.1 l / min |
| IP class | IP65 |
| Material base | Zinc-plated steel |
| Material bellows | Tombak |
| Material cover | ABS plastic |
| Material of connection | Brass |
| Material paddle | Stainless steel 316Ti |
|---|---|
| Media | Water, (oil on request) |
| Pipe dimension max | 200 mm |
| Pipe dimension min | 25 mm |
| Pressure drop | Approx. 0.08 bar at max. flow |
| Pressure range max | 11 bar |
| Temperature of media to | 120 °C |
| Type of flow component | Flow Switches |
| Weight | 0.95 kg |
| Viscosity | 1 cSt |
| Voltage ac max | 250 V |
Product description
Model CRG is a universal flow switch in brass or stainless steel. The same switch can be used for a large number of different pipe dimensions by using one or more paddle lengths. Four different paddle lengths are included.
