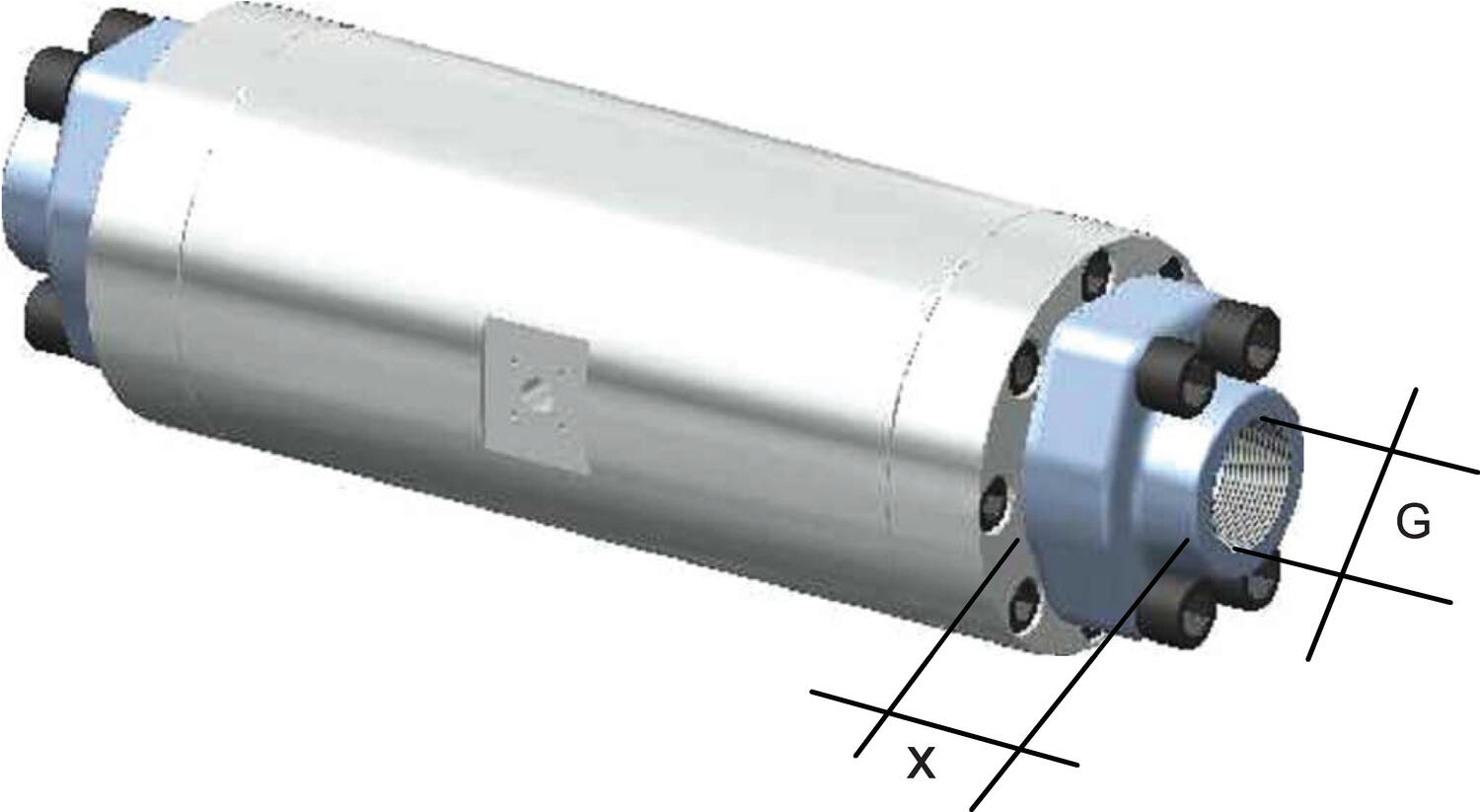

Honsberg - VHS Series Flow Meter VHS025GAO0140B
Spindle (screw)
Model VHS is a screw flow sensor designed especially for applications with viscose media and high flows. Has high accuracy regardless of viscosity up to 40,000 cSt and maintains a low sound level under 50dB during operation. All mounting positions are possible and the direction of flow is independent of mounting position.
- For oil and lubricating liquids up to 40,000 cSt
- For high flows up to 2500 l/min
- Up to 350 bar pressure
- Light and compact design
Selected variant
Technical data
| Accuracy | ± 1% of the measurement value (at 20 cSt) |
|---|---|
| Connection type | Internal thread, G 1 " |

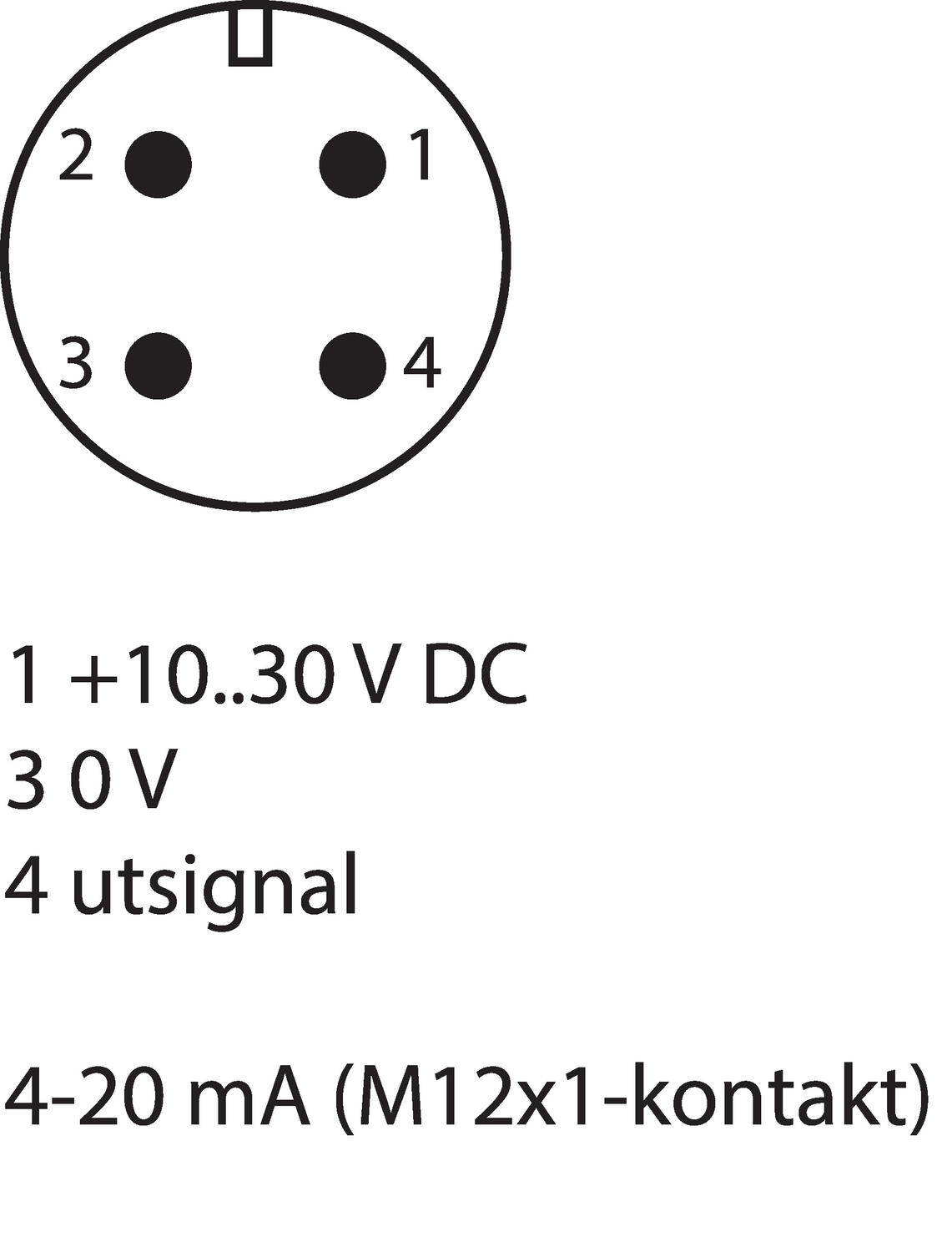

| Electrical connection | Plug connector DIN 43650-A |
| Flow max | 200 l/min |
| Flow range max | 140 l/min |
| Flow range min | 1.4 l/min |
| Function | Screw |
| IP class | IP67 |
| Material of connection | Aluminium |
| Power consumption | 19 mA |
| Pressure drop | About 3 bars at 100 cSt |
| Pressure range max | 160 bar |
|---|---|
| Repeatability | 0.25 % |

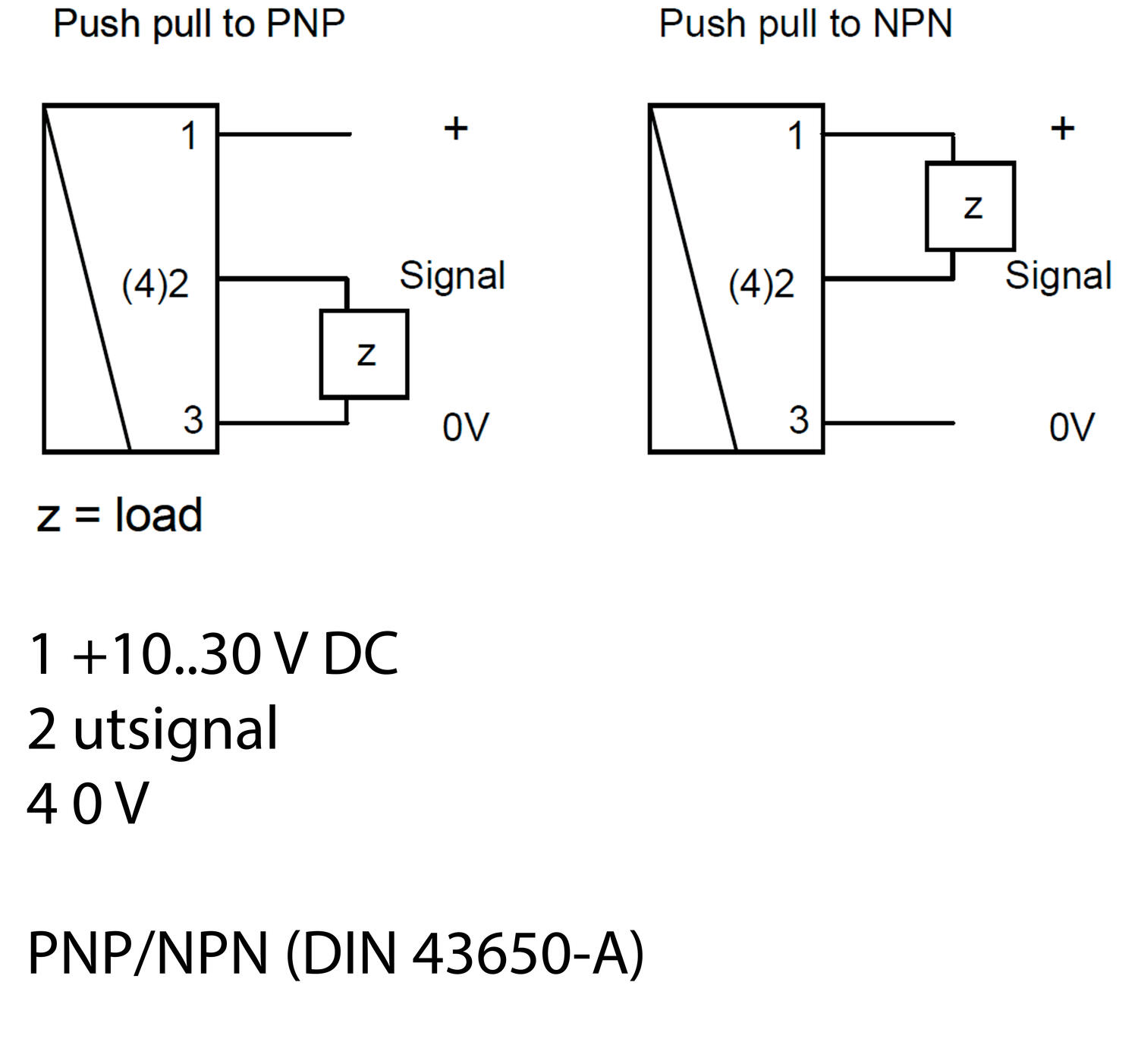

| Signal outputs | PNP / NPN frequency |
| Temperature of media from | -25 °C |
| Temperature of media to | 80 °C |
| Viscosity max | 40000 cSt |
| Voltage dc max | 30 V |
| Voltage dc min | 10 V |
| Weight | 3.44 kg |
Downloads
Product description
Model VHS is a screw flow sensor designed especially for applications with viscose media and high flows. Has high accuracy regardless of viscosity up to 40,000 cSt and maintains a low sound level under 50dB during operation. All mounting positions are possible and the direction of flow is independent of mounting position.
