Honsberg - GK Series Flow Indicator GK-010GTW0100
Flow display with float

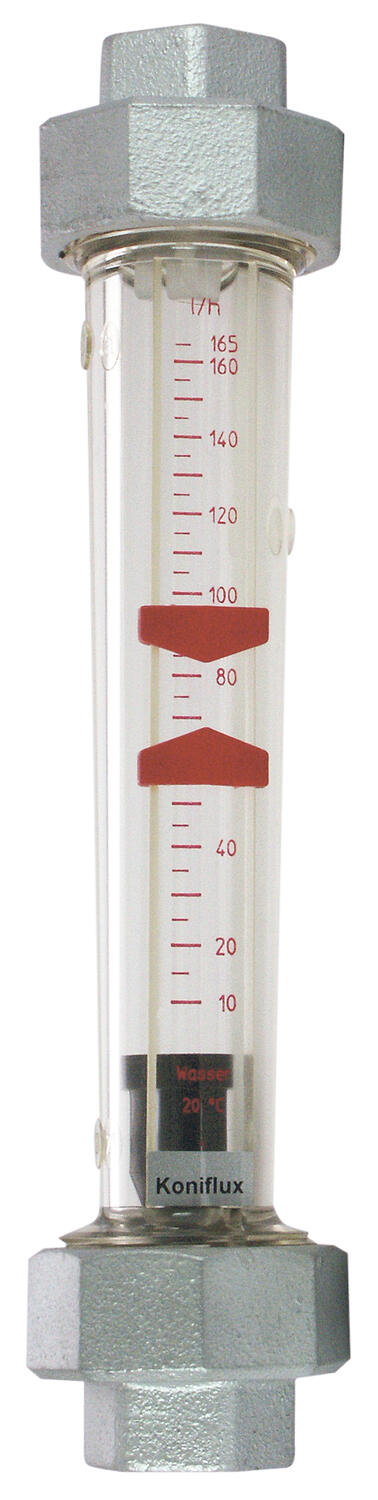

Model GK is a variable area flow meter with a scale that is easy to read. It has been developed to measure liquids and gases/air in various forms.
Special versions
• Special scales
• Reed switches
- Flow from 0.2 to 10 Nm2/h3/h air and 10-640 l/h water
- For pressure up to 15 bar
- With min. and max. indication
Selected variant
Technical data
| Accuracy | +/- 3% of the final value |
|---|---|
| Connection type | Internal thread, G 3/8 " |
| Flow range max | 1.66 l/min |
| Flow range min | 0.16 l/min |
| Function | Flow indicator, float body |
| Material of body | Polysulfone |
| Material of connection | Die cast metal |
| Material of seals | Viton |
| Material suspension body | Polypropylene |
|---|---|
| Pressure drop | Max 20 mbar |
| Pressure range max | 15 bar |
| Temperature of media to | 60 °C |
| Type of flow component | Flowmeter |
| Weight | 0.2 kg |
Product description
Model GK is a variable area flow meter with a scale that is easy to read. It has been developed to measure liquids and gases/air in various forms.
Special versions
• Special scales
• Reed switches
