MOLEX

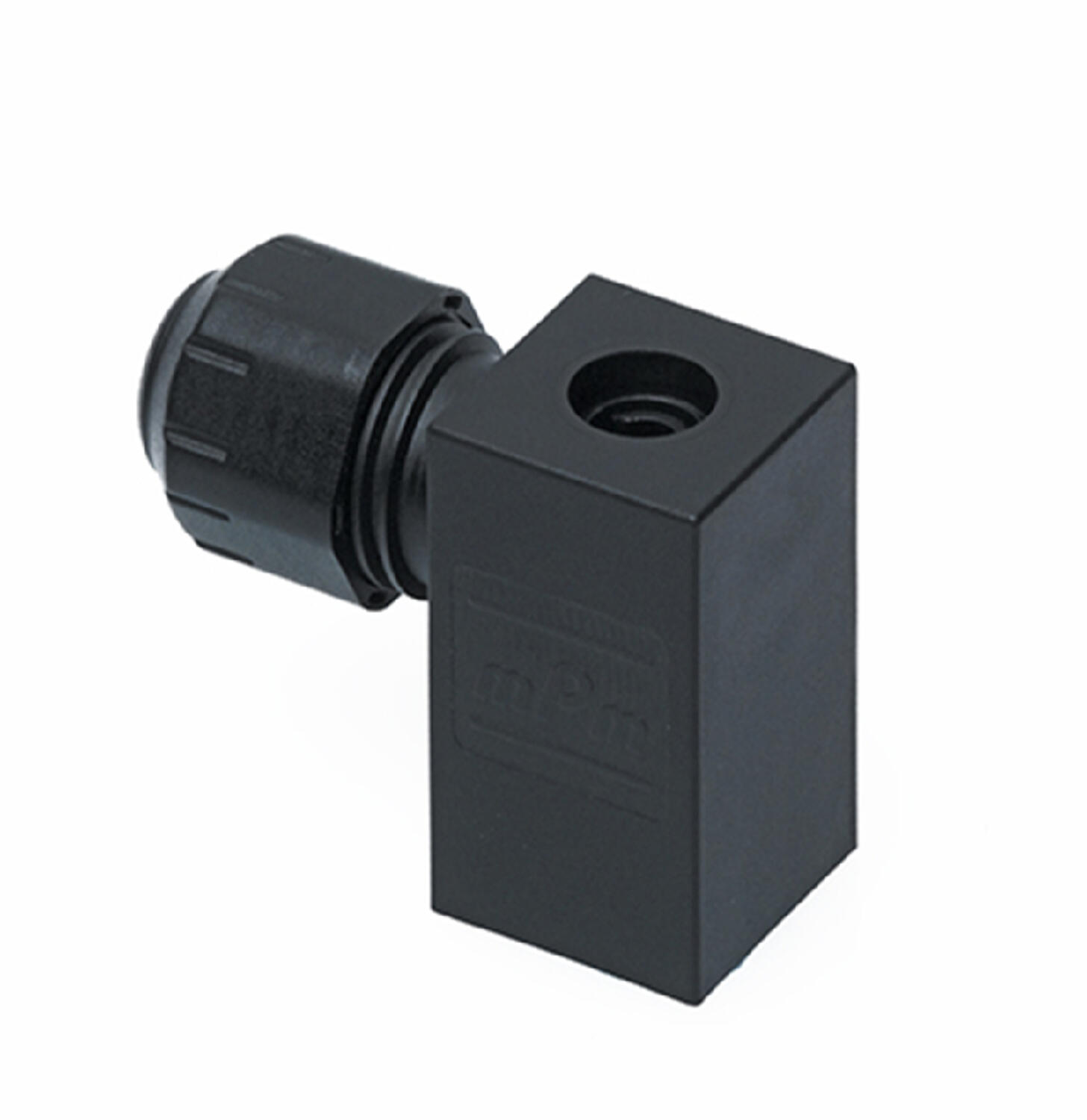

Molex - mPm DIN Form C Industrial / DIN Form C

IP67 rated DIN valve connectors with improved strain relief. Cable retention force increased by up to 20% over internal nut styles. Enlarged Cable range that covers the internal thread connector cable range. Conforms to EN 175301-803.

Read more
  • With or without LED and transient protection
  • Fibreglass-reinforced housing
  • Turnable insert
  • 9.4 mm or 8 mm contact distance EN175301-803 (DIN43650-C Industrial/-C)

Selected variant

Available in several variants

Selected variant

Technical data

Cable diameter max 6 mm
Cable diameter min 4 mm
Cable entry PG7
Circuit No circuit
Colour LED No
Connector DIN C micro 94mm
Cross section max 0.75 mm²
Current max 10 A
Housing Colour Black
Housing material Polyamide
IP class IP65
LED indicator No
Manufacturer part no. 1210230438
Material packing NBR
Number of poles 2 + earth
Rated voltage 250 V AC/300 V DC
Screw size M3x25
Temperature operational max 90 °C
Temperature operational min -40 °C

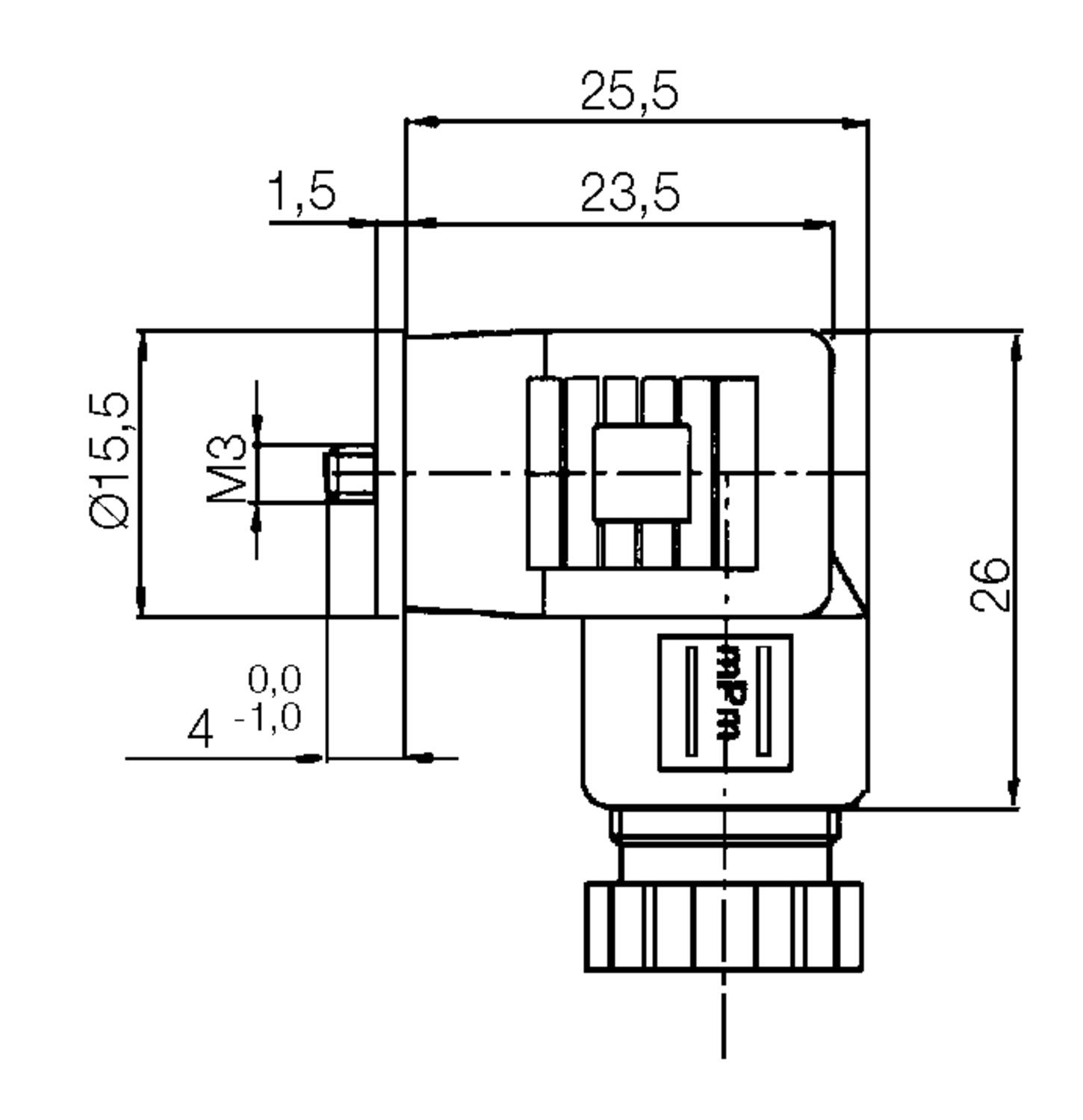

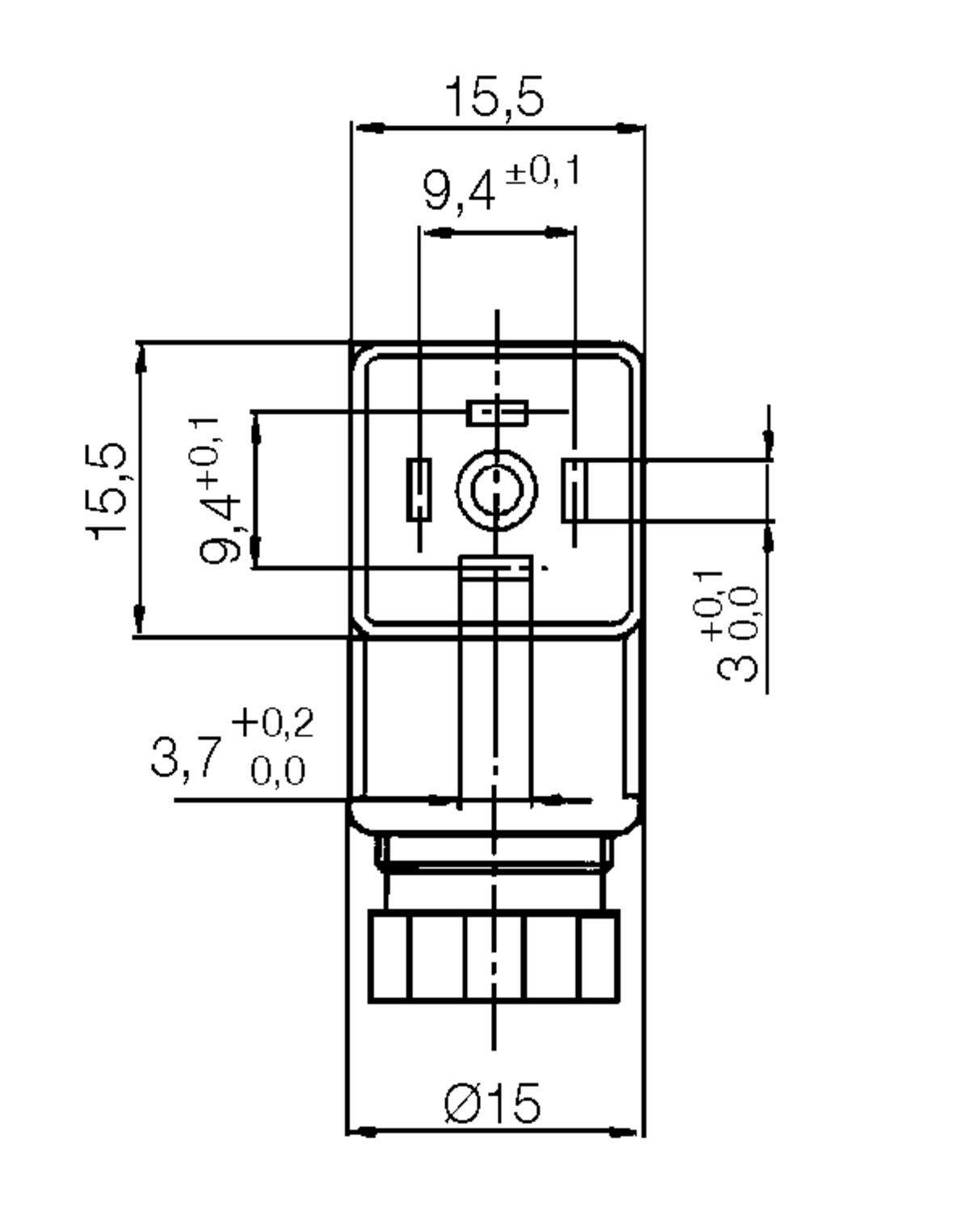

Measurements and connections

Product description

IP67 rated DIN valve connectors with improved strain relief. Cable retention force increased by up to 20% over internal nut styles. Enlarged Cable range that covers the internal thread connector cable range. Conforms to EN 175301-803.

Accessories

Related products

Related

water treatment plant tank- water and wastewater - OEM Automatic Solutions
Learning hub

Water & Wastewater Solutions

OEM Automatics water and wastewater application specialists have gathered all our solutions in one place. Our products are used in everything from small municipal water works to larger regional plants.

Selection of pumps - understanding velocity and why it matters when choosing a pump
Learning hub

understanding viscosity - And Why It Matters When Choosing A Pump

Whether you’re pumping water, chocolate, oil or peanut butter knowing the product’s viscosity is essential to selecting the right pump. Find out more about viscosity and which pump may be suitable for your application!

Tecnoplastic float switch
Product news

Float switches built to perform and ready to ship

Whether you're looking to upgrade your current solution or secure a more robust float switch for your next project, Taurus delivers performance you can count on.

groups of pressure switches and sensors with reservoir background - pressure sensors or switches
Learning hub

How do I know if I need a pressure switch or a pressure sensor?

When choosing between a pressure switch and a pressure sensor, the key lies in understanding your application. Our Pressure Monitoring experts breaks down the two devices for you.

SAMOA pumps
Product news

We offer air diaphragm pumps by SAMOA

Pumps are now officially part of our product offering! As we build our pump portfolio, we’re proud to announce that we are an official distributor of SAMOA Industrial, a well-established name in the fluid handling industry.

Barcode scanner technology: choosing the right technology for your application
Learning hub

Barcode Scanner Technology: Choosing The Right Technology For Your Application

OEM Automatic's barcode scanner experts have broken down barcode technology to help you choose the right scanner for your application!

Parts Cable diameter max Cable diameter min Cable entry Circuit Colour LED Connector Contact resistance Cross section max Current max Housing Colour Housing material IP class LED indicator Manufacturer part no. Number of poles Rated voltage Screw and gasket Screw size Price
6 mm
4 mm
PG7
No circuit
No
DIN C micro 94mm
0.75 mm²
10 A
Black
Polyamide
IP65
No
1210230438
2 + earth
250 V AC/300 V DC
M3x25
6 mm
4 mm
PG7
No circuit
No
DIN C micro 94mm
0.75 mm²
10 A
Black
Polyamide
IP65
No
1210230467
3 + earth
250 V AC/300 V DC
M3x25
6 mm
4 mm
PG7
No circuit
No LED
≤15 mΩ
0.75 mm²
10 A
Grey
Polyamide
IP65
No
3 + earth
250 V AC/300 V DC
Flat NBR gasket & screw
5.5 mm
3 mm
No circuit
No
DIN C micro 94mm
0.75 mm²
10 A
Black
Polyamide
IP67
No
1212050005
3 + earth
250 V AC/300 V DC
6 mm
4 mm
PG7
C4: LED & varistor
Yellow
≤15 mΩ
0.75 mm²
10 A
Transparent
Polyamide
IP65
Yes
2 + earth
115 V AC/DC
Profile NBR gasket & screw
6 mm
4 mm
PG7
C4: LED & varistor
Yellow
≤15 mΩ
0.75 mm²
10 A
Transparent
Polyamide
IP65
Yes
2 + earth
230 V AC/DC
Profile NBR gasket & screw
6 mm
4 mm
PG7
C3: LED & diode
Yellow
≤15 mΩ
0.75 mm²
10 A
Transparent
Polyamide
IP65
Yes
2 + earth
24 V DC
Profile NBR gasket & screw
6 mm
4 mm
PG9
C4: LED & varistor
Yellow
≤15 mΩ
1.5 mm²
16 A
Transparent
Polyamide
IP65
Yes
2 + earth
48 V AC/DC
Profile NBR gasket & screw
6 mm
4 mm
PG9
C4: LED & varistor
Yellow
≤15 mΩ
1.5 mm²
16 A
Transparent
Polyamide
IP65
Yes
2 + earth
24 V AC/DC
Profile NBR gasket & screw
5.5 mm
3 mm
No circuit
No
DIN C 8mm
0.75 mm²
10 A
Black
Polyamide
IP67
No
1212040001
2 + earth
250 V AC/300 V DC
6 mm
4 mm
PG7
No circuit
No LED
≤15 mΩ
0.75 mm²
10 A
Black
Polypropylene
IP65
No
121023-0085
2 + earth
250 V AC/300 V DC
Flat NBR gasket & screw
6 mm
4 mm
PG7
No circuit
No LED
≤15 mΩ
0.75 mm²
10 A
Black
Polyamide
IP65
No
121023-0094
3 + earth
250 V AC/300 V DC
Flat NBR gasket & screw
6 mm
4 mm
PG7
No circuit
No LED
≤15 mΩ
0.75 mm²
10 A
Grey
Polyamide
IP65
No
3 + earth
250 V AC/300 V DC
Flat NBR gasket & screw
6 mm
4 mm
M16x1,5
No circuit
No LED
≤15 mΩ
0.75 mm²
10 A
Black
Polyamide
IP65
No
2 + earth
250 V AC/300 V DC
Flat NBR gasket & screw
6 mm
4 mm
PG7
C3: LED & diode
Yellow
≤15 mΩ
0.75 mm²
10 A
Transparent
Polyamide
IP65
Yes
2 + earth
24 V DC
Profile NBR gasket & screw
6 mm
4 mm
PG7
C4: LED & varistor
Red
DIN C 8mm
0.75 mm²
10 A
Transparent
Polyamide
IP65
Yes
1210640167
2 + earth
24 V AC/DC
5.5 mm
3 mm
C4: LED & varistor
Yellow
DIN C 8mm
0.75 mm²
10 A
Transparent
Polyamide
IP67
Yes
1212100045
2 + earth
230 V AC/DC
6 mm
4 mm
PG7
C4: LED & varistor
Yellow
≤15 mΩ
0.75 mm²
10 A
Transparent
Polyamide
IP65
Yes
2 + earth
48 V AC/DC
Profile NBR gasket & screw
6 mm
4 mm
PG7
C4: LED & varistor
Yellow
≤15 mΩ
0.75 mm²
10 A
Transparent
Polyamide
IP65
Yes
2 + earth
115 V AC/DC
Profile NBR gasket & screw
6 mm
4 mm
PG7
C4: LED & varistor
Yellow
≤15 mΩ
0.75 mm²
10 A
Transparent
Polyamide
IP65
Yes
2 + earth
230 V AC/DC
Profile NBR gasket & screw
