Brushed DC Motor Drives
All drives offer current limiting for safety, motor protection and system control, and the programmable options are highly customisable and easy to set up and tailor to their target application

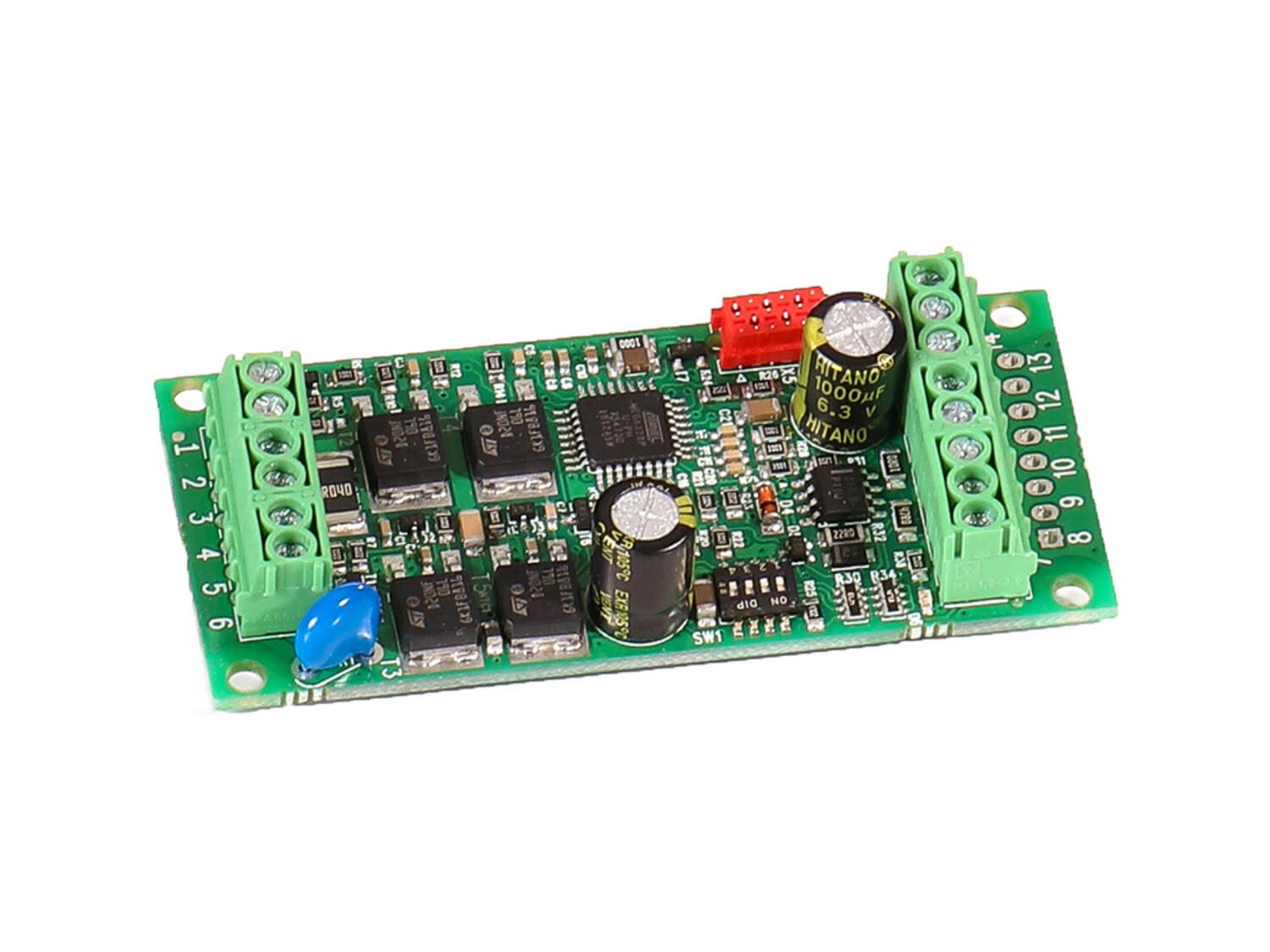

Electromen - EM-324C
DC motor 2Q drive 12-24Vdc, 4A
- 12-24Vdc, 4A continuous, 7A peak
- Speed, direction, current limiting, soft start/stop and auto-reverse control
- Limit switch inputs for end of travel
- Compact, DIN rail mountable

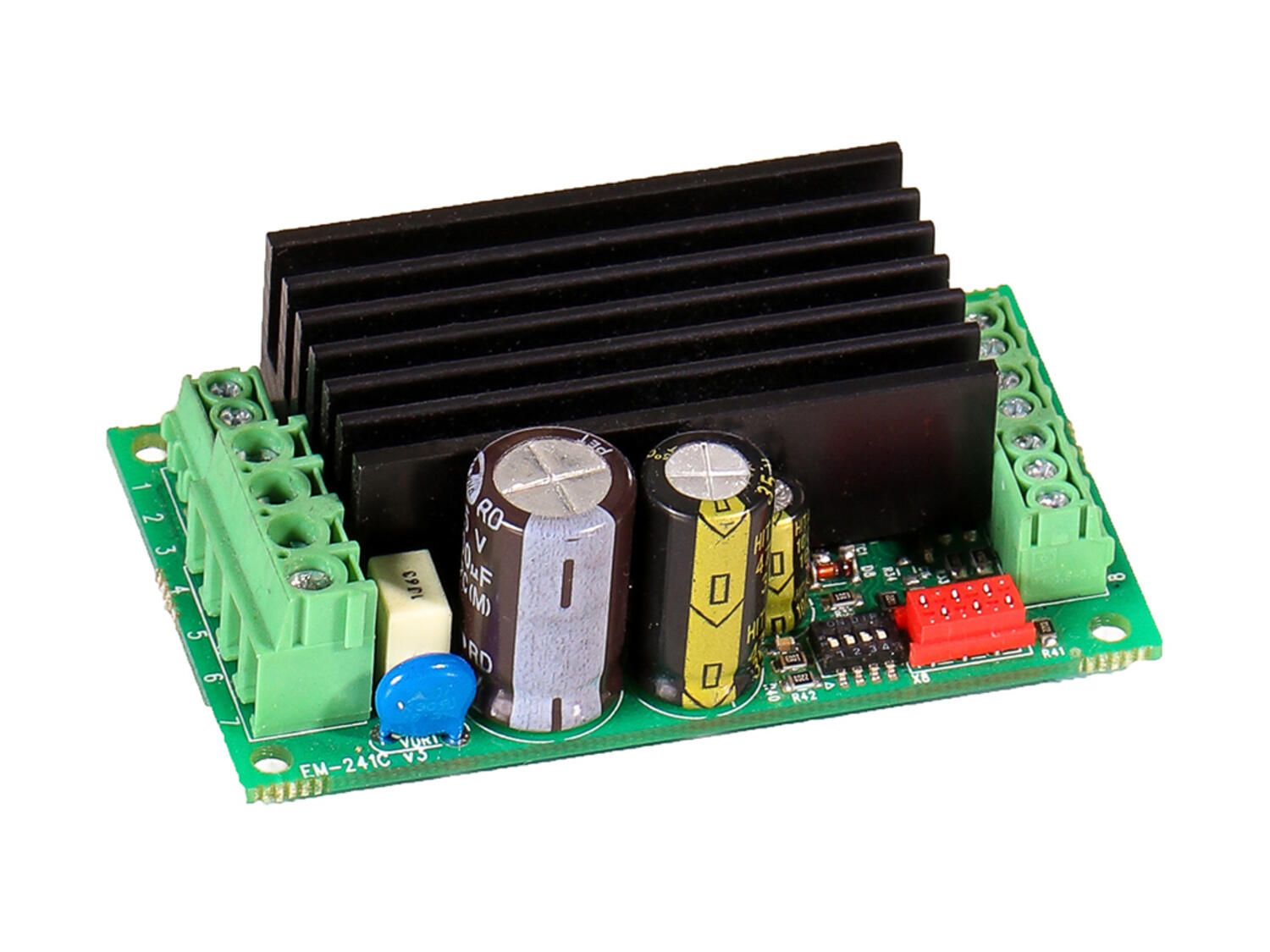

Electromen - EM-241C
DC motor 2Q drive 12-48Vdc, 10-15A
- 12-48Vdc, 10-15A continuous, 25-30A peak
- Speed, direction, current limiting, soft start/stop and auto-reverse control
- Limit switch inputs for end of travel
- Compact, DIN rail mountable
EM-241B-PLI
DC motor drive 12-24 V dc, 15 A, pulse counts for end limits
- 12-24 V dc, 15A continuous, 30A peak
- Speed, direction, current limiting, soft start/stop and auto-reverse control
- 2ch pulse count inputs for end of travel
- Compact, DIN rail mountable

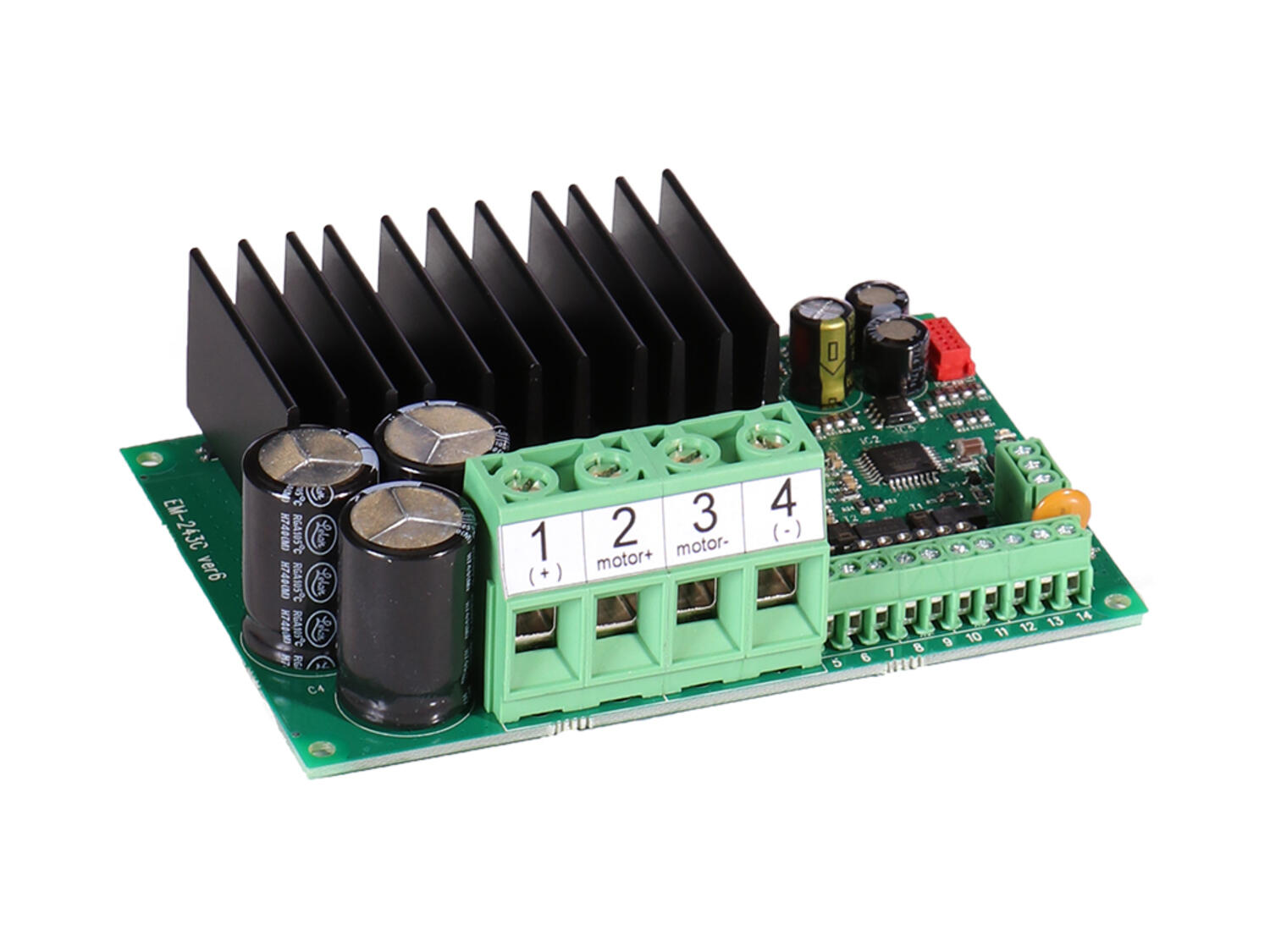

Electromen - EM-243C
DC motor 2Q drive 12-48Vdc, 50A
- 12-48Vdc, 50A continuous, 100A peak
- Speed, direction, current limiting, soft start/stop and auto-reverse control
- Limit switch inputs for end of travel
- Compact, DIN rail mountable

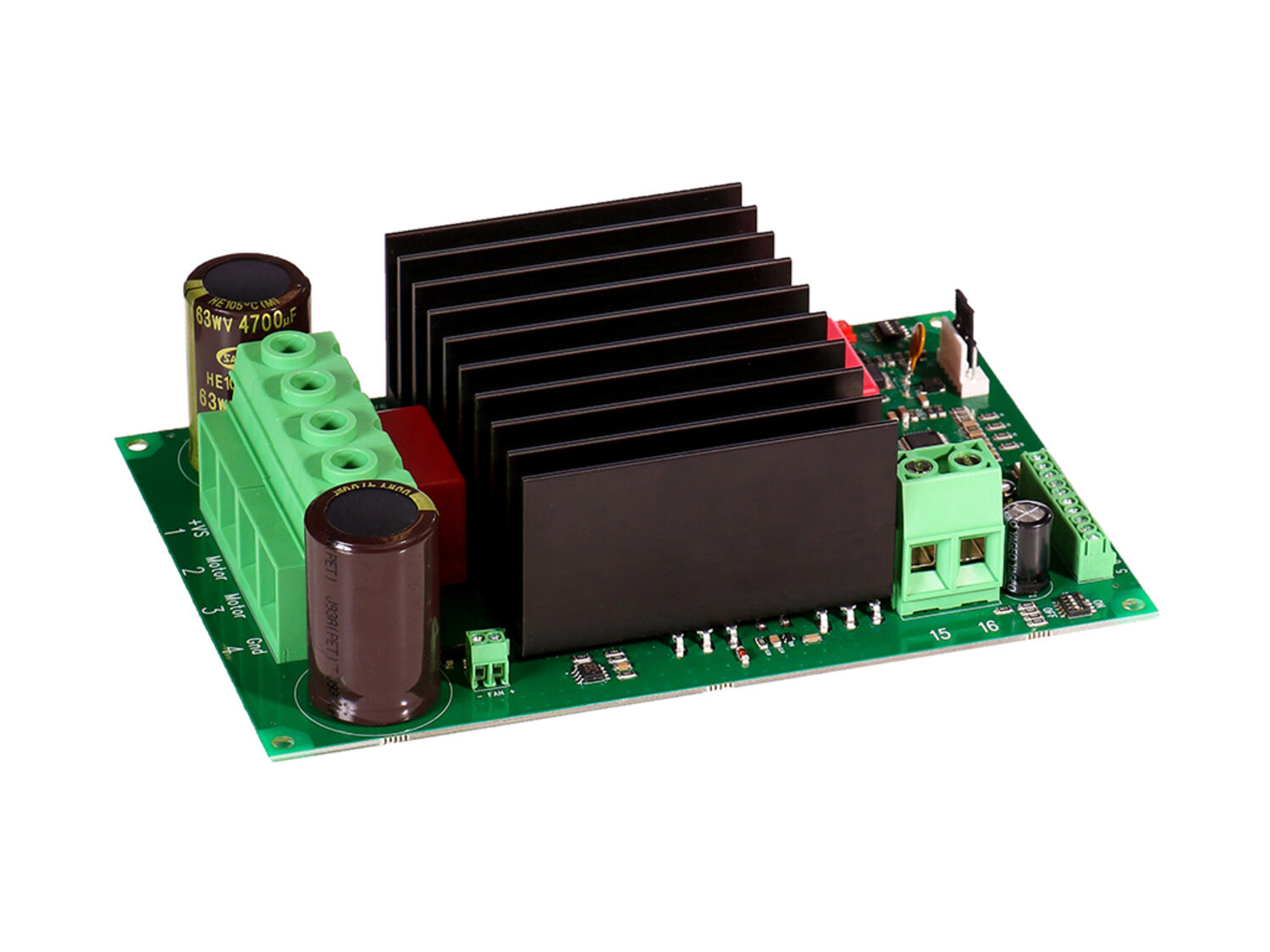

EM-282D
DC motor 2Q drive 12-48 V dc, 80-100 A
- 12-48Vdc, 80-100A continuous, 160-200A peak
- Speed, direction, current limiting, soft start/stop, braking load output and auto-reverse control
- Limit switch inputs for end of travel
- Compact, DIN rail mountable
- EM-A1 card slot option for symmetrical control ±5V or ±10V (rev-stop-fwd)

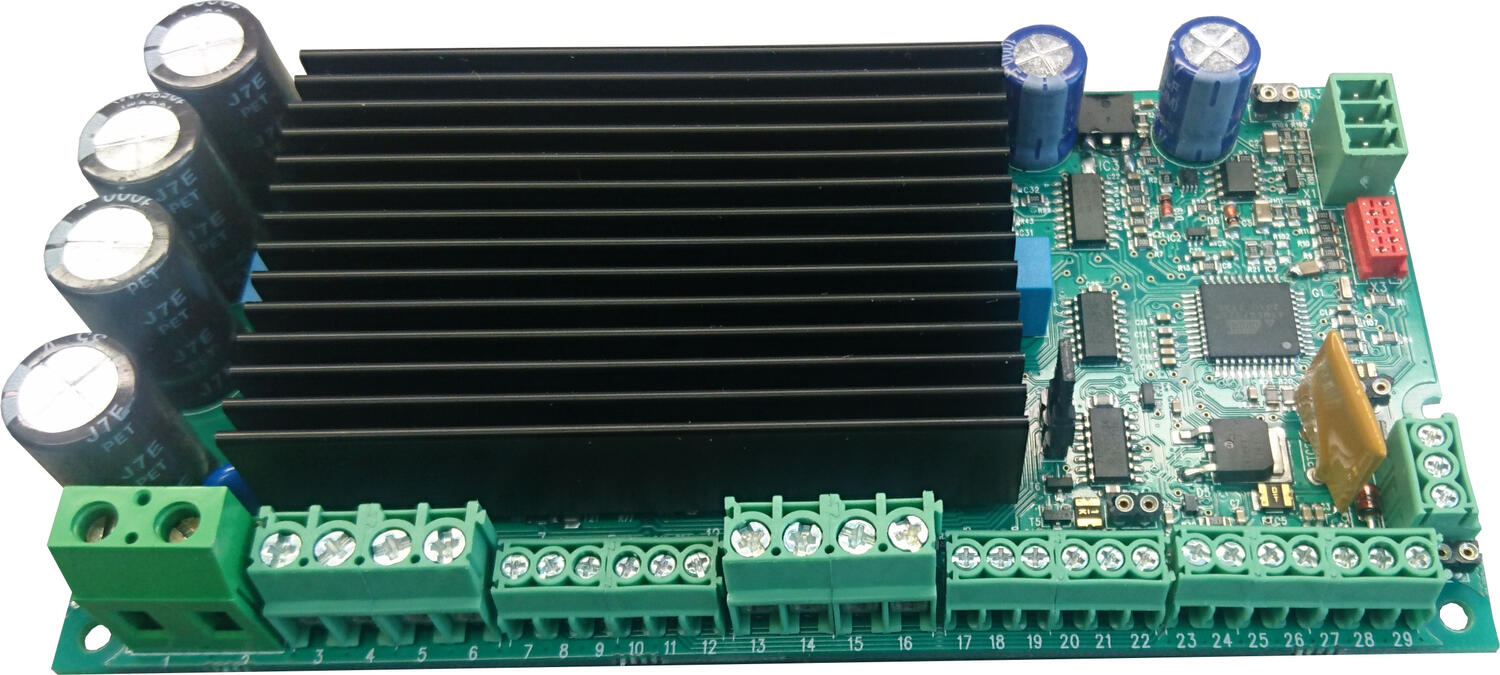

Electromen - EM-337-PLI
Parallel drive for 4 x DC motors 12-24 V dc, 4x10A
- 12-24Vdc, 4x8A continuous, 4x10A 25% duty
- Synchronized parallel driving
- Operates with pulse feedback from motors
- Homing cycle & end of travel limits set by pulse counting
- Programmable with wide range of motor control functions

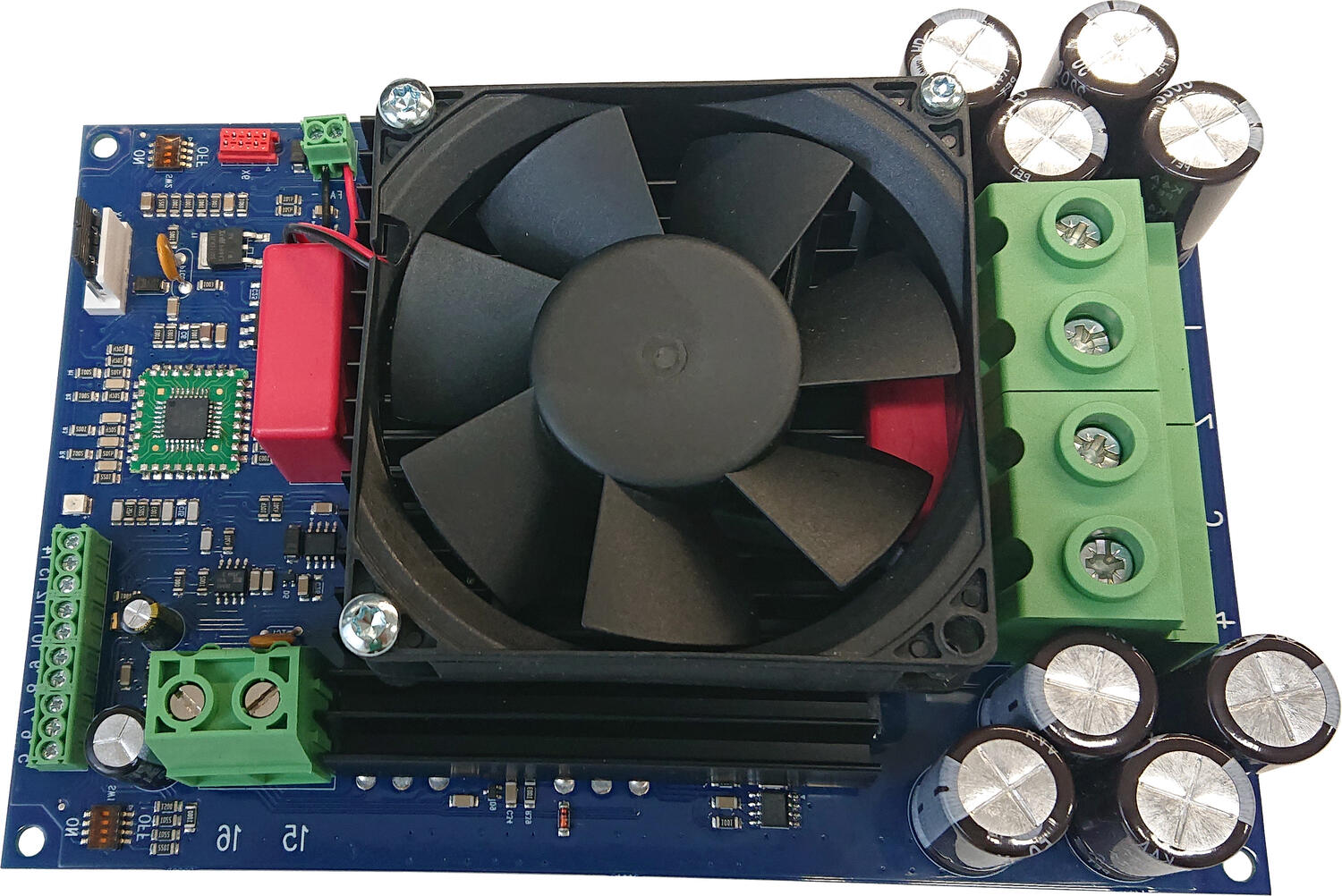

Electromen - EM-362
DC Motor Controller 12-36V 160A
- 12-36Vdc, 160A continuous, 300A peak
- For brushed motors up to 1.8kW at12V, 2.7kW at 24V, 3.0kW @ 36V
- Integrated cooling fan
- Limit switch inputs for end of travel
- Compact, DIN rail mountable

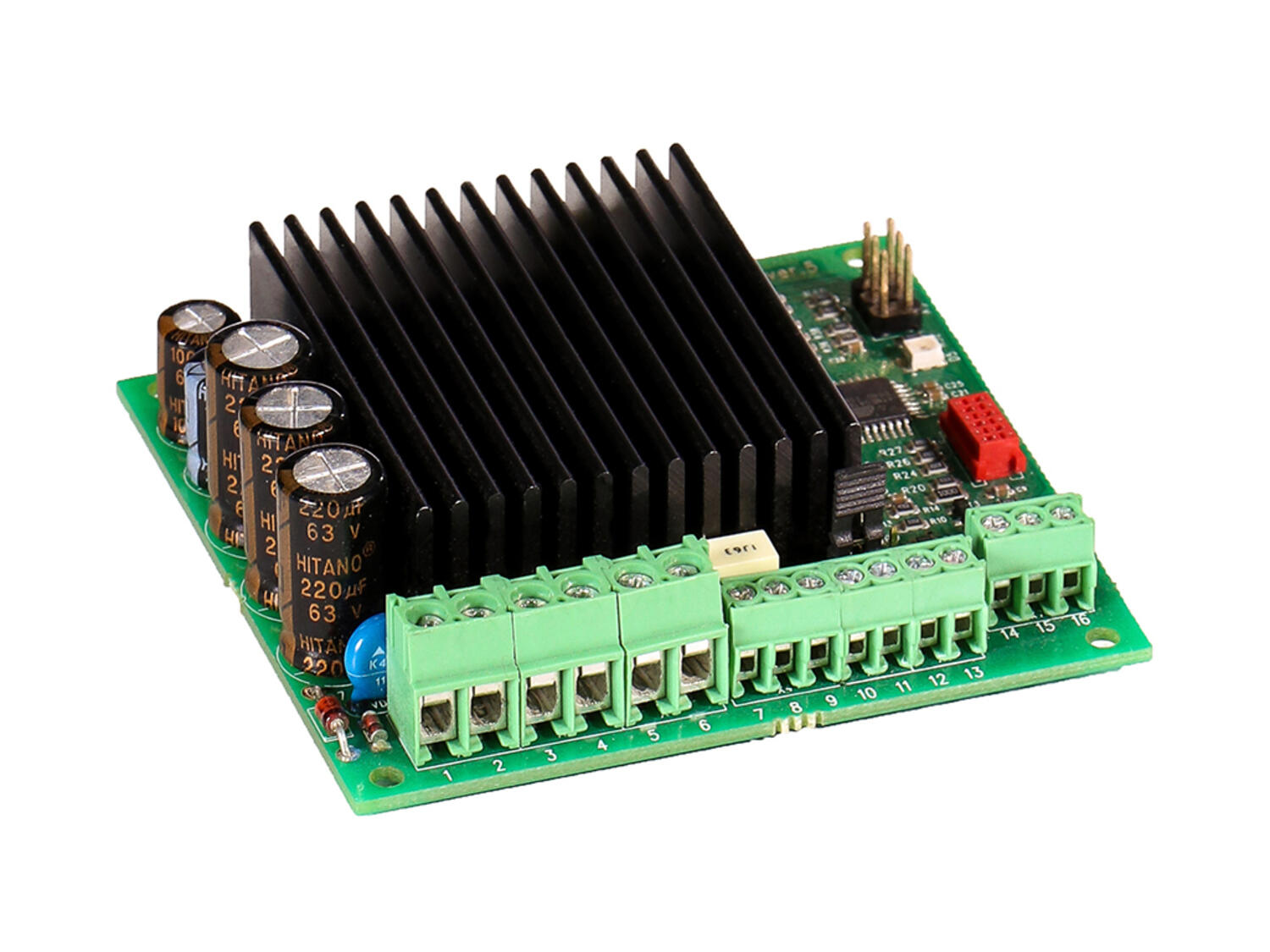

Electromen - EM-239
Parallel drive for 2 x DC motors 12-24 V dc, 2x10A
- 12-24Vdc, 2x10A continuous, 2x20A 25% duty
- Synchronized parallel driving
- Operates with pulse feedback from motors
- Programmable with wide range of motor control functions
- ** New projects see EM-339-PLI **

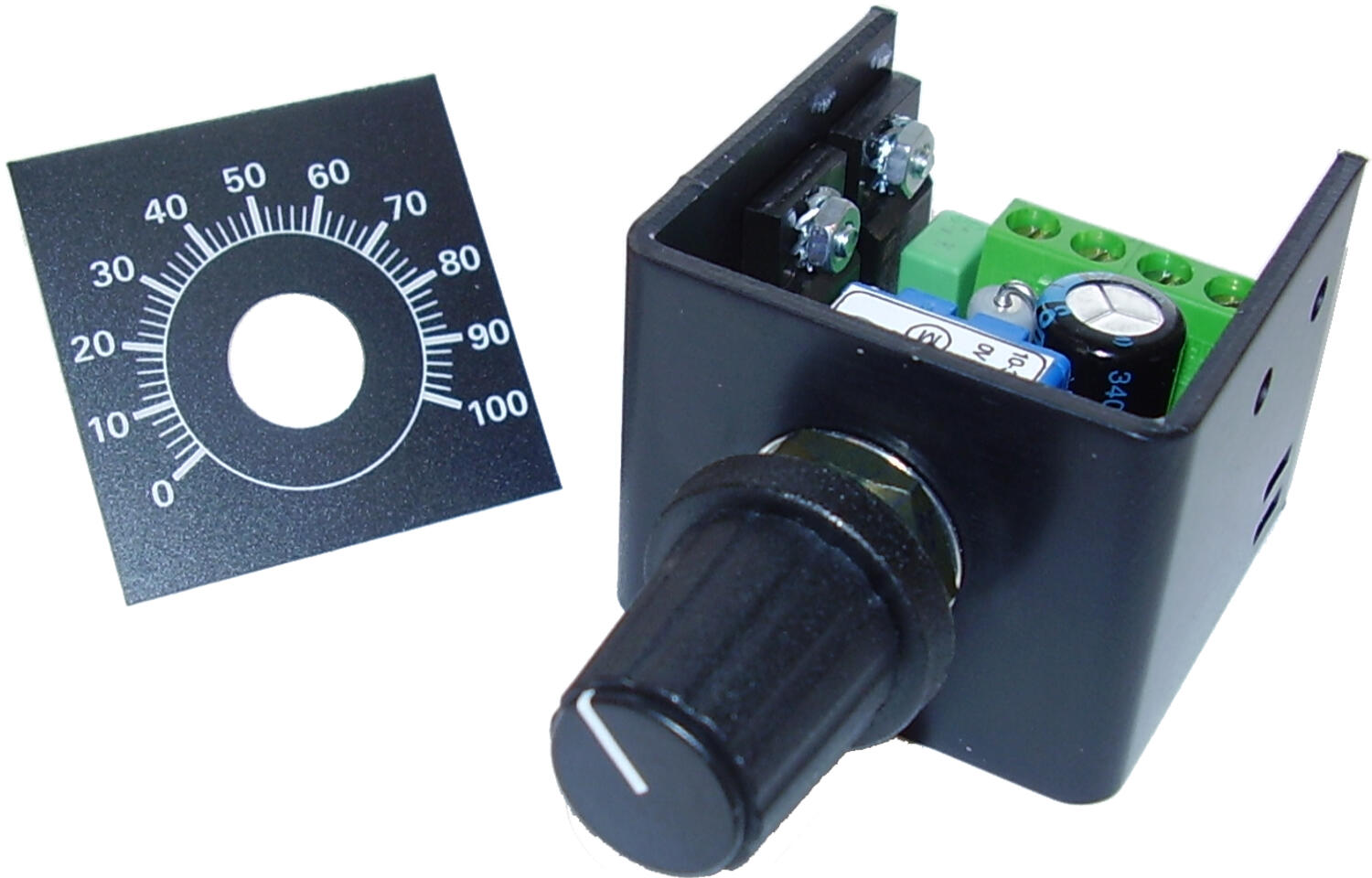

Electromen - EM-185
DC motor 1Q drive 12-24 V dc, 3 A, panel mountable
- 12-24Vdc, 3A continuous, 6A peak
- Speed control without losing torque
- Adjustable current limit
- Small size, Panel mountable

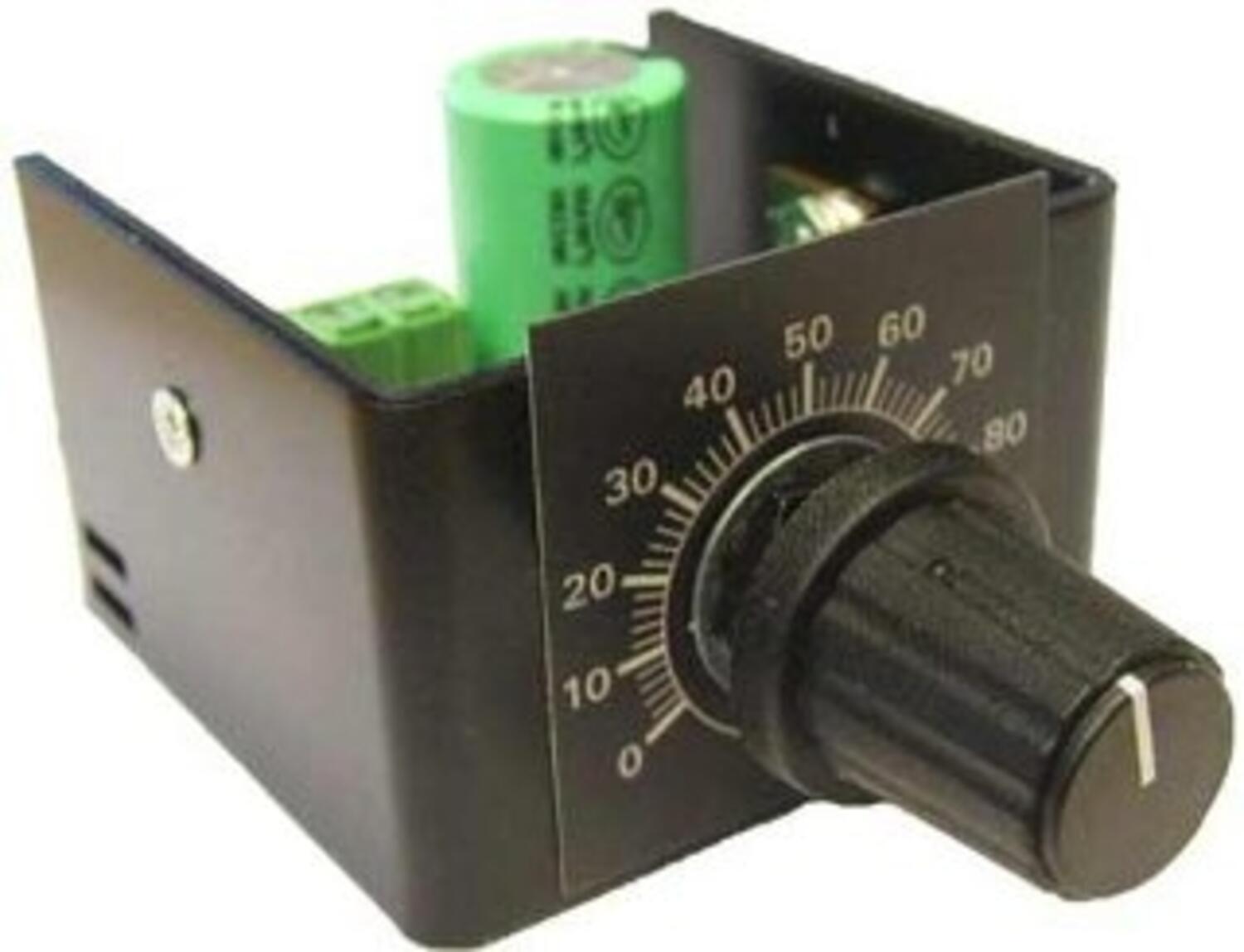

Electromen - EM-285
DC motor 1Q drive 12-24 V dc, 20 A, panel mountable
- 12-24Vdc, 20A continuous, 30A peak
- Speed control without losing torque
- Adjustable current limit
- Small size, Panel mountable

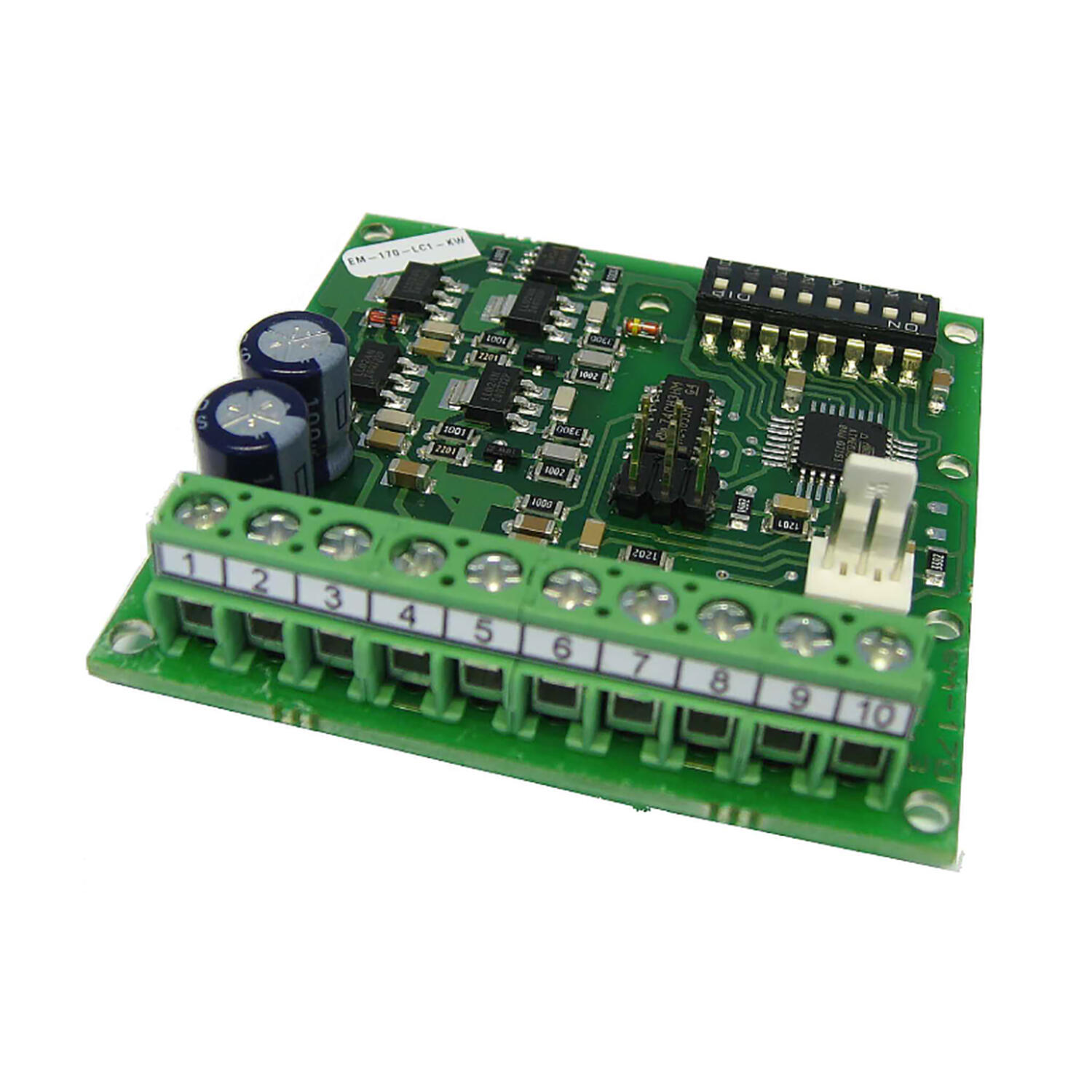

Electromen - EM-170
DC motor 4Q drive 12-24 V dc, 1.5 A
- 12-24Vdc, 1.5A continuous, 2A peak
- Speed, direction and braking control
- Adjustable start ramp and current limit
- Compact, small size

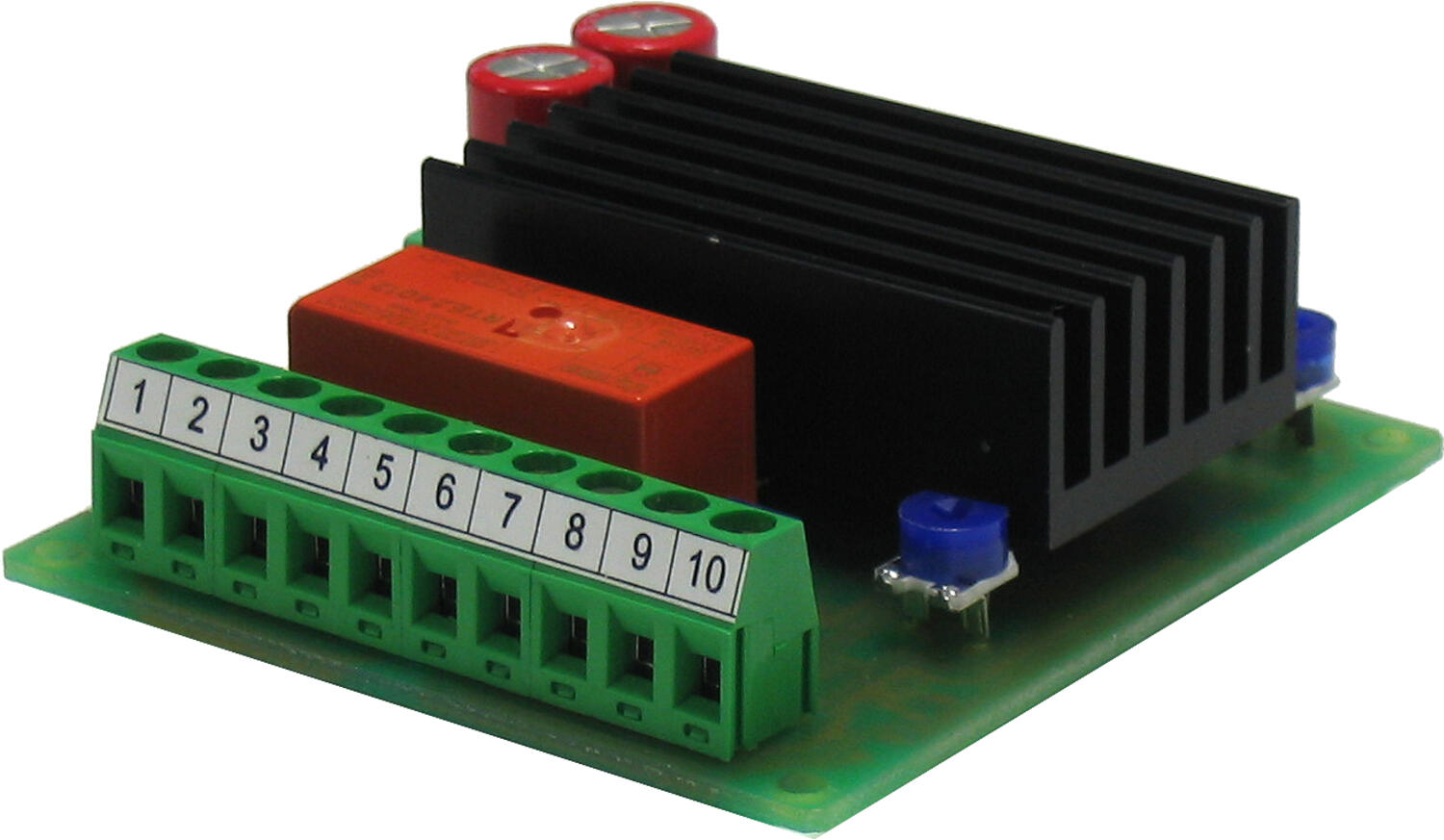

Electromen - EM-174
DC motor 2Q drive 12-24 V dc, 8 A
- 12-24Vdc, 8A continuous, 12A peak
- Speed and direction control
- Adjustable start ramp and current limit
- Compact, DIN rail mountable
- Symmetrical control ±5V (rev-stop-fwd)
Electromen - EM-175
DC motor 2Q drive 12-24 V dc, 10 A
- 12-24Vdc, 10A continuous, 15A peak
- Speed and braking control
- Adjustable start ramp and current limit
- Compact, din rail mountable
Electromen - EM-176
DC motor 4Q drive 12-24Vdc, 10A
- 12-24Vdc, 10A continuous, 15A peak
- Speed, direction and braking control
- Adjustable start ramp and current limit
- Compact, DIN rail mountable
- EM-A1 card slot option for symmetrical control ±5V or ±10V (rev-stop-fwd)
Electromen - EM-180
C motor 2Q drive 12-24Vdc, 10A
- 12-24Vdc, 10A continuous, 15A peak
- On/Off, direction and braking control
- Adjustable start ramp and two current limit modes
- Compact, DIN rail mountable
Electromen - EM-213
DC motor 1Q PWM drive 12-24Vdc, 10A
- 12-24Vdc, 10A continuous, 15A peak
- Single quadrant control
- Suits inductive and resistive loads
- Digital or analogue input
- Adjustable start ramp

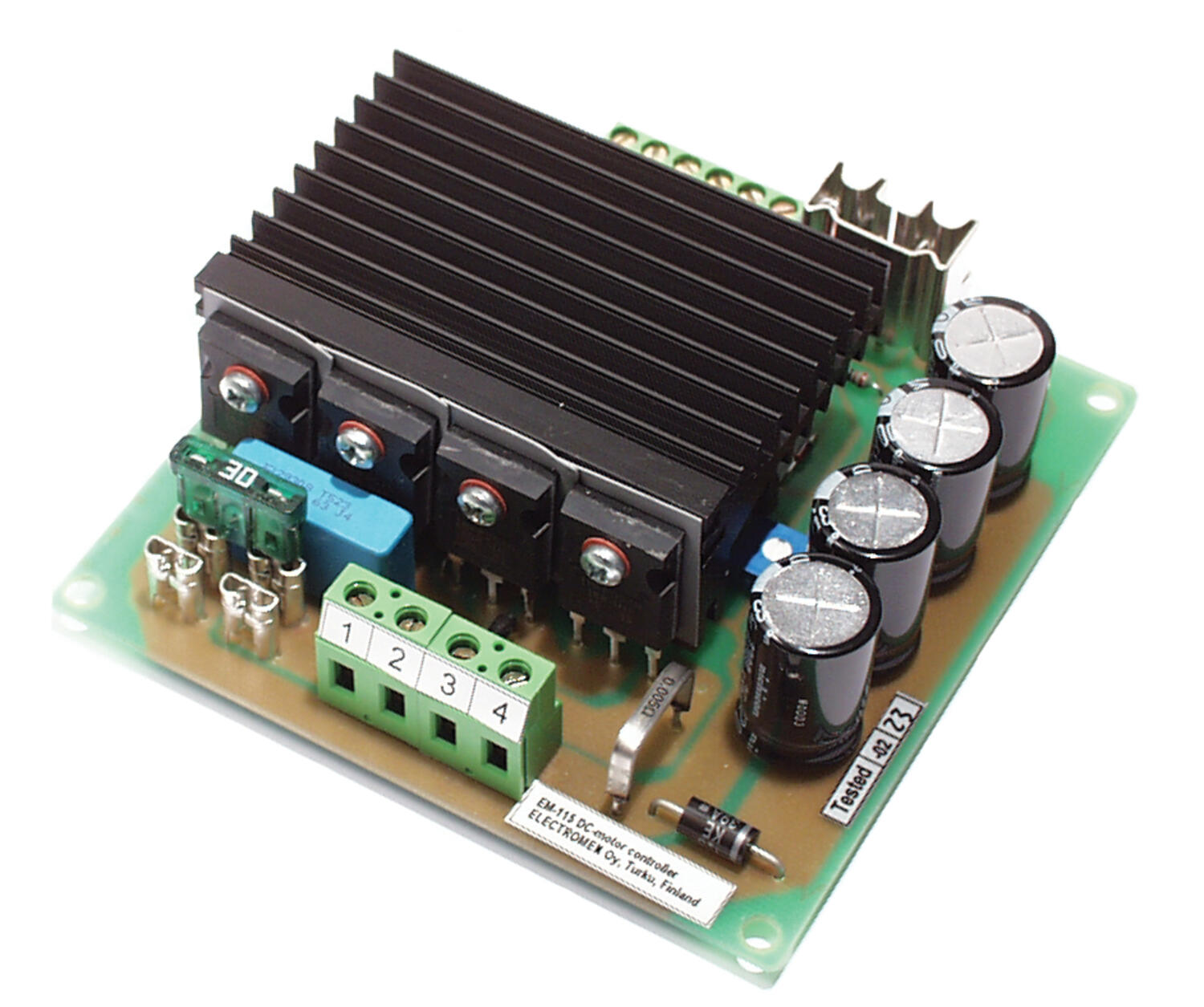

Electromen - EM-115
DC motor 4Q drive 12-36Vdc, 25A
- 12-36Vdc, 25A continuous, 50A peak
- Speed control without losing torque
- Wide range of adjustable motor control functions
- Compact, DIN rail mountable

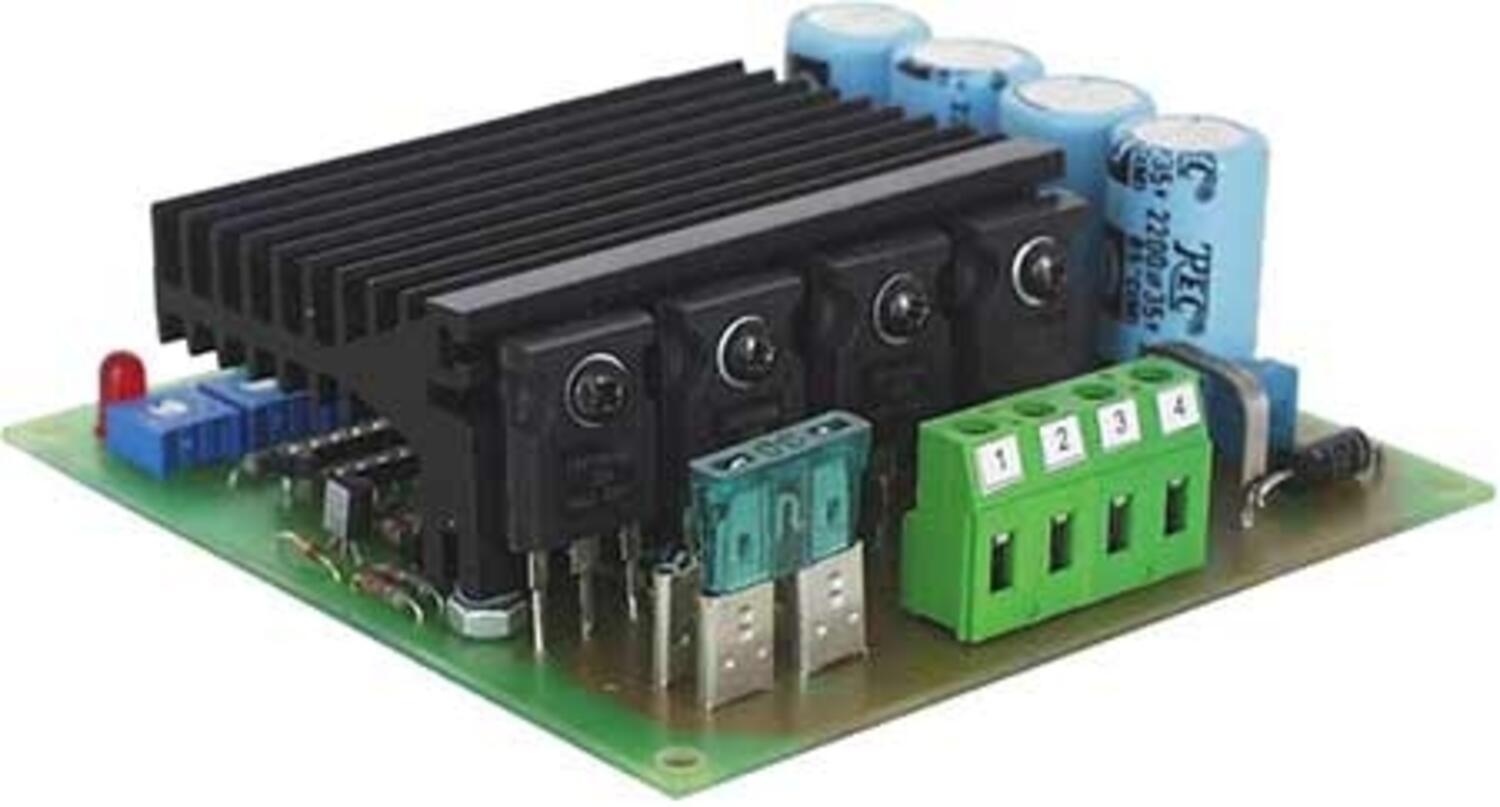

Electromen - EM-115-48
DC motor 4Q drive 24-48Vdc, 25A
- 20-60 Vdc, 25A continuous, 50A peak
- Speed control without losing torque
- Wide range of adjustable motor control functions
- Compact, DIN rail mountable

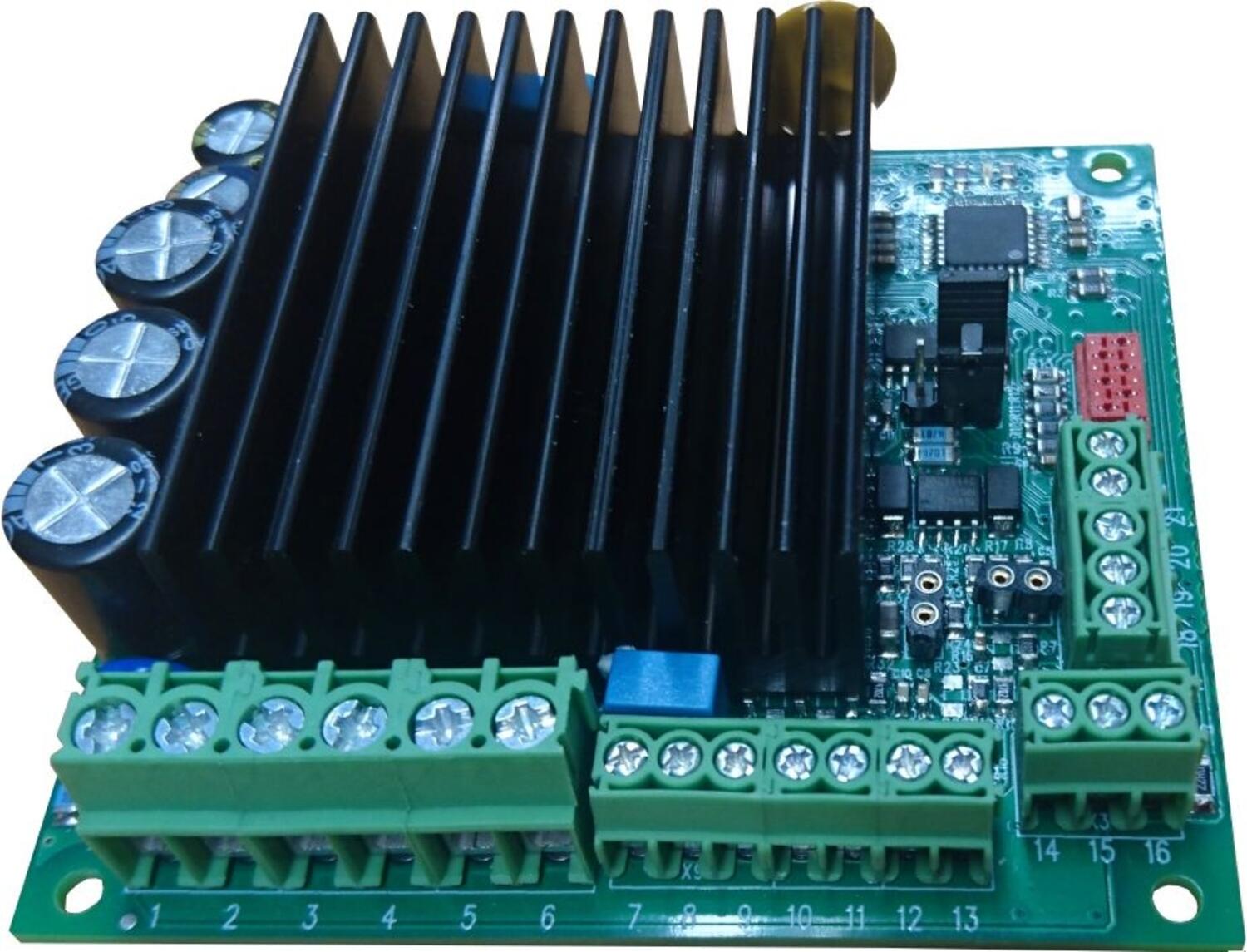

Electromen - EM-339-PLI
Parallel drive for 2 x DC motors 12-24 V dc, 2x10A
- 12-24Vdc, 2x10A continuous, 2x20A 25% duty
- Synchronized parallel driving
- Operates with pulse feedback from motors
- Homing cycle & end of travel limits set by pulse counting
- Programmable with wide range of motor control functions
Electromen - Accessories
Products to support Electromen drive range
- Interface unit for adjusting & copying parameters
- USB standard Interface for PC EmenTool Lite software
- DIN rail plastic mounting bases
- Electronic accessories
