DC Motor with Right Angle Gearbox
Whilst usually quieter than other types of gearboxes, the right angle worm gear box is generally less efficient and requires more motor power for a given torque in comparison with in-line gearboxes.
It is also not always a given that right angle gearboxes will have full self locking without power. If the products description does not suggest so, please ask our motors team for more information if this is a requirement.
DOGA 111 - DC wiper motor
Right angle worm gearbox, IP53
- 12 - 24Vdc
- Up to 6Nm
- Up to 240rpm
- Compact low noise design
- High starting torque
DOGA 258 - DC wiper motor
Right angle worm gearbox, IP53
- 12 - 24Vdc
- Up to 15Nm
- Up to 40rpm
- Compact low noise design
- High starting torque
DOGA 311 - DC wiper motor
Right angle worm gearbox, IP69K
- 12-24Vdc
- Up to 7Nm
- Up to 70rpm
- Extra-compact low noise design
- IP69K as standard
DOGA 316 - DC wiper motor
Right angle worm gearbox
- 12 - 24Vdc
- Up to 2Nm
- Up to 65rpm
- Compact low noise design
- High starting torque
DOGA 316H - DC wiper motor with feedback
Right angle worm gearbox, hall sensors
- 12 - 24Vdc with positional feedback
- Up to 2Nm
- Up to 65rpm
- Compact low noise design
- High starting torque
DOGA 317 - DC wiper motor
Right angle worm gearbox
- 12 - 24Vdc
- Up to 4Nm
- Up to 65rpm
- Compact low noise design
- High starting torque
DOGA 317H - DC wiper motor with feedback
Right angle worm gearbox, hall sensors
- 12 - 24Vdc with positional feedback
- Up to 4Nm
- Up to 25rpm
- Compact low noise design
- High starting torque
DOGA 319 - DC wiper motor
Right angle worm gearbox, IP65
- 12 - 24Vdc
- Up to 9Nm
- Up to 230rpm
- Compact low noise design
- High starting torque
DOGA 319H - DC wiper motor with feedback
Right angle worm gearbox, hall sensors, IP65 option
- 12 - 24Vdc with positional feedback
- Up to 9Nm
- Up to 100rpm
- Compact low noise design
- High starting torque
DOGA 359 - DC wiper motor
Right angle worm gearbox, IP66
- 12 -24Vdc
- Up to 25Nm (high output)
- Up to 40rpm
- Compact low noise design
- IP66 as standard

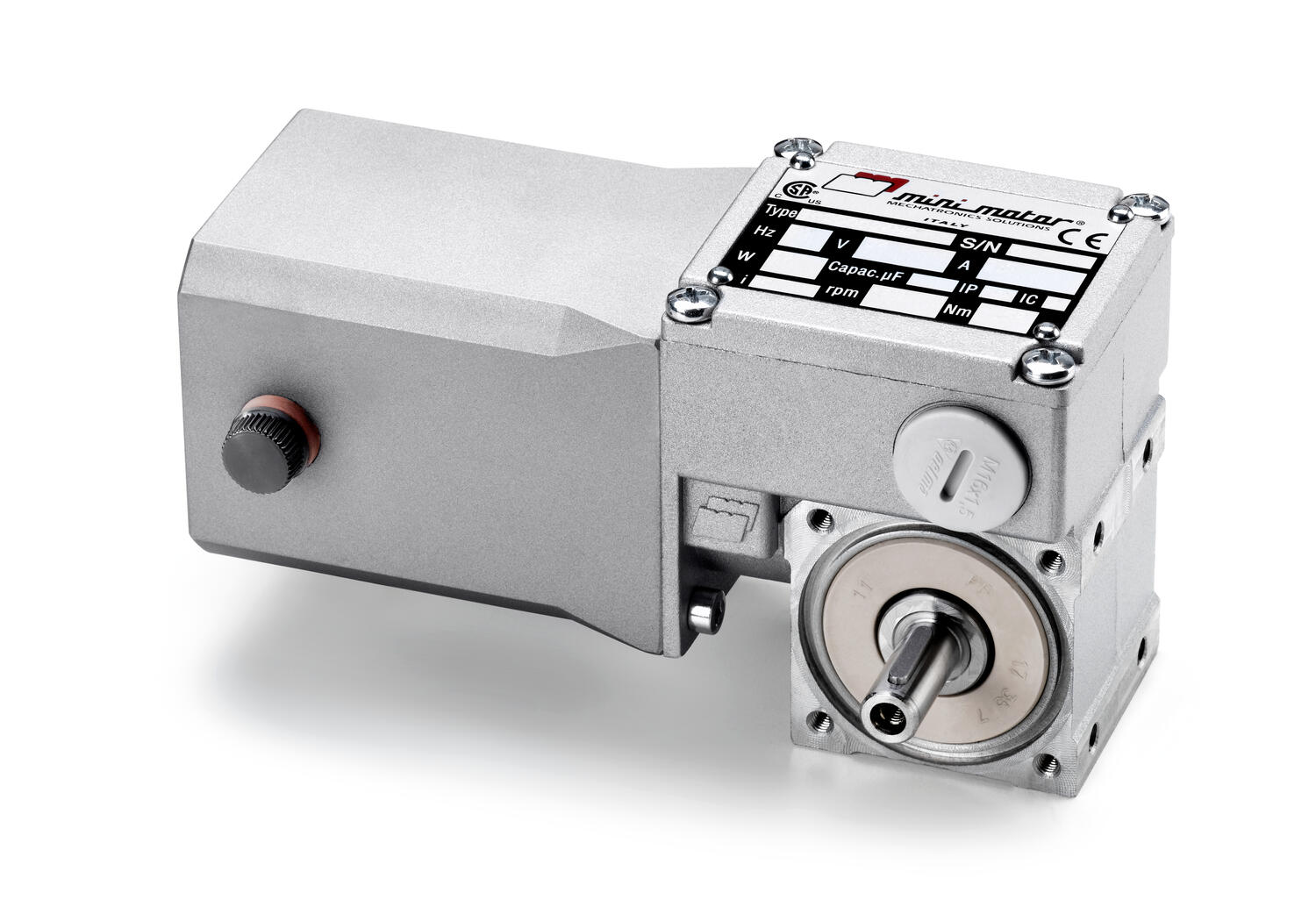

Minimotor - BC2000MP worm gear motor
- Up to 5.2Nm
- 37W output power
- Up to 5.2Nm rated torque
- Compact and powerful
- IP65 as standard

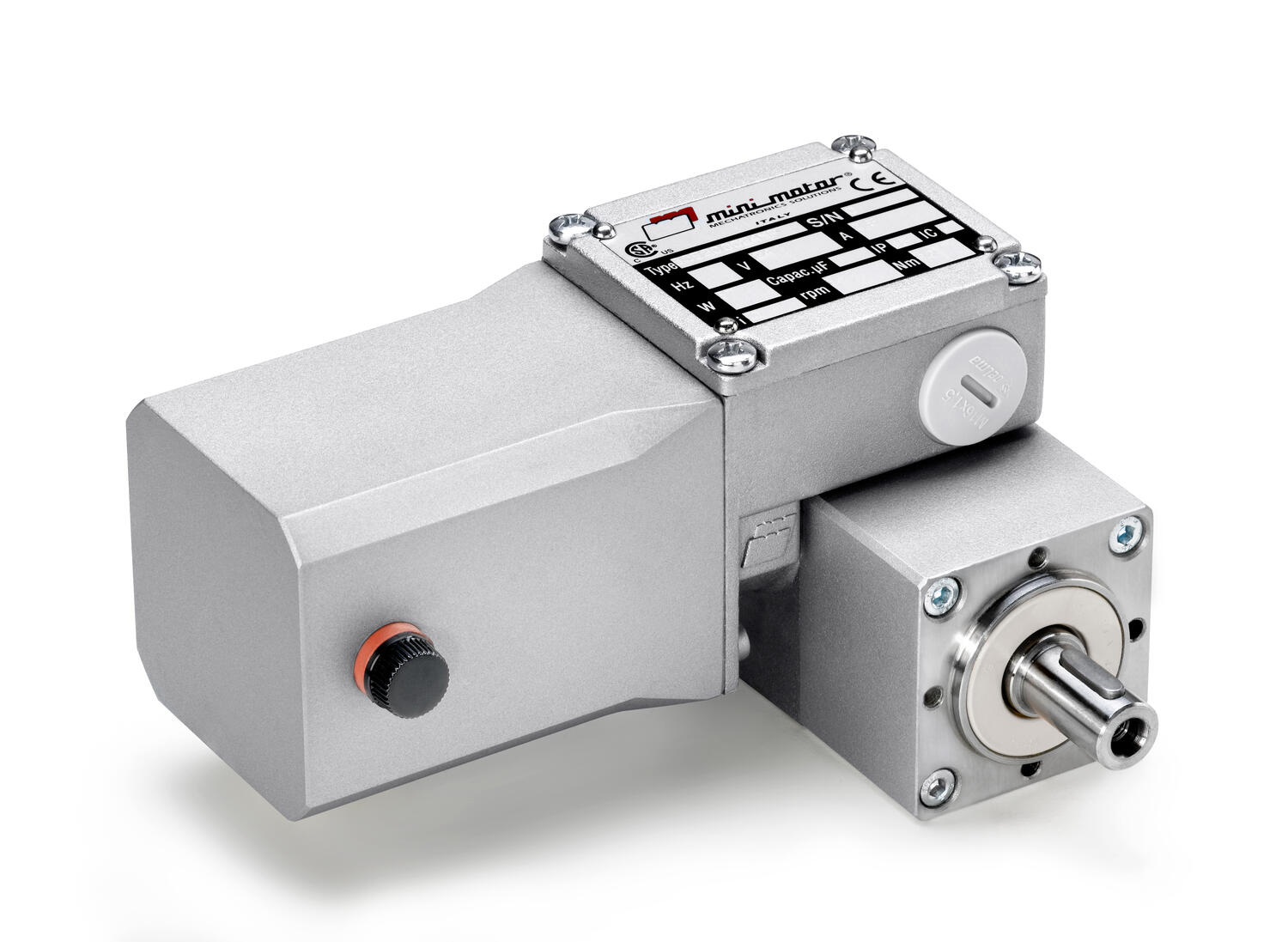

Minimotor - BCE2000MP worm gear motor with planetary reduction
- 12 or 24Vdc
- 37W delivered power
- Up to 15Nm rated torque
- Compact and powerful
- IP65 as standard

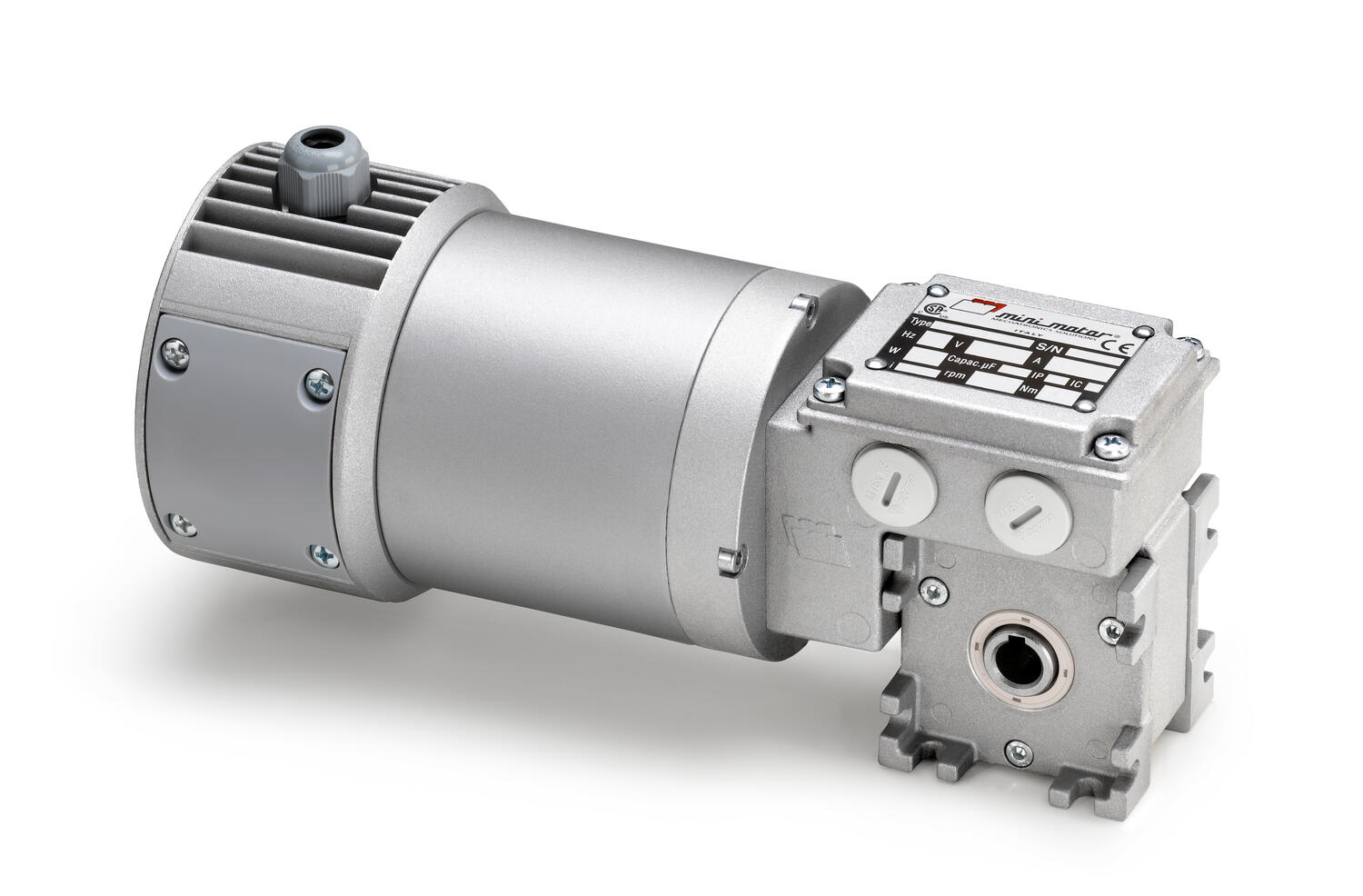

Minimotor - MCC worm gear motor
- 12 or 24VDC
- 37 to 150W delivered power
- Up to 9Nm rated torque
- B3 foot or B5 flange mounting
- IP65 as standard

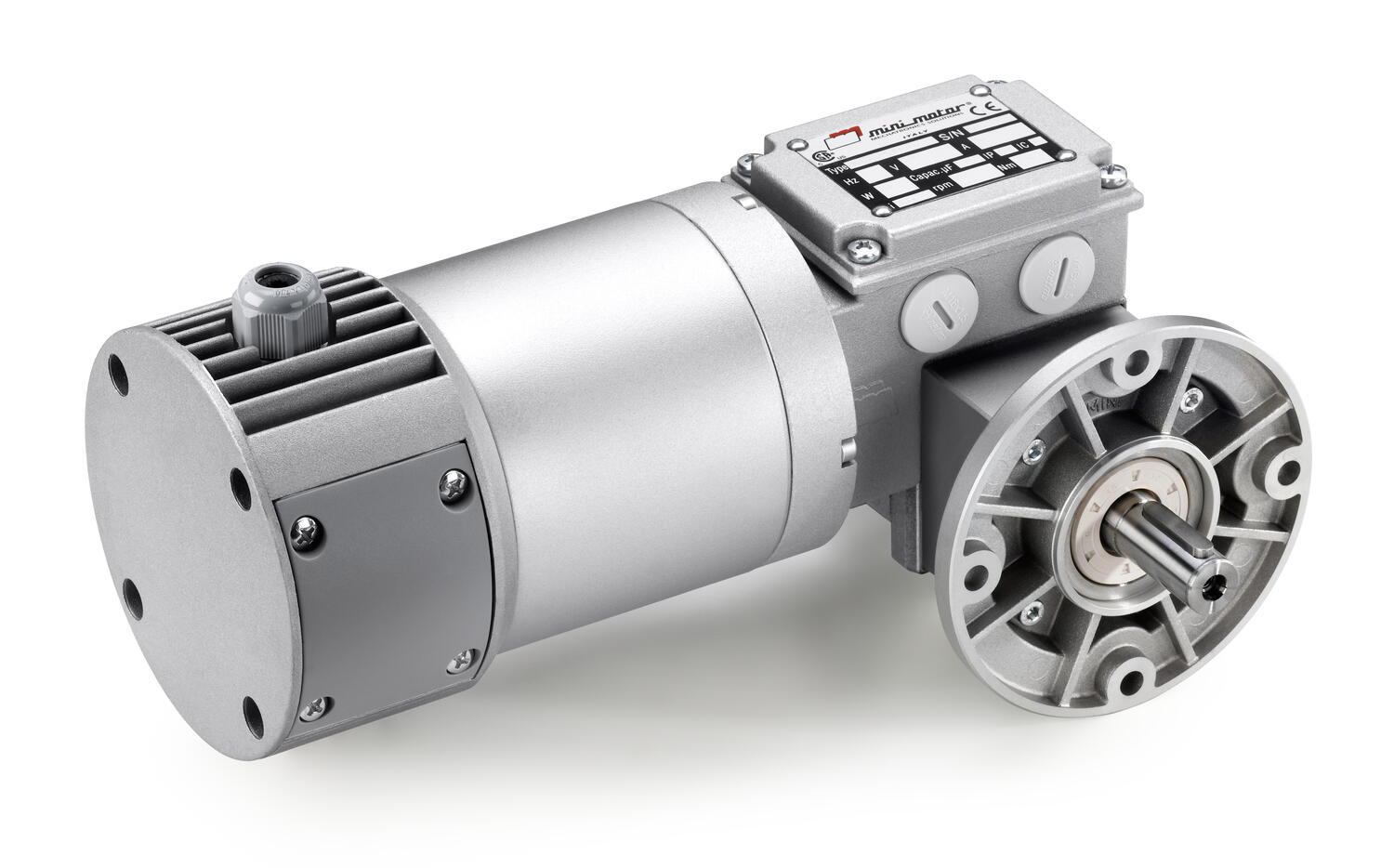

Minimotor - MCCE worm gear motor with planetary reduction
- 12 or 24VDC
- 37 to 150W delivered power
- Up to 23.5Nm rated torque
- B3 foot or B5 flange mounting
- IP65 as standard

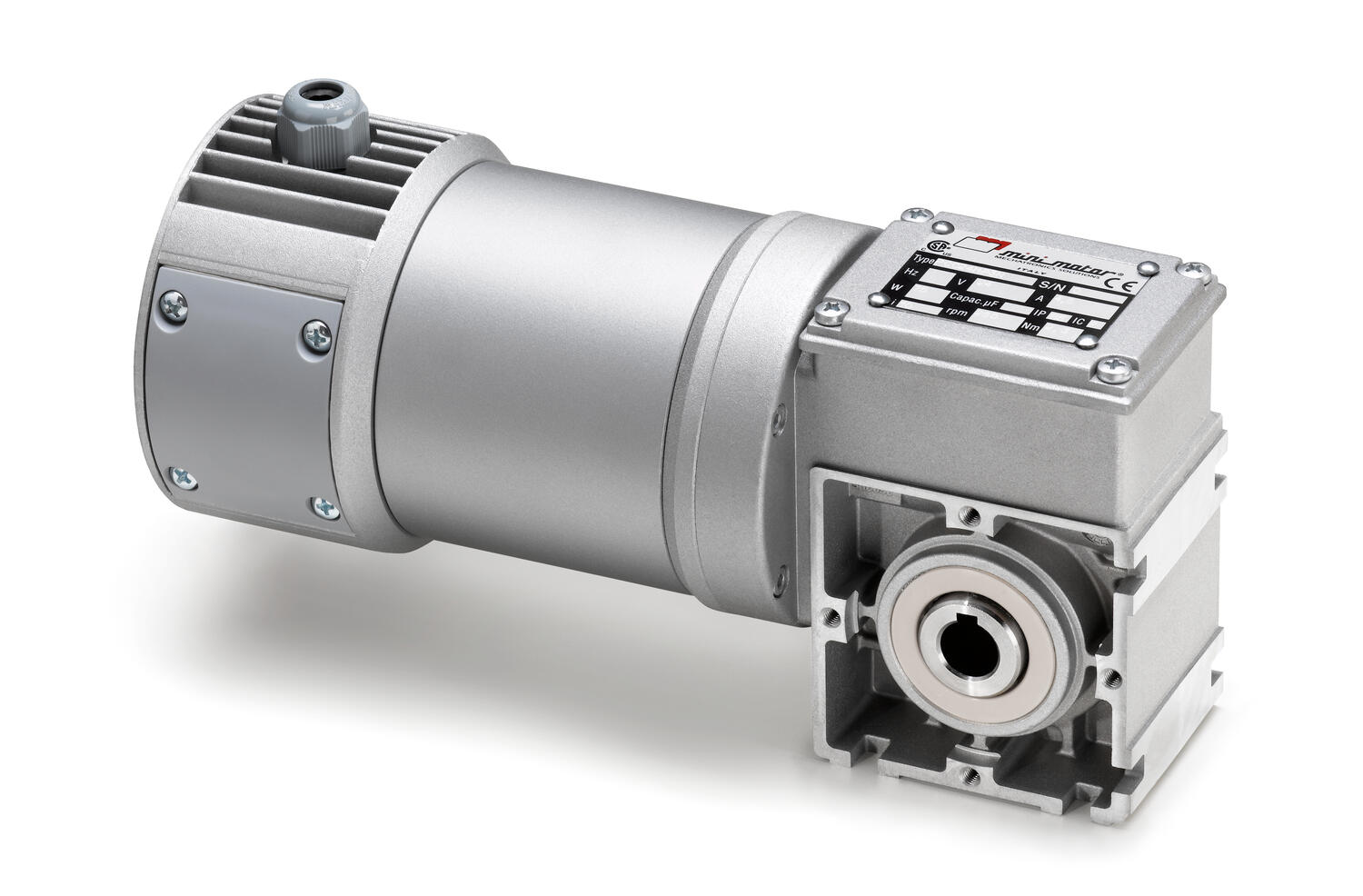

Minimotor - PCC worm gear motor
- 12 or 24VDC
- 75 to 150W delivered power
- Up to 18Nm rated torque
- B3 foot or B5 flange mounting
- IP65 as standard

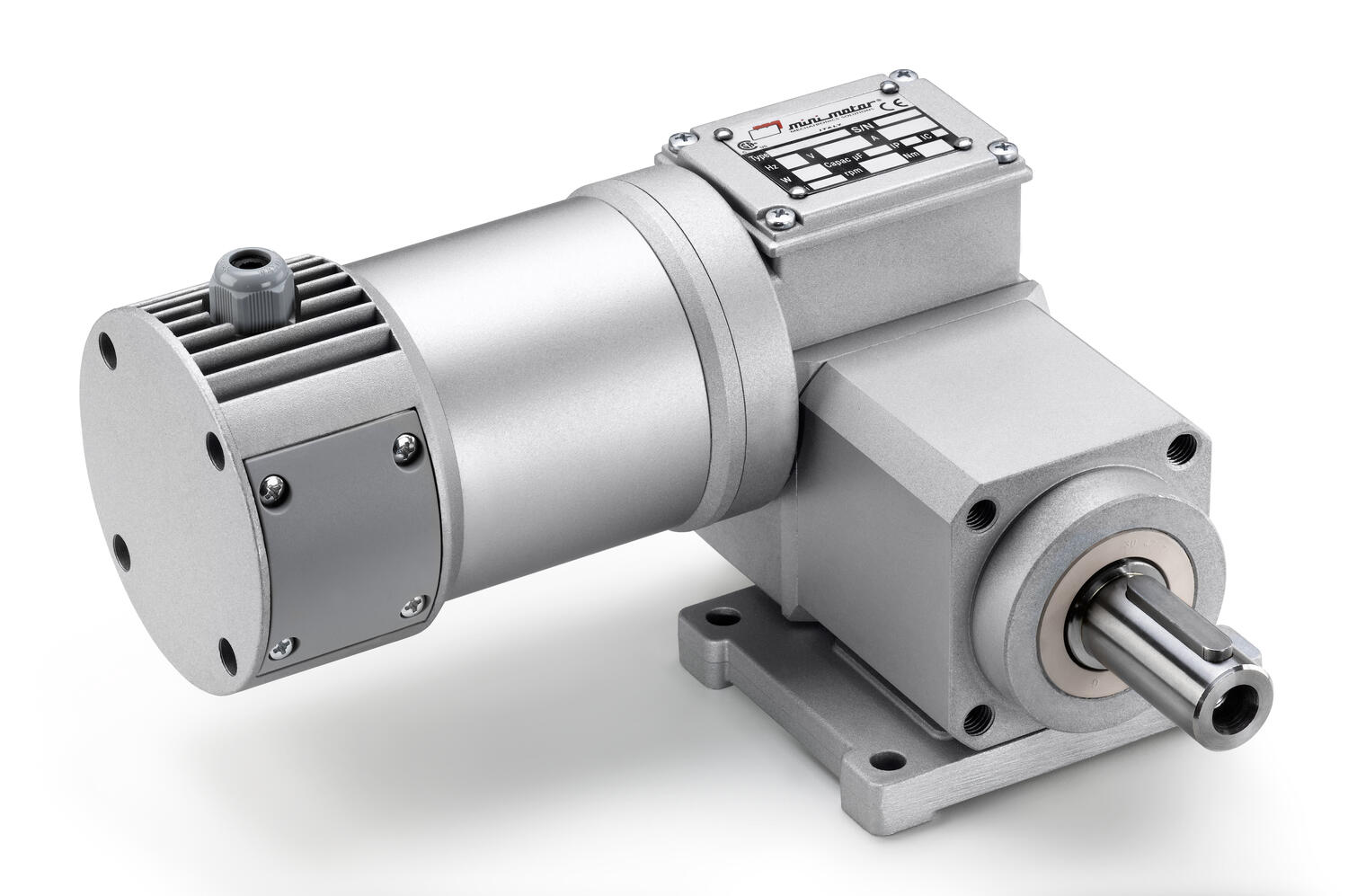

Minimotor - PCCE worm gear motor with planetary reduction
- 12 or 24VDC
- 75 to 150W delivered power
- Up to 82Nm rated torque
- B3 foot or B5 flange mounting
- IP65 as standard

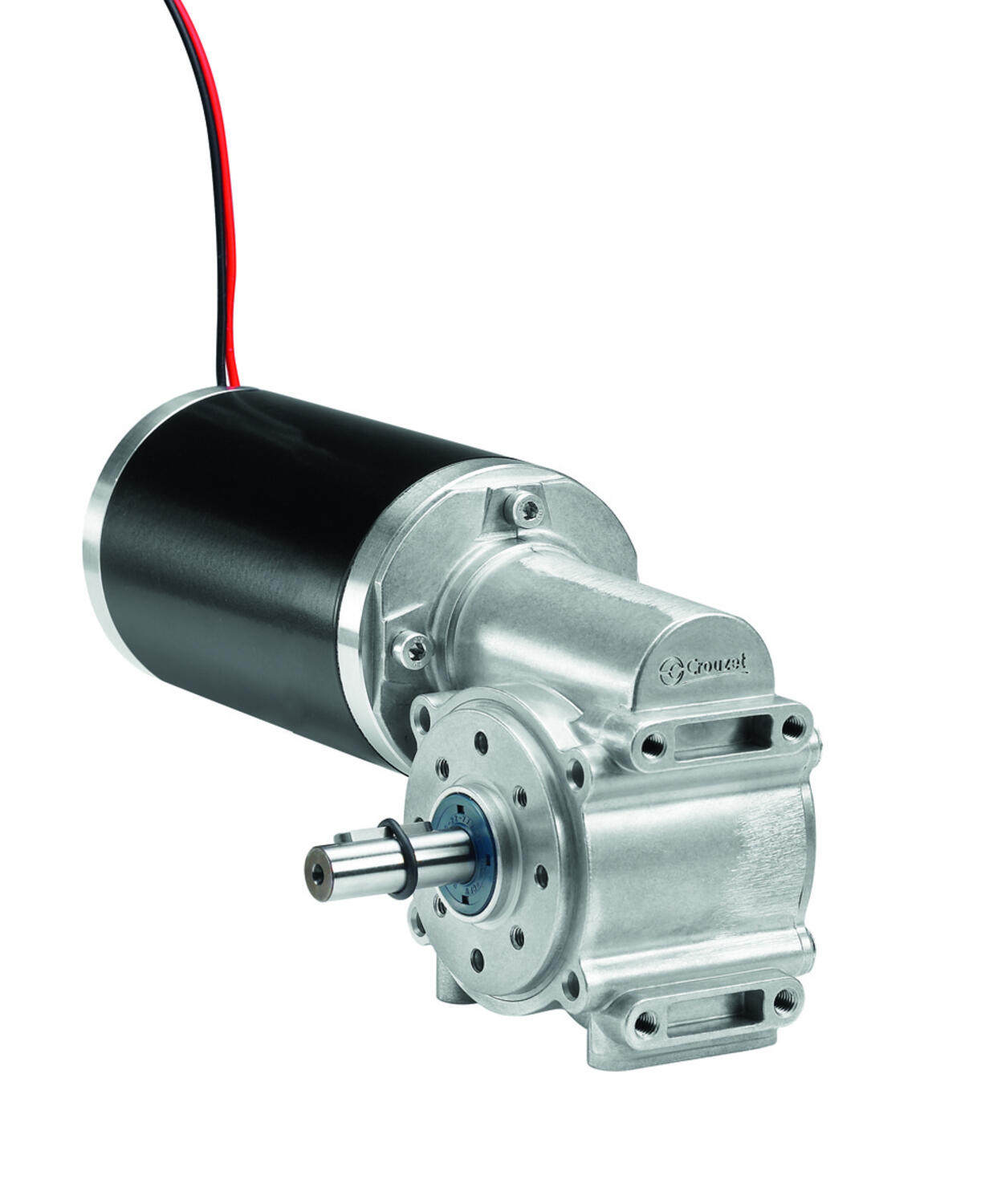

Crouzet - 89831/89891 worm gear motors
DCmind series - high performance DC motors, 57-104W
- 12 - 24Vdc
- Up to 10Nm
- Up to 686rpm
- Very low noise and vibration levels
- IP65 as standard

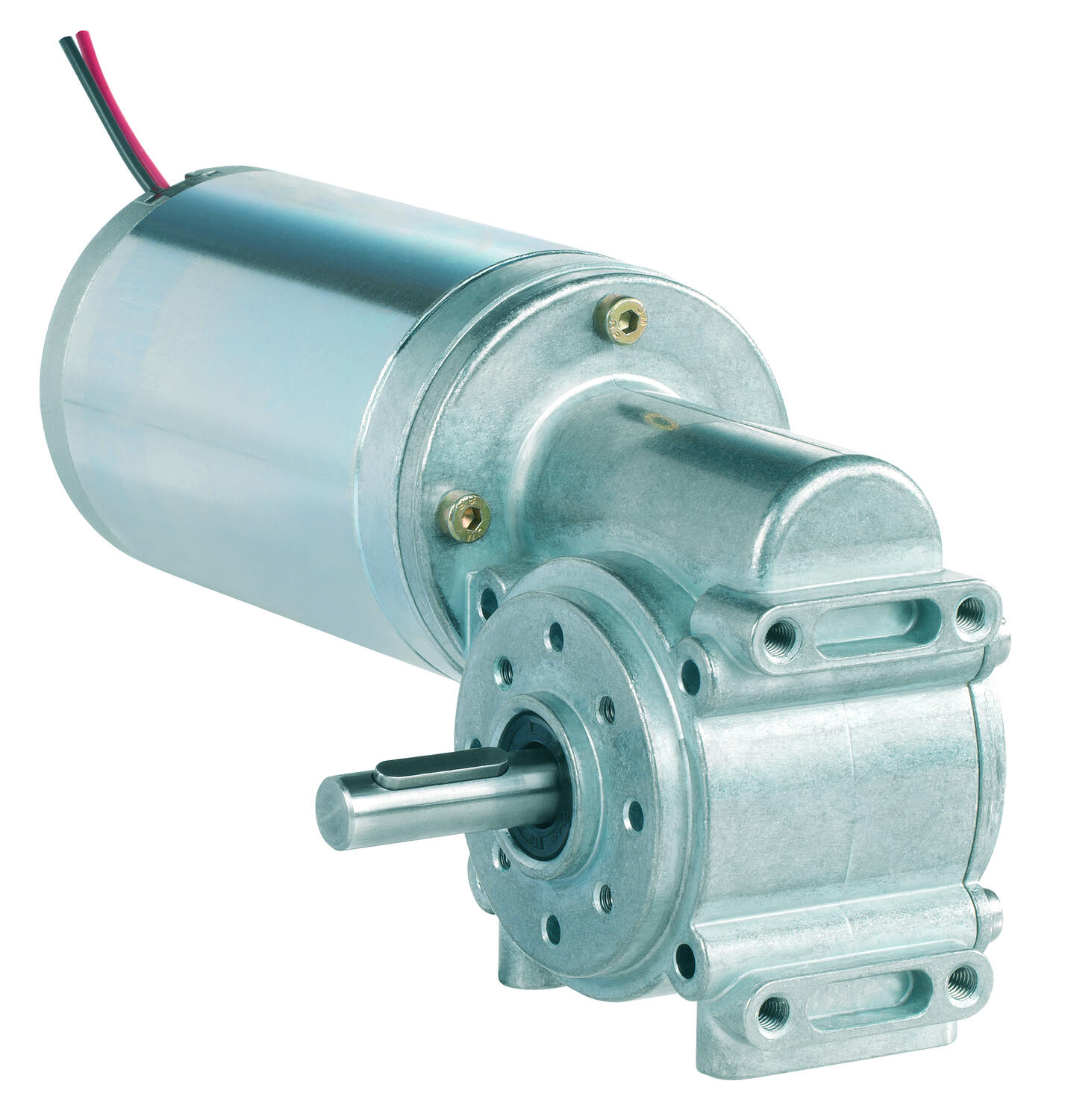

Crouzet - 80831*** worm gear motor
Industrial DC Series
- 12-48 Vdc, 10Nm max, 33W
- Speed range: 30 to 300 rpm
- High starting torque
- Compact, right angled gear motor

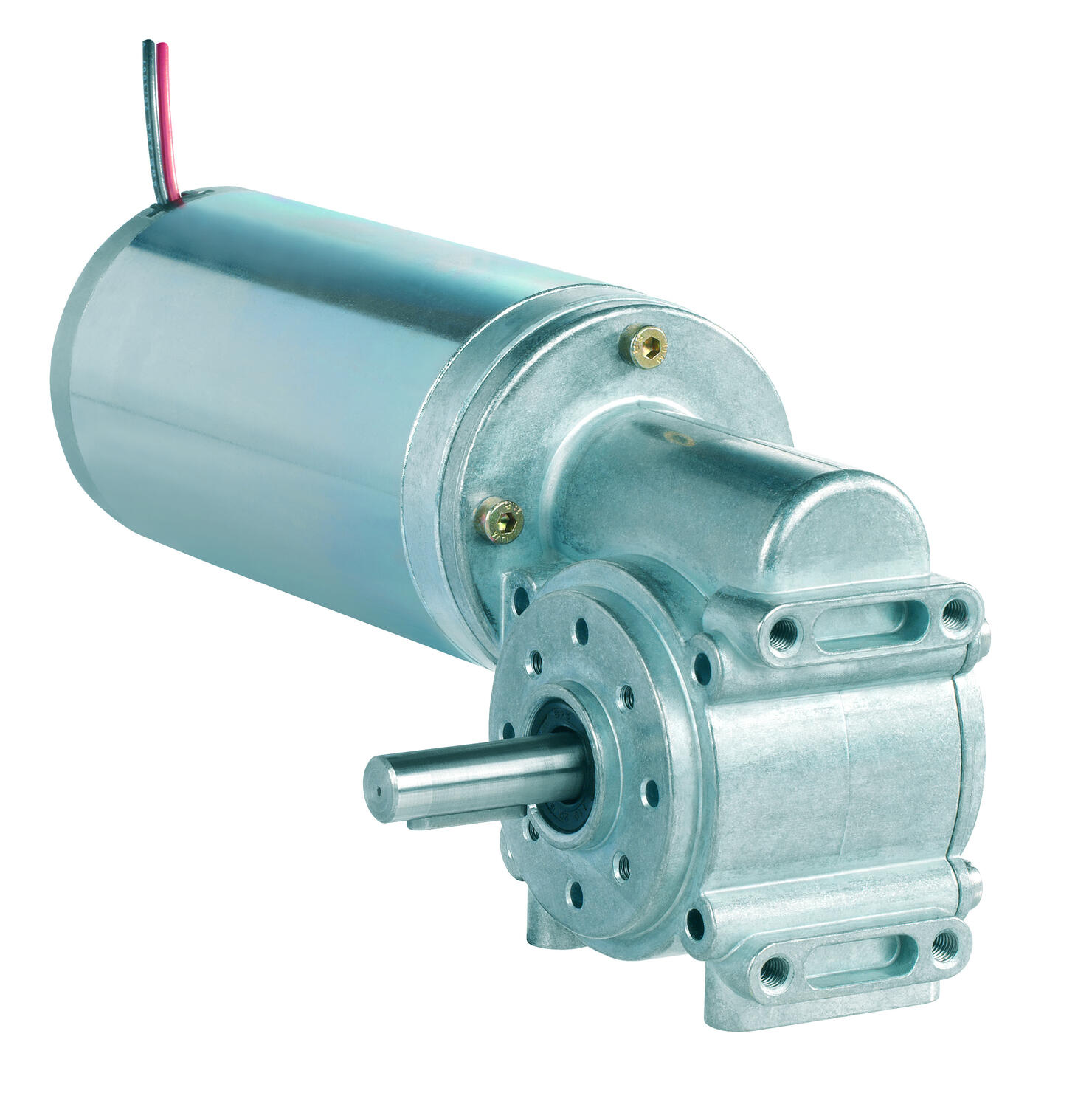

Crouzet - 80891*** worm gear motor
Industrial DC Series
- 24-48 Vdc, 10Nm max, 255W
- Speed range: 64 to 640 rpm
- High starting torque
- Compact, right angled gear motor
