DC Motor with Inline Gearbox
Planetary offer central drive and spur gear-boxes generally have the output shaft off centre to allow for the gear interaction.
Both have their uses. Planetary is normally the most eficient and delivers the largest torque for a given size, where as spur gear-boxes are slightly less efficient and usually quieter by design.

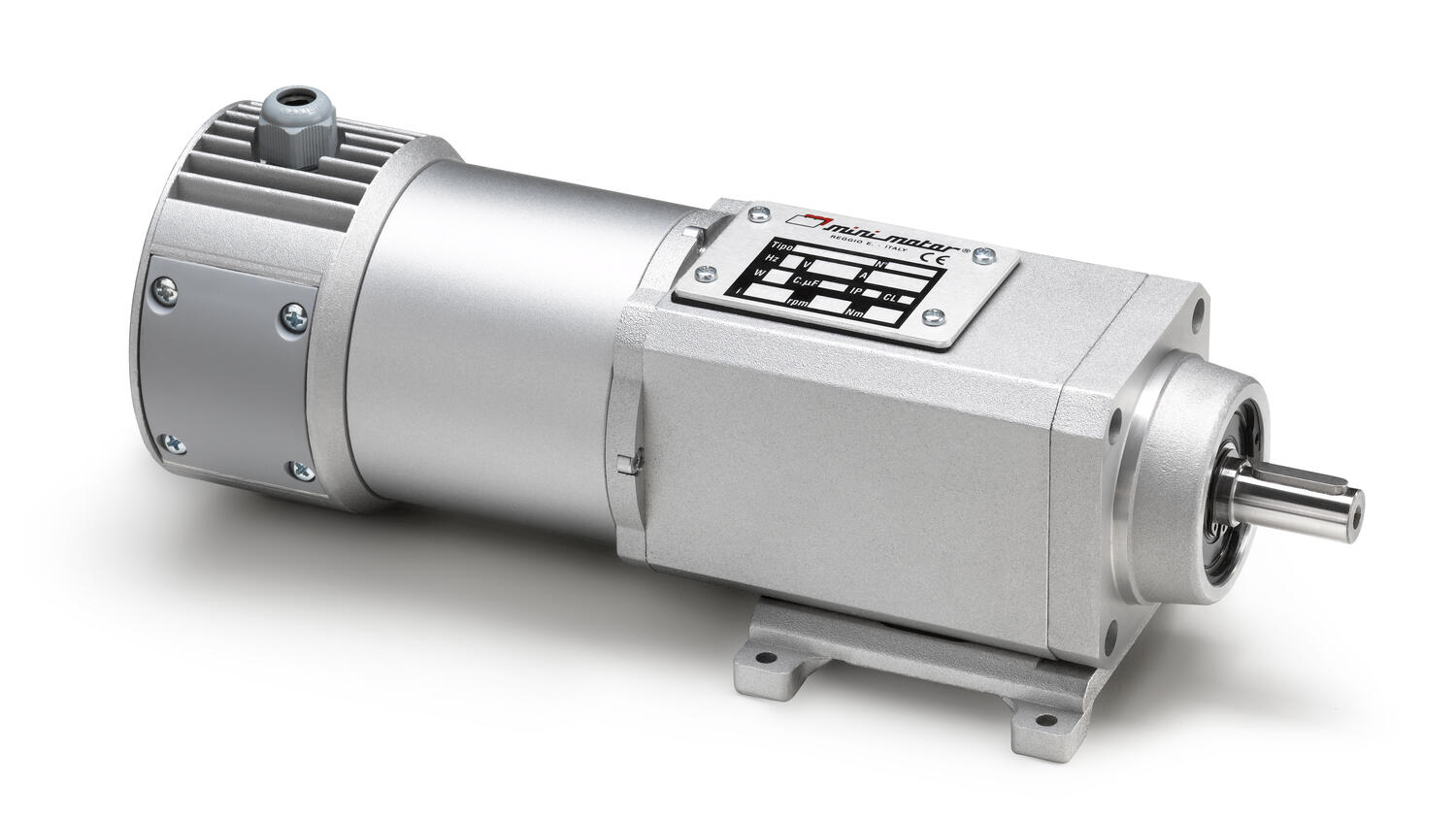

Minimotor - ACC coaxial gear motor
- 12 or 24VDC
- 4 to 37W delivered power
- Up to 5Nm rated torque
- B3 foot or B5 flange mounting
- IP65 as standard
Minimotor - ACCE coaxial gear motor with further planetary reduction
- 12 or 24Vdc
- 4 to 37W delivered power
- Up to 23.5Nm rated torque
- B3 foot or B5 flange mounting
- IP65 as standard
Minimotor - PACE coaxial gear motor with aditional planetary gear
- 12 or 24VDC
- 60 to 230W delivered power
- Up to 90Nm rated torque
- B3 foot or B5 flange mounting
- IP65 as standard
Minimotor - PAC coaxial gear motor
- 12 or 24VDC
- 60 to 230W delivered power
- Up to 20Nm rated torque
- B3 foot or B5 flange mounting
- IP65 as standard
DOGA 253 DC motor with planetary gearbox
52mm diameter DC motor or gearmotor
- Compact, modular 12–24V DC motor
- Configurable drive options (gear, brake, ECU)
- Integrated Hall sensor, CANopen optional
- Up to 54 W and 1.44 Nm
- IP69K, built for harsh environments
DOGA - 263 DC motor with planetary gearbox
Doga 263 DC motor / gear motor
- Modular, build‑to‑fit motor solution
- Compact size, strong 97W performance
- Integrated feedback as standard
- Flexible control with optional CAN & I/O
- Up to IP69K
Crouzet - 42mm diameter DC motor with panetary gear - DCmind Brush Series
- 12→48 V dc, 15→35 W, 9→344 rpm, 15 Nm max
- Low noise/vibration
- High efficiency
- Long life
- IP65 as standard
Crouzet - 52mm diameter DC motor with panetary gear - DCmind Brush Series
- 12→120 V dc, 57→104 W, 10→490 rpm, 25 Nm max
- Low noise/vibration
- High efficiency
- Long life
- IP65 as standard

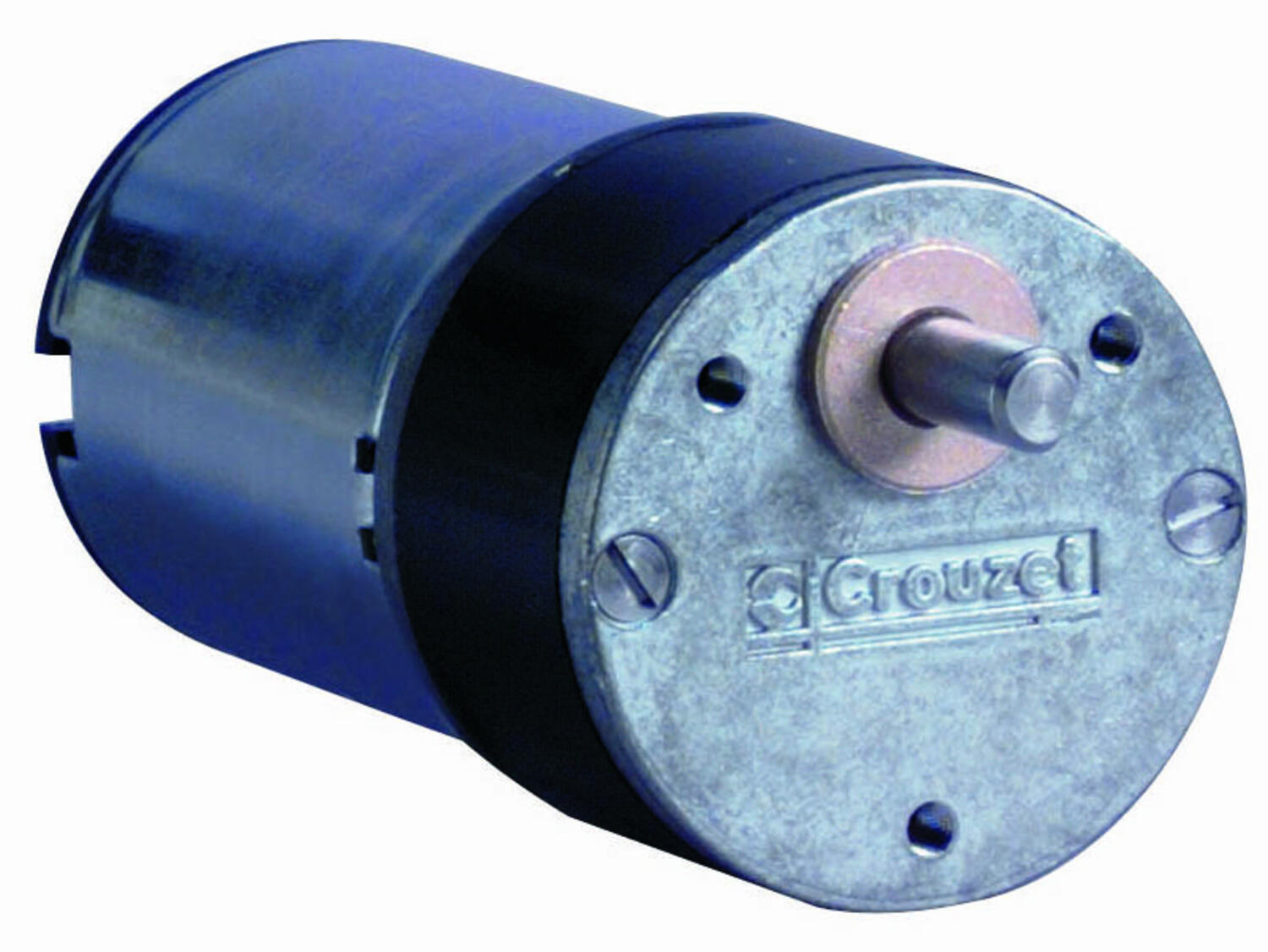

Crouzet - 82862xxx DC motor with spur gearbox - Industrial DC Series
- 12 - 24 V dc, 0.5 Nm max, 3 W
- Speed range: 1 to 895 rpm
- High starting torque
- Compact, inline gear motor

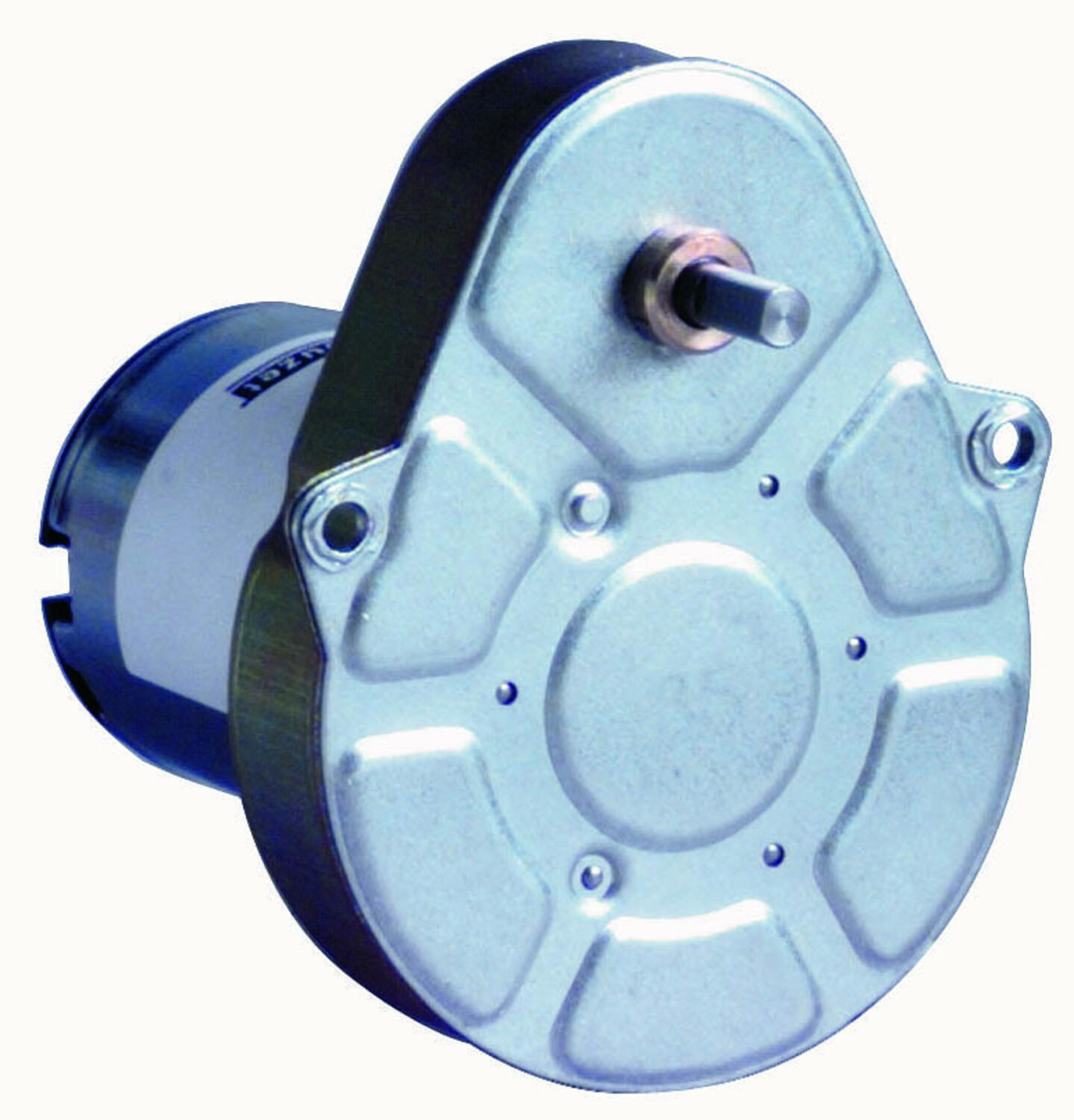

Crouzet - 82861xxx DC motor with spur gearbox - Industrial DC Series
- 12 - 24 V dc, 0.5 Nm max, 3 W
- Speed range: 0.3 to 430 rpm
- High starting torque
- Compact, inline gear motor

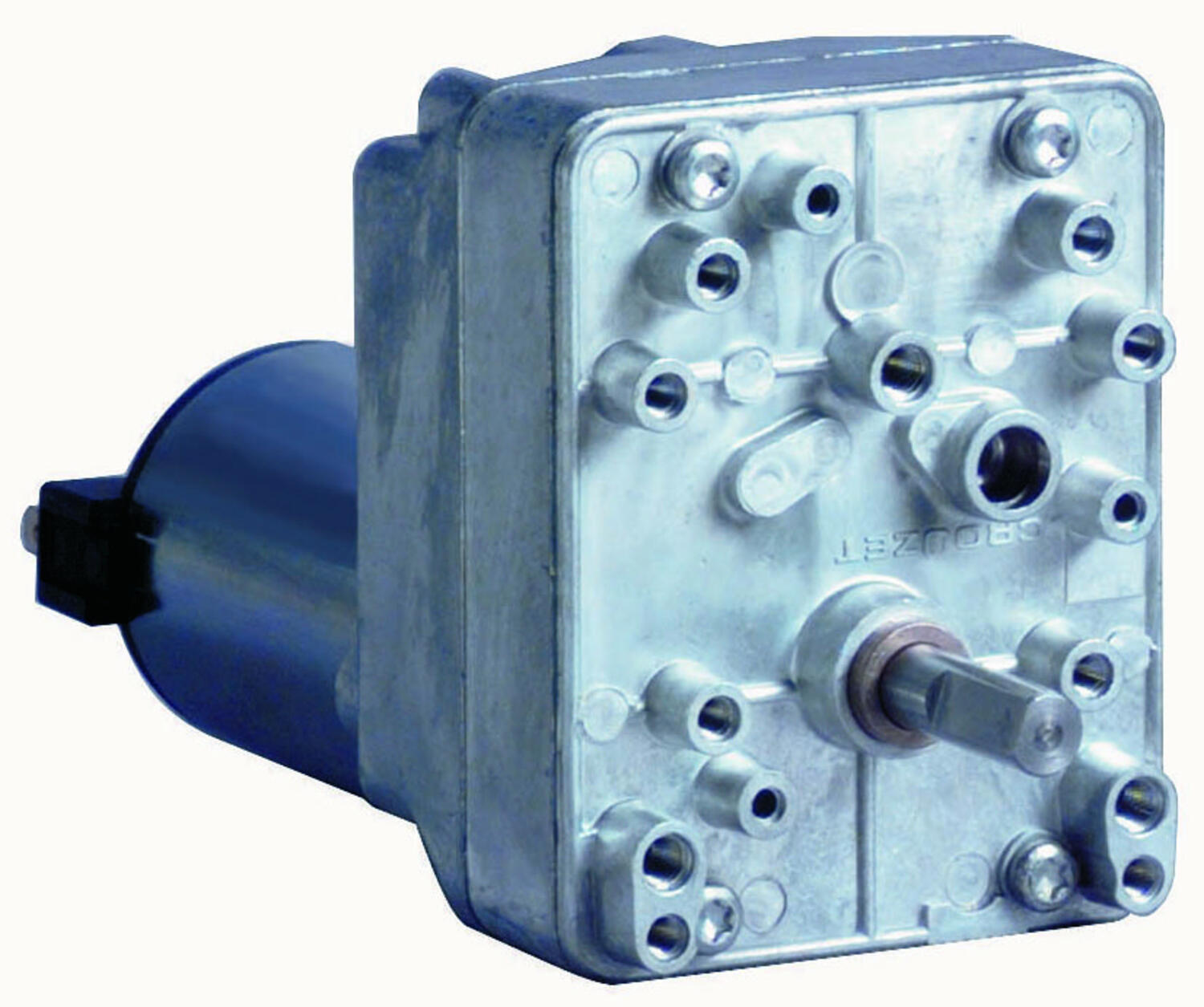

Crouzet - 82802xxx DC motor with spur gearbox - Industrial DC Series
- 12 - 24 V dc, 1.2 Nm max, 17 W
- Speed range: 20 to 100 rpm
- High starting torque
- Compact, inline gear motor

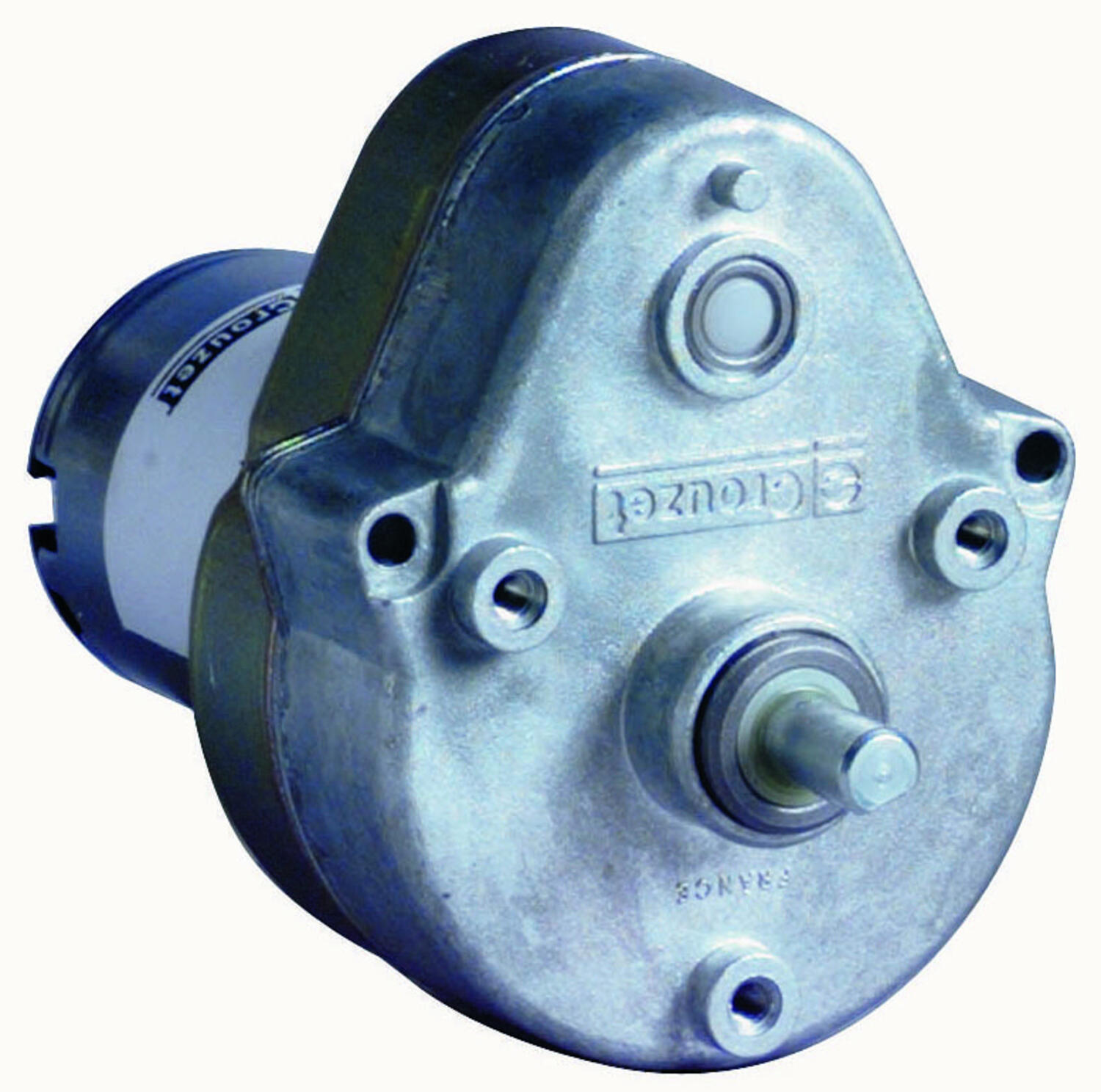

Crouzet - 82869xxx DC motor with spur gearbox - Industrial DC Series
- 12 - 24 V dc, 2 Nm max, 3 W
- Speed range: 0.3 to 430 rpm
- High starting torque
- Compact, inline gear motor

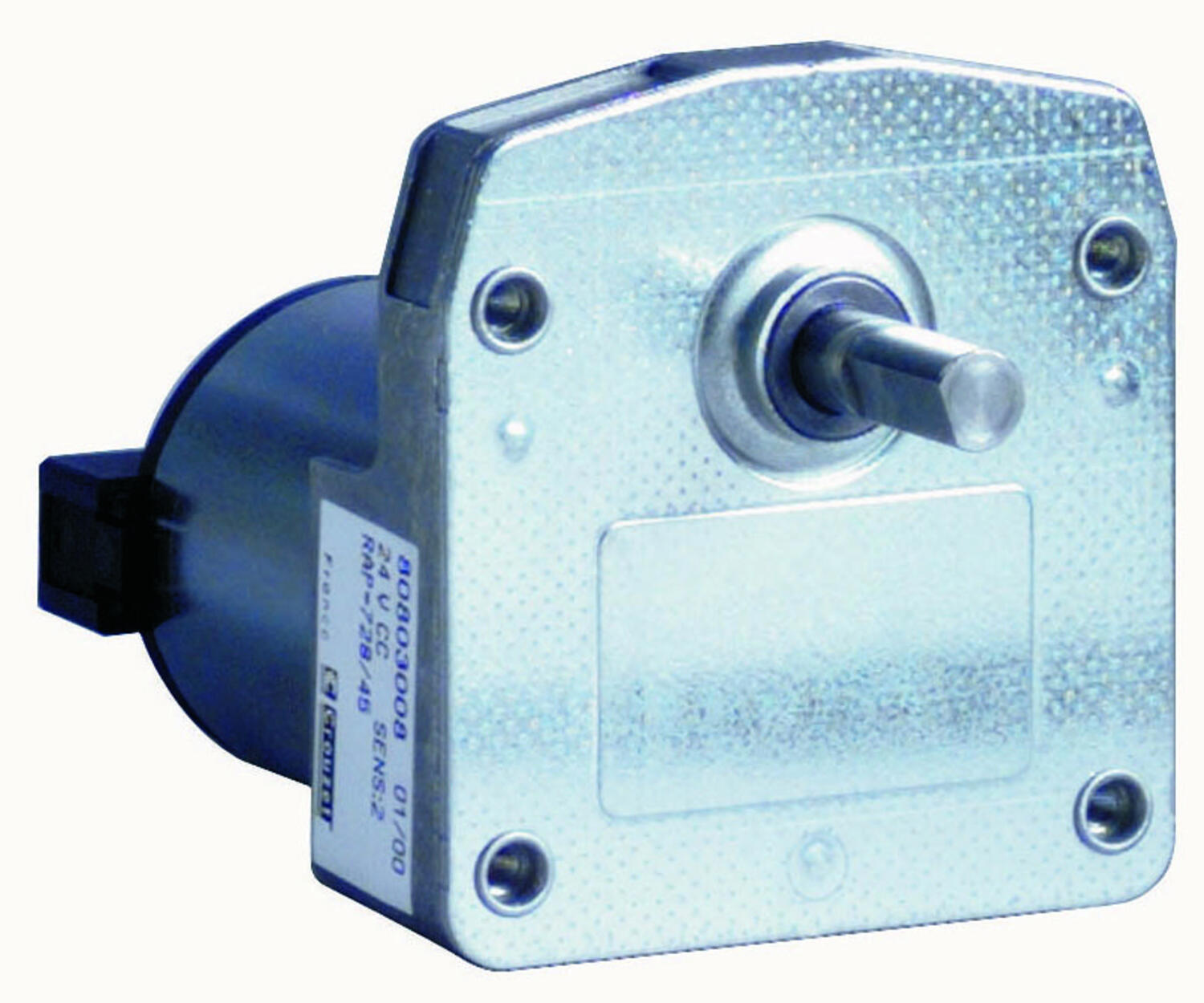

Crouzet - 80803xxx DC motor with spur gearbox - Industrial DC Series
- 12 - 24 V dc, 2 Nm max, 17 W
- Speed range: 60 to 400 rpm
- High starting torque
- Compact, inline gear motor
Crouzet - 80804xxx DC motor with spur gearbox - Industrial DC Series
- 12 - 24 V dc, 2 Nm max, 17 W
- Speed range: 1 to 40 rpm
- High starting torque
- Compact, inline gear motor

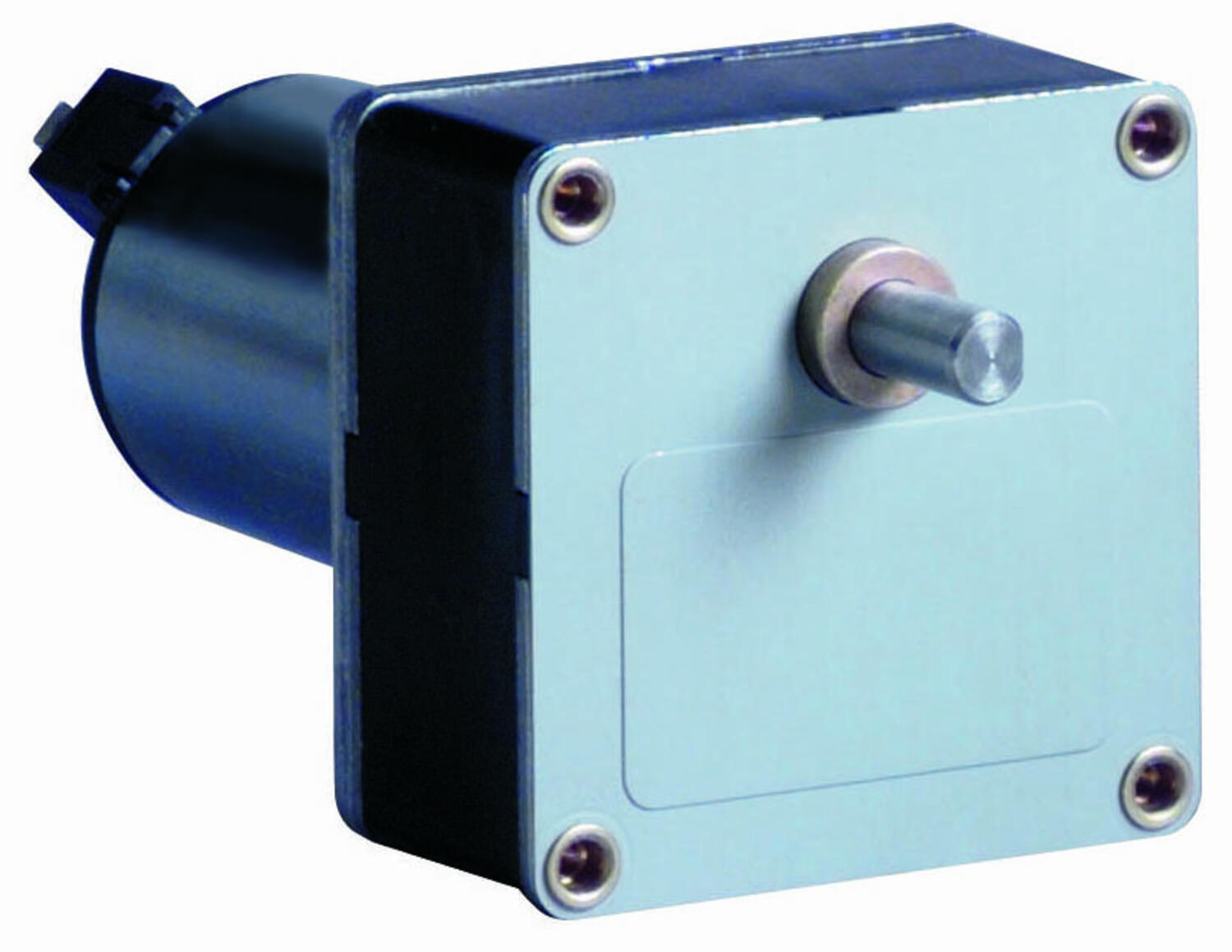

Crouzet - 80807xxx DC motor with spur gearbox - Industrial DC Series
- 12 - 24 V dc, 5 Nm max, 17 W
- Speed range: 1 to 208 rpm
- High starting torque
- Compact, inline gear motor

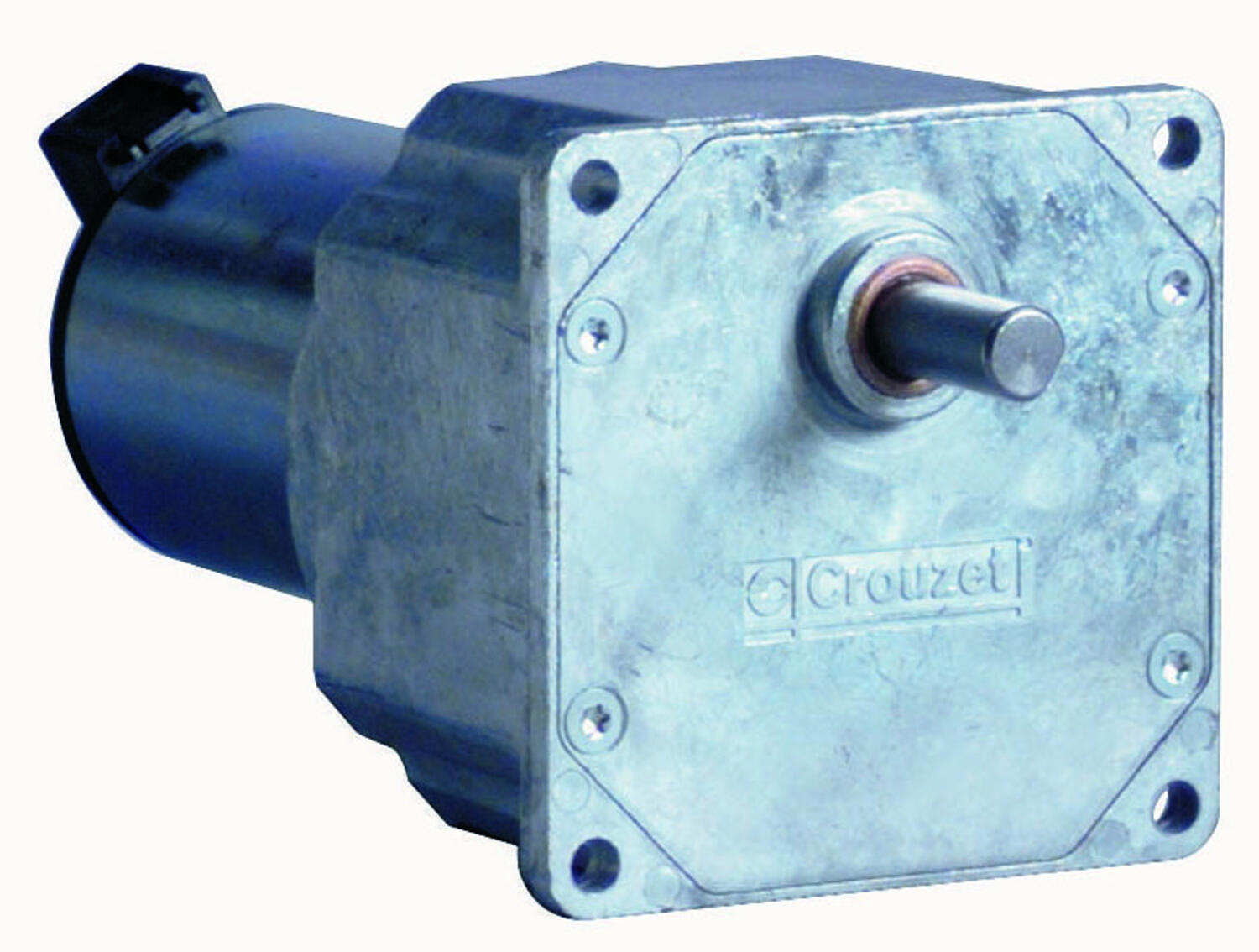

Crouzet - 80805xxx DC motor with spur gearbox - Industrial DC Series
- 12 - 24 V dc, 5 Nm max, 17 W
- Speed range: 10.5 to 616 rpm
- High starting torque
- Compact, inline gear motor

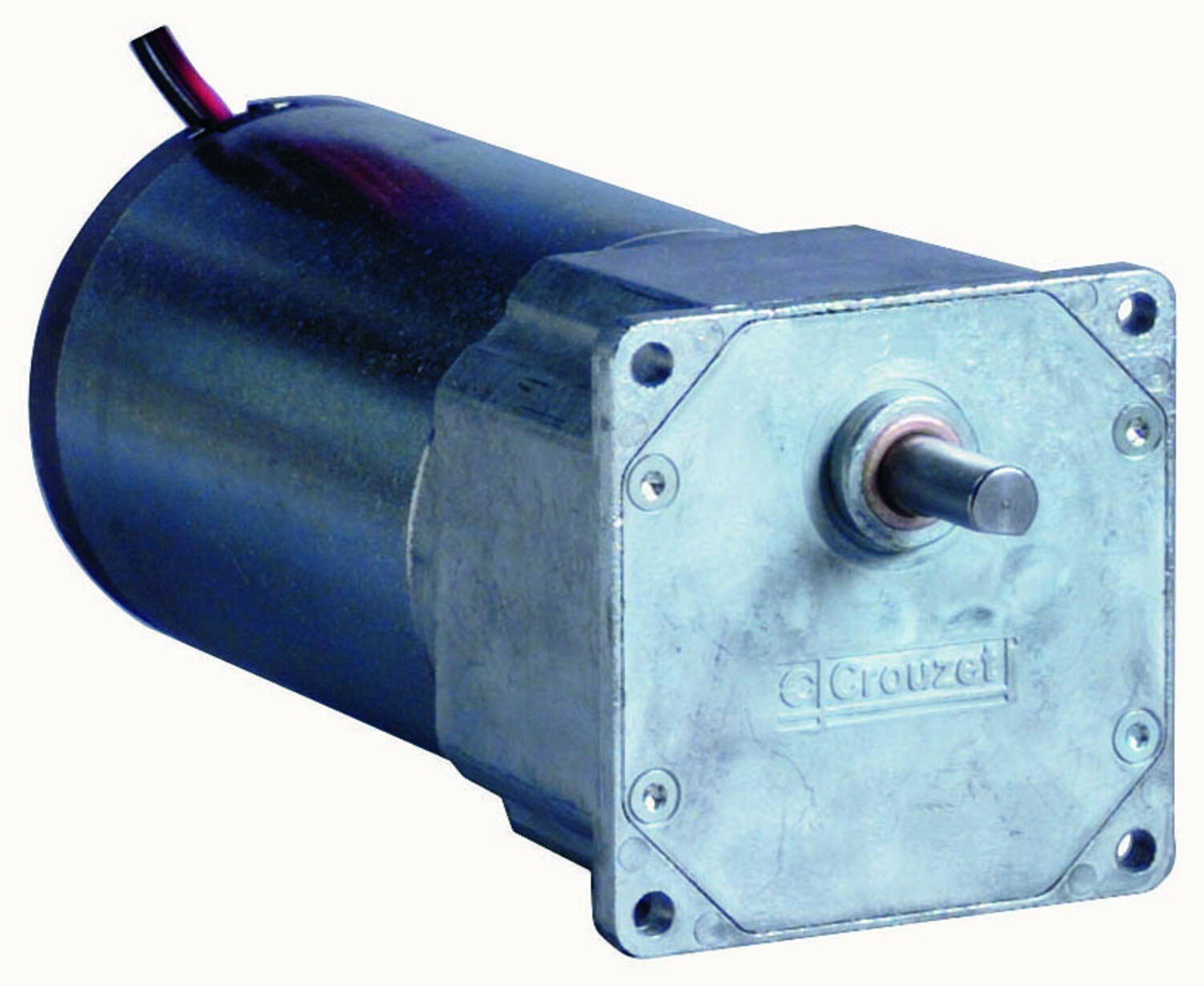

Crouzet - 80835xxx DC motor with spur gearbox - Industrial DC Series
- 12 - 24 V dc, 5 Nm max, 33 W
- Speed range: 7.4 to 426 rpm
- High starting torque
- Compact, inline gear motor

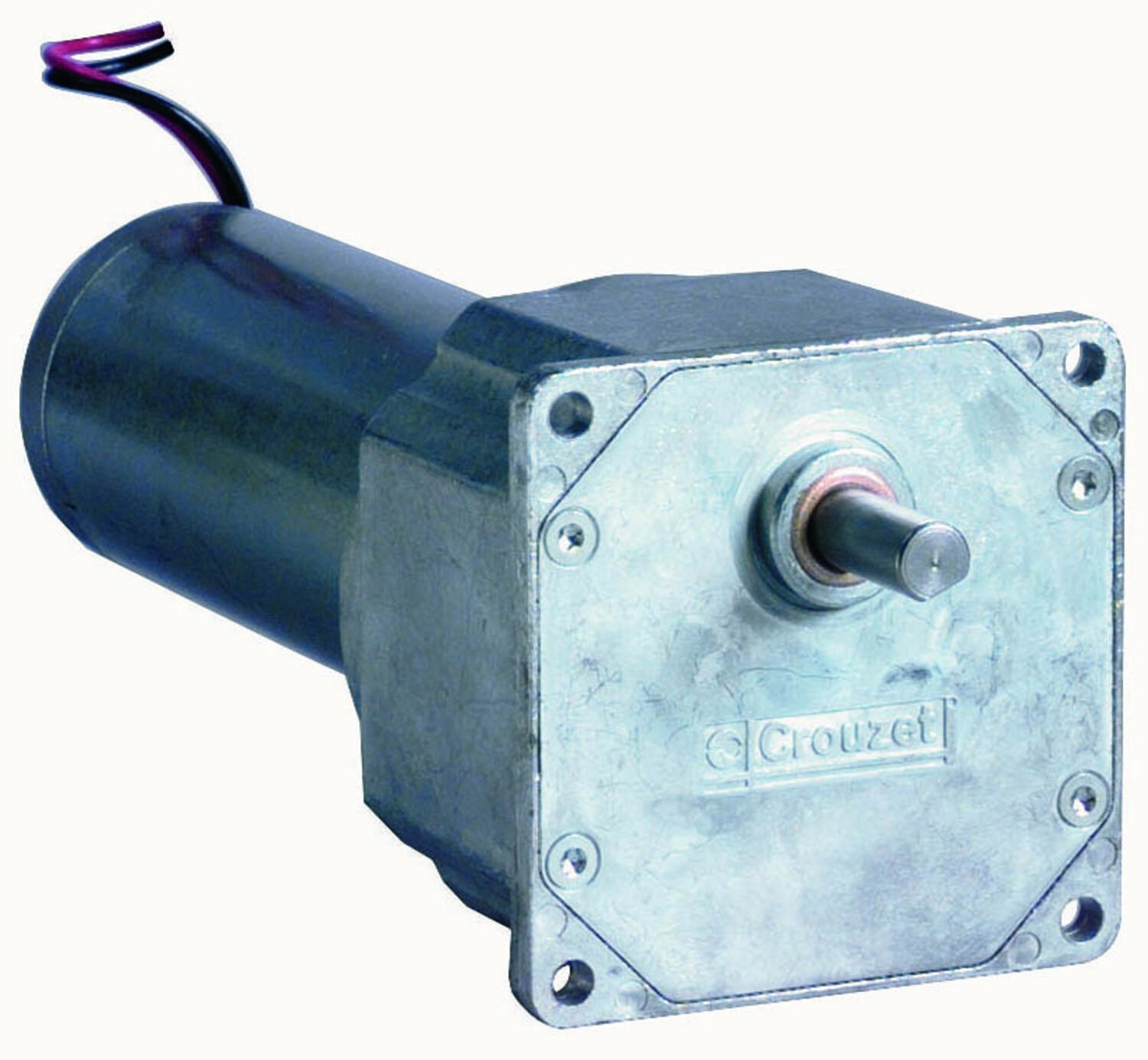

Crouzet - 80855xxx DC motor with spur gearbox - Industrial DC Series
- 12 - 24 V dc, 5 Nm max, 52 W
- Speed range: 13.8 to 805 rpm
- High starting torque
- Compact, inline gear motor

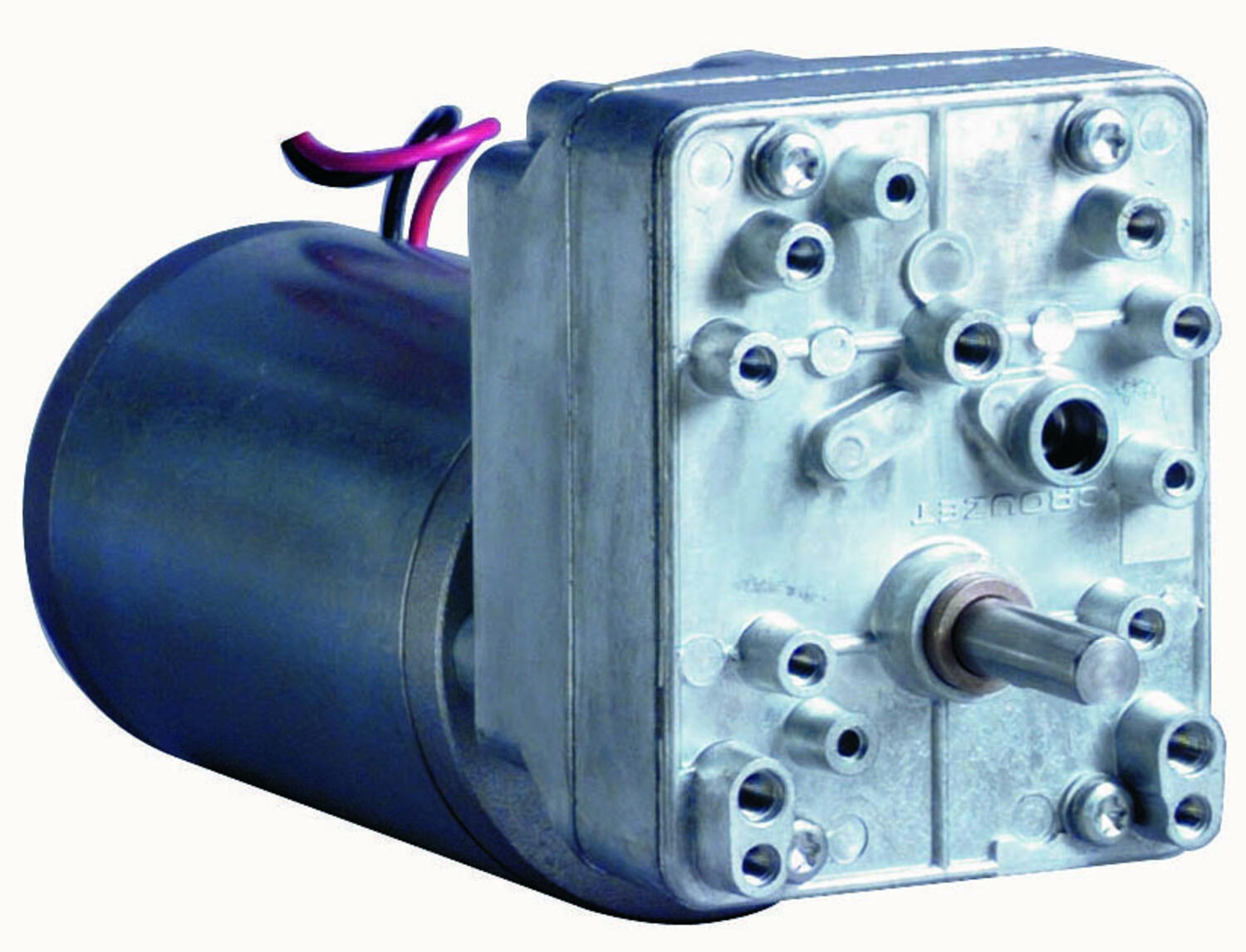

Crouzet - 828325xx DC motor with spur gearbox - Industrial DC Series
- 12 - 24 V dc, 6 Nm max, 33 W
- Speed range: 6 to 14 rpm
- High starting torque
- Compact, inline gear motor

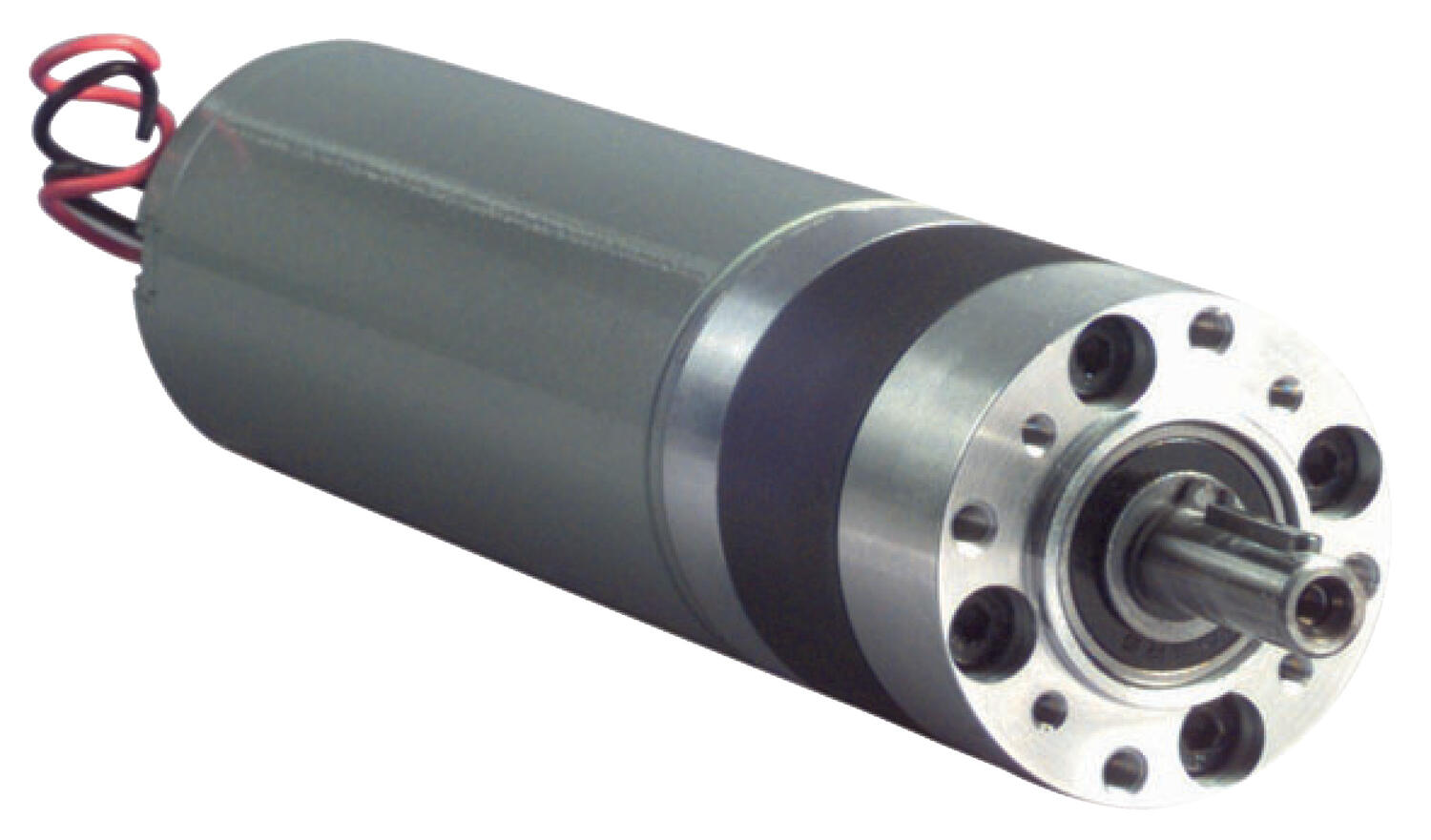

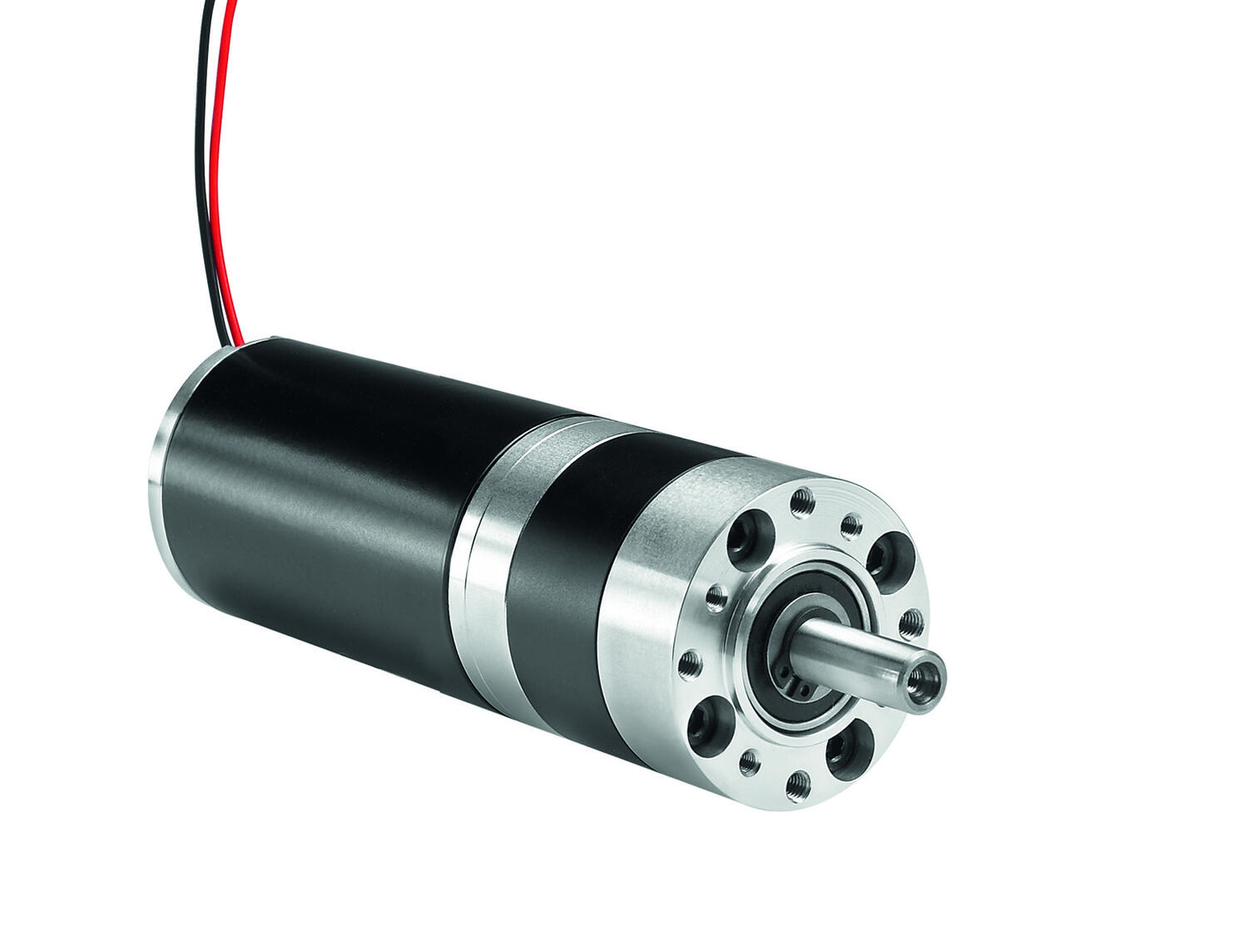

Crouzet - 808593xx DC motor with planetary gearbox - Industrial DC Series
- 12 - 24 V dc, 15 Nm max, 42 W
- Speed range: 11 to 454 rpm
- High starting torque
- 42mm diameter planetary gearbox

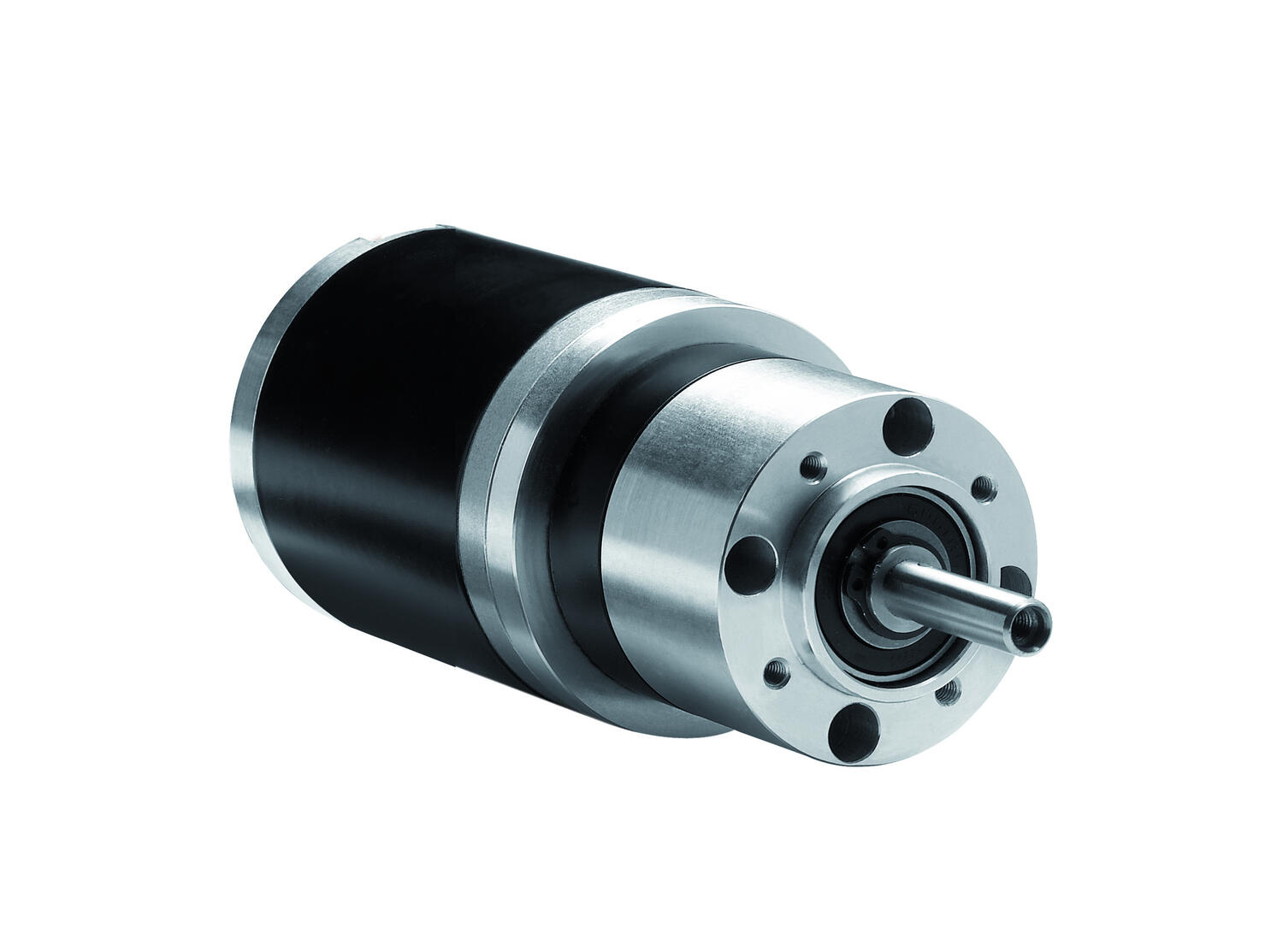

Crouzet - 808995xx DC motor with planetary gearbox - Industrial DC Series
- 24 V dc, 25 Nm max, 195 W
- Speed range: 11 to 474 rpm
- High starting torque
- 52mm diameter planetary gearbox

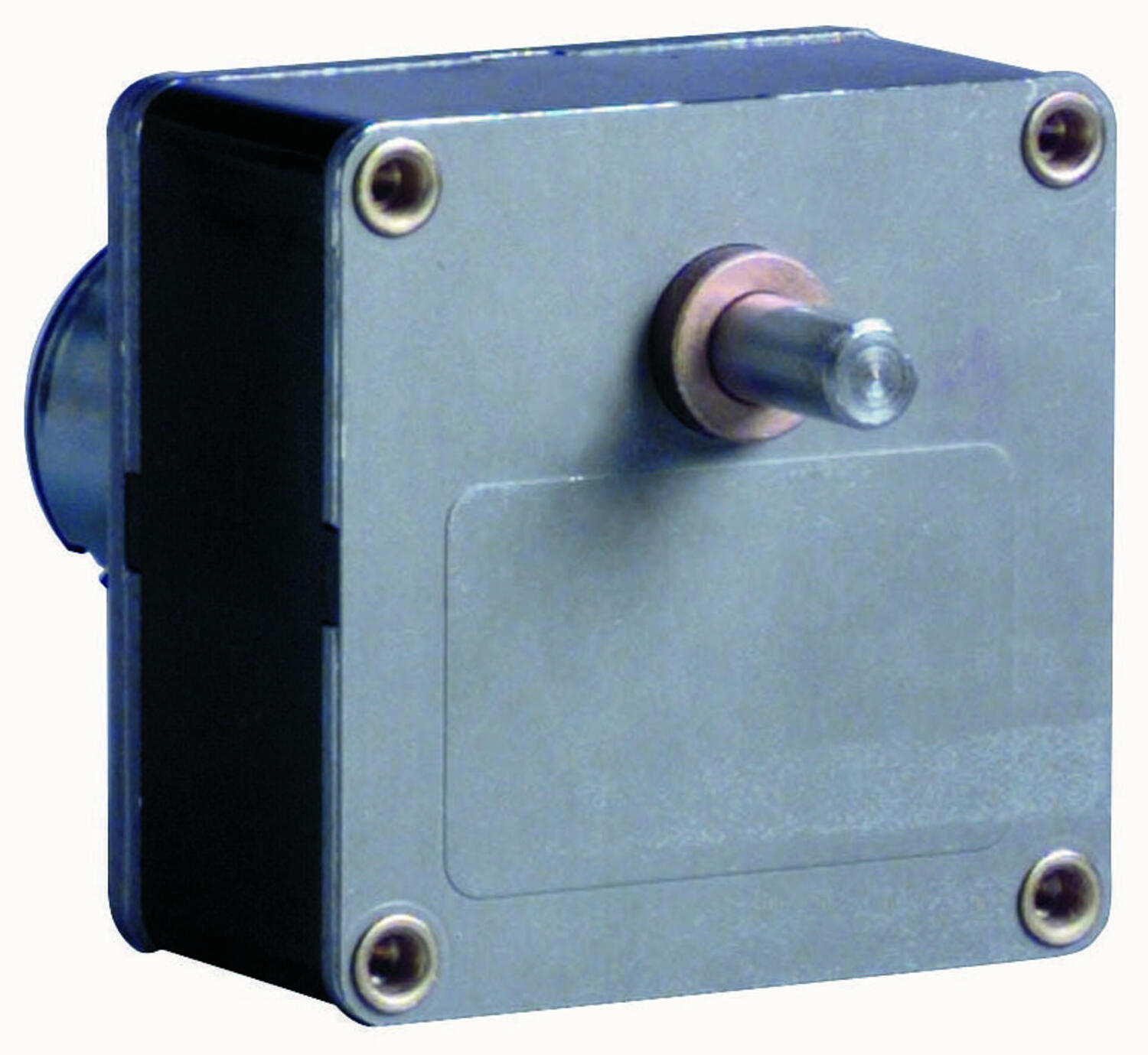

Crouzet - 82867xxx DC motor with spur gearbox - Industrial DC Series
- 12 - 24 V dc, 5 Nm max, 3 W
- Speed range: 1.7 to 344 rpm
- High starting torque
- Compact, inline gear motor
