MINIMOTOR

Minimotor - PA - coaxial gear motor

High quality, designed from the ground up to IP65 rated compact gear motor.



Physically smaller than the majority of similar powered gear motors due to the use of high quality components in precision manufacturing.



Ideally suited to many applications, including label and packaging machines, conveyors, pharmaceutical and medical machinery



MOTOR: Asynchronous single or three phase with 2 or 4 poles, totally enclosed, with External ventilation. Thermal safety cutout on single phase model. Class F winding. IP65 protection according to CEI EN 60529.

GEAR UNIT: Casing in die - cast aluminium. Case - hardened and hardened gear pairs with shafts rotating on roller bearings. Lubrication with long life oil. Sealing rings made in special rubber for high temperatures. 14 gear ratios (i) available, from 6.48 to 372.8. Rated torque 20 Nm. Version B3 or B5.



Please click here for 2D and 3D drawings.



Read more
  • Single or three phase
  • 34 to 180W delivered power
  • Up to 20Nm rated torque
  • B3 foot or B5 flange mounting
  • IP65 as standard

Selected variant

Available in several variants
MINIMOTOR.eps

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Capacitor 5μF
Input voltage ac 230V
IP class IP65
Nominal speed 432 rpm
Nominal torque 1.3
Output power 82 W
Rated current 0.68A
Ratio 6.48:1

Downloads

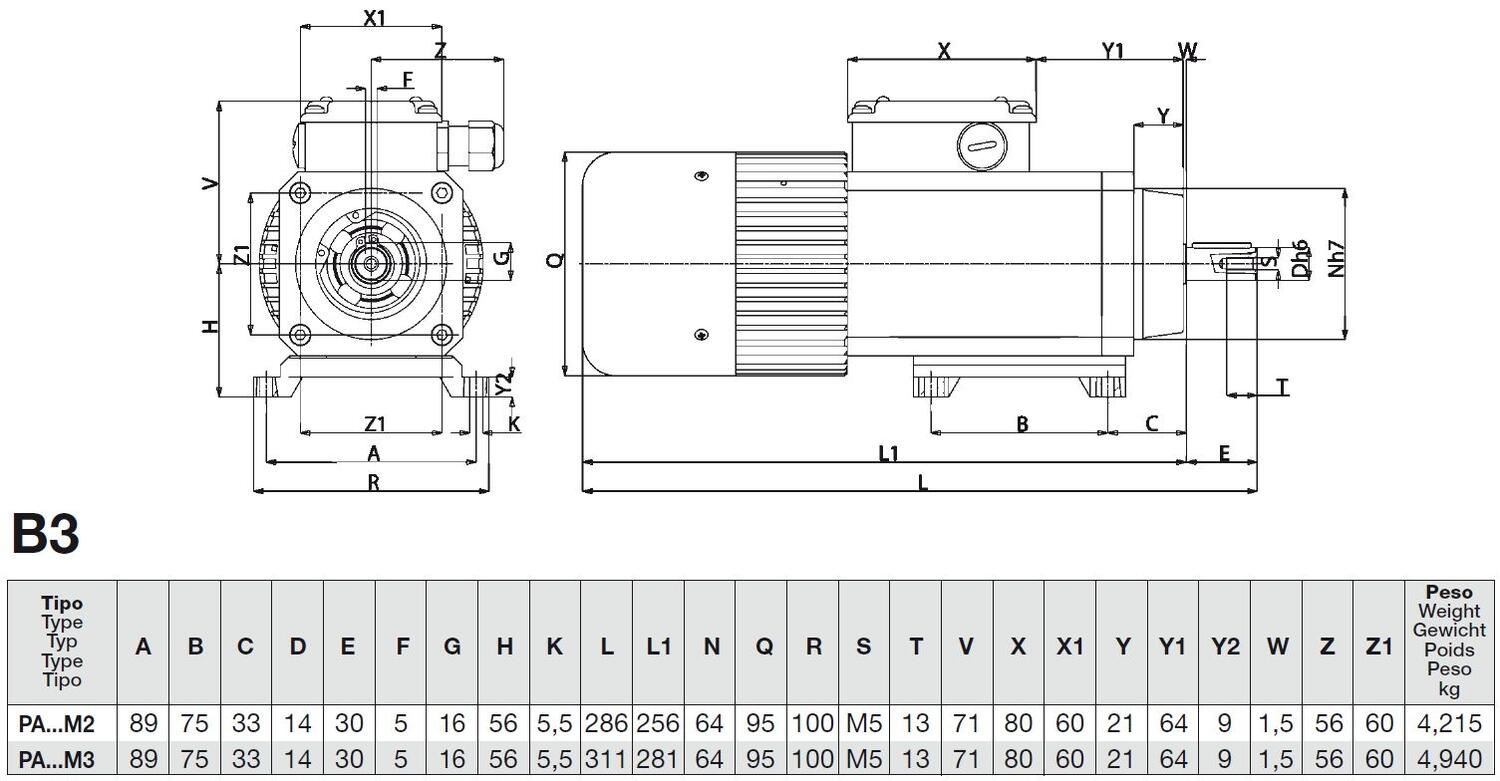

Measurements and connections

Product description

High quality, designed from the ground up to IP65 rated compact gear motor.



Physically smaller than the majority of similar powered gear motors due to the use of high quality components in precision manufacturing.



Ideally suited to many applications, including label and packaging machines, conveyors, pharmaceutical and medical machinery



MOTOR: Asynchronous single or three phase with 2 or 4 poles, totally enclosed, with External ventilation. Thermal safety cutout on single phase model. Class F winding. IP65 protection according to CEI EN 60529.

GEAR UNIT: Casing in die - cast aluminium. Case - hardened and hardened gear pairs with shafts rotating on roller bearings. Lubrication with long life oil. Sealing rings made in special rubber for high temperatures. 14 gear ratios (i) available, from 6.48 to 372.8. Rated torque 20 Nm. Version B3 or B5.



Please click here for 2D and 3D drawings.



Accessories

Related

synchronous motors
Product news Blog

Synchronous Motors

Do you have a light duty motor requirement requiring a very stable output rpm ? If so, Crouzet synchronous motors are could well provide you ideal solution…

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

IATECH industrial automation components exhibition in at leicester marriott hotel by OEM Automatic
Company news

OEM introduces IATECH - The Industrial Automation Technology Expo

We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!

automation components for specialist vehicles
Blog

Automation Components for Specialist Vehicles

The specialist vehicle industry can include automotive and EV, heavy vehicles such as agriculture and rail, and marine.  This email takes you through some of the various products we offer for specialist vehicle applications.

Drive wheels AGV's AMR'S
Product news Blog

Wheel motor drives for AGVs

AGV drive wheel motors cover a wide range of options – from a miniature unit on a small 20kg robot, tasked to move on a perfectly level and smooth indoor surface, up to passenger vehicle-sized robots working outside over fields and varying terrain.

electro pneumatic control box customised bespoke solutions
Case studies

Case Study - Electro Pneumatic Control Box

At OEM Automatic, we can supply a series of components for your one project. All under one roof. This case study discusses how we supplied several components for our customer's new electro-pneumatic control box.

Parts Capacitor Input voltage ac Nominal speed Nominal torque Output power Rated current Ratio Price
250931_877.tif
230V 1 ph 432rpm 1.3Nm B3 mount
Art:
PA180M2B3-432 Copied
5μF
230V
432 rpm
1.3
82 W
0.68A
6.48:1
250931_877.tif
230V 1 ph 432rpm 1.3Nm B5 mount
Art:
PA180M2B5-432 Copied
5μF
230V
432 rpm
1.3
82 W
0.68A
6.48:1
250931_877.tif
230V 1 ph 432rpm 2.6Nm B3 mount
Art:
PA240M3B3-432 Copied
8μF
230V
432 rpm
2.6
140 W
1.03A
6.48:1
250931_877.tif
230V 1 ph 432rpm 2.6Nm B5 mount
Art:
PA240M3B5-432 Copied
8μF
230V
432 rpm
2.6
140 W
1.03A
6.48:1
250931_877.tif
230V 1 ph 216rpm 1.1Nm B3 mount
Art:
PA130M2B3-216 Copied
3.15μF
230V
216 rpm
1.1
34 W
0.45A
6.48:1
250931_877.tif
230V 1 ph 216rpm 1.1Nm B5 mount
Art:
PA130M2B5-216 Copied
3.15μF
230V
216 rpm
1.1
34 W
0.45A
6.48:1
250931_877.tif
230V 1 ph 216rpm 1.8Nm B3 mount
Art:
PA165M3B3-216 Copied
4μF
230V
216 rpm
1.8
44 W
0.53A
6.48:1
250931_877.tif
230V 1 ph 216rpm 1.8Nm B5 mount
Art:
PA165M3B5-216 Copied
4μF
230V
216 rpm
1.8
44 W
0.53A
6.48:1
250931_877.tif
230/400V 3 ph 432rpm 1.3Nm B3 mount
Art:
PA260M2TB3-432 Copied
230/400V
432 rpm
1.3
80 W
0.50Δ/0.29Y
6.48:1
250931_877.tif
230/400V 3 ph 432rpm 1.3Nm B5 mount
Art:
PA260M2TB5-432 Copied
230/400V
432 rpm
1.3
80 W
0.50Δ/0.29Y
6.48:1
250931_877.tif
230/400V 3 ph 432rpm 3.5Nm B3 mount
Art:
PA440M3TB3-432 Copied
230/400V
432 rpm
3.5
180 W
0.90Δ/0.52Y
6.48:1
250931_877.tif
230/400V 3 ph 432rpm 3.5Nm B5 mount
Art:
PA440M3TB5-432 Copied
230/400V
432 rpm
3.5
180 W
0.90Δ/0.52Y
6.48:1
250931_877.tif
230/400V 3 ph 216rpm 1.5Nm B3 mount
Art:
PA140M2TB3-216 Copied
230/400V
216 rpm
1.5
38 W
0.33Δ/0.19Y
6.48:1
250931_877.tif
230/400V 3 ph 216rpm 1.5Nm B5 mount
Art:
PA140M2TB5-216 Copied
230/400V
216 rpm
1.5
38 W
0.33Δ/0.19Y
6.48:1
250931_877.tif
230/400V 3 ph 216rpm 2.8Nm B3 mount
Art:
PA230M3TB3-216 Copied
230/400V
216 rpm
2.8
63 W
0.58Δ/0.34Y
6.48:1
250931_877.tif
230/400V 3 ph 216rpm 2.8Nm B5 mount
Art:
PA230M3TB5-216 Copied
230/400V
216 rpm
2.8
63 W
0.58Δ/0.34Y
6.48:1
250931_877.tif
230V 1 ph 272rpm 2Nm B3 mount
Art:
PA180M2B3-272 Copied
5μF
230V
272 rpm
2
82 W
0.68A
10.27:1
250931_877.tif
230V 1 ph 272rpm 2Nm B5 mount
Art:
PA180M2B5-272 Copied
5μF
230V
272 rpm
2
82 W
0.68A
10.27:1
250931_877.tif
230V 1 ph 272rpm 4.1Nm B3 mount
Art:
PA240M3B3-272 Copied
8μF
230V
272 rpm
4.1
140 W
1.03A
10.27:1
250931_877.tif
230V 1 ph 272rpm 4.1Nm B5 mount
Art:
PA240M3B5-272 Copied
8μF
230V
272 rpm
4.1
140 W
1.03A
10.27:1
250931_877.tif
230V 1 ph 136rpm 1.8Nm B3 mount
Art:
PA130M2B3-136 Copied
3.15μF
230V
136 rpm
1.8
34 W
0.45A
10.27:1
250931_877.tif
230V 1 ph 136rpm 1.8Nm B5 mount
Art:
PA130M2B5-136 Copied
3.15μF
230V
136 rpm
1.8
34 W
0.45A
10.27:1
250931_877.tif
230V 1 ph 136rpm 2.9Nm B3 mount
Art:
PA165M3B3-136 Copied
4μF
230V
136 rpm
2.9
44 W
0.53A
10.27:1
250931_877.tif
230V 1 ph 136rpm 2.9Nm B5 mount
Art:
PA165M3B5-136 Copied
4μF
230V
136 rpm
2.9
44 W
0.53A
10.27:1
250931_877.tif
230/400V 3 ph 272rpm 2Nm B3 mount
Art:
PA260M2TB3-272 Copied
230/400V
272 rpm
2
80 W
0.50Δ/0.29Y
10.27:1
250931_877.tif
230/400V 3 ph 272rpm 2Nm B5 mount
Art:
PA260M2TB5-272 Copied
230/400V
272 rpm
2
80 W
0.50Δ/0.29Y
10.27:1
250931_877.tif
230/400V 3 ph 272rpm 5.6Nm B3 mount
Art:
PA440M3TB3-272 Copied
230/400V
272 rpm
5.6
180 W
0.90Δ/0.52Y
10.27:1
250931_877.tif
230/400V 3 ph 272rpm 5.6Nm B5 mount
Art:
PA440M3TB5-272 Copied
230/400V
272 rpm
5.6
180 W
0.90Δ/0.52Y
10.27:1
250931_877.tif
230/400V 3 ph 136rpm 2.4Nm B3 mount
Art:
PA140M2TB3-136 Copied
230/400V
136 rpm
2.4
38 W
0.33Δ/0.19Y
10.27:1
250931_877.tif
230/400V 3 ph 136rpm 2.4Nm B5 mount
Art:
PA140M2TB5-136 Copied
230/400V
136 rpm
2.4
38 W
0.33Δ/0.19Y
10.27:1
250931_877.tif
230/400V 3 ph 136rpm 4.4Nm B3 mount
Art:
PA230M3TB3-136 Copied
230/400V
136 rpm
4.4
63 W
0.58Δ/0.34Y
10.27:1
250931_877.tif
230/400V 3 ph 136rpm 4.4Nm B5 mount
Art:
PA230M3TB5-136 Copied
230/400V
136 rpm
4.4
63 W
0.58Δ/0.34Y
10.27:1
250931_877.tif
230V 1 ph 197rpm 2.8Nm B3 mount
Art:
PA180M2B3-197 Copied
5μF
230V
197 rpm
2.8
82 W
0.68A
14.12:1
250931_877.tif
230V 1 ph 197rpm 2.8Nm B5 mount
Art:
PA180M2B5-197 Copied
5μF
230V
197 rpm
2.8
82 W
0.68A
14.12:1
250931_877.tif
230V 1 ph 197rpm 5.6Nm B3 mount
Art:
PA240M3B3-197 Copied
8μF
230V
197 rpm
5.6
140 W
1.03A
14.12:1
250931_877.tif
230V 1 ph 197rpm 5.6Nm B5 mount
Art:
PA240M3B5-197 Copied
8μF
230V
197 rpm
5.6
140 W
1.03A
14.12:1
250931_877.tif
230V 1 ph 98.5rpm 2.4Nm B3 mount
Art:
PA130M2B3-98.5 Copied
3.15μF
230V
98.5 rpm
2.4
34 W
0.45A
14.12:1
250931_877.tif
230V 1 ph 98.5rpm 2.4Nm B5 mount
Art:
PA130M2B5-98.5 Copied
3.15μF
230V
98.5 rpm
2.4
34 W
0.45A
14.12:1
250931_877.tif
230V 1 ph 98.5rpm 4Nm B3 mount
Art:
PA165M3B3-98.5 Copied
4μF
230V
98.5 rpm
4
44 W
0.53A
14.12:1
250931_877.tif
230V 1 ph 98.5rpm 4Nm B5 mount
Art:
PA165M3B5-98.5 Copied
4μF
230V
98.5 rpm
4
44 W
0.53A
14.12:1
250931_877.tif
230/400V 3 ph 197rpm 2.8Nm B3 mount
Art:
PA260M2TB3-197 Copied
230/400V
197 rpm
2.8
80 W
0.50Δ/0.29Y
14.12:1
250931_877.tif
230/400V 3 ph 197rpm 2.8Nm B5 mount
Art:
PA260M2TB5-197 Copied
230/400V
197 rpm
2.8
80 W
0.50Δ/0.29Y
14.12:1
250931_877.tif
230/400V 3 ph 197rpm 7.7Nm B3 mount
Art:
PA440M3TB3-197 Copied
230/400V
197 rpm
7.7
180 W
0.90Δ/0.52Y
14.12:1
250931_877.tif
230/400V 3 ph 197rpm 7.7Nm B5 mount
Art:
PA440M3TB5-197 Copied
230/400V
197 rpm
7.7
180 W
0.90Δ/0.52Y
14.12:1
250931_877.tif
230/400V 3 ph 98.5rpm 3.4Nm B3 mount
Art:
PA140M2TB3-98.5 Copied
230/400V
98.5 rpm
3.4
38 W
0.33Δ/0.19Y
14.12:1
250931_877.tif
230/400V 3 ph 98.5rpm 3.4Nm B5 mount
Art:
PA140M2TB5-98.5 Copied
230/400V
98.5 rpm
3.4
38 W
0.33Δ/0.19Y
14.12:1
250931_877.tif
230/400V 3 ph 98.5rpm 6.1Nm B3 mount
Art:
PA230M3TB3-98.5 Copied
230/400V
98.5 rpm
6.1
63 W
0.58Δ/0.34Y
14.12:1
250931_877.tif
230/400V 3 ph 98.5rpm 6.1Nm B5 mount
Art:
PA230M3TB5-98.5 Copied
230/400V
98.5 rpm
6.1
63 W
0.58Δ/0.34Y
14.12:1
250931_877.tif
230V 1 ph 159rpm 3.5Nm B3 mount
Art:
PA180M2B3-159 Copied
5μF
230V
159 rpm
3.5
82 W
0.68A
17.6:1
250931_877.tif
230V 1 ph 159rpm 3.5Nm B5 mount
Art:
PA180M2B5-159 Copied
5μF
230V
159 rpm
3.5
82 W
0.68A
17.6:1
250931_877.tif
230V 1 ph 159rpm 7Nm B3 mount
Art:
PA240M3B3-159 Copied
8μF
230V
159 rpm
7
140 W
1.03A
17.6:1
250931_877.tif
230V 1 ph 159rpm 7Nm B5 mount
Art:
PA240M3B5-159 Copied
8μF
230V
159 rpm
7
140 W
1.03A
17.6:1
250931_877.tif
230V 1 ph 79.5rpm 3.1Nm B3 mount
Art:
PA130M2B3-79.5 Copied
3.15μF
230V
79.5 rpm
3.1
34 W
0.45A
17.6:1
250931_877.tif
230V 1 ph 79.5rpm 3.1Nm B5 mount
Art:
PA130M2B5-79.5 Copied
3.15μF
230V
79.5 rpm
3.1
34 W
0.45A
17.6:1
250931_877.tif
230V 1 ph 79.5rpm 4.9Nm B3 mount
Art:
PA165M3B3-79.5 Copied
4μF
230V
79.5 rpm
4.9
44 W
0.53A
17.6:1
250931_877.tif
230V 1 ph 79.5rpm 4.9Nm B5 mount
Art:
PA165M3B5-79.5 Copied
4μF
230V
79.5 rpm
4.9
44 W
0.53A
17.6:1
250931_877.tif
230/400V 3 ph 159rpm 3.5Nm B3 mount
Art:
PA260M2TB3-159 Copied
230/400V
159 rpm
3.5
80 W
0.50Δ/0.29Y
17.6:1
250931_877.tif
230/400V 3 ph 159rpm 3.5Nm B5 mount
Art:
PA260M2TB5-159 Copied
230/400V
159 rpm
3.5
80 W
0.50Δ/0.29Y
17.6:1
250931_877.tif
230/400V 3 ph 159rpm 9.7Nm B3 mount
Art:
PA440M3TB3-159 Copied
230/400V
159 rpm
9.7
180 W
0.90Δ/0.52Y
17.6:1
250931_877.tif
230/400V 3 ph 159rpm 9.7Nm B5 mount
Art:
PA440M3TB5-159 Copied
230/400V
159 rpm
9.7
180 W
0.90Δ/0.52Y
17.6:1
250931_877.tif
230/400V 3 ph 79.5rpm 4Nm B3 mount
Art:
PA140M2TB3-79.5 Copied
230/400V
79.5 rpm
4
38 W
0.33Δ/0.19Y
17.6:1
250931_877.tif
230/400V 3 ph 79.5rpm 4Nm B5 mount
Art:
PA140M2TB5-79.5 Copied
230/400V
79.5 rpm
4
38 W
0.33Δ/0.19Y
17.6:1
250931_877.tif
230/400V 3 ph 79.5rpm 7.5Nm B3 mount
Art:
PA230M3TB3-79.5 Copied
230/400V
79.5 rpm
7.5
63 W
0.58Δ/0.34Y
17.6:1
250931_877.tif
230/400V 3 ph 79.5rpm 7.5Nm B5 mount
Art:
PA230M3TB5-79.5 Copied
230/400V
79.5 rpm
7.5
63 W
0.58Δ/0.34Y
17.6:1
250931_877.tif
230V 1 ph 111rpm 5Nm B3 mount
Art:
PA180M2B3-111 Copied
5μF
230V
111 rpm
5
82 W
0.68A
25.21:1
250931_877.tif
230V 1 ph 111rpm 5Nm B5 mount
Art:
PA180M2B5-111 Copied
5μF
230V
111 rpm
5
82 W
0.68A
25.21:1
250931_877.tif
230V 1 ph 111rpm 10Nm B3 mount
Art:
PA240M3B3-111 Copied
8μF
230V
111 rpm
10
140 W
1.03A
25.21:1
250931_877.tif
230V 1 ph 111rpm 10Nm B5 mount
Art:
PA240M3B5-111 Copied
8μF
230V
111 rpm
10
140 W
1.03A
25.21:1
250931_877.tif
230V 1 ph 55.5rpm 4.5Nm B3 mount
Art:
PA130M2B3-55.5 Copied
3.15μF
230V
55.5 rpm
4.5
34 W
0.45A
25.21:1
250931_877.tif
230V 1 ph 55.5rpm 4.5Nm B5 mount
Art:
PA130M2B5-55.5 Copied
3.15μF
230V
55.5 rpm
4.5
34 W
0.45A
25.21:1
250931_877.tif
230V 1 ph 55.5rpm 7Nm B3 mount
Art:
PA165M3B3-55.5 Copied
4μF
230V
55.5 rpm
7
44 W
0.53A
25.21:1
250931_877.tif
230V 1 ph 55.5rpm 7Nm B5 mount
Art:
PA165M3B5-55.5 Copied
4μF
230V
55.5 rpm
7
44 W
0.53A
25.21:1
250931_877.tif
230/400V 3 ph 111rpm 5Nm B3 mount
Art:
PA260M2TB3-111 Copied
230/400V
111 rpm
5
80 W
0.50Δ/0.29Y
25.21:1
250931_877.tif
230/400V 3 ph 111rpm 5Nm B5 mount
Art:
PA260M2TB5-111 Copied
230/400V
111 rpm
5
80 W
0.50Δ/0.29Y
25.21:1
250931_877.tif
230/400V 3 ph 111rpm 13.8Nm B3 mount
Art:
PA440M3TB3-111 Copied
230/400V
111 rpm
13.8
180 W
0.90Δ/0.52Y
25.21:1
250931_877.tif
230/400V 3 ph 111rpm 13.8Nm B5 mount
Art:
PA440M3TB5-111 Copied
230/400V
111 rpm
13.8
180 W
0.90Δ/0.52Y
25.21:1
250931_877.tif
230/400V 3 ph 55.5rpm 5.8Nm B3 mount
Art:
PA140M2TB3-55.5 Copied
230/400V
55.5 rpm
5.8
38 W
0.33Δ/0.19Y
25.21:1
250931_877.tif
230/400V 3 ph 55.5rpm 5.8Nm B5 mount
Art:
PA140M2TB5-55.5 Copied
230/400V
55.5 rpm
5.8
38 W
0.33Δ/0.19Y
25.21:1
250931_877.tif
230/400V 3 ph 55.5rpm 10.8Nm B3 mount
Art:
PA230M3TB3-55.5 Copied
230/400V
55.5 rpm
10.8
63 W
0.58Δ/0.34Y
25.21:1
250931_877.tif
230V 1 ph 80.7rpm 6.9Nm B3 mount
Art:
PA180M2B3-80.7 Copied
5μF
230V
80.7 rpm
6.9
82 W
0.68A
34.66:1
250931_877.tif
230V 1 ph 80.7rpm 6.9Nm B5 mount
Art:
PA180M2B5-80.7 Copied
5μF
230V
80.7 rpm
6.9
82 W
0.68A
34.66:1
250931_877.tif
230V 1 ph 80.7rpm 13.8Nm B3 mount
Art:
PA240M3B3-80.7 Copied
8μF
230V
80.7 rpm
13.8
140 W
1.03A
34.66:1
250931_877.tif
230V 1 ph 80.7rpm 13.8Nm B5 mount
Art:
PA240M3B5-80.7 Copied
8μF
230V
80.7 rpm
13.8
140 W
1.03A
34.66:1
250931_877.tif
230V 1 ph 40.3rpm 6.2Nm B3 mount
Art:
PA130M2B3-40.3 Copied
3.15μF
230V
40.3 rpm
6.2
34 W
0.45A
34.66:1
250931_877.tif
230V 1 ph 40.3rpm 6.2Nm B5 mount
Art:
PA130M2B5-40.3 Copied
3.15μF
230V
40.3 rpm
6.2
34 W
0.45A
34.66:1
250931_877.tif
230V 1 ph 40.3rpm 9.7Nm B3 mount
Art:
PA165M3B3-40.3 Copied
4μF
230V
40.3 rpm
9.7
44 W
0.53A
34.66:1
250931_877.tif
230V 1 ph 40.3rpm 9.7Nm B5 mount
Art:
PA165M3B5-40.3 Copied
4μF
230V
40.3 rpm
9.7
44 W
0.53A
34.66:1
250931_877.tif
230/400V 3 ph 80.7rpm 6.9Nm B3 mount
Art:
PA260M2TB3-80.7 Copied
230/400V
80.7 rpm
6.9
80 W
0.50Δ/0.29Y
34.66:1
250931_877.tif
230/400V 3 ph 80.7rpm 6.9Nm B5 mount
Art:
PA260M2TB5-80.7 Copied
230/400V
80.7 rpm
6.9
80 W
0.50Δ/0.29Y
34.66:1
250931_877.tif
230/400V 3 ph 80.7rpm 19Nm B3 mount
Art:
PA440M3TB3-80.7 Copied
230/400V
80.7 rpm
19
180 W
0.90Δ/0.52Y
34.66:1
250931_877.tif
230/400V 3 ph 80.7rpm 19Nm B5 mount
Art:
PA440M3TB5-80.7 Copied
230/400V
80.7 rpm
19
180 W
0.90Δ/0.52Y
34.66:1
250931_877.tif
230/400V 3 ph 40.3rpm 8Nm B3 mount
Art:
PA140M2TB3-40.3 Copied
230/400V
40.3 rpm
8
38 W
0.33Δ/0.19Y
34.66:1
250931_877.tif
230/400V 3 ph 40.3rpm 8Nm B5 mount
Art:
PA140M2TB5-40.3 Copied
230/400V
40.3 rpm
8
38 W
0.33Δ/0.19Y
34.66:1
250931_877.tif
230/400V 3 ph 40.3rpm 14.9Nm B3 mount
Art:
PA230M3TB3-40.3 Copied
230/400V
40.3 rpm
14.9
63 W
0.58Δ/0.34Y
34.66:1
250931_877.tif
230/400V 3 ph 40.3rpm 14.9Nm B5 mount
Art:
PA230M3TB5-40.3 Copied
230/400V
40.3 rpm
14.9
63 W
0.58Δ/0.34Y
34.66:1
250931_877.tif
230V 1 ph 64.7rpm 8.6Nm B3 mount
Art:
PA180M2B3-64.7 Copied
5μF
230V
64.7 rpm
8.6
82 W
0.68A
43.21:1
250931_877.tif
230V 1 ph 64.7rpm 8.6Nm B5 mount
Art:
PA180M2B5-64.7 Copied
5μF
230V
64.7 rpm
8.6
82 W
0.68A
43.21:1
250931_877.tif
230V 1 ph 64.7rpm 17.3Nm B3 mount
Art:
PA240M3B3-64.7 Copied
8μF
230V
64.7 rpm
17.3
140 W
1.03A
43.21:1
250931_877.tif
230V 1 ph 64.7rpm 17.3Nm B5 mount
Art:
PA240M3B5-64.7 Copied
8μF
230V
64.7 rpm
17.3
140 W
1.03A
43.21:1
250931_877.tif
230V 1 ph 32.3rpm 7.7Nm B3 mount
Art:
PA130M2B3-32.3 Copied
3.15μF
230V
32.3 rpm
7.7
34 W
0.45A
43.21:1
250931_877.tif
230V 1 ph 32.3rpm 7.7Nm B5 mount
Art:
PA130M2B5-32.3 Copied
3.15μF
230V
32.3 rpm
7.7
34 W
0.45A
43.21:1
250931_877.tif
230V 1 ph 32.3rpm 12Nm B3 mount
Art:
PA165M3B3-32.3 Copied
4μF
230V
32.3 rpm
12
44 W
0.53A
43.21:1
250931_877.tif
230V 1 ph 32.3rpm 12Nm B5 mount
Art:
PA165M3B5-32.3 Copied
4μF
230V
32.3 rpm
12
44 W
0.53A
43.21:1
250931_877.tif
230/400V 3 ph 64.7rpm 8.6Nm B3 mount
Art:
PA260M2TB3-64.7 Copied
230/400V
64.7 rpm
8.6
80 W
0.50Δ/0.29Y
43.21:1
250931_877.tif
230/400V 3 ph 64.7rpm 8.6Nm B5 mount
Art:
PA260M2TB5-64.7 Copied
230/400V
64.7 rpm
8.6
80 W
0.50Δ/0.29Y
43.21:1
250931_877.tif
230/400V 3 ph 64.7rpm 20Nm B3 mount
Art:
PA440M3TB3-64.7 Copied
230/400V
64.7 rpm
20
180 W
0.90Δ/0.52Y
43.21:1
250931_877.tif
230/400V 3 ph 64.7rpm 20Nm B5 mount
Art:
PA440M3TB5-64.7 Copied
230/400V
64.7 rpm
20
180 W
0.90Δ/0.52Y
43.21:1
250931_877.tif
230/400V 3 ph 32.3rpm 9.9Nm B3 mount
Art:
PA140M2TB3-32.3 Copied
230/400V
32.3 rpm
9.9
38 W
0.33Δ/0.19Y
43.21:1
250931_877.tif
230/400V 3 ph 32.3rpm 9.9Nm B5 mount
Art:
PA140M2TB5-32.3 Copied
230/400V
32.3 rpm
9.9
38 W
0.33Δ/0.19Y
43.21:1
250931_877.tif
230/400V 3 ph 32.3rpm 18.6Nm B3 mount
Art:
PA230M3TB3-32.3 Copied
230/400V
32.3 rpm
18.6
63 W
0.58Δ/0.34Y
43.21:1
250931_877.tif
230/400V 3 ph 32.3rpm 18.6Nm B5 mount
Art:
PA230M3TB5-32.3 Copied
230/400V
32.3 rpm
18.6
63 W
0.58Δ/0.34Y
43.21:1
250931_877.tif
230V 1 ph 45rpm 12.3Nm B3 mount
Art:
PA180M2B3-45 Copied
5μF
230V
45 rpm
12.3
82 W
0.68A
61.8:1
250931_877.tif
230V 1 ph 45rpm 12.3Nm B5 mount
Art:
PA180M2B5-45 Copied
5μF
230V
45 rpm
12.3
82 W
0.68A
61.8:1
250931_877.tif
230V 1 ph 45rpm 20Nm B3 mount
Art:
PA240M3B3-45 Copied
8μF
230V
45 rpm
20
140 W
1.03A
61.8:1
250931_877.tif
230V 1 ph 45rpm 20Nm B5 mount
Art:
PA240M3B5-45 Copied
8μF
230V
45 rpm
20
140 W
1.03A
61.8:1
250931_877.tif
230V 1 ph 22.5rpm 11.1Nm B3 mount
Art:
PA130M2B3-22.5 Copied
3.15μF
230V
22.5 rpm
11.1
34 W
0.45A
61.8:1
250931_877.tif
230V 1 ph 22.5rpm 11.1Nm B5 mount
Art:
PA130M2B5-22.5 Copied
3.15μF
230V
22.5 rpm
11.1
34 W
0.45A
61.8:1
250931_877.tif
230V 1 ph 22.5pm 17.2Nm B3 mount
Art:
PA165M3B3-22.5 Copied
4μF
230V
22.5 rpm
17.3
44 W
0.53A
61.8:1
250931_877.tif
230V 1 ph 22.5pm 17.2Nm B5 mount
Art:
PA165M3B5-22.5 Copied
4μF
230V
22.5 rpm
17.3
44 W
0.53A
61.8:1
250931_877.tif
230/400V 3 ph 45rpm 12.3Nm B3 mount
Art:
PA260M2TB3-45 Copied
230/400V
45 rpm
12.3
80 W
0.50Δ/0.29Y
61.8:1
250931_877.tif
230/400V 3 ph 45rpm 12.3Nm B5 mount
Art:
PA260M2TB5-45 Copied
230/400V
45 rpm
12.3
80 W
0.50Δ/0.29Y
61.8:1
250931_877.tif
230/400V 3 ph 45rpm 20Nm B3 mount
Art:
PA440M3TB3-45 Copied
230/400V
45 rpm
20
180 W
0.90Δ/0.52Y
61.8:1
250931_877.tif
230/400V 3 ph 45rpm 20Nm B5 mount
Art:
PA440M3TB5-45 Copied
230/400V
45 rpm
20
180 W
0.90Δ/0.52Y
61.8:1
250931_877.tif
230/400V 3 ph 22.5rpm 14.2Nm B3 mount
Art:
PA140M2TB3-22.5 Copied
230/400V
22.5 rpm
14.2
38 W
0.33Δ/0.19Y
61.8:1
250931_877.tif
230/400V 3 ph 22.5rpm 14.2Nm B5 mount
Art:
PA140M2TB5-22.5 Copied
230/400V
22.5 rpm
14.2
38 W
0.33Δ/0.19Y
61.8:1
250931_877.tif
230/400V 3 ph 22.5rpm 20Nm B3 mount
Art:
PA230M3TB3-22.5 Copied
230/400V
22.5 rpm
20
63 W
0.58Δ/0.34Y
61.8:1
250931_877.tif
230/400V 3 ph 22.5rpm 20Nm B5 mount
Art:
PA230M3TB5-22.5 Copied
230/400V
22.5 rpm
20
63 W
0.58Δ/0.34Y
61.8:1
250931_877.tif
230V 1 ph 32.9rpm 16.9Nm B3 mount
Art:
PA180M2B3-32.9 Copied
5μF
230V
32.9 rpm
16.9
82 W
0.68A
85:1
250931_877.tif
230V 1 ph 32.9rpm 16.9Nm B5 mount
Art:
PA180M2B5-32.9 Copied
5μF
230V
32.9 rpm
16.9
82 W
0.68A
85:1
250931_877.tif
230V 1 ph 32.9rpm 20Nm B3 mount
Art:
PA240M3B3-32.9 Copied
8μF
230V
32.9 rpm
20
140 W
1.03A
85:1
250931_877.tif
230V 1 ph 32.9rpm 20Nm B5 mount
Art:
PA240M3B5-32.9 Copied
8μF
230V
32.9 rpm
20
140 W
1.03A
85:1
250931_877.tif
230V 1 ph 16.4rpm 15.3Nm B3 mount
Art:
PA130M2B3-16.4 Copied
3.15μF
230V
16.4 rpm
15.3
34 W
0.45A
85:1
250931_877.tif
230V 1 ph 16.4rpm 15.3Nm B5 mount
Art:
PA130M2B5-16.4 Copied
3.15μF
230V
16.4 rpm
15.3
34 W
0.45A
85:1
250931_877.tif
230V 1 ph 16.4rpm 20Nm B3 mount
Art:
PA165M3B3-16.4 Copied
4μF
230V
16.4 rpm
20
44 W
0.53A
85:1
250931_877.tif
230V 1 ph 16.4rpm 20Nm B5 mount
Art:
PA165M3B5-16.4 Copied
4μF
230V
16.4 rpm
20
44 W
0.53A
85:1
250931_877.tif
230/400V 3 ph 32.9rpm 16.9Nm B3 mount
Art:
PA260M2TB3-32.9 Copied
230/400V
32.9 rpm
16.9
80 W
0.50Δ/0.29Y
85:1
250931_877.tif
230/400V 3 ph 32.9rpm 20Nm B3 mount
Art:
PA440M3TB3-32.9 Copied
230/400V
32.9 rpm
20
180 W
0.90Δ/0.52Y
85:1
250931_877.tif
230/400V 3 ph 32.9rpm 20Nm B5 mount
Art:
PA440M3TB5-32.9 Copied
230/400V
32.9 rpm
20
180 W
0.90Δ/0.52Y
85:1
250931_877.tif
230/400V 3 ph 16.4rpm 19.6Nm B3 mount
Art:
PA140M2TB3-16.4 Copied
230/400V
16.4 rpm
19.6
38 W
0.33Δ/0.19Y
85:1
250931_877.tif
230/400V 3 ph 16.4rpm 19.6Nm B5 mount
Art:
PA140M2TB5-16.4 Copied
230/400V
16.4 rpm
19.6
38 W
0.33Δ/0.19Y
85:1
250931_877.tif
230/400V 3 ph 16.4rpm 20Nm B3 mount
Art:
PA230M3TB3-16.4 Copied
230/400V
16.4 rpm
20
63 W
0.58Δ/0.34Y
85:1
250931_877.tif
230/400V 3 ph 16.4rpm 20Nm B5 mount
Art:
PA230M3TB5-16.4 Copied
230/400V
16.4 rpm
20
63 W
0.58Δ/0.34Y
85:1
250931_877.tif
230V 1 ph 26.4rpm 20Nm B3 mount
Art:
PA180M2B3-26.4 Copied
5μF
230V
26.4 rpm
20
82 W
0.68A
106:1
250931_877.tif
230V 1 ph 26.4rpm 20Nm B5 mount
Art:
PA180M2B5-26.4 Copied
5μF
230V
26.4 rpm
20
82 W
0.68A
106:1
250931_877.tif
230V 1 ph 13.2rpm 19.1Nm B3 mount
Art:
PA130M2B3-13.2 Copied
3.15μF
230V
13.2 rpm
19.1
34 W
0.45A
106:1
250931_877.tif
230V 1 ph 13.2rpm 19.1Nm B5 mount
Art:
PA130M2B5-13.2 Copied
3.15μF
230V
13.2 rpm
19.1
34 W
0.45A
106:1
250931_877.tif
230/400V 3 ph 26.4rpm 20Nm B3 mount
Art:
PA260M2TB3-26.4 Copied
230/400V
26.4 rpm
20
80 W
0.50Δ/0.29Y
106:1
250931_877.tif
230/400V 3 ph 26.4rpm 20Nm B5 mount
Art:
PA260M2TB5-26.4 Copied
230/400V
26.4 rpm
20
80 W
0.50Δ/0.29Y
106:1
250931_877.tif
230/400V 3 ph 13.2rpm 20Nm B3 mount
Art:
PA140M2TB3-13.2 Copied
230/400V
13.2 rpm
20
38 W
0.33Δ/0.19Y
106:1
250931_877.tif
230/400V 3 ph 13.2rpm 20Nm B5 mount
Art:
PA140M2TB5-13.2 Copied
230/400V
13.2 rpm
20
38 W
0.33Δ/0.19Y
106:1
250931_877.tif
230V 1 ph 18.4rpm 20Nm B3 mount
Art:
PA180M2B3-18.4 Copied
5μF
230V
18.4 rpm
20
82 W
0.68A
151.8:1
250931_877.tif
230V 1 ph 18.4rpm 20Nm B5 mount
Art:
PA180M2B5-18.4 Copied
5μF
230V
18.4 rpm
20
82 W
0.68A
151.8:1
250931_877.tif
230V 1 ph 9.2rpm 20Nm B3 mount
Art:
PA130M2B3-9.2 Copied
3.15μF
230V
9.2 rpm
20
34 W
0.45A
151.8:1
250931_877.tif
230V 1 ph 9.2rpm 20Nm B5 mount
Art:
PA130M2B5-9.2 Copied
3.15μF
230V
9.2 rpm
20
34 W
0.45A
151.8:1
250931_877.tif
230/400V 3 ph 18.4rpm 20Nm B3 mount
Art:
PA260M2TB3-18.4 Copied
230/400V
18.4 rpm
20
80 W
0.50Δ/0.29Y
151.8:1
250931_877.tif
230/400V 3 ph 18.4rpm 20Nm B5 mount
Art:
PA260M2TB5-18.4 Copied
230/400V
18.4 rpm
20
80 W
0.50Δ/0.29Y
151.8:1
250931_877.tif
230/400V 3 ph 9.2rpm 20Nm B3 mount
Art:
PA140M2TB3-9.2 Copied
230/400V
9.2 rpm
20
38 W
0.33Δ/0.19Y
151.8:1
250931_877.tif
230/400V 3 ph 9.2rpm 20Nm B5 mount
Art:
PA140M2TB5-9.2 Copied
230/400V
9.2 rpm
20
38 W
0.33Δ/0.19Y
151.8:1
250931_877.tif
230V 1 ph 13.4rpm 20Nm B3 mount
Art:
PA180M2B3-13.4 Copied
5μF
230V
13.4 rpm
20
82 W
0.68A
208.8:1
250931_877.tif
230V 1 ph 13.4rpm 20Nm B5 mount
Art:
PA180M2B5-13.4 Copied
5μF
230V
13.4 rpm
20
82 W
0.68A
208.8:1
250931_877.tif
230V 1 ph 6.7rpm 20Nm B3 mount
Art:
PA130M2B3-6.7 Copied
3.15μF
230V
6.7 rpm
20
34 W
0.45A
208.8:1
250931_877.tif
230V 1 ph 6.7rpm 20Nm B5 mount
Art:
PA130M2B5-6.7 Copied
3.15μF
230V
6.7 rpm
20
34 W
0.45A
208.8:1
250931_877.tif
230/400V 3 ph 13.4rpm 20Nm B3 mount
Art:
PA260M2TB3-13.4 Copied
230/400V
13.4 rpm
20
80 W
0.50Δ/0.29Y
208.8:1
250931_877.tif
230/400V 3 ph 13.4rpm 20Nm B5 mount
Art:
PA260M2TB5-13.4 Copied
230/400V
13.4 rpm
20
80 W
0.50Δ/0.29Y
208.8:1
250931_877.tif
230/400V 3 ph 6.7rpm 20Nm B3 mount
Art:
PA140M2TB3-6.7 Copied
230/400V
6.7 rpm
20
38 W
0.33Δ/0.19Y
208.8:1
250931_877.tif
230/400V 3 ph 6.7rpm 20Nm B5 mount
Art:
PA140M2TB5-6.7 Copied
230/400V
6.7 rpm
20
38 W
0.33Δ/0.19Y
208.8:1
250931_877.tif
230V 1 ph 10.7rpm 20Nm B3 mount
Art:
PA180M2B3-10.7 Copied
5μF
230V
10.7 rpm
20
82 W
0.68A
260:1
250931_877.tif
230V 1 ph 10.7rpm 20Nm B5 mount
Art:
PA180M2B5-10.7 Copied
5μF
230V
10.7 rpm
20
82 W
0.68A
260:1
250931_877.tif
230V 1 ph 5.3rpm 20Nm B3 mount
Art:
PA130M2B3-5.3 Copied
3.15μF
230V
5.3 rpm
20
34 W
0.45A
260:1
250931_877.tif
230V 1 ph 5.3rpm 20Nm B5 mount
Art:
PA130M2B5-5.3 Copied
3.15μF
230V
5.3 rpm
20
34 W
0.45A
260:1
250931_877.tif
230/400V 3 ph 10.7rpm 20Nm B3 mount
Art:
PA260M2TB3-10.7 Copied
230/400V
10.7 rpm
20
80 W
0.50Δ/0.29Y
260:1
250931_877.tif
230/400V 3 ph 10.7rpm 20Nm B5 mount
Art:
PA260M2TB5-10.7 Copied
230/400V
10.7 rpm
20
80 W
0.50Δ/0.29Y
260:1
250931_877.tif
230/400V 3 ph 5.3rpm 20Nm B3 mount
Art:
PA140M2TB3-5.3 Copied
230/400V
5.3 rpm
20
38 W
0.33Δ/0.19Y
260:1
250931_877.tif
230/400V 3 ph 5.3rpm 20Nm B5 mount
Art:
PA140M2TB5-5.3 Copied
230/400V
5.3 rpm
20
38 W
0.33Δ/0.19Y
260:1
250931_877.tif
230V 1 ph 7.5rpm 20Nm B3 mount
Art:
PA180M2B3-7.5 Copied
5μF
230V
7.5 rpm
20
82 W
0.68A
372:1
250931_877.tif
230V 1 ph 7.5rpm 20Nm B5 mount
Art:
PA180M2B5-7.5 Copied
5μF
230V
7.5 rpm
20
82 W
0.68A
372:1
250931_877.tif
230V 1 ph 3.7rpm 20Nm B3 mount
Art:
PA130M2B3-3.7 Copied
3.15μF
230V
3.7 rpm
20
34 W
0.45A
372:1
250931_877.tif
230V 1 ph 3.7rpm 20Nm B5 mount
Art:
PA130M2B5-3.7 Copied
3.15μF
230V
3.7 rpm
20
34 W
0.45A
372:1
250931_877.tif
230/400V 3 ph 7.5rpm 20Nm B3 mount
Art:
PA260M2TB3-7.5 Copied
230/400V
7.5 rpm
20
80 W
0.50Δ/0.29Y
372:1
250931_877.tif
230/400V 3 ph 7.5rpm 20Nm B5 mount
Art:
PA260M2TB5-7.5 Copied
230/400V
7.5 rpm
20
80 W
0.50Δ/0.29Y
372:1
250931_877.tif
230/400V 3 ph 3.7rpm 20Nm B3 mount
Art:
PA140M2TB3-3.7 Copied
230/400V
3.7 rpm
20
38 W
0.33Δ/0.19Y
372:1
250931_877.tif
230/400V 3 ph 3.7rpm 20Nm B5 mount
Art:
PA140M2TB5-3.7 Copied
230/400V
3.7 rpm
20
38 W
0.33Δ/0.19Y
372:1

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
