AC Motor with Inline Gearbox

In line gear-boxes generally feature planetary or spur gear. Planetary offer central drive and spur gear-boxes generally have the output shaft off centre to allow for the gear interaction.

Both have their uses. Planetary is normally the most eficient and delivers the largest torque for a given size, where as spur gear-boxes are slightly less efficient and usually quieter by design.
25 products with 4332 variants

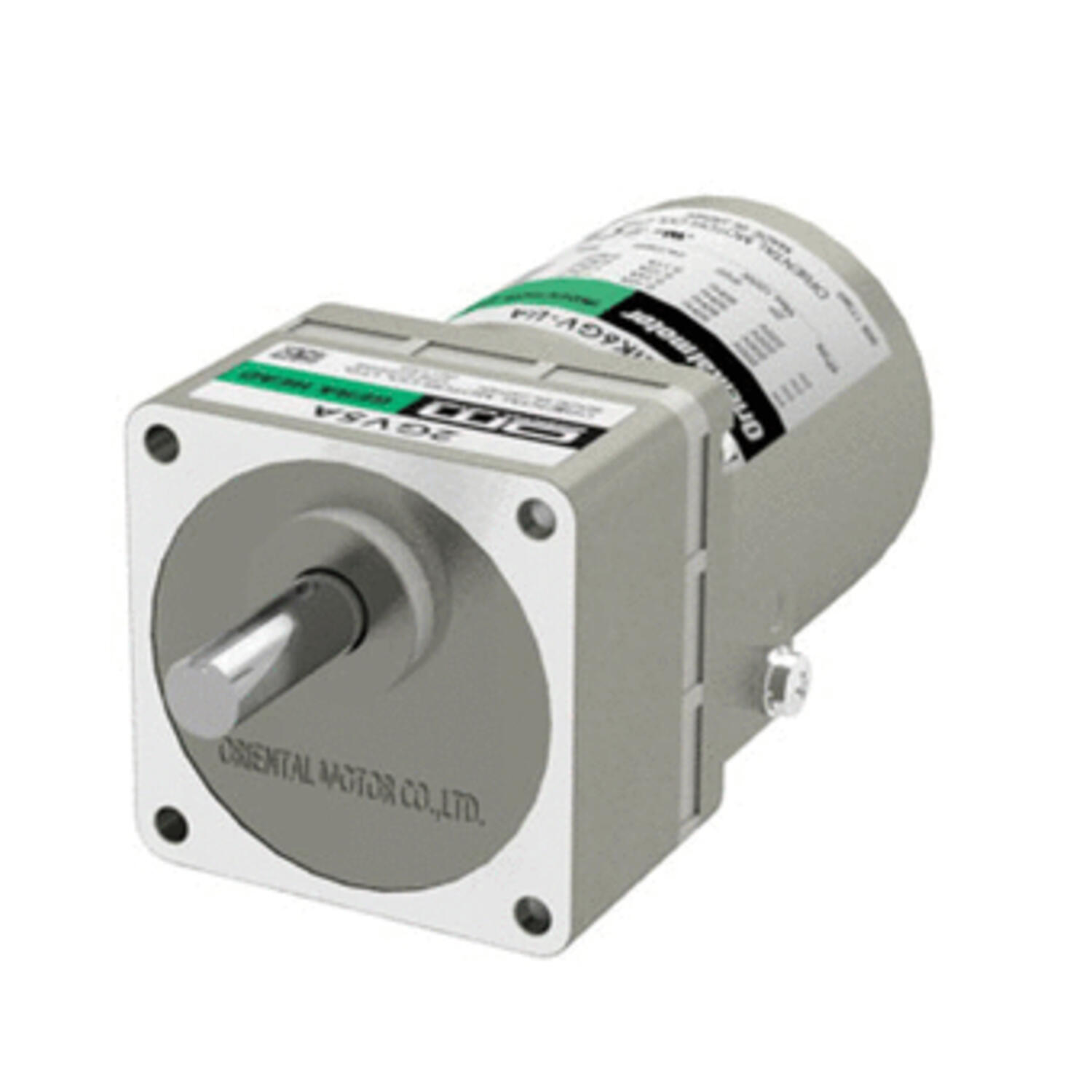

Oriental 6W induction.gif
Oriental Motor

Oriental Motor - 60mm 6W induction motor with inline gearbox

  • 0.12 to 3 Nm output torque
  • Low noise 4 pole motor
  • Single phase constant speed or three phase for inverter driven speed control
  • UL, CSA, CE marking
  • Voltage options for round the world use.
Product has 200 parts.
More information More information

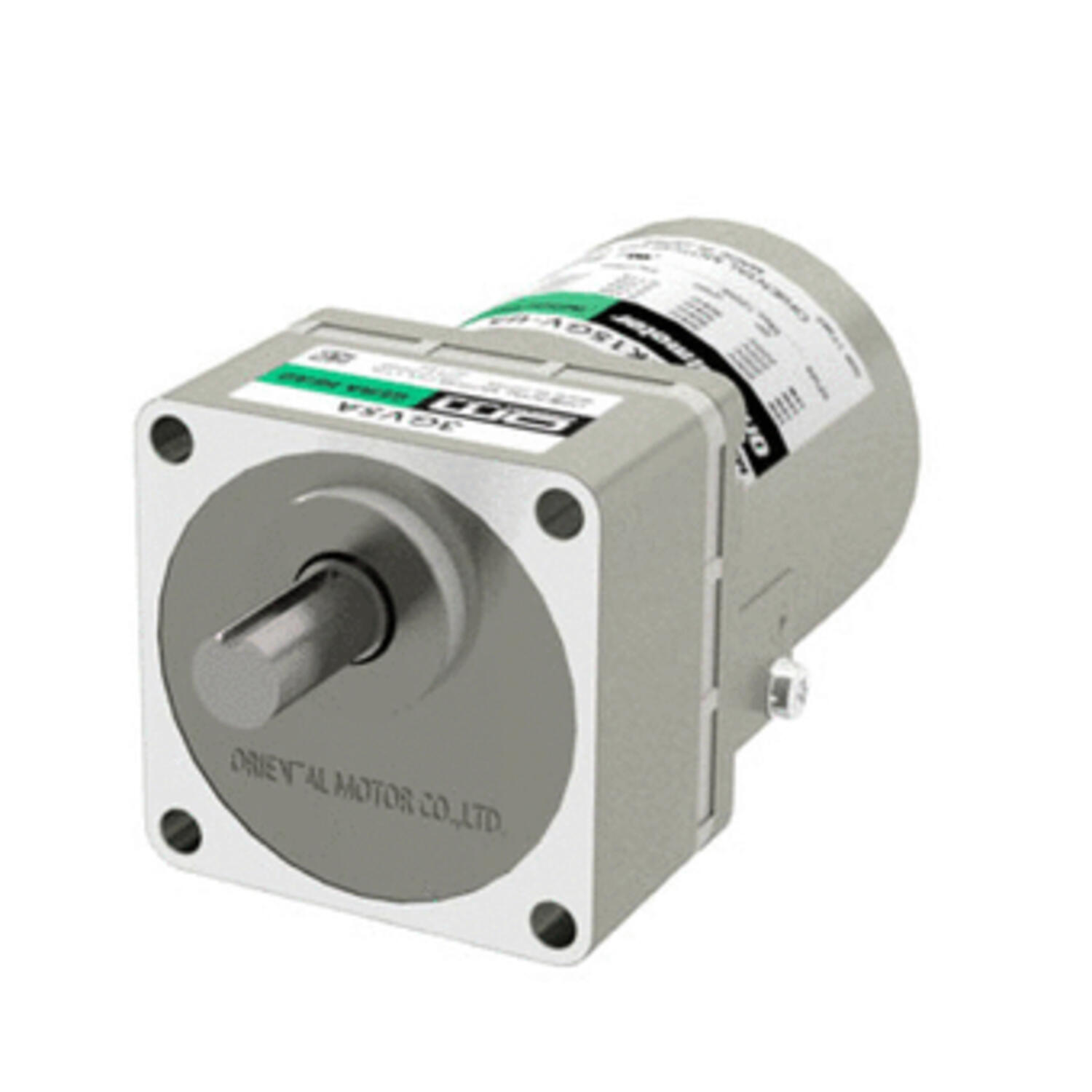

Oriental 15W induction.gif
Oriental Motor

Oriental Motor - 70mm 15W induction motor with inline gearbox

  • 0.3 to 5 Nm output torque
  • Low noise 4 pole motor
  • Single phase constant speed or three phase for inverter driven speed control
  • UL, CSA, CE marking
  • Voltage options for round the world use.
Product has 50 parts.
More information More information
Oriental 25W induction.gif
Oriental Motor

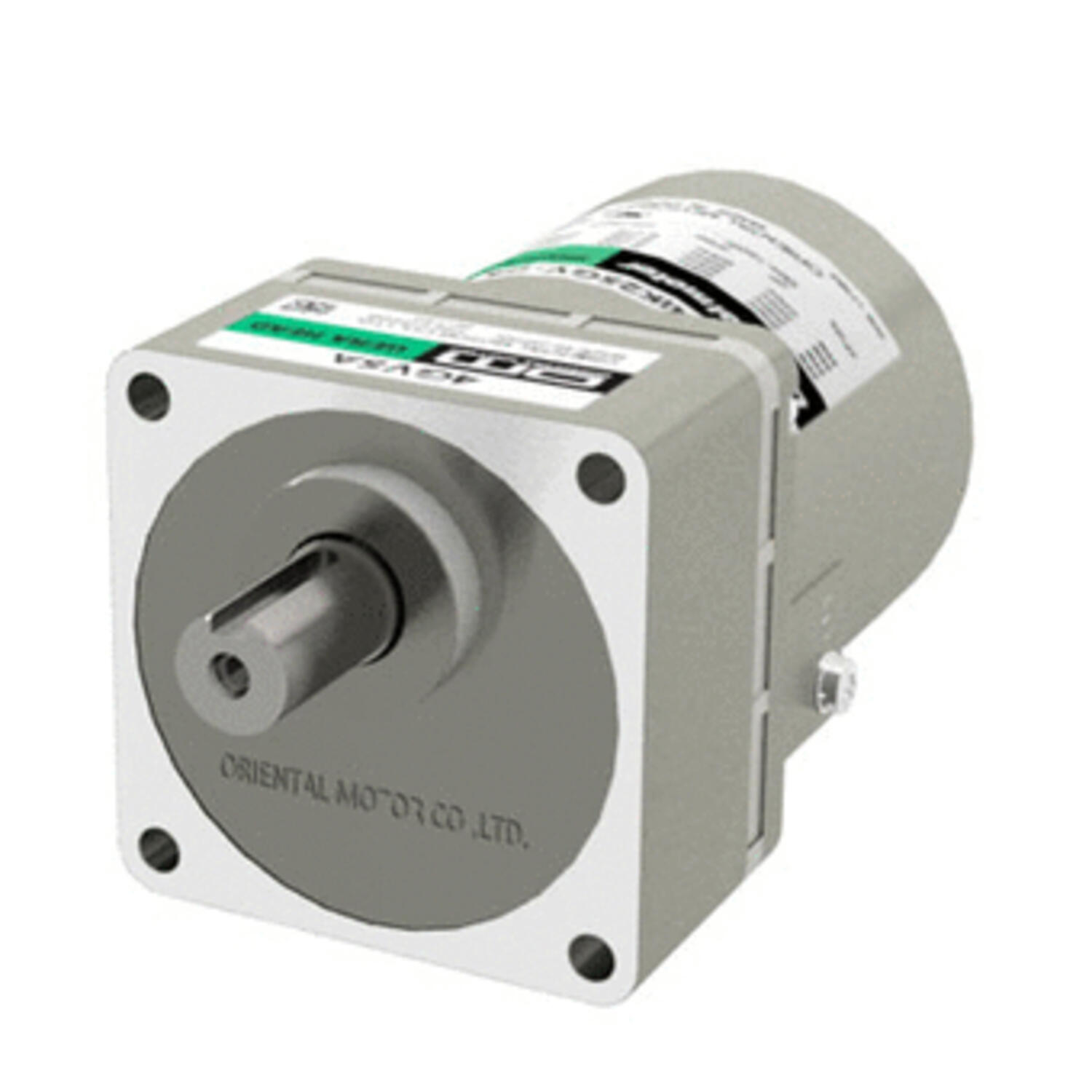

Oriental Motor - 80mm 25W induction motor with inline gearbox

  • 0.5 to 8 Nm output torque
  • Low noise 4 pole motor
  • Single phase constant speed or three phase for inverter driven speed control
  • UL, CSA, CE marking
  • Voltage options for round the world use.
Product has 200 parts.
More information More information
Oriental 40W induction.gif
Oriental Motor

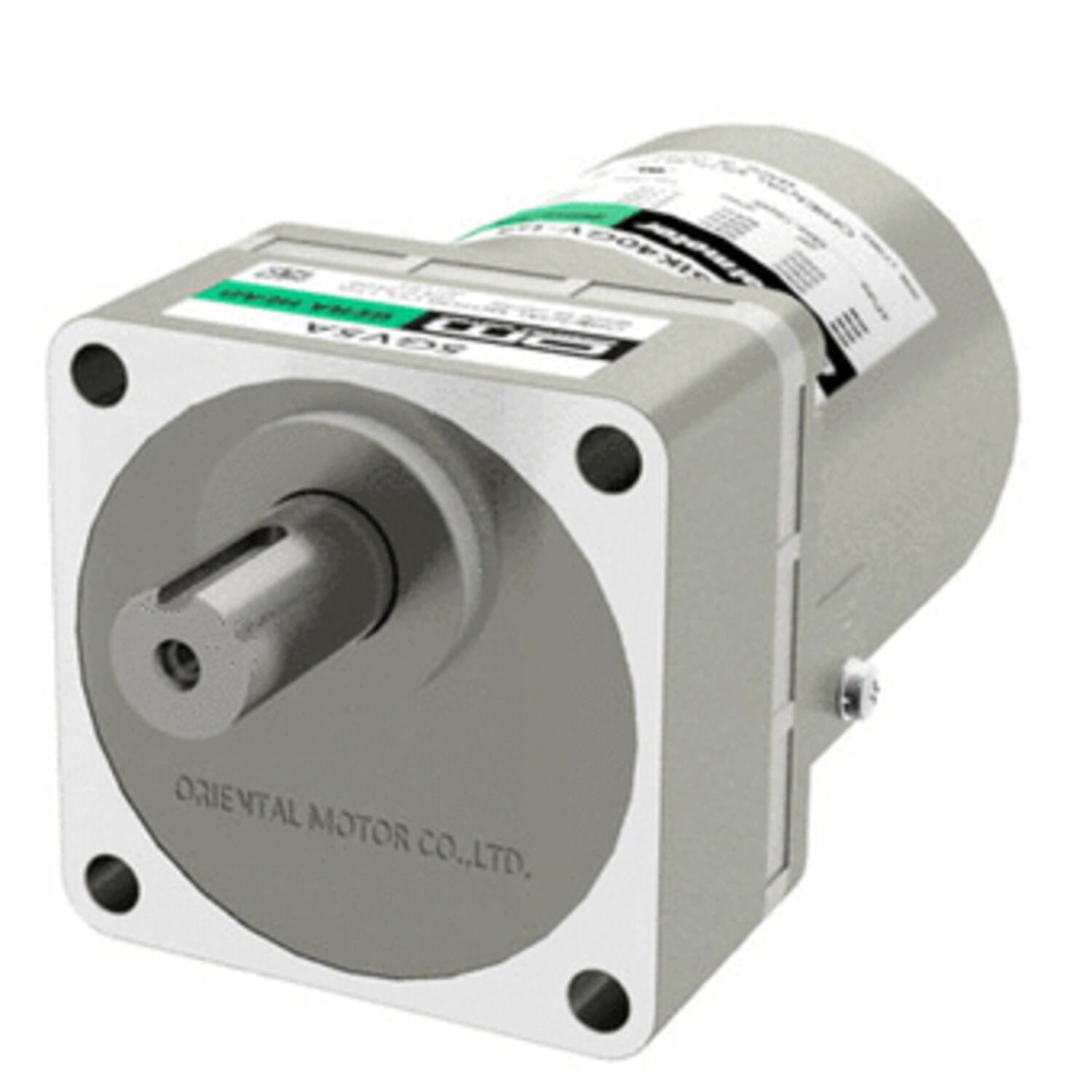

Oriental Motor - 90mm 40W induction motor with inline gearbox

  • 0.77 to 10 Nm output torque
  • Low noise 4 pole motor
  • Single phase constant speed or three phase for inverter driven speed control
  • UL, CSA, CE marking
  • Voltage options for round the world use.
Product has 180 parts.
More information More information

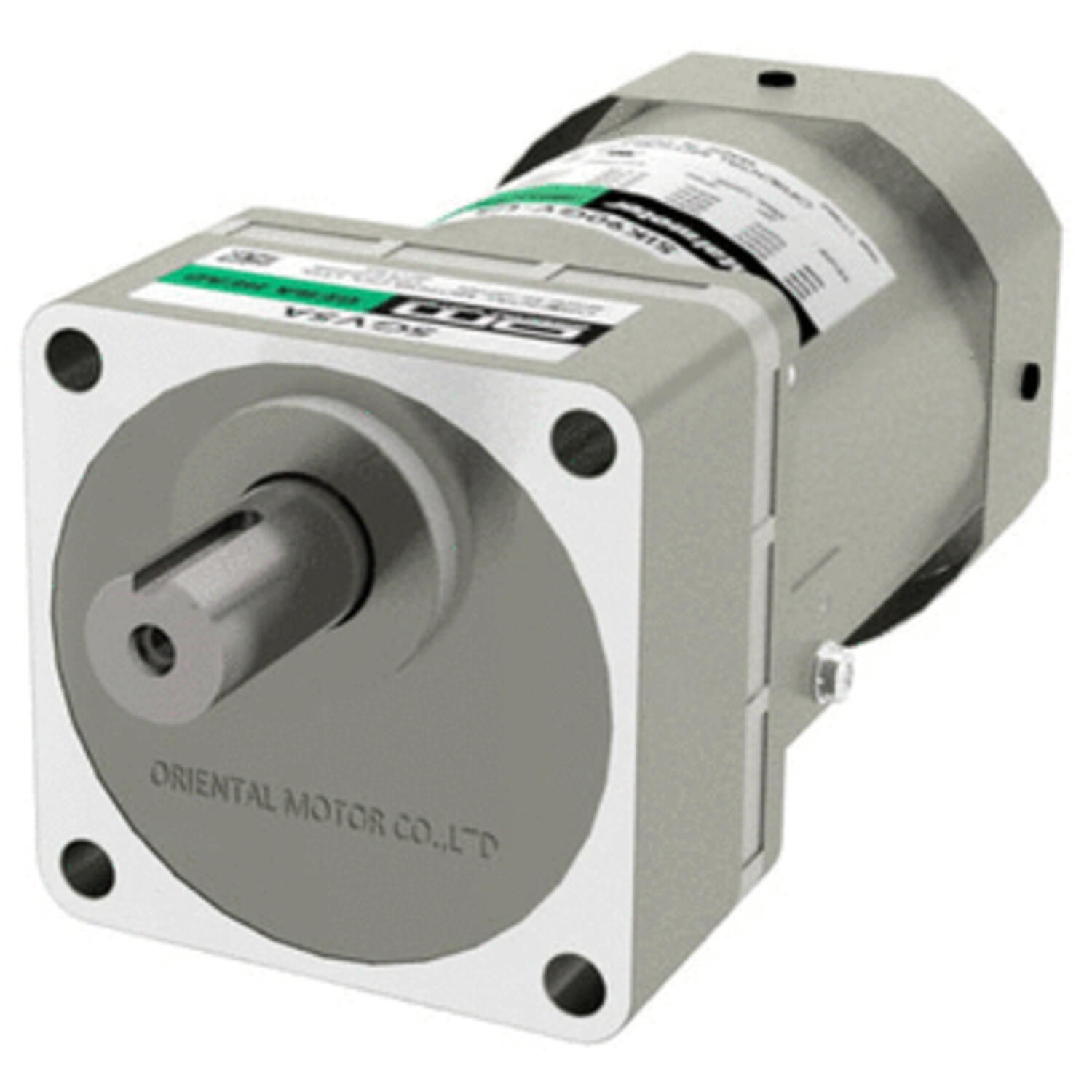

Oriental 60W induction.gif
Oriental Motor

Oriental Motor - 90mm 60W induction motor with inline gearbox

  • 1.2 to 20 Nm output torque
  • Low noise 4 pole motor
  • Single phase constant speed or three phase for inverter driven speed control
  • UL, CSA, CE marking
  • Voltage options for round the world use.
Product has 200 parts.
More information More information
Oriental 90W induction.gif
Oriental Motor

Oriental Motor - 90mm 90W induction motor with inline gearbox

  • 1.8 to 20 Nm output torque
  • Low noise 4 pole motor
  • Single phase constant speed or three phase for inverter driven speed control
  • UL, CSA, CE marking
  • Voltage options for round the world use.
Product has 200 parts.
More information More information
Oriental 6W induction.gif
Oriental Motor

Oriental Motor - 60mm 6W quick reverse motor with inline gearbox

  • 0.12 to 3 Nm output torque
  • Low noise 4 pole motor
  • 30 minute rated with fast acting internal mechanical brake for fast stop
  • UL, CSA, CE marking
  • Voltage options for round the world use.
Product has 198 parts.
More information More information
Oriental 15W induction.gif
Oriental Motor

Oriental Motor - 70mm 15W quick reverse motor with inline gearbox

  • 0.3 to 5 Nm output torque
  • Low noise 4 pole motor
  • 30 minute rated with fast acting internal mechanical brake for fast stop
  • UL, CSA, CE marking
  • Voltage options for round the world use.
Product has 80 parts.
More information More information
Oriental 25W induction.gif
Oriental Motor

Oriental Motor - 80mm 25W quick reverse motor with inline gearbox

  • 0.5 to 8 Nm output torque
  • Low noise 4 pole motor
  • 30 minute rated with fast acting internal mechanical brake for fast stop
  • UL, CSA, CE marking
  • Voltage options for round the world use.
Product has 200 parts.
More information More information
Oriental 40W induction.gif
Oriental Motor

Oriental Motor - 90mm 40W quick reverse motor with inline gearbox

  • 0.77 to 10 Nm output torque
  • Low noise 4 pole motor
  • 30 minute rated with fast acting internal mechanical brake for fast stop
  • UL, CSA, CE marking
  • Voltage options for round the world use.
Product has 200 parts.
More information More information
Oriental 60W induction.gif
Oriental Motor

Oriental Motor - 90mm 60W quick reverse motor with inline gearbox

  • 1.2 to 20 Nm output torque
  • Low noise 4 pole motor
  • 30 minute rated with fast acting internal mechanical brake for fast stop
  • UL, CSA, CE marking
  • Voltage options for round the world use.
Product has 200 parts.
More information More information
Oriental 90W induction.gif
Oriental Motor

Oriental Motor - 90mm 90W quick reverse motor with inline gearbox

  • 1.8 to 20 Nm output torque
  • Low noise 4 pole motor
  • 30 minute rated with fast acting internal mechanical brake for fast stop
  • UL, CSA, CE marking
  • Voltage options for round the world use.
Product has 200 parts.
More information More information
Oriental 6W induction.gif
Oriental Motor

Oriental Motor - 60mm 6W electromagnetic brake motor with inline gearbox

  • 0.12 to 3 Nm output torque
  • Low noise 4 pole motor
  • Power off electromagnetic brake for holding load
  • UL, CSA, CE marking
  • Voltage options for round the world use.
Product has 100 parts.
More information More information
Oriental 15W induction.gif
Oriental Motor

Oriental Motor - 70mm 15W electromagnetic brake motor with inline gearbox

  • 0.3 to 5 Nm output torque
  • Low noise 4 pole motor
  • Power off electromagnetic brake for holding load
  • UL, CSA, CE marking
  • Voltage options for round the world use.
Product has 80 parts.
More information More information
Oriental 25W induction.gif
Oriental Motor

Oriental Motor - 80mm 25W electromagnetic brake motor with inline gearbox

  • 0.5 to 8 Nm output torque
  • Low noise 4 pole motor
  • Power off electromagnetic brake for holding load
  • UL, CSA, CE marking
  • Voltage options for round the world use.
Product has 100 parts.
More information More information
Oriental 40W induction.gif
Oriental Motor

Oriental Motor - 90mm 40W electromagnetic brake motor with inline gearbox

  • 0.77 to 10 Nm output torque
  • Low noise 4 pole motor
  • Power off electromagnetic brake for holding load
  • UL, CSA, CE marking
  • Voltage options for round the world use.
Product has 100 parts.
More information More information
Oriental 60W induction.gif
Oriental Motor

Oriental Motor - 90mm 60W electromagnetic brake motor with inline gearbox

  • 1.2 to 20 Nm output torque
  • Low noise 4 pole motor
  • Power off electromagnetic brake for holding load
  • UL, CSA, CE marking
  • Voltage options for round the world use.
Product has 100 parts.
More information More information
Oriental 90W induction.gif
Oriental Motor

Oriental Motor - 90mm 90W electromagnetic brake motor with inline gearbox

  • 1.8 to 20 Nm output torque
  • Low noise 4 pole motor
  • Power off electromagnetic brake for holding load
  • UL, CSA, CE marking
  • Voltage options for round the world use.
Product has 100 parts.
More information More information

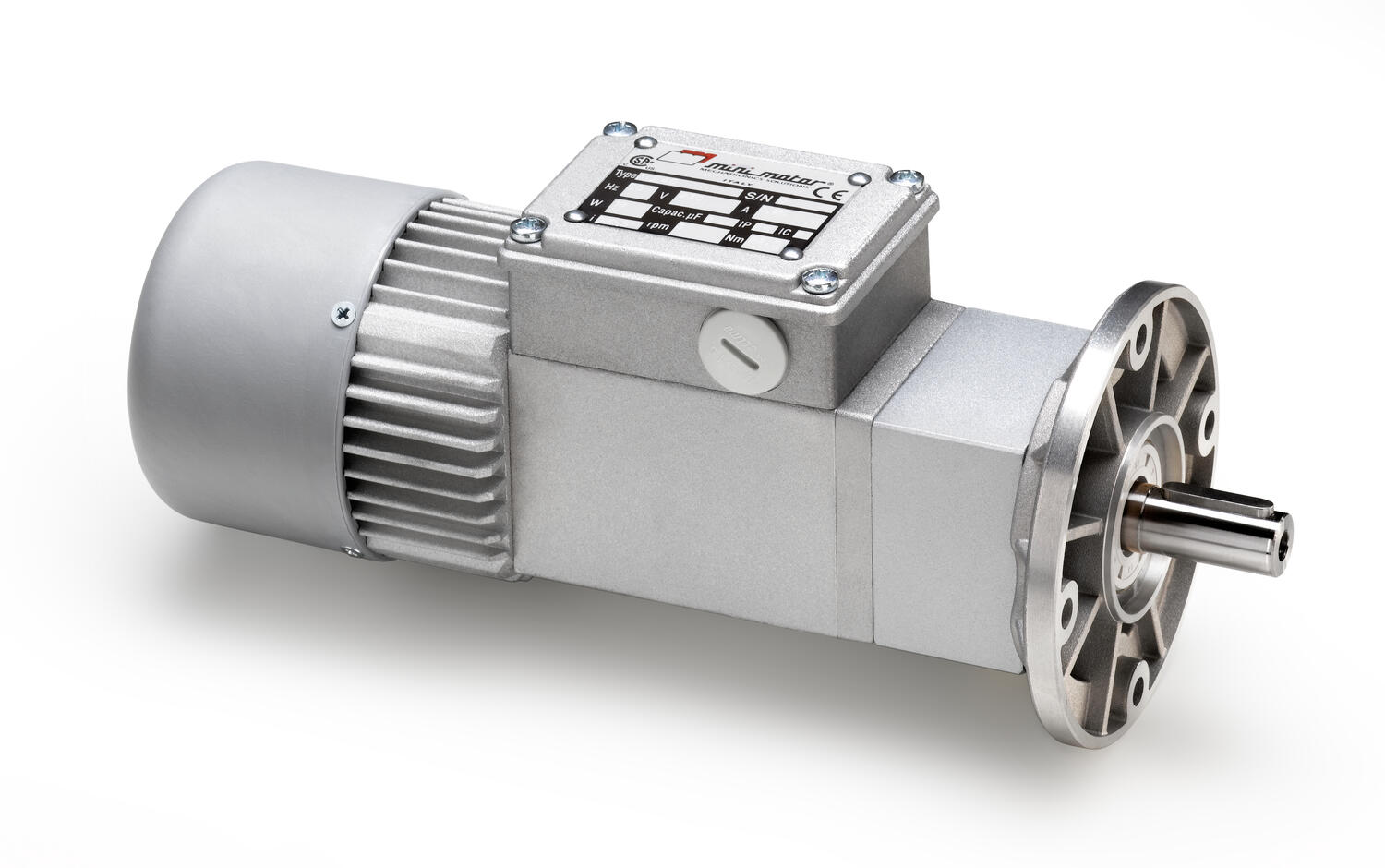

ACCE picture
MINIMOTOR

Minimotor - ACE - coaxial gear motor with further planetary reduction

  • Single or thee phase versions
  • 10 to 74W delivered power
  • Up to 23.5Nm rated torque
  • B3 foot or B5 flange mounting
  • IP65 as standard
Product has 221 parts.
More information More information
250929_877.tif
MINIMOTOR

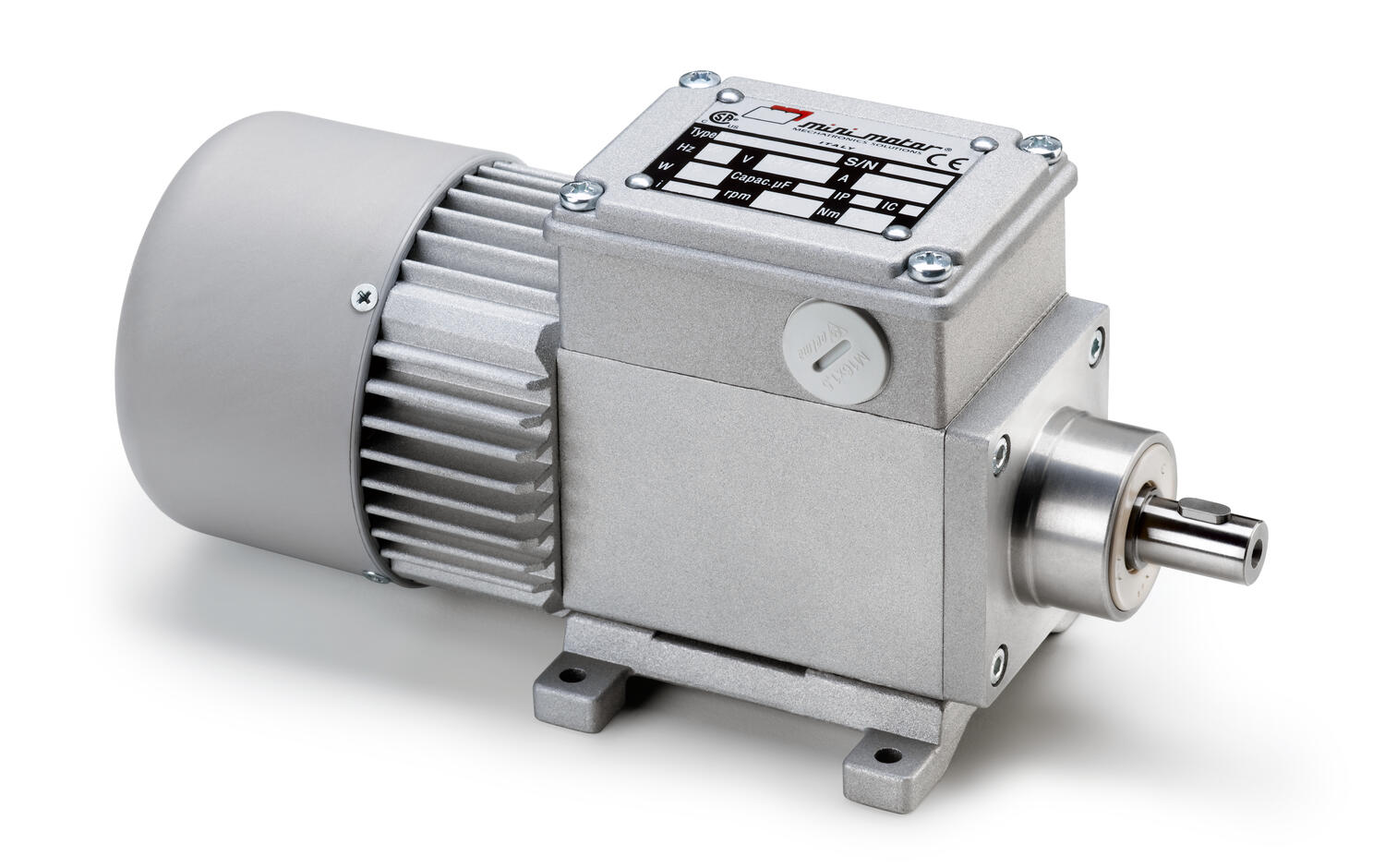

Minimotor - AC - coaxial gear motor

  • Single or three phase
  • 9 to 74W delivered power
  • Up to 5Nm rated torque
  • B3 foot or B5 flange mounting
  • IP65 as standard
Product has 184 parts.
More information More information
250931_877.tif
MINIMOTOR

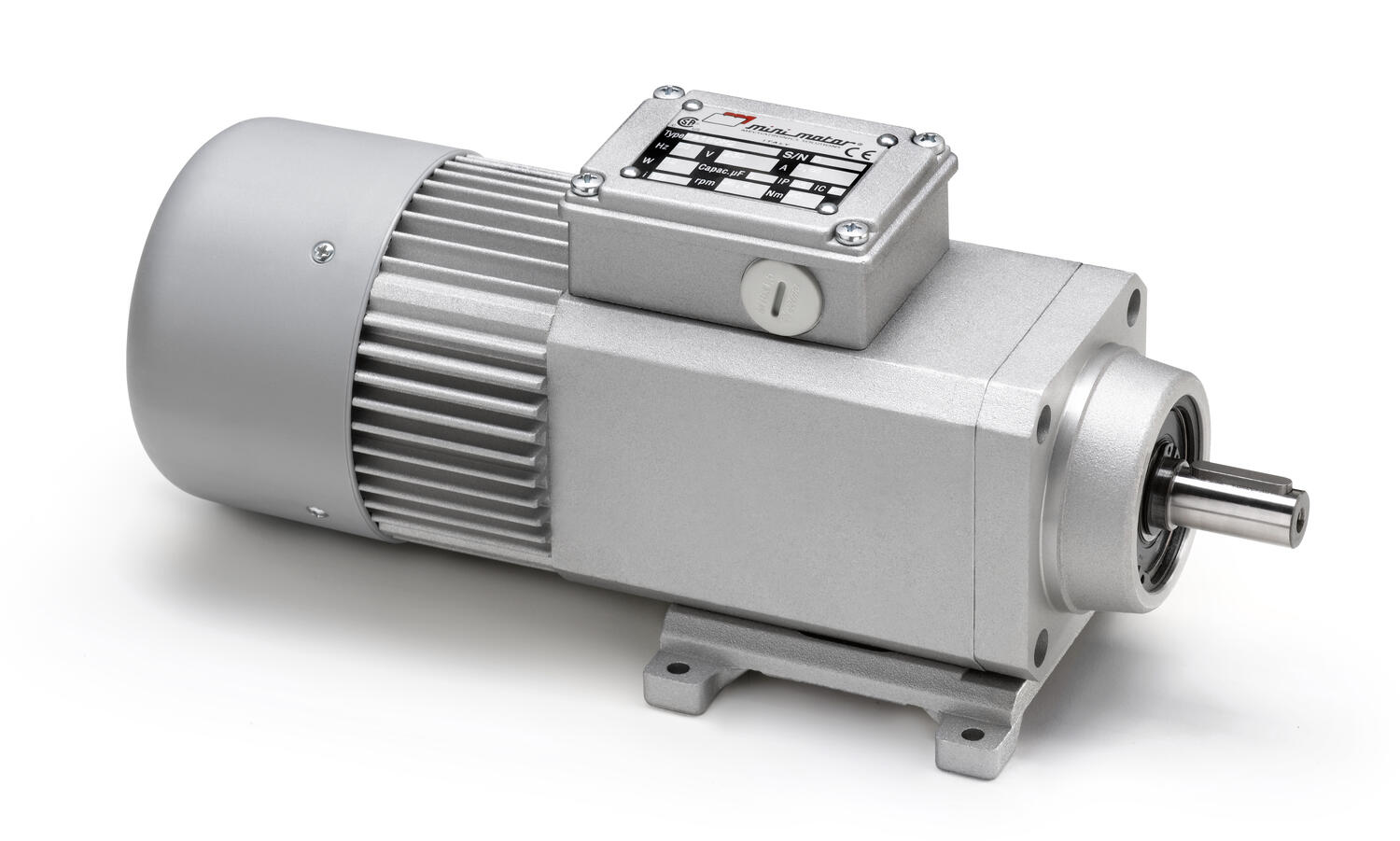

Minimotor - PA - coaxial gear motor

  • Single or three phase
  • 34 to 180W delivered power
  • Up to 20Nm rated torque
  • B3 foot or B5 flange mounting
  • IP65 as standard
Product has 182 parts.
More information More information

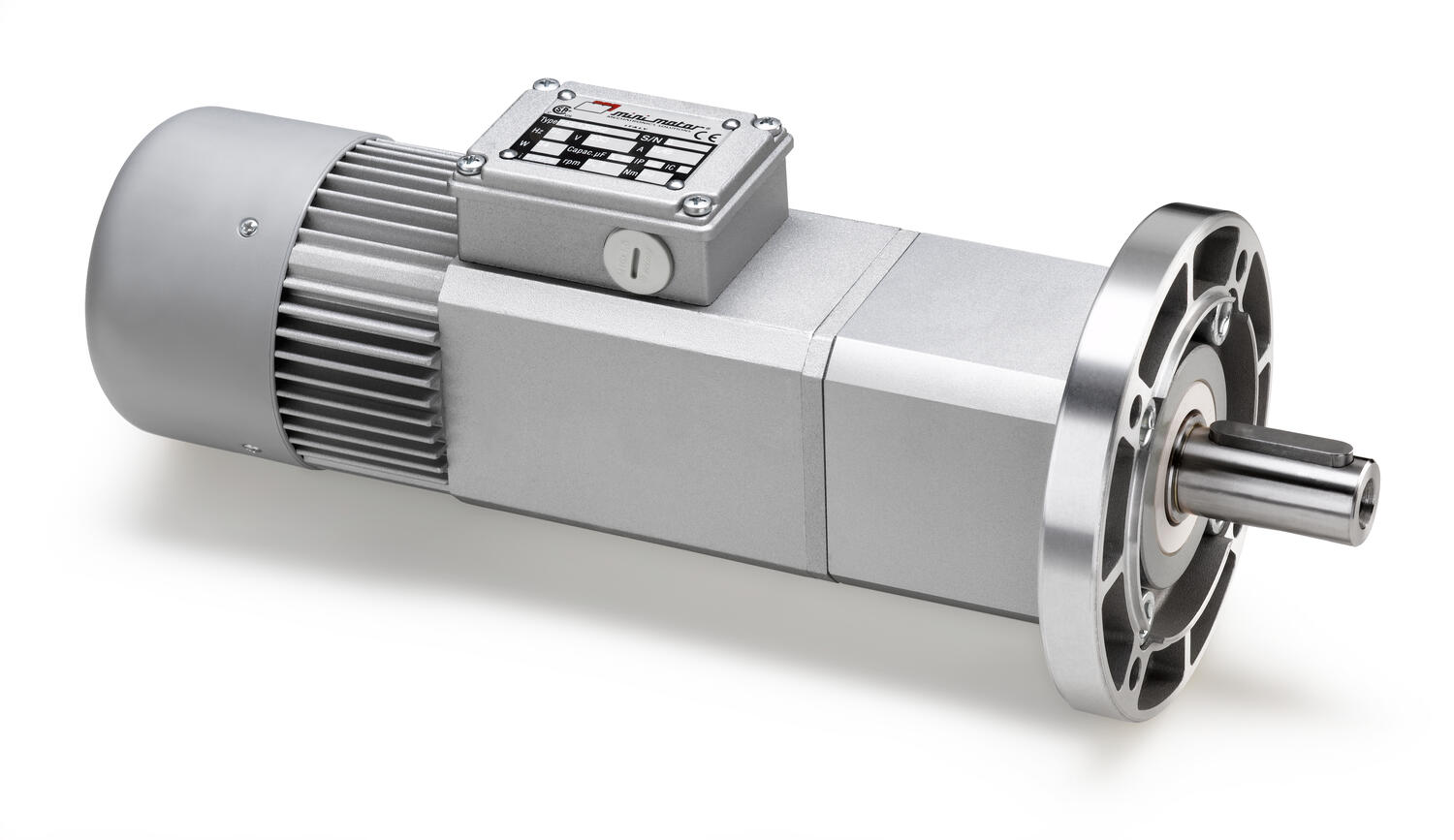

250934_877.tif
MINIMOTOR

Minimotor - PAE - coaxial gear motor with aditional planetary gear

  • Single or three phase
  • 34 to 180W delivered power
  • Up to 90Nm rated torque
  • B3 foot or B5 flange mounting
  • IP65 as standard
Product has 134 parts.
More information More information

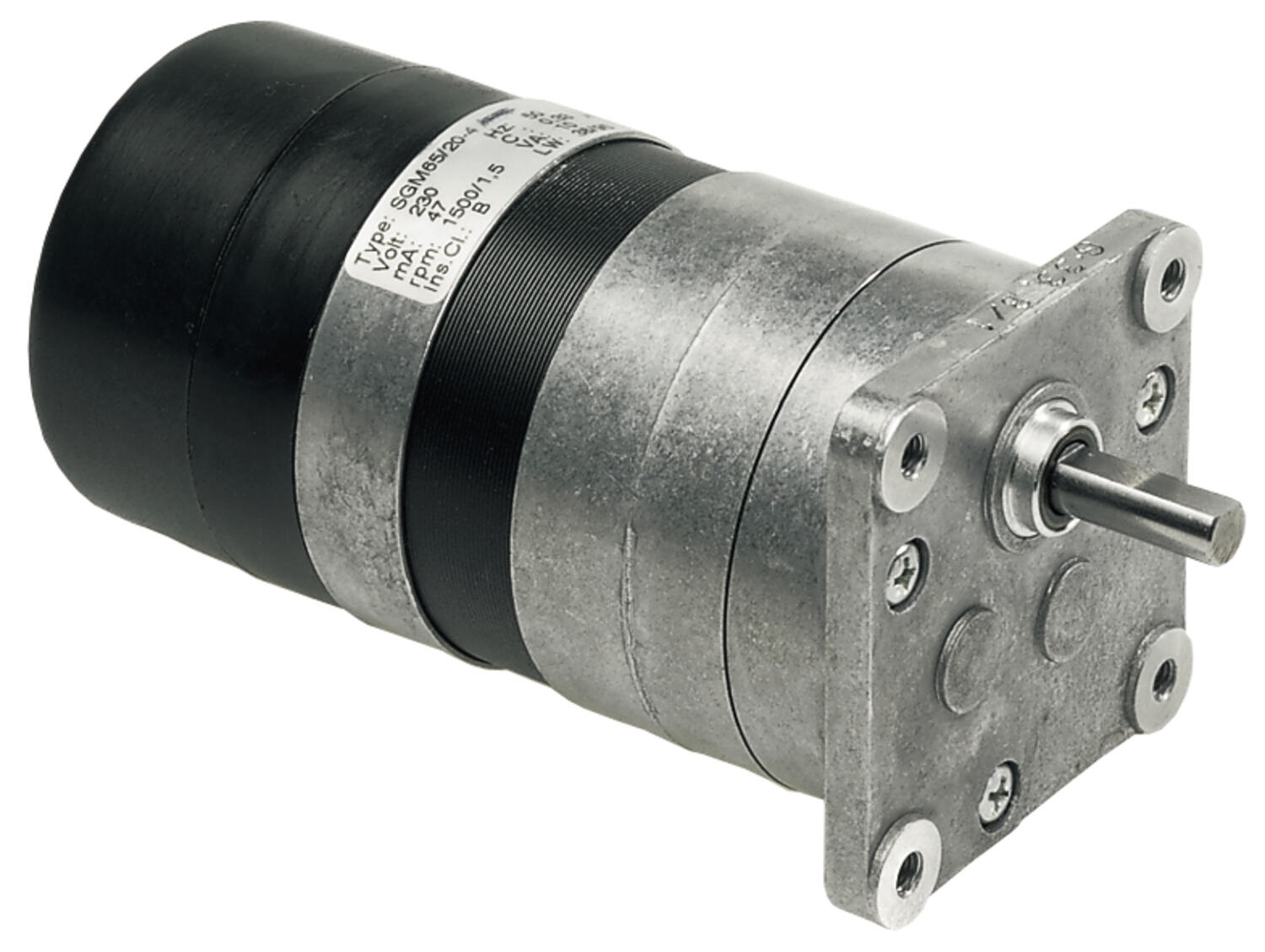

Rotek Robase AC motor with inline gearbox
ROTEK

Rotek - Robase AC motor + Spur gearbox

  • 1→3 phase, 24V→400Vac, 4→6 pole, 8→31W, 8Nm Max, 0.75→300rpm@50Hz
  • Spur gearbox - Excellent cost to performance ratio
  • Constant speed under varying load
  • Short start-up and stopping times
  • Excellent self-holding torque
Product has 16 parts.
More information More information

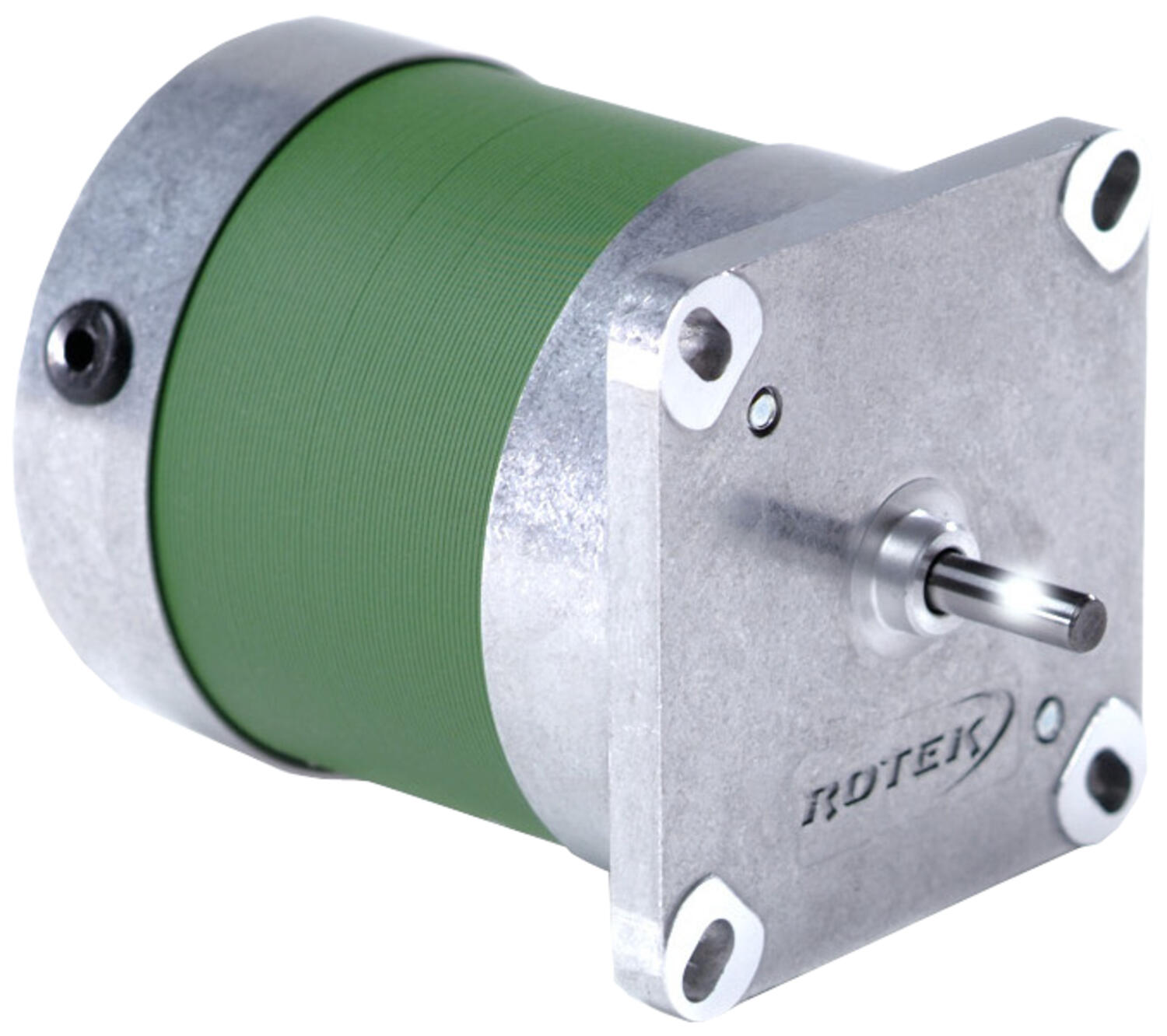

Rotek-241693-812.tif
ROTEK

Rotek - Rosync AC motor

  • 1→3 phase, 24V→400Vac, 50/60Hz, 20→85W, 12→54Ncm, 1500→1800rpm
  • 65mm Ø
  • Constant speed
  • Short start-up and stopping times
  • Extremely compact and efficient (up to 90%)
Product has 10 parts.
More information More information
CROUZET MOTORS

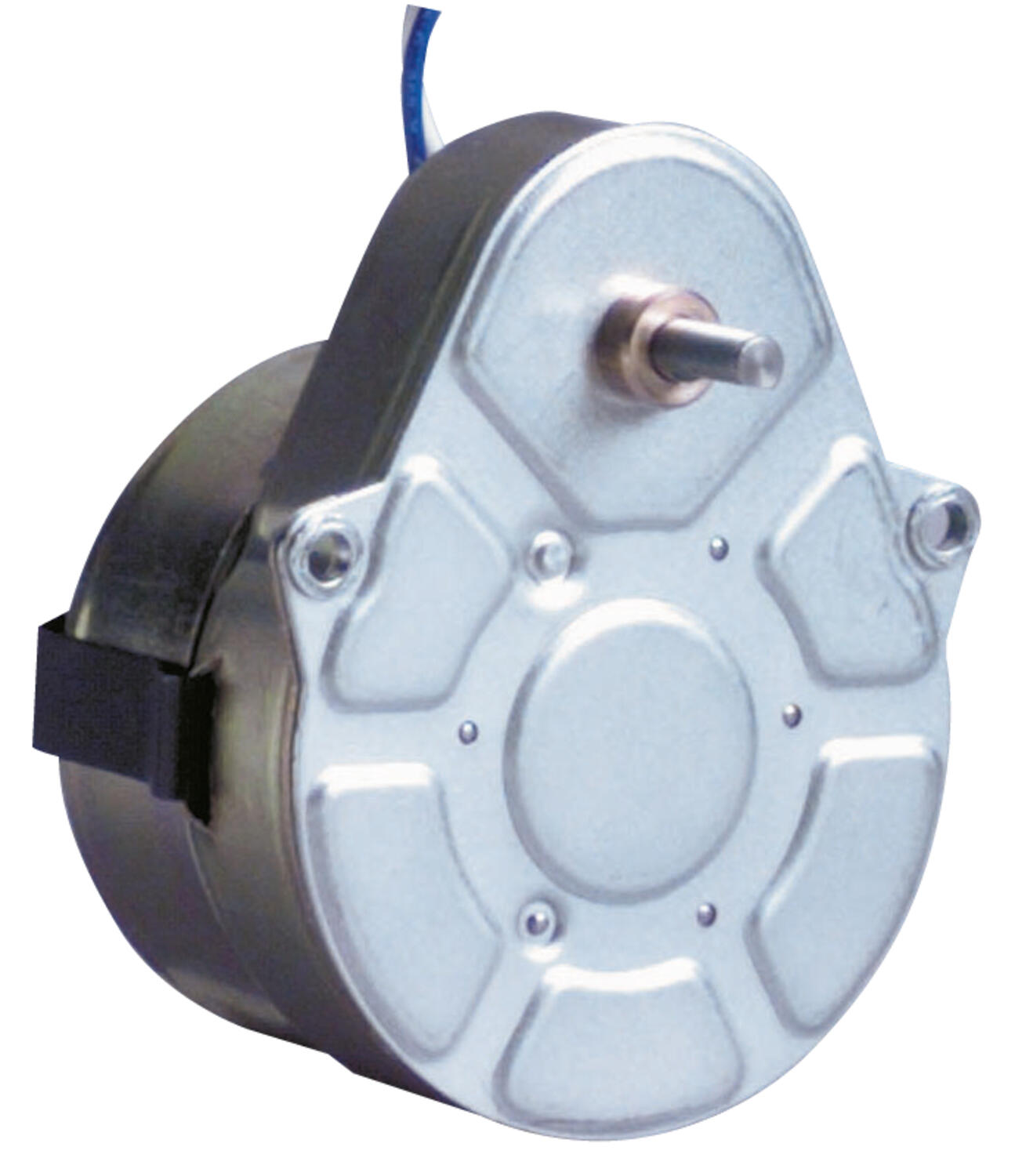

Crouzet - Synchronous geared motors

  • Single phase 24V→230V / 50Hz
  • 0.2→3W, 0.5→5Nm, 0→60rpm
  • Constant speed independant of load
  • Short start & stop times
  • Single direction & reversible options
Product has 8 parts.
More information More information
