MINIMOTOR

Minimotor - AC - coaxial gear motor

High quality, designed from the ground up to IP65 rated compact gear motor.



Physically smaller than the majority of similar powered gear motors due to the use of high quality components in precision manufacturing.



Ideally suited to many applications, including label and packaging machines, conveyors, pharmaceutical and medical machinery



MOTOR: Asynchronous single or three phase with 2 or 4 poles, totally enclosed with external ventilation. Thermal safety cutout on single phase model. Class F winding. IP65 protection according to CEI EN 60529.



GEAR UNIT: Casing in die-cast aluminium. Case-hardened and hardened gear pairs with shafts rotating on roller bearings. Lubrication with long-life oil. Sealing rings made in special rubber for high temperatures. 15 gear ratios (i) available, from 7.4 to 441.9. Rated torque 5 Nm. Version B3 or B5.



On request, motor may be supplied with electromagnetic brake at 230Va.c, marked with the letter KA (ACKA), or at 24Vd.c, marked with the letter KB (ACKB), see specifications on "BRAKE DATA"



2D and 3D drawings available here



Read more
  • Single or three phase
  • 9 to 74W delivered power
  • Up to 5Nm rated torque
  • B3 foot or B5 flange mounting
  • IP65 as standard

Selected variant

Available in several variants
MINIMOTOR.eps

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Capacitor 3.15 μF
Input voltage ac 230V
Nominal speed 114 rpm
Nominal torque 2.7
Output power 35 W
Rated current 0.41A
Ratio 24.4:1

Downloads

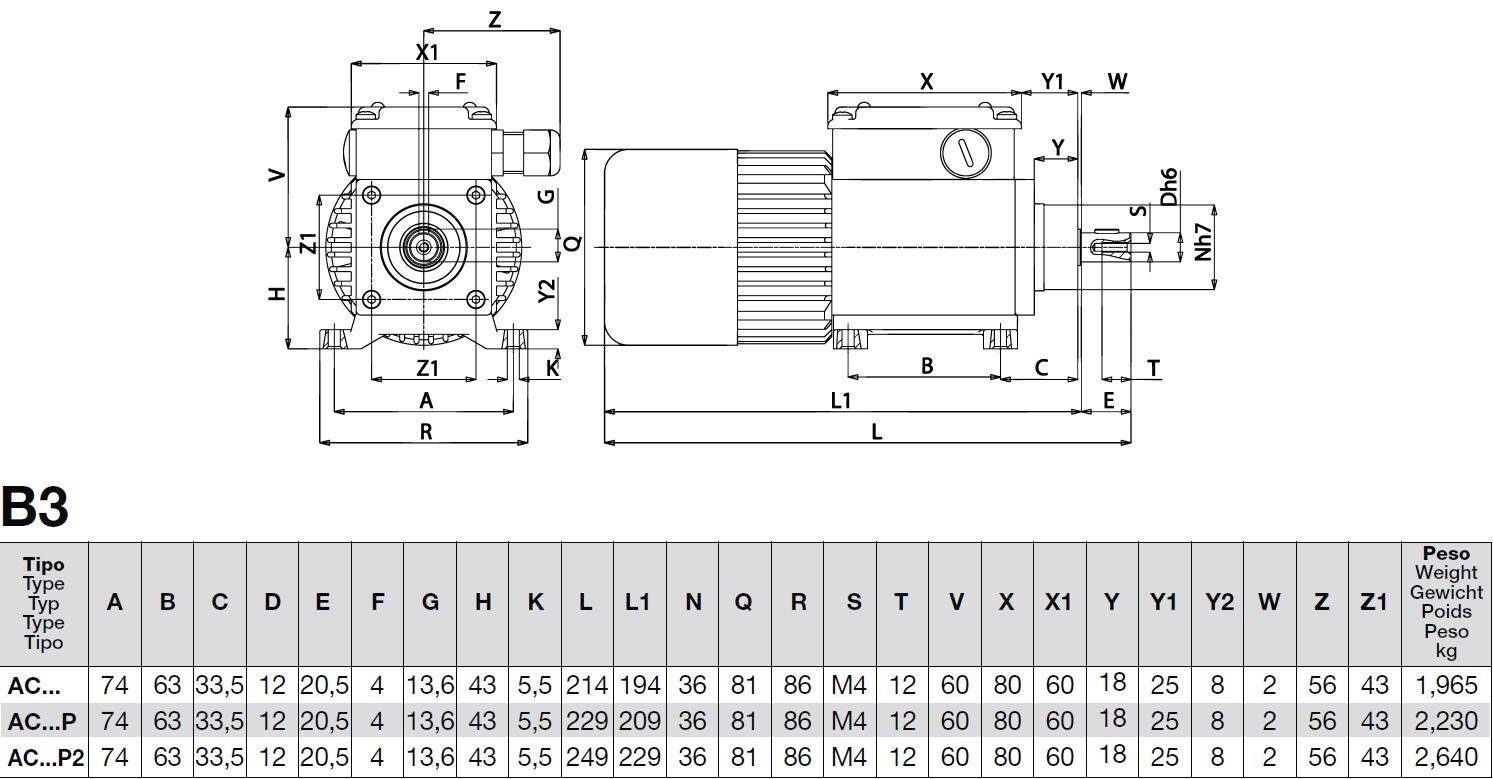

Measurements and connections

Product description

High quality, designed from the ground up to IP65 rated compact gear motor.



Physically smaller than the majority of similar powered gear motors due to the use of high quality components in precision manufacturing.



Ideally suited to many applications, including label and packaging machines, conveyors, pharmaceutical and medical machinery



MOTOR: Asynchronous single or three phase with 2 or 4 poles, totally enclosed with external ventilation. Thermal safety cutout on single phase model. Class F winding. IP65 protection according to CEI EN 60529.



GEAR UNIT: Casing in die-cast aluminium. Case-hardened and hardened gear pairs with shafts rotating on roller bearings. Lubrication with long-life oil. Sealing rings made in special rubber for high temperatures. 15 gear ratios (i) available, from 7.4 to 441.9. Rated torque 5 Nm. Version B3 or B5.



On request, motor may be supplied with electromagnetic brake at 230Va.c, marked with the letter KA (ACKA), or at 24Vd.c, marked with the letter KB (ACKB), see specifications on "BRAKE DATA"



2D and 3D drawings available here



Accessories

Related

synchronous motors
Product news Blog

Synchronous Motors

Do you have a light duty motor requirement requiring a very stable output rpm ? If so, Crouzet synchronous motors are could well provide you ideal solution…

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

IATECH industrial automation components exhibition in at leicester marriott hotel by OEM Automatic
Company news

OEM introduces IATECH - The Industrial Automation Technology Expo

We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!

automation components for specialist vehicles
Blog

Automation Components for Specialist Vehicles

The specialist vehicle industry can include automotive and EV, heavy vehicles such as agriculture and rail, and marine.  This email takes you through some of the various products we offer for specialist vehicle applications.

Drive wheels AGV's AMR'S
Product news Blog

Wheel motor drives for AGVs

AGV drive wheel motors cover a wide range of options – from a miniature unit on a small 20kg robot, tasked to move on a perfectly level and smooth indoor surface, up to passenger vehicle-sized robots working outside over fields and varying terrain.

electro pneumatic control box customised bespoke solutions
Case studies

Case Study - Electro Pneumatic Control Box

At OEM Automatic, we can supply a series of components for your one project. All under one roof. This case study discusses how we supplied several components for our customer's new electro-pneumatic control box.

Parts Capacitor Input voltage ac Nominal speed Nominal torque Output power Rated current Ratio Price
250929_877.tif
230V 1 ph 114rpm 2.7Nm B3 mount
Art:
AC100PB3-114 Copied
3.15 μF
230V
114 rpm
2.7
35 W
0.41A
24.4:1
250929_877.tif
230V 1 ph 157rpm 2Nm B3 mount
Art:
AC100PB3-157 Copied
3.15 μF
230V
157 rpm
2
35 W
0.41A
17.76:1
250929_877.tif
230V 1 ph 210rpm 1.4Nm B3 mount
Art:
AC100PB3-210 Copied
3.15 μF
230V
210 rpm
1.4
35 W
0.41A
13.32:1
250929_877.tif
230V 1 ph 275rpm 1.1Nm B3 mount
Art:
AC100PB3-275 Copied
3.15 μF
230V
275 rpm
1.1
35 W
0.41A
10.17:1
250929_877.tif
230V 1 ph 378rpm 0.8Nm B3 mount
Art:
AC100PB3-378 Copied
3.15 μF
230V
378 rpm
0.8
35 W
0.41A
7.4:1
250929_877.tif
230V 1 ph 65rpm 4.7Nm B3 mount
Art:
AC100PB3-65 Copied
3.15 μF
230V
65 rpm
4.7
35 W
0.41A
42.6:1
250929_877.tif
230V 1 ph 87rpm 3.5Nm B3 mount
Art:
AC100PB3-87 Copied
3.15 μF
230V
87 rpm
3.5
35 W
0.41A
31.9:1
250929_877.tif
230V 1 ph 114rpm 2.7Nm B5 mount
Art:
AC100PB5-114 Copied
3.15 μF
230V
114 rpm
2.7
35 W
0.41A
24.4:1
250929_877.tif
230V 1 ph 157rpm 2Nm B5 mount
Art:
AC100PB5-157 Copied
3.15 μF
230V
157 rpm
2
35 W
0.41A
17.76:1
250929_877.tif
230V 1 ph 210rpm 1.4Nm B5 mount
Art:
AC100PB5-210 Copied
3.15 μF
230V
210 rpm
1.4
35 W
0.41A
13.32:1
250929_877.tif
230V 1 ph 275rpm 1.1Nm B5 mount
Art:
AC100PB5-275 Copied
3.15 μF
230V
275 rpm
1.1
35 W
0.41A
10.17:1
250929_877.tif
230V 1 ph 378rpm 0.8Nm B5 mount
Art:
AC100PB5-378 Copied
3.15 μF
230V
378 rpm
0.8
35 W
0.41A
7.4:1
250929_877.tif
230V 1 ph 65rpm 4.7Nm B5 mount
Art:
AC100PB5-65 Copied
3.15 μF
230V
65 rpm
4.7
35 W
0.41A
42.6:1
250929_877.tif
230V 1 ph 87rpm 3.5Nm B5 mount
Art:
AC100PB5-87 Copied
3.15 μF
230V
87 rpm
3.5
35 W
0.41A
31.9:1
250929_877.tif
230V 1 ph 105rpm 1.7Nm B3 mount
Art:
AC110P2B3-105 Copied
5 μF
230V
105 rpm
1.7
19 W
0.41A
13.32:1
250929_877.tif
230V 1 ph 137.5rpm 1.3Nm B3 mount
Art:
AC110P2B3-137.5 Copied
5 μF
230V
137.5 rpm
1.3
19 W
0.41A
10.17:1
250929_877.tif
230V 1 ph 189rpm 0.9Nm B3 mount
Art:
AC110P2B3-189 Copied
5 μF
230V
189 rpm
0.9
19 W
0.41A
7.4:1
250929_877.tif
230V 1 ph 43.5rpm 4.1Nm B3 mount
Art:
AC110P2B3-43.5 Copied
5 μF
230V
43.5 rpm
4.1
19 W
0.41A
31.9:1
250929_877.tif
230V 1 ph 57rpm 3.1Nm B3 mount
Art:
AC110P2B3-57 Copied
5 μF
230V
57 rpm
3.1
19 W
0.41A
24.4:1
250929_877.tif
230V 1 ph 78.5rpm 2.2Nm B3 mount
Art:
AC110P2B3-78.5 Copied
5 μF
230V
78.5 rpm
2.2
19 W
0.41A
17.76:1
250929_877.tif
230V 1 ph 105rpm 1.7Nm B5 mount
Art:
AC110P2B5-105 Copied
5 μF
230V
105 rpm
1.7
19 W
0.41A
13.32:1
250929_877.tif
230V 1 ph 137.5rpm 1.3Nm B5 mount
Art:
AC110P2B5-137.5 Copied
5 μF
230V
137.5 rpm
1.3
19 W
0.41A
10.17:1
250929_877.tif
230V 1 ph 189rpm 0.9Nm B5 mount
Art:
AC110P2B5-189 Copied
5 μF
230V
189 rpm
0.9
19 W
0.41A
7.4:1
250929_877.tif
230V 1 ph 43.5rpm 4.1Nm B5 mount
Art:
AC110P2B5-43.5 Copied
5 μF
230V
43.5 rpm
4.1
19 W
0.41A
31.9:1
250929_877.tif
230V 1 ph 57rpm 3.1Nm B5 mount
Art:
AC110P2B5-57 Copied
5 μF
230V
57 rpm
3.1
19 W
0.41A
24.4:1
250929_877.tif
230V 1 ph 78.5rpm 2.2Nm B5 mount
Art:
AC110P2B5-78.5 Copied
5 μF
230V
78.5 rpm
2.2
19 W
0.41A
17.76:1
250929_877.tif
230/400V 3 ph 105rpm 1.2Nm B3 mount
Art:
AC110PTB3-105 Copied
230Δ/400Y
105 rpm
1.2
14 W
0.25Δ/0.14Y
13.32:1
250929_877.tif
230/400V 3 ph 137.5rpm 0.9Nm B3 mount
Art:
AC110PTB3-137.5 Copied
230Δ/400Y
137.5 rpm
0.9
14 W
0.25Δ/0.14Y
10.17:1
250929_877.tif
230/400V 3 ph 189rpm 0.7Nm B3 mount
Art:
AC110PTB3-189 Copied
230Δ/400Y
189 rpm
0.7
14 W
0.25Δ/0.14Y
7.4:1
250929_877.tif
230/400V 3 ph 32.5rpm 4Nm B3 mount
Art:
AC110PTB3-32.5 Copied
230Δ/400Y
32.5 rpm
4
14 W
0.25Δ/0.14Y
42.6:1
250929_877.tif
230/400V 3 ph 43.5rpm 3Nm B3 mount
Art:
AC110PTB3-43.5 Copied
230Δ/400Y
43.5 rpm
3
14 W
0.25Δ/0.14Y
31.9:1
250929_877.tif
230/400V 3 ph 57rpm 2.2Nm B3 mount
Art:
AC110PTB3-57 Copied
230Δ/400Y
57 rpm
2.3
14 W
0.25Δ/0.14Y
24.4:1
250929_877.tif
230/400V 3 ph 78.5rpm 1.6Nm B3 mount
Art:
AC110PTB3-78.5 Copied
230Δ/400Y
78.5 rpm
1.6
14 W
0.25Δ/0.14Y
17.76:1
250929_877.tif
230/400V 3 ph 105rpm 1.2Nm B5 mount
Art:
AC110PTB5-105 Copied
230Δ/400Y
105 rpm
1.2
14 W
0.25Δ/0.14Y
13.32:1
250929_877.tif
230/400V 3 ph 137.5rpm 0.9Nm B5 mount
Art:
AC110PTB5-137.5 Copied
230Δ/400Y
137.5 rpm
0.9
14 W
0.25Δ/0.14Y
10.17:1
250929_877.tif
230/400V 3 ph 189rpm 0.7Nm B5 mount
Art:
AC110PTB5-189 Copied
230Δ/400Y
189 rpm
0.7
14 W
0.25Δ/0.14Y
7.4:1
250929_877.tif
230/400V 3 ph 32.5rpm 4Nm B5 mount
Art:
AC110PTB5-32.5 Copied
230Δ/400Y
32.5 rpm
4
14 W
0.25Δ/0.14Y
42.6:1
250929_877.tif
230/400V 3 ph 43.5rpm 3Nm B5 mount
Art:
AC110PTB5-43.5 Copied
230Δ/400Y
43.5 rpm
3
14 W
0.25Δ/0.14Y
31.9:1
250929_877.tif
230/400V 3 ph 57rpm 2.2Nm B5 mount
Art:
AC110PTB5-57 Copied
230Δ/400Y
57 rpm
2.3
14 W
0.25Δ/0.14Y
24.4:1
250929_877.tif
230/400V 3 ph 78.5rpm 1.6Nm B5 mount
Art:
AC110PTB5-78.5 Copied
230Δ/400Y
78.5 rpm
1.6
14 W
0.25Δ/0.14Y
17.76:1
250929_877.tif
230/400V 3 ph 105rpm 1.6Nm B3 mount
Art:
AC145P2TB3-105 Copied
230Δ/400Y
105 rpm
1.6
18 W
0.32Δ/0.18Y
13.32:1
250929_877.tif
230/400V 3 ph 137.5rpm 1.2Nm B3 mount
Art:
AC145P2TB3-137.5 Copied
230Δ/400Y
137.5 rpm
1.2
18 W
0.32Δ/0.18Y
10.17:1
250929_877.tif
230/400V 3 ph 189rpm 0.8Nm B3 mount
Art:
AC145P2TB3-189 Copied
230Δ/400Y
189 rpm
0.8
18 W
0.32Δ/0.18Y
7.4:1
250929_877.tif
230/400V 3 ph 32.5rpm 5Nm B3 mount
Art:
AC145P2TB3-32.5 Copied
230Δ/400Y
32.5 rpm
5
18 W
0.32Δ/0.18Y
42.6:1
250929_877.tif
230/400V 3 ph 43.5rpm 3.8Nm B3 mount
Art:
AC145P2TB3-43.5 Copied
230Δ/400Y
43.5 rpm
3.8
18 W
0.32Δ/0.18Y
31.9:1
250929_877.tif
230/400V 3 ph 57rpm 2.9Nm B3 mount
Art:
AC145P2TB3-57 Copied
230Δ/400Y
57 rpm
2.9
18 W
0.32Δ/0.18Y
24.4:1
250929_877.tif
230/400V 3 ph 78.5rpm 2.1Nm B3 mount
Art:
AC145P2TB3-78.5 Copied
230Δ/400Y
78.5 rpm
2.1
18 W
0.32Δ/0.18Y
17.76:1
250929_877.tif
230/400V 3 ph 105rpm 1.6Nm B5 mount
Art:
AC145P2TB5-105 Copied
230Δ/400Y
105 rpm
1.6
18 W
0.32Δ/0.18Y
13.32:1
250929_877.tif
230/400V 3 ph 137.5rpm 1.2Nm B5 mount
Art:
AC145P2TB5-137.5 Copied
230Δ/400Y
137.5 rpm
1.2
18 W
0.32Δ/0.18Y
10.17:1
250929_877.tif
230/400V 3 ph 189rpm 0.8Nm B5 mount
Art:
AC145P2TB5-189 Copied
230Δ/400Y
189 rpm
0.8
18 W
0.32Δ/0.18Y
7.4:1
250929_877.tif
230/400V 3 ph 32.5rpm 5Nm B5 mount
Art:
AC145P2TB5-32.5 Copied
230Δ/400Y
32.5 rpm
5
18 W
0.32Δ/0.18Y
42.6:1
250929_877.tif
230/400V 3 ph 43.5rpm 3.8Nm B5 mount
Art:
AC145P2TB5-43.5 Copied
230Δ/400Y
43.5 rpm
3.8
18 W
0.32Δ/0.18Y
31.9:1
250929_877.tif
230/400V 3 ph 57rpm 2.9Nm B5 mount
Art:
AC145P2TB5-57 Copied
230Δ/400Y
57 rpm
2.9
18 W
0.32Δ/0.18Y
24.4:1
250929_877.tif
230/400V 3 ph 78.5rpm 2.1Nm B5 mount
Art:
AC145P2TB5-78.5 Copied
230Δ/400Y
78.5 rpm
2.1
18 W
0.32Δ/0.18Y
17.76:1
250929_877.tif
230V 1 ph 114rpm 4.6Nm B3 mount
Art:
AC160P2B3-114 Copied
4 μF
230V
114 rpm
4.6
60 W
0.54A
24.4:1
250929_877.tif
230V 1 ph 157rpm 3.3Nm B3 mount
Art:
AC160P2B3-157 Copied
4 μF
230V
157 rpm
3.3
60 W
0.54A
17.76:1
250929_877.tif
230V 1 ph 210rpm 2.5Nm B3 mount
Art:
AC160P2B3-210 Copied
4 μF
230V
210 rpm
2.5
60 W
0.54A
13.32:1
250929_877.tif
230V 1 ph 275rpm 1.9Nm B3 mount
Art:
AC160P2B3-275 Copied
4 μF
230V
275 rpm
1.9
60 W
0.54A
10.17:1
250929_877.tif
230V 1 ph 378rpm 1.4Nm B3 mount
Art:
AC160P2B3-378 Copied
4 μF
230V
378 rpm
1.4
60 W
0.54A
7.4:1
250929_877.tif
230V 1 ph 87rpm 5Nm B3 mount
Art:
AC160P2B3-87 Copied
4 μF
230V
87 rpm
5
60 W
0.54A
31.9:1
250929_877.tif
230V 1 ph 114rpm 4.6Nm B5 mount
Art:
AC160P2B5-114 Copied
4 μF
230V
114 rpm
4.6
60 W
0.54A
24.4:1
250929_877.tif
230V 1 ph 157rpm 3.3Nm B5 mount
Art:
AC160P2B5-157 Copied
4 μF
230V
157 rpm
3.3
60 W
0.54A
17.76:1
250929_877.tif
230V 1 ph 210rpm 2.5Nm B5 mount
Art:
AC160P2B5-210 Copied
4 μF
230V
210 rpm
2.5
60 W
0.54A
13.32:1
250929_877.tif
230V 1 ph 275rpm 1.9Nm B5 mount
Art:
AC160P2B5-275 Copied
4 μF
230V
275 rpm
1.9
60 W
0.54A
10.17:1
250929_877.tif
230V 1 ph 378rpm 1.4Nm B5 mount
Art:
AC160P2B5-378 Copied
4 μF
230V
378 rpm
1.4
60 W
0.54A
7.4:1
250929_877.tif
230V 1 ph 87rpm 5Nm B5 mount
Art:
AC160P2B5-87 Copied
4 μF
230V
87 rpm
5
60 W
0.54A
31.9:1
250929_877.tif
230/400V 3 ph 114rpm 3.7Nm B3 mount
Art:
AC244PTB3-114 Copied
230Δ/400Y
114 rpm
3.7
49 W
0.52Δ/0.3Y
24.4:1
250929_877.tif
230/400V 3 ph 157rpm 3.7Nm B3 mount
Art:
AC244PTB3-157 Copied
230Δ/400Y
157 rpm
2.7
49 W
0.52Δ/0.30Y
17.76:1
250929_877.tif
230/400V 3 ph 210rpm 2Nm B3 mount
Art:
AC244PTB3-210 Copied
230Δ/400Y
210 rpm
2
49 W
0.52Δ/0.30Y
13.32:1
250929_877.tif
230/400V 3 ph 275rpm 1.5Nm B3 mount
Art:
AC244PTB3-275 Copied
230Δ/400Y
275 rpm
1.5
49 W
0.52Δ/0.30Y
10.17:1
250929_877.tif
230/400V 3 ph 378rpm 1.1Nm B3 mount
Art:
AC244PTB3-378 Copied
230Δ/400Y
378 rpm
1.1
49 W
0.52Δ/0.30Y
7.4:1
250929_877.tif
230/400V 3 ph 65rpm 5Nm B3 mount
Art:
AC244PTB3-65 Copied
230Δ/400Y
65 rpm
5
49 W
0.52Δ/0.30Y
42.6:1
250929_877.tif
230/400V 3 ph 87rpm 4.9Nm B3 mount
Art:
AC244PTB3-87 Copied
230Δ/400Y
87 rpm
4.9
49 W
0.52Δ/0.30Y
31.9:1
250929_877.tif
230/400V 3 ph 114rpm 3.7Nm B5 mount
Art:
AC244PTB5-114 Copied
230Δ/400Y
114 rpm
3.7
49 W
0.52Δ/0.3Y
24.4:1
250929_877.tif
230/400V 3 ph 157rpm 3.7Nm B5 mount
Art:
AC244PTB5-157 Copied
230Δ/400Y
157 rpm
2.7
49 W
0.52Δ/0.30Y
17.76:1
250929_877.tif
230/400V 3 ph 210rpm 2Nm B5 mount
Art:
AC244PTB5-210 Copied
230Δ/400Y
210 rpm
2
49 W
0.52Δ/0.30Y
13.32:1
250929_877.tif
230/400V 3 ph 275rpm 1.5Nm B5 mount
Art:
AC244PTB5-275 Copied
230Δ/400Y
275 rpm
1.5
49 W
0.52Δ/0.30Y
10.17:1
250929_877.tif
230/400V 3 ph 378rpm 1.1Nm B5 mount
Art:
AC244PTB5-378 Copied
230Δ/400Y
378 rpm
1.1
49 W
0.52Δ/0.30Y
7.4:1
250929_877.tif
230/400V 3 ph 65rpm 5Nm B5 mount
Art:
AC244PTB5-65 Copied
230Δ/400Y
65 rpm
5
49 W
0.52Δ/0.30Y
42.6:1
250929_877.tif
230/400V 3 ph 87rpm 4.9Nm B5 mount
Art:
AC244PTB5-87 Copied
230Δ/400Y
87 rpm
4.9
49 W
0.52Δ/0.30Y
31.9:1
250929_877.tif
230/400V 3 ph 114rpm 3.1Nm B3 mount
Art:
AC320P2TB3-114 Copied
230Δ/400Y
114 rpm
5
74 W
0.62Δ/0.36Y
24.4:1
250929_877.tif
230/400V 3 ph 157rpm 4.1Nm B3 mount
Art:
AC320P2TB3-157 Copied
230Δ/400Y
157 rpm
4.1
74 W
0.62Δ/0.36Y
17.76:1
250929_877.tif
230/400V 3 ph 210rpm 3.1Nm B3 mount
Art:
AC320P2TB3-210 Copied
230Δ/400Y
210 rpm
3.1
74 W
0.62Δ/0.36Y
13.32:1
250929_877.tif
230/400V 3 ph 275rpm 2.3Nm B3 mount
Art:
AC320P2TB3-275 Copied
230Δ/400Y
275 rpm
2.3
74 W
0.62Δ/0.36Y
10.17:1
250929_877.tif
230/400V 3 ph 378rpm 1.7Nm B3 mount
Art:
AC320P2TB3-378 Copied
230Δ/400Y
378 rpm
1.7
74 W
0.62Δ/0.36Y
7.4:1
250929_877.tif
230/400V 3 ph 114rpm 3.1Nm B5 mount
Art:
AC320P2TB5-114 Copied
230Δ/400Y
114 rpm
5
74 W
0.62Δ/0.36Y
24.4:1
250929_877.tif
230/400V 3 ph 157rpm 4.1Nm B5 mount
Art:
AC320P2TB5-157 Copied
230Δ/400Y
157 rpm
4.1
74 W
0.62Δ/0.36Y
17.76:1
250929_877.tif
230/400V 3 ph 210rpm 3.1Nm B5 mount
Art:
AC320P2TB5-210 Copied
230Δ/400Y
210 rpm
3.1
74 W
0.62Δ/0.36Y
13.32:1
250929_877.tif
230/400V 3 ph 275rpm 2.3Nm B5 mount
Art:
AC320P2TB5-275 Copied
230Δ/400Y
275 rpm
2.3
74 W
0.62Δ/0.36Y
10.17:1
250929_877.tif
230/400V 3 ph 378rpm 1.7Nm B5 mount
Art:
AC320P2TB5-378 Copied
230Δ/400Y
378 rpm
1.7
74 W
0.62Δ/0.36Y
7.4:1
250929_877.tif
230V 1 ph 114rpm 2.1Nm B3 mount
Art:
AC66B3-114 Copied
2.5 μF
230V
114 rpm
2.1
27 W
0.34A
24.4:1
250929_877.tif
230V 1 ph 157rpm 1.5Nm B3 mount
Art:
AC66B3-157 Copied
2.5 μF
230V
157 rpm
1.5
27 W
0.34A
17.76:1
250929_877.tif
230V 1 ph 210rpm 1.1Nm B3 mount
Art:
AC66B3-210 Copied
2.5 μF
230V
210 rpm
1.1
27 W
0.34A
13.32:1
250929_877.tif
230V 1 ph 27rpm 5Nm B3 mount
Art:
AC66B3-27 Copied
2.5 μF
230V
27 rpm
5
27 W
0.34A
102.3:1
250929_877.tif
230V 1 ph 275rpm 0.8Nm B3 mount
Art:
AC66B3-275 Copied
2.5 μF
230V
275 rpm
0.8
27 W
0.34A
10.17:1
250929_877.tif
230V 1 ph 36rpm 5Nm B3 mount
Art:
AC66B3-36 Copied
2.5 μF
230V
36 rpm
5
27 W
0.34A
76.7:1
250929_877.tif
230V 1 ph 378rpm 0.6Nm B3 mount
Art:
AC66B3-378 Copied
2.5 μF
230V
378 rpm
0.6
27 W
0.34A
7.4:1
250929_877.tif
230V 1 ph 47rpm 5Nm B3 mount
Art:
AC66B3-47 Copied
2.5 μF
230V
47 rpm
5
27 W
0.34A
58.6:1
250929_877.tif
230V 1 ph 65rpm 3.6Nm B3 mount
Art:
AC66B3-65 Copied
2.5 μF
230V
65 rpm
3.6
27 W
0.34A
42.6:1
250929_877.tif
230V 1 ph 87rpm 2.7Nm B3 mount
Art:
AC66B3-87 Copied
2.5 μF
230V
87 rpm
2.7
27 W
0.34A
31.9:1
250929_877.tif
230V 1 ph 114rpm 2.1Nm B5 mount
Art:
AC66B5-114 Copied
2.5 μF
230V
114 rpm
2.1
27 W
0.34A
24.4:1
250929_877.tif
230V 1 ph 157rpm 1.5Nm B5 mount
Art:
AC66B5-157 Copied
2.5 μF
230V
157 rpm
1.5
27 W
0.34A
17.76:1
250929_877.tif
230V 1 ph 210rpm 1.1Nm B5 mount
Art:
AC66B5-210 Copied
2.5 μF
230V
210 rpm
1.1
27 W
0.34A
13.32:1
250929_877.tif
230V 1 ph 27rpm 5Nm B5 mount
Art:
AC66B5-27 Copied
2.5 μF
230V
27 rpm
5
27 W
0.34A
102.3:1
250929_877.tif
230V 1 ph 275rpm 0.8Nm B5 mount
Art:
AC66B5-275 Copied
2.5 μF
230V
275 rpm
0.8
27 W
0.34A
10.17:1
250929_877.tif
230V 1 ph 36rpm 5Nm B5 mount
Art:
AC66B5-36 Copied
2.5 μF
230V
36 rpm
5
27 W
0.34A
76.7:1
250929_877.tif
230V 1 ph 378rpm 0.6Nm B5 mount
Art:
AC66B5-378 Copied
2.5 μF
230V
378 rpm
0.6
27 W
0.34A
7.4:1
250929_877.tif
230V 1 ph 47rpm 5Nm B5 mount
Art:
AC66B5-47 Copied
2.5 μF
230V
47 rpm
5
27 W
0.34A
58.6:1
250929_877.tif
230V 1 ph 65rpm 3.6Nm B5 mount
Art:
AC66B5-65 Copied
2.5 μF
230V
65 rpm
3.6
27 W
0.34A
42.6:1
250929_877.tif
230V 1 ph 87rpm 2.7Nm B5 mount
Art:
AC66B5-87 Copied
2.5 μF
230V
87 rpm
2.7
27 W
0.34A
31.9:1
250929_877.tif
230/400V 3 ph 105rpm 0.9Nm B3 mount
Art:
AC66TB3-105 Copied
230Δ/400Y
105 rpm
0.9
10 W
0.19Δ/0.11Y
13.32:1
250929_877.tif
230/400V 3 ph 13.5rpm 5Nm B3 mount
Art:
AC66TB3-13.5 Copied
230Δ/400Y
13.5 rpm
5
10 W
0.19Δ/0.11Y
102.3:1
250929_877.tif
230/400V 3 ph 137.5rpm 0.7Nm B3 mount
Art:
AC66TB3-137.5 Copied
230Δ/400Y
137.5 rpm
0.7
10 W
0.19Δ/0.11Y
10.17:1
250929_877.tif
230/400V 3 ph 18rpm 5Nm B3 mount
Art:
AC66TB3-18 Copied
230Δ/400Y
18 rpm
5
10 W
20.19Δ/011Y
76.7:1
250929_877.tif
230/400V 3 ph 189rpm 0.5Nm B3 mount
Art:
AC66TB3-189 Copied
230Δ/400Y
189 rpm
0.5
10 W
0.19Δ/0.11Y
7.4:1
250929_877.tif
230/400V 3 ph 23.5rpm 4Nm B3 mount
Art:
AC66TB3-23.5 Copied
230Δ/400Y
23.5 rpm
4
10 W
0.19Δ/0.11Y
58.6:1
250929_877.tif
230/400V 3 ph 3.1rpm 5Nm B3 mount
Art:
AC66TB3-3.1 Copied
230Δ/400Y
3.1 rpm
5
10 W
0.19Δ/0.11Y
441.9:1
250929_877.tif
230/400V 3 ph 32.5rpm 2.9Nm B3 mount
Art:
AC66TB3-32.5 Copied
230Δ/400Y
32.5 rpm
2.9
10 W
0.19Δ/0.11Y
42.6:1
250929_877.tif
230/400V 3 ph 4.1rpm 5Nm B3 mount
Art:
AC66TB3-4.1 Copied
230Δ/400Y
4.1 rpm
5
10 W
0.19Δ/0.11Y
337.5:1
250929_877.tif
230/400V 3 ph 43.5rpm 2.1Nm B3 mount
Art:
AC66TB3-43.5 Copied
230Δ/400Y
43.5 rpm
2.1
10 W
0.19Δ/0.11Y
31.9:1
250929_877.tif
230/400V 3 ph 5.7rpm 5Nm B3 mount
Art:
AC66TB3-5.7 Copied
230Δ/400Y
5.7 rpm
5
10 W
0.19Δ/0.11Y
245.5:1
250929_877.tif
230/400V 3 ph 57rpm 1.6Nm B3 mount
Art:
AC66TB3-57 Copied
230Δ/400Y
57 rpm
1.6
10 W
0.19Δ/0.11Y
24.4:1
250929_877.tif
230/400V 3 ph 7.5rpm 5Nm B3 mount
Art:
AC66TB3-7.5 Copied
230Δ/400Y
7.5 rpm
5
10 W
0.19Δ/0.11Y
184:1
250929_877.tif
230/400V 3 ph 78.5rpm 1.2Nm B3 mount
Art:
AC66TB3-78.5 Copied
230Δ/400Y
78.5 rpm
1.2
10 W
0.19Δ/0.11Y
17.76:1
250929_877.tif
230/400V 3 ph 9.9rpm 5Nm B3 mount
Art:
AC66TB3-9.9 Copied
230Δ/400Y
9.9 rpm
5
10 W
0.19Δ/0.11Y
140.6:1
250929_877.tif
230/400V 3 ph 105rpm 0.9Nm B5 mount
Art:
AC66TB5-105 Copied
230Δ/400Y
105 rpm
0.9
10 W
0.19Δ/0.11Y
13.32:1
250929_877.tif
230/400V 3 ph 13.5rpm 5Nm B5 mount
Art:
AC66TB5-13.5 Copied
230Δ/400Y
13.5 rpm
5
10 W
0.19Δ/0.11Y
102.3:1
250929_877.tif
230/400V 3 ph 137.5rpm 0.7Nm B5 mount
Art:
AC66TB5-137.5 Copied
230Δ/400Y
137.5 rpm
0.7
10 W
0.19Δ/0.11Y
10.17:1
250929_877.tif
230/400V 3 ph 18rpm 5Nm B5 mount
Art:
AC66TB5-18 Copied
230Δ/400Y
18 rpm
5
10 W
20.19Δ/011Y
76.7:1
250929_877.tif
230/400V 3 ph 189rpm 0.5Nm B5 mount
Art:
AC66TB5-189 Copied
230Δ/400Y
189 rpm
0.5
10 W
0.19Δ/0.11Y
7.4:1
250929_877.tif
230/400V 3 ph 23.5rpm 4Nm B5 mount
Art:
AC66TB5-23.5 Copied
230Δ/400Y
23.5 rpm
4
10 W
0.19Δ/0.11Y
58.6:1
250929_877.tif
230/400V 3 ph 3.1rpm 5Nm B5 mount
Art:
AC66TB5-3.1 Copied
230Δ/400Y
3.1 rpm
5
10 W
0.19Δ/0.11Y
441.9:1
250929_877.tif
230/400V 3 ph 32.5rpm 2.9Nm B5 mount
Art:
AC66TB5-32.5 Copied
230Δ/400Y
32.5 rpm
2.9
10 W
0.19Δ/0.11Y
42.6:1
250929_877.tif
230/400V 3 ph 4.1rpm 5Nm B5 mount
Art:
AC66TB5-4.1 Copied
230Δ/400Y
4.1 rpm
5
10 W
0.19Δ/0.11Y
337.5:1
250929_877.tif
230/400V 3 ph 43.5rpm 2.1Nm B5 mount
Art:
AC66TB5-43.5 Copied
230Δ/400Y
43.5 rpm
2.1
10 W
0.19Δ/0.11Y
31.9:1
250929_877.tif
230/400V 3 ph 5.7rpm 5Nm B5 mount
Art:
AC66TB5-5.7 Copied
230Δ/400Y
5.7 rpm
5
10 W
0.19Δ/0.11Y
245.5:1
250929_877.tif
230/400V 3 ph 57rpm 1.6Nm B5 mount
Art:
AC66TB5-57 Copied
230Δ/400Y
57 rpm
1.6
10 W
0.19Δ/0.11Y
24.4:1
250929_877.tif
230/400V 3 ph 7.5rpm 5Nm B5 mount
Art:
AC66TB5-7.5 Copied
230Δ/400Y
7.5 rpm
5
10 W
0.19Δ/0.11Y
184:1
250929_877.tif
230/400V 3 ph 78.5rpm 1.2Nm B5 mount
Art:
AC66TB5-78.5 Copied
230Δ/400Y
78.5 rpm
1.2
10 W
0.19Δ/0.11Y
17.76:1
250929_877.tif
230/400V 3 ph 9.9rpm 5Nm B5 mount
Art:
AC66TB5-9.9 Copied
230Δ/400Y
9.9 rpm
5
10 W
0.19Δ/0.11Y
140.6:1
250929_877.tif
230/400V 3 ph 11.4rpm 5Nm B3 mount
Art:
AC72TB3-11.4 Copied
230Δ/400Y
11.4 rpm
5
19 W
0.22Δ/0.13Y
245.5:1
250929_877.tif
230/400V 3 ph 114rpm 1.4Nm B3 mount
Art:
AC72TB3-114 Copied
230Δ/400Y
114 rpm
1.4
19 W
0.22Δ/0.13Y
24.4:1
250929_877.tif
230/400V 3 ph 15rpm 5Nm B3 mount
Art:
AC72TB3-15 Copied
230Δ/400Y
15 rpm
5
19 W
0.22Δ/0.13Y
184:1
250929_877.tif
230/400V 3 ph 157rpm 1Nm B3 mount
Art:
AC72TB3-157 Copied
230Δ/400Y
157 rpm
1
19 W
0.22Δ/0.13Y
17.76:1
250929_877.tif
230/400V 3 ph 19.9rpm 5Nm B3 mount
Art:
AC72TB3-19.9 Copied
230Δ/400Y
19.9 rpm
5
19 W
0.22Δ/0.13Y
140.6:1
250929_877.tif
230/400V 3 ph 210rpm 0.8Nm B3 mount
Art:
AC72TB3-210 Copied
230Δ/400Y
210 rpm
0.8
19 W
0.22Δ/0.13Y
13.32:1
250929_877.tif
230/400V 3 ph 27rpm 5Nm B3 mount
Art:
AC72TB3-27 Copied
230Δ/400Y
27 rpm
5
19 W
0.22Δ/0.13Y
102.3:1
250929_877.tif
230/400V 3 ph 275rpm 0.6Nm B3 mount
Art:
AC72TB3-275 Copied
230Δ/400Y
275 rpm
0.6
19 W
0.22Δ/0.13Y
10.17:1
250929_877.tif
230/400V 3 ph 36rpm 4.6Nm B3 mount
Art:
AC72TB3-36 Copied
230Δ/400Y
36 rpm
4.6
19 W
0.22Δ/0.13Y
76.7:1
250929_877.tif
230/400V 3 ph 378rpm 0.4Nm B3 mount
Art:
AC72TB3-378 Copied
230Δ/400Y
378 rpm
0.4
19 W
0.22Δ/0.13Y
7.4:1
250929_877.tif
230/400V 3 ph 47rpm 3.5Nm B3 mount
Art:
AC72TB3-47 Copied
230Δ/400Y
47 rpm
3.5
19 W
0.22Δ/0.13Y
58.6:1
250929_877.tif
230/400V 3 ph 6.3rpm 5Nm B3 mount
Art:
AC72TB3-6.3 Copied
230Δ/400Y
6.3 rpm
5
19 W
0.22Δ/0.13Y
441.9:1
250929_877.tif
230/400V 3 ph 35rpm 2.5Nm B3 mount
Art:
AC72TB3-65 Copied
230Δ/400Y
65 rpm
2.5
19 W
0.22Δ/0.13Y
42.6:1
250929_877.tif
230/400V 3 ph 8.2rpm 5Nm B3 mount
Art:
AC72TB3-8.2 Copied
230Δ/400Y
8.2 rpm
5
19 W
0.22Δ/0.13Y
337.5:1
250929_877.tif
230/400V 3 ph 87rpm 1.9Nm B3 mount
Art:
AC72TB3-87 Copied
230Δ/400Y
87 rpm
1.9
19 W
0.22Δ/0.13Y
31.9:1
250929_877.tif
230/400V 3 ph 11.4rpm 5Nm B5 mount
Art:
AC72TB5-11.4 Copied
230Δ/400Y
11.4 rpm
5
19 W
0.22Δ/0.13Y
245.5:1
250929_877.tif
230/400V 3 ph 114rpm 1.4Nm B5 mount
Art:
AC72TB5-114 Copied
230Δ/400Y
114 rpm
1.4
19 W
0.22Δ/0.13Y
24.4:1
250929_877.tif
230/400V 3 ph 15rpm 5Nm B5 mount
Art:
AC72TB5-15 Copied
230Δ/400Y
15 rpm
5
19 W
0.22Δ/0.13Y
184:1
250929_877.tif
230/400V 3 ph 157rpm 1Nm B5 mount
Art:
AC72TB5-157 Copied
230Δ/400Y
157 rpm
1
19 W
0.22Δ/0.13Y
17.76:1
250929_877.tif
230/400V 3 ph 19.9rpm 5Nm B5 mount
Art:
AC72TB5-19.9 Copied
230Δ/400Y
19.9 rpm
5
19 W
0.22Δ/0.13Y
140.6:1
250929_877.tif
230/400V 3 ph 210rpm 0.8Nm B5 mount
Art:
AC72TB5-210 Copied
230Δ/400Y
210 rpm
0.8
19 W
0.22Δ/0.13Y
13.32:1
250929_877.tif
230/400V 3 ph 27rpm 5Nm B5 mount
Art:
AC72TB5-27 Copied
230Δ/400Y
27 rpm
5
19 W
0.22Δ/0.13Y
102.3:1
250929_877.tif
230/400V 3 ph 275rpm 0.6Nm B5 mount
Art:
AC72TB5-275 Copied
230Δ/400Y
275 rpm
0.6
19 W
0.22Δ/0.13Y
10.17:1
250929_877.tif
230/400V 3 ph 36rpm 4.6Nm B5 mount
Art:
AC72TB5-36 Copied
230Δ/400Y
36 rpm
4.6
19 W
0.22Δ/0.13Y
76.7:1
250929_877.tif
230/400V 3 ph 378rpm 0.4Nm B5 mount
Art:
AC72TB5-378 Copied
230Δ/400Y
378 rpm
0.4
19 W
0.22Δ/0.13Y
7.4:1
250929_877.tif
230/400V 3 ph 47rpm 3.5Nm B5 mount
Art:
AC72TB5-47 Copied
230Δ/400Y
47 rpm
3.5
19 W
0.22Δ/0.13Y
58.6:1
250929_877.tif
230/400V 3 ph 6.3rpm 5Nm B5 mount
Art:
AC72TB5-6.3 Copied
230Δ/400Y
6.3 rpm
5
19 W
0.22Δ/0.13Y
441.9:1
250929_877.tif
230/400V 3 ph 35rpm 2.5Nm B5 mount
Art:
AC72TB5-65 Copied
230Δ/400Y
65 rpm
2.5
19 W
0.22Δ/0.13Y
42.6:1
250929_877.tif
230/400V 3 ph 8.2rpm 5Nm B5 mount
Art:
AC72TB5-8.2 Copied
230Δ/400Y
8.2 rpm
5
19 W
0.22Δ/0.13Y
337.5:1
250929_877.tif
230/400V 3 ph 87rpm 1.9Nm B5 mount
Art:
AC72TB5-87 Copied
230Δ/400Y
87 rpm
1.9
19 W
0.22Δ/0.13Y
31.9:1
250929_877.tif
230V 1 ph 105rpm 1.3Nm B3 mount
Art:
AC80PB3-105 Copied
4 μF
230V
105 rpm
1.3
15 W
0.33A
13.32:1
250929_877.tif
230V 1 ph 137.5rpm 1Nm B3 mount
Art:
AC80PB3-137.5 Copied
4 μF
230V
137.5 rpm
1
15 W
0.33A
10.17:1
250929_877.tif
230V 1 ph 189rpm 0.7Nm B3 mount
Art:
AC80PB3-189 Copied
4 μF
230V
189 rpm
0.7
15 W
0.33A
7.4:1
250929_877.tif
230V 1 ph 32.5rpm 4.3Nm B3 mount
Art:
AC80PB3-32.5 Copied
4 μF
230V
32.5 rpm
4.3
15 W
0.33A
42.6:1
250929_877.tif
230V 1 ph 43.5rpm 3.2Nm B3 mount
Art:
AC80PB3-43.5 Copied
4 μF
230V
43.5 rpm
3.2
15 W
0.33A
31.9:1
250929_877.tif
230V 1 ph 57rpm 2.5Nm B3 mount
Art:
AC80PB3-57 Copied
4 μF
230V
57 rpm
2.5
15 W
0.33A
24.4:1
250929_877.tif
230V 1 ph 78.5rpm 1.8Nm B3 mount
Art:
AC80PB3-78.5 Copied
4 μF
230V
78.5 rpm
1.8
15 W
0.33A
17.76:1
250929_877.tif
230V 1 ph 105rpm 1.3Nm B5 mount
Art:
AC80PB5-105 Copied
4 μF
230V
105 rpm
1.3
15 W
0.33A
13.32:1
250929_877.tif
230V 1 ph 137.5rpm 1Nm B5 mount
Art:
AC80PB5-137.5 Copied
4 μF
230V
137.5 rpm
1
15 W
0.33A
10.17:1
250929_877.tif
230V 1 ph 189rpm 0.7Nm B5 mount
Art:
AC80PB5-189 Copied
4 μF
230V
189 rpm
0.7
15 W
0.33A
7.4:1
250929_877.tif
230V 1 ph 32.5rpm 4.3Nm B5 mount
Art:
AC80PB5-32.5 Copied
4 μF
230V
32.5 rpm
4.3
15 W
0.33A
42.6:1
250929_877.tif
230V 1 ph 43.5rpm 3.2Nm B5 mount
Art:
AC80PB5-43.5 Copied
4 μF
230V
43.5 rpm
3.2
15 W
0.33A
31.9:1
250929_877.tif
230V 1 ph 57rpm 2.5Nm B5 mount
Art:
AC80PB5-57 Copied
4 μF
230V
57 rpm
2.5
15 W
0.33A
24.4:1
250929_877.tif
230V 1 ph 78.5rpm 1.8Nm B5 mount
Art:
AC80PB5-78.5 Copied
4 μF
230V
78.5 rpm
1.8
15 W
0.33A
17.76:1

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
