CROUZET SWITCHES
Crouzet Switches - Tight V4 IP67
- Nominal rated current from 0.1 A to 10 A/250 V ac
- Min. rated current 1 mA/4 V dc
- Two possible control arm installation positions
Selected variant
Technical data

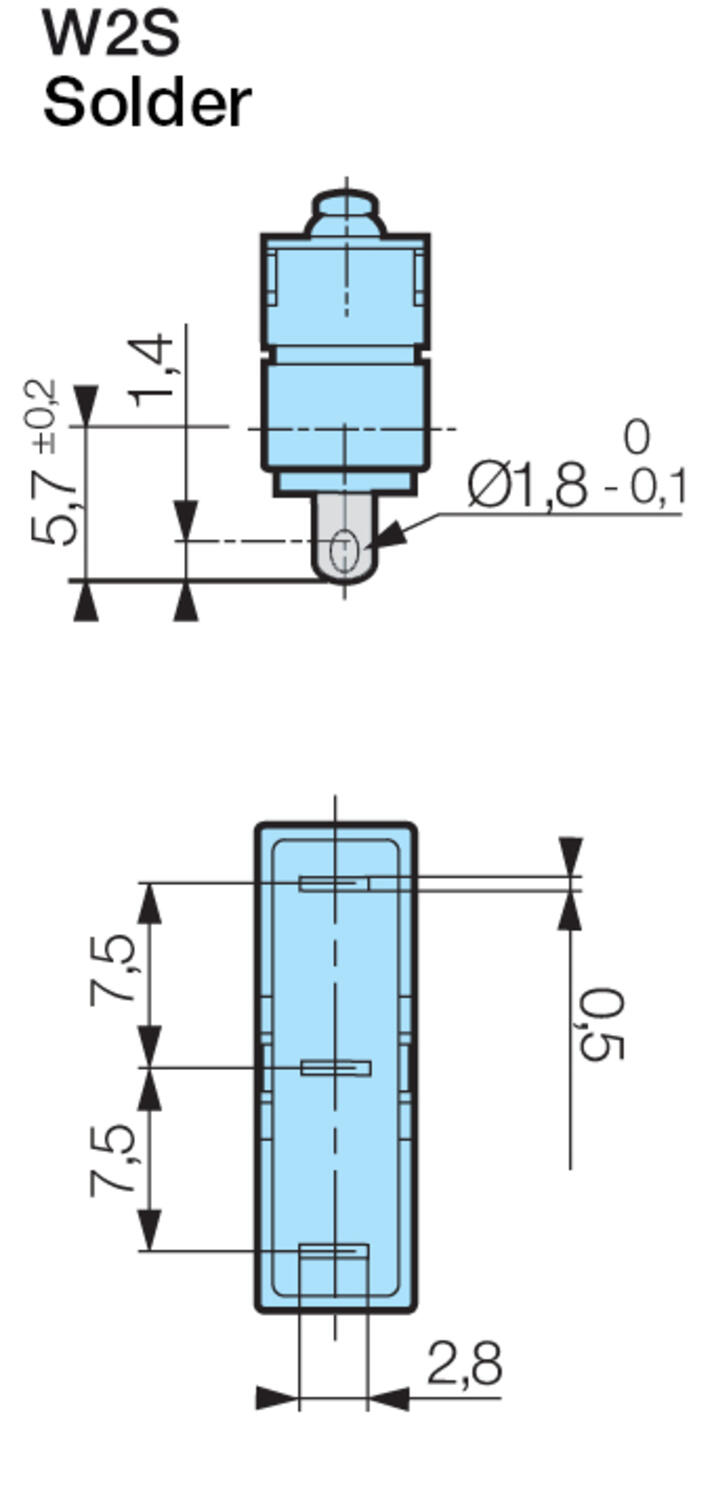

| Connection | W2S |
|---|---|
| Contact gap | 0.4 mm |
| Contact type | Changeover (SPDT) |
| Force of the return movement min | 0.8 N |
| Hysteresis max | 0.15 mm |
| IP class | IP67, IP69 |
| Operating force max | 2.5 N |
| Operating power total max | 4.2 N |
| Overtravel min | 0.6 mm |
| Permissible overvoltage max | 10 N |
|---|---|
| Rated current at 250 V ac | 6 A |
| Sleep max | 9.3 mm |
| Switching point | 8,4±0,3 mm |
| Temperature operational max | 125 °C |
| Temperature operational min | -40 °C |
| Thermal current at 250 V ac | 7.5 A |
