Takex - GN/DN miniature photoelectric sensor
The GN/DN series is a series of miniature photoelectric sensors with long distances. Modern technology has allowed for the successful manufacture of a range of low-price photoelectric sensors offering high technical performance. The compact housings, together with long distances, make this series appropriate for most applications.
- Miniature version with long distances
- Red visible light
- Cable or connector
- IP67
Selected variant
Technical data
| Approvals | CE |
|---|---|
| Distance min | 0 mm |

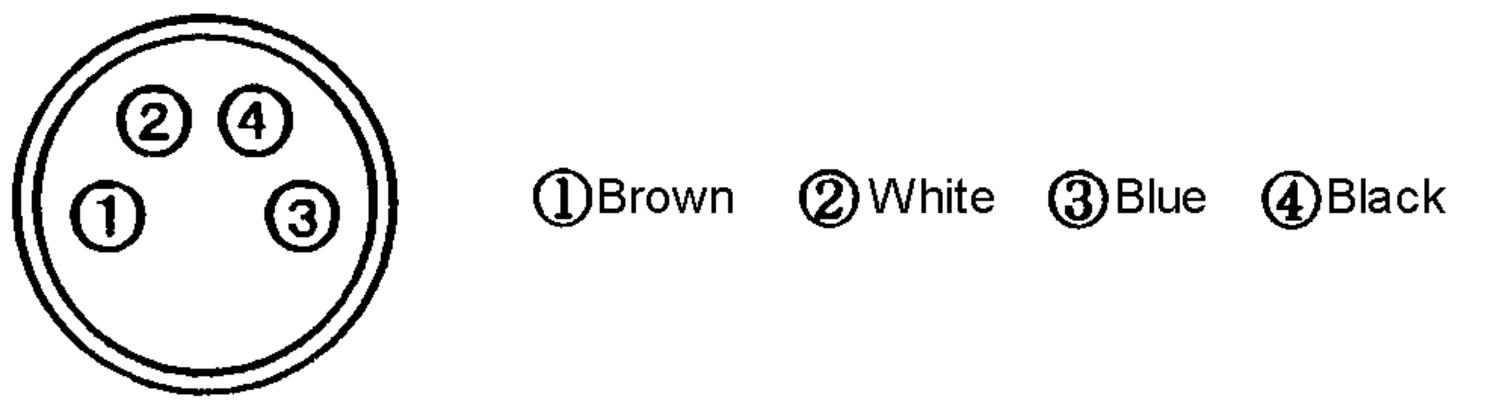

| Electrical connection | Embedded 2m cable |
| Function | Dark on / Light on |
| IP class | IP67 |
| Light type | Red LED |
| Light/dark switching | Yes |

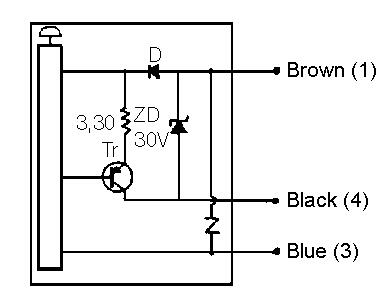

| Output | PNP |
| Photocell technology | Transmitter / receiver |
| Power consumption max | 0.022 A |
|---|---|
| Reaction time | 0.5 ms |

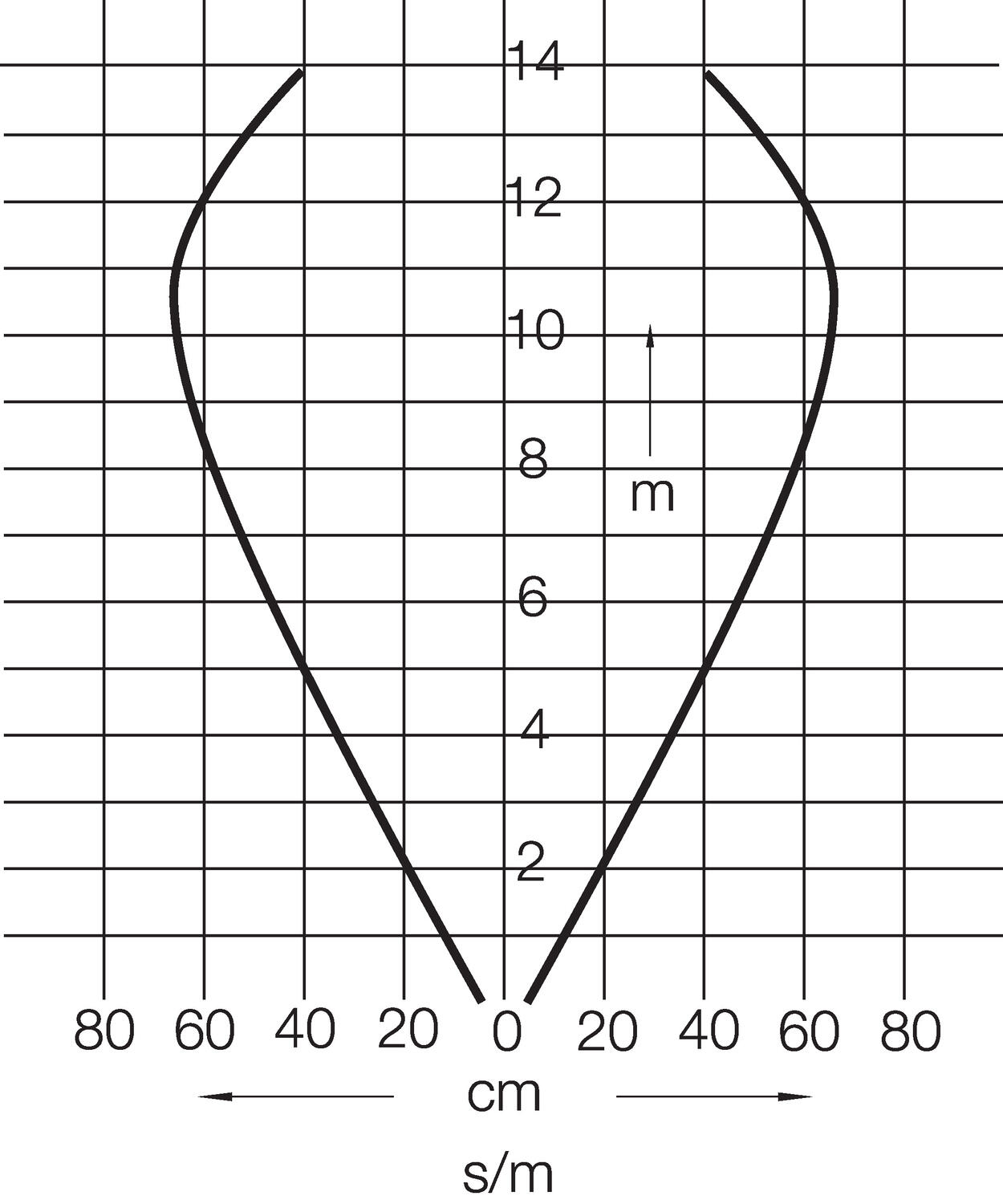

| Sensing distance | 10000 mm |
| Temperature operational max | 55 °C |
| Temperature operational min | -25 °C |
| Voltage dc max | 24 V |
| Voltage dc min | 12 V |
Product description
The GN/DN series is a series of miniature photoelectric sensors with long distances. Modern technology has allowed for the successful manufacture of a range of low-price photoelectric sensors offering high technical performance. The compact housings, together with long distances, make this series appropriate for most applications.
