Takex - G Series compact photoelectric sensor

Compact one-piece photoelectric sensor to fit narrow machines. If detection to a reflector is required, GMR2RS it a natural first choice. A polarised lens eliminates any ghost reflections. The “protective casing with bracket” accessory permits very robust and secure fitting. A separate alarm output is provided as additional security.

Read more
  • Compact one-piece photoelectric sensor
  • Cable or connector
  • Alarm output
  • IP67

Selected variant

Available in several variants

Selected variant

Technical data

Approvals CE
Distance min 0 mm
Electrical connection Embedded 2m cable
Function Dark on / Light on
IP class IP67
Light type Red LED
Light/dark switching Yes
Output PNP
Photocell technology Transmitter / receiver
Power consumption max 0.025 A
Reaction time 0.5 ms
Sensing distance 7000 mm
Temperature operational max 55 °C
Temperature operational min -25 °C
Voltage dc max 24 V
Voltage dc min 12 V

Downloads

Measurements and connections

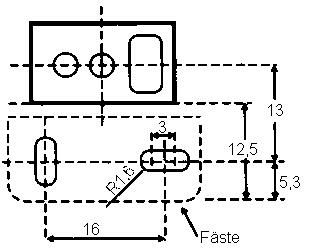

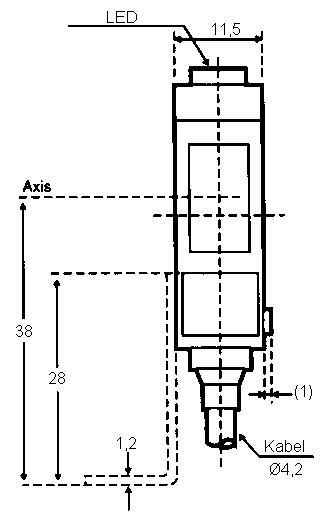

Dimensions embedded cable

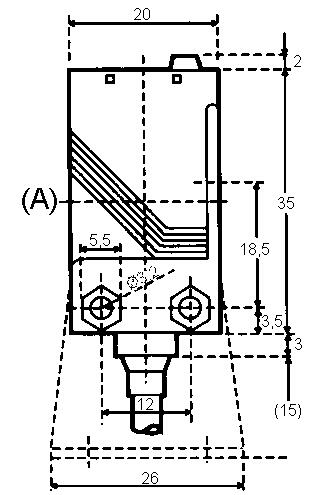

Dimensions embedded cable

Connection

In an inductive load is used, e.g. relay, a protector diode (1N 4002)
must be fitted parallel to the load. Applicable to both PNP and NPN.

Connector PNP

Cable - Brown; Pin - 1 - +12-24 V dc
Cable - Orange (white); Pin - 2 Alarm output
Cable - Blue ; Pin 3 - 0 V dc
Cable - Black ; Pin - 4 Output

Function alarm

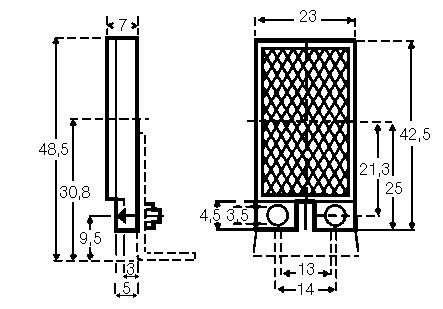

Dimensions K71

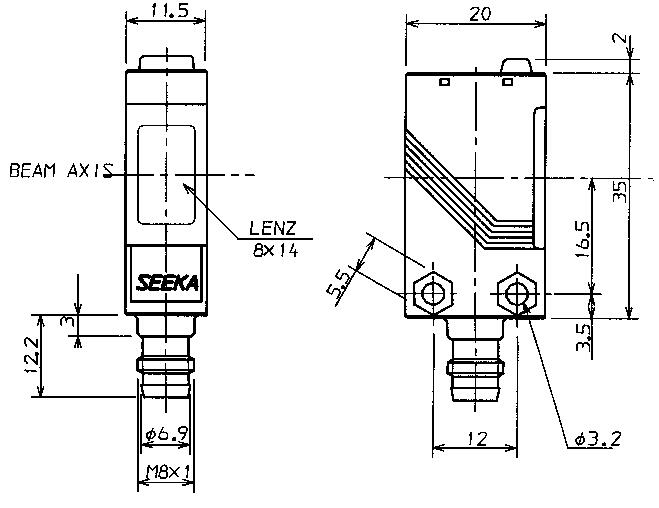

Connector dimensions

Dimension infused cabel, compact volumephotocell with many possibilities

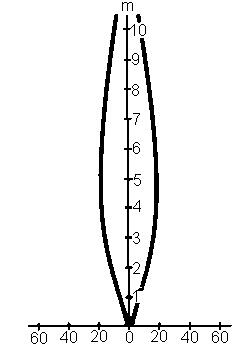

Technical illustrations

Product description

Compact one-piece photoelectric sensor to fit narrow machines. If detection to a reflector is required, GMR2RS it a natural first choice. A polarised lens eliminates any ghost reflections. The “protective casing with bracket” accessory permits very robust and secure fitting. A separate alarm output is provided as additional security.

Accessories

Related products

Related

Parts Distance max Distance min Electrical connection Photocell technology Sensing distance Price
0 mm
Embedded 2m cable
Transmitter / receiver
7000 mm
0 mm
M8 4-pole connector
Transmitter / receiver
7000 mm
1500 mm
30 mm
Embedded 2m cable
Polorised retro reflective
1500 mm
1500 mm
30 mm
M8 4-pole connector
Polorised retro reflective
1500 mm
0 mm
Embedded 2m cable
Diffuse proximity
500 mm
0 mm
M8 4-pole connector
Diffuse proximity
500 mm

Selected variant
