AE Series M8 Inductive Sensors

Electrical connection	Embedded 2m cable
IP class	IP67
LED indicator	Yes
Length	35.5 mm
Material of body	Nickel-plated brass, PBT
Mounting	Flush
Operating frequency	5000 Hz
Output	PNP NO
Output current max	200 mA

Sensing distance	2 mm
Sensor Type	Inductive
Size	M8
Supply voltage	10-30 V DC
Temperature operational max	70 °C
Temperature operational min	-25 °C
Weight	45 g

Parts	Electrical connection	IP class	LED indicator	Length	Material of body	Mounting	Operating frequency	Output	Output current max	Sensing distance	Sensor Type	Size	Supply voltage	Temperature operational max	Temperature operational min	Weight

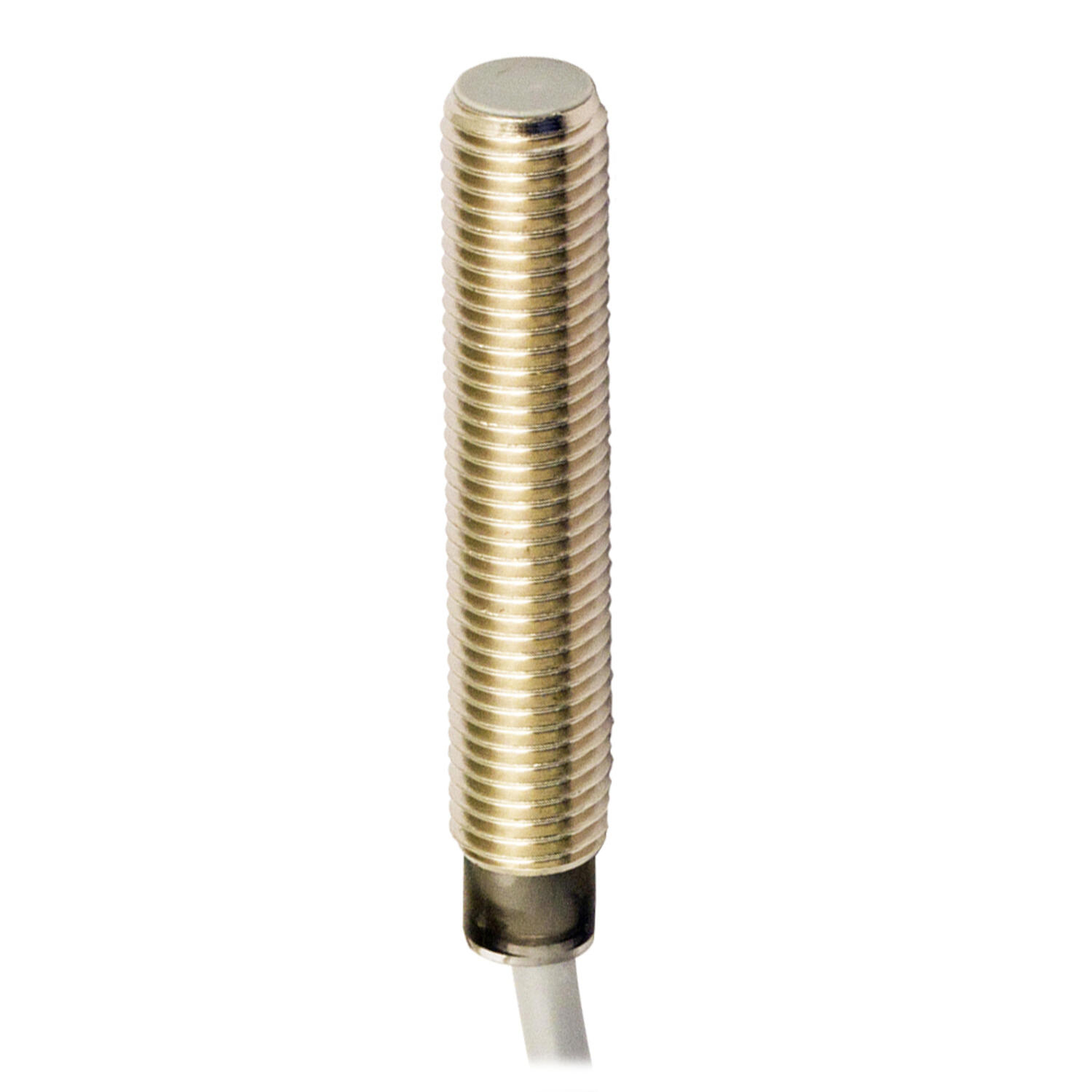

IND.SEN M8 shielded NO/PNP cable 2m Art: AE1/AP-1A Copied	Embedded 2m cable	IP67	Yes	45.5 mm	Nickel-plated brass	Flush	5000 Hz	PNP NO	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 shielded NC/PNP cable 2m Art: AE1/CP-1A Copied	Embedded 2m cable	IP67	Yes	45.5 mm	Nickel-plated brass	Flush	5000 Hz	PNP NC	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 shielded NO/NPN cable 2m Art: AE1/AN-1A Copied	Embedded 2m cable	IP67	Yes	45.5 mm	Nickel-plated brass	Flush	5000 Hz	NPN NO	200 mA	15 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 shielded NC/NPN cable 2m Art: AE1/CN-1A Copied	Embedded 2m cable	IP67	Yes	45.5 mm	Nickel-plated brass	Flush	5000 Hz	NPN NC	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 shielded NO/PNP M8 Art: AE1/AP-1F Copied	M8 3-pole connector	IP67	Yes	50 mm	Nickel-plated brass	Flush	5000 Hz	PNP NO	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 shielded NC/PNP M8 Art: AE1/CP-1F Copied	M8 3-pole connector	IP67	Yes	50 mm	Nickel-plated brass	Flush	5000 Hz	PNP NC	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g

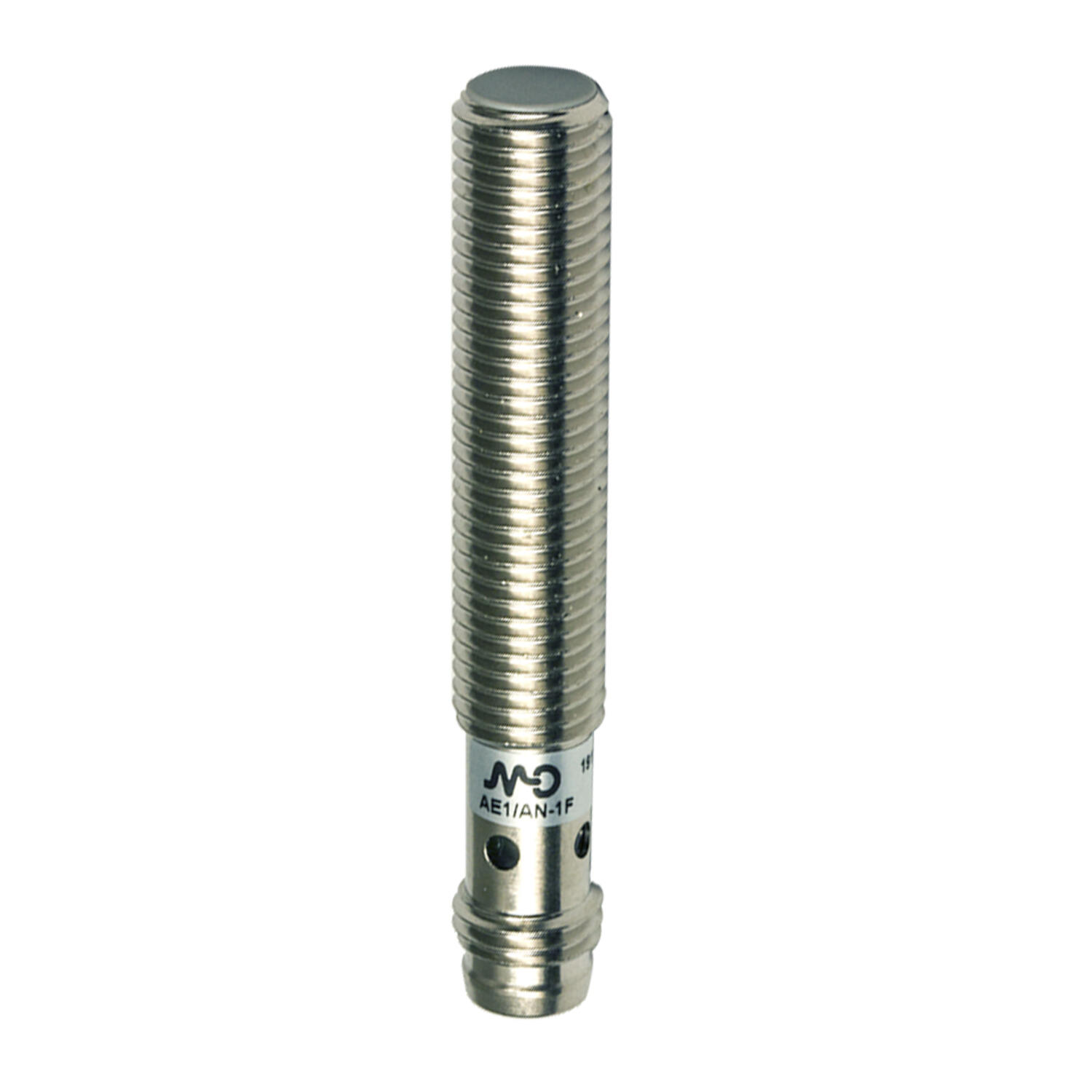

IND.SEN M8 shielded NO/NPN M8 Art: AE1/AN-1F Copied	M8 3-pole connector	IP67	Yes	50 mm	Nickel-plated brass	Flush	5000 Hz	NPN NO	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 shielded NC/NPN M8 Art: AE1/CN-1F Copied	M8 3-pole connector	IP67	Yes	50 mm	Nickel-plated brass	Flush	5000 Hz	NPN NC	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 shielded NO/PNP M12 Art: AE1/AP-1H Copied	M12 4-pin connector	IP67	Yes		Nickel-plated brass	Flush	5000 Hz	PNP NO	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 shielded NC/PNP M12 Art: AE1/CP-1H Copied	M12 4-pin connector	IP67	Yes	60 mm	Nickel-plated brass	Flush	5000 Hz	PNP NC	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 shielded NO/NPN M12 Art: AE1/AN-1H Copied	M12 4-pin connector	IP67	Yes	60 mm	Nickel-plated brass	Flush	5000 Hz	NPN NO	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 shielded NC/NPN M12 Art: AE1/CN-1H Copied	M12 4-pin connector	IP67	Yes	60 mm	Nickel-plated brass	Flush	5000 Hz	NPN NC	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 unshielded NO/PNP cable 2m Art: AE1/AP-2A Copied	Embedded 2m cable	IP67	Yes	45.5 mm	Nickel-plated brass	Non-flush	5000 Hz	PNP NO	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 unshielded NC/PNP cable 2m Art: AE1/CP-2A Copied	Embedded 2m cable	IP67	Yes	45.5 mm	Nickel-plated brass	Non-flush	5000 Hz	PNP NC	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 unshielded NO/NPN cable 2m Art: AE1/AN-2A Copied	Embedded 2m cable	IP67	Yes	45.5 mm	Nickel-plated brass	Non-flush	5000 Hz	NPN NO	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 unshielded NC/NPN cable 2m Art: AE1/CN-2A Copied	Embedded 2m cable	IP67	Yes	45.5 mm	Nickel-plated brass	Non-flush	5000 Hz	NPN NC	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g

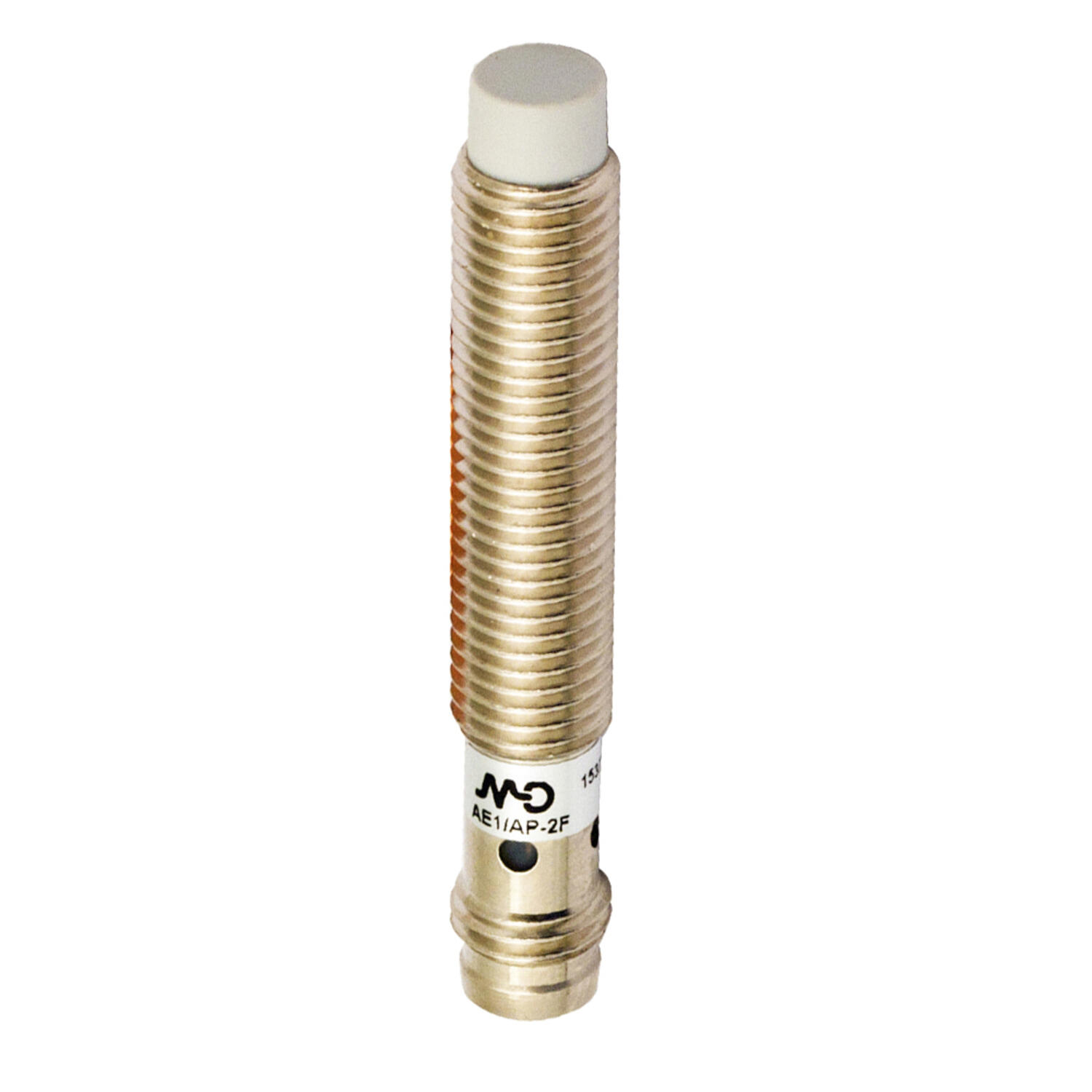

IND.SEN M8 unshielded NO/PNP M8 Art: AE1/AP-2F Copied	M8 3-pole connector	IP67	Yes	50 mm	Nickel-plated brass	Non-flush	5000 Hz	PNP NO	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 unshielded NC/PNP M8 Art: AE1/CP-2F Copied	M8 3-pole connector	IP67	Yes	50 mm	Nickel-plated brass	Non-flush	5000 Hz	PNP NC	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 unshielded NO/NPN M8 Art: AE1/AN-2F Copied	M8 3-pole connector	IP67	Yes	50 mm	Nickel-plated brass	Non-flush	5000 Hz	NPN NO	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 unshielded NC/NPN M8 Art: AE1/CN-2F Copied	M8 3-pole connector	IP67	Yes	50 mm	Nickel-plated brass	Non-flush	5000 Hz	NPN NC	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 unshielded NO/PNP M12 Art: AE1/AP-2H Copied	M12 4-pin connector	IP67	Yes	60 mm	Nickel-plated brass	Non-flush	5000 Hz	PNP NO	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 unshielded NC/PNP M12 Art: AE1/CP-2H Copied	M12 4-pin connector	IP67	Yes	60 mm	Nickel-plated brass	Non-flush	5000 Hz	PNP NC	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 unshielded NO/NPN M12 Art: AE1/AN-2H Copied	M12 4-pin connector	IP67	Yes	60 mm	Nickel-plated brass	Non-flush	5000 Hz	NPN NO	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 unshielded NC/NPN M12 Art: AE1/CN-2H Copied	M12 4-pin connector	IP67	Yes	60 mm	Nickel-plated brass	Non-flush	5000 Hz	NPN NC	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 LD shielded NO/PNP cable 2m Art: AE1/AP-3A Copied	Embedded 2m cable	IP67	Yes	45.5 mm	Nickel-plated brass	Flush	5000 Hz	PNP NO	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 LD shielded NC/PNP cable 2m Art: AE1/CP-3A Copied	Embedded 2m cable	IP67	Yes	45.5 mm	Nickel-plated brass	Flush	5000 Hz	PNP NC	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 LD shielded NO/NPN cable 2m Art: AE1/AN-3A Copied	Embedded 2m cable	IP67	Yes	45.5 mm	Nickel-plated brass	Flush	5000 Hz	NPN NO	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 LD shielded NC/NPN cable 2m Art: AE1/CN-3A Copied	Embedded 2m cable	IP67	Yes	45.5 mm	Nickel-plated brass	Flush	5000 Hz	NPN NC	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 LD shielded NO/PNP M8 Art: AE1/AP-3F Copied	M8 3-pole connector	IP67	Yes	50 mm	Nickel-plated brass	Flush	5000 Hz	PNP NO	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 LD shielded NC/PNP M8 Art: AE1/CP-3F Copied	M8 3-pole connector	IP67	Yes	50 mm	Nickel-plated brass	Flush	5000 Hz	PNP NC	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 LD shielded NO/NPN M8 Art: AE1/AN-3F Copied	M8 3-pole connector	IP67	Yes	50 mm	Nickel-plated brass	Flush	5000 Hz	NPN NO	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 LD shielded NC/NPN M8 Art: AE1/CN-3F Copied	M8 3-pole connector	IP67	Yes	50 mm	Nickel-plated brass	Flush	5000 Hz	NPN NC	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 LD shielded NO/PNP M12 Art: AE1/AP-3H Copied	M12 4-pin connector	IP67	Yes	60 mm	Nickel-plated brass	Flush	5000 Hz	PNP NO	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 LD shielded NC/PNP M12 Art: AE1/CP-3H Copied	M12 4-pin connector	IP67	Yes	60 mm	Nickel-plated brass, PBT	Flush	5000 Hz	PNP NC	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 LD shielded NO/NPN M12 Art: AE1/AN-3H Copied	M12 4-pin connector	IP67	Yes	60 mm	Nickel-plated brass, PBT	Flush	5000 Hz	NPN NO	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 shielded NC/NPN M12 Art: AE1/CN-3H Copied	M12 4-pin connector	IP67	Yes	60 mm	Nickel-plated brass, PBT	Flush	5000 Hz	NPN NC	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 LD unshielded NO/PNP cable Art: AE1/AP-4A Copied	Embedded 2m cable	IP67	Yes	45.5 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	PNP NO	200 mA	4 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 LD unshielded NC/PNP cable Art: AE1/CP-4A Copied	Embedded 2m cable	IP67	Yes	45.5 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	PNP NC	200 mA	4 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 LD unshielded NO/NPN cable Art: AE1/AN-4A Copied	Embedded 2m cable	IP67	Yes	45.5 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	NPN NO	200 mA	4 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 LD unshielded NC/NPN cable Art: AE1/CN-4A Copied	Embedded 2m cable	IP67	Yes	45.5 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	NPN NC	200 mA	4 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 LD unshielded NO/PNP conn. Art: AE1/AP-4F Copied	M8 3-pole connector	IP67	Yes	50 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	PNP NO	200 mA	4 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 LD unshielded NC/PNP M8 Art: AE1/CP-4F Copied	M8 3-pole connector	IP67	Yes	50 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	PNP NC	200 mA	4 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 LD unshielded NO/NPN M8 Art: AE1/AN-4F Copied	M8 3-pole connector	IP67	Yes	50 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	NPN NO	200 mA	4 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 LD unshielded NC/NPN M8 Art: AE1/CN-4F Copied	M8 3-pole connector	IP67	Yes	50 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	NPN NC	200 mA	4 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 LD unshielded NO/PNP conn. Art: AE1/AP-4H Copied	M12 4-pin connector	IP67	Yes	60 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	PNP NO	200 mA	4 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 LD unshielded NC/PNP M12 Art: AE1/CP-4H Copied	M12 4-pin connector	IP67	Yes	60 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	PNP NC	200 mA	4 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 unshielded NO/NPN M12 Art: AE1/AN-4H Copied	M12 4-pin connector	IP67	Yes	60 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	NPN NO	200 mA	4 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 shielded NO/PNP cable 3m Art: AE1/AP-1A84 Copied	Casting cable 3 m	IP67	Yes	45.5 mm	Nickel-plated brass, PBT	Flush	5000 Hz	PNP NO	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	60 g
IND.SEN M8 LD scher. NO/PNP cable 3m Art: AE1/AP-3A84 Copied	Casting cable 3 m	IP67	Yes	45.5 mm	Nickel-plated brass, PBT	Flush	5000 Hz	PNP NO	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	60 g
IND.SEN M8 shielded NO/PNP cable 5m Art: AE1/AP-1A86 Copied	Casting cable 5 m	IP67	Yes	45.5 mm	Nickel-plated brass, PBT	Flush	5000 Hz	PNP NO	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	80 g
IND.SEN M8 shielded NO/PNP cable 3m PUR Art: AE1/AP-1A8F84 Copied	Casting cable 3 m	IP67	Yes	45.5 mm	Nickel-plated brass, PBT	Flush	5000 Hz	PNP NO	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	60 g
IND.SEN M8 LD shielded NO/PNP cable 2m Art: AE1/AP-3A8F Copied	Embedded 2m cable	IP67	Yes	45.5 mm	Nickel-plated brass, PBT	Flush	5000 Hz	PNP NO	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 LD shielded NO/PNP cab 200mm Art: AE1/AP-3A8FVF80 Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 unshielded NO/PNP cable 3m Art: AE1/AP-2A84 Copied	Casting cable 3 m	IP67	Yes	45.5 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	PNP NO	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	60 g
IND.SEN M8 unshielded NO/PNP cable 5m Art: AE1/AP-2A86 Copied	Casting cable 5 m	IP67	Yes	45.5 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	PNP NO	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	80 g
IND.SEN M8 LD unshielded NO/PNP cable Art: AE1/AP-4A86 Copied	Casting cable 5 m	IP67	Yes	45.5 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	PNP NO	200 mA	4 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	80 g
IND.SEN M8 shielded NO/PNP cable 2m Art: AE1/AP-1AAN Copied	Embedded 2m cable	IP67	Yes	45.5 mm	Nickel-plated brass, PBT	Flush	5000 Hz	PNP NO	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 shielded NO/PNP M8 Art: AE1/AP-1FAN Copied	M8 3-pole connector	IP67	Yes	50 mm	Nickel-plated brass, PBT	Flush	5000 Hz	PNP NO	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 shielded NO/PNP M12 Art: AE1/AP-1HAN Copied	M12 4-pin connector	IP67	Yes	60 mm	Nickel-plated brass, PBT	Flush	5000 Hz	PNP NO	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 LD shielded NO/PNP conn. Art: AE1/AP-3HAN Copied	M12 4-pin connector	IP67	Yes	60 mm	Nickel-plated brass, PBT	Flush	5000 Hz	PNP NO	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 shielded NO/PNP cable 5m Art: AE1/AP-3A86AN Copied	Casting cable 5 m	IP67	Yes	45.5 mm	Nickel-plated brass, PBT	Flush	5000 Hz	PNP NO	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	80 g
IND.SEN M8 shielded NO/PNP 65mm Art: AE1/AP-1FDP Copied	M8 3-pole connector	IP67	Yes	65 mm	Nickel-plated brass, PBT	Flush	5000 Hz	PNP NO	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	25 g
IND.SEN M8 unshielded NO/PNP 65mm conn. Art: AE1/AP-2FDP Copied	M8 3-pole connector	IP67	Yes	65 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	PNP NO	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	25 g
IND.SEN M8 shielded NO/PNP Art: AE1/AP-1FE5 Copied	M8 3-pole connector	IP67	Yes	50 mm	Nickel-plated brass, PBT	Flush	5000 Hz	PNP NO	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 LD shielded NO/PNP cable 2m Art: AE1/AP-3A4W Copied	Embedded 2m cable	IP67	Yes	45.5 mm	Stainless steel 303	Flush	5000 Hz	PNP NO	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 short shielded NO/PNP cable Art: AE6/AP-1A Copied	Embedded 2m cable	IP67	Yes	35.5 mm	Nickel-plated brass, PBT	Flush	5000 Hz	PNP NO	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 short shielded NC/PNP cable Art: AE6/CP-1A Copied	Embedded 2m cable	IP67	Yes	35.5 mm	Nickel-plated brass, PBT	Flush	5000 Hz	PNP NC	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 short shielded NO/NPN cable Art: AE6/AN-1A Copied	Embedded 2m cable	IP67	Yes	35.5 mm	Nickel-plated brass, PBT	Flush	5000 Hz	NPN NO	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 short shielded NC/NPN cable Art: AE6/CN-1A Copied	Embedded 2m cable	IP67	Yes	35.5 mm	Nickel-plated brass, PBT	Flush	5000 Hz	NPN NC	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 short shielded NO/PNP M8 Art: AE6/AP-1F Copied	M8 3-pole connector	IP67	Yes	40 mm	Nickel-plated brass, PBT	Flush	5000 Hz	PNP NO	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 short shielded NC/PNP M8 Art: AE6/CP-1F Copied	M8 3-pole connector	IP67	Yes	40 mm	Nickel-plated brass, PBT	Flush	5000 Hz	PNP NC	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 short shielded NO/NPN M8 Art: AE6/AN-1F Copied	M8 3-pole connector	IP67	Yes	40 mm	Nickel-plated brass, PBT	Flush	5000 Hz	NPN NO	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 short shielded NC/NPN M8 Art: AE6/CN-1F Copied	M8 3-pole connector	IP67	Yes	40 mm	Nickel-plated brass, PBT	Flush	5000 Hz	NPN NC	200 mA	1.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g

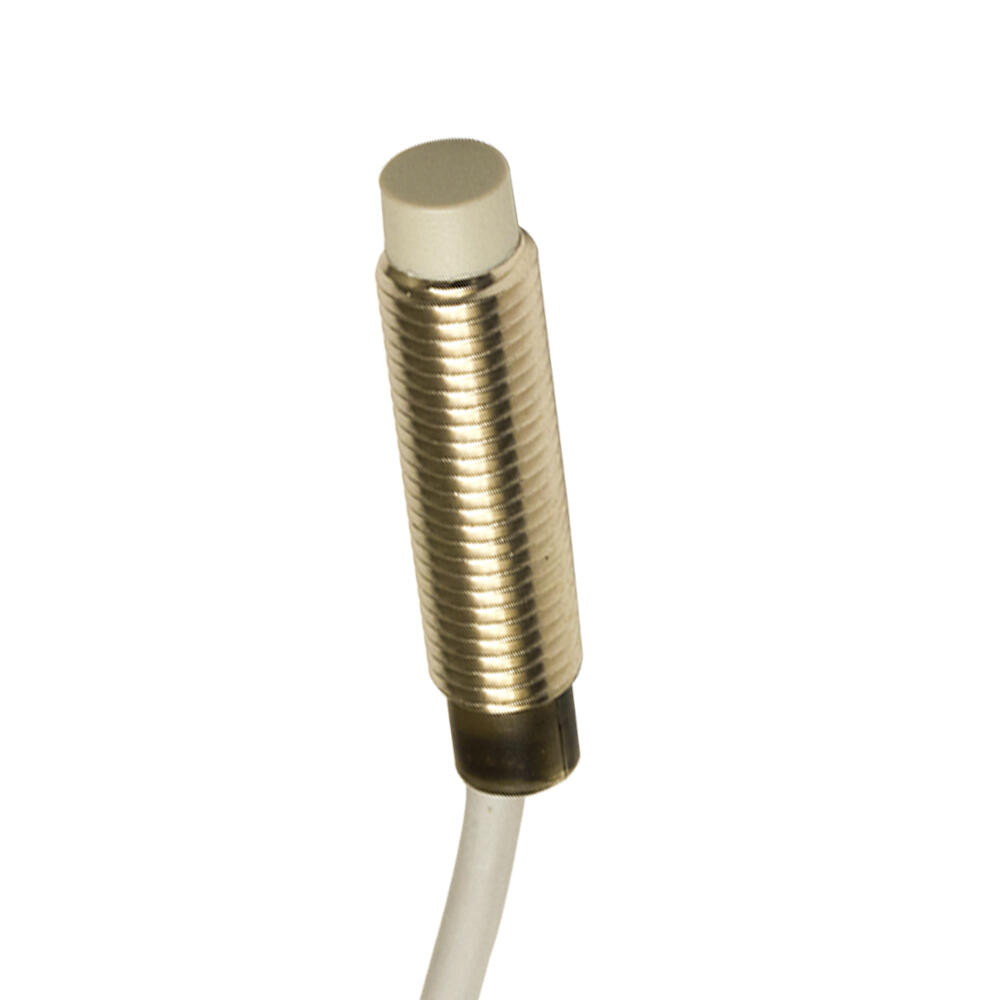

IND.SEN M8 short unshielded NO/PNP Art: AE6/AP-2A Copied	Embedded 2m cable	IP67	Yes	35.5 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	PNP NO	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 short unshielded NC/PNP cab Art: AE6/CP-2A Copied	Embedded 2m cable	IP67	Yes	35.5 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	PNP NC	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 short unshielded NO/NPN cab Art: AE6/AN-2A Copied	Embedded 2m cable	IP67	Yes	35.5 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	NPN NO	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 short unshielded NC/NPN Art: AE6/CN-2A Copied	Embedded 2m cable	IP67	Yes	35.5 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	NPN NC	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g

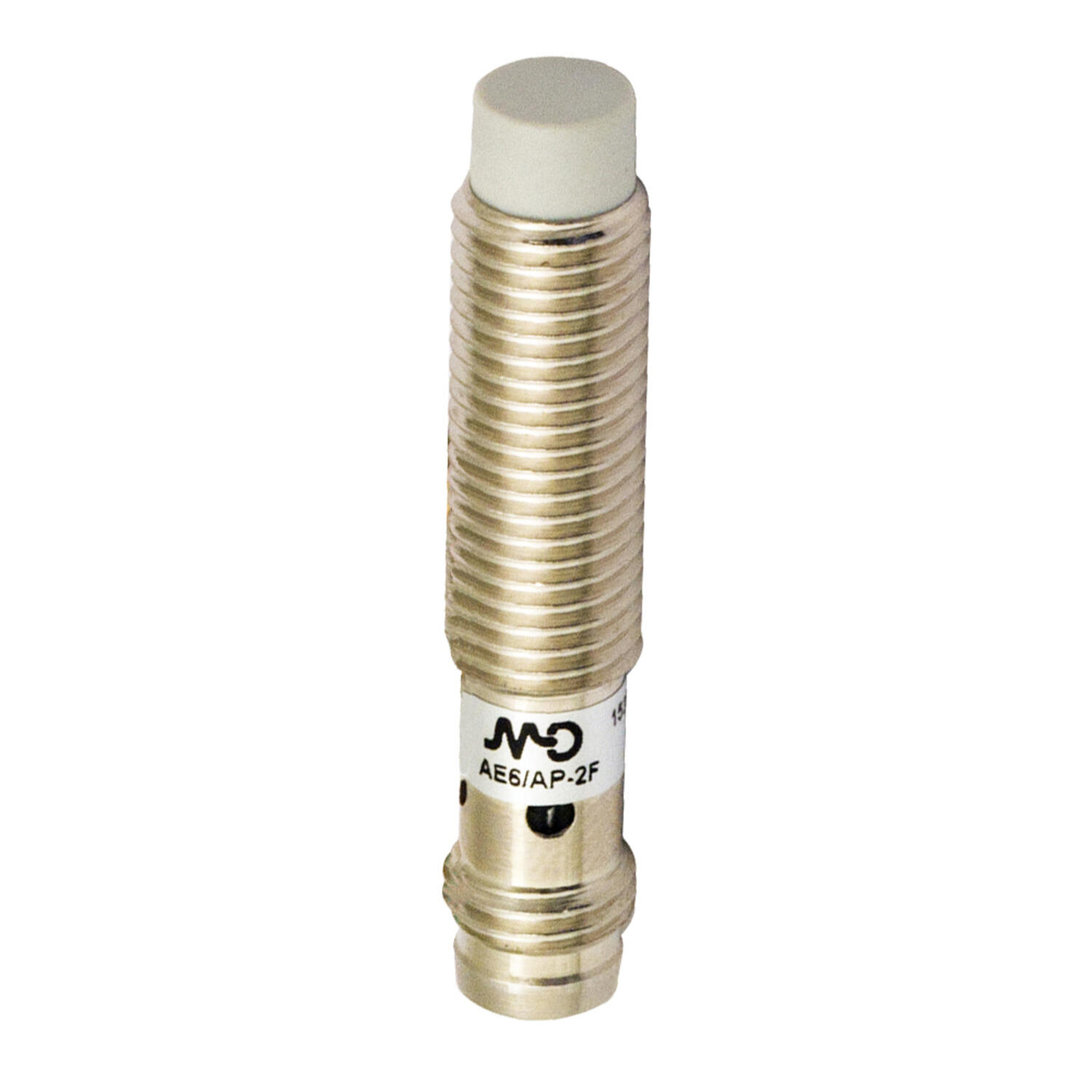

IND.SEN M8 short unshielded NO/PNP M8 Art: AE6/AP-2F Copied	M8 3-pole connector	IP67	Yes	40 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	PNP NO	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 short unshielded NC/PNP M8 Art: AE6/CP-2F Copied	M8 3-pole connector	IP67	Yes	40 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	PNP NC	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 short unshielded NO/NPN M8 Art: AE6/AN-2F Copied	M8 3-pole connector	IP67	Yes	40 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	NPN NO	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 short unshielded NC/NPN M8 Art: AE6/CN-2F Copied	M8 3-pole connector	IP67	Yes	40 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	NPN NC	200 mA	2.5 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 short LD shielded NO/PNP cab Art: AE6/AP-3A Copied	Embedded 2m cable	IP67	Yes	35.5 mm	Nickel-plated brass, PBT	Flush	5000 Hz	PNP NO	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 short LD shielded NC/PNP Art: AE6/CP-3A Copied	Embedded 2m cable	IP67	Yes	35.5 mm	Nickel-plated brass, PBT	Flush	5000 Hz	PNP NC	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 short LD shielded NO/NPN cab Art: AE6/AN-3A Copied	Embedded 2m cable	IP67	Yes	35.5 mm	Nickel-plated brass, PBT	Flush	5000 Hz	NPN NO	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 short LD shielded NC/NPN Art: AE6/CN-3A Copied	Embedded 2m cable	IP67	Yes	35.5 mm	Nickel-plated brass, PBT	Flush	5000 Hz	NPN NC	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 short LD shielded NO/PNP M8 Art: AE6/AP-3F Copied	M8 3-pole connector	IP67	Yes	40 mm	Nickel-plated brass, PBT	Flush	5000 Hz	PNP NO	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 short LD shielded NC/PNP M8 Art: AE6/CP-3F Copied	M8 3-pole connector	IP67	Yes	40 mm	Nickel-plated brass, PBT	Flush	5000 Hz	PNP NC	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 short LD shielded NO/NPN M8 Art: AE6/AN-3F Copied	M8 3-pole connector	IP67	Yes	40 mm	Nickel-plated brass, PBT	Flush	5000 Hz	NPN NO	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 short LD shielded NC/NPN M8 Art: AE6/CN-3F Copied	M8 3-pole connector	IP67	Yes	40 mm	Nickel-plated brass, PBT	Flush	5000 Hz	NPN NC	200 mA	2 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 short LD unshielded NO/PNP Art: AE6/AP-4A Copied	Embedded 2m cable	IP67	Yes	35.5 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	PNP NO	200 mA	4 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 short LD unshielded NC/PNP Art: AE6/CP-4A Copied	Embedded 2m cable	IP67	Yes	35.5 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	PNP NC	200 mA	4 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 short LD unshielded NO/NPN Art: AE6/AN-4A Copied	Embedded 2m cable	IP67	Yes	35.5 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	NPN NO	200 mA	4 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 short LD unshielded NC/NPN Art: AE6/CN-4A Copied	Embedded 2m cable	IP67	Yes	35.5 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	NPN NC	200 mA	4 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	45 g
IND.SEN M8 short LD unshielded NO/PNP M8 Art: AE6/AP-4F Copied	M8 3-pole connector	IP67	Yes	40 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	PNP NO	200 mA	4 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 short LD unshielded NC/PNP M8 Art: AE6/CP-4F Copied	M8 3-pole connector	IP67	Yes	40 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	PNP NC	200 mA	4 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 short LD unshielded NO/NPN M8 Art: AE6/AN-4F Copied	M8 3-pole connector	IP67	Yes	40 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	NPN NO	200 mA	4 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 short LD unshielded NC/NPN M8 Art: AE6/CN-4F Copied	M8 3-pole connector	IP67	Yes	40 mm	Nickel-plated brass, PBT	Non-flush	5000 Hz	NPN NC	200 mA	4 mm	Inductive	M8	10-30 V DC	70 °C	-25 °C	20 g
IND.SEN M8 0-10 V cable 2m Sn 4mm Art: AE1/D1-7A Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 LD shielded NC/NPN cable 2m Art: AE1/CN-3A76 Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 LD shielded NO/PNP M12 Art: AE1/AP-3H76 Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 LD unshielded NO/NPN cable Art: AE1/AN-4A86 Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 LD unshielded NO/PNP cable Art: AE1/AP-4A8FVF80 Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 shielded LD short NO/PNP Art: AE6/AP-3AAN Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 shielded LD short NO/PNP M8 Art: AE6/AP-3FAN Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 shielded NC/NPN cable 3m Art: AE1/CN-1A84 Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 shielded NC/NPN threaded Art: AE1/CN-1FE5 Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 shielded NC/PNP cable 10m Art: AE1/CP-1A8R Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 shielded NC/PNP cable 3m Art: AE1/CP-1A84 Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 shielded NC/PNP M8 Art: AE1/CP-1F4W Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 shielded NC/PNP M8 Art: AE1/CP-3FAN Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 shielded NO/NPN cable 2m PUR Art: AE1/AN-1A8F Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 shielded NO/NPN cable 5m Art: AE1/AN-1A86 Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 shielded NO/NPN flexible cab Art: AE1/AN-1A8Q Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 shielded NO/PNP cable 200mm Art: AE1/AP-1A8FVF80 Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 shielded NO/PNP cable 200mm Art: AE1/AP-3AVE808F Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 shielded NO/PNP M8 Art: AE1/AP-1F4W Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 shielded STD short NO/PNP Art: AE6/AP-1AAN Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 short LD shielded NC/NPN Art: AE6/CN-3A86 Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 short LD shielded NC/PNP Art: AE6/CP-3A868F4W Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 short LD shielded NO/PNP Art: AE6/AP-3F4W Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 short LD shielded NO/PNP cab Art: AE6/AP-3A86 Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 short LD shielded NO/PNP cab Art: AE6/AP-3A84 Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 short LD shielded NO/PNP PUR Art: AE6/AP-3A8FVE81 Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 short LD shielded NO/PNP PUR Art: AE6/AP-3A8F Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 short LD unshielded NO/NPN Art: AE6/AN-4AVFMA Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 short LD unshielded NO/PNP Art: AE6/AP-4A8F Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 short shielded NC/PNP cable Art: AE6/CP-1A85 Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 short shielded NO/NPN cab Art: AE6/AN-1A82 Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 short shielded NO/NPN cable Art: AE6/AN-1A85 Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 short shielded NO/NPN cable Art: AE6/AN-1A8F Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 short shielded NO/NPN cable Art: AE6/AN-1A8Q Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 short shielded NO/NPN cable Art: AE6/AN-1AAN Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 short shielded NO/PNP cable Art: AE6/AP-1A848QV5 Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 short shielded NO/PNP cable Art: AE6/AP-1A85 Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 short shielded NO/PNP cable Art: AE6/AP-1AVFAK Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 short shielded NO/PNP M8 Art: AE6/AP-1F4W Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 short unshielded NO/PNP M8 Art: AE6/AP-2F4W Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 Sn 1,5mm NC/NPN cable 2m Art: AES/CN-1A Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 Sn 1,5mm NC/NPN plug M8 Art: AES/CN-1F Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 Sn 1,5mm NC/PNP cable 2m Art: AES/CP-1A Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 Sn 1,5mm NC/PNP plug M8 Art: AES/CP-1F Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 Sn 1,5mm NO/NPN cable 2m Art: AES/AN-1A Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 Sn 1,5mm NO/NPN plug M8 Art: AES/AN-1F Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 Sn 1,5mm NO/PNP cable 2m Art: AES/AP-1A Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 Sn 1,5mm NO/PNP plug M8 Art: AES/AP-1F Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 Sn 2mm NC/NPN cable 2m Art: AES/CN-3A Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 Sn 2mm NC/NPN plug M8 Art: AES/CN-3F Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 Sn 2mm NC/PNP cable 10m Art: AES/CP-3A8R Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 Sn 2mm NC/PNP cable 2m Art: AES/CP-3A Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 Sn 2mm NC/PNP plug M8 Art: AES/CP-3F Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 Sn 2mm NO/NPN cable 2m Art: AES/AN-3A Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 Sn 2mm NO/NPN cable PUR 2m Art: AES/AN-3A8F Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 Sn 2mm NO/NPN plug M8 Art: AES/AN-3F Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 Sn 2mm NO/PNP cable 10m Art: AES/AP-3A8R Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 Sn 2mm NO/PNP cable 2m Art: AES/AP-3A Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 Sn 2mm NO/PNP plug M8 Art: AES/AP-3F Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 Sn 2mm NO/PNP PUR cable 2m Art: AES/AP-3A8F Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 unshielded NC/PNP cable 10m Art: AE1/CP-2A8R Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 unshielded NO/NPN cable 5m Art: AE1/AN-2A86 Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 unshielded NO/PNP Art: AE1/AP-4FAN Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 unshielded NO/PNP cable 5m Art: AE1/AP-4AAN Copied		IP67	Yes		Nickel-plated brass, PBT		5000 Hz		200 mA		Inductive	M8	10-30 V DC	70 °C	-25 °C
IND.SEN M8 unshielded short NO/PNP conn. Art: AE6/AP-2FAN Copied
