DATASENSING
Features:
Â
Â
3 year warranty.
Â
Applications

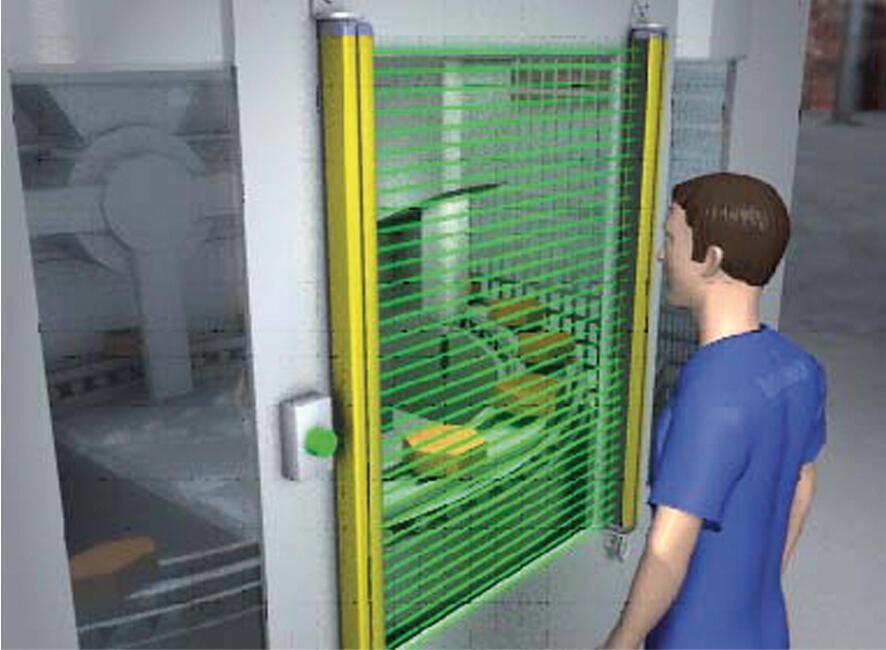

Hand protection (R ≤30 mm)
Â
Â
Â
Â
| Approvals | CE, cULus, TÃœV |
|---|---|

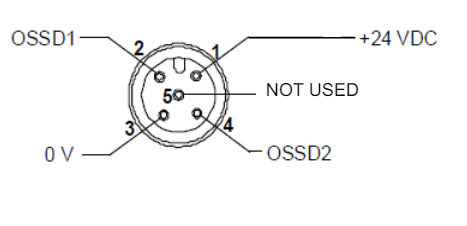

| Cable connection receiver | M12, 4-pole |

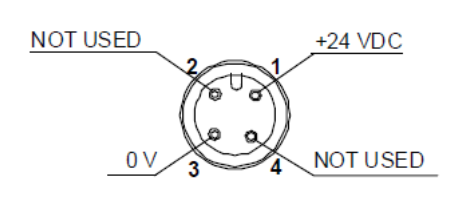

| Cable connection transmitter | M12, 4-pole |
| Cable length max | 50 m |
| Contact current max | 0.5 A |
| DC | 98,80% |
| In compliance with | EMC, LVD, MD |
| IP class | IP65 |
| LED indication | 6 x LED, 7-segment (SSD) display |
| Material of body | Aluminium |
| MTTFd | 444 year(s) |
| Number of beams | 8 |
| PL | e (EN ISO 13849-1) |
| Power consumption | Transmitter max 2,5 W. Receiver 3,5 W (without load) |
| Protection height | 150 mm |
|---|---|
| Range | 0,2-19 m |
| Reaction time | 9 ms |
| Safe outputs | 2 OSSD |
| SFF | 99,30 % |
| SIL | 3 (EN IEC 61508) |
| Supply voltage | 24 V DC, stabilized |
| T1 (Life time in years) | 20 |
| Temperature operational max | 55 °C |
| Temperature operational min | 0 °C |
| Type | 4 |
| Voltage tolerance | ±20 % |
Features:
Â
Â
3 year warranty.
Â
Applications
Hand protection (R ≤30 mm)
Â
Â
Â
Â
We are pleased to announce that OEM Automatic Ltd has acquired Motion29 Ltd. Bringing together the expertise, products, and services of both organisations under both the OEM and Motion29 brands, strengthening our overall offering.
Discover how fault masking is compromising the safety of your workplace and find out how OEM Automatic can help you to prevent it completely. Creating a safe and secure work environment.
Learn more about Inxpect radar systems. The worlds first SIL 2/PL d certified, radar-based safety system for use around hazardous machinery.
Whether you're working with opaque materials or transparent items like glass or plastic, these sensors deliver reliable performance across a wide range of applications.
OEM Automatics Safety Experts guide you through the process of setting up your light curtains & barriers, to protect your people and equipment.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Number of beams | Protection height | Reaction time | Price | ||
|---|---|---|---|---|---|---|
SG4 BASE Type 4 Res= 30mm H= 150mm
Art:
SG4-30-015-OO-X
Copied
|
8
|
150 mm
|
9 ms
|
|
||
|
957901580 Type 4 30mm Finger Res 300mm Protection Height
Art:
SG4-30-030-OO-X
Copied
|
16
|
300 mm
|
11 ms
|
|
||
|
957901590 Type 4 30mm Finger Res 450mm Protection Height
Art:
SG4-30-045-OO-X
Copied
|
24
|
450 mm
|
13 ms
|
|
||
|
957901600 Type 4 30mm Finger Res 600mm Protection Height
Art:
SG4-30-060-OO-X
Copied
|
32
|
600 mm
|
14 ms
|
|
||
|
SG4-30-075-OO-X 30mm, Auto Reset
Art:
SG4-30-075-OO-X
Copied
|
40
|
750 mm
|
16 ms
|
|
||
|
957901620 Type 4 30mm Finger Res 900mm Protection Height
Art:
SG4-30-090-OO-X
Copied
|
48
|
900 mm
|
18 ms
|
|
||
|
957901630 Type 4 30mm Finger Res 1050mm Protection Height
Art:
SG4-30-105-OO-X
Copied
|
56
|
1050 mm
|
19 ms
|
|
||
|
957901640 Type 4 30mm Finger Res 1200mm Protection Height
Art:
SG4-30-120-OO-X
Copied
|
64
|
1200 mm
|
21 ms
|
|
||
|
957901650 Type 4 30mm Finger Res 1350mm Protection Height
Art:
SG4-30-135-OO-X
Copied
|
72
|
1350 mm
|
23 ms
|
|
||
|
957901660 Type 4 30mm Finger Res 1500mm Protection Height
Art:
SG4-30-150-OO-X
Copied
|
80
|
1500 mm
|
25 ms
|
|
||
|
957901670 Type 4 30mm Finger Res 1650mm Protection Height
Art:
SG4-30-165-OO-X
Copied
|
88
|
1650 mm
|
26 ms
|
|
||
|
SG4-30-180-OO-X 30mm RES TYPE 4 1800mm H
Art:
SG4-30-180-OO-X
Copied
|
96
|
1800 mm
|
28 ms
|
|
Select a variant in the list
