Datalogic - SG4-Finger
SG4-Finger is a safety light curtain with a range of up to 6 metres.
This Type 4 light curtain maintains the highest safety level according to the latest safety standards EN ISO 13849-1 and EN 62061.
SG4-Finger curtain has built-in monitored reset, an input for monitoring of external contactors and two solid state safety outputs which are also electronically monitored.
This means that the SG4-Finger can work as a "standalone" unit if required and is not in need of any special control unit.
- Range up to 6 m
- Protection height 150-1800 mm
- Type 4 (PLe SIL 3)
- Compact profile
Selected variant
Technical data
| Additional features | EDM, reset (automatic/manual), test input |
|---|---|
| Approvals | CE, cULus, TÜV |

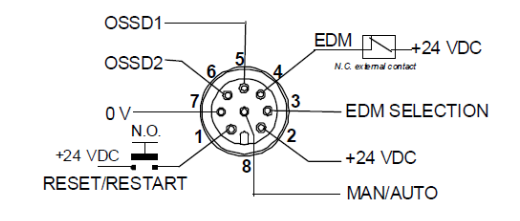

| Cable connection receiver | M12, 8-pole |

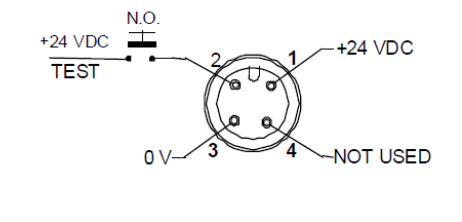

| Cable connection transmitter | M12, 4-pole |
| Cable length max | 50 m |
| Contact current max | 0.5 A |
| DC | 99 % |
| Function | Manual/automatic restart, EDM |
| In compliance with | EMC, LVD, MD |
| IP class | IP65 |
| LED indication | 6 x LED, 7-segment (SSD) display |
| Material of body | Aluminium |
| MTTFd | 444 year(s) |
| Number of beams | 16 |
| PL | e (EN ISO 13849-1) |
| Power consumption | Transmitter max. 2,5 W, receiver 3,5 W (without load) |
|---|---|
| Protection height | 150 mm |
| Range | 0,2-6 m |
| Reaction time | 11 ms |
| Resolution | 14 mm |
| Safe outputs | 2 OSSD |
| SIL | 3 (EN IEC 62061) |
| Supply voltage | 24 V DC |
| T1 (Life time in years) | 20 |
| Temperature operational max | 55 °C |
| Temperature operational min | 0 °C |
| Type | Finger and hand protection |
| Voltage tolerance | ±20 % |
Product description
SG4-Finger is a safety light curtain with a range of up to 6 metres.
This Type 4 light curtain maintains the highest safety level according to the latest safety standards EN ISO 13849-1 and EN 62061.
SG4-Finger curtain has built-in monitored reset, an input for monitoring of external contactors and two solid state safety outputs which are also electronically monitored.
This means that the SG4-Finger can work as a "standalone" unit if required and is not in need of any special control unit.
